AxiCool Unit Cooler / Evaporator - „Plug & Play“ Fan series

1. AxiCoolUnit Cooler / Evaporator - „Plug & Play“ Fan series • GLV955 - GTB/MM-November 2013 1

2. Table of content • Unit Coolers today • Target and value proposition • Our solution: AxiCool • Facts and features • Compactness & Easy mounting “Plug & Play” • Product range • Conclusion GLV955

3. 1. Unit Coolers today • Typical concept with short nozzle • Sucking over the coil • Metal basket fingerguards • With terminal box • Low efficient AC fans with on / off operation GLV955 3

4. 1. Unit Coolers today Market key factors • Service friendliness / robustness (ice, easy cleaning, lifetime) • Throw distance • Efficiency / power consumption (ErP) • Controllability GLV955

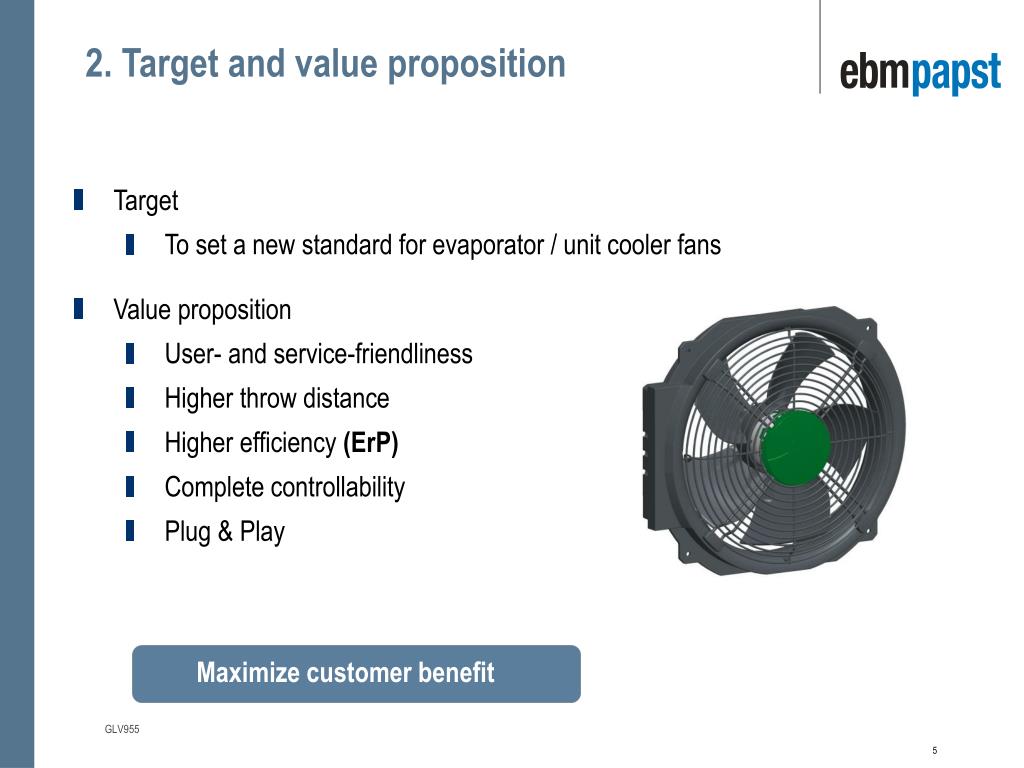

5. 2. Target and value proposition • Target • To set a new standard for evaporator / unit cooler fans • Value proposition • User- and service-friendliness • Higher throw distance • Higher efficiency (ErP) • Complete controllability • Plug & Play • Maximize customer benefit GLV955 5

6. 3. Our solution: AxiCoolThe right product for your success Air Guiding Version Standard Version High-end Version Hinge Version GLV955

7. 3. Our solution: AxiCoolThe right product for your success Standard Version Hinge Version Air Guiding Version High-end Version Available in both air flow directions For air flow direction V GLV955

8. 4. Facts and features User and service friendliness – clean environment • All Versions with: • Smooth surface to ensure highest dirt protection • Sturdy metal guard grill • High splash water protection (up to IP 54) • Air Guiding and High-end Versions with: • Easy removable Air Guiding System • “Easy fold function” to swing out the fan for easy access to the exchanger • High hygienic level to match the HACCP-Regulation GLV955

9. 4. Facts and features User and service friendliness – clean environment • Air Guiding and High-end Versions with: • Easy removableAir Guiding System • “Easy fold function” GLV955

10. 4. Facts and features User and service friendliness – easy fold function • Air Guiding and High-end Versions with: • Easy removableAir Guiding System • “Easy fold function” • Easy cleaning process of the heat exchanger • Fan can be folded away, while hinge is fixed to housing GLV955

11. 4. Facts and features Higher throw distance - Air Guiding System • Up to double throw distance at comparable air flow • For a homogeneous cold distribution GLV955

12. 4. Facts and features Higher efficiency - optimized cooling and defrosting cycles • Shorter defrosting cycles due to special wall ring design • Cavity plasticwall ring with heating tape optimizes defrosting process  less heat load • Water will run out through integrated drain channels  avoids icing Disassembled wall ring, while ventilator is folded away Easy heating tape integration (by customer) Integrated drain channels GLV955

13. 4. Facts and features Higher efficiency • Measured fan size: 350 mm [W] Energy consumption - 25%* - 25% energy consumption compared to an PSC fan • * depending on application GLV955

14. 4. Facts and features Higher efficiency - examples for energy savings • Unit operates 6.000h/year • Price per kWh = 0,13 € Energy savings up to 42 € per fan/year • * depending on application GLV955

15. 4. Facts and features Complete controllability Condenser • High efficiency also in part load operation • Improved system efficiency • Full temperature control • Optimum system profitability • Controllability options: 2- steps or 0 – 10 V expansionvalve com-pressor Evaporator • Everything under control Refrigeration circuit GLV955

16. 4. Facts and features Complete controllability • Optimized air distribution inside the cold storage • Individual adaptability for special cooling requirements • Short cooling-off time • Homogeneous temperatures at the stored goods • Minimized temperature deviations • To keep the quality of the storaged goods • Ripening process (i.e. cheese) • Sensible vegetables & fruits GLV955

17. 5. Compactness & Easy mounting Plug & Play • Compactness & Easy mounting • Only four screws to fix • 87,6 mmsize 300 mm GLV955

18. 6. Product range • Product matrix GLV955

19. 7. ConclusionMarket key factors and ebm-papst answers Service friendlinessand robustness(ice, easy cleaning) Efficiency andpower consumption (ErP) Throw distance Controllability GLV955

20. 7. ConclusionMarket key factors and ebm-papst answers Service friendlinessand robustness Efficiency andpower consumption (ErP) Wall ring design, smooth surface, metal guard, spray water protection,easy fold function Throw distance Controllability GLV955

21. 7. ConclusionMarket key factors and ebm-papst answers Service friendlinessand robustness Efficiency andpower consumption Wall ring design, smooth surface, metal guard, spray water protection,easy fold function ebm-papst Green TechEC-Technology Throw distance Controllability GLV955

22. 7. ConclusionMarket key factors and ebm-papst answers Service friendlinessand robustness Efficiency andpower consumption Wall ring design, smooth surface, metal guard, spray water protection,easy fold function ebm-papst Green TechEC-Technology Air Guide Controllability Throw distance GLV955

23. 7. ConclusionMarket key factors and ebm-papst answers Service friendlinessand robustness Efficiency andpower consumption Wall ring design, smooth surface, metal guard, spray water protection,easy fold function ebm-papst Green TechEC-Technology ebm-papst Green TechEC-Technology Air Guide Throw distance Controllability GLV955

24. 7. Conclusion • EC- Fan • + High hygienic level • + Easy fold function • + Air Guide • + Wall ring design • AxiCool = 100% customer benefit GLV955

25. AxiCoolEvaporator Plug & Play fan solution GLV955 - GTB/MM-November 2013

26. AxiCoolProduct overview AxiCool EC fan overview 3 AxiCool AC fan overview 4 GLV955

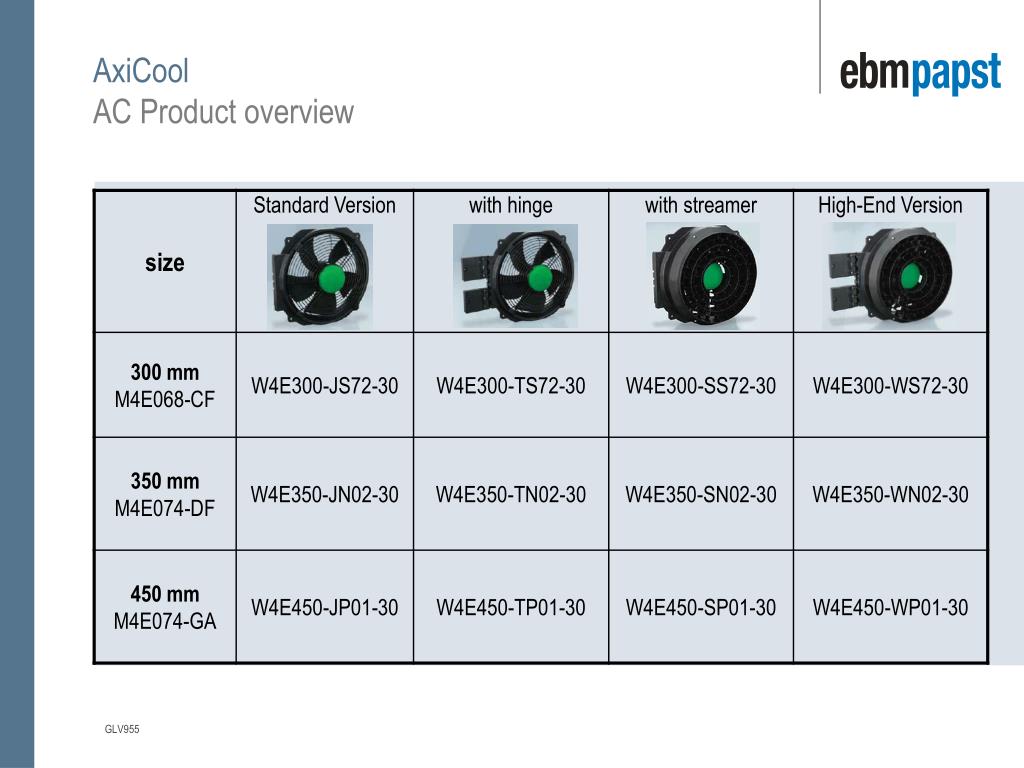

27. AxiCoolEC Product overview GLV955
