  1. ETX-102 V3.5 General AvailabilityJuly-2007 Ron Agam Senior Product Line Manager, ETX Product Line Ron_A@rad.com

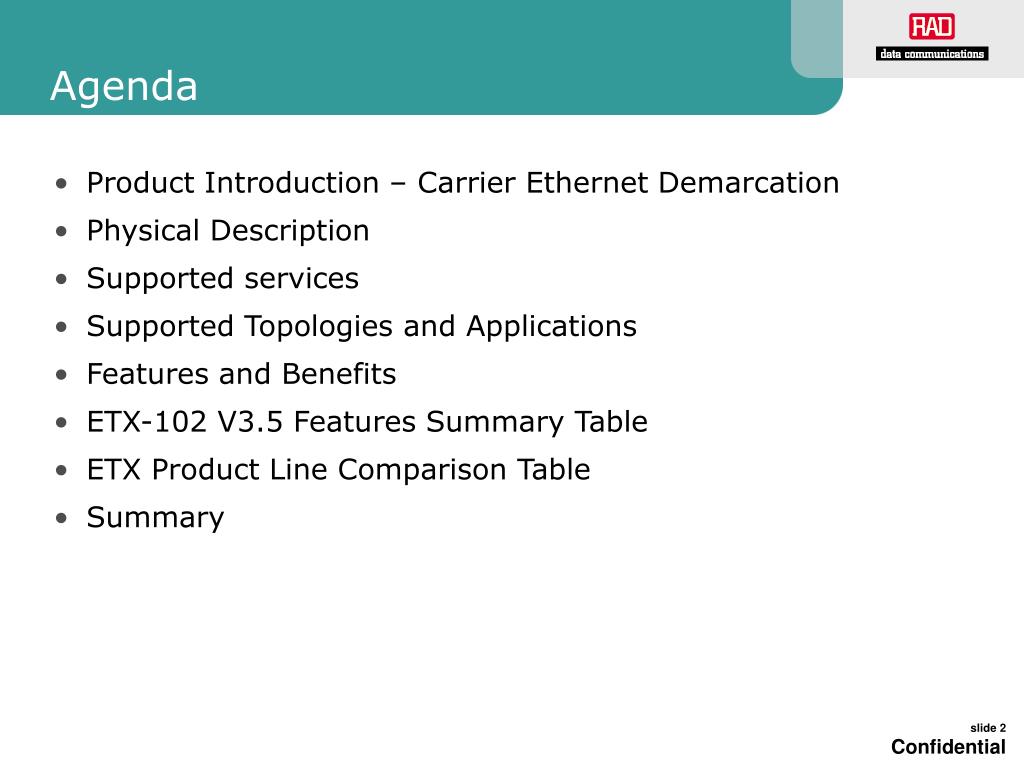

  2. Agenda • Product Introduction – Carrier Ethernet Demarcation • Physical Description • Supported services • Supported Topologies and Applications • Features and Benefits • ETX-102 V3.5 Features Summary Table • ETX Product Line Comparison Table • Summary

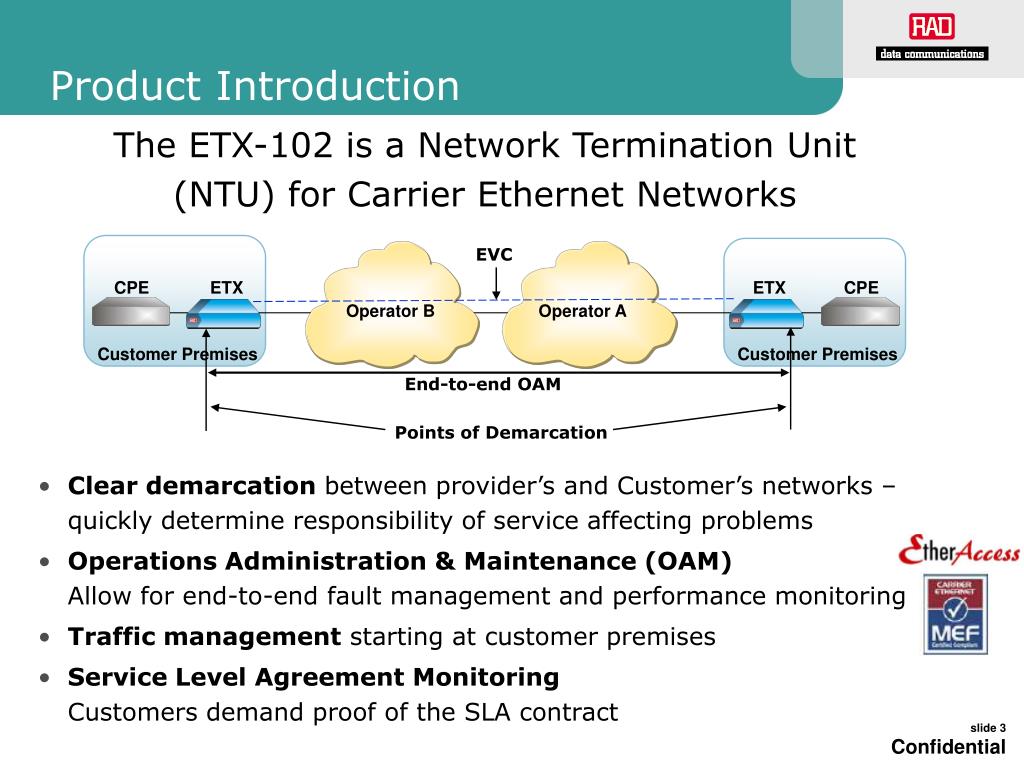

  3. Product Introduction The ETX-102 is a Network Termination Unit (NTU) for Carrier Ethernet Networks • Clear demarcation between provider’s and Customer’s networks – quickly determine responsibility of service affecting problems • Operations Administration & Maintenance (OAM)Allow for end-to-end fault management and performance monitoring • Traffic management starting at customer premises • Service Level Agreement MonitoringCustomers demand proof of the SLA contract EVC CPE ETX ETX CPE Operator B Operator A Customer Premises Customer Premises End-to-end OAM Points of Demarcation

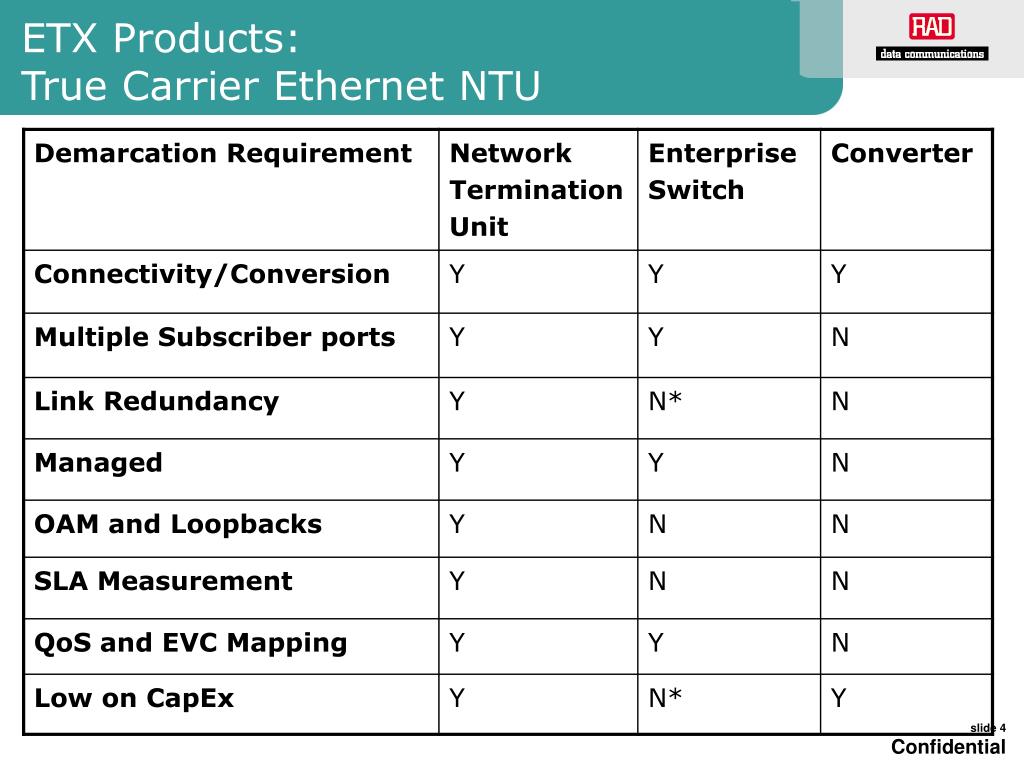

  4. ETX Products:True Carrier Ethernet NTU

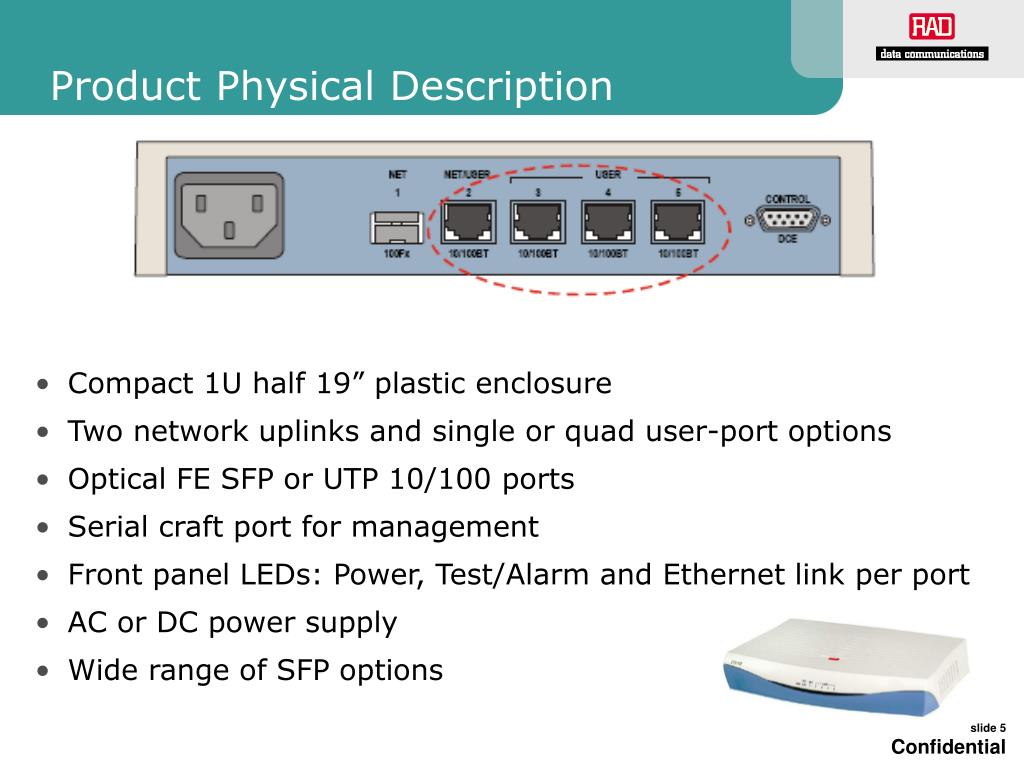

  5. Product Physical Description • Compact 1U half 19” plastic enclosure • Two network uplinks and single or quad user-port options • Optical FE SFP or UTP 10/100 ports • Serial craft port for management • Front panel LEDs: Power, Test/Alarm and Ethernet link per port • AC or DC power supply • Wide range of SFP options

  6. ETX NTU – Product Overview

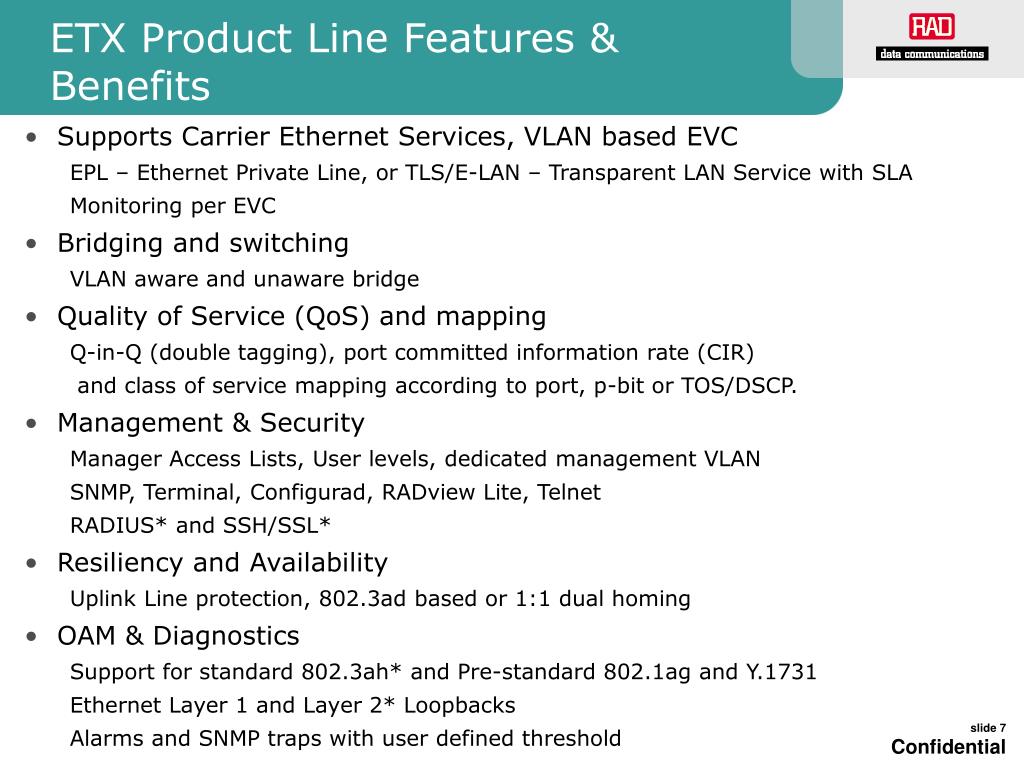

  7. ETX Product Line Features & Benefits • Supports Carrier Ethernet Services, VLAN based EVC EPL – Ethernet Private Line, or TLS/E-LAN – Transparent LAN Service with SLA Monitoring per EVC • Bridging and switching VLAN aware and unaware bridge • Quality of Service (QoS) and mapping Q-in-Q (double tagging), port committed information rate (CIR) and class of service mapping according to port, p-bit or TOS/DSCP. • Management & Security Manager Access Lists, User levels, dedicated management VLAN SNMP, Terminal, Configurad, RADview Lite, Telnet RADIUS* and SSH/SSL* • Resiliency and Availability Uplink Line protection, 802.3ad based or 1:1 dual homing • OAM & Diagnostics Support for standard 802.3ah* and Pre-standard 802.1ag and Y.1731 Ethernet Layer 1 and Layer 2* Loopbacks Alarms and SNMP traps with user defined threshold

  8. Supported Ethernet Service Delivery VLANs Sales Customer Service Engineering Ethernet Private Line • ISP connectivity • Storage connectivity Multipoint-to-Multipoint EVC UNI 1 UNI 2 MEN UNI 3 VLANs Engineering Point-to-Point EVCs (dedicated BW) VLANs Sales Customer Service Storage SP Ethernet UNI UNI 4 Ethernet UNI VLANs Sales CE MEN CE ISP POP Ethernet UNI Internet CE Ethernet UNI • Transparent LAN Service • Providing LAN over the WAN Ethernet Private Line using E-Line Service type

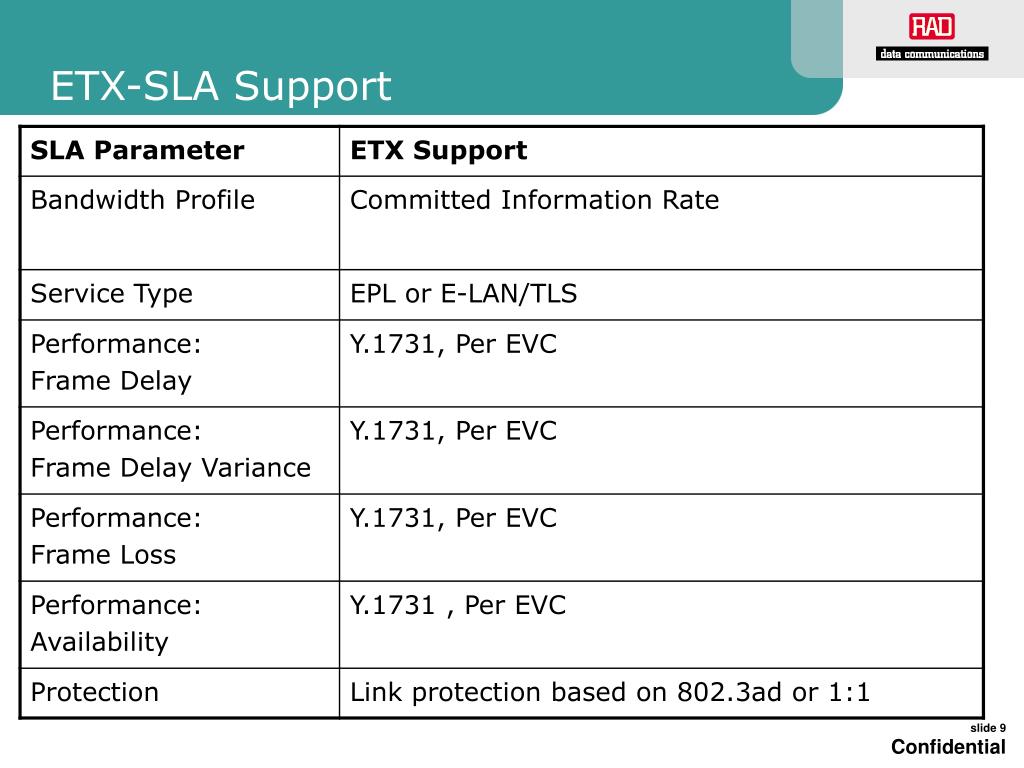

  9. ETX-SLA Support

  10. Switching and Bridging • Working modes: • VLAN-unaware bridging • VLAN-aware bridging (802.1Q and 802.1p) • MAC entries: 8K • Static and/or dynamic learning • Configurable aging time • Number of VLANs: up to 64 • Max frame size: 1632 bytes • Transparent to all Ethernet control protocols except Flow control can be peered or discarded, 802.3ah can be peered or transparent

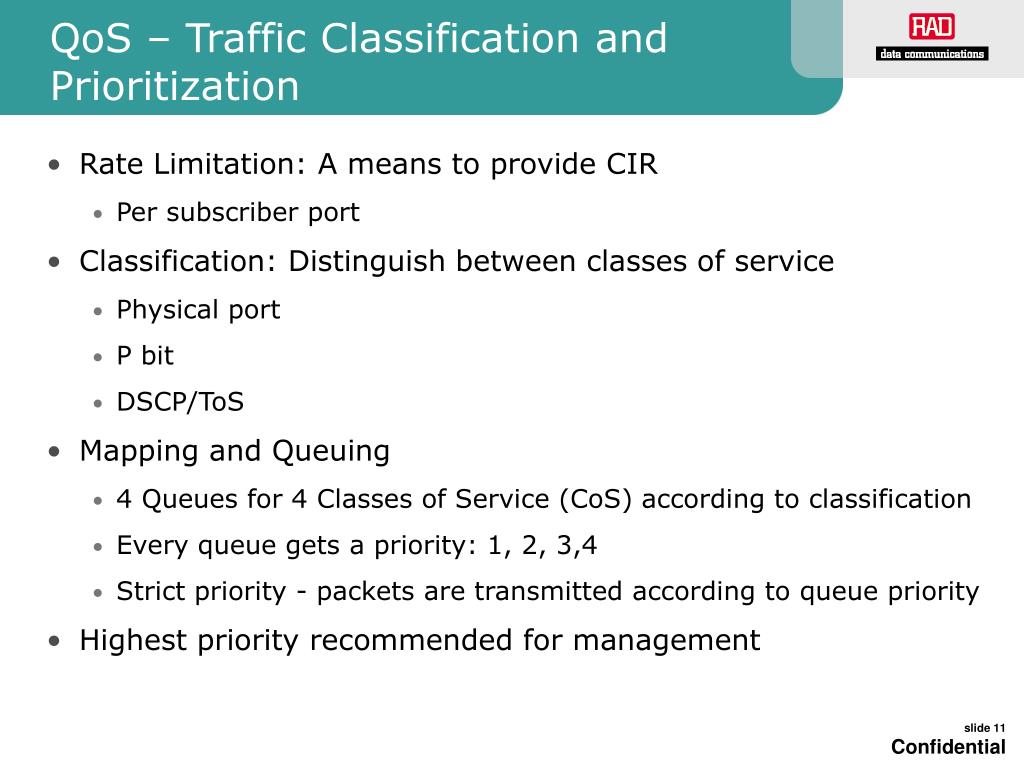

  11. QoS – Traffic Classification and Prioritization • Rate Limitation: A means to provide CIR • Per subscriber port • Classification: Distinguish between classes of service • Physical port • P bit • DSCP/ToS • Mapping and Queuing • 4 Queues for 4 Classes of Service (CoS) according to classification • Every queue gets a priority: 1, 2, 3,4 • Strict priority - packets are transmitted according to queue priority • Highest priority recommended for management

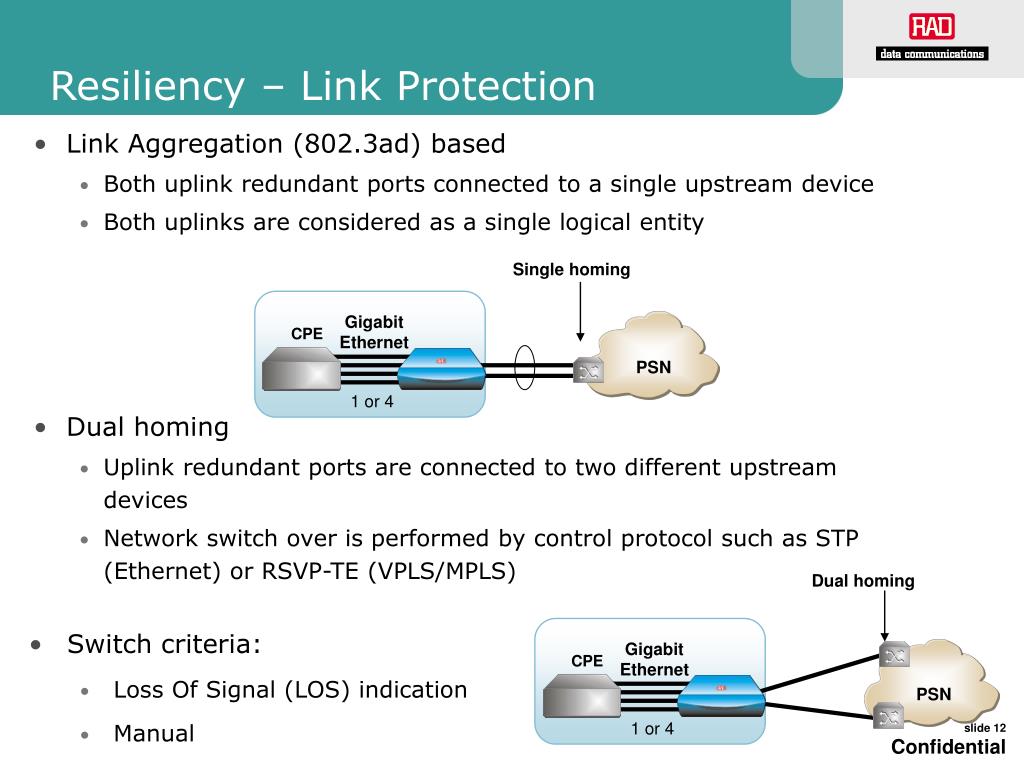

  12. PSN PSN Resiliency – Link Protection • Link Aggregation (802.3ad) based • Both uplink redundant ports connected to a single upstream device • Both uplinks are considered as a single logical entity • Dual homing • Uplink redundant ports are connected to two different upstream devices • Network switch over is performed by control protocol such as STP (Ethernet) or RSVP-TE (VPLS/MPLS) Single homing Gigabit Ethernet CPE 1 or 4 Dual homing • Switch criteria: • Loss Of Signal (LOS) indication • Manual Gigabit Ethernet CPE 1 or 4

  13. Operations Administration & Maintenance

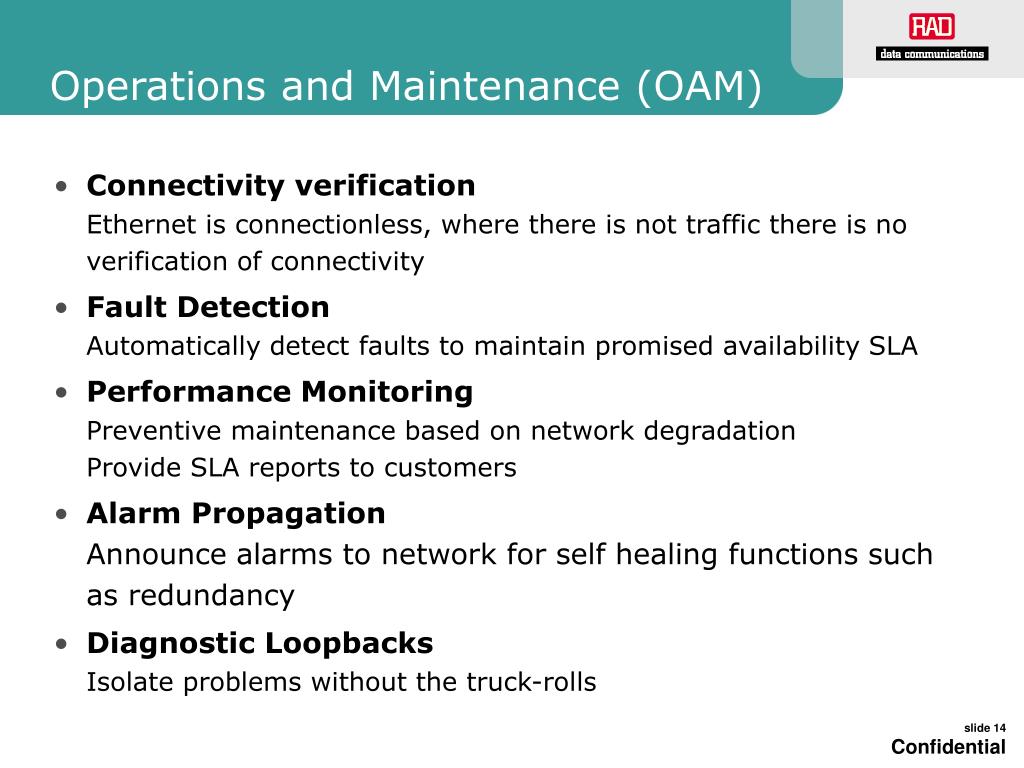

  14. Operations and Maintenance (OAM) • Connectivity verificationEthernet is connectionless, where there is not traffic there is no verification of connectivity • Fault DetectionAutomatically detect faults to maintain promised availability SLA • Performance MonitoringPreventive maintenance based on network degradationProvide SLA reports to customers • Alarm PropagationAnnounce alarms to network for self healing functions such as redundancy • Diagnostic LoopbacksIsolate problems without the truck-rolls

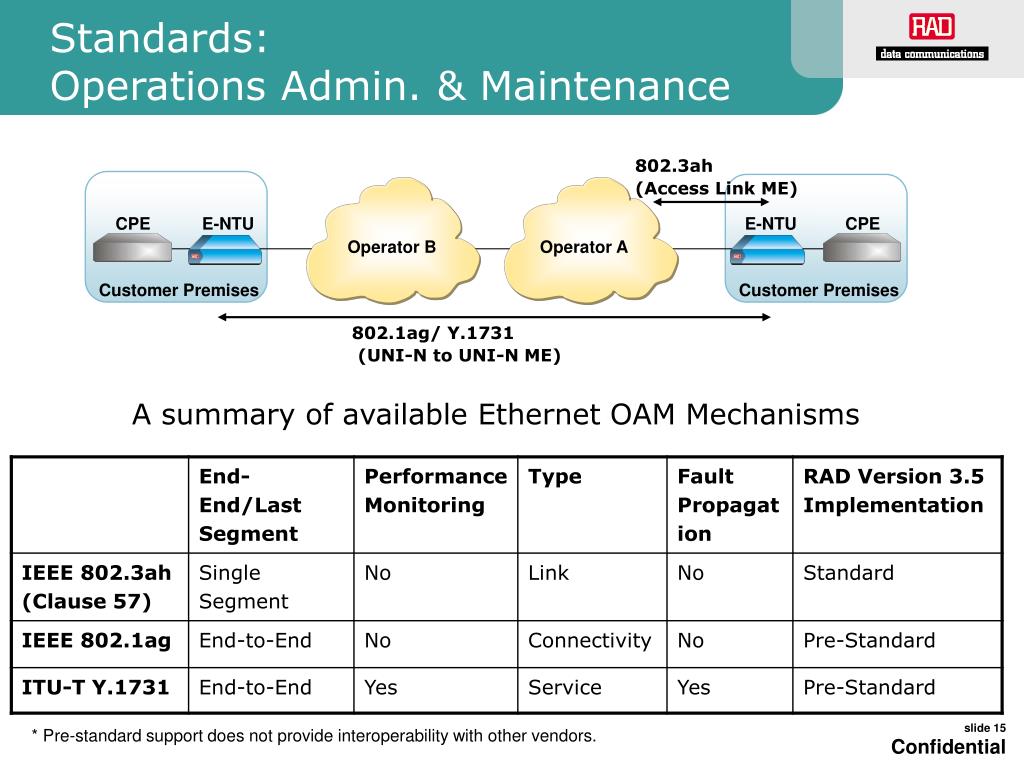

  15. Standards:Operations Admin. & Maintenance 802.3ah (Access Link ME) A summary of available Ethernet OAM Mechanisms CPE E-NTU E-NTU CPE Operator B Operator A Customer Premises Customer Premises 802.1ag/ Y.1731 (UNI-N to UNI-N ME) * Pre-standard support does not provide interoperability with other vendors.

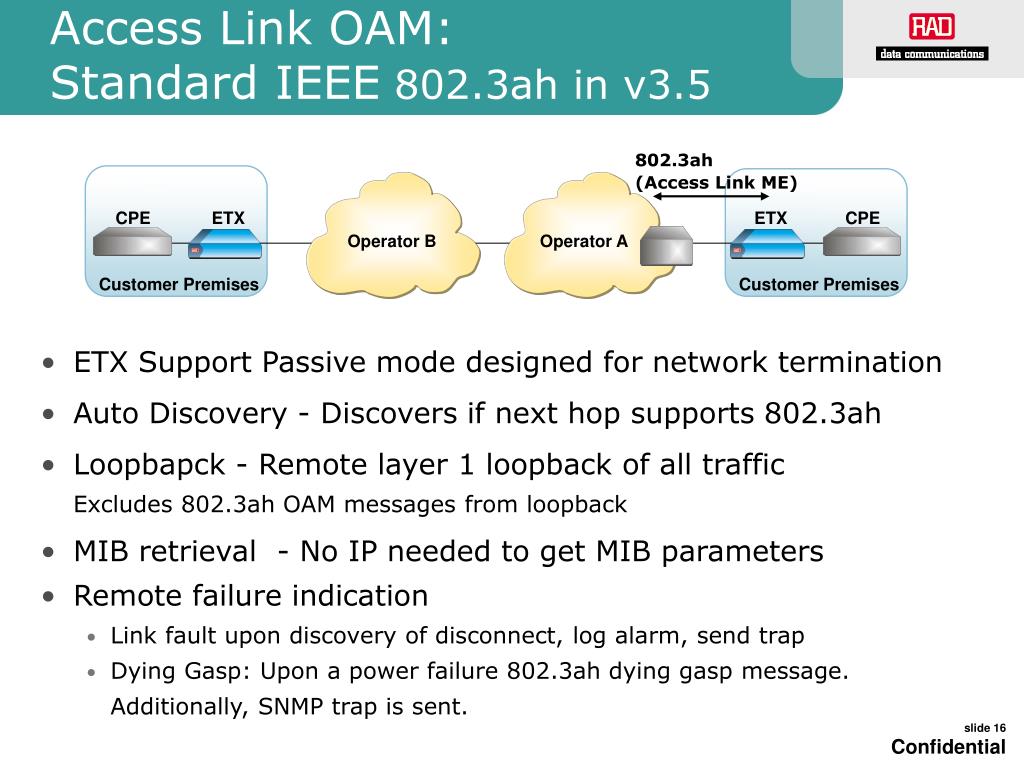

  16. Access Link OAM:Standard IEEE 802.3ah in v3.5 802.3ah (Access Link ME) • ETX Support Passive mode designed for network termination • Auto Discovery - Discovers if next hop supports 802.3ah • Loopbapck - Remote layer 1 loopback of all traffic Excludes 802.3ah OAM messages from loopback • MIB retrieval - No IP needed to get MIB parameters • Remote failure indication • Link fault upon discovery of disconnect, log alarm, send trap • Dying Gasp: Upon a power failure 802.3ah dying gasp message. Additionally, SNMP trap is sent. CPE ETX ETX CPE Operator B Operator A Customer Premises Customer Premises

  17. End-to-End OAM: Continuity Check (CC) OAM Customer Premises Customer Premises • Connectivity Check messages are sent every 1 second, CC can be defined per EVC • Loss of Continuity (LOC) • Declare LOC - Upon 3.5 seconds without receiving CC OAM frame • Recovery - 2 CC OAM frames within a window of 3.5 seconds • Upon CC failure • Send trap • Update active alarm log • Update statistics CPE E-NTU E-NTU CPE Operator B Operator A CC Sink CC Source CC OAM Frames

  18. End-to-End OAM: Loopback (LB) OAM • Pre-standard 802.1ag implementation • Non intrusive, defined per EVC and applies to OAM messages only • Required for performance monitoring Customer Premises Customer Premises CPE E-NTU E-NTU CPE Operator B Operator A LB OAM Request LB OAM Reply

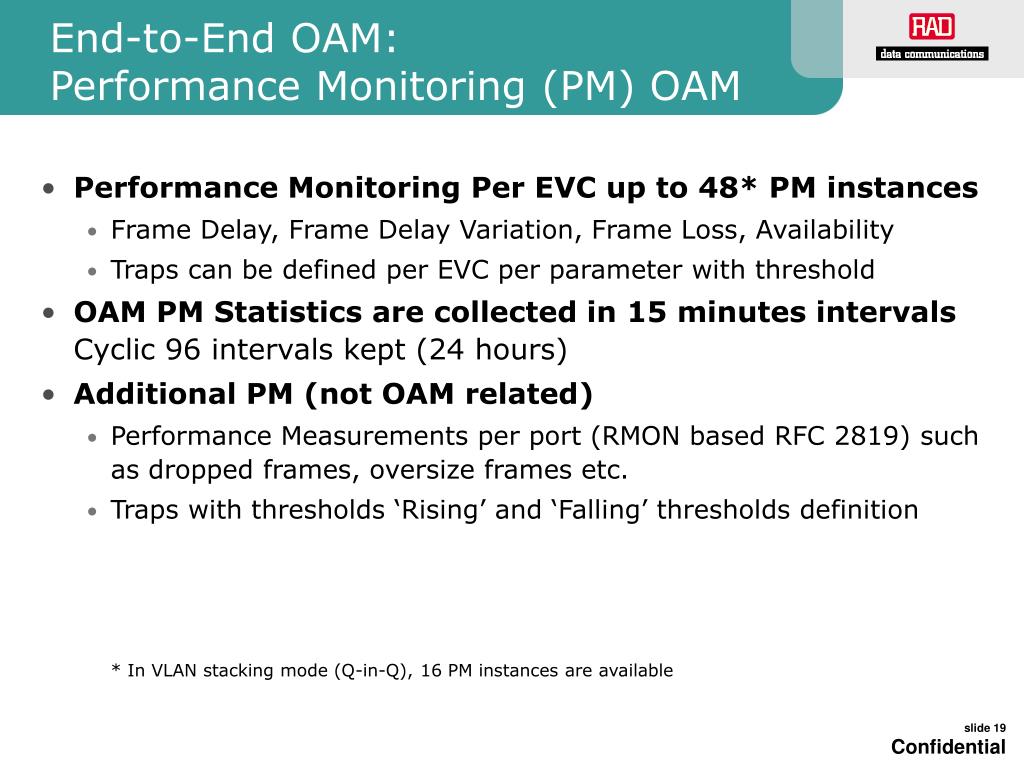

  19. End-to-End OAM: Performance Monitoring (PM) OAM • Performance Monitoring Per EVC up to 48* PM instances • Frame Delay, Frame Delay Variation, Frame Loss, Availability • Traps can be defined per EVC per parameter with threshold • OAM PM Statistics are collected in 15 minutes intervalsCyclic 96 intervals kept (24 hours) • Additional PM (not OAM related) • Performance Measurements per port (RMON based RFC 2819) such as dropped frames, oversize frames etc. • Traps with thresholds ‘Rising’ and ‘Falling’ thresholds definition* In VLAN stacking mode (Q-in-Q), 16 PM instances are available

  20. Device Fault Propagation:Net port to subscriber port Network port failure Failure propagated to user port • ‘Link down’ status on the Network port causes ‘link down’ status on the user port. • In case of multiple user ports cause ‘link down’ status on all user ports or part of them according to parameter • ‘Wait to restore’ parameter - defines the time between network port becoming ‘up’ and restoring user port link up CPE Switches to alternative path Packet Switched Network Eth/IP/MPLS CPE E-NTU X X

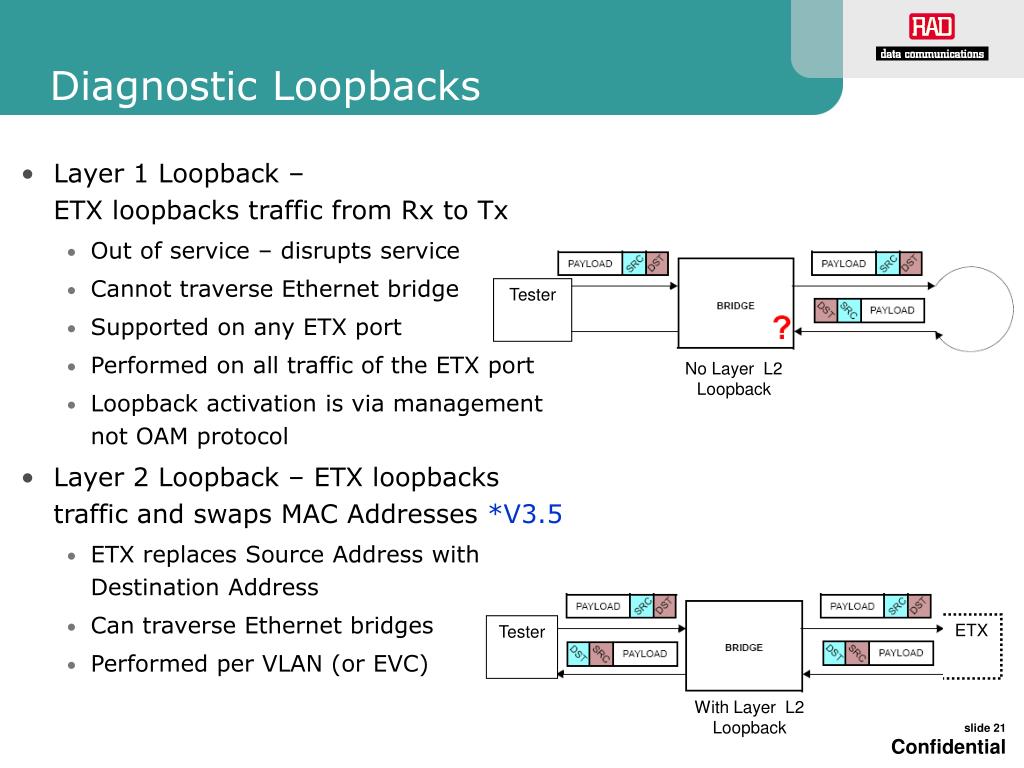

  21. Diagnostic Loopbacks • Layer 1 Loopback – ETX loopbacks traffic from Rx to Tx • Out of service – disrupts service • Cannot traverse Ethernet bridge • Supported on any ETX port • Performed on all traffic of the ETX port • Loopback activation is via management not OAM protocol • Layer 2 Loopback – ETX loopbacks traffic and swaps MAC Addresses *V3.5 • ETX replaces Source Address with Destination Address • Can traverse Ethernet bridges • Performed per VLAN (or EVC) Tester No Layer L2 Loopback ETX Tester With Layer L2 Loopback

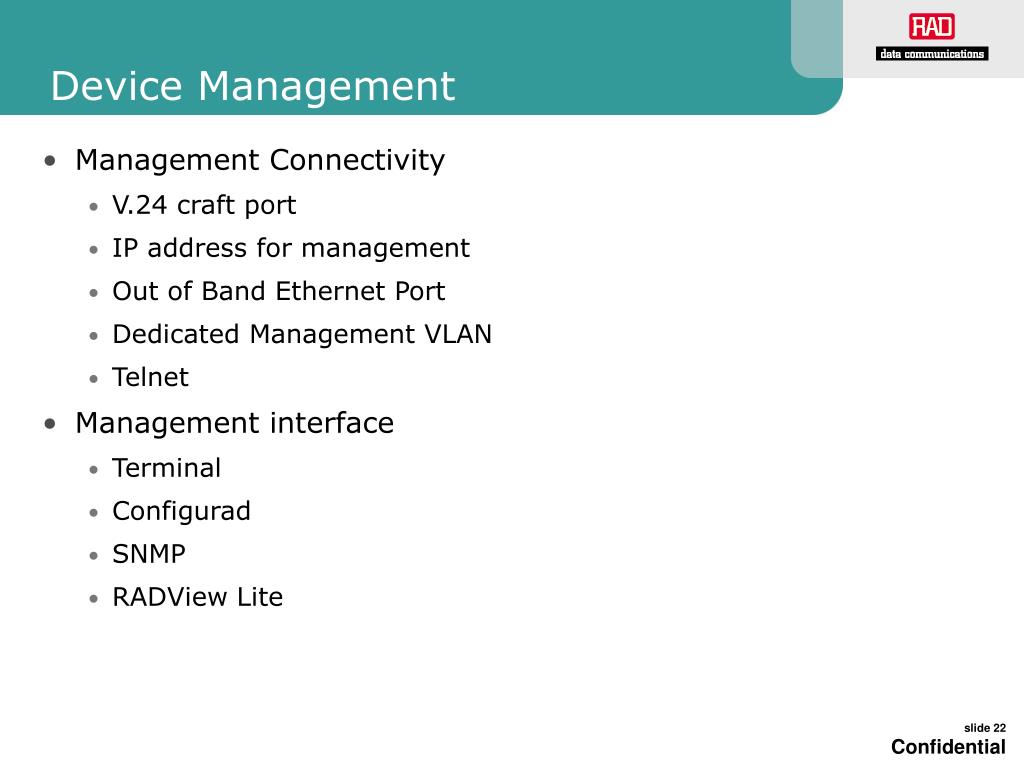

  22. Device Management • Management Connectivity • V.24 craft port • IP address for management • Out of Band Ethernet Port • Dedicated Management VLAN • Telnet • Management interface • Terminal • Configurad • SNMP • RADView Lite

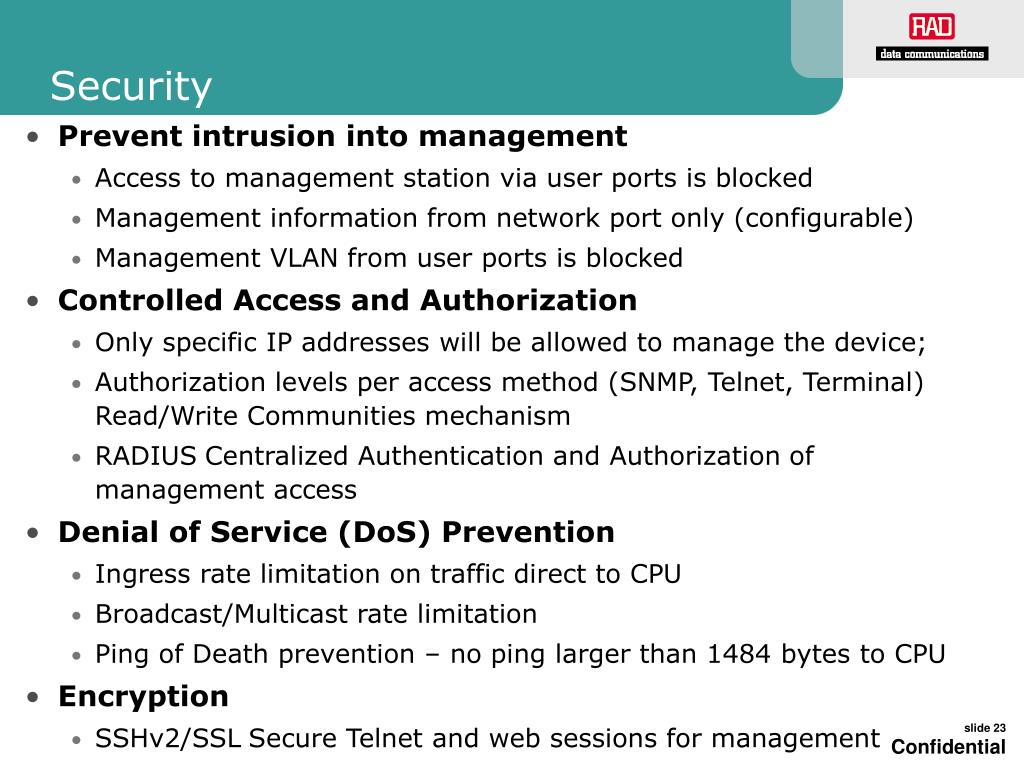

  23. Security • Prevent intrusion into management • Access to management station via user ports is blocked • Management information from network port only (configurable) • Management VLAN from user ports is blocked • Controlled Access and Authorization • Only specific IP addresses will be allowed to manage the device; • Authorization levels per access method (SNMP, Telnet, Terminal) Read/Write Communities mechanism • RADIUSCentralized Authentication and Authorization of management access • Denial of Service (DoS) Prevention • Ingress rate limitation on traffic direct to CPU • Broadcast/Multicast rate limitation • Ping of Death prevention – no ping larger than 1484 bytes to CPU • Encryption • SSHv2/SSLSecure Telnet and web sessions for management

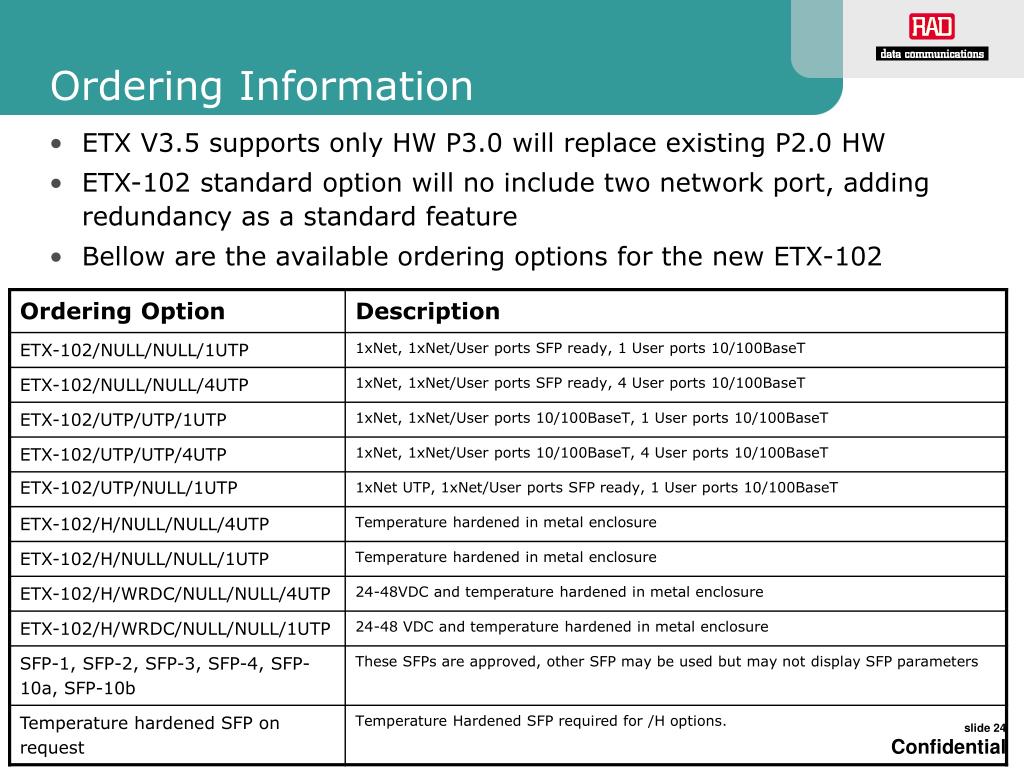

  24. Ordering Information • ETX V3.5 supports only HW P3.0 will replace existing P2.0 HW • ETX-102 standard option will no include two network port, adding redundancy as a standard feature • Bellow are the available ordering options for the new ETX-102

  25. What’s New to V3.5 Beta?

  26. New Features in V3.5 Beta • Bridge Performance • 8192 MAC addresses • 64 Simultaneous VLAN support • 1632 Frame size • Ethernet OAM • Support for standard 802.3ah • Support for pre-standard 802.1ag and Y.1731 Ethernet OAM • Layer 2 Loopback • SA and DA MAC address swapping allows multi-hop cut through • Loopback can be performed on entire port or on specific EVC • Diagnostic VLAN Statistics • A test mode diagnostic, performed on real data • Cannot be operated with other tests (e.g. L1,L2 Loopback) • Security • SSH/SSL – Secure Telnet and web sessions for management • RADIUS – Centralized Authentication and Authorization of management access

  27. ETX Feature Comparison Table * ETX v3.5 introduces support for new HW only. P2.0 HW is not supported by version 3.5

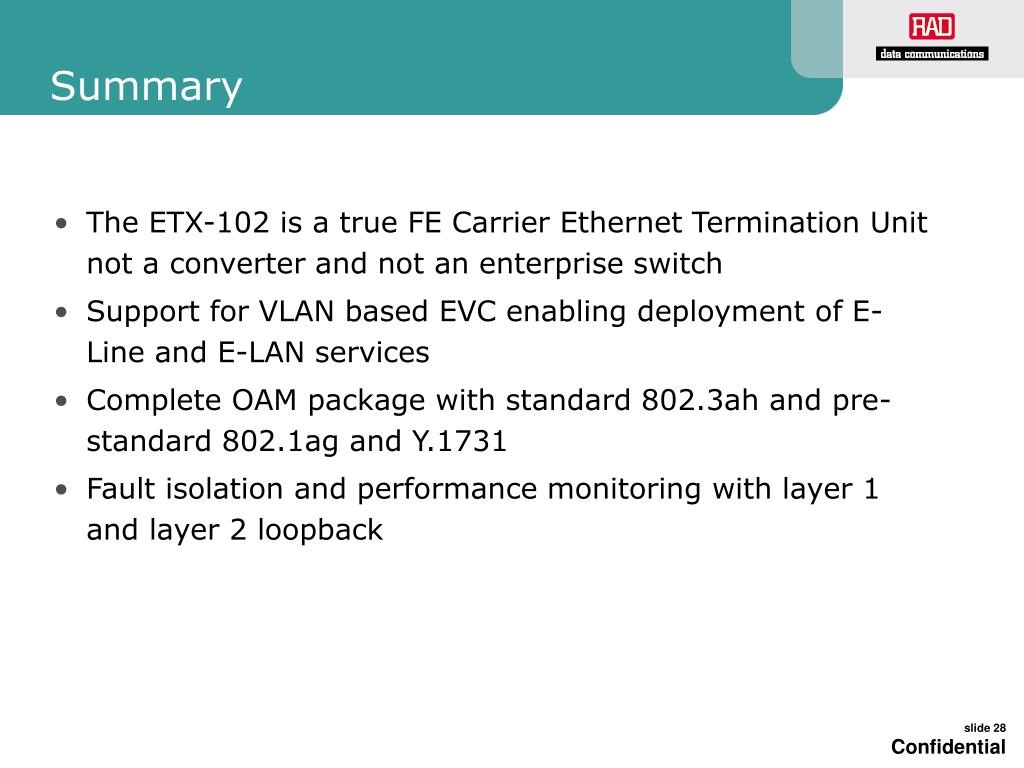

  28. Summary • The ETX-102 is a true FE Carrier Ethernet Termination Unit not a converter and not an enterprise switch • Support for VLAN based EVC enabling deployment of E-Line and E-LAN services • Complete OAM package with standard 802.3ah and pre-standard 802.1ag and Y.1731 • Fault isolation and performance monitoring with layer 1 and layer 2 loopback

  29. Thank you for your attention www.rad.com

  30. ETX Product Line Rollout Plan: * Dates may change without notice, please verify needed features before committing to customers
