ETX-5300A

Release version 1.0 GA

etx 5300a main market messages
ETX-5300A Main Market Messages

ETX-5300A is a carrier grade Access Aggregation Switch

Device

ETX series is a real end-to-edge access solution

Solution

RAD access solution reduces Total cost of ownership

Economies

why we think etx 5300a is a winner
Why We Think ETX-5300A is a Winner
  • Highest capacity-to-size ratio in the market
  • Best mechanisms for network efficiency
  • Reduce costs by freeing up PE capacity, cutting price per link
  • Complements RAD’s ecosystem
  • Warm reception by tier-1 carriers
etx 5300a ethernet aggregation pseudowire gateway
ETX-5300A: Ethernet Aggregation + Pseudowire Gateway

3U

17.3”

14.9”

  • Chassis:
    • 3U Height
    • 4 I/O slots – 20 GbEslot
    • Redundant main switching card with 4 x 10 GbEports
  • Power Supply:
  • Redundant PSU AC/DC
    • Performance:
    • 200 GbEswitch fabric
    • 100 GbE switching capacity
  • 2 x Main Card, each supporting:
  • 4 x 10 GbEXFP (Max of 8)
  • 1+1 port or card redundancy
  • 4 x I/O cards, each supporting:
  • 20 x 1 GbE SFP/UTP (Max of 80)
  • 2 x 10 GbE XFP (Max of 8)
  • 4 x Ch. OC3 PWE3 (Max of 16)
    • Environment:
    • 0°C to 50°C
  • Timing:
    • IEEE 1588-2008: M,S & TC
    • Sync-E: External & Master
    • 1PPS, TOD & 10 MHz for phase and frequency lock
    • Architecture:
    • E-line; E-LAN
    • OAM 802.1ag/Y.1731 per flow
    • Port redundancy (APS/LAG)
    • Ring G.8032 (2 x 10 GbE, 10 x 1GbE)
etx 5300a front view description
ETX-5300A Front View Description

Redundant PSU (DC/AC Outlet)

Clocking Interfaces

Fan Module

Front View Access

4 x 10GbE XFP fully redundant

Secondary Main Card

Primary Main Card

Alarm output connector

20 x 1GbE Opt SFP I/O card

20 x 1GbE Elec I/O card

Air Filter

etx 5300a scale

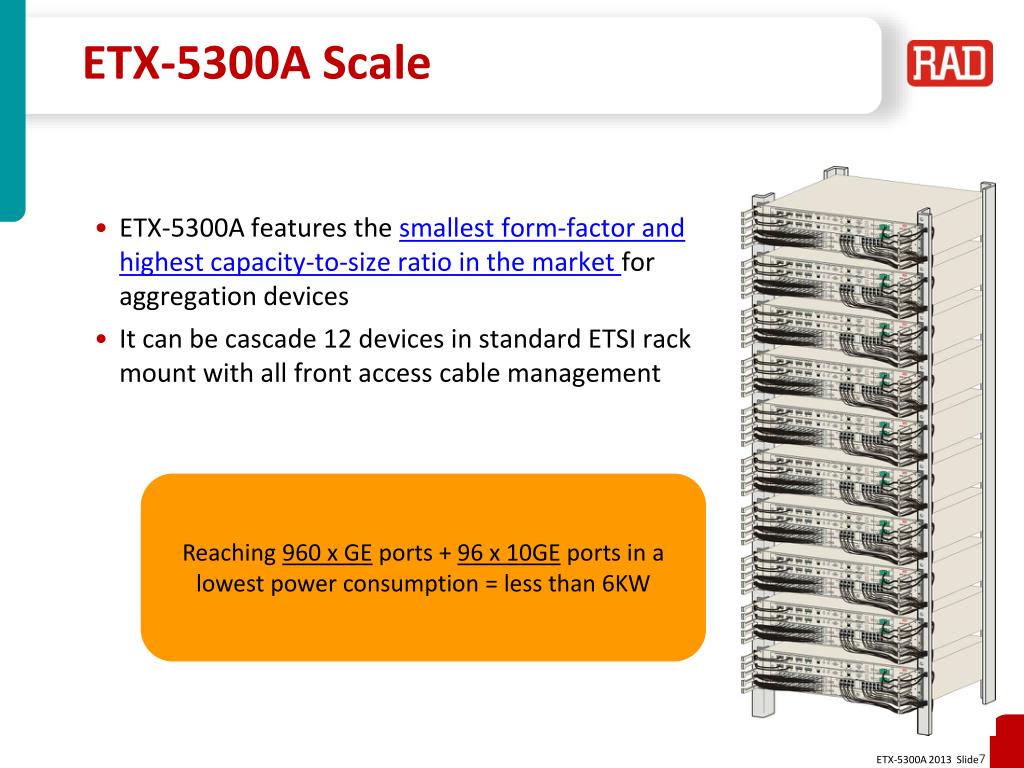

ETX-5300A Scale
  • ETX-5300A features the smallest form-factor and highest capacity-to-size ratio in the market for aggregation devices
  • It can be cascade 12 devices in standard ETSI rack mount with all front access cable management

Reaching 960 x GE ports + 96 x 10GE ports in a lowest power consumption = less than 6KW

carriers and operators
Carriers and Operators
  • SLA-based business Ethernet and cloud connectivity
  • Wholesale and carrier-to-carrier (E-NNI) connectivity
  • Mobile backhaul
  • Legacy TDM service emulation
private networks
Private Networks

Seamless migration from SDH/SONET to PSN:

  • Utilities
  • Transportation
  • Government
  • Healthcare
  • Education
optimizing service experience in the access network

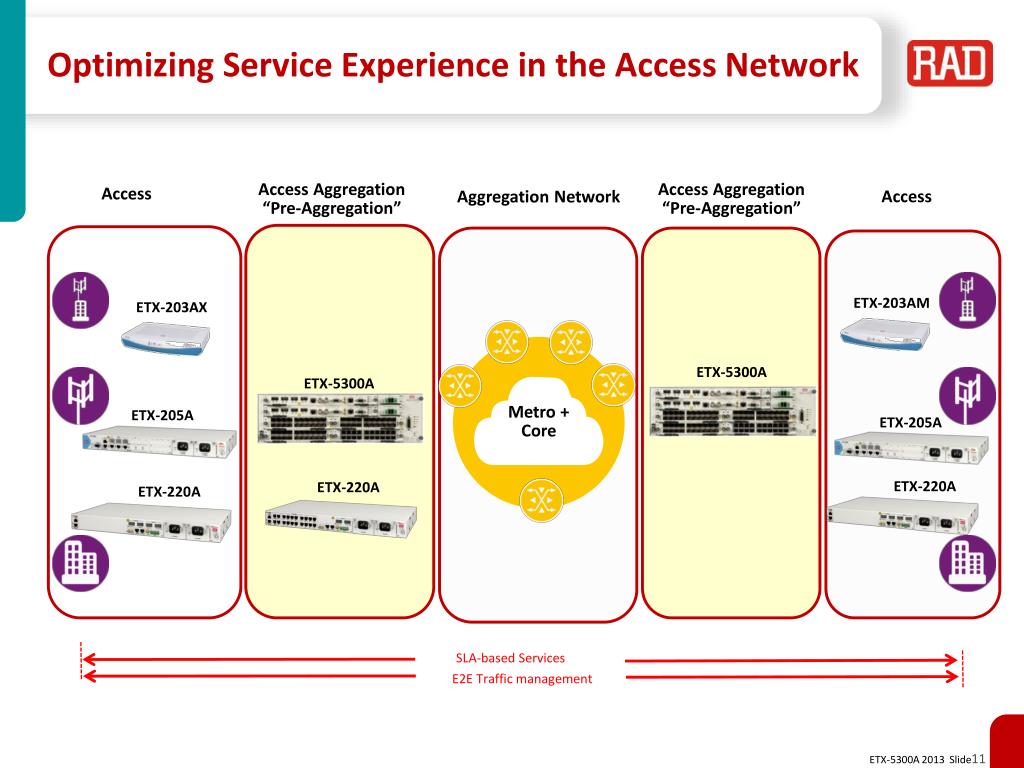

Optimizing Service Experience in the Access Network

SLA-based Services

E2E Traffic management

Access Aggregation

“Pre-Aggregation”

Access Aggregation

“Pre-Aggregation”

Access

Access

Aggregation Network

ETX-5300A

Metro + Core

ETX-5300A

ETX-205A

ETX-205A

ETX-220A

ETX-220A

ETX-220A

ETX-203AM

ETX-203AX

1 gbe and 10 gbe aggregation

Access Aggregation

1 GbE and 10 GbE Aggregation

Access Segment

Middle Mile

First Mile

  • Complete Access Solution
    • OAM
    • TM
    • Timing
    • SDH/ SONET Replacement
    • PW (Legacy Migration)

ETX-203AX

ETX-203AM

FE/GbE

Core

1 GbE (LAG)

ETX-220A

10 GbE (LAG)

10 GbE

ETX-5300A

10 GbE

Metro

ETX-220A

10 GbE

10 GbE

10 GbE (LAG)

ETX-220A

ETX-220A

10 GbE Ring

ETX-205A

1 GbE (LAG)

ETX-220A

ring aggregation base on standard g 8032v2

Access Aggregation

Ring Aggregation Base on Standard G.8032v2

Access Segment

Middle Mile

First Mile

  • Ring Access Aggregation
    • G.8032v2 support up to 16 rings with 32 members in a ring
    • SDH and TDM PW Migration

Core

ETX-5300A

1GbE Ring

ETX-5300A

10 GbE Ring

Metro

ETX-5300A

10 GbE Ring

ETX

ETX

ETX

ETX

ethernet tdm pseudowire
Ethernet & TDM Pseudowire

RADview

Ethernet & TDM PW Traffic

ETX+MiTOP

Up to:

16 OC-3/STM-1

T1/E1 or T3/E3

TDM/

SONET

2 x FE / GbE

ETX-205A*

ETX-5300A*

4 or 8 E/T1

GbE/10 GbE

Ethernet, IP or MPLS

5 x FE / GbE

ETX-220A

IP/ETH

8, 16 or 32 E1/T1

GbE/10 GbE

8 x FE / GbE

IPmux-24/IPmux-216

ETX-5300A Sample Configurations

1,2,4,8 or 16 E1/T1

2 x FE / GbE

IPmux-1E

4 FXS/FXO/E&M/BRI

MP-4100/2100

160 x T1/E1

160 x analog phones

120 a serial interfaces

and more…

MPW / ML-IP

mobile backhaul solution
Mobile Backhaul solution

MME

RAD Access solution for Mobile

Timing feeder

ETX-220MP

ETX-5300A

Router

PE

PE

GbE

ETX-205A

ETX-205A

Up to 20 Units

ETX-5300A

10 GbE

10 GbE

10 GbE

IP/MPLS

ETX-205A

ETX-205A

G.8032v2

ETX-205A

etx 5300a fully redundant platform
ETX-5300A Fully Redundant Platform
  • 3U fully redundant service box:
    • Up to 80 x GbE & 8 x 10GE / 16 x 10GE
    • Up to 16 STM-1 & 8 x 10GE
  • Non-blocking architecture with wire speed packet forwarding for all packet sizes
  • Ethernet and TDM Services
    • E-Line (EPL and EVPL), E-LAN (EP-LAN and EVP-LAN)
    • TDM / TDM PW / MEF8 & UDP/IP encapsulation
  • Ring & Linear topologies
  • Fully redundant chassis including 50 ms switchover
  • VLAN Forwarding & manipulation
  • Hierarchical Traffic management
  • Network Termination Unit like packet classification
  • Timing over packet – 1588v2, M&S Sync-E
supported cards etx 5300a release 1 0
Supported Cards ETX-5300A Release 1.0

19” 3U

4 x 10GbE & 80 x GbE

/16 x STM1/OC3

main system card
Main System Card
  • The main card is the core packet processing unit of the ETX-5300A machine
    • At least one main card is required in each shelf
  • The main card supports:
    • Packet forwarding processing engine
    • Shelf and host/device management
    • Clock unit
    • On card 4 x 10GE XFP interfaces
    • 4096 EVCs
  • Timing options
    • 3 CLK domains
    • Station clock Input & Output
      • 64K/1.544/2.048 Bal/Unbal/Square
    • GPS I/F
      • Input & Output
      • 10MHz
      • 1 PPS
      • TOD
  • Main Card type:
  • On card 4x10GE Interfaces
  • No on card 10GE Interfaces
ethernet io card
Ethernet IO Card
  • The Ethernet IO supports 2 x 10 GbE or 20 x 1 GbE ports with either optical or copper interfaces (copper option for the 20 x 1GE)
  • Non blocking architecture based on RAD FPGA that provides full 20 GbE
  • 2K flows are supported on each IO card
  • SyncE & IEEE-1588-2008 on all ports
  • P2P & MP2MP services are supported
  • Link Aggregation between ports and cards
  • Main Card type:
    • 2 x 10GE XFP I/F
    • 20 x 1GE Optical SFP I/F
    • 20 x 1GE Electrical UTP I/F
multi service io card
Multi-Service IO Card
  • The Multi-Service IO card supports
    • 4 Ch. OC-3/Ch. STM-1 interfaces
    • 4 x Ch. OC-3/Ch. STM-1 or Ch. OC-12/Ch. STM-4 – II phase
    • Ch. OC-48/Ch. STM-16 – II phase
  • Per card, user configurable SONET/SDH mode
  • TDM PW, MEF 8 & UDP/IP encapsulation
  • STM-1/OC-3 Interface characteristics:
    • 63E1 or 84 T1s over STM-1/ OC-3 respectively per G.707
    • STM-1/OC-3 SFP LC connector
    • E1 mapping to STM-1:
        • STM-1 / AU-4 / VC-4 / TUG-3s / TUG-2s / TU-12s / VC-12s /E1s
    • T1 mapping to OC-3:
      • OC-3 / STS-1 SPEs / VT Group/ VT1.5s/ T1s
the etx 5300a mef services
The ETX-5300A MEF Services
  • E-Line Service – used to create
  • Ethernet Private Lines (EPL)
  • Virtual Private Lines
  • Ethernet Internet Access

Point-to-Point EVC

UNI

UNI

Healthcare, Ethernet Private Line (EPL)

Multi-point to

Multi-point EVC

  • E-LAN Service – used to create
  • Multipoint L2 VPNs
  • Transparent LAN Service
  • Multicast networks

UNI

UNI

UNI

Government,

Campus Connectivity

  • E-Tree Service – used to create*
  • Rooted multi-point L2 VPNs
  • Broadcast networks
  • Telemetry networks

UNI

Rooted Multipoint EVC

UNI

Dedicated Internet Access (DIA)

UNI

* Roadmap

etx 5300a tdm services
ETX-5300A TDM Services

Fully Redundant 10 GbE / 1 GbE

TDM PWs

  • TDM Services:
    • Ch. STM-1/OC-3 TDM service
    • Configure SONET/SDH mode per card
    • OAM:
      • STM-1/OC-3 Line loopbacks
      • E1/T1 Loopbacks
      • PM & Alarms per GR.253
    • Resiliency:
      • Automatic Protection Switching APS
        • On the same card
        • Between Cards
      • TDM IO card hot swappable

IP/ETH

Network

Up to 16 OC-3/STM-1 Lines

TDM

Network

  • PW Services:
    • TDM PW SAToP & CESoP per MEF8
    • TDM PW SAToP & CESoP per UDP/IP
    • OAM:
      • VCCV-BFD for UDP/IP
      • RAD PW OAM
      • PM 15 minutes intervals at the SONET/SDH level
      • PM 15 minutes intervals at the E1/T1 level
    • Resiliency:
      • 1:1 PW redundancy
    • Alarms & Counters:
    • TDM PW buffer overrun
    • Remote packet loss
    • Jitter Buffer
    • Round trip delay
  • No. of PWs in OC-3 mode: 1344
  • No. of PWs in STM-1 mode: 1008
    • PW per single T1\E1
  • 336 PWs supported per service card
etx 5300a redundancy

Robustness: Source Steering Protection

Failure

50ms Switch Times

ETX-5300A Redundancy
  • Ethernet Ring Protection G.8032v2
    • Ladder topology & 50ms switch over
    • Protection and recovery switching within 50 ms for typical rings
    • 1G & 10G Multi Ring topologies support
    • Supports Unicast and Multicast flows
etx 5300a redundancy cont
ETX-5300A Redundancy (cont.)
  • Link Aggregation per 802.3 clause 43 (former 802.3ad)
    • Enables protection between associated ports
    • Intra card and Inter card LAG
    • Static LAG and LACP
  • Main card redundancy
  • Clock redundancy
  • APS redundancy on TDM ports
  • Port redundancy
  • Power Supply Redundancy

Intra Card LAG

Inter Card LAG

Inter Card LAG

Intra Card LAG

oam scheme
OAM Scheme

Subscriber Equipment

  • ETX-2xxA is represented by units 2 and 7
  • ETX-5300A is represented by units 3 and 6
  • Both products support MIPs and MEP

Subscriber Equipment

Operator A NEs

Service Provider

Operator B NEs

1

2

3

4

5

6

7

8

Subscriber ME

ETH

EVC ME

Operator A service ME

Operator B service ME

UNI ME

UNI ME

Tunnel ME

TRAN

ETX-5300A

ETX-5300A

ETX

ETX

etx 5300a oam cont
ETX-5300A OAM (cont.)
  • Connectivity Fault Management defined by 802.1ag
    • CC: Connectivity Check
      • CCM interval (at MA level): 3.33ms, 10ms, 100ms, 1s, 10s, 1m, 10m
    • LB: LoopBack
    • LT: Link Trace
  • Performance Management defined by Y.1731
    • LM: Loss Measurements
    • DM: Delay Measurements
  • Statistics per service
  • Reporting per Event
timing over packet technology
Timing over Packet Technology
  • IEEE 1588v2
    • Frequency, Phase, Time of Day (ToD)
    • Excellent for mobile backhaul
  • Sync-E
    • Frequency
    • Excellent for mobile backhaul
  • Adaptive Clock Recovery
    • Frequency, Phase
    • Excellent for business grade TDM
    • Not dependant on complete network deployment

RAD SYNC

Adaptive

1PPS, 10MHz

1588-2008

1588-2008

Sync-E

Sync-E

E1/T1/OC3/STM-1

E1/T1/OC3/STM-1

what s
What’s ?
  • RAD’s platform for high-performance clock recovery and distribution techniques with powerful frequency and phase alignment
    • Includes the following technologies:
      • IEEE 1588-2008
      • Synchronous Ethernet
    • Bridging between the technologies
    • Offering Uniform solution through RAD’s portfolio
  • RAD: The Synchronization Expert
    • Adaptive clock recovery technology (ASIC- and FPGA-based) solutions since 1999
    • TDM-over-IP technology leader
    • Broad installed product base
    • Standardization leadership
etx 5300a mechanical overview and shelf types
ETX-5300A Mechanical overview and Shelf Types
  • ETX-5300A mechanical dimensions:
    • Height: 13.3cm (5.2 in)
    • Depth: 380mm (15in) for DC chassis
    • Depth: 455mm (23.6 in) for AC/DC
    • Width: 440mm (17.3in)
    • Ready For 600mm rack ( cables etc.)
general mbh application scenario wholesale
General MBH Application Scenario – Wholesale

MBO

MBO

Wholesale Provider

Wholesale Provider

ETX-1002/

ETX-5300A

ETX-1002/

ETX-5300A

MBO

M/W Area

M/W Area

RNC/aGW

G.8032

Ring

ETX-5300A

ETX-5300A

ETX-5300A

ETX-5300A

ETX-5300A

ETX-5300A

ETX-5300A

ETX-5300A

G.8032

Ring

ETX-220

ETX-220

G.8032

Ring

G.8032

Ring

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

RNC/aGW

MBO

BSC

BSC

Ch-STM1

Ch-STM1

why access aggregation
Why Access Aggregation?

MBO

Wholesale Provider

ETX-1002/

ETX-5300A

  • Aggregates SLA-based Ethernet & legacy TDM for mobile backhaul
  • Provides E-NNI demarcation, Ethernet OAM termination and services grooming
  • Ethernet linear and ring topology & protection switching: ITU-T G.8032
  • Extensive Sync-E, 1588v2 master mode
  • Enables efficient handling of multi-priority traffic on a per-flow basis,
  • offers various tools to ensure Six Nines availability and sub-50ms restoration with no single point of failure
  • 3U device with high port density, delivering a 100 Gbps throughput

MBO

M/W Area

RNC/aGW

G.8032

Ring

ETX-5300A

ETX-5300A

ETX-5300A

G.8032

Ring

ETX-220

ETX-220

ETX-220

ETX-220

G.8032

Ring

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

ETX

RNC/aGW

MBO

BSC

BSC

Ch-STM1

business services main features
Business Services Main Features
  • Services
    • E-Line, E-LAN (TE, non-TE),
    • Legacy services support (TDM, clock synchronization edge-to-edge)
  • High Availability & Reliability
    • Service always on – Service Restoration, protection in sub 50 mSec recovery
    • In Service Software Upgrade - ISSU
  • Serviceability & manageability
    • Point & click provision, assure, validate & report customers SLA using RAD Service Delivery Platform
  • Hard QoS and variety of classifiers/policer
    • Differentiate customers SLA
    • Assured in all levels: carrier network, customer service
mobile backhaul traffic dimensions
Mobile Backhaul Traffic Dimensions

ETX

ETX

ETX

ETX

ETX

ETX-5300A

10 GbE NTU

Wholesale

Carrier

Mobile

Concentrator

  • Backhaul Dimensions:
    • Mobile Carrier assign 200 - 400 NBs to concentrator
    • Each NBs has between 4 – 8 CoS flows
    • At least 2 flows from each NB are classified as mission critical and should be monitored

RNC/aGW

Router

End to End TM, Y.1731 & 802.1ag

  • The Math:
    • The required flows : 800 – 3200 flows
    • The Required Policers/Shapers: 800 - 1600
    • The Required OAM sessions: 400 - 800
mobile backhaul timing aspects
Mobile Backhaul Timing Aspects

ETX

ETX

ETX

ETX

ETX

Stratum 1 clock source or GPS

ETX-5300A

10 GbE NTU

RNC/aGW

Router

Wholesale

Carrier

Mobile

Concentrator

Timing over packet

ETX-5300A Grand master

mobile backhaul main features
Mobile Backhaul – Main Features
  • Optimized for Radio Access Network (RAN) aggregation and transport to deliver ideal migration solution enabling fixed and mobile converged network
    • High density & number of GE ports for a space restricted (3RU)
    • Supports of legacy 2G TDM services over Ethernet services
    • Supports major synchronization standards, including IEEE 1588-2008 M,S & TC & G.8261 in a variety of synchronization interfaces
  • Scalable in-service 4 + 4 10GbE & 20 to 80GbE of Ethernet
  • Broadband service support, including MEF 9, 14, 22
  • Scalable TDM service 16 Ch. STM-1/OC-3 switching
  • Carrier-grade availability and reliability
why choose the etx 5300a
Why Choose the ETX-5300A

A Little Box of Big Magic:

  • Amplifies service capabilities, lowers TCO
  • Multi-functional device for converged network infrastructure
  • Support critical applications and legacy services
  • Ensure end-to-end SLA over multiple provider networks
etx 5300a value proposition
ETX-5300A Value Proposition
  • 3U size Access Aggregation Switch
  • Optimized device to aggregate smart termination units like any ETX-2xxA
  • The ETX-5300A reduce various of interfaces into a single 10 GbE port
  • Provides reach layer 2 application for business and mobile services
  • Enables superior timing conversions and terminations
  • Easy integration when it comes with ETX-2xx
  • Similar knowhow as for the ETX-2xxA
  • Future proof investment, that take advantage of technological innovations and new service possibilities as they develop
