Security By Design

2. Security By Design Scott A. Vanstone V.P. Cryptographic Research Research in Motion Distinguished Professor Emeritus University of Waterloo

3. Security by Design When designing a new telecommunications system it is prudent to make security a fundamental part of the design process. Addressing security challenges on a global scale

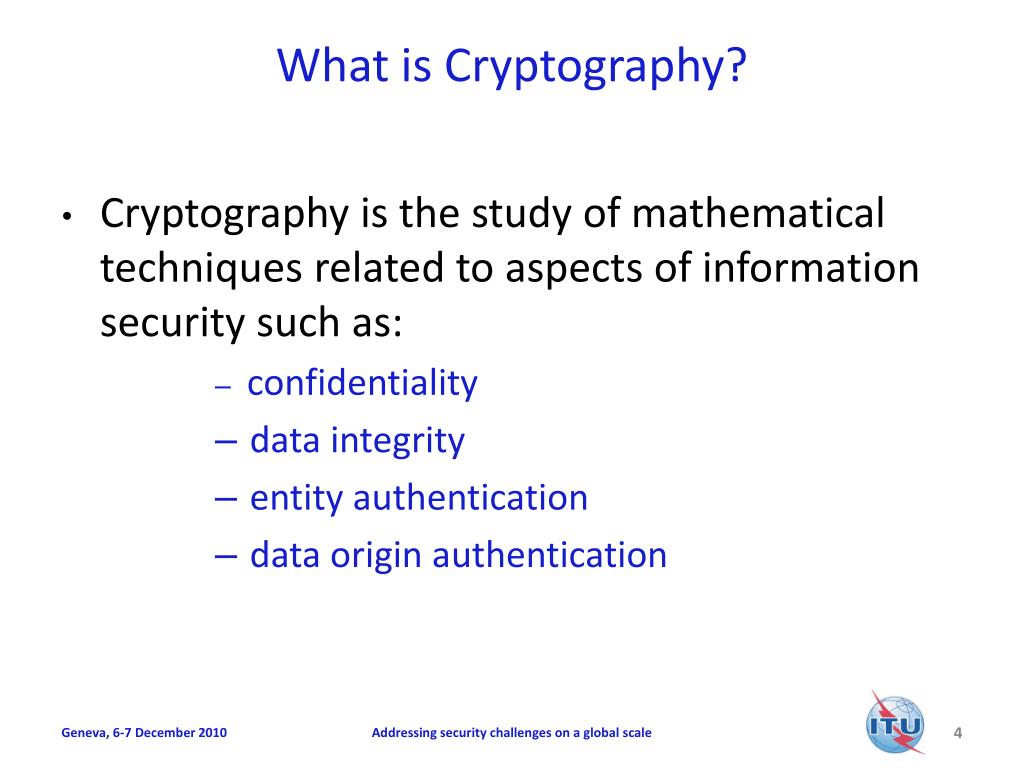

4. What is Cryptography? • Cryptography is the study of mathematical techniques related to aspects of information security such as: • confidentiality • data integrity • entity authentication • data origin authentication Addressing security challenges on a global scale

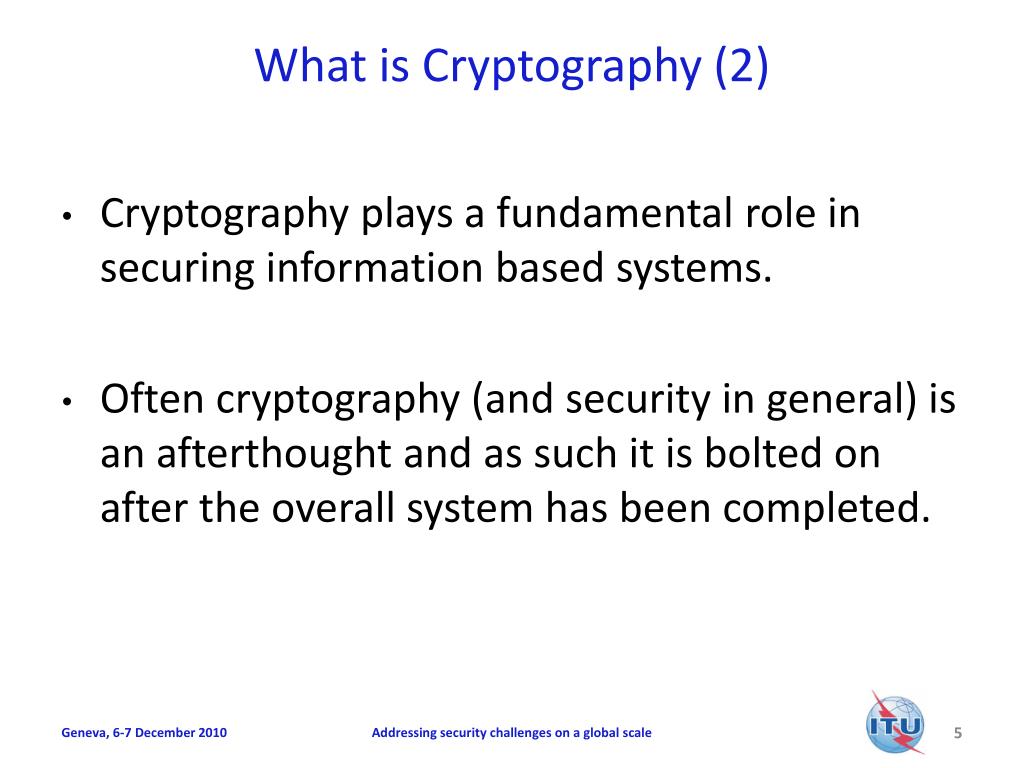

5. What is Cryptography (2) • Cryptography plays a fundamental role in securing information based systems. • Often cryptography (and security in general) is an afterthought and as such it is bolted on after the overall system has been completed. Addressing security challenges on a global scale

6. Think of the Postal Analogue • You put a letter in an envelope to maintain the integrity of the information in the letter and keep the letter from prying eyes (integrity and encryption). • You put your address in the upper left corner of the envelope to authenticate the sender which is you (authentication). • You sign the letter so that at a later date you cannot say you did not send it. Addressing security challenges on a global scale

7. The Digital World • We want to mimic all of these services but electronically. • This has been done and done more securely and efficiently than postal mail. • It is all due to the advent of something called “public-key cryptography”. • Canada is and continues to be a leader in this field. Addressing security challenges on a global scale

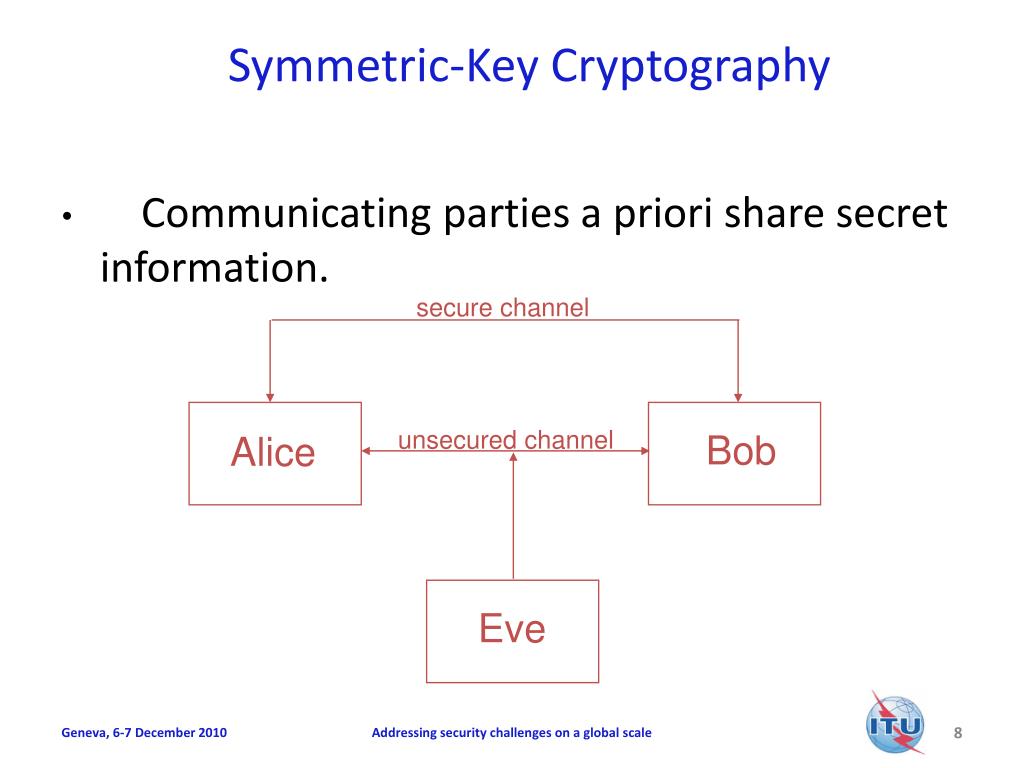

8. Symmetric-Key Cryptography secure channel unsecured channel Bob Alice Eve • Communicating parties a priori share secret information. Addressing security challenges on a global scale

9. Public-Key Cryptography authentic channel unsecured channel Bob Alice Eve • Communicating parties a priori share authentic information. Addressing security challenges on a global scale

10. Symmetric-Key vs Public-Key • Symmetric-Key has been used for thousands of years. • Public-Key is relatively new dating from 1976. • Public-key cryptography is based on hard mathematical problems. Addressing security challenges on a global scale

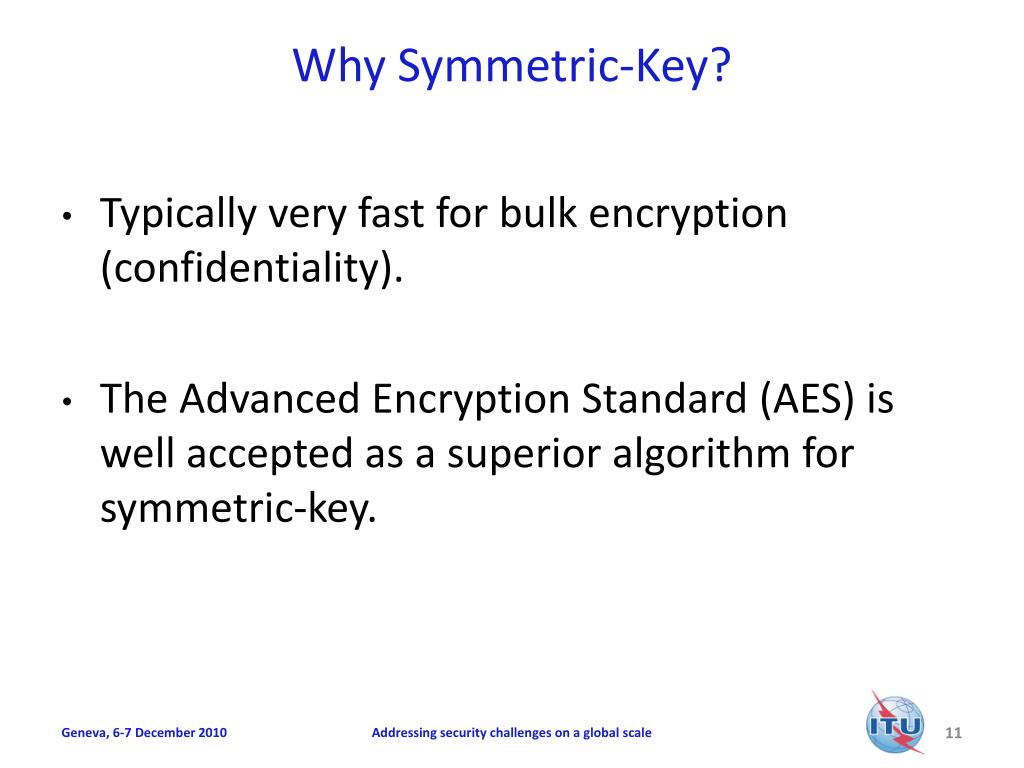

11. Why Symmetric-Key? • Typically very fast for bulk encryption (confidentiality). • The Advanced Encryption Standard (AES) is well accepted as a superior algorithm for symmetric-key. Addressing security challenges on a global scale

12. Disadvantages of Symmetric Key • Key management can be a serious problem. • Non-repudiation (digital signature) is very difficult to realize. Addressing security challenges on a global scale

13. Why Public-Key? • One disadvantage of symmetric-key cryptography is key management. • Public-Key provides an efficient method to distribute keys. • Public-key offers a very efficient way to provide non-repudiation. This is one of the great strengths of public-key. Addressing security challenges on a global scale

14. Disadvantages of Public-Key • Public-key operations require intense mathematical calculations. • They can be thousands of times slower to encrypt data than a well designed symmetric-key scheme. Addressing security challenges on a global scale

15. Hybrid Schemes • Use symmetric-key schemes to do bulk encryption. • Use public-key techniques to pass keys so that key management is not a problem. Addressing security challenges on a global scale

16. Digital Signatures • One of the truly great technologies that public-key cryptography can provide. • Handwritten signatures are fixed to the message but not an integral part of the message. • Digital signatures combine the message and private information of the signer. Addressing security challenges on a global scale

17. Why Elliptic Curve Cryptography (ECC)? • Most security per bit of any known public-key scheme • Ideally suited to constrained environments • Computationally efficient • Bandwidth efficient • Battery efficient • Well studied • Standardized in relevant influential international standards Addressing security challenges on a global scale

18. Elliptic Curve: y2=x3+ax+b Addressing security challenges on a global scale

19. Suite B

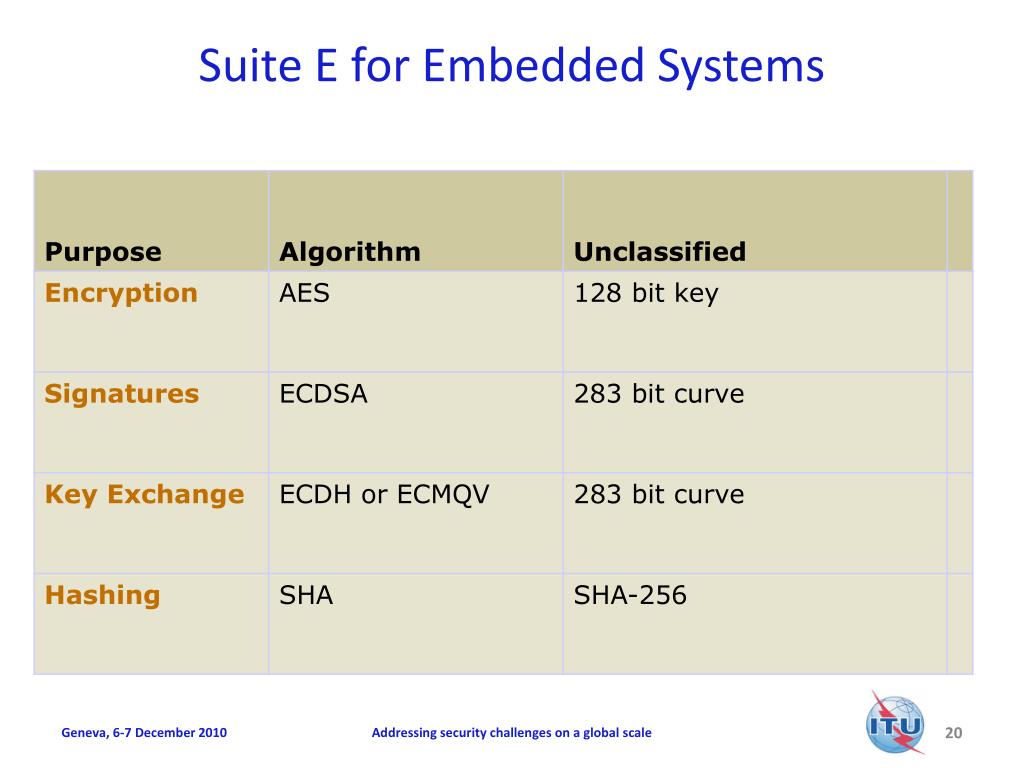

20. Suite E for Embedded Systems Addressing security challenges on a global scale

21. Examples of Security by Design • XM Radio • Blackberry Addressing security challenges on a global scale

22. XM Radio • XM Radio delivers digital radio to most of North America. • XM approached Certicom in the late 90s to design security into the system from the ground up. Addressing security challenges on a global scale

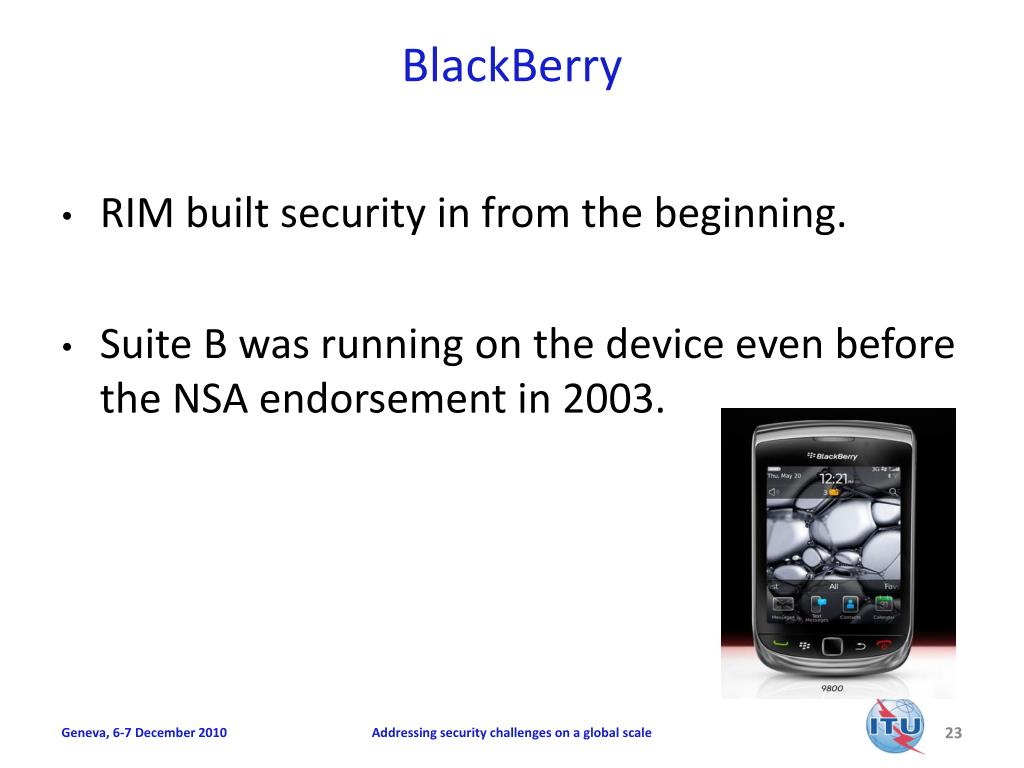

23. BlackBerry • RIM built security in from the beginning. • Suite B was running on the device even before the NSA endorsement in 2003. Addressing security challenges on a global scale

24. Conclusion • There is good security available. • The simple but often forgotten message is: • Design security into the system from the beginning. • Think the design through careful so that you meet your objectives. Addressing security challenges on a global scale
