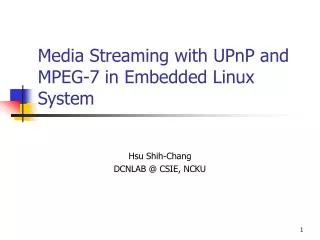

  1. Media Streaming with UPnP and MPEG-7 in Embedded Linux System Hsu Shih-Chang DCNLAB @ CSIE, NCKU

  2. Outline • UPnP Network Architecture • Streaming • UPnP SDK • Mplayer • MPEG4IP • QT-Embedded

  3. UPnP Network Architecture Server • UPnP Server • MPEG4IP • WebCam Driver Client • OS (kernel and file system) • Network (wired and wireless) • UPnP Player • Mplayer

  4. Streaming • Streaming Architecture Coder Decoder

  5. Streaming (contd.) • A general view of the real-time protocols • stream description:SDP (Session Description Protocol) describe the session and content • media transport: RTP (Real Time Protocol) send data and metadata • stream control:RTSP (Real Time Streaming Protocol) remote control the session

  6. Streaming (contd.) • HTTP streaming vs. RTP streaming

  7. UPnP SDK • 藉由使用CyberLink C++ UPnP SDK來做為我們的開發工具，它能夠自動控制UPnP所需要的protocol，讓我們能夠較便利的建立我們的device 與 control point。 • CyberLink UPnP SDK 是sourceforge的project，為open source，提供了我們開發UPnP應用程式所需要的lib。

  8. UPnP SDK- Building • Required File： •Apache Xerces-c++-2.5.0 • CyberLink C++ UPnP SDK-1.5.0 Client Server Building for x86 Building for ARM

  9. Mplayer • Architecture Scope of Mplayer Figure. Media Streaming

  10. Mplayer- Building Build library and codecs for Mplayer Required Files： zlib-1.2.2.tar.gz (資料壓縮的函式庫) libmad-0.15.1b.tar.gz (MPEG聲音解碼器) xvidcore-1.0.3.tar.gz (MPEG4 decoder) live.2005.01.07.tar.gz (多媒體串流c++函式庫) ffmpeg-0.4.9-pre1.tar.gz SDL-1.2.8.tar.gz Build Mplayer for ARM Required Files： MPlayer-1.0pre5.tar.bz2 編譯完mplayer之後在編譯目錄下會產生一個mplayer的執行檔 將它放入開發板上即可使用。

  11. MPEG4IP • 由於原本的UPnP Streaming Server並不支援即時影像的傳遞，我們利用MPEG4IP project 裡的MP4Live，將Webcam 影音壓縮成MPEG4 串流格式，來幫助我們完成即時影像的處理。 • Mpeg4ip是一個提供開放原始碼且以標準格式為準的編碼器，及廣播器，廣播以MPEG-4編碼的聲音與影像，Mpeg4ip主要的平台是linux，但是由於開放原始碼，所以依然可以開發於別的平台。

  12. MPEG4IP(contd.) • 在編譯MPEG4IP前，需要先安裝一些必備的函式庫。 Build library and codecs for MPEG4IP Required Files： zlib-1.2.2.tar.gz (資料壓縮的函式庫) xvidcore-1.0.3.tar.gz (MPEG4 decoder) SDL-1.2.8.tar.gz lame-3.96.tar.gz faac-18102004.tar.gz ffmpeg-0.4.9-pre1.tar.gz Build MPEG4IP Required Files： mpeg4ip-1.1.tar.gz

  13. MPEG4IP - WebCam Driver • 為了使用WebCam來做及時影像的傳輸，我們必須先在PC上驅動WebCam。 • 型號 : Logitech QuickCam™ Pro 4000 • Required Files： usb-webcam.tar.gz

  14. WebCam Driver(condt.)

  15. QT-Embedded • Building Flow : Build QT-Embedded Build QT Program for Target Board Execute QT Program in the Target Board

  16. QT-Embedded(contd.) • 若要在開發版上執行我們的QT程式，必須先編譯出程式所需要的library。 Build QT-Embedded Required Files： qt-embedded-2.2.3.tar.gz patch-qt-embedded-2.2.3(用來驅動 StrongARM touch panel)

  17. QT-Embedded(contd.) • Building QTE Steps :

  18. QT-Embedded(contd.) • 若要編譯我們自己寫的QT程式，我們需要使用到tmake這個工具來幫我們產生Makefile 。 • tmake裡面有progen和tmake 兩個執行檔。 其中， progen是幫我們產生一個專案(project) ，tmake則是利用progen所產生的XXX.pro去產生 Makefile。(註：tmake 是用在QT-3.X的版本以下)

  19. QT-Embedded(contd.) • Building QT Program Steps : 路徑設定

  20. QT-Embedded(contd.) • 要在版子上執行我們的QT程式，我們必須將先前編譯好的QT library以及font的資料夾先放到開發版上。 File System / . . . qt etc lib etc font Steps :
