  1. Advanced Computers Architecture Lecture 4 By Rohit Khokher Department of Computer Science, Sharda University, Greater Noida, India C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

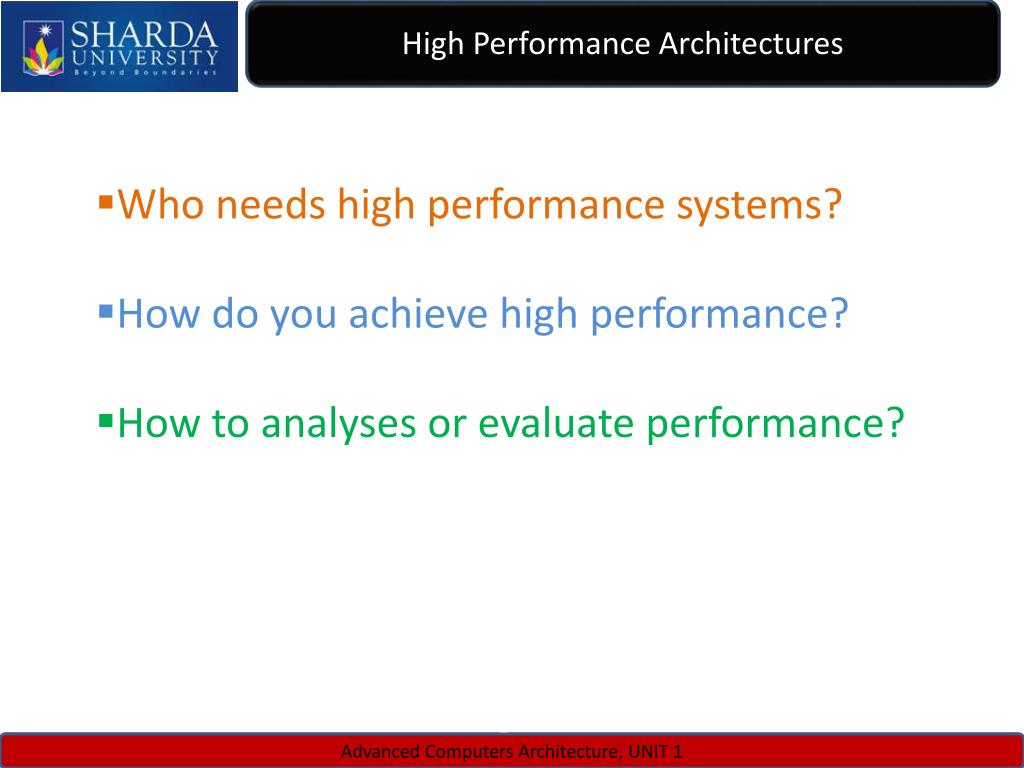

  2. High Performance Architectures • Who needs high performance systems? • How do you achieve high performance? • How to analyses or evaluate performance? C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

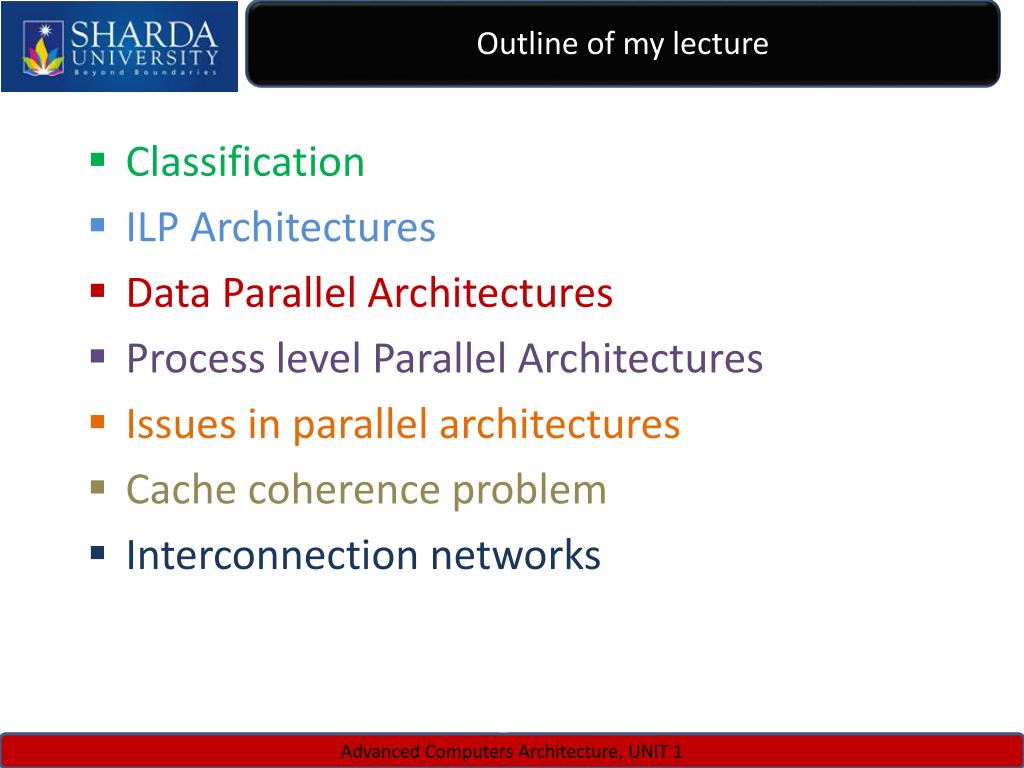

  3. Outline of my lecture • Classification • ILP Architectures • Data Parallel Architectures • Process level Parallel Architectures • Issues in parallel architectures • Cache coherence problem • Interconnection networks C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

  4. Classification of Parallel Computing • Flynn’s Classification • Feng’s Classification • Händler’s Classification • Modern (Sima, Fountain & Kacsuk) Classification C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

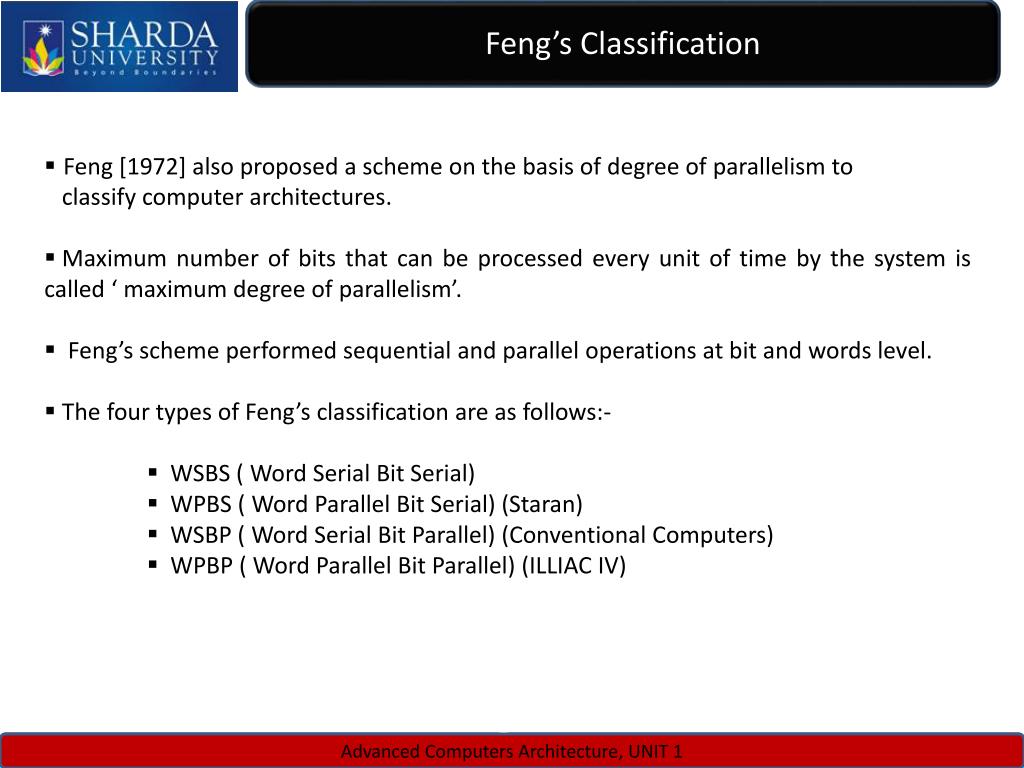

  5. Feng’s Classification • Feng [1972] also proposed a scheme on the basis of degree of parallelism to • classify computer architectures. • Maximum number of bits that can be processed every unit of time by the system is called ‘ maximum degree of parallelism’. • Feng’s scheme performed sequential and parallel operations at bit and words level. • The four types of Feng’s classification are as follows:- • WSBS ( Word Serial Bit Serial) • WPBS ( Word Parallel Bit Serial) (Staran) • WSBP ( Word Serial Bit Parallel) (Conventional Computers) • WPBP ( Word Parallel Bit Parallel) (ILLIAC IV) C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

  6. 16K • MPP 256 • STARAN bit slice length • IlliacIV 64 16 • C.mmP • PDP11 • IBM370 • CRAY-1 1 1 16 32 64 word length Advanced Computers Architecture, UNIT 1 C SINGH, JUNE 7-8, 2010 IWW 2010, ISATANBUL, TURKEY

  7. Modern Classification Parallel architectures Function-parallel architectures Data-parallel architectures C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

  8. Data Parallel Architectures Data-parallel architectures Vector architectures Associative And neural architectures SIMDs Systolic architectures C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

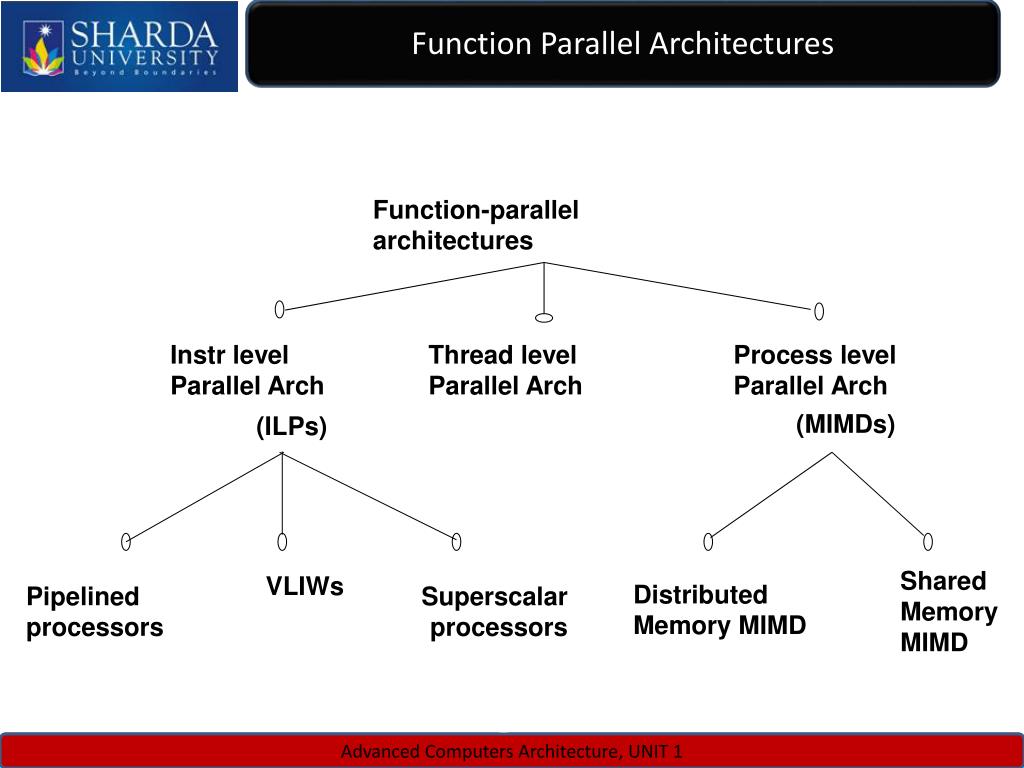

  9. Function Parallel Architectures Function-parallel architectures Instr level Parallel Arch Thread level Parallel Arch Process level Parallel Arch (MIMDs) (ILPs) Distributed Memory MIMD Shared Memory MIMD Pipelined processors VLIWs Superscalar processors C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

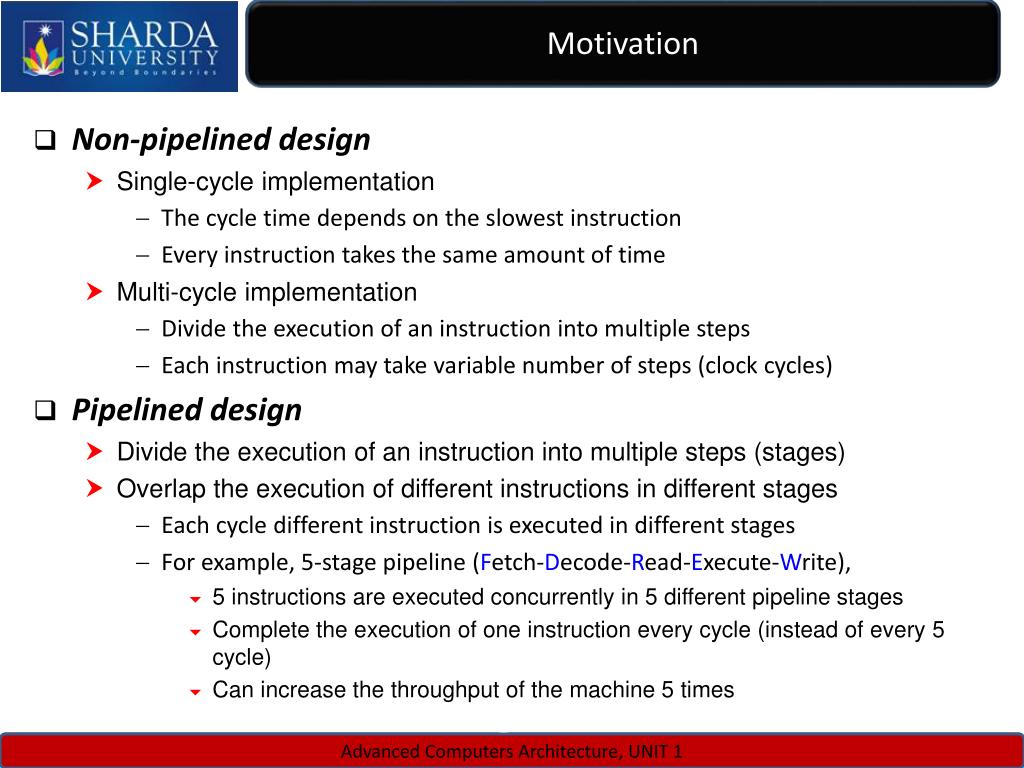

  10. Motivation • Non-pipelined design • Single-cycle implementation • The cycle time depends on the slowest instruction • Every instruction takes the same amount of time • Multi-cycle implementation • Divide the execution of an instruction into multiple steps • Each instruction may take variable number of steps (clock cycles) • Pipelined design • Divide the execution of an instruction into multiple steps (stages) • Overlap the execution of different instructions in different stages • Each cycle different instruction is executed in different stages • For example, 5-stage pipeline (Fetch-Decode-Read-Execute-Write), • 5 instructions are executed concurrently in 5 different pipeline stages • Complete the execution of one instruction every cycle (instead of every 5 cycle) • Can increase the throughput of the machine 5 times C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

  11. Example of Pipeline LD R1 <- A ADD R5, R3, R4 LD R2 <- B SUB R8, R6, R7 ST C <- R5 5 stage pipeline: Fetch – Decode – Read – Execute - Write Non-pipelined processor: 25 cycles = number of instrs (5) * number of stages (5) F D R E W F D R E W F D R E W F D R E W Pipelined processor: 9 cycles = start-up latency (4) + number of instrs (5) F F D R E W Draining the pipeline F D R E W F D R E W F D R E W Filling the pipeline F D R E W Advanced Computers Architecture, UNIT 1 C SINGH, JUNE 7-8, 2010 IWW 2010, ISATANBUL, TURKEY

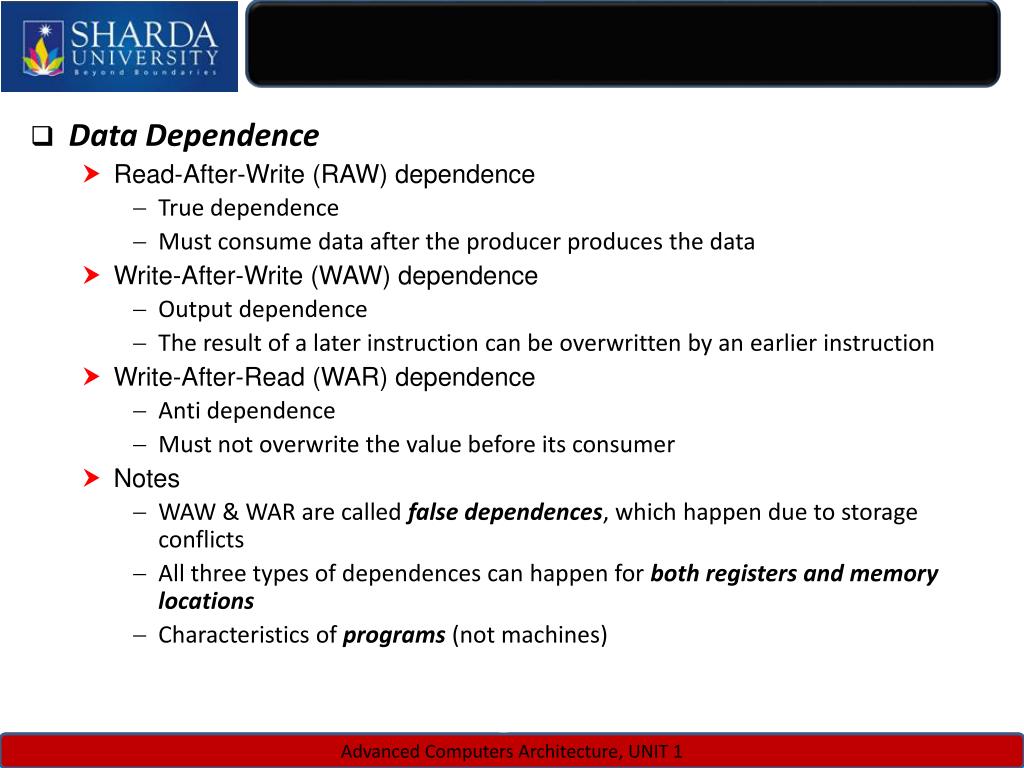

  12. Data Dependence • Read-After-Write (RAW) dependence • True dependence • Must consume data after the producer produces the data • Write-After-Write (WAW) dependence • Output dependence • The result of a later instruction can be overwritten by an earlier instruction • Write-After-Read (WAR) dependence • Anti dependence • Must not overwrite the value before its consumer • Notes • WAW & WAR are called false dependences, which happen due to storage conflicts • All three types of dependences can happen for both registers and memory locations • Characteristics of programs (not machines) C SINGH, JUNE 7-8, 2010 Advanced Computers Architecture, UNIT 1 IWW 2010, ISATANBUL, TURKEY

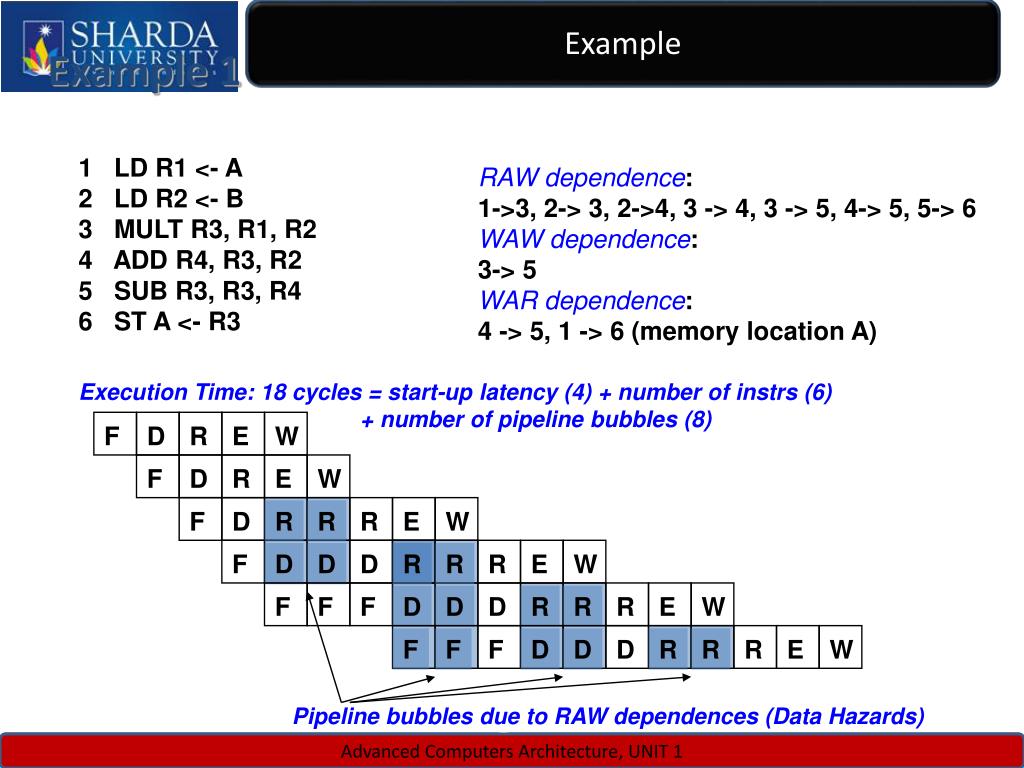

  13. Example Example 1 1 LD R1 <- A 2 LD R2 <- B 3 MULT R3, R1, R2 4 ADD R4, R3, R2 5 SUB R3, R3, R4 6 ST A <- R3 RAW dependence: 1->3, 2-> 3, 2->4, 3 -> 4, 3 -> 5, 4-> 5, 5-> 6 WAW dependence: 3-> 5 WAR dependence: 4 -> 5, 1 -> 6 (memory location A) Execution Time: 18 cycles = start-up latency (4) + number of instrs (6) + number of pipeline bubbles (8) F D R E W F D R E W F D R R R E W F D D D R R R R E W F F F D D D R R R E W F F F D D D R R R E W Pipeline bubbles due to RAW dependences (Data Hazards) Advanced Computers Architecture, UNIT 1 C SINGH, JUNE 7-8, 2010 IWW 2010, ISATANBUL, TURKEY
