Presentation Transcript
slide2

Gases

State of matter in which particles are separated by large distances.

slide3

Gases

  • Gas properties
slide4

Gases

  • Gas properties
  • Gases have mass
slide5

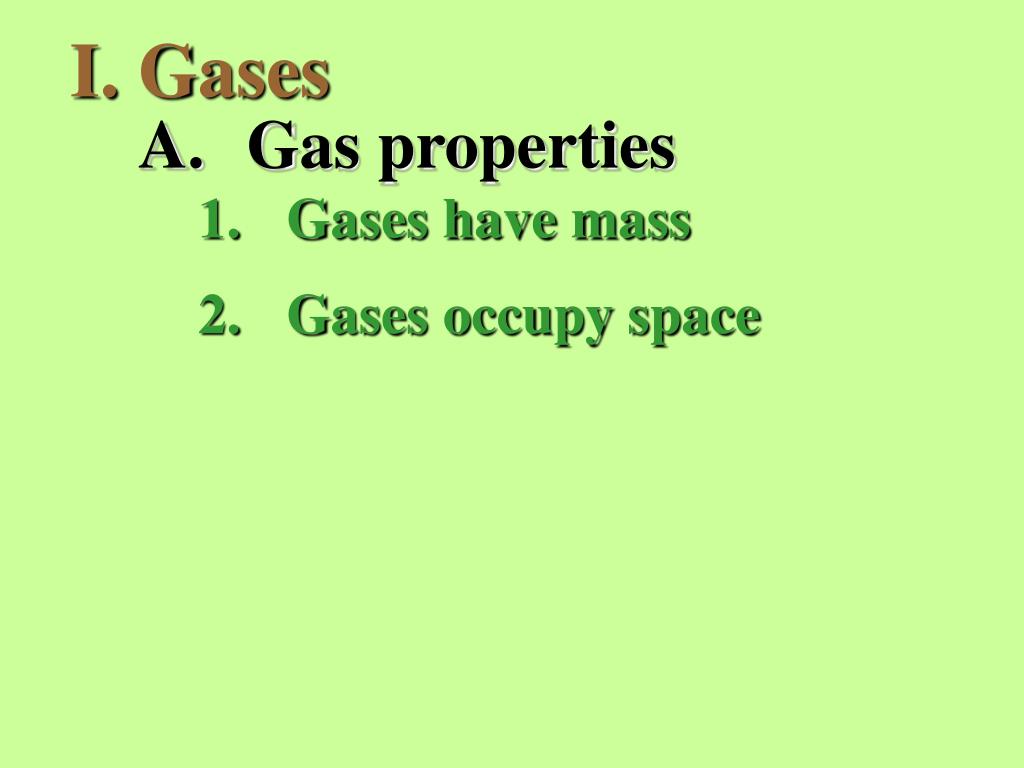

Gases

  • Gas properties
  • Gases have mass
  • Gases occupy space
slide6

Gases

  • Gas properties
  • Gases have mass
  • Gases occupy space
  • Gases completely fill their containers
slide7

Gases

  • Gas properties
  • Gases have mass
  • Gases occupy space
  • Gases completely fill their containers
  • Gases have low density
slide8

Gases

  • Gas properties
  • Gases can be compressed & expanded
slide9

Gases

  • Gas properties
  • Gases can be compressed & expanded
  • Gases exert pressure
slide10

Gases

  • Gas properties
  • Gases can be compressed & expanded
  • Gases exert pressure
  • Gases diffuse & effuse
slide11

Gases

  • The Kinetic Molecular Theory (KMT)

An explanation of why gases behave the way they do.

slide12

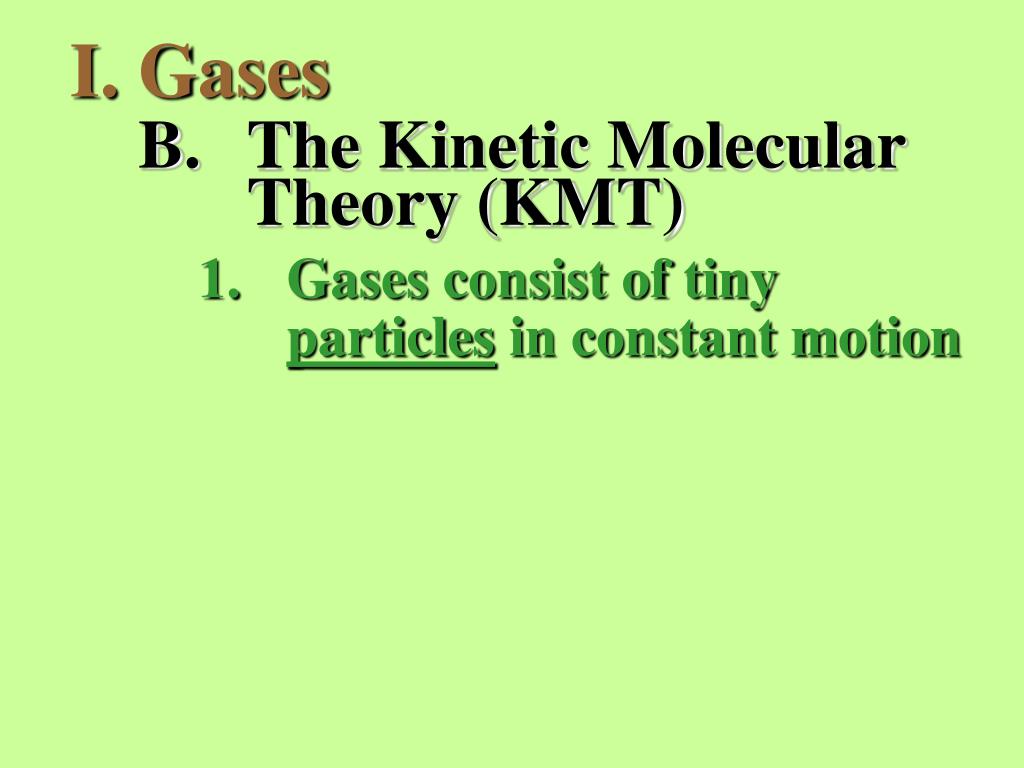

Gases

  • The Kinetic Molecular Theory (KMT)
  • Gases consist of tiny particles in constant motion
slide13

Gases

  • The Kinetic Molecular Theory (KMT)
  • Gases consist of tiny particles in constant motion
  • Gas particles travel in straight line until they collide with other particles or the container
slide14

Gases

  • The Kinetic Molecular Theory (KMT)
  • Gas particles are separated by relatively large spaces
slide15

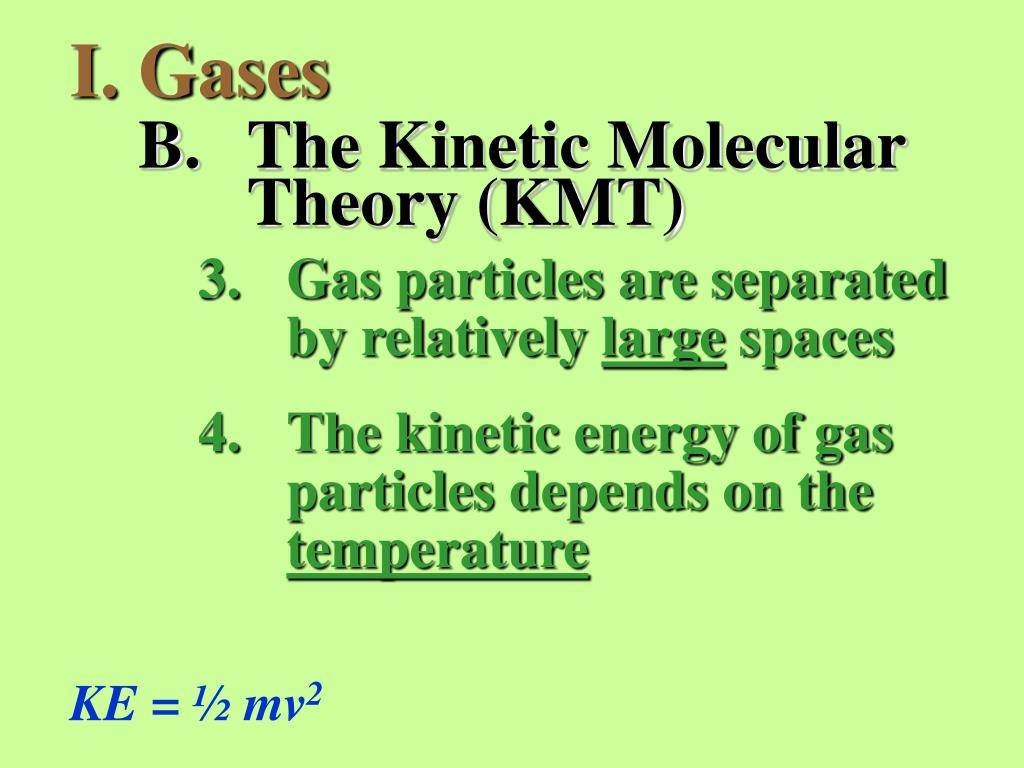

Gases

  • The Kinetic Molecular Theory (KMT)
  • Gas particles are separated by relatively large spaces
  • The kinetic energy of gas particles depends on the temperature

KE = ½ mv2

slide16

Gases

  • Diffusion

Spreading out of particles (high to low concentration)

slide17

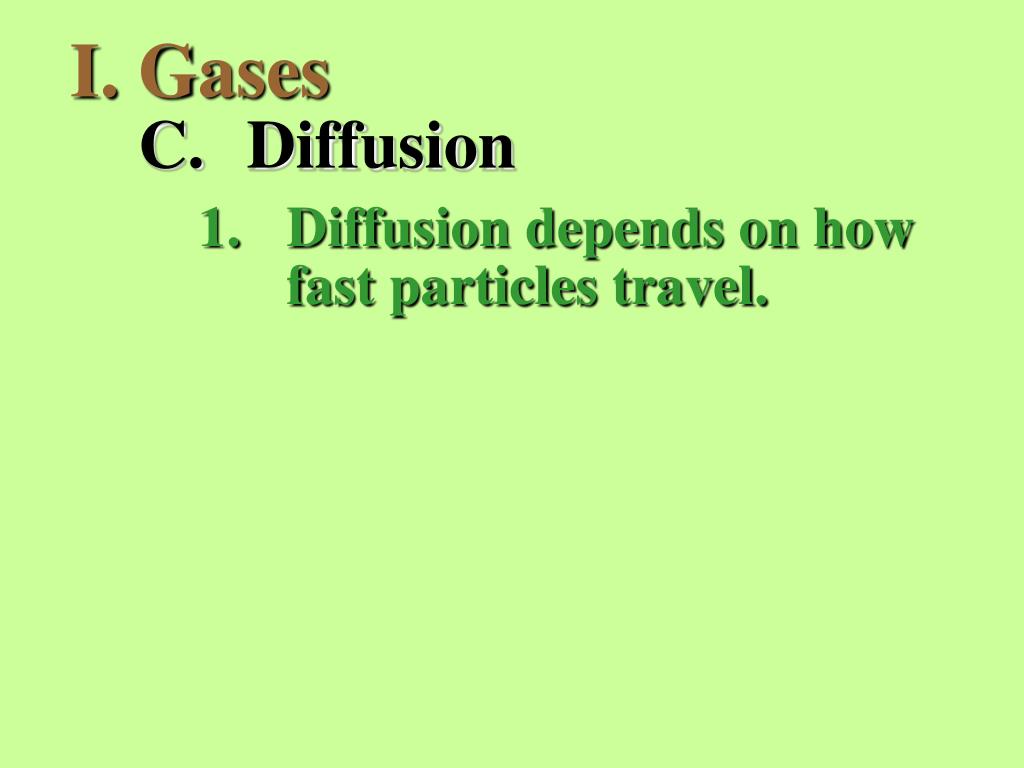

Gases

  • Diffusion
  • Diffusion depends on how fast particles travel.
slide18

Gases

  • Diffusion
  • Diffusion depends on how fast particles travel.
  • Cold particles travel _____ than warm particles.
slide19

Gases

  • Diffusion
  • Diffusion depends on how fast particles travel.
  • Cold particles travel slower than warm particles.
  • Small particles travel _____ than small particles.
slide20

Gases

  • Diffusion
  • Diffusion depends on how fast particles travel.
  • Cold particles travel slower than warm particles.
  • Small particles travel faster than small particles.
slide21

Gases

  • Diffusion
  • Diffusion depends on how fast particles travel.
  • Graham found that the diffusion rate was inversely proportional to the square root of the molar mass.
slide22

Graham’s Law

RateA

Molar mass B

=

RateB

Molar mass A

slide23

Measuring Gases

  • Gas Pressure
slide24

Measuring Gases

  • Gas Pressure
  • Pressure is force per area

P = F/A

slide25

Measuring Gases

  • Gas Pressure
  • Pressure is force per area
  • The atmosphere exerts pressure
slide26

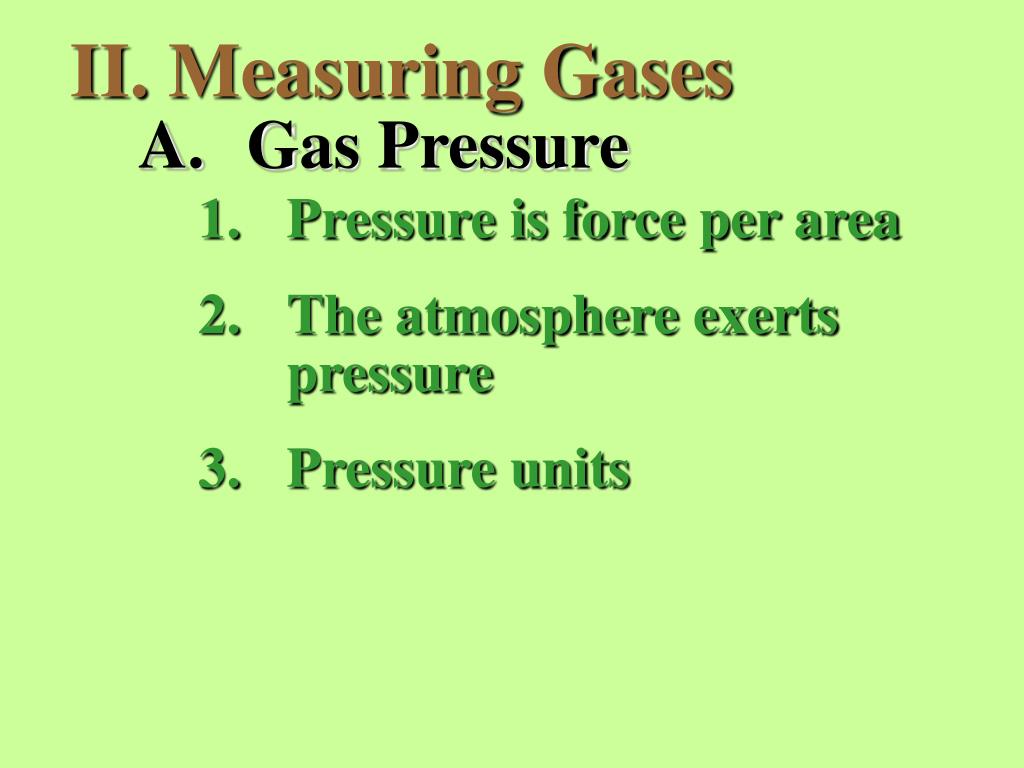

Measuring Gases

  • Gas Pressure
  • Pressure is force per area
  • The atmosphere exerts pressure
  • Pressure units
equivalent pressure units
Equivalent Pressure units

1.00 atmosphere (atm)

101325 pascals (Pa)

101.325 kilopascals (kPa)

760 __________ (mm Hg)

760 torricelli (torr)

14.7 pounds per square inch (___)

slide28

Measuring Gases

  • Gas Pressure
  • Pressure is force per area
  • The atmosphere exerts pressure
  • Pressure units
  • Converting pressure
slide29

Self Check – Ex. 1

A container of gas has a pressure of 50 atm. What is this pressure in psi?

slide30

Self Check – Ex. 2

What is the pressure in pascals of a gas sample that is 140 kPa?

slide31

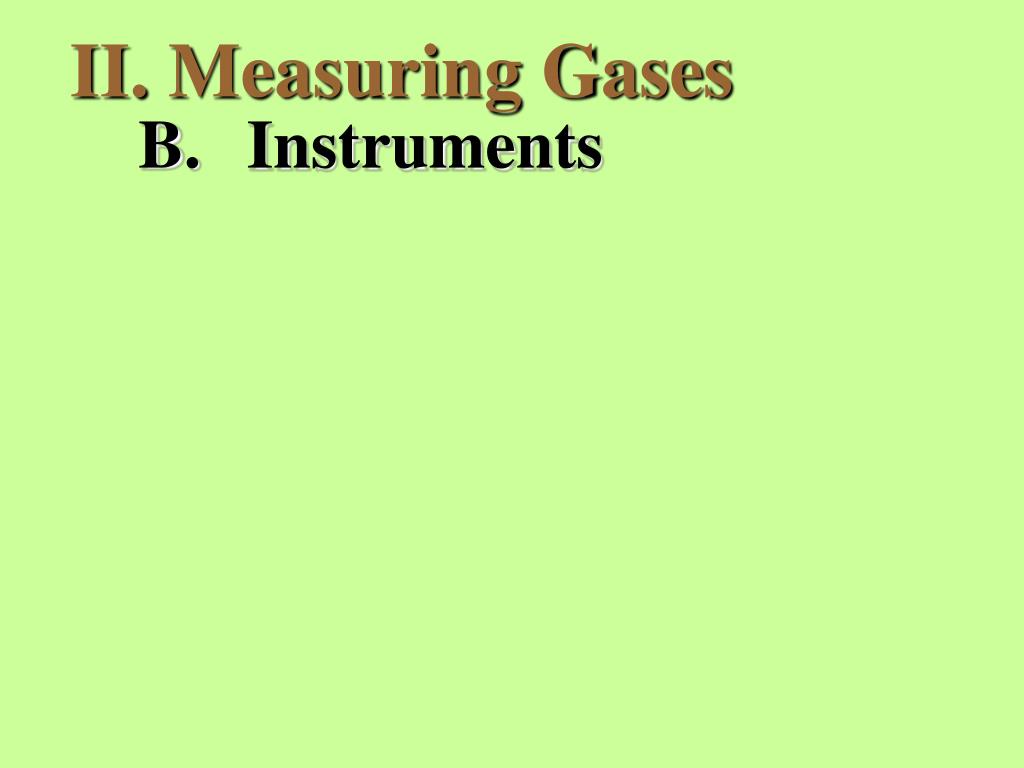

Measuring Gases

  • Instruments
slide32

Measuring Gases

  • Instruments
  • Barometer

Measures atmospheric pressure.

slide33

Measuring Gases

  • Instruments
  • Barometer
  • Mercury

Image: Dr. Leon L. Combs

Atmosphere ‘holds up’ a column of mercury

slide34

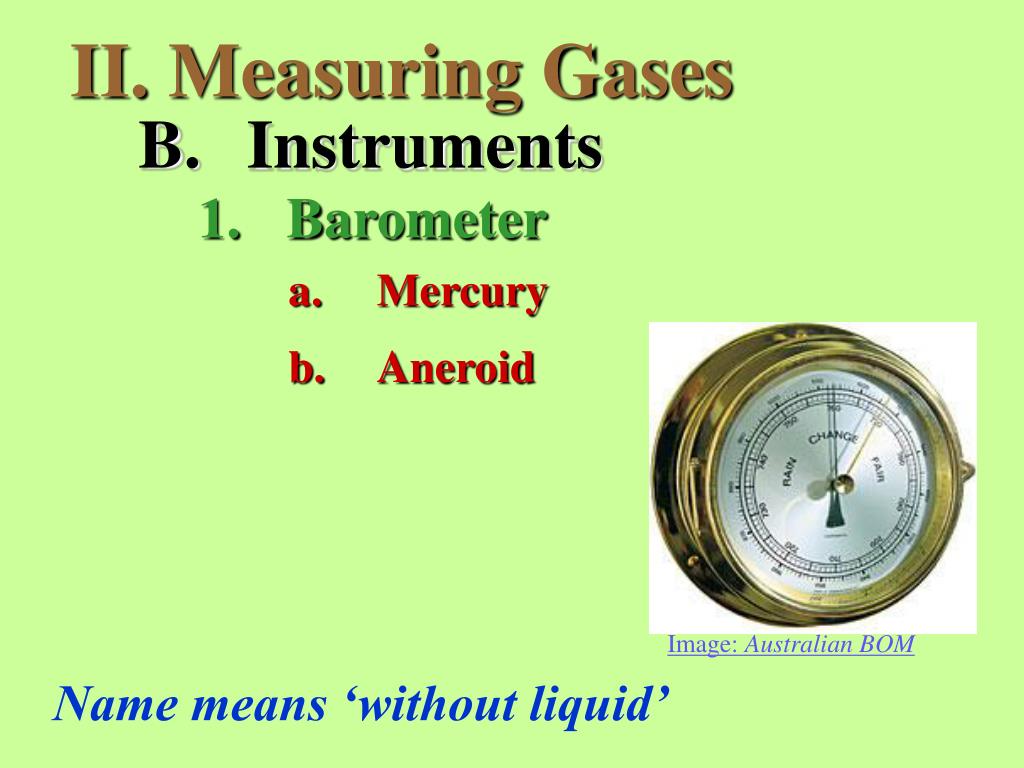

Measuring Gases

  • Instruments
  • Barometer
  • Mercury
  • Aneroid

Image: Australian BOM

Name means ‘without liquid’

slide35

CO2

22 mm

Hg

  • Measuring Gases
  • Instruments
  • Barometer
  • Manometer

Measures pressure of an enclosed gas

slide36

Measuring Gases

  • Instruments
  • Barometer
  • Manometer
  • Example calculations
slide37

Self Check – Ex. 3

What is the pressure of the CO2 gas pictured below? Atmospheric pressure is 755 mmHg.

CO2

22 mm

Hg

slide38

65 mm

He

Hg

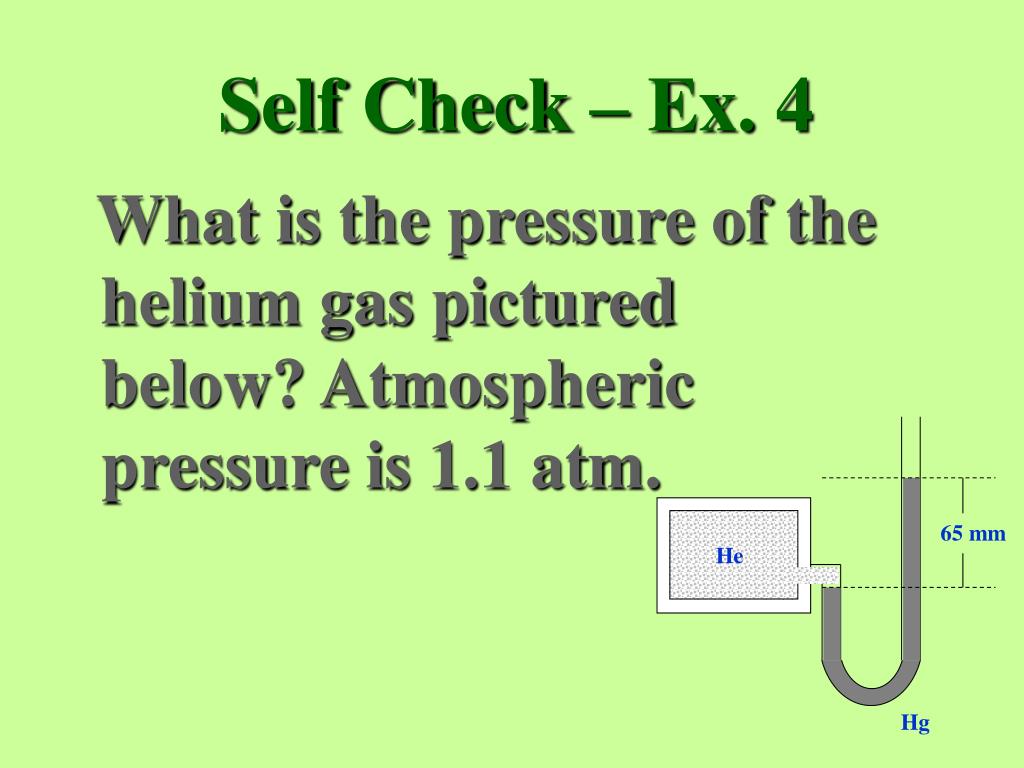

Self Check – Ex. 4

What is the pressure of the helium gas pictured below? Atmospheric pressure is 1.1 atm.
