securing information transmission by redundancy

Securing Information Transmission by Redundancy

Jun Li Peter Reiher Gerald Popek

Computer Science Department


NISS Conference

October 21, 1999

  • Interruption threats are hard to counter
  • Redundant transmission makes interruptions harder
  • But redundant transmission is not as easy as using redundancy in other areas
  • Sample uses
  • Conclusion
interruption threats
Interruption Threats



An interruption attack occurs


No data flows to the destination

  • Many kinds of interruption threats
    • Corrupted routers drop packets
    • Transmitting over packets on shared media
    • Congesting links or routers
  • Conventional approaches won’t help
    • Encrypted/signed message can still be interrupted
  • Acknowledgement won’t help either
    • The acknowledgement itself is subject to interruption
    • Retransmission means possibly failing again
  • So?
using redundancy to counter interruptions


Using Redundancy To Counter Interruptions
  • Don’t use a single path
    • Any point on the single path is a point of failure
  • Use redundancy to secure transmission
    • Only parallel redundancy considered here
      • A node is expected to receive multiple copies of one message
      • Successful if at least one copy is authentically received
  • Redundancy has been widely used in other areas
    • High availability storage
    • Replicated execution
    • And many others
a simple example

How does redundant deliver help?

What if a router is corrupted?

A Simple Example


Normal delivery uses a default path

The redundant copy gets through despite a bad router





But . . .
  • Redundant transmission is tough
    • Discovering disjoint paths is difficult
      • Routing is transparent to applications
    • Using disjoint paths is difficult
    • They may not exist at all
  • Can try to be as disjoint as possible nevertheless
    • An attacker has to find a choke point or break multiple points
  • Scale can also cause big problems
  • And what about costs of sending multiple copies?
sample uses of redundancy
Sample Uses of Redundancy

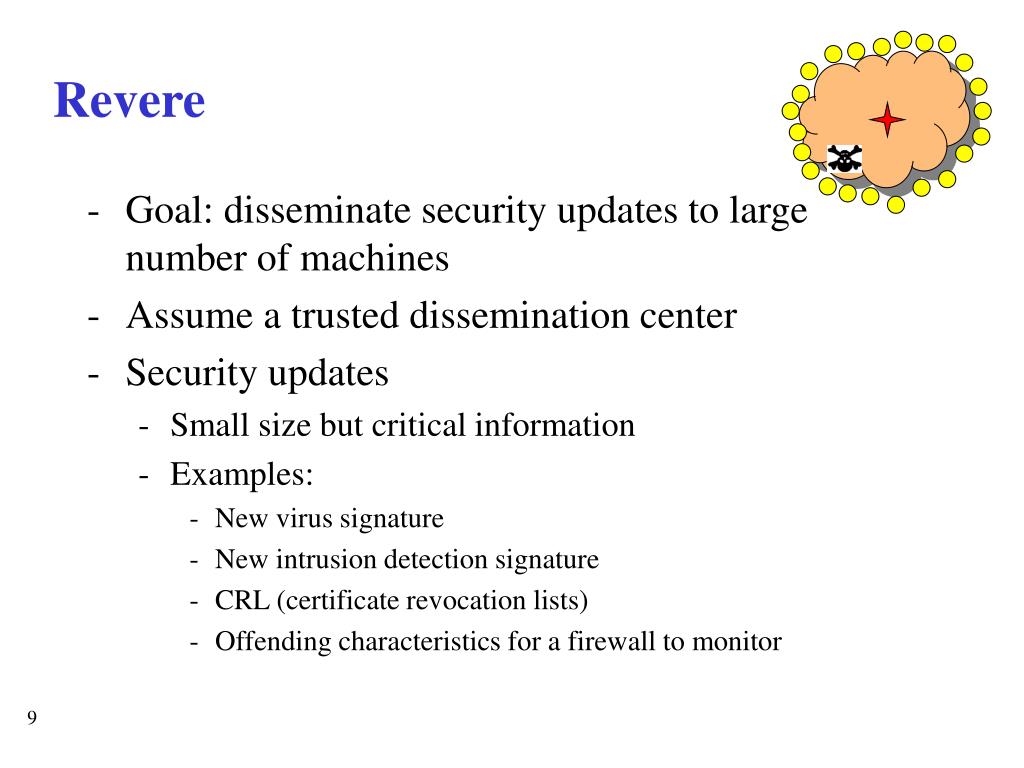

  • Revere
    • Secure delivery of security updates
  • General purpose redundant packet delivery service
    • Redundancy for every network user?
  • Goal: disseminate security updates to large number of machines
  • Assume a trusted dissemination center
  • Security updates
    • Small size but critical information
    • Examples:
      • New virus signature
      • New intrusion detection signature
      • CRL (certificate revocation lists)
      • Offending characteristics for a firewall to monitor
revere structure
Revere Structure
  • Acks/Nacks inappropriate
    • Scaling, lack of complete trust, etc.
  • Use redundancy to send multiple copies to each node
    • Each node can also forward security updates to others
  • A node can contact multiple repository nodes for missed updates
general redundant packet delivery services
General Redundant Packet Delivery Services
  • How could we add a redundant packet delivery service to the Internet?
  • What would be the best method of achieving redundancy?
    • Know a lot about the network?
    • Or rely on randomness and obscurity?
  • What are the costs of doing so?
  • How could it be easily deployable?
    • Proxy-based solutions?
  • Conventional security approaches and transmission primitives don’t adequately counter interruption threats
  • Redundancy is a promising tool
  • But effective use of redundancy is challenging
  • Are there other problems that redundancy can solve?
  • Does redundancy itself lead to new security threats?
  • Contact information
    • Peter Reiher:
    • Jun Li:
    • Gerald Popek:
