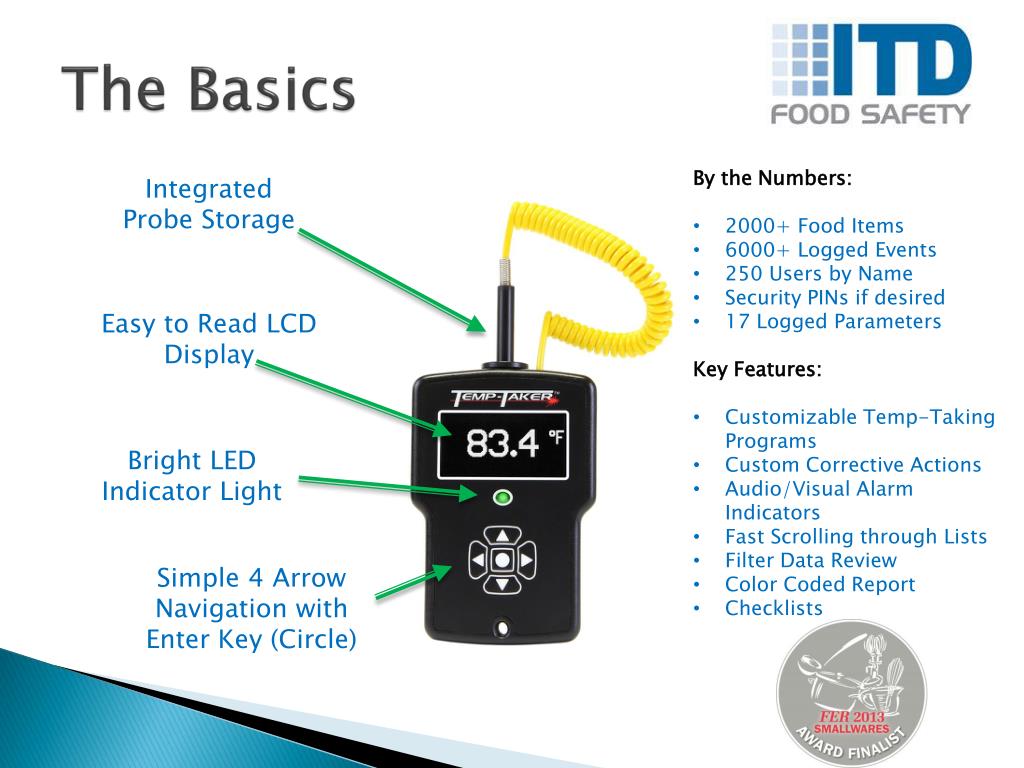

  1. The Basics • By the Numbers: • 2000+ Food Items • 6000+ Logged Events • 250 Users by Name • Security PINs if desired • 17 Logged Parameters • Key Features: • Customizable Temp-Taking Programs • Custom Corrective Actions • Audio/Visual Alarm Indicators • Fast Scrolling through Lists • Filter Data Review • Color Coded Report • Checklists Integrated Probe Storage Easy to Read LCD Display Bright LED Indicator Light Simple 4 Arrow Navigation with Enter Key (Circle)

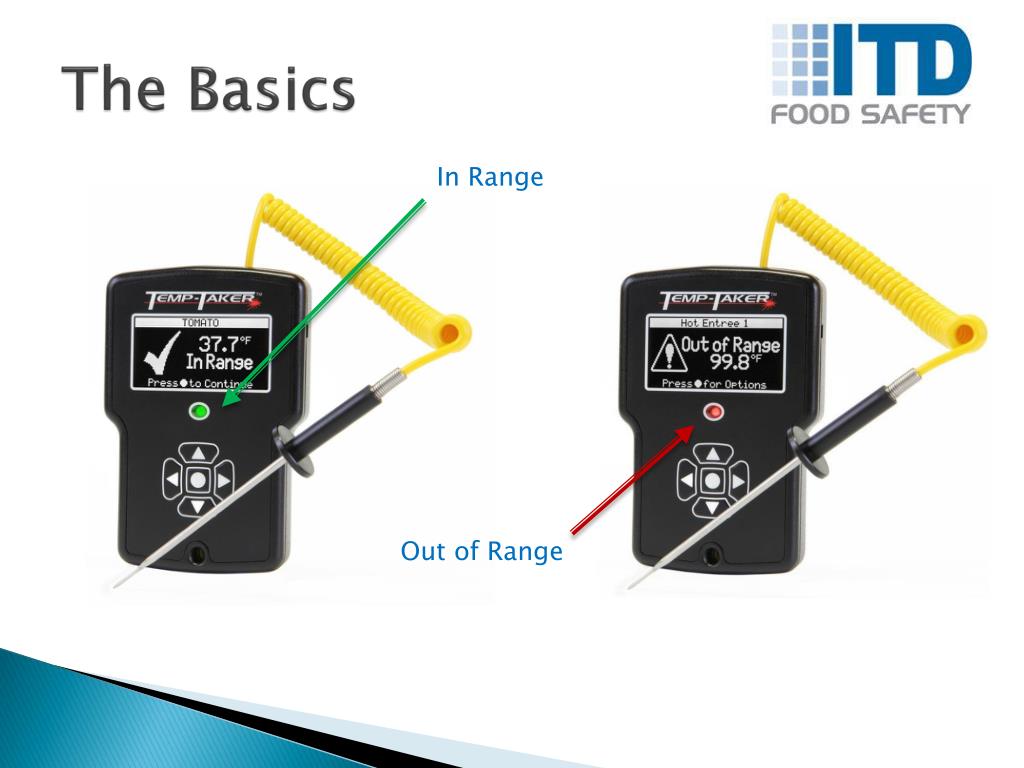

  2. The Basics In Range Out of Range

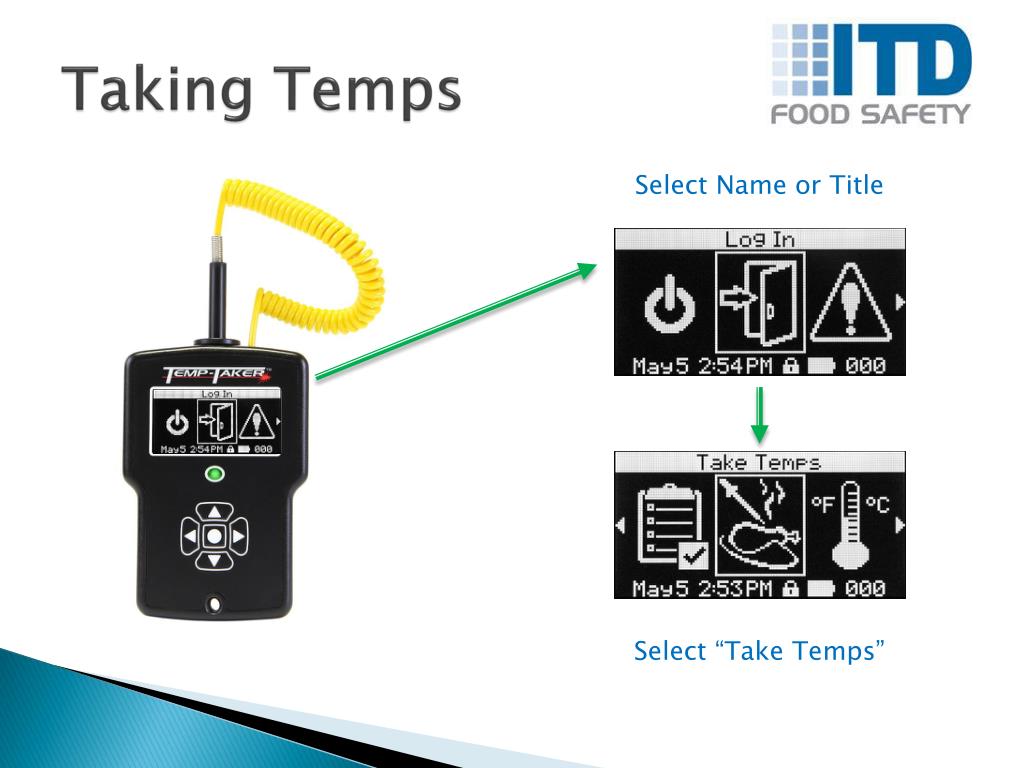

  3. Taking Temps Select Name or Title Select “Take Temps”

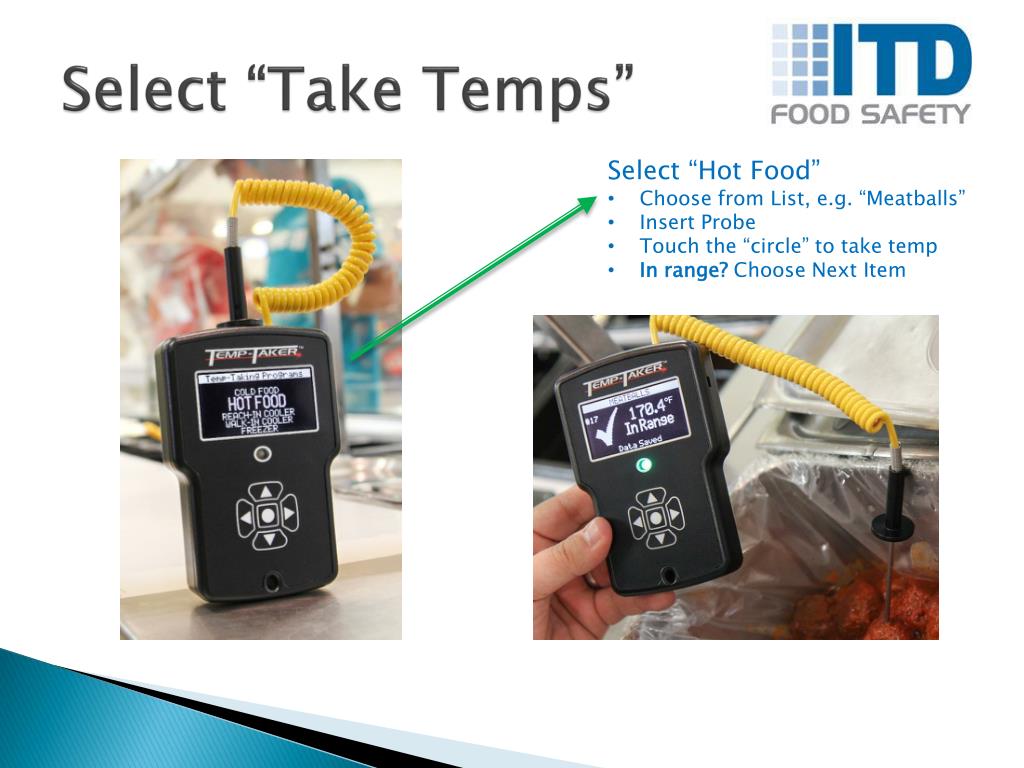

  4. Select “Take Temps” • Select “Hot Food” • Choose from List, e.g. “Meatballs” • Insert Probe • Touch the “circle” to take temp • In range? Choose Next Item

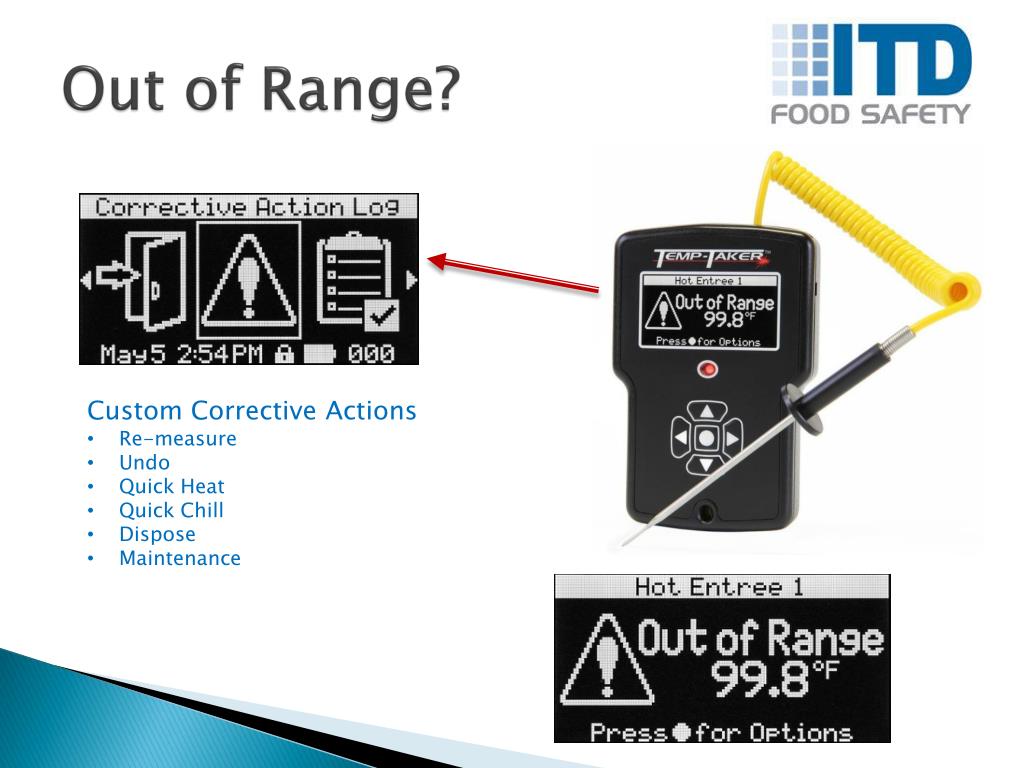

  5. Out of Range? • Custom Corrective Actions • Re-measure • Undo • Quick Heat • Quick Chill • Dispose • Maintenance

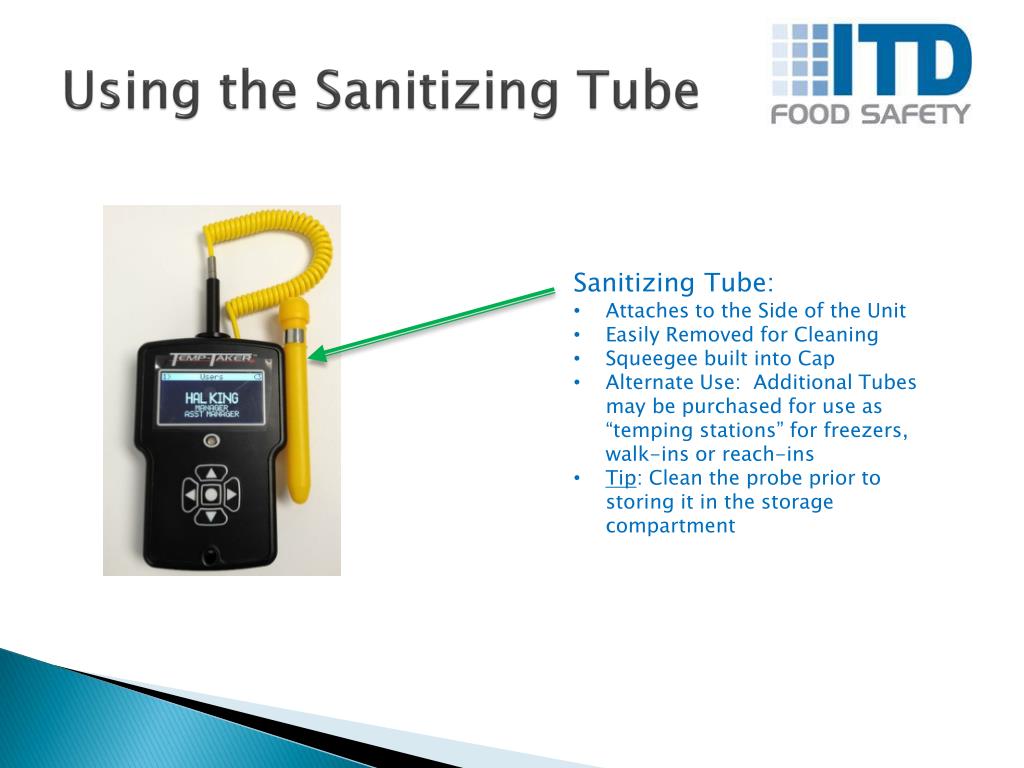

  6. Using the Sanitizing Tube • Sanitizing Tube: • Attaches to the Side of the Unit • Easily Removed for Cleaning • Squeegee built into Cap • Alternate Use: Additional Tubes may be purchased for use as “temping stations” for freezers, walk-ins or reach-ins • Tip: Clean the probe prior to storing it in the storage compartment

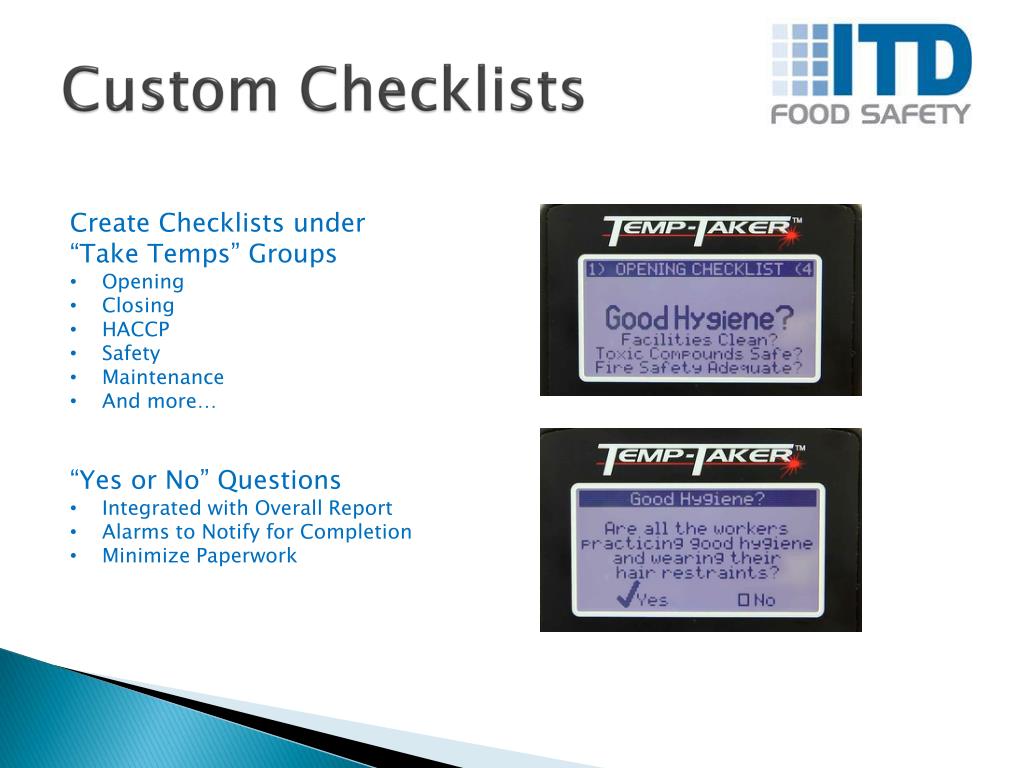

  7. Custom Checklists • Create Checklists under “Take Temps” Groups • Opening • Closing • HACCP • Safety • Maintenance • And more… • “Yes or No” Questions • Integrated with Overall Report • Alarms to Notify for Completion • Minimize Paperwork

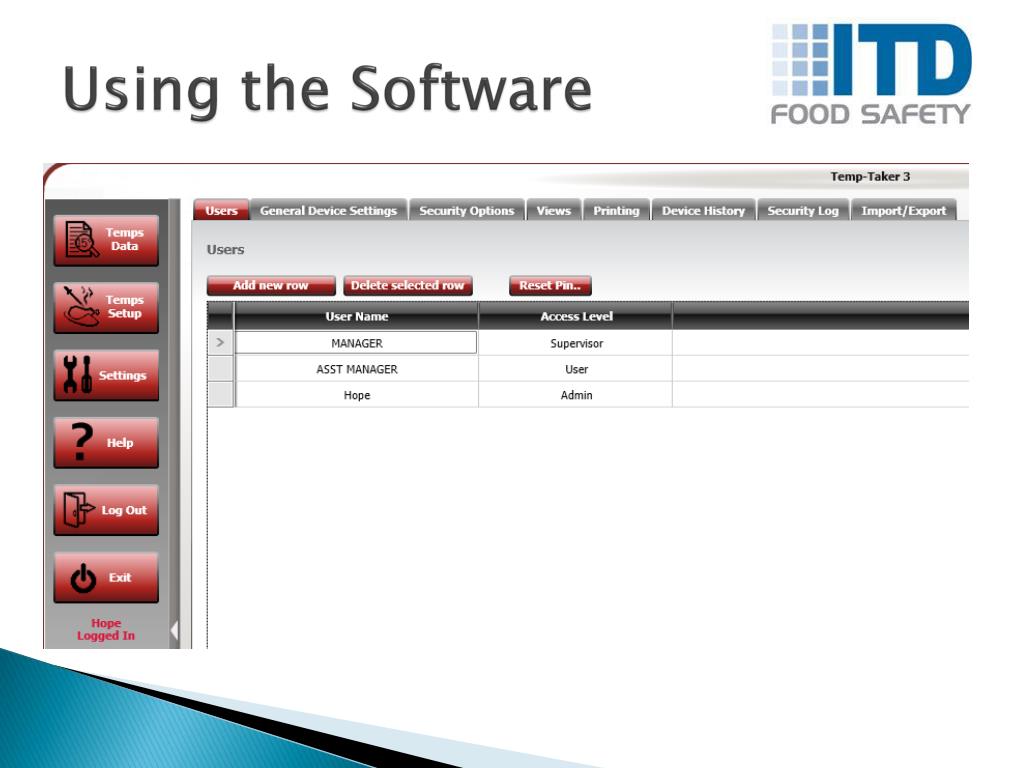

  8. Using the Software

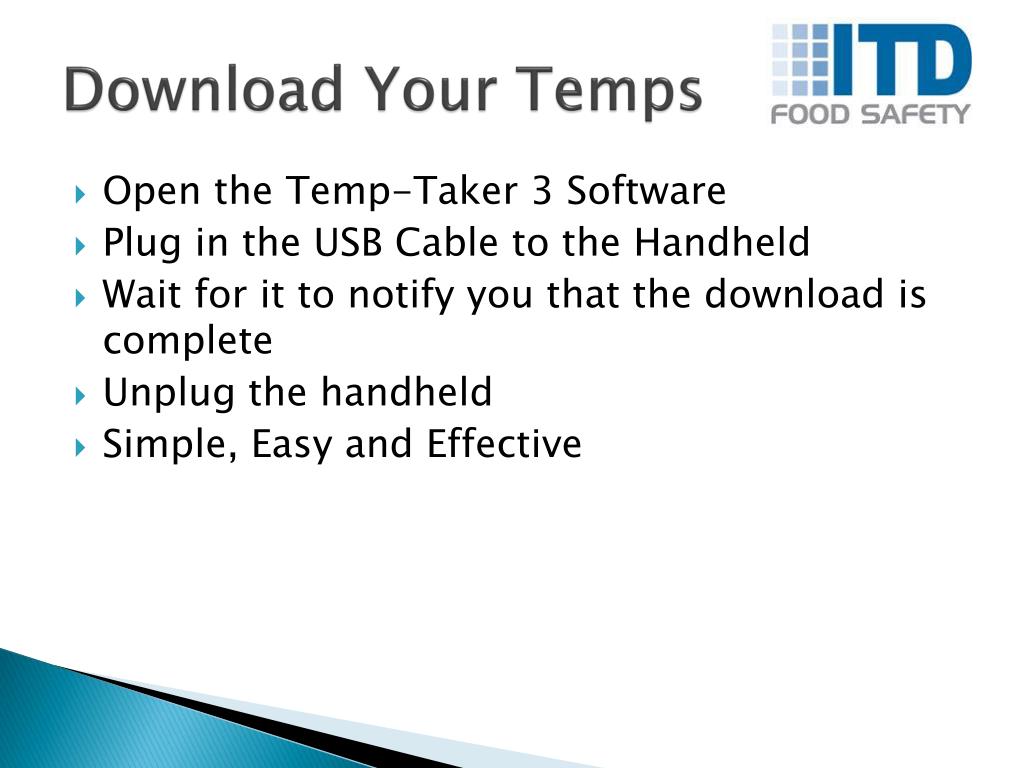

  9. Download Your Temps • Open the Temp-Taker 3 Software • Plug in the USB Cable to the Handheld • Wait for it to notify you that the download is complete • Unplug the handheld • Simple, Easy and Effective

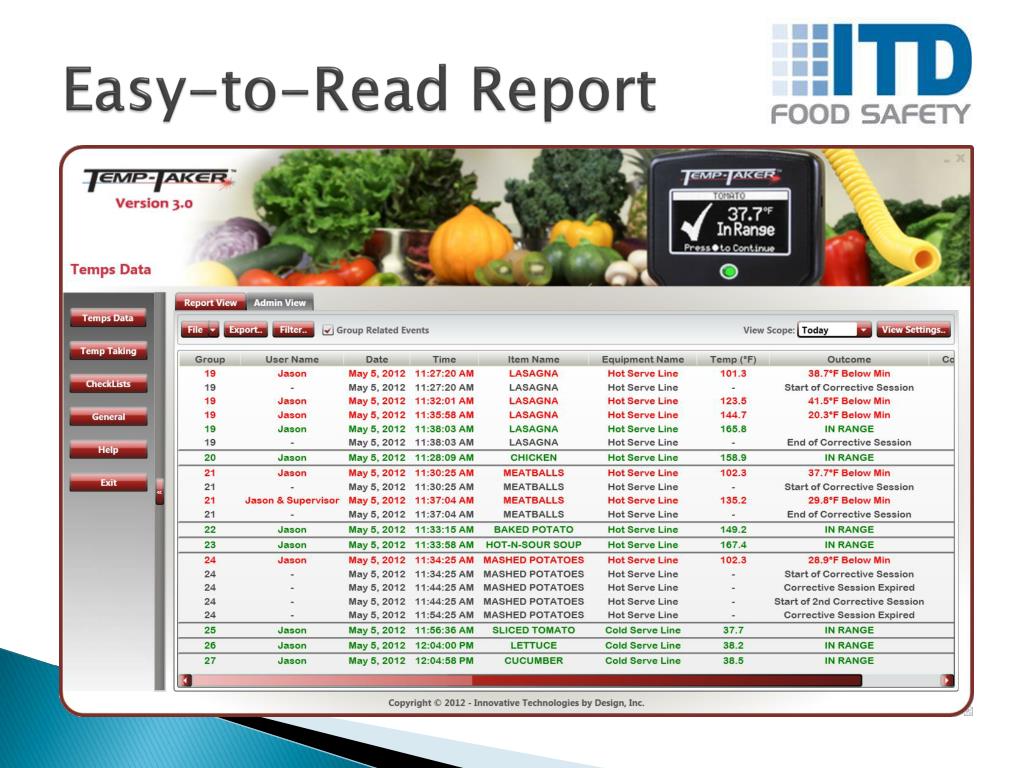

  10. Easy-to-Read Report

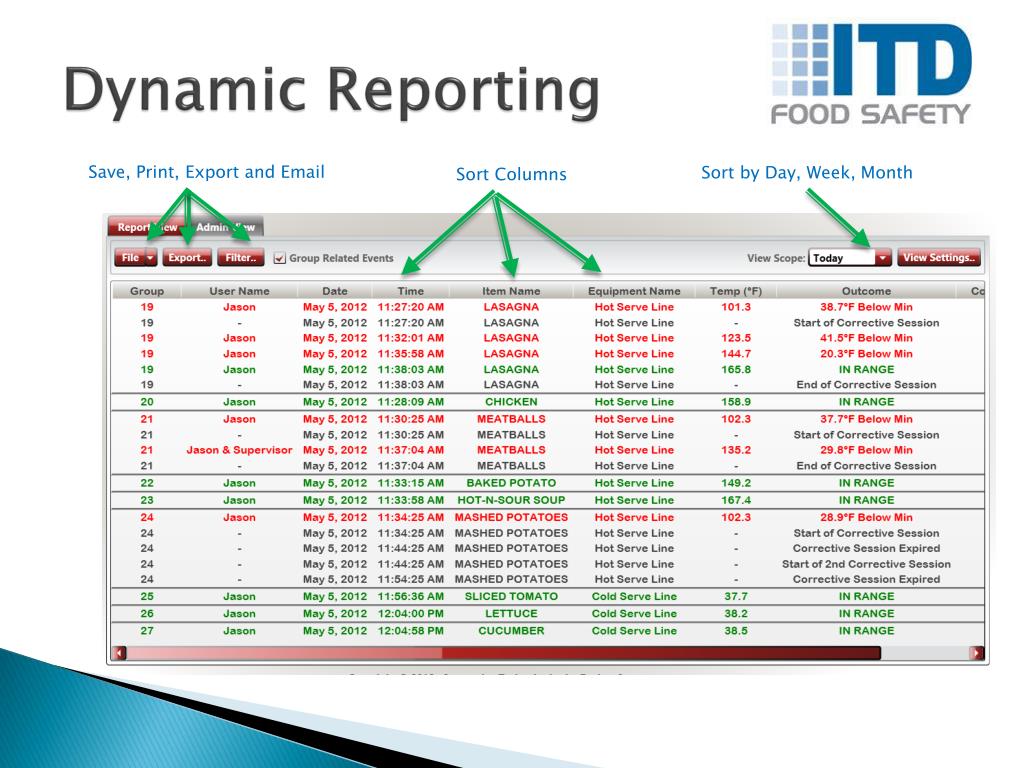

  11. Dynamic Reporting Save, Print, Export and Email Sort by Day, Week, Month Sort Columns

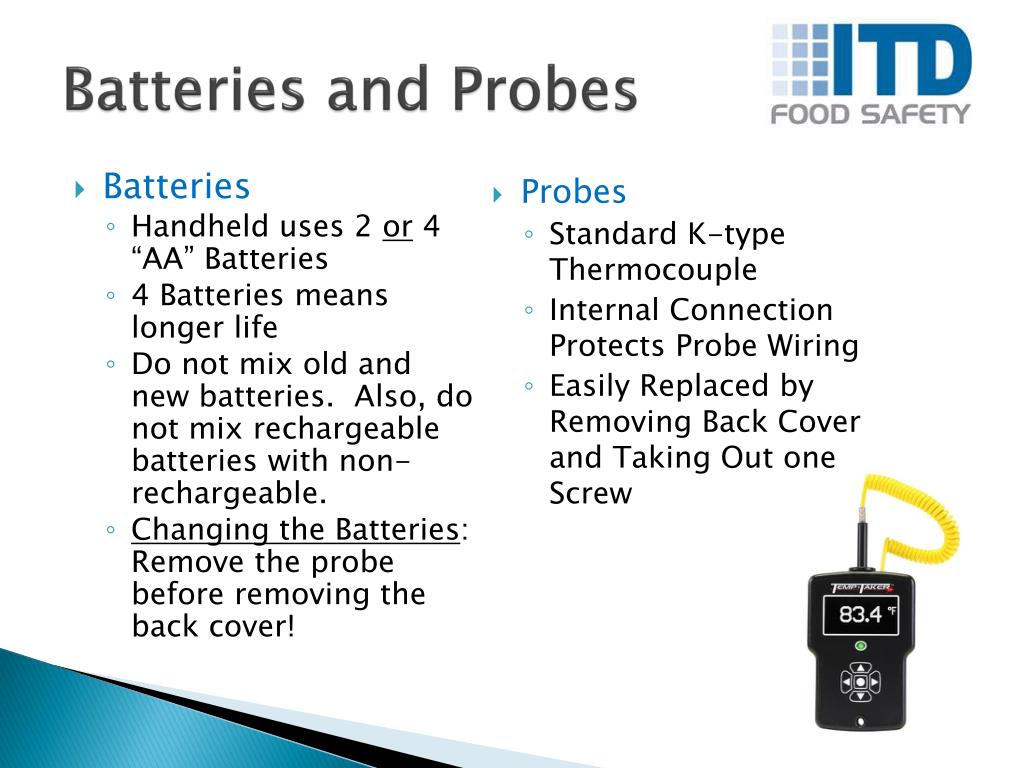

  12. Batteries and Probes • Batteries • Handheld uses 2 or 4 “AA” Batteries • 4 Batteries means longer life • Do not mix old and new batteries. Also, do not mix rechargeable batteries with non-rechargeable. • Changing the Batteries: Remove the probe before removing the back cover! • Probes • Standard K-type Thermocouple • Internal Connection Protects Probe Wiring • Easily Replaced by Removing Back Cover and Taking Out one Screw

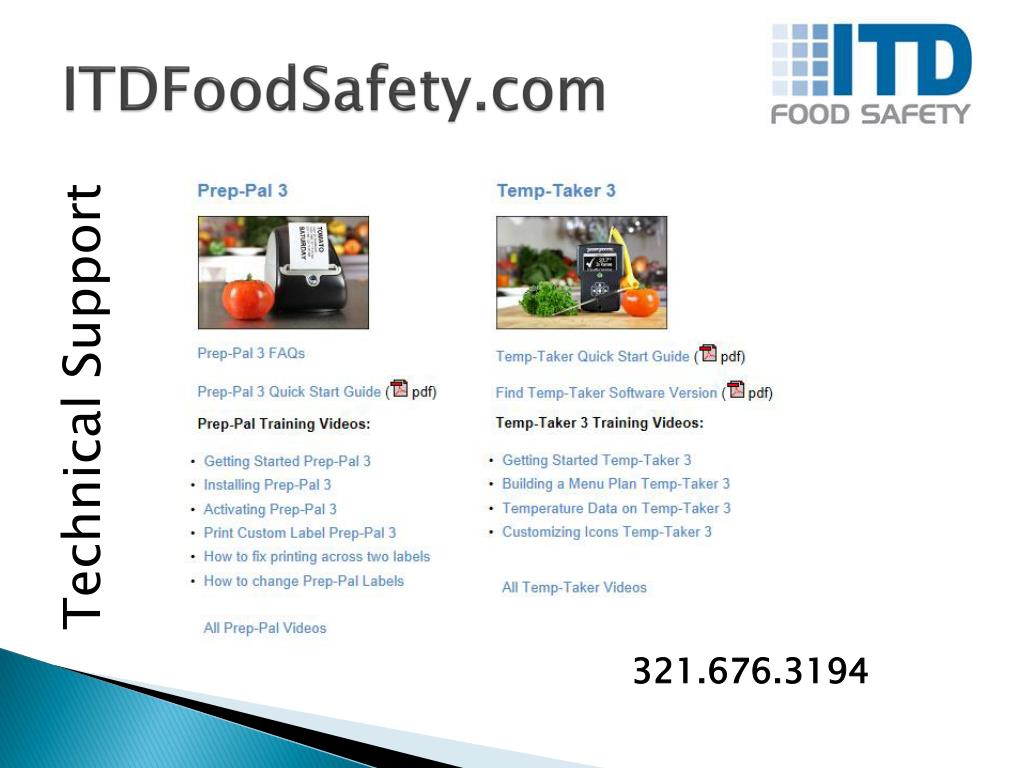

  13. ITDFoodSafety.com Technical Support 321.676.3194

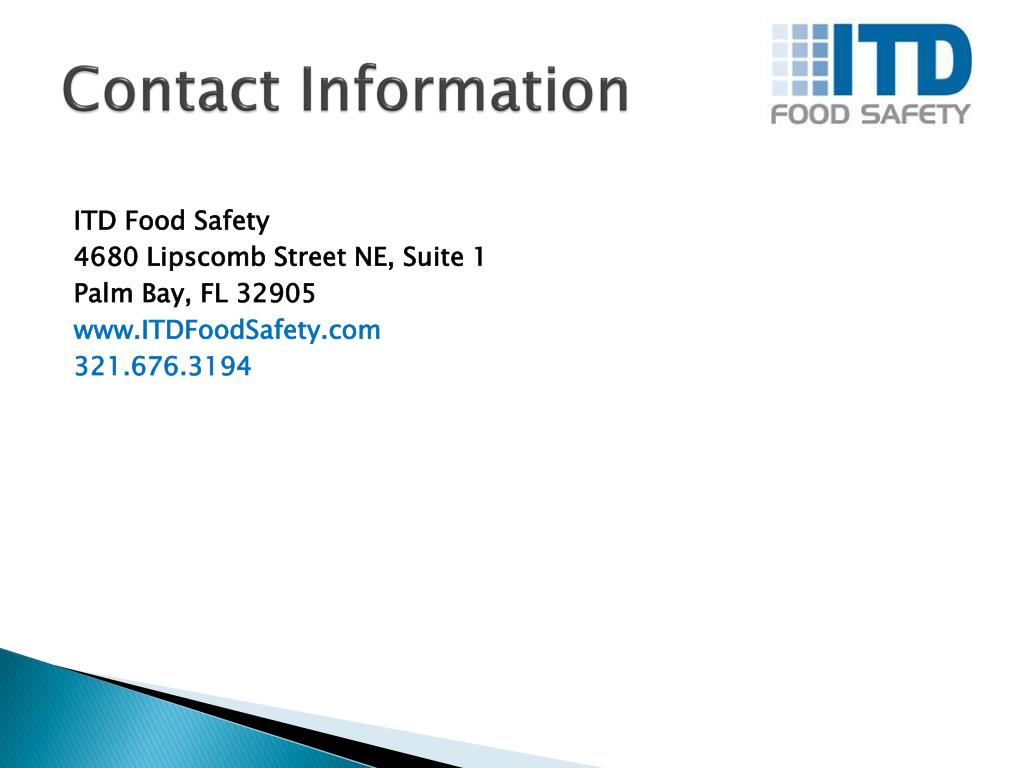

  14. Contact Information ITD Food Safety 4680 Lipscomb Street NE, Suite 1 Palm Bay, FL 32905 www.ITDFoodSafety.com 321.676.3194
