  1. Rad 5: CD Wallace T. Miller, Jr. M.D. Associate professor of Radiology and Pulmonary and Critical Care Medicine wallacejr.miller@uphs.upenn.edu

  2. 00852304.cm • Normal Study

  3. 00472223.bs • 56 woman Hx rheumatic fever as a child now with dyspnea and scant hemoptysis

  4. 00472223.bs • 56 woman Hx rheumatic fever as a child now with dyspnea and scant hemoptysis

  5. Mitral Regurgitation and Stenosis • LA Enlargment = Mitral valve disease • Double density • 4th mogul • Elevation of L mainstem broncus • Posterior displacement of upper heart border

  6. 01022261.ju • 56 male engineer with increasing dyspnea with exertion

  7. 01022261.ju • 56 male engineer with increasing dyspnea with exertion

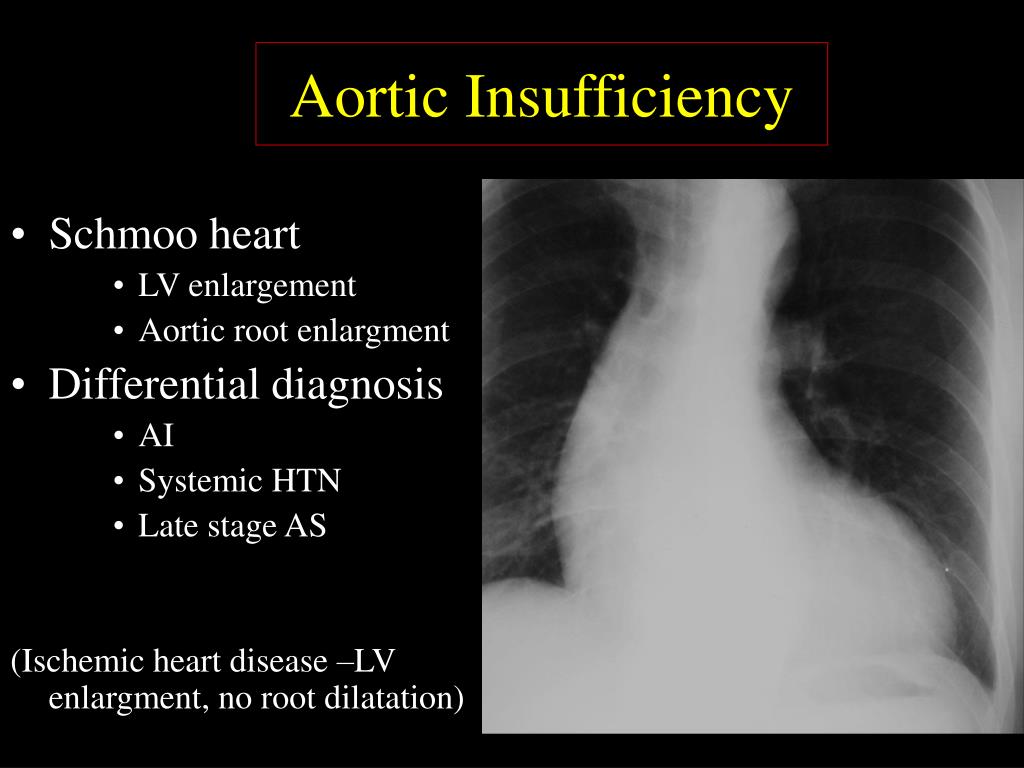

  8. Aortic Insufficiency • Schmoo heart • LV enlargement • Aortic root enlargment • Differential diagnosis • AI • Systemic HTN • Late stage AS (Ischemic heart disease –LV enlargment, no root dilatation)

  9. 00963067.gr • 33 woman with poor exercise tolerance

  10. Idiopathic Cardiomyopathy • Grapefruit heart • Normal shape but too big for body • Differential diagnosis • Cardiomyopathy • Pericardial effusion

  11. 00650542.lk • 36 man with chronic renal insufficiency, sp renal Tx, now with fevers.

  12. 00650542.lk • 36 man with chronic renal insufficiency, sp renal Tx, now with fevers.

  13. 00650542.lk • 36 man with chronic renal insufficiency, sp renal Tx, now with fevers.

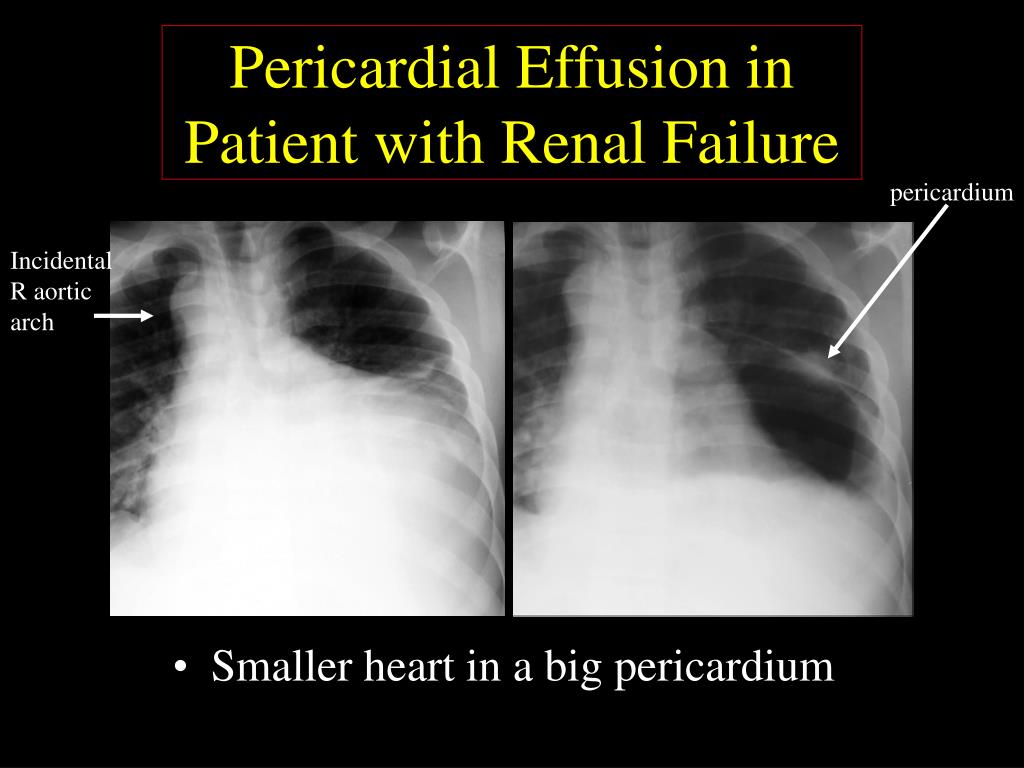

  14. Pericardial Effusion in Patient with Renal Failure pericardium • Smaller heart in a big pericardium Incidental R aortic arch

  15. 00472223.bs Mitral heart Schmoo heart Grapefruit heart MS AI cardiomyopathy MR HTN pericardial effusion AS

  16. 00904570.tt • 49 man post op

  17. 00904570.tt • 49 man post op

  18. 00942831.rk • Two elderly women, post op.

  19. 00942831.rk • Two elderly women, post op.

  20. 00942831.rk • Two elderly women, post op.

  21. 00960765.ea • Two elderly women, post op.

  22. 00960765.ea • Two elderly women, post op.

  23. These images came from file miller14820.cardiac.medstudent

  24. 00472223.bs • 56 woman Hx rheumatic fever as a child now with dyspnea and scant hemoptysis
