case studies of accessibility excessiveness analysis for java programs

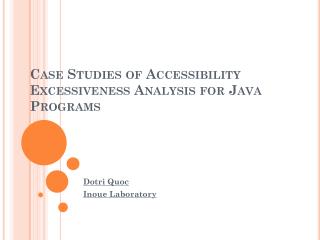

Case Studies of Accessibility Excessiveness Analysis for Java Programs

DotriQuoc

Inoue Laboratory

research problem 1 access modifier in java
Research Problem(1)Access Modifier in Java

CLASS1

publicint[] A ;

  • protectedint c ;

…..

  • public void sort()

{

}

  • (default)intbinarySearch(int value)

{

}

private void process(){

}

field declaration

Access Modifier

method declaration

research problem 2
Research Problem(2)
  • Access Modifier of fields/methods in Java : control the access of other classesto that field/method.
research problem 3
Research Problem(3)
  • In Java, inexperienced/careless developers often set all of the access modifier public or default(no declaration)
  • The fields/methods which should be hidden are not hidden
  • Bugs in latter development/maintenance phase
example of bad access modifier declaration
Example of bad access modifier Declaration

Class X

Public method B

Public method A

Current

program

OK

Initialization

Main job

Invoke

Other objects

Future

modification

Directly invoke B

ae accessibility excessiveness 1 2
AE : Accessibility Excessiveness(1/2)
  • AE : Discrepancy between declared access modifier and actual usage
  • An AE could cause unwilling access to method/field
  • AE could be used as an indicator of immaturity of developer

Declaration

AE

Actual use

ae accessibility excessiveness 2 2
AE : Accessibility Excessiveness(2/2)
  • Acquirement of AE for each field/method
    • AE causes bug in latter development and maintenance phase

AE analysis tool : ModiChecker

approach to ae analysis 1 ae map
Approach to AE Analysis(1)AE MAP

Unused

AE Id

AE Id of Excessive fields/methods

Syntax Error

No Discrepancy

approach to ae analysis 2 static source code analysis
Approach to AE Analysis(2) Static Source Code Analysis
  • Requirement
    • Information of each field/method’s access modifier declaration
    • Actual Usage of each field/method
  • MASU : Platform for Metrics measurement but is useful as a Java program analysis framework

Static source code Analysis is required

Employing MASU

MASU - http://sourceforge.net/projects/masu/

architecture of modichecker
Architecture of ModiChecker

ModiChecker

Input

MASU

Source Code Analyzer

AST Database

Source Code

Extraction of access modifier declaration

Extraction of method/field usage

Required Library(.jar files)

Detection of declaration excessiveness

Report of AE Id for each method/field

overview of experiment 1 2
Overview of Experiment(1/2)
  • Objectives of experiment
    • Validation of our approach
    • Quantitative analysis of AE Id in some software systems
    • Reasons for excessive/unused fields/methods

(found by interviewing developers)

      • Reason 1 : Set for future use
      • Reason 2 : Created by other program(automatic code generators or refactoring tools…) or accessed by other programs(Java bean)
      • Reason 3 : Carelessness and immaturity
  • Target Software
    • Industrial Software(341 Java files/ 64455 LOC)
experiment result
EXPERIMENT RESULT
  • Excessive fields : 1027
  • Excessive methods : 512
  • Unused methods : 1018
  • Unused fields: 40
    • 5 fields named serialVersionUID
    • Intentionally set for future use : 8
    • Actually unused : 28 (5 fields contain potential bug)
discussion
Discussion
  • Validation of ModiChecker output
    • Changed all of the excessive access modifier and deleted some unused fields/methods
    • Modified programs were compiled and executed without any error
  • Developer should look for the detailed result and make decision to change/delete the unused/excessive fields/methods
conclusion and future work
Conclusion AND FUTURE WORK
  • Conclusion
    • Analysis method named AE for each field/method
    • ModiChecker : report AE of each field/method
    • Experiment on some softwaresystems
  • Future work
    • ModiCheckerfor other Java systems and other programming language system(C# , C++…)
