  1. 2003-2004 Final Year Project Presentation DY1Machine Learning for Computer Security Applications by Lam Ho-yu advised by Dr. Yeung Dit-yan

  2. What is computer security? • Computer Security = Firewall? Is it secure? • 7-eleven examples…

  3. Intrusion Detection System (IDS) • Real world: Surveillance Camera • Computer Networks: IDS to monitor network • This project: computer security application = Intrusion Detection System (IDS)

  4. Presentation Flow • Problems of current IDS technology • Objectives of this project • Scenario – the key idea of this project • System framework • Another approach • Active Support Vector Machine (ASVM)

  5. Problems of Current IDS 172.16.113.50/portmap pm_getport: sadmind -> 0/udp 952442110.022445 SensitivePortmapperAccess rpc: 202.77.162.213/659 > 172.16.112.10/portmap pm_getport: sadmind -> 56255/udp 952442110.098242 SensitivePortmapperAccess rpc: 202.77.162.213/660 > 172.16.112.50/portmap pm_getport: sadmind -> 56261/udp 952443968.102596 ContentGap 194.27.251.21/13525 > 172.16.112.194/telnet content gap (< 92797/14296) A part of “alert.log” of Bro • Low-level • Large Quantity • False alerts – Password typo vs. Password guessing? • Heavy workload for network security officers

  6. Objectives • To allow easier separation between false alerts and real alerts • To transform alerts to a more user-friendly representation • To relief operator’s workload by automation

  7. Notion of Scenario • A typical attack usually takes several steps • Scan for candidate machines • Exploration – Gather information of the machine • Exploitation – Break into the machine • Escalation – gain more control (super-user) • Do anything the intruders want!! • Operators want to see logical steps that the intruder is taking

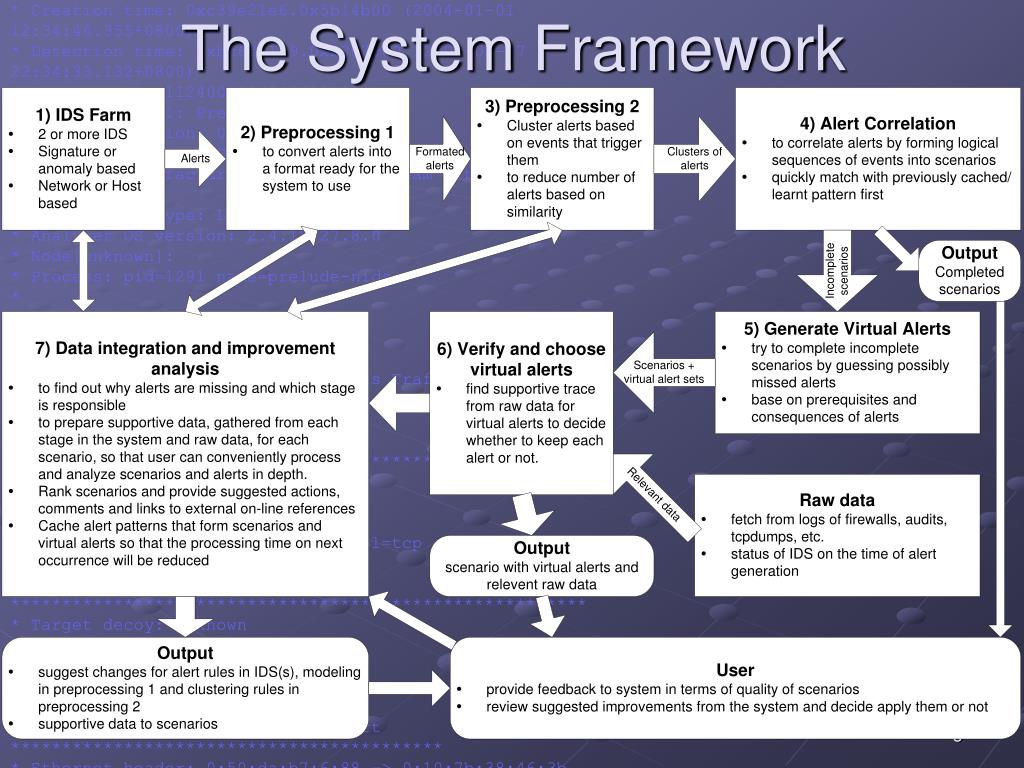

  8. The System Framework

  9. Learning Components • Clustering – Group similar alerts together • Correlation – Group alerts that are in the same scenario Multi-Layer Perceptrons Decision Tree

  10. Key Results Total Clusters: 236 Alert count in clusters: 835 ***********************Correlation Results************************* Total Scenarios: 182 Alert count in Scenarios: 236 --------------- Confusion Matrix --------------- Processed Results Desired True False Total ------------------------------------------------------ True 126 1 127 False 130 578 708 ------------------------------------------------------ Total 256 579 835 ------------------------------------------------------ Processed Results Desired True False Total ------------------------------------------------------ True 99.21% 0.7874% 15.21% False 18.36% 81.64% 84.79% ------------------------------------------------------ Total 30.66% 69.34%

  11. Screen Shot

  12. Q & A

  13. Thank you!
