Earth Science

1. Earth Science Chapter 5: Section 2 Surface Processes and Landscapes

2. Introduction to Oceans • Currents are made by wind & density diffs. • Currents distribute Earth’s solar energy. • Carry heat energy from lower latitudes to higher latitudes & cold water to lower latitudes • Erosion and deposition by wave action cause changes in shoreline features like beaches, sandbars, and barrier islands. • Wave action rounds sediments by abrasion.

3. Ocean Currents

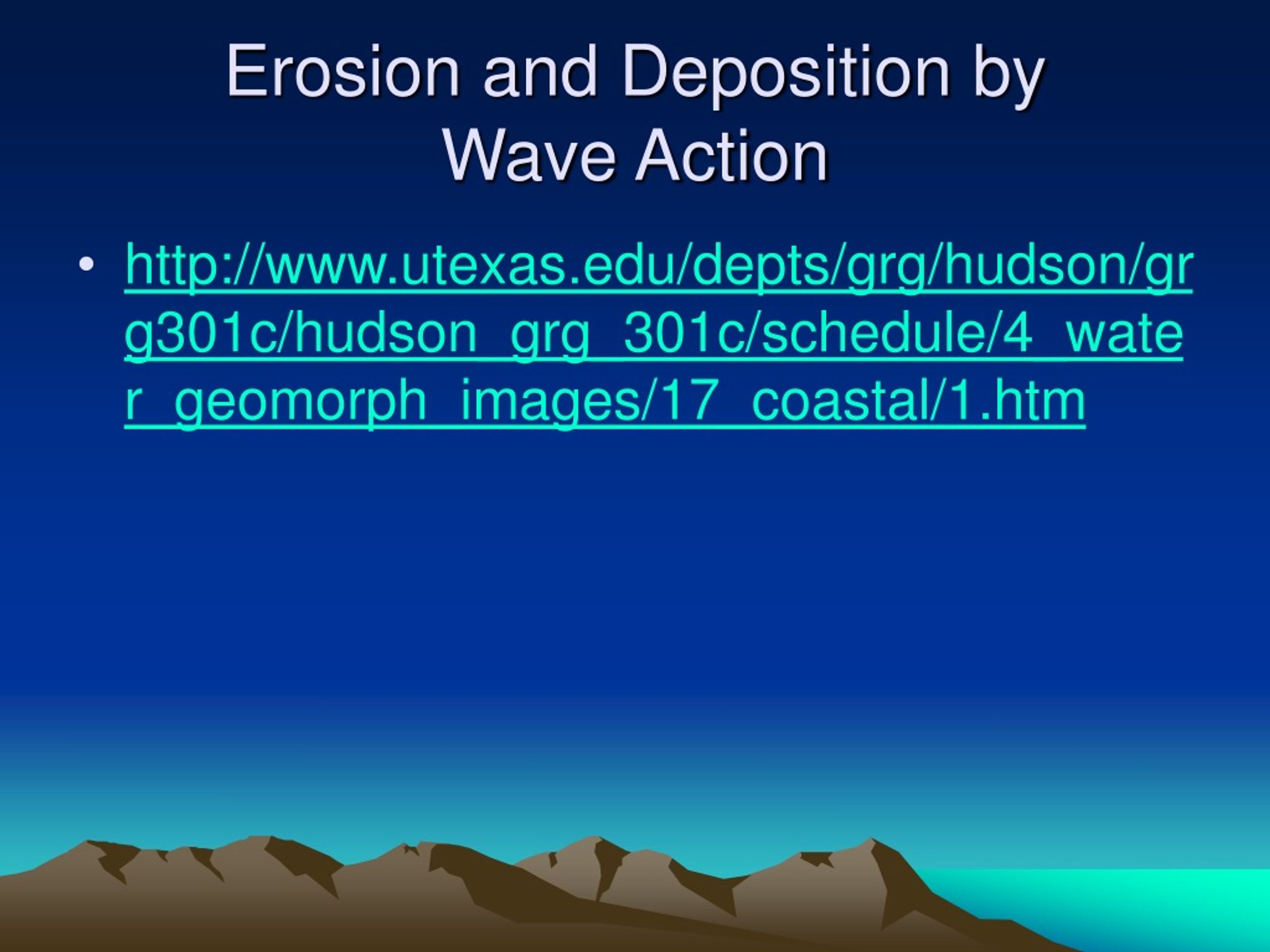

4. Erosion and Deposition by Wave Action • http://www.utexas.edu/depts/grg/hudson/grg301c/hudson_grg_301c/schedule/4_water_geomorph_images/17_coastal/1.htm

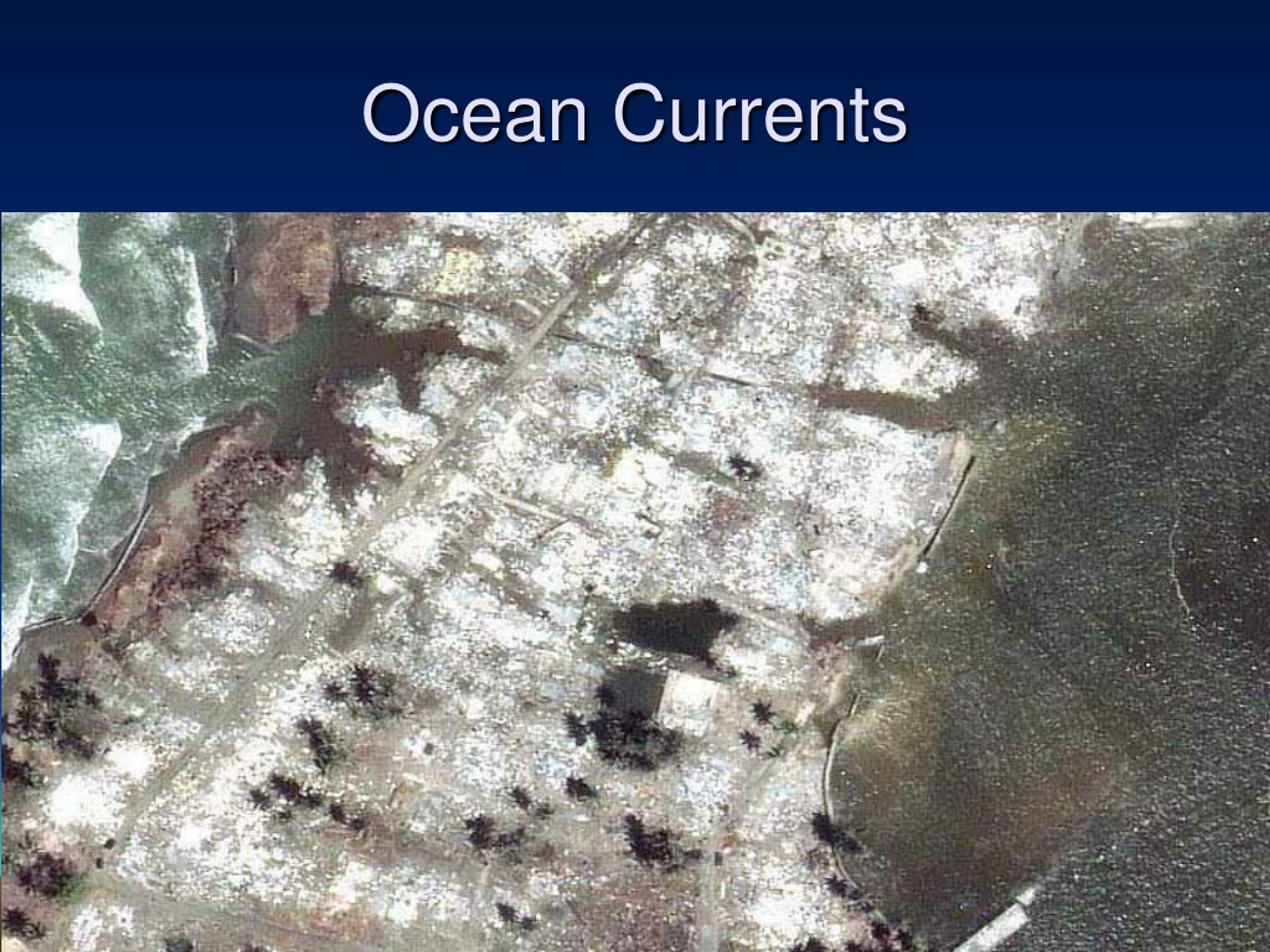

5. Ocean Currents • Tsunamis – large waves caused by submarine landslides or volcanic eruptions • Wavelengths can be 100 miles long • Heights can reach 100 feet • Indonesian Tsunami of December 26, 2004 • Ruptured over a length of at least 250 miles • Traveled at about 1.2 miles per second • Wave heights greater than 30 feet

6. Ocean Currents

7. Ocean Currents

8. Ocean Currents

9. Ocean Currents

10. Glaciers • Two types of glaciers: • Valley (alpine) glaciers - confined to a valley and flows from higher to lower elevations. • Most present day glaciers are valley glaciers. • Continental ice sheets - thick mass of ice that covers over 50,000 square kilometers of land. • Only two exist today • Antarctica and Greenland

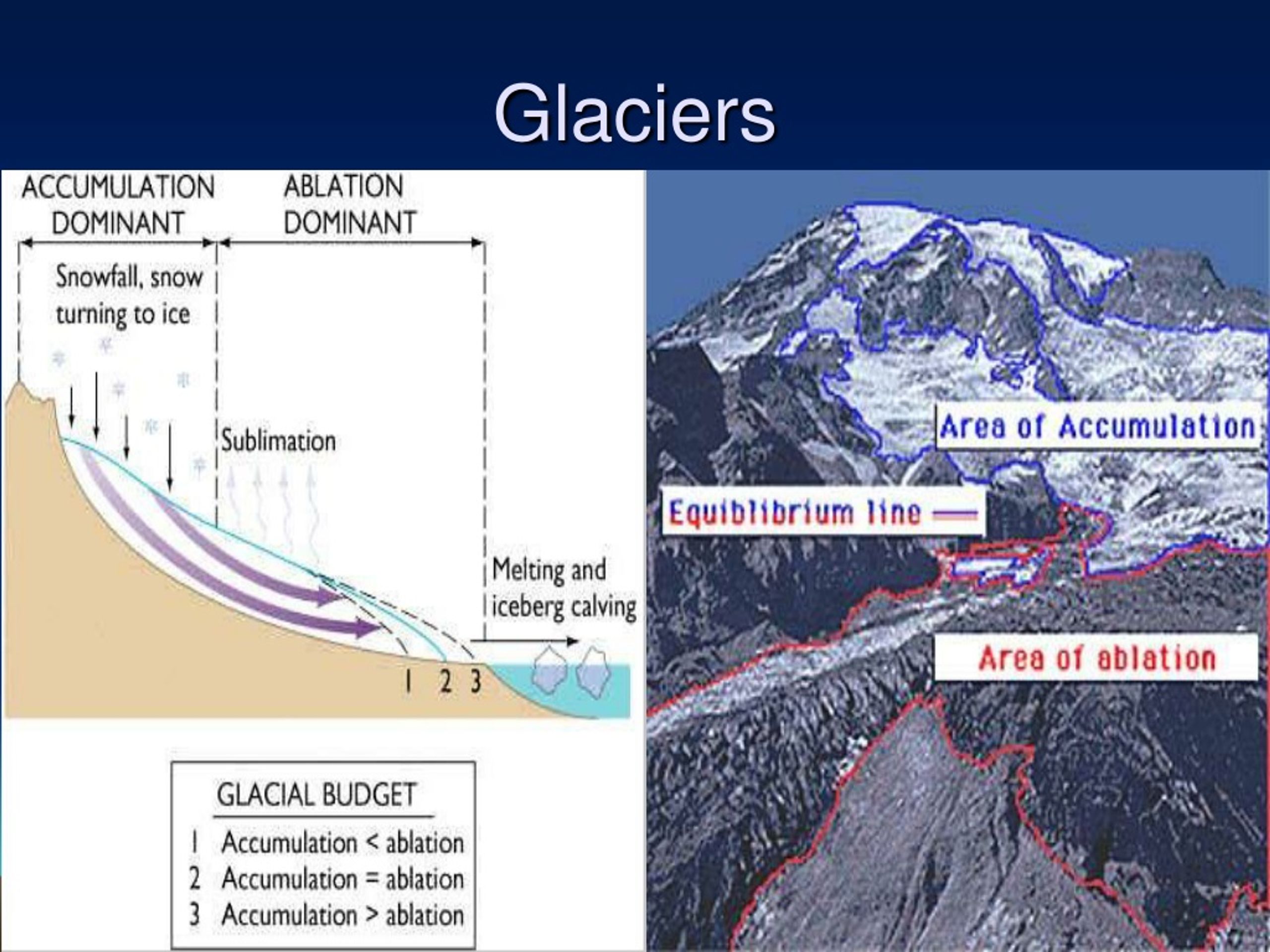

11. Glaciers

12. Glacial Erosion • Glaciers move down slope under the influence of gravity and their own weight. • Steeper the slope the faster the movement. • When a glacier melts faster than it moves downslope it moves backward (recedes) • When a glacier slides over rock, the rock beneath the glacier is abraded. • Sharp corners of rocks dragged along make long parallel scratches (striations).

13. Glaciers

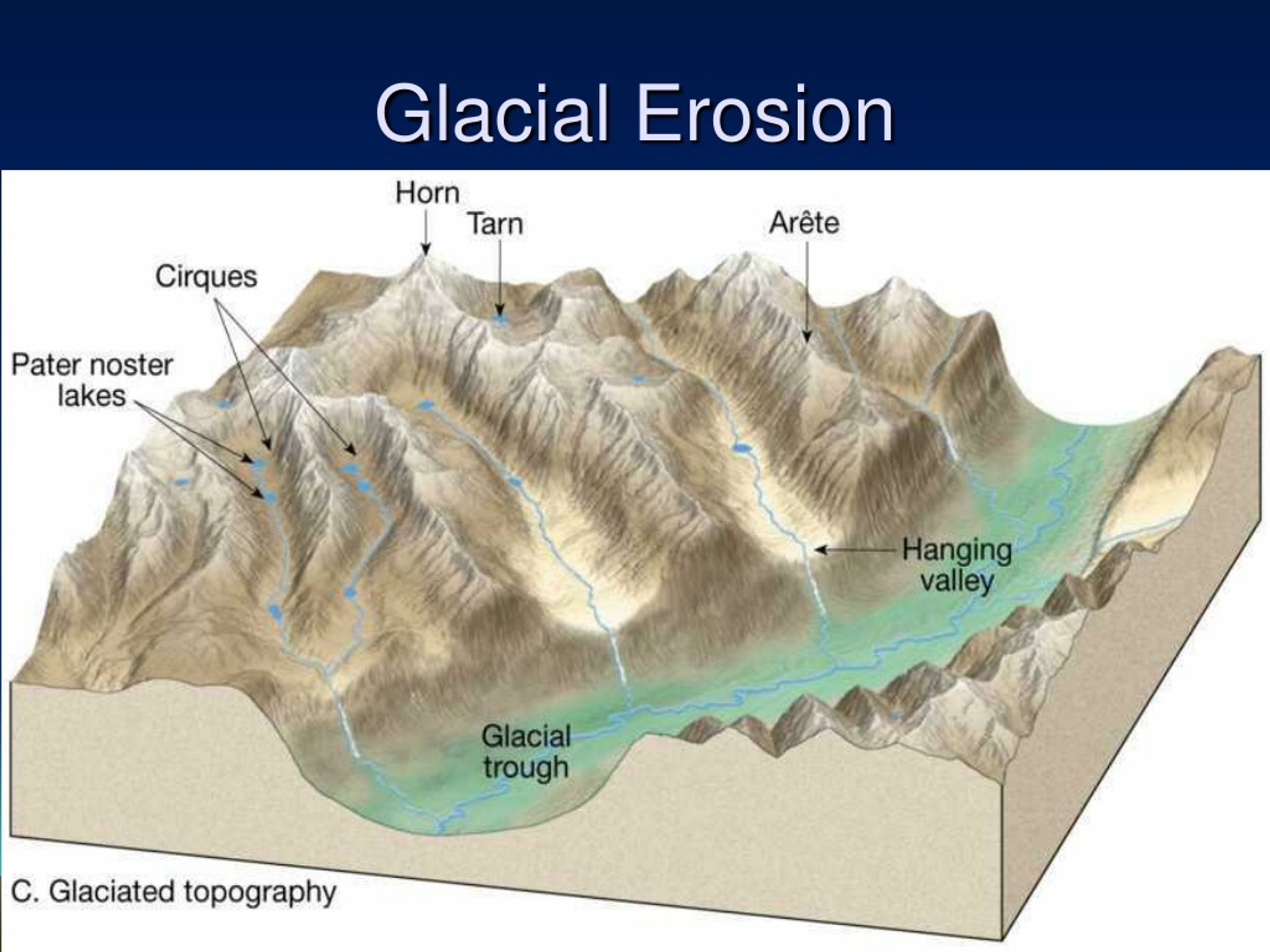

14. Glacial Erosion • Glaciers carve U-shaped valleys • Hanging valleys form from tributaries • Cirque • Bowl shaped erosional scar • Horn • Sharp peak remaining from 3 or more cirques • Arete • Ridge remaining from 2 cirques

15. Glacial Erosion

16. Glacial Erosion

17. Glacial Deposition • Till • Unsorted rock deposited directly by a glacier. • Outwash • Rock material deposited directly from the meltwater of the glacier. • Erratic • Large rock that is different from rock beneath

18. Glacial Deposition • Moraine • Mass of glacial till left behind after a glacier has melted. • Terminal moraine – farthest advance of glaciers • Recessional moraine – built up where the glacier recedes for a while, then becomes stationary • Lateral moraine – pile of till along sides

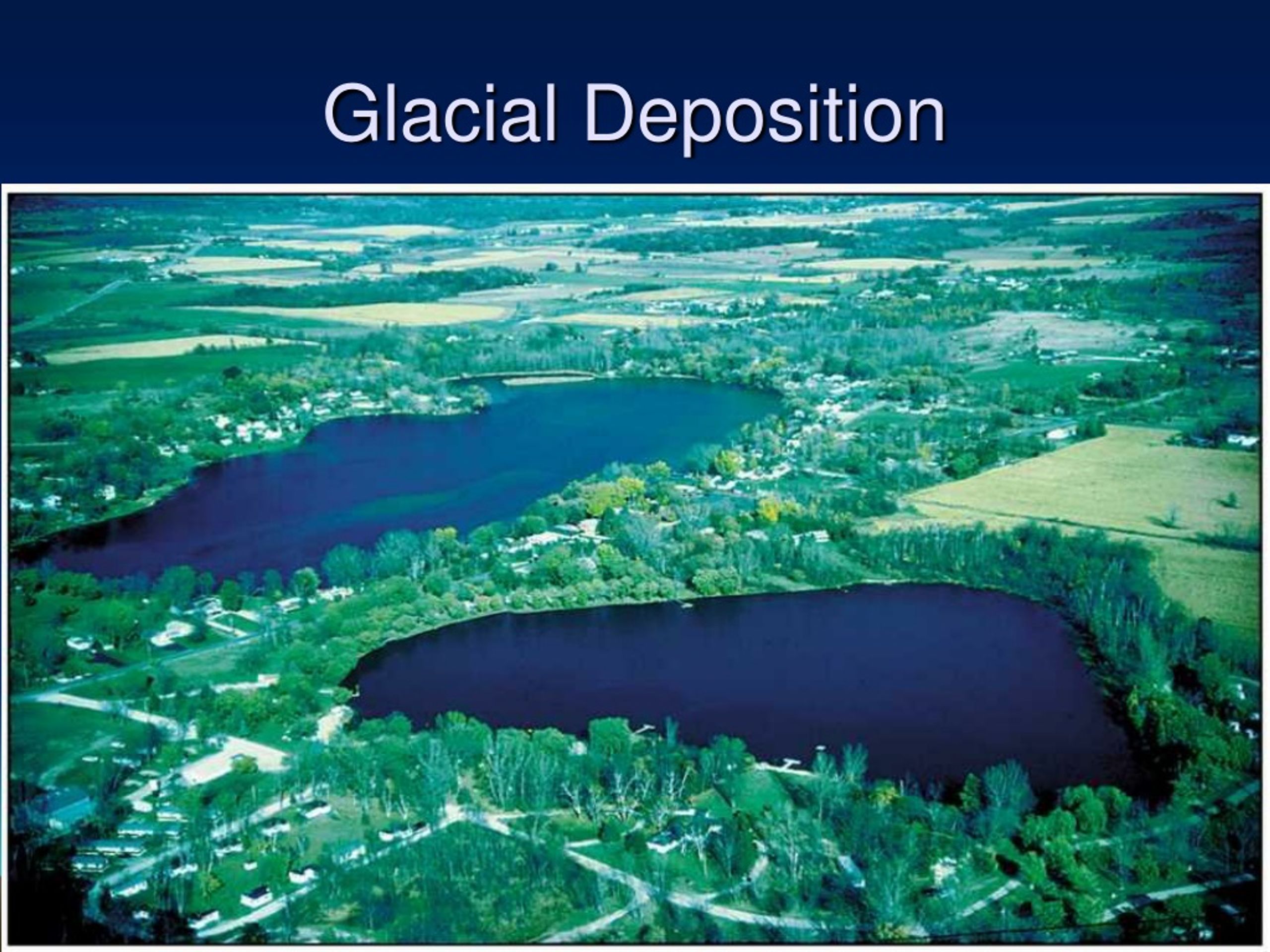

19. Glacial Deposition • Drumlin – elongated hills formed from a glacier passing over old ground moraine • Outwash plain – sorted deposits carried by meltwater of glacier • Kames – short, steep-sided hills of outwash • Kettle hole – formed from ice block that melts • Many are filled with water creating deep lakes • Esker – sinuous deposits from rivers of meltwater

20. Glacial Deposition

21. Glacial Deposition

22. Glacial Deposition

23. Glacial Deposition

24. Wind Action • A dune is a mound or ridge of sand deposited by the wind. • As the wind rises up the long side of the dune, the wind speed increases, therefore its carrying power increases (erosion increases). • As the wind moves over the top of the dune and spreads out, its wind speed and carrying power decreases (deposition increases).

25. Wind Action

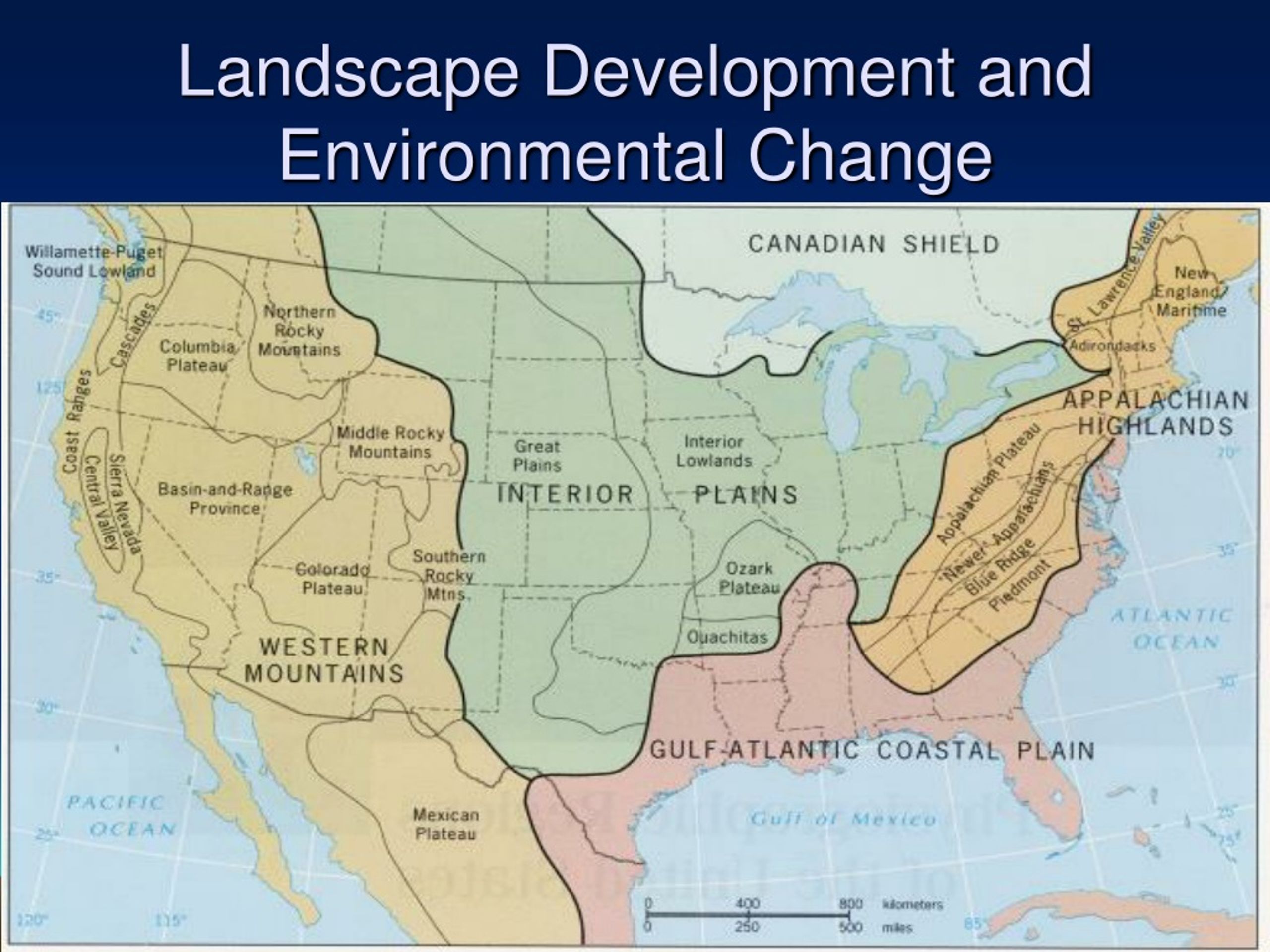

26. Landscape Development and Environmental Change

27. Landscape Development • Forces that raise Earth’s surface are called uplifting forces • Forces that lower the elevation of Earth’s surface are called leveling forces • Climatic changes effect landscapes • The drier the climate the more angular the landscape • Bedrock patterns influence landscape

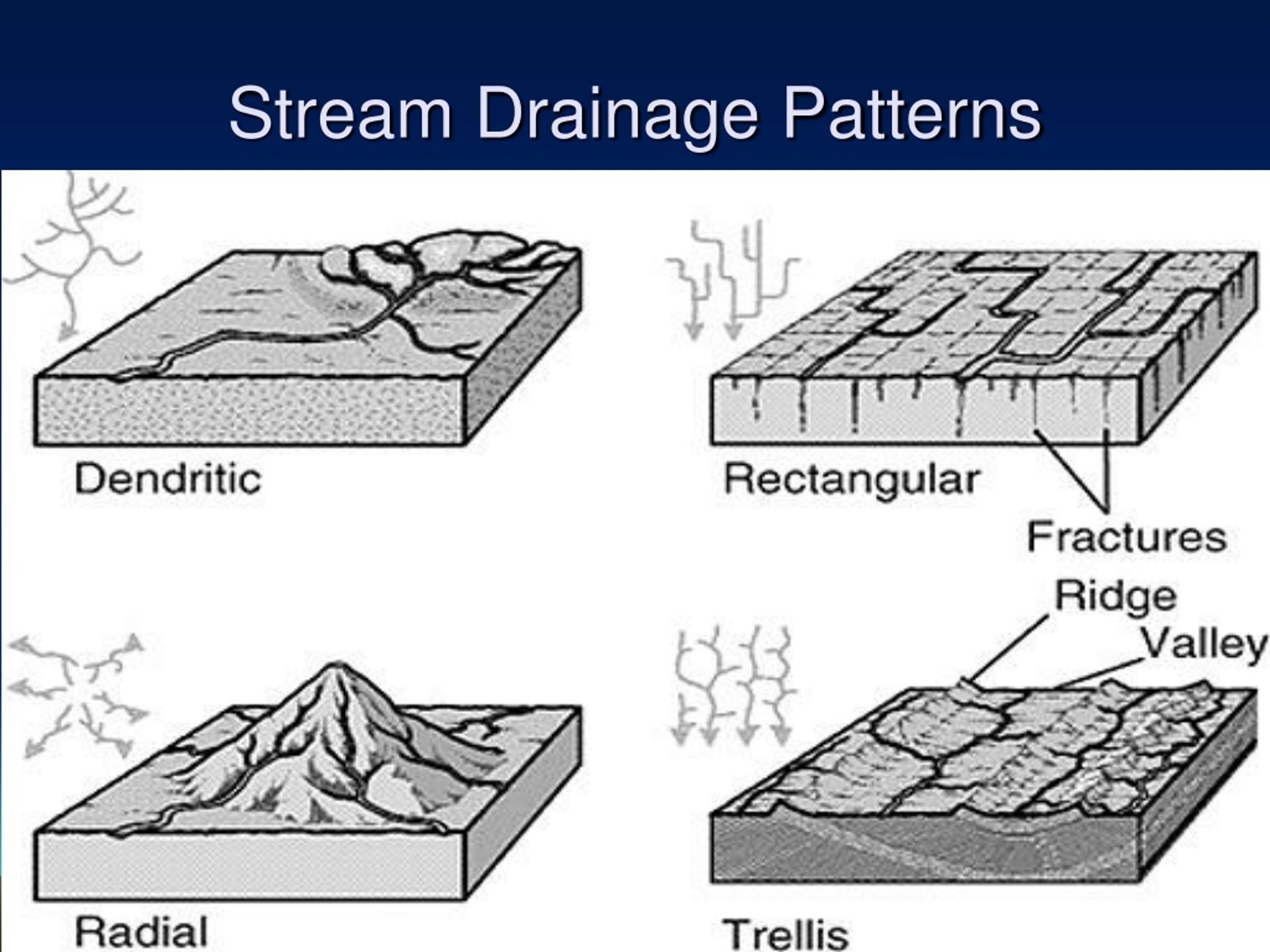

30. Stream Drainage Patterns

31. Time • Landscapes pass through stages over time • Young • Erosion is beginning • Steep fast-moving streams & v-shaped valleys • Mature • Low rounded hills and broad flat valleys • Streams stop eroding downward & start sidecutting • Old • Uplands have been eroded almost to sea level • Poor drainage, small gradient, many meanders
