  1. SuperDREAM Testbed Pete Siemsen August 2007

  2. Why SuperDREAM?FRGP problems: • Single Points of Failure • Routers • Level 3 switch • Member circuits • Commodity Internet • Members can’t connect at multiple sites

  3. Existing Single Points of Failure • 1200 Larimer • Router, switch, ATM switch • Level 3 • switch/router – failure disconnects BiSON from Denver • BPoP • switch/router • Movaz boxes not addressed here

  4. M20 router For ICG only BPoP switch/router BiSON Larimer switch Level 3 switch/router DREAM Larimer ATM switch Larimer router Abilene Qwest NLR Level 3 FRGP logical view BPoP ICG Level 3 PoP 1200 Larimer

  5. SuperDREAM goals Redundancy Allow members to connect to two sites Provide multiple paths to Commodity providers Optimize Service offerings Routing

  6. FRGP services • Default service: access to other FRGP members and to FRGP peers (Comcast, RMIX) • Commodity Internet + TransitRail • Abilene (I2) • NLR PacketNet

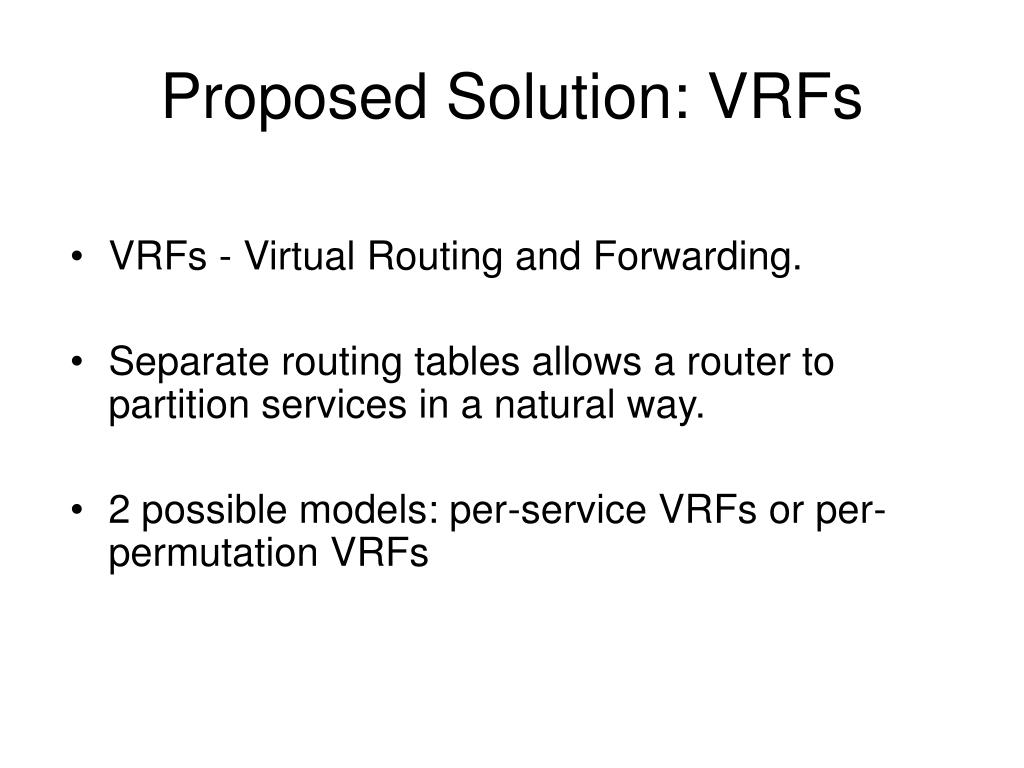

  7. Proposed Solution: VRFs • VRFs - Virtual Routing and Forwarding. • Separate routing tables allows a router to partition services in a natural way. • 2 possible models: per-service VRFs or per-permutation VRFs

  8. Per-service VRF solution • Every FRGP router will have just these VRFs: • Members & peers VRF • A Commodity/TransitRail VRF • An NLR PacketNet VRF • An I2 VRF

  9. Per-service VRFs… Each member will have a VLAN and a BGP session for each service that they buy.

  10. Per-permutation VRF solution • Every router will have a VRF for each permutation of services bought by members • Members & peers VRF • A Commodity/TransitRail VRF • An NLR VRF • An I2 VRF • An NLR/I2 VRF • A Commodity/Transitrail/NLR VRF • A Commodity/Transitrail/I2 VRF • A Commodity/Transitrail/NLR/I2 VRF

  11. Solution trade-offs

  12. Commodity redundancy • Commodity ISPs will be spread across FRGP sites. Commodity access will no longer depend on the Larimer router. • Commodity traffic will flow to the globally “best” ISP, not necessarily the ISP nearest to each member.

  13. Rate limits (per-service) Member traffic will rate limited at the member’s primary connection point. This greatly simplifies engineering.

  14. Rate limits (per-permutation) • Member traffic will be rate-limited at multiple points.

  15. Load-sharing • We can’t apply a single rate limit to traffic on two separate routers. • Multihomed members must have a primary and an idle backup per service. Level 3 Qwest Level 3 Larimer member

  16. Constraints • Maintain charging algorithm • Have one engineering solution for everyone • All members will do BGP • Solution must fit in router memory

  17. Open issues • Implementation difficulty • Unknown memory limits • Engineering troubleshooting/debug • MPLS vs. VLANs • Cisco/Juniper interoperability • Long-term FRGP 10G routing solution

  18. TestBed
