Presentation Transcript

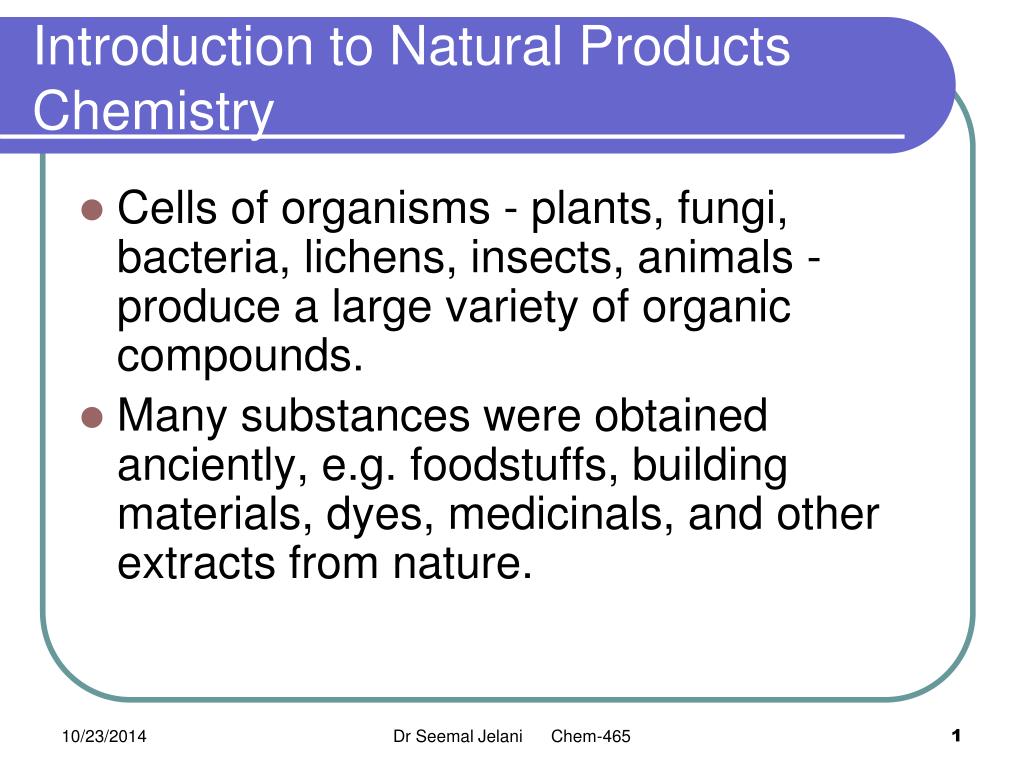

  1. Introduction to Natural Products Chemistry • Cells of organisms - plants, fungi, bacteria, lichens, insects, animals - produce a large variety of organic compounds. • Many substances were obtained anciently, e.g. foodstuffs, building materials, dyes, medicinals, and other extracts from nature. Dr Seemal Jelani Chem-465

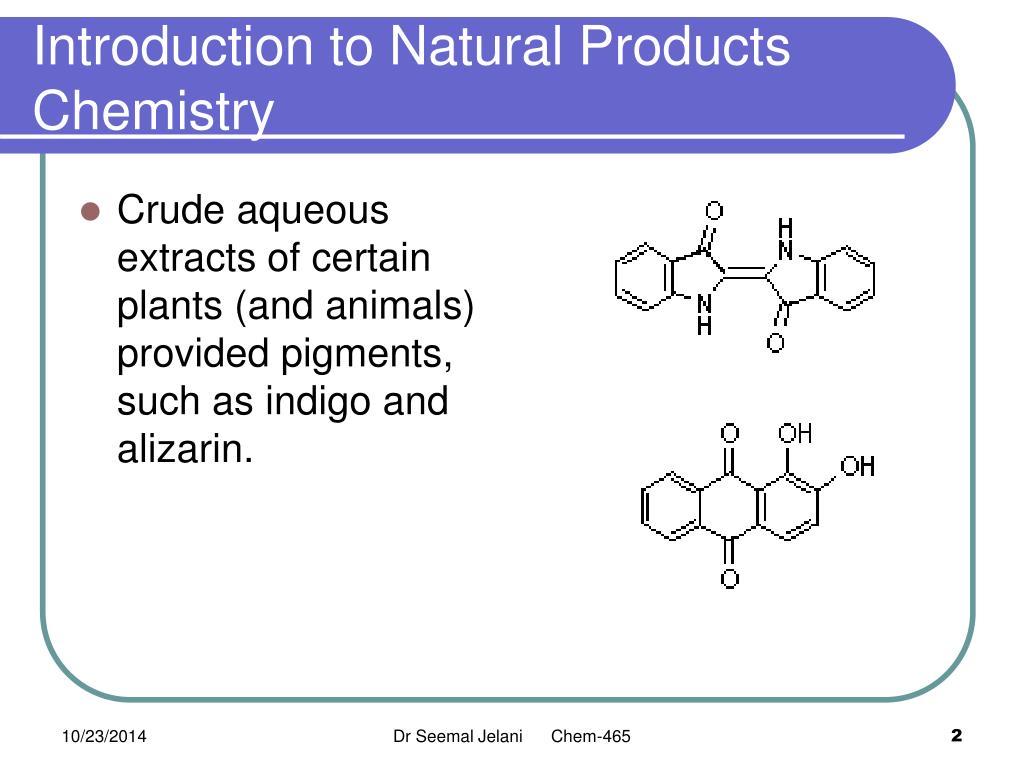

  2. Introduction to Natural Products Chemistry • Crude aqueous extracts of certain plants (and animals) provided pigments, such as indigo and alizarin. Dr Seemal Jelani Chem-465

  3. Introduction to Natural Products Chemistry • Other examples of natural products: Ephedrine from Ephedra sinica • (Respiratory ailments)  tetrahydrocannabinol  Dr Seemal Jelani Chem-465

  4. (Marijuana) Geraniol (rose oil) Dr Seemal Jelani Chem-465

  5. Cinnamaldehyde (cinnamon) • Diallyl disulfide (garlic) Dr Seemal Jelani Chem-465

  6. Introduction to Natural Products Chemistry • Mild heating of certain plants afforded perfumed distillates. • Plants and animals have provided substances used for their biological activity, to heal or to kill, and form the foundation for folk medicine.  Dr Seemal Jelani Chem-465

  7. Most natural products have usually come from plants and microorganisms due to practical difficulties in extracting them from animals. Dr Seemal Jelani Chem-465

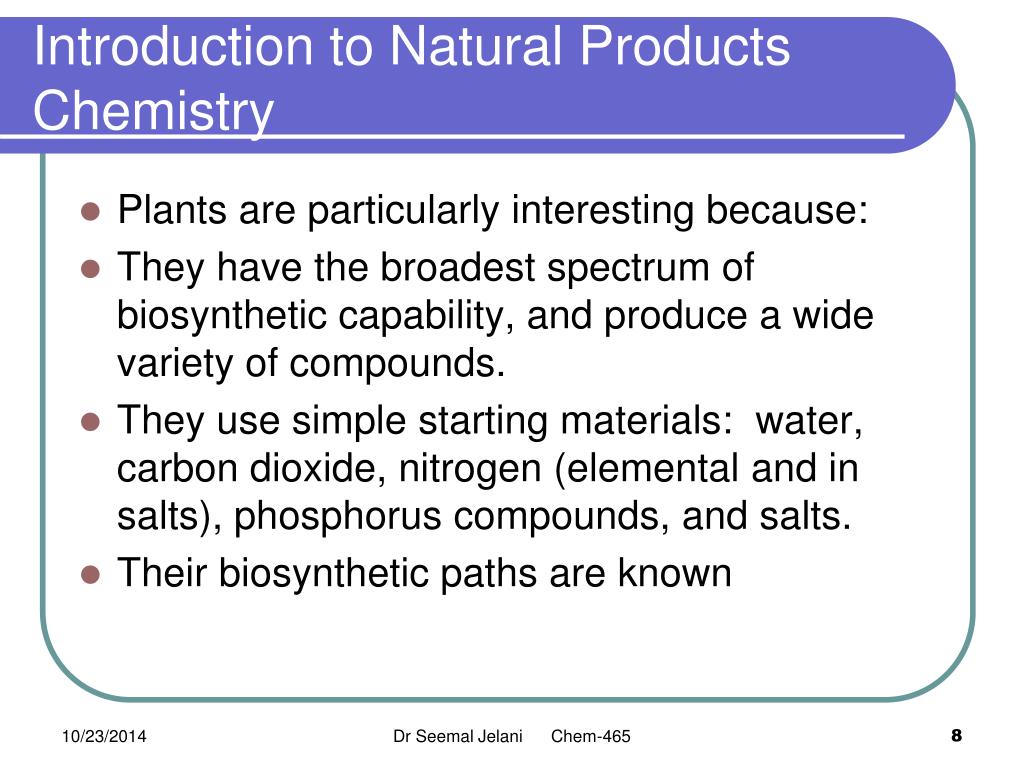

  8. Introduction to Natural Products Chemistry • Plants are particularly interesting because: • They have the broadest spectrum of biosynthetic capability, and produce a wide variety of compounds. • They use simple starting materials:  water, carbon dioxide, nitrogen (elemental and in salts), phosphorus compounds, and salts. • Their biosynthetic paths are known Dr Seemal Jelani Chem-465

  9. Introduction to Natural Products Chemistry • In the late 1700's, chemists moved from myth and mystery to basics of modern scientific methods to begin to uncover the true properties of natural extracts from biological systems. • They discovered that natural extracts had more complex compositions and properties than salts and minerals. Dr Seemal Jelani Chem-465

  10. Introduction to Natural Products Chemistry • This lead Berzelius, in 1807, to distinguish between "inorganic" and "organic”;("Organic" substances were believed to be obtainable only from organs of living systems and could not be man-made because only living systems have the vital ("life") force.  "Inorganic" materials were from non living, e.g. mineral, sources.) • In the 1800's, organic chemistry was exclusively the study of natural products. Dr Seemal Jelani Chem-465

  11. Introduction to Natural Products Chemistry • Natural extracts were subjected to separation into component compounds, which were then purified and analyzed. • In the late 1800's, synthetic methods were being developed for some of these natural compounds.  Some examples of natural products and when they where discovered are as follows: Dr Seemal Jelani Chem-465

  12. Introduction to Natural Products Chemistry • Morphine (narcotic analgesic) 1817 Dr Seemal Jelani Chem-465

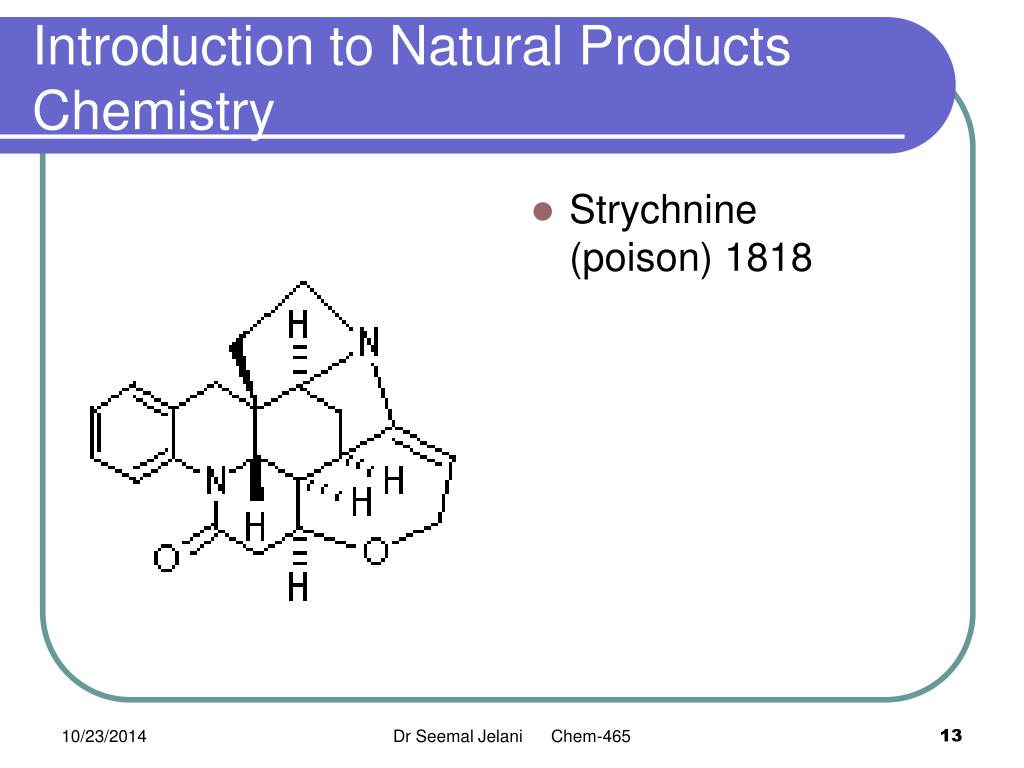

  13. Introduction to Natural Products Chemistry • Strychnine (poison) 1818 Dr Seemal Jelani Chem-465

  14. Introduction to Natural Products Chemistry • Cocaine (narcotic stimulant) 1859 • Nicotine (toxic) 1828 Dr Seemal Jelani Chem-465

  15. Introduction to Natural Products Chemistry General isolation strategy of natural products: Dr Seemal Jelani Chem-465

  16. Introduction to Natural Products Chemistry • Extract the dried and ground plant material with a suitable solvent. • Concentrate the extract. • Separate and purify each component. Since the concentrate contains an enormous variety of compounds, early isolations involved selective crystallization of the most dominant component in the mixture Dr Seemal Jelani Chem-465

  17. Liquid natural products were distilled.  • Natural organic acids were isolated by aqueous basic extraction and natural organic bases (alkaloids) were isolated by aqueous acidic extraction. Dr Seemal Jelani Chem-465

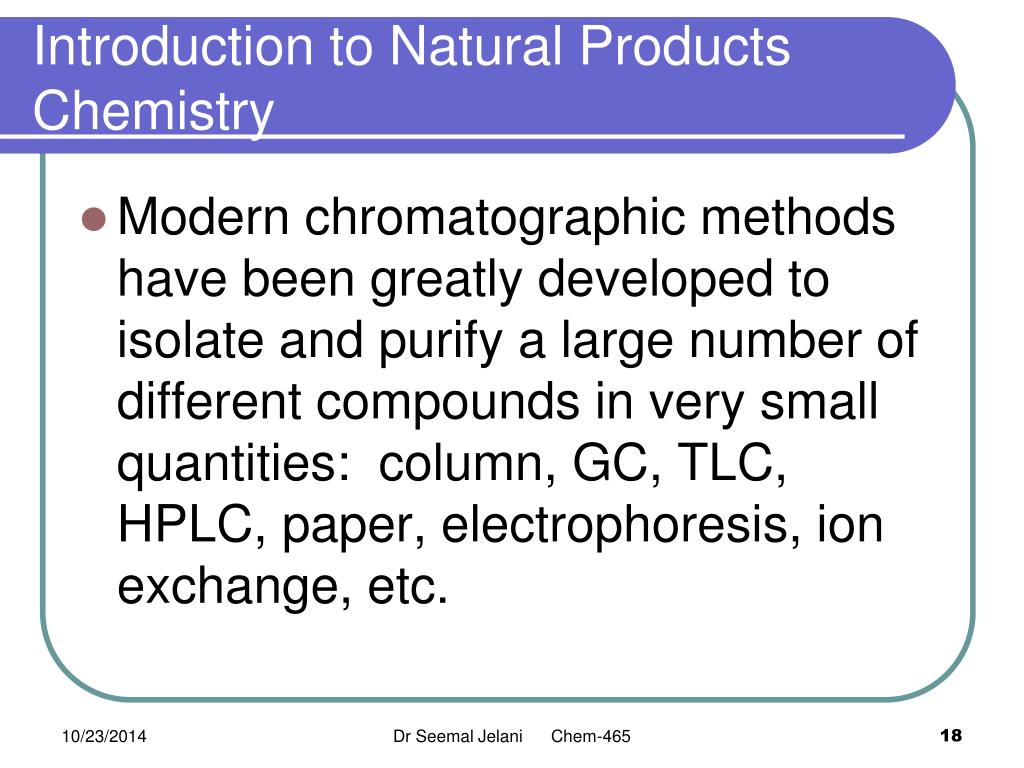

  18. Introduction to Natural Products Chemistry • Modern chromatographic methods have been greatly developed to isolate and purify a large number of different compounds in very small quantities:  column, GC, TLC, HPLC, paper, electrophoresis, ion exchange, etc. Dr Seemal Jelani Chem-465

  19. Natural products are usually given names that are derived from the species name of the plant or animal, or from the biological action, or property, of the compound. Dr Seemal Jelani Chem-465

  20. Introduction to Natural Products Chemistry • In the late 1800's, natural products were identified and analyzed by mp, bp, [a] (optical rotation), hoping to find correlations between data and structure • This initiative was not successful in predicting structure, but useful data on natural products were obtained. Dr Seemal Jelani Chem-465

  21. Introduction to Natural Products Chemistry • Classical structural elucidation is done by: • Determination of functional groups • Determination of the carbon skeleton and the location of the functional groups • Degradation to smaller fragments (A-B-C ------>  A   +   B   +   C) Dr Seemal Jelani Chem-465

  22. Elemental analysis • Reactivity (leading to new reactions) • Stereochemistry • Synthesis of the smaller fragments (A, B, C) and the entire molecule (A-B-C) • Classification of the compound into a biogenetic family of compounds Dr Seemal Jelani Chem-465

  23. Introduction to Natural Products Chemistry • More modern structural elucidation and characterization by spectroscopy: • 1930's UV (ultraviolet) light (cf. Woodward's Rules, 1941) • 1940's IR (infrared) spectroscopy (note:  penicillin structure problem in W.W.II) • 1950's NMR (nuclear magnetic resonance) spectroscopy • 1960's MS (mass spectrometry) • ESR (electron spin resonance) spectroscopy and by other methods: Dr Seemal Jelani Chem-465

  24. ORD (Optical Rotatory Dispersion) • CD (Circular Dichroism) • Acidity and basicity measurements (pK) • Advanced synthetic and biosynthetic technology • X-ray crystallography Dr Seemal Jelani Chem-465

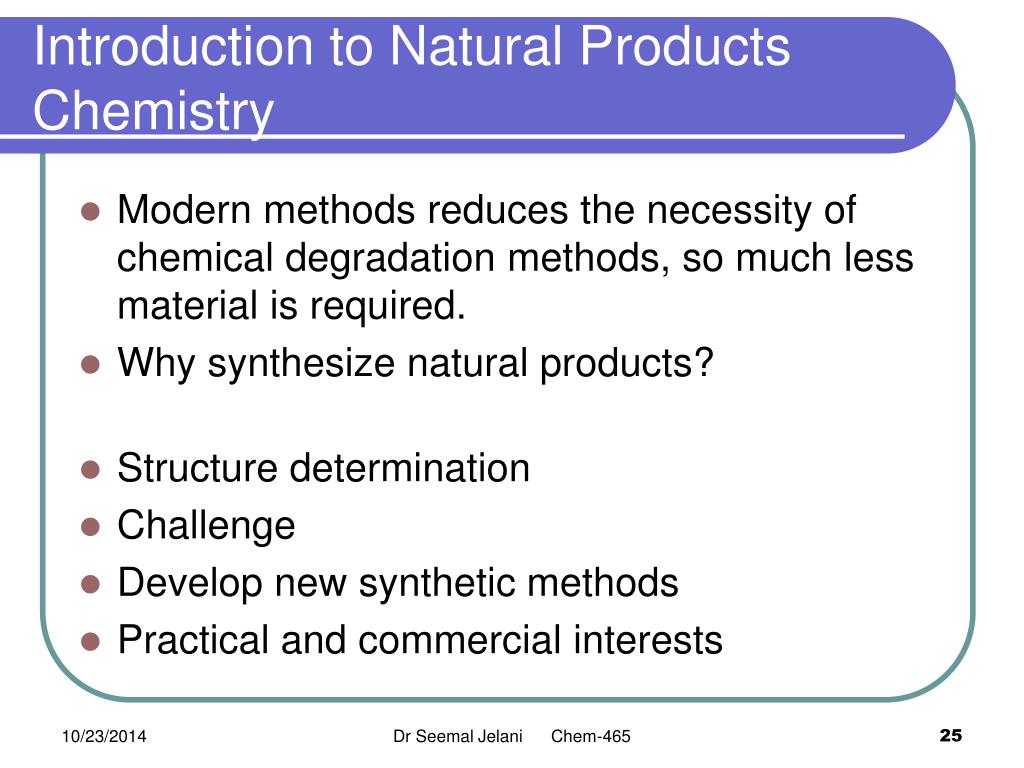

  25. Introduction to Natural Products Chemistry • Modern methods reduces the necessity of chemical degradation methods, so much less material is required. • Why synthesize natural products? • Structure determination • Challenge • Develop new synthetic methods • Practical and commercial interests Dr Seemal Jelani Chem-465
