Equilibrium: the state of no acceleration– balanced forces and balanced torques

Equilibrium: the state of no acceleration– balanced forces and balanced torques. First condition of equilibrium: F net = 0. Second condition of equilibrium: τ net = 0. Static Equilibrium: Forces and Torques balance and the object is at rest.

ryu
Download Presentation

Equilibrium: the state of no acceleration– balanced forces and balanced torques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

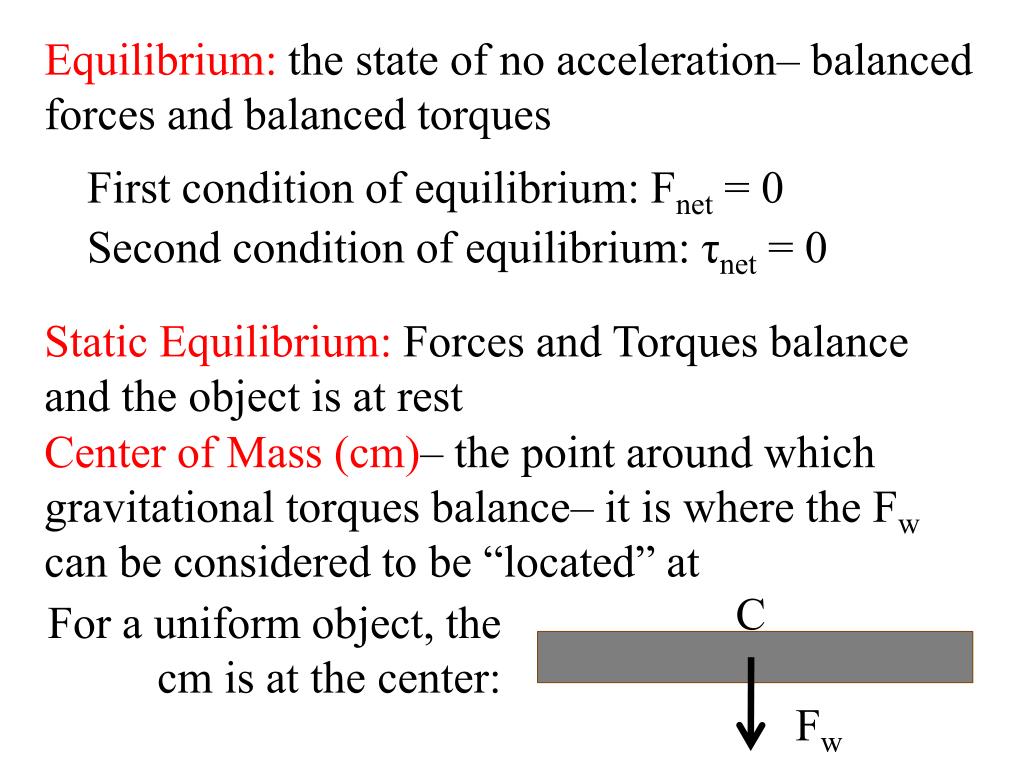

  1. Equilibrium: the state of no acceleration– balanced forces and balanced torques First condition of equilibrium: Fnet = 0 Second condition of equilibrium: τnet = 0 Static Equilibrium: Forces and Torques balance and the object is at rest Center of Mass (cm)– the point around which gravitational torques balance– it is where the Fw can be considered to be “located” at C For a uniform object, the cm is at the center: Fw

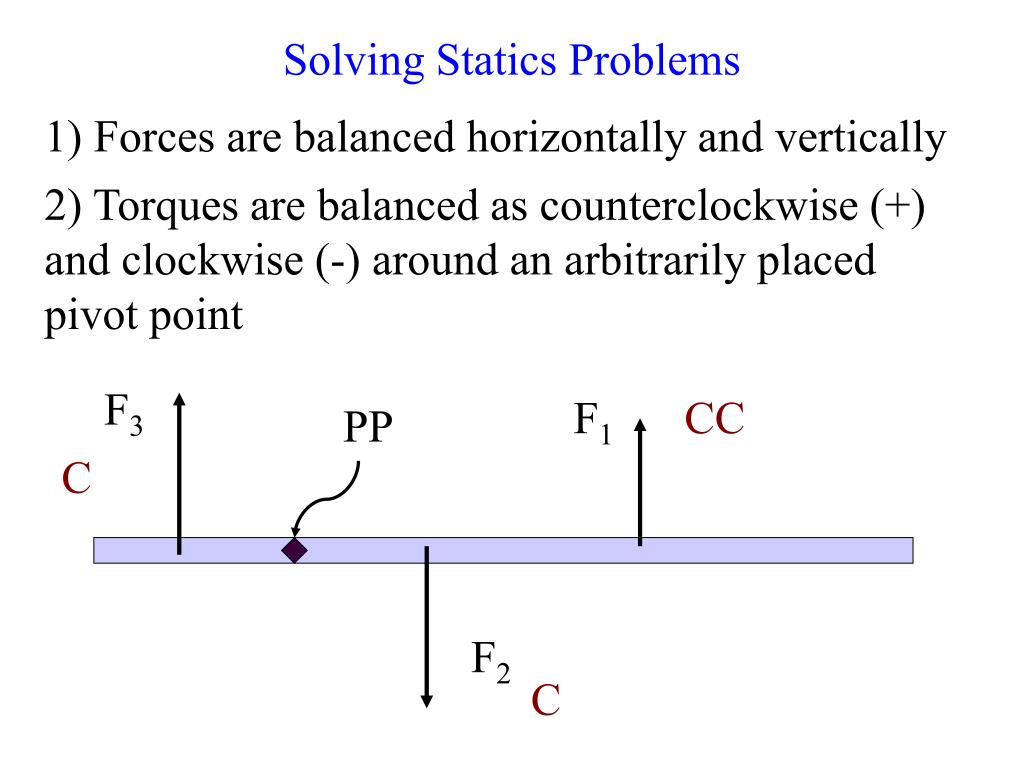

  2. Solving Statics Problems 1) Forces are balanced horizontally and vertically 2) Torques are balanced as counterclockwise (+) and clockwise (-) around an arbitrarily placed pivot point F3 F1 CC PP C F2 C

  3. CC F3 CC F1 F2 PP C F3 F1 C PP C CC F2

  4. A uniform meterstick with a weight of .150 N is balanced at the 75.0 cm mark by a mass hung at 90.0 cm mark. How much is the mass that is producing equilibrium? How much does the stand push up? Ø Fs PP .750 m C .500 m .400 m Fh C Fw CC

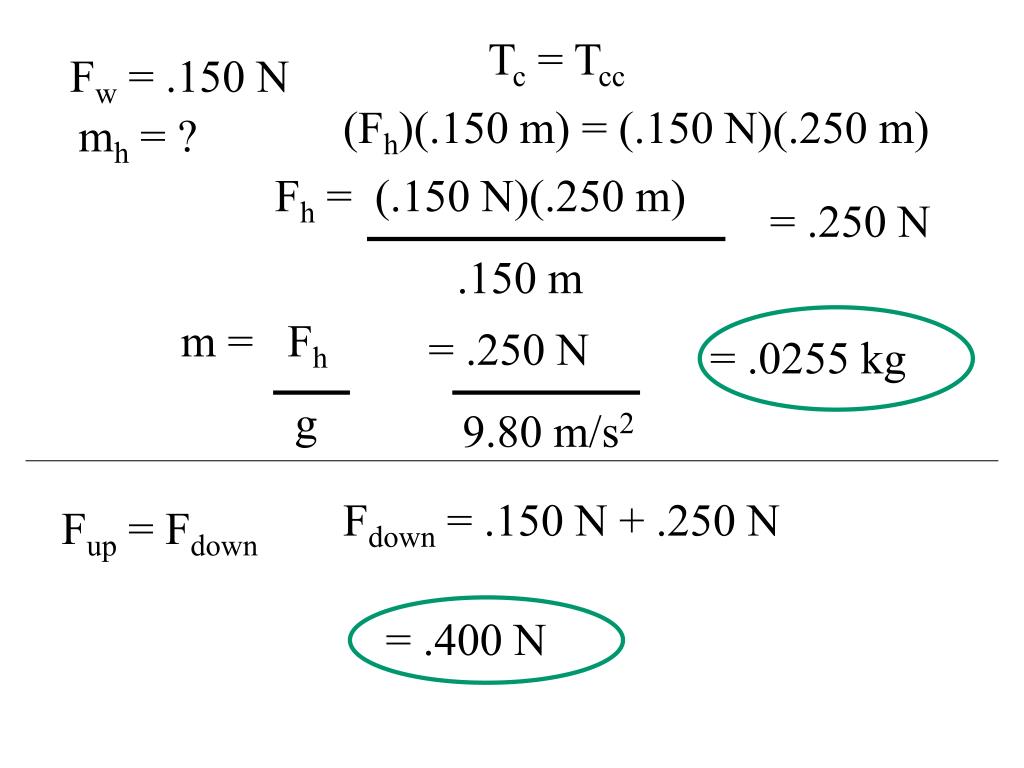

  5. Tc = Tcc Fw = .150 N (Fh)(.150 m) = (.150 N)(.250 m) mh = ? Fh = (.150 N)(.250 m) .150 m = .250 N m = Fh g = .250 N 9.80 m/s2 = .0255 kg Fdown = .150 N + .250 N Fup = Fdown = .400 N

  6. A large wooden beam weighs 820 N and is 3.2 m long. The beam’s center of gravity is 1.4 m from one end. Two workers begin carrying the beam away. If they lift the beam at its ends, how much weight must each worker support?

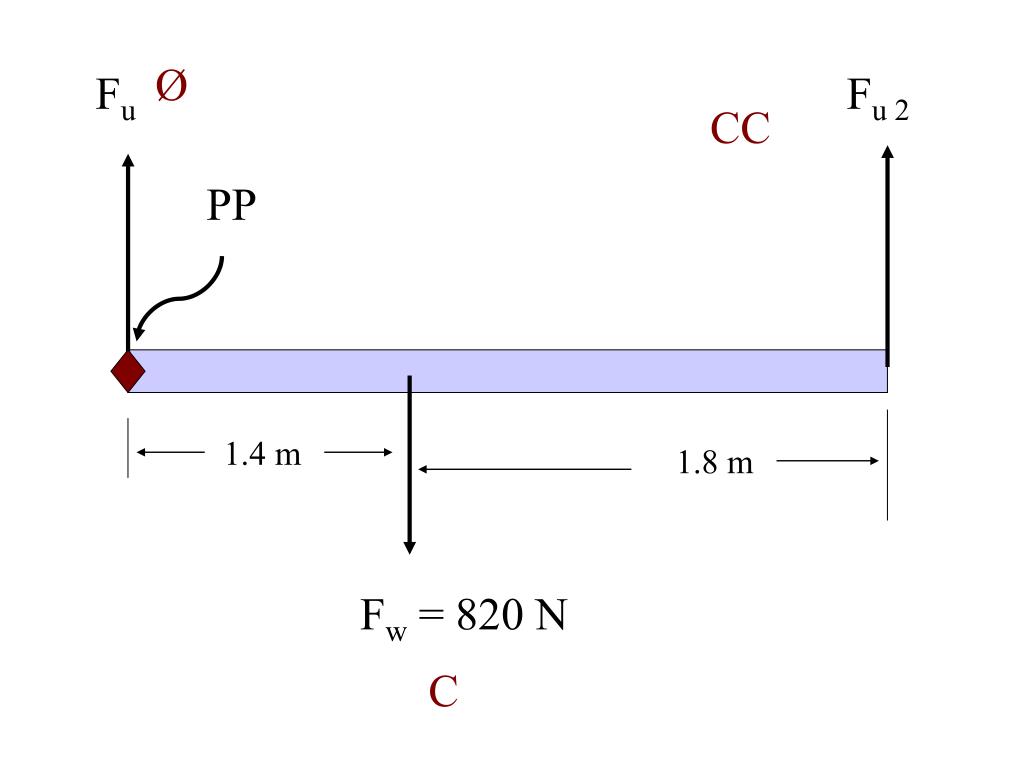

  7. Ø Fu Fu 2 CC PP 1.4 m 1.8 m Fw = 820 N C

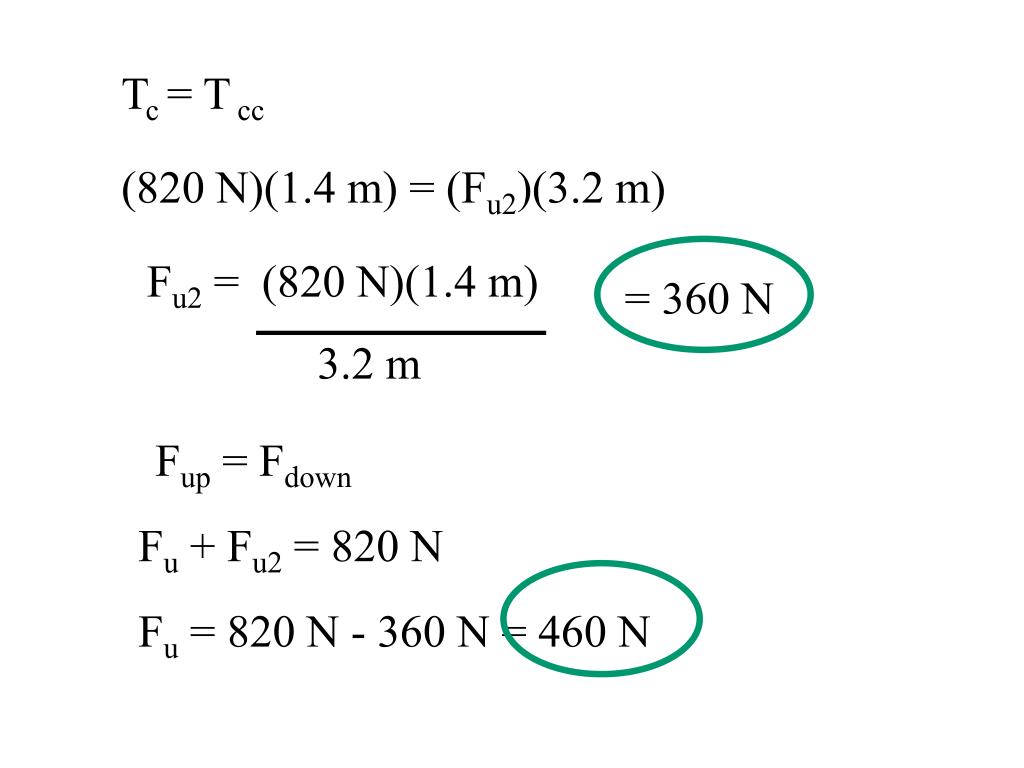

  8. Tc = T cc (820 N)(1.4 m) = (Fu2)(3.2 m) Fu2 = (820 N)(1.4 m) 3.2 m = 360 N Fup = Fdown Fu + Fu2 = 820 N Fu = 820 N - 360 N = 460 N

  9. A cat walks along a uniform plank that is 4.00 m long and has a mass of 7.00 kg. The plank is supported by two sawhorses, one 0.500 m from the left end of the board and the other 1.50 m from its right end. When the cat reaches the right end, the plank just begins to tip. What is the mass of the cat?

  10. 1) A 10.0 N meterstick is suspended from two spring scales, one at the 8.00 cm mark and the other at the 90.0 cm mark. If a weight of 5.00 N is hung at the 20.0 cm mark and a weight of 17.0 N is hung at the 55.0 cm mark, what will each scale read? 2) An 850 N painter stands 1.20 m from one end of a 3.00 m scaffold plank supported at each end by a stepladder. The scaffold plank weighs 250 N and there is a 50.0 N paint bucket .50 m from the other end of the plank. How much upward force is exerted by each of the two ladders?

  11. 3) A 650.0 N boy and a 490.0 N girl sit on a 150.0 N porch swing that is 1.70m and supported at each end by chains. What will be the tension in each chain if the boy sits .750 m from one end and the girl sits .500 m from the other end? 4) A uniform 2.50 N meterstick is hung from the ceiling by a single rope. A 500.0 g mass is hung at the 25.0 cm mark and a 650.0 g mass at the 70.0 cm mark. What is the tension in the rope and at what mark is the rope located on the meterstick?

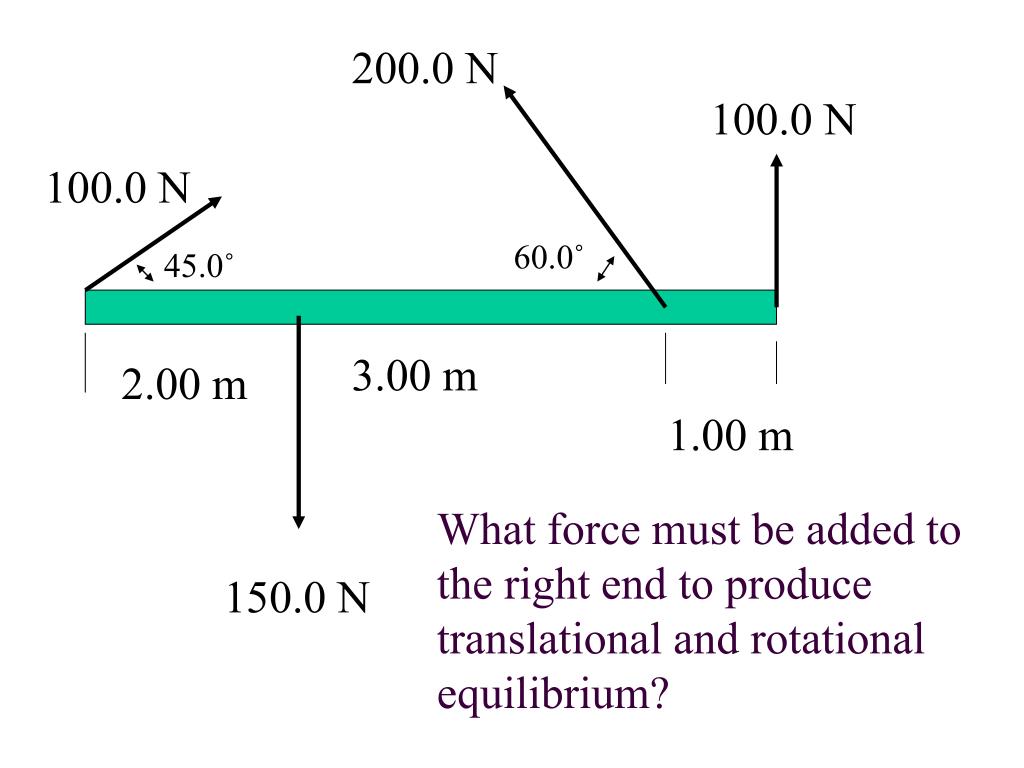

  12. 200.0 N 100.0 N 100.0 N 60.0˚ 45.0˚ 3.00 m 2.00 m 1.00 m What force must be added to the right end to produce translational and rotational equilibrium? 150.0 N
