  1. SURVEY OF IPV6 ENABLED SERVICES Mark Prior, Liaison APAC R&E CommunityAPAN 27, 4 March 2009

  2. Motivation • Talk by Ron Broersma, DREN, at the Joint Techs Meeting at Fermilab (July 2007) • Very easy to deploy a single “router” announcing an IPv6 prefix • Harder to deploy services • Public services do NOT imply IPv6 enablement of an organisation but do illustrate some commitment • Public services often on a DMZ rather than inside the organisation’s network

  3. Services Examined • Need to be services provided to the “public” • Expected to be accessible from the Internet • Web service (HTTP) • Mail delivery service (SMTP) • Domain Name service (DNS) • Instant Messenger (Jabber) • Network Time service (NTP)

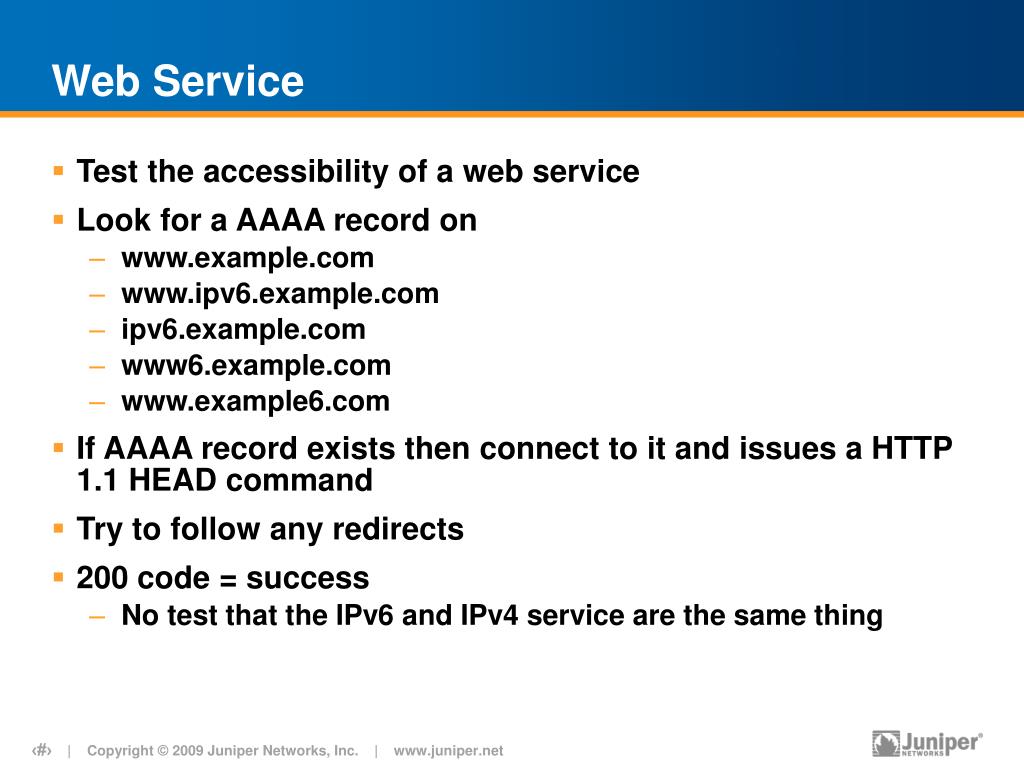

  4. Web Service • Test the accessibility of a web service • Look for a AAAA record on • www.example.com • www.ipv6.example.com • ipv6.example.com • www6.example.com • www.example6.com • If AAAA record exists then connect to it and issues a HTTP 1.1 HEAD command • Try to follow any redirects • 200 code = success • No test that the IPv6 and IPv4 service are the same thing

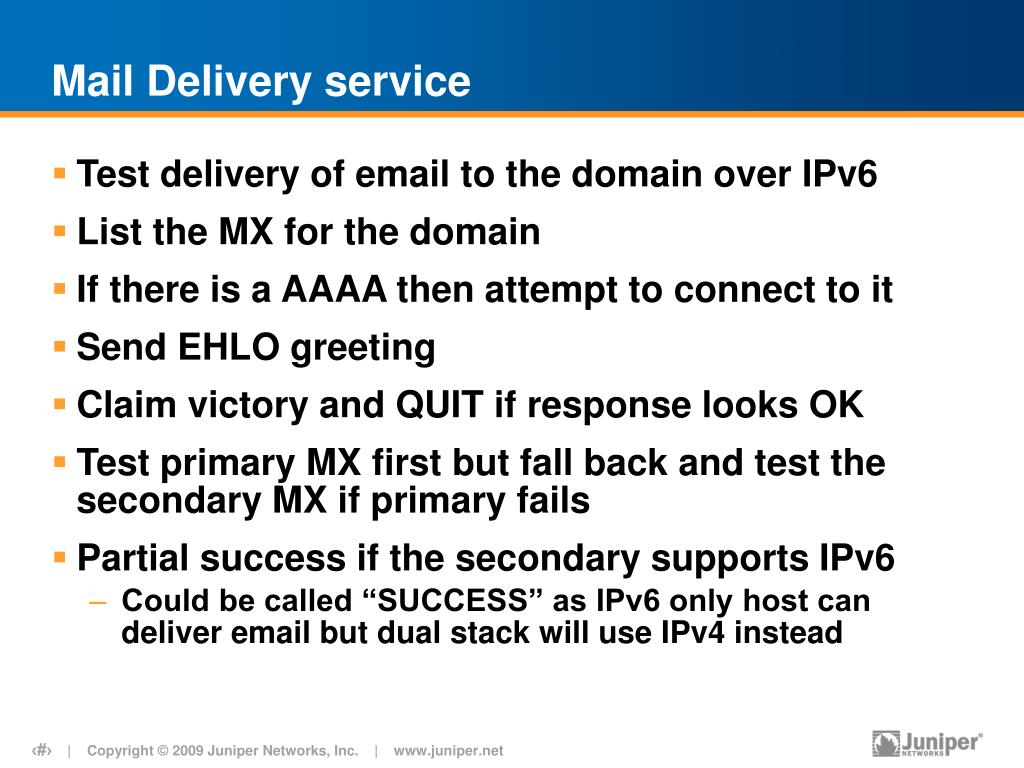

  5. Mail Delivery service • Test delivery of email to the domain over IPv6 • List the MX for the domain • If there is a AAAA then attempt to connect to it • Send EHLO greeting • Claim victory and QUIT if response looks OK • Test primary MX first but fall back and test the secondary MX if primary fails • Partial success if the secondary supports IPv6 • Could be called “SUCCESS” as IPv6 only host can deliver email but dual stack will use IPv4 instead

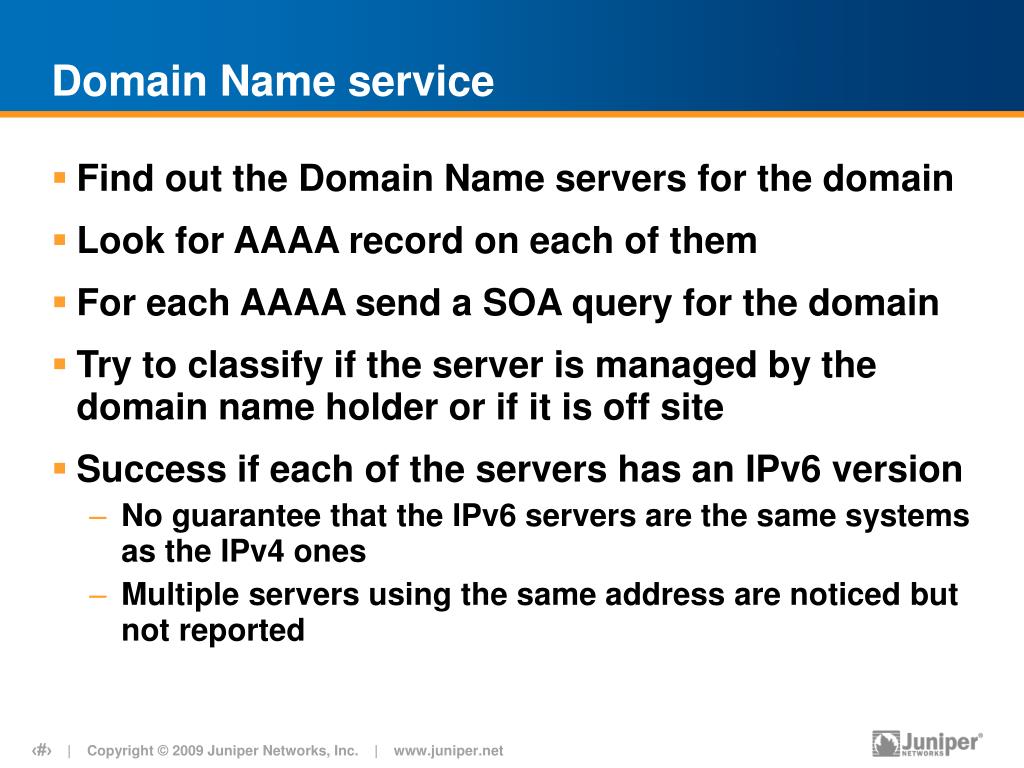

  6. Domain Name service • Find out the Domain Name servers for the domain • Look for AAAA record on each of them • For each AAAA send a SOA query for the domain • Try to classify if the server is managed by the domain name holder or if it is off site • Success if each of the servers has an IPv6 version • No guarantee that the IPv6 servers are the same systems as the IPv4 ones • Multiple servers using the same address are noticed but not reported

  7. Instant Messenger service • No guarantees that this will exist as a public service • Look for SRV for _xmpp-client._tcp.example.com • If it exists is there a AAAA record for it? • Try to connect to it using the port in the SRV

  8. Network Time service • No guarantee that this will exist as a public service • No defined way to find the service so guess using ntp.example.com and then ntp.ipv6.example.com • If there is a A record then look for a AAAA too • If it exists then use ntpdate to query the server and check the status returned • Stratum between 1 and 15 is considered success

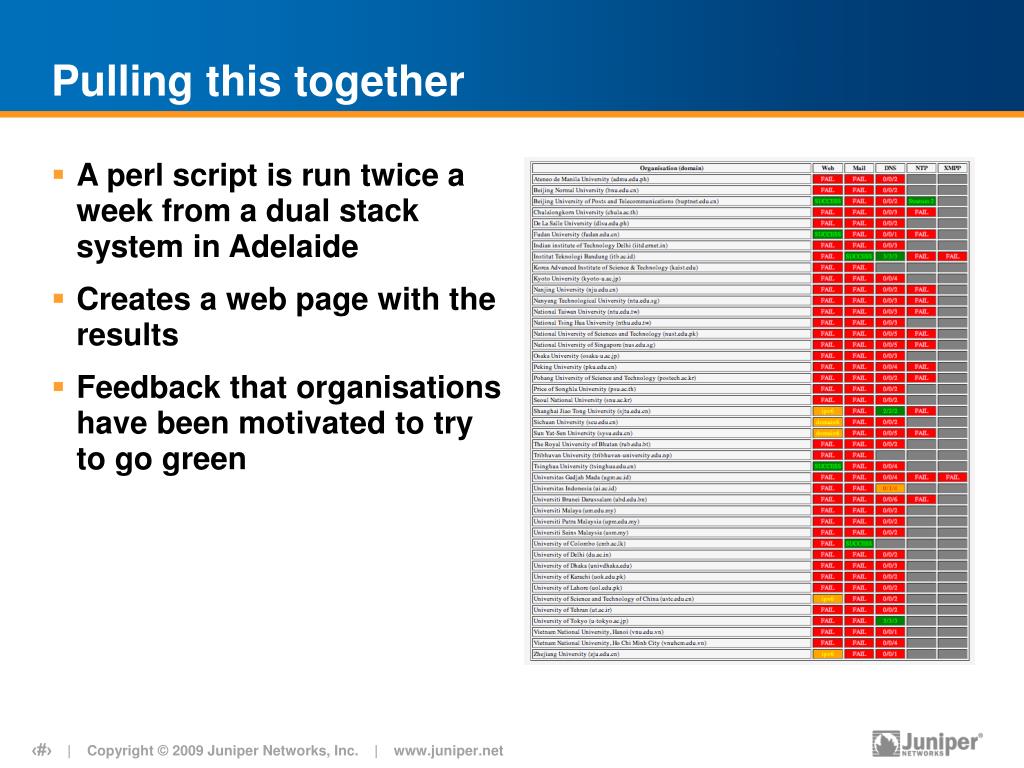

  9. Pulling this together • A perl script is run twice a week from a dual stack system in Adelaide • Creates a web page with the results • Feedback that organisations have been motivated to try to go green

  10. Future Work • Would be good to test RTT and Path MTU, comparing result with IPv4 • Try to identify tunnels and sub optimal paths

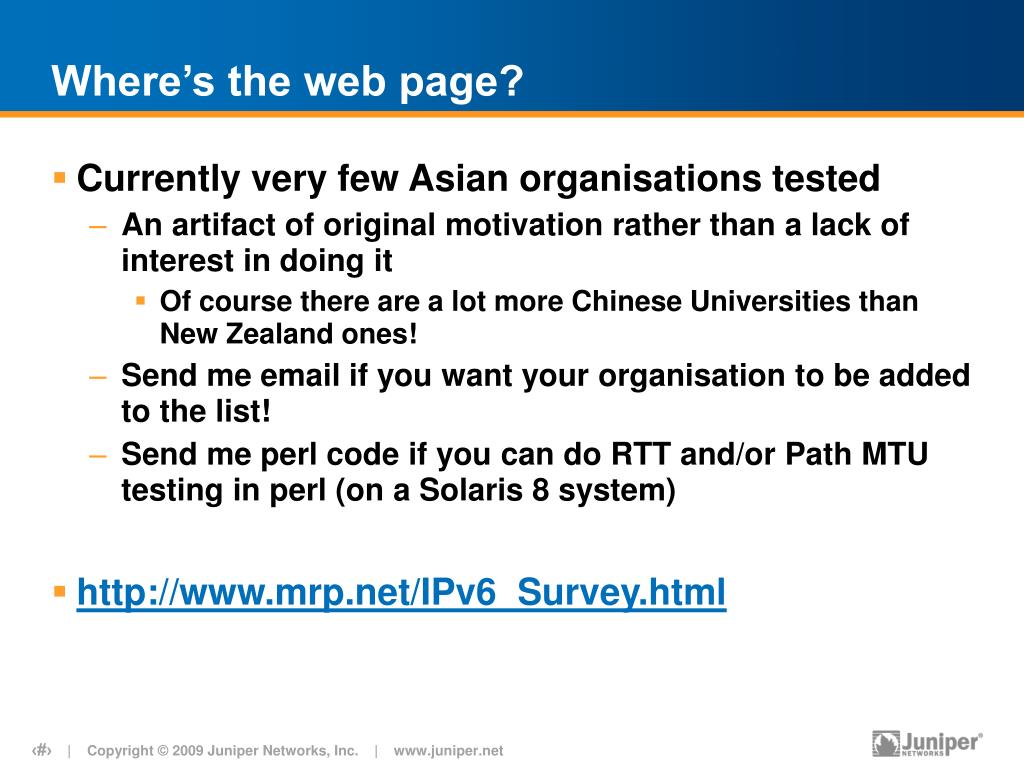

  11. Where’s the web page? • Currently very few Asian organisations tested • An artifact of original motivation rather than a lack of interest in doing it • Of course there are a lot more Chinese Universities than New Zealand ones! • Send me email if you want your organisation to be added to the list! • Send me perl code if you can do RTT and/or Path MTU testing in perl (on a Solaris 8 system) • http://www.mrp.net/IPv6_Survey.html

  12. Contact Info • Mark PriorLiaison, APAC R&E CommunityJuniper Networksmprior@juniper.netmrp@mrp.net
