1 / 10

Calorimetric Studies of the A1 to L1 0 transformation in FeNiPt thin films

Calorimetric Studies of the A1 to L1 0 transformation in FeNiPt thin films. Velouse Pierre Advisor: Katayun Barmak Mentors: David Berry. Fe-Pt Binary Phase Diagram. A1. L1 0. DSC Traces and Kissinger Plot Fe 49.1 Ni 2.7 Pt 48.2. Curie Temperature. Kinetic Ordering Temperature.

rupert
Download Presentation

Calorimetric Studies of the A1 to L1 0 transformation in FeNiPt thin films

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Calorimetric Studies of the A1 to L10 transformation in FeNiPt thin films Velouse Pierre Advisor: Katayun Barmak Mentors: David Berry

  2. Fe-Pt Binary Phase Diagram A1 L10

  3. DSC Traces and Kissinger Plot Fe49.1 Ni2.7Pt48.2

  4. Curie Temperature

  5. Kinetic Ordering Temperature

  6. Effects of Composition on Properties

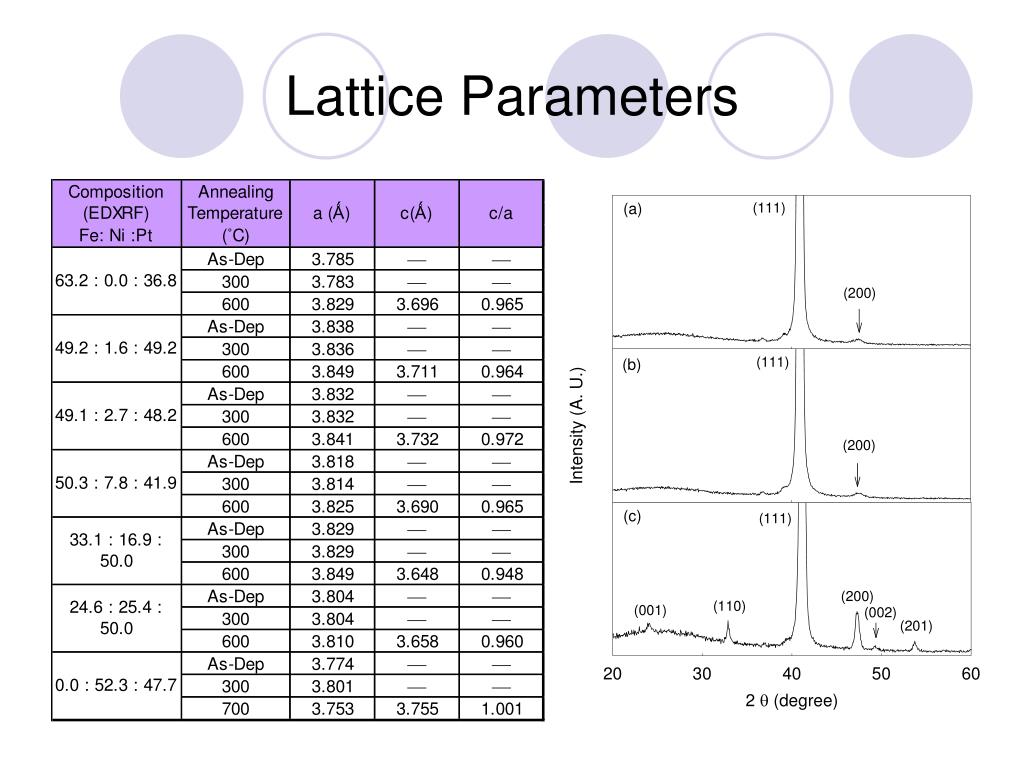

  7. Lattice Parameters

  8. Summary of Thermodynamic and Kinetic Parameters

  9. Summary and Conclusions • Keeping iron content constant and replacing platinum with nickel in the ternary alloy, the Curie temperature increases. • Higher nickel content increases ordering temperature. • Higher iron content results in a lower activation energy, thus resulting in faster ordering kinetics. • Transformation enthalpy is lower with higher nickel content which causes it to have a lower driving force. • Avrami exponent being low shows that transformation needs higher temperatures to be completed.

  10. Acknowledgements This work was supported by MRSEC and PREM research of National Science Foundation. Great appreciation goes to Carnegie Mellon University and its staff. The highest thanks also goes to Dr. Katayun Barmak, David Berry, and Jihwan Kim for all their help and support.

More Related
