Theoretical Framework
• Understanding can be instrumental (procedural) or relational (conceptual)
• Skemp, 1976
• Manipulatives can help elementary students make sense of fractions
• Steencken (2002); Reynolds (2005)
• When presented with rich mathematical experiences, college students can move beyond procedural understanding
• Glass and Maher (2002)

Instrumental and Relational Understanding
• Instrumental (procedural) understanding
• Knowing what to do (but not why)
• Example: Dividing fractions
• Invert the divisor and multiply
• Relational (conceptual) understanding
• Knowing both what to do and why
• Example: Dividing fractions
• See results from “Ribbons and Bows”

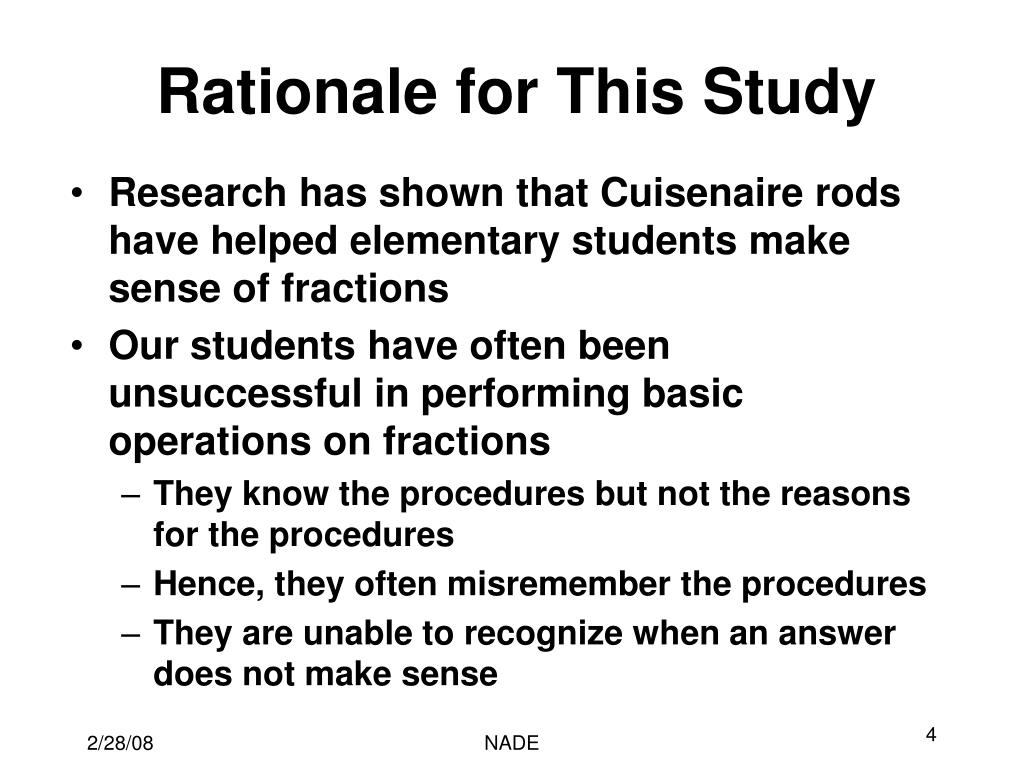

Rationale for This Study
• Research has shown that Cuisenaire rods have helped elementary students make sense of fractions
• Our students have often been unsuccessful in performing basic operations on fractions
• They know the procedures but not the reasons for the procedures
• Hence, they often misremember the procedures
• They are unable to recognize when an answer does not make sense

The Importance of Fractions
• Fractions are important in many areas of higher-level mathematics
• Rate
• Proportionality
• Algebra
• When students develop conceptual understanding of fractions, they become more confident in their general mathematical ability
• They can become less intimidated by other mathematical topics

Our Students’ Characteristics
• Most students:
• Relied on rules which were sometimes imperfectly recalled
• Did not relate fraction problems to real situations
• Did not recognize unreasonable answers
• College students made mistakes similar to children’s mistakes:
• Cross multiplying
• Multiplying whole numbers and fractions separately

Cuisenaire® Rods
• Developed by Georges Cuisenaire (Belgian educator) in the 50s
• Focus is on the length of the rod, which is related to color
• The rods are versatile
• There are no markings requiring specific divisions (e.g. 10ths)
• A rod can be used to represent any rational number

Students’ Work on Fractions
• Representing and comparing fractions
• Multiplying fractions
• Whole number · fraction
• Mixed number · fraction
• Fraction · fraction
• Dividing fractions
• Whole number ÷ fraction
• Fraction ÷ fraction

Representing and Comparing Fractions
• Exploring relationship among the rods, including fractional relationships
• Assigning fraction names to the rods
• Using the rods to compare fractions

Representing Fractions
• Assign the number name 1 to the orange rod
• What are the number names for all the other rods?

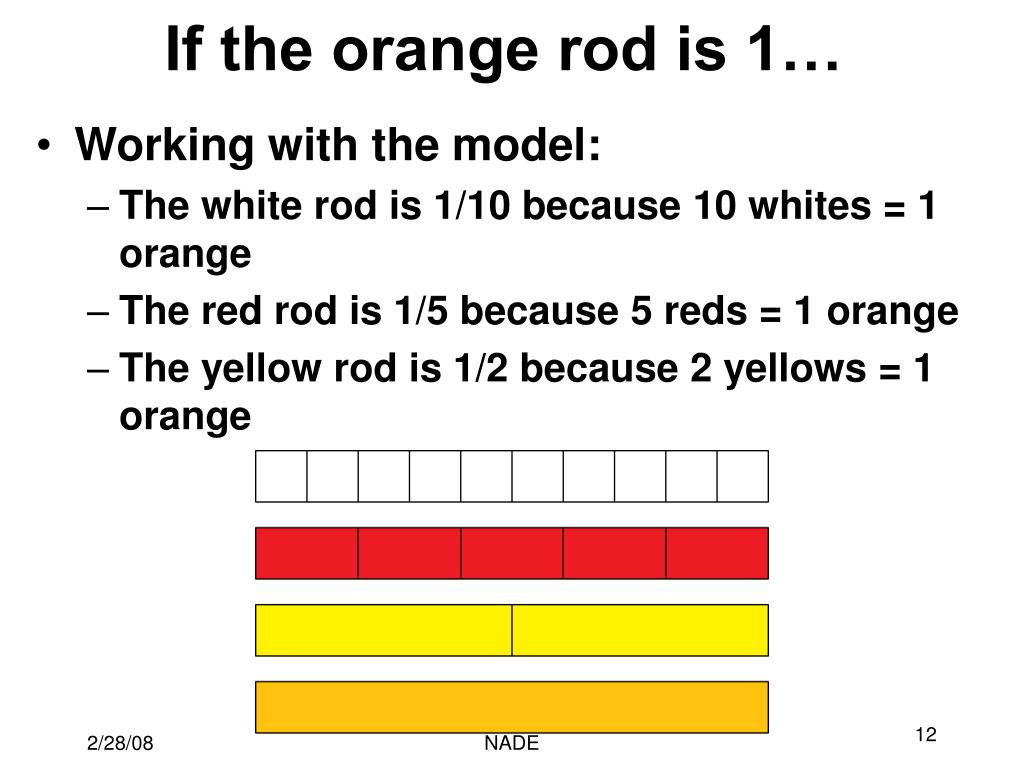

If the orange rod is 1…
• Working with the model:
• The white rod is 1/10 because 10 whites = 1 orange
• The red rod is 1/5 because 5 reds = 1 orange
• The yellow rod is 1/2 because 2 yellows = 1 orange

If the orange rod is 1…
• Extrapolating from the model:
• The concept of equivalent fractions emerges
• Red = 2 whites = 2/10, lt. green = 3/10, purple = 4/10, … blue = 9/10

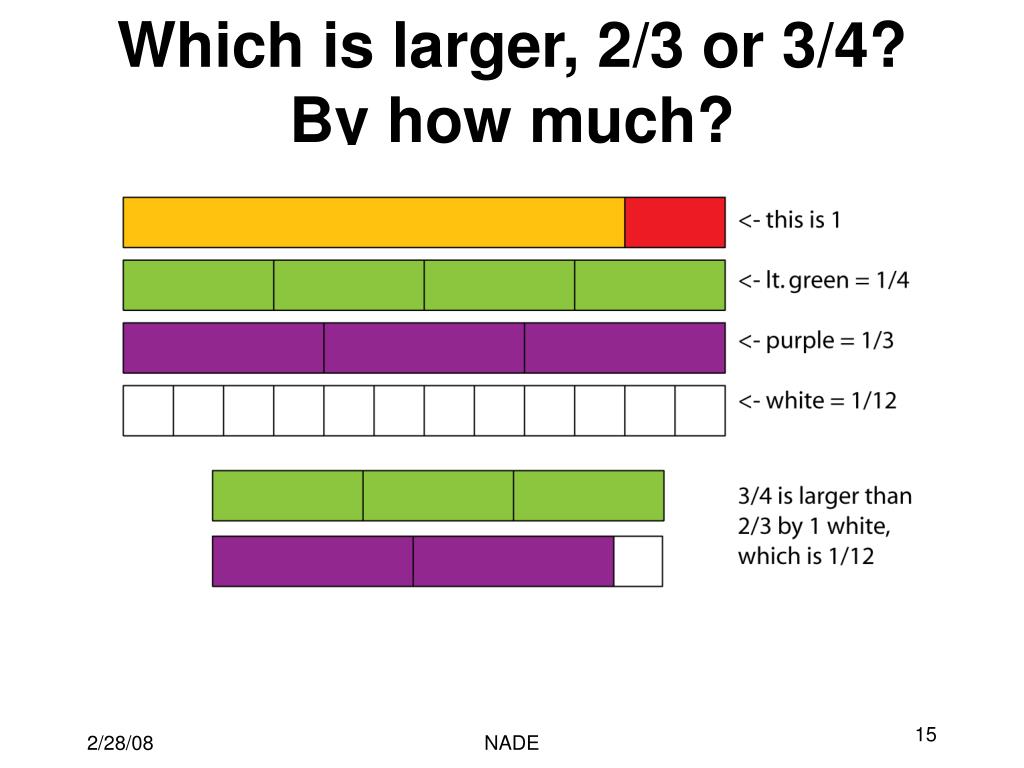

Comparing Fractions
• The question
• Which is larger, 2/3 or 3/4?
• By how much?
• Demonstrate using a model
• The process
• Assign the number name 1 to a selected rod or train of rods
• Find rods that represent 2/3 and 3/4
• Find the number name of the rod(s) that represent the difference

Common Denominator
• Comparisons can lead naturally to the concept of common denominator.
• Can students use the model to discern the meaning of common denominator?
• Usually, we have to tell them, or at least provide hints.

Finding Common Denominator Via Model
• The train representing 1 is 12 white rods long; 1 = 12/12
• The green rod representing 1/4 is 3 white rods in length; 1/4 = 3/12
• The purple rod representing 1/3 is 4 white rods in length; 1/3 = 4/12
• The difference is 1 white rod = 1/12

Subtracting Fractions
• Comparisons lead to the concept of difference (subtraction)
• But some students have a great deal of difficulty with word problems related to fraction minus fraction
• Possibly, they never developed the concept of fraction as number (not operator)
• We are still searching for ways to help students understand these operations

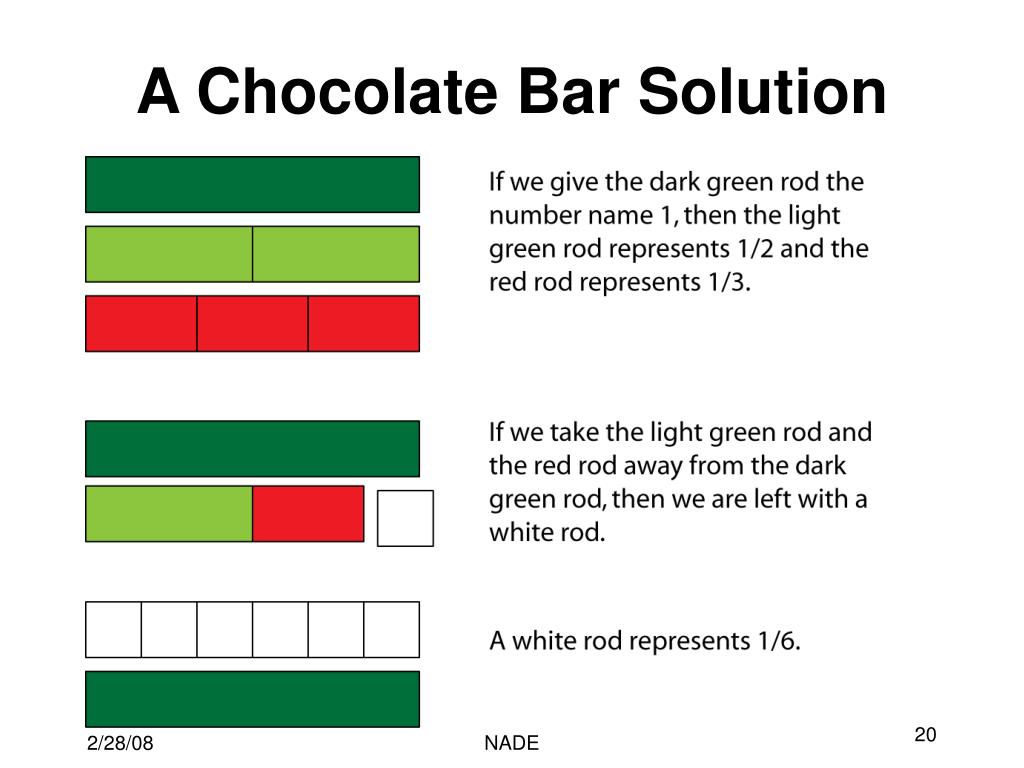

The Chocolate Bar Problem
• I had a chocolate bar. I gave 1/2 of the bar to Jason and 1/3 of the bar to John. What fraction of the chocolate bar did I have left?

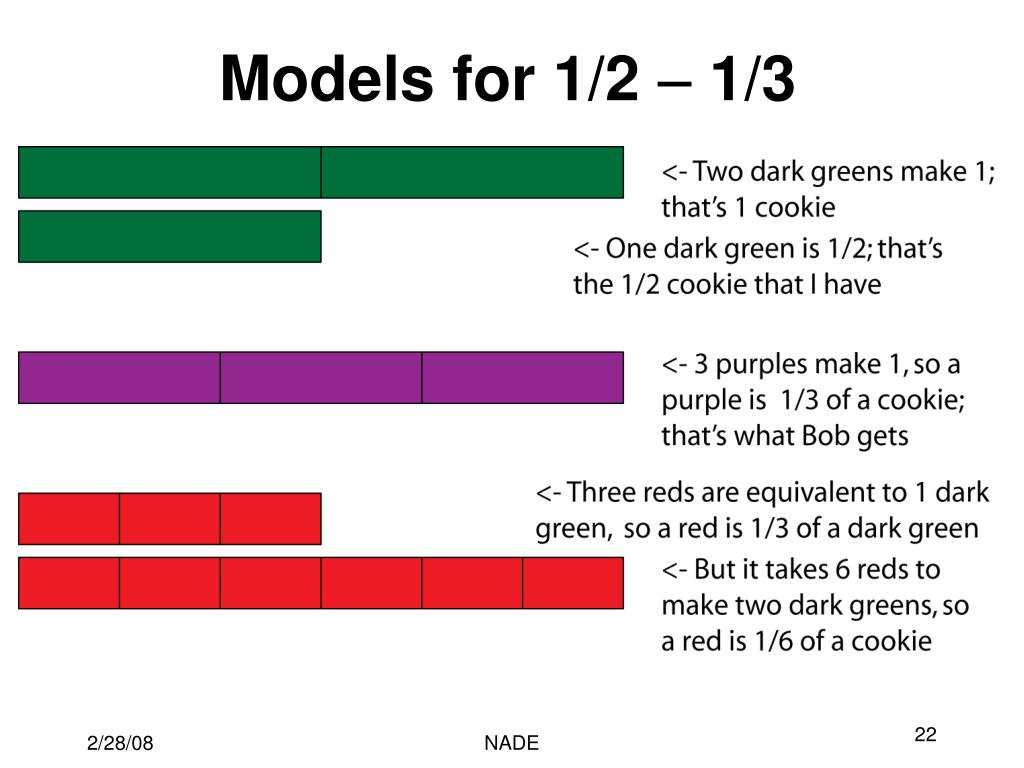

Subtracting Fractions
• What’s the difference between these two problems?
• The problem we assigned
• I have 1/2 of a cookie. I give 1/3 of a cookie to Bob. What fraction of a cookie do I have left?
• The problem some students answered
• I have 1/2 of a cookie. I give 1/3 of what I have to Bob. What fraction of what I started with do I have left?

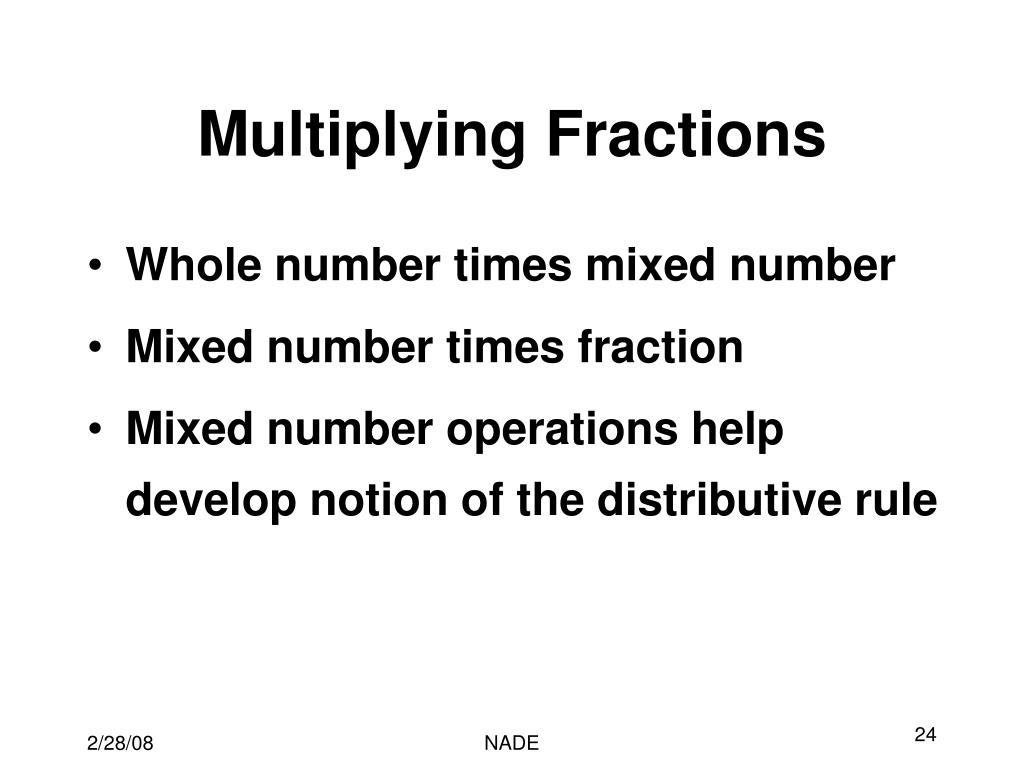

Multiplying Fractions
• Whole number times mixed number
• Mixed number times fraction
• Mixed number operations help develop notion of the distributive rule

Multiplying FractionsWhole Number · Mixed Number
• Example: Use the rods to model 3 times 2 1/3

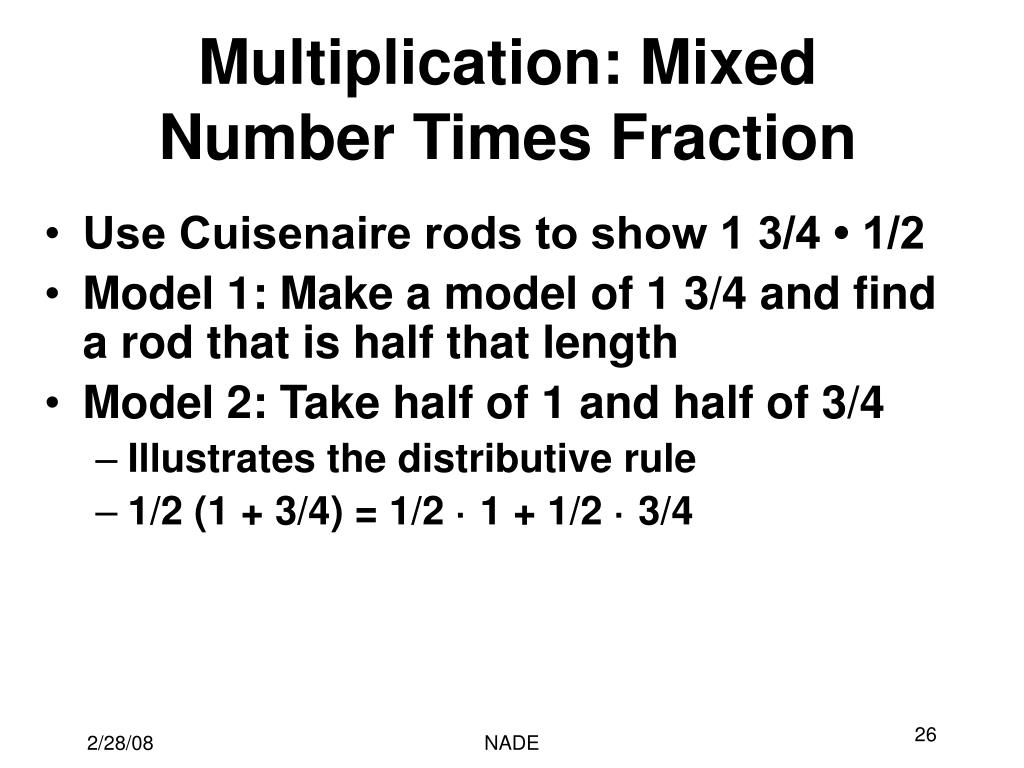

Multiplication: Mixed Number Times Fraction
• Use Cuisenaire rods to show 1 3/4 • 1/2

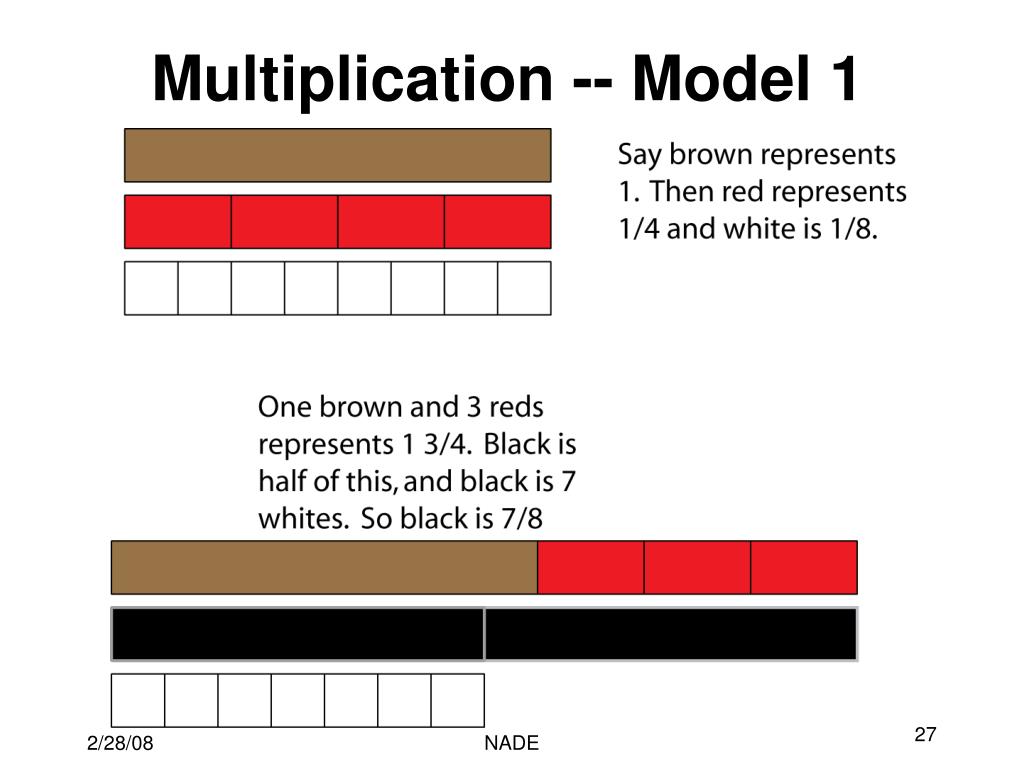

• Model 1: Make a model of 1 3/4 and find a rod that is half that length
• Model 2: Take half of 1 and half of 3/4
• Illustrates the distributive rule
• 1/2 (1 + 3/4) = 1/2 · 1 + 1/2 · 3/4

Division Problems
• Problems to develop the meaning of the division algorithm
• Ribbons and bows
• Problems to show the difference between dividing by n and dividing by 1/n
• What is 6 divided by 2?

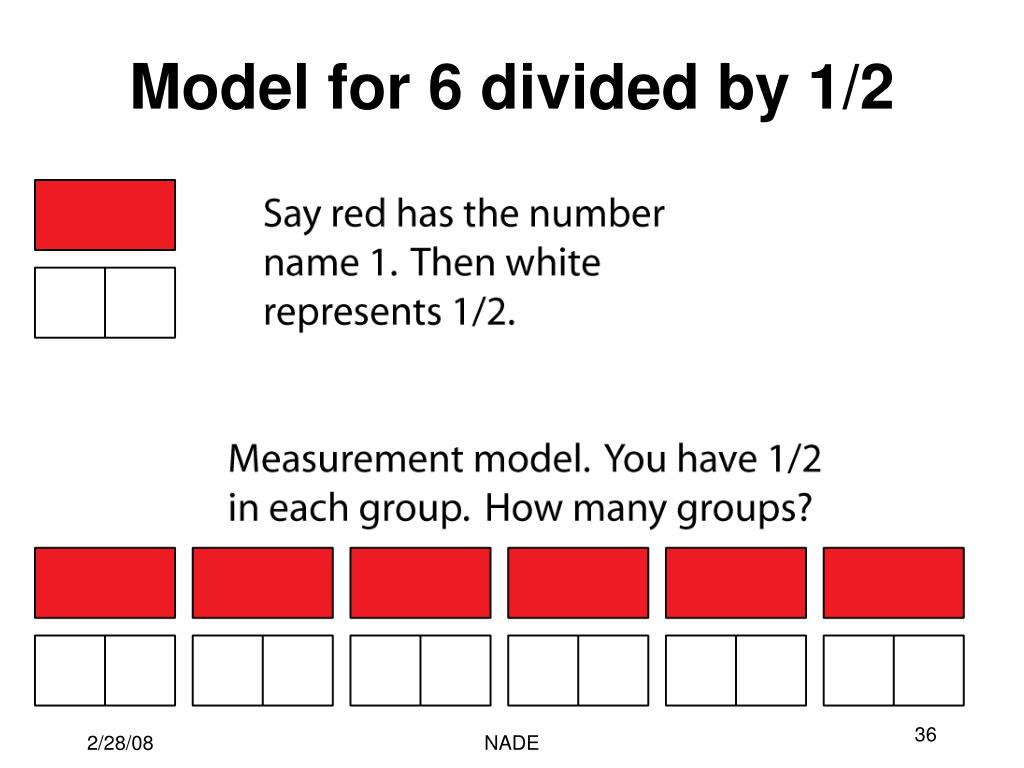

• What is 6 divided by 1/2?
• A problem to show the difference between multiplying by 1/n and dividing by 1/n
• What is 1 3/4 divided by 1/2?
• Compare to earlier multiplication problem

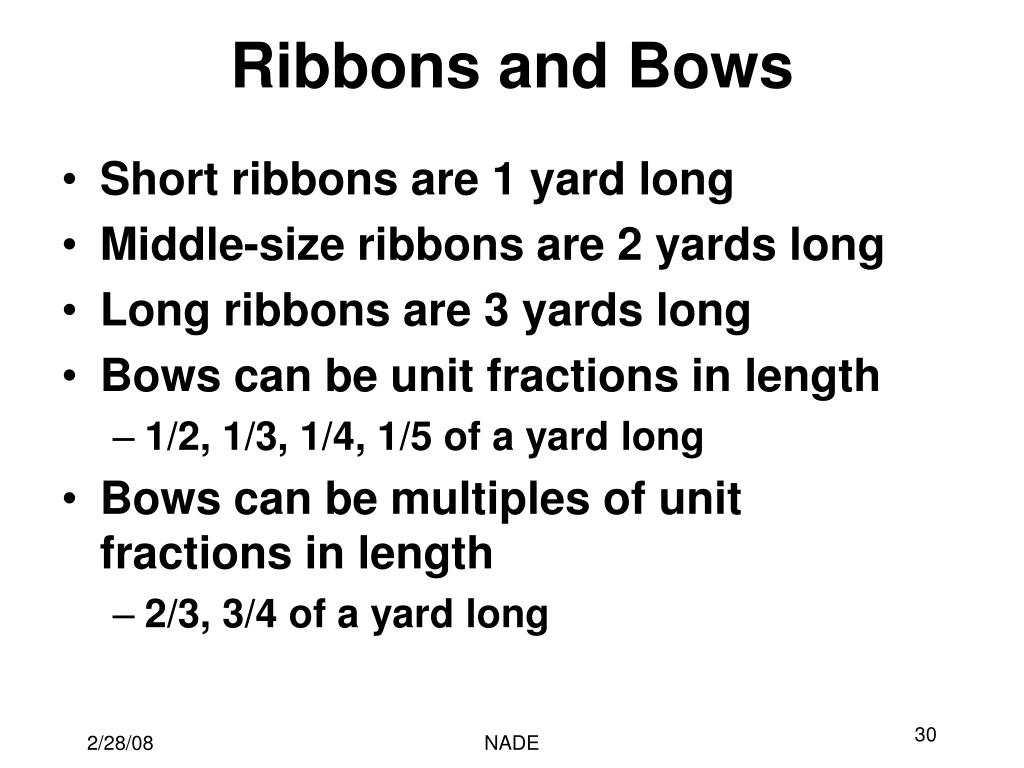

Ribbons and Bows
• Short ribbons are 1 yard long
• Middle-size ribbons are 2 yards long
• Long ribbons are 3 yards long
• Bows can be unit fractions in length
• 1/2, 1/3, 1/4, 1/5 of a yard long
• Bows can be multiples of unit fractions in length
• 2/3, 3/4 of a yard long

How Many Bows? (Unit Fractions)
• A short ribbon (1 yard long) makes:
• 2 bows that are 1/2 yard long
• 3 bows that are 1/3 yard long
• n bows that are 1/n yards long
• A middle-size ribbon (2 yards long) makes:
• 4 bows that are 1/2 yard long
• 2n bows that are 1/n yards long
• A ribbon that is m yards long makes:
• n · m bows that are 1/n yards long

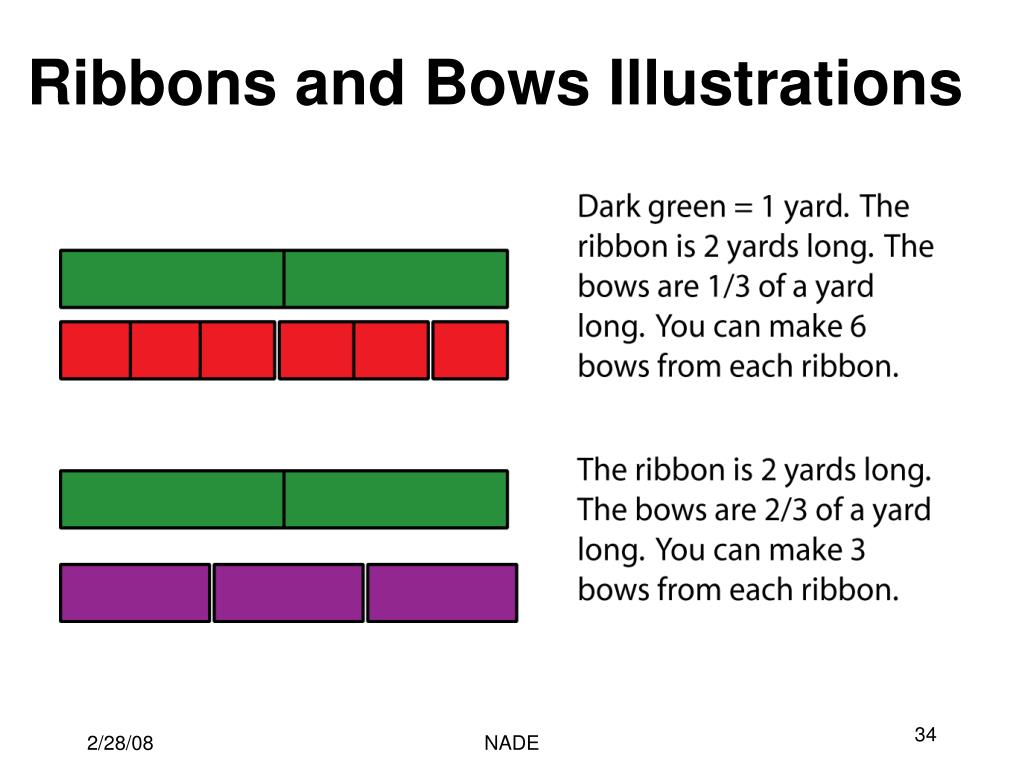

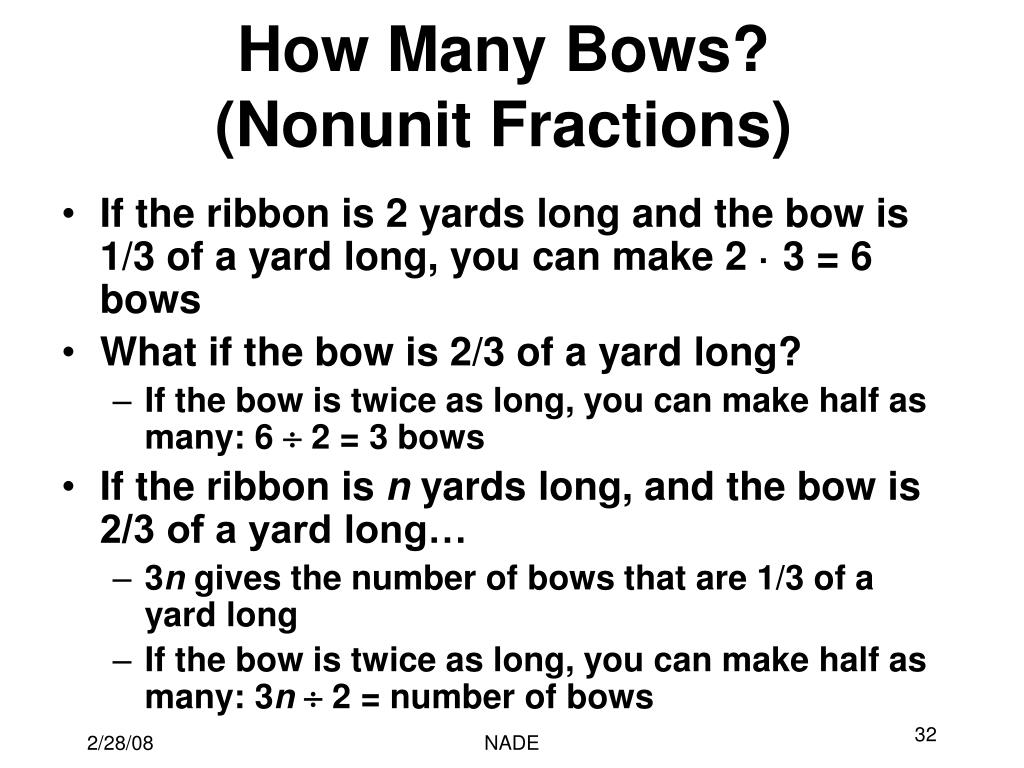

How Many Bows?(Nonunit Fractions)
• If the ribbon is 2 yards long and the bow is 1/3 of a yard long, you can make 2 · 3 = 6 bows
• What if the bow is 2/3 of a yard long?
• If the bow is twice as long, you can make half as many: 6  2 = 3 bows
• If the ribbon is n yards long, and the bow is 2/3 of a yard long…
• 3n gives the number of bows that are 1/3 of a yard long
• If the bow is twice as long, you can make half as many: 3n 2 = number of bows

How Many Bows?(General Rule)
• n = Length of the ribbon
• k / m = Size of the bow
• n · m = How many bows of size 1/m
• Divide n · m by k to get the number of bows of size k/m
• Symbolically:
• Number of bows = nm/k
• In words:
• Invert and multiply

Summary of Results
• Some students found the Cuisenaire rods useful
• They used rods to visualize problems
• They used rods to determine the reasonableness of their answers
• They used rods to make sense of algorithms
• But relating the rods to the symbols remained an issue
• Other students resisted using them
• They preferred to practice computational fluency
• They were not interested in making sense of the algorithms
• They resisted using tools designed for children
• Models are for those who can’t figure out the answer the “right” way

Conclusions
• Cuisenaire rods can be helpful in some cases
• We found them to be useful in assessing student comprehension
• Models helped expose student thinking
• The rods can help some students make sense of the standard algorithms
• It takes time and patience to achieve results
• Overcoming some students’ resistance can be an issue
• Some students might not find the rods useful
• Different learning styles?
