  1. Electrochemistryand Neurotransmitters REVIEW GAME

  2. USG Part III:ElectrochemistrySee also the NOTES documents posted online at our wikispace, the online self-quizzes posted at our wikispace,and all assignments and materials related to our Neuron Action Potential Circuit Design Challenge Lab(especially your Lab Reflection) and yourOhm’s Law and Electric Power Practice Problems Classwork

  3. Electricity is generated by the movement of charged particles, in which like charges ___________ one another and opposite charges _________ one another. repel, repel repel, attract attract, repel repel, repel

  4. Electricity is generated by the movement of charged particles, in which like charges ___________ one another and opposite charges _________ one another. repel, repel repel, attract attract, repel repel, repel

  5. Electric charge is measured in ________________ Electric current is measured in _______________ Electric power is measured in ________________ Electric resistance is measured in _____________ Electric potential difference is measured in ________.

  6. Electric charge is measured in Coulombs Electric current is measured in amperes Electric power is measured in watts Electric resistance is measured in ohms (Ω) Electric potential difference is measured in volts.

  7. How is electric power calculated? Provide 1. The a mathematical equation in words, _________________________________ 2. The a mathematical equation in one letter symbols, _________________________________ 3. And the mathematical equation in units. _________________________________

  8. How is electric power calculated? Provide 1. The a mathematical equation in words, Power = Current X Voltage 2. The a mathematical equation in one letter symbols, P= IV 3. And the mathematical equation in units. watts = amperes X volts

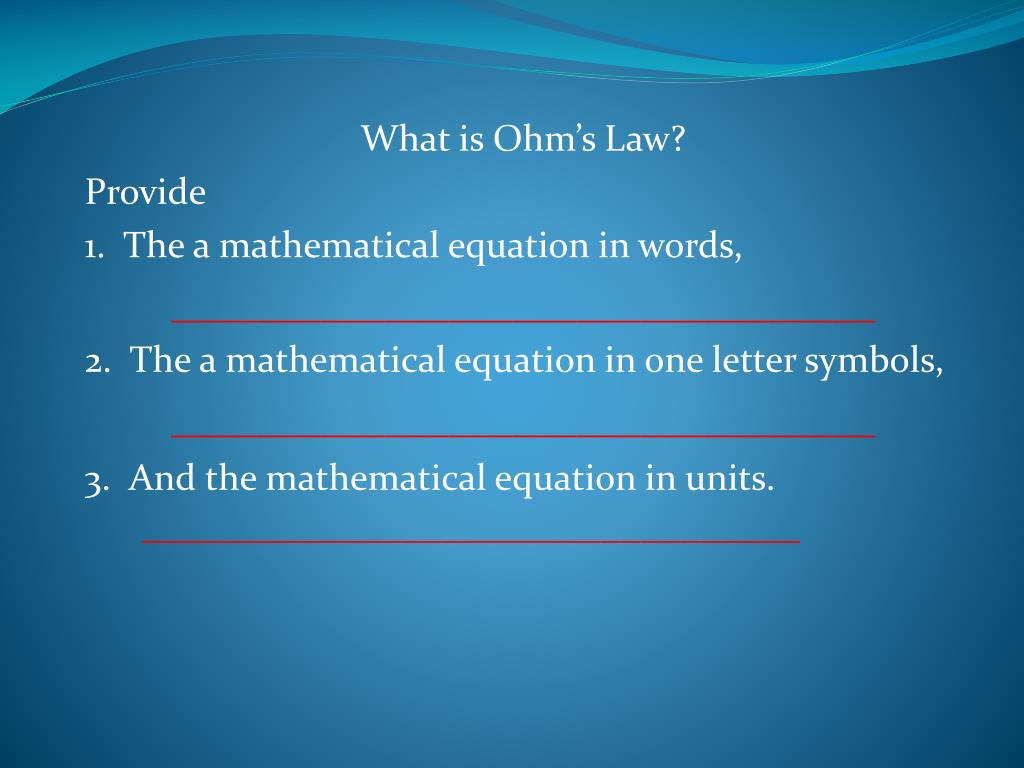

  9. What is Ohm’s Law? Provide 1. The a mathematical equation in words, _________________________________ 2. The a mathematical equation in one letter symbols, _________________________________ 3. And the mathematical equation in units. _________________________________

  10. What is Ohm’s Law? Provide 1. The a mathematical equation in words, Volts = Current X Resistance 2. The a mathematical equation in one letter symbols, V= IR 3. And the mathematical equation in units. volts = amperes X ohms

  11. In a battery-powered circuit, because they have a _______ charge, electrons flow from the ______ to the ______. positive; anode; cathode positive; cathode ; anode negative; anode; cathode negative; cathode ; anode

  12. In a battery-powered circuit, because they have a _______ charge, electrons flow from the ______ to the ______. positive; anode; cathode positive; cathode ; anode negative; anode; cathode negative; cathode ; anode

  13. According to Ohm’s Law, if resistance between two points increases, current will: decrease increase remain the same. become zero.

  14. According to Ohm’s Law, if resistance between two points increases, current will: decrease increase remain the same. become zero.

  15. A circuit in which the path is complete, with no gaps is called a(n) _________________ because the _________ can flow. open circuit, current open wire, resistance closed circuit, current closed system, resistance

  16. A circuit in which the path is complete, with no gaps is called a(n) _________________ because the _________ can flow. open circuit, current open wire, resistance closed circuit, current closed system, resistance

  17. Imagine a simple series circuit with one 1.5V battery and one bulb. When the 1.5V battery is replaced with a 3V battery the bulb gets brighter the bulb gets dimmer the bulb stays at the same level of brightness

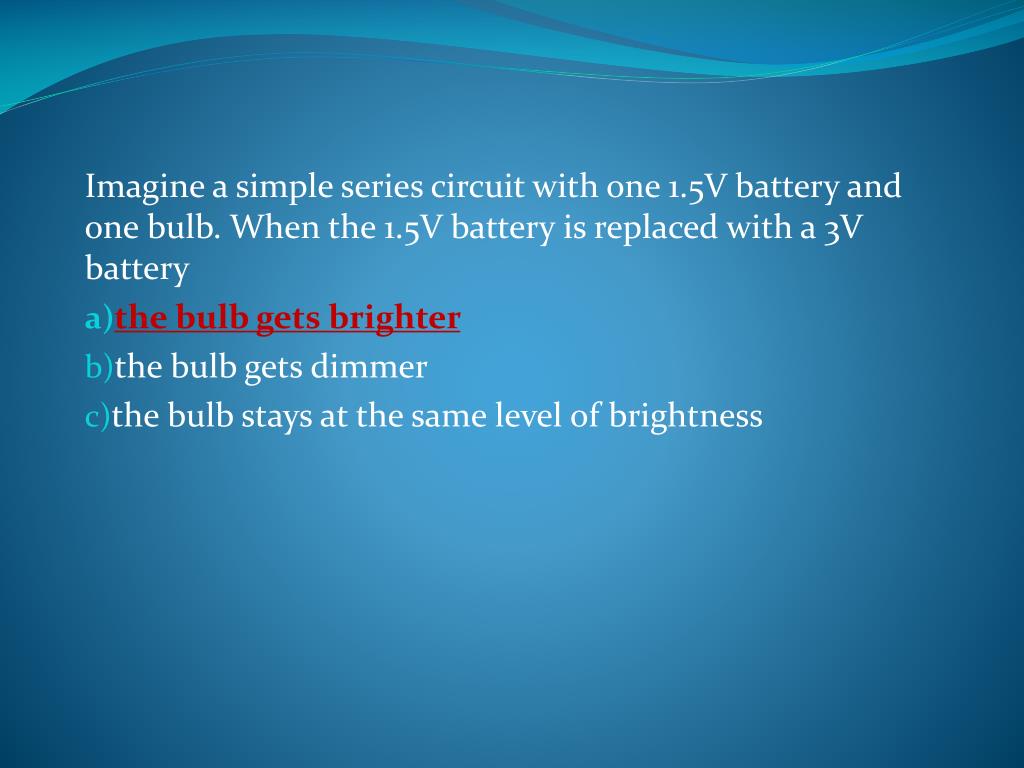

  18. Imagine a simple series circuit with one 1.5V battery and one bulb. When the 1.5V battery is replaced with a 3V battery the bulb gets brighter the bulb gets dimmer the bulb stays at the same level of brightness

  19. In a given circuit, increasing the length of the wire has which effect? Increases resistance Decreases resistance Increases current Has no affect on resistance or current B and C

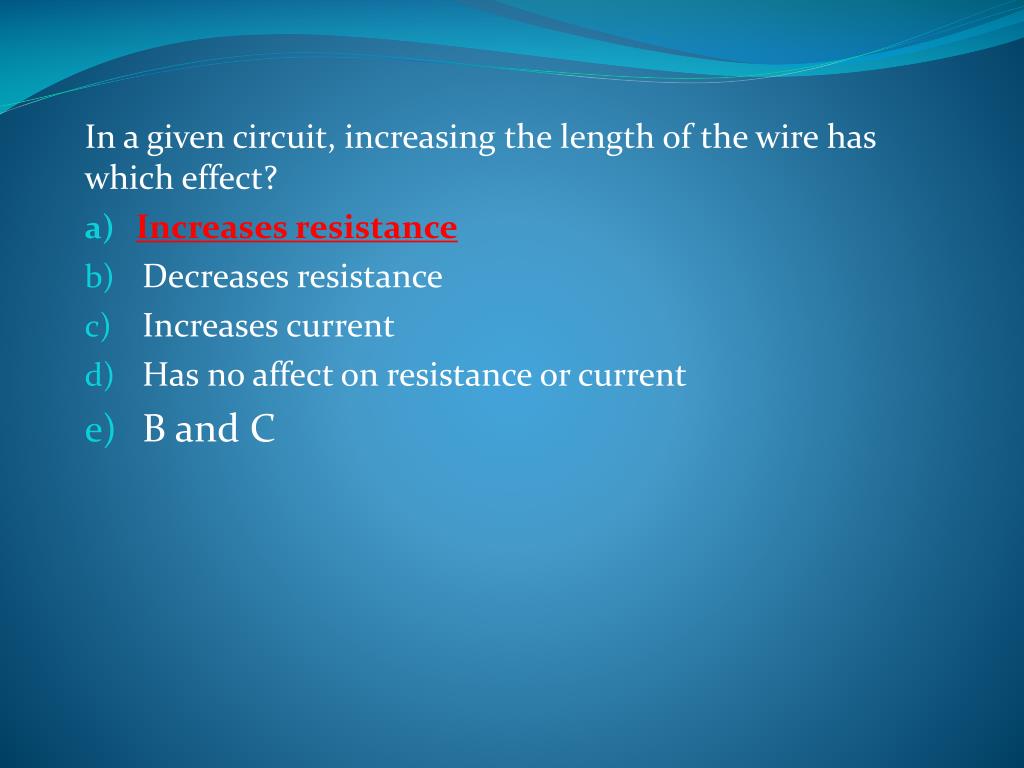

  20. In a given circuit, increasing the length of the wire has which effect? Increases resistance Decreases resistance Increases current Has no affect on resistance or current B and C

  21. How much power is used by a 9-V battery that produces a 3 amp current?

  22. How much power is used by a 9-V battery that produces a 3 amp current? Remember, P= IV ; or watts = amperes X volts. Thus, in this case, watts = 3 amperes X 9 Volts = 27 watts

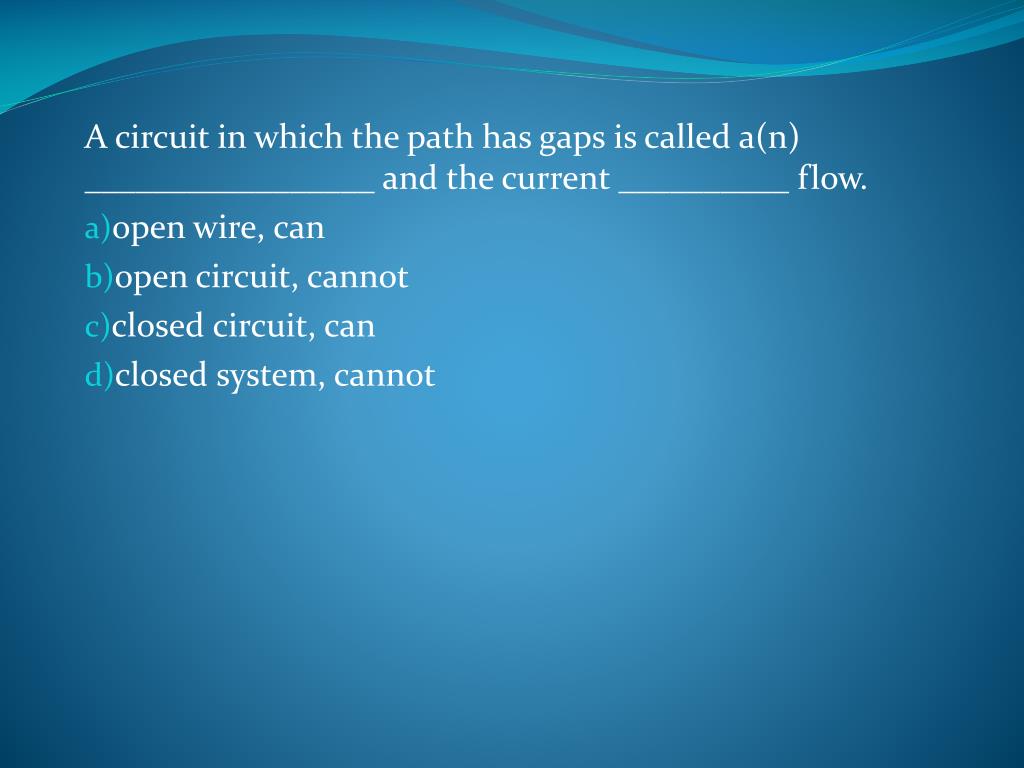

  23. A circuit in which the path has gaps is called a(n) _________________ and the current __________ flow. open wire, can open circuit, cannot closed circuit, can closed system, cannot

  24. A circuit in which the path has gaps is called a(n) _________________ and the current __________ flow. open wire, can open circuit, cannot closed circuit, can closed system, cannot

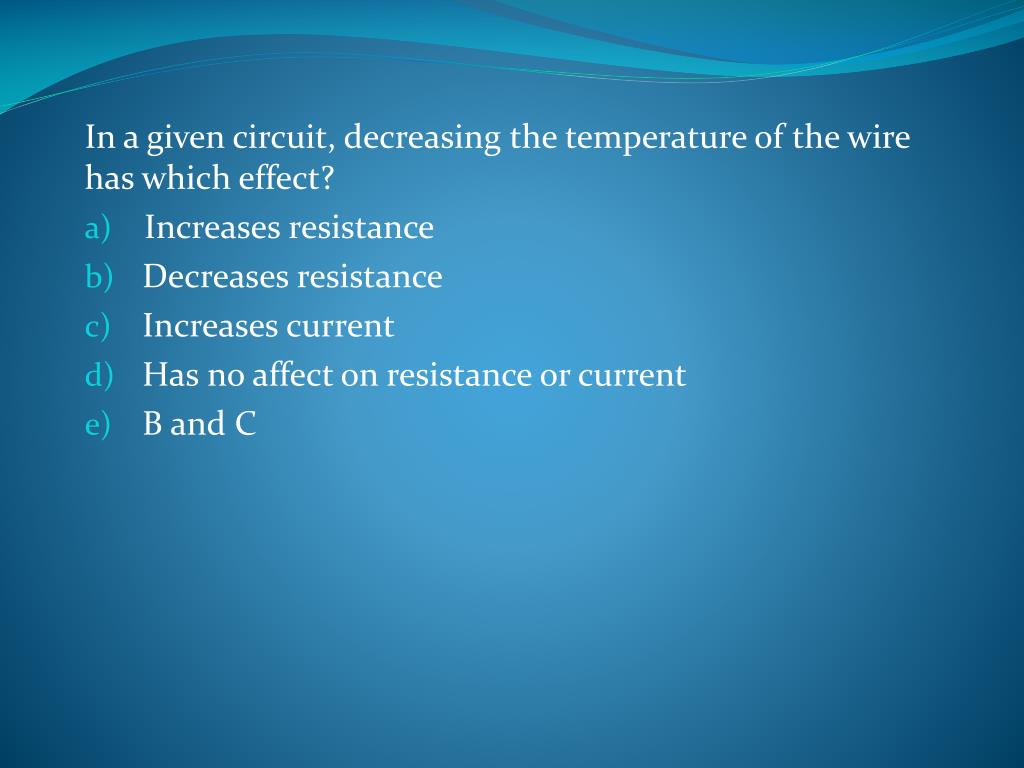

  25. In a given circuit, decreasing the temperature of the wire has which effect? Increases resistance Decreases resistance Increases current Has no affect on resistance or current B and C

  26. In a given circuit, decreasing the temperature of the wire has which effect? Increases resistance Decreases resistance Increases current Has no affect on resistance or current B and C

  27. According to Ohm’s Law, if electric potential difference between two points increases, current will: decrease increase remain the same. become zero.

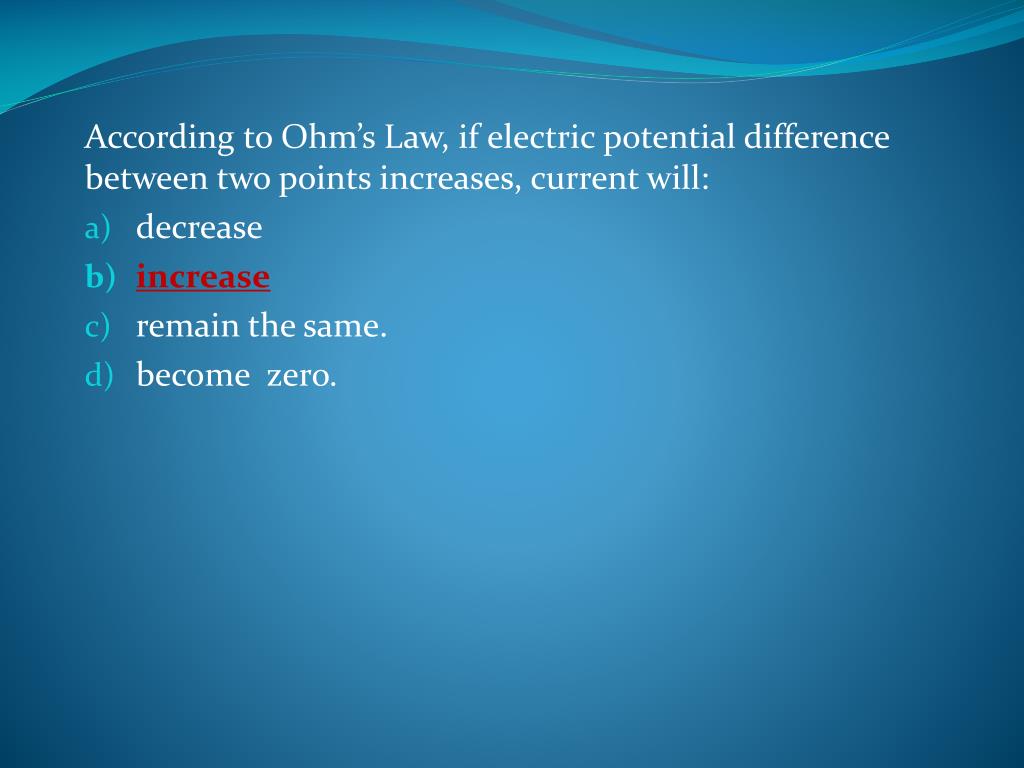

  28. According to Ohm’s Law, if electric potential difference between two points increases, current will: decrease increase remain the same. become zero.

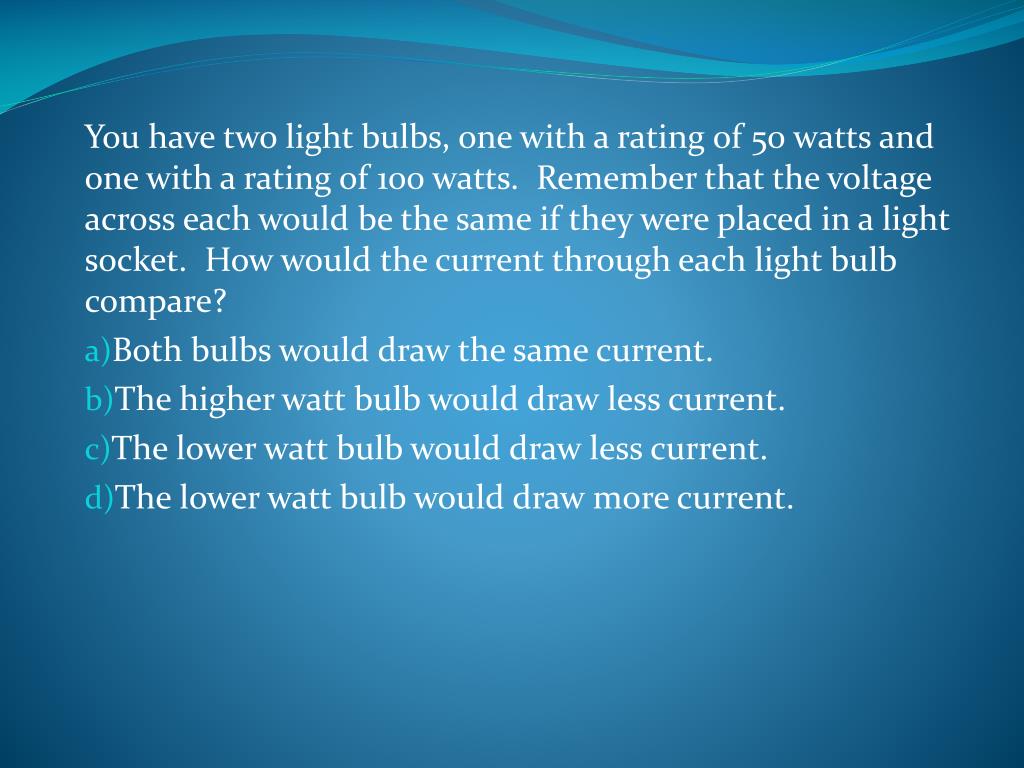

  29. You have two light bulbs, one with a rating of 50 watts and one with a rating of 100 watts. Remember that the voltage across each would be the same if they were placed in a light socket. How would the current through each light bulb compare? Both bulbs would draw the same current. The higher watt bulb would draw less current. The lower watt bulb would draw less current. The lower watt bulb would draw more current.

  30. You have two light bulbs, one with a rating of 50 watts and one with a rating of 100 watts. Remember that the voltage across each would be the same if they were placed in a light socket. How would the current through each light bulb compare? Both bulbs would draw the same current. The higher watt bulb would draw less current. The lower watt bulb would draw less current. The lower watt bulb would draw more current.

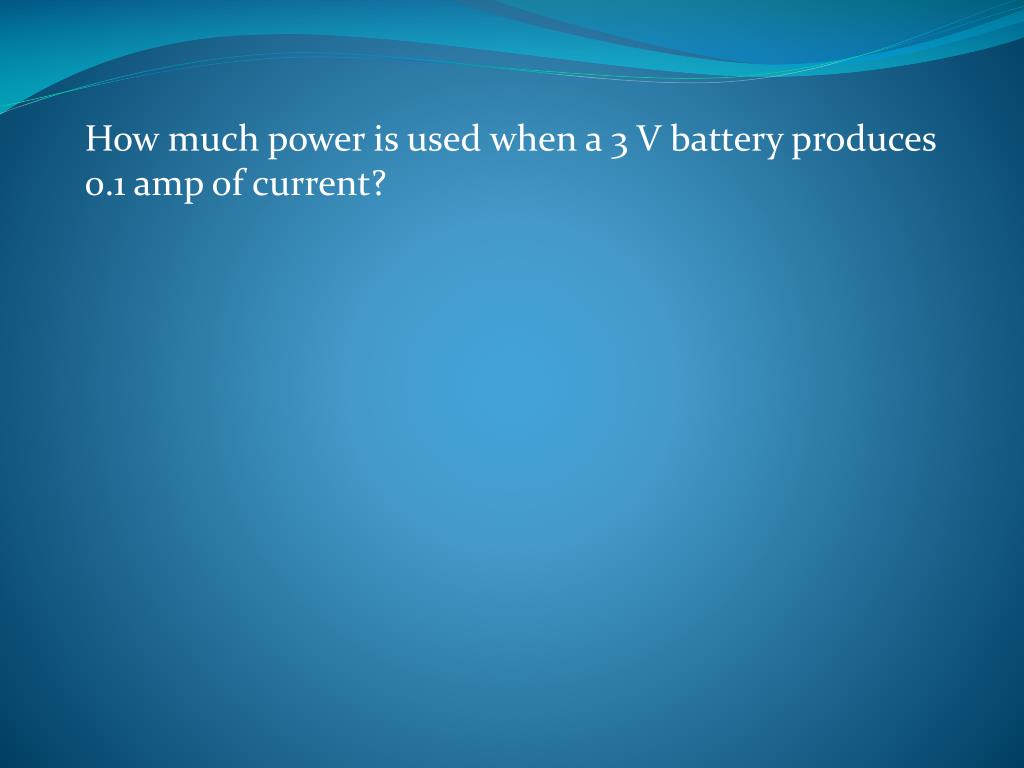

  31. How much power is used when a 3 V battery produces 0.1 amp of current?

  32. How much power is used when a 3 V battery produces 0.1 amp of current? Remember, P= IV ; or watts = amperes X volts. Thus, in this case, watts = 0.1 amperes X 3 volts, = 0.3 watts

  33. Current is measured in _____, resistance in measured in _____ and power is measured in _____. watts, ohms, amperes amperes, ohms, watts Coulombs, volts, amperes ohms, amperes, watts amperes, ohms, Coulombs

  34. Current is measured in _____, resistance in measured in _____ and power is measured in _____. watts, ohms, amperes amperes, ohms, watts Coulombs, volts, amperes ohms, amperes, watts amperes, ohms, Coulombs

  35. In a given circuit, increasing the diameter of the wire has which effect? Increases resistance Decreases resistance Increases current Has no affect on resistance or current B and C

  36. In a given circuit, increasing the diameter of the wire has which effect? Increases resistance Decreases resistance Increases current Has no affect on resistance or current B and C

  37. What is the resistance of a device if the current through it is 10 amps and the voltage across it is 5 volts?

  38. What is the resistance of a device if the current through it is 10 amps and the voltage across it is 5 volts?    Remember, V= IR ; or volts = amperes X ohms Therefore, R = V ; or ohms = volts . I amperes Thus, in this case, ohms = 5 volts = 0.5 ohms    10 amperes

  39. LED light (0.40 Amp, 2.6 Volts) Label the circuit below to show the following: anode, battery, cathode, direction of electron flow, resistor, and switch.

  40. LED light (0.40 Amp, 2.6 Volts) Battery Anode Cathode Electron flow Switch Resistor Electron flow Label the circuit below to show the following: anode, battery, cathode, direction of electron flow, resistor, and switch.

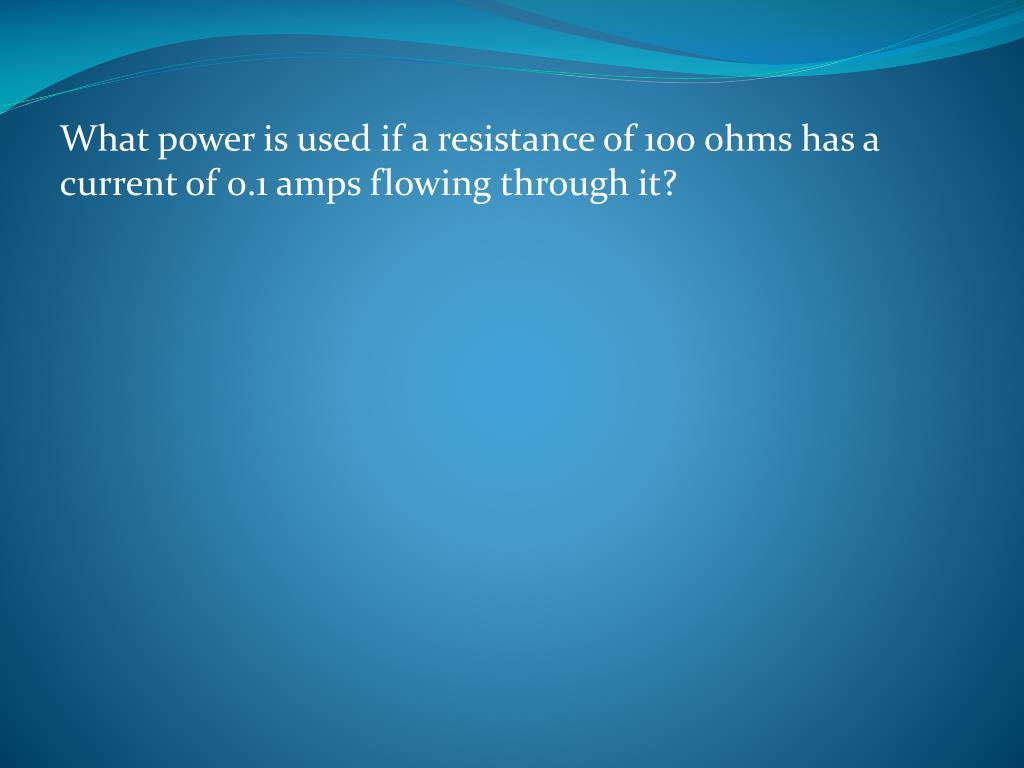

  41. What power is used if a resistance of 100 ohms has a current of 0.1 amps flowing through it?

  42. What power is used if a resistance of 100 ohms has a current of 0.1 amps flowing through it? Remember, P= IV ; or watts = amperes X volts Here we must first determine the volts before we can solve for watts. From Ohm’s Law, we know that V= IR ; or volts = amperes X ohms Thus, in this case, volts = 0.1 amps X 100 ohms = 10 volts. Substituting this value in our power equation above gives: watts = 0.1 amperes X 10 volts = 1 watt

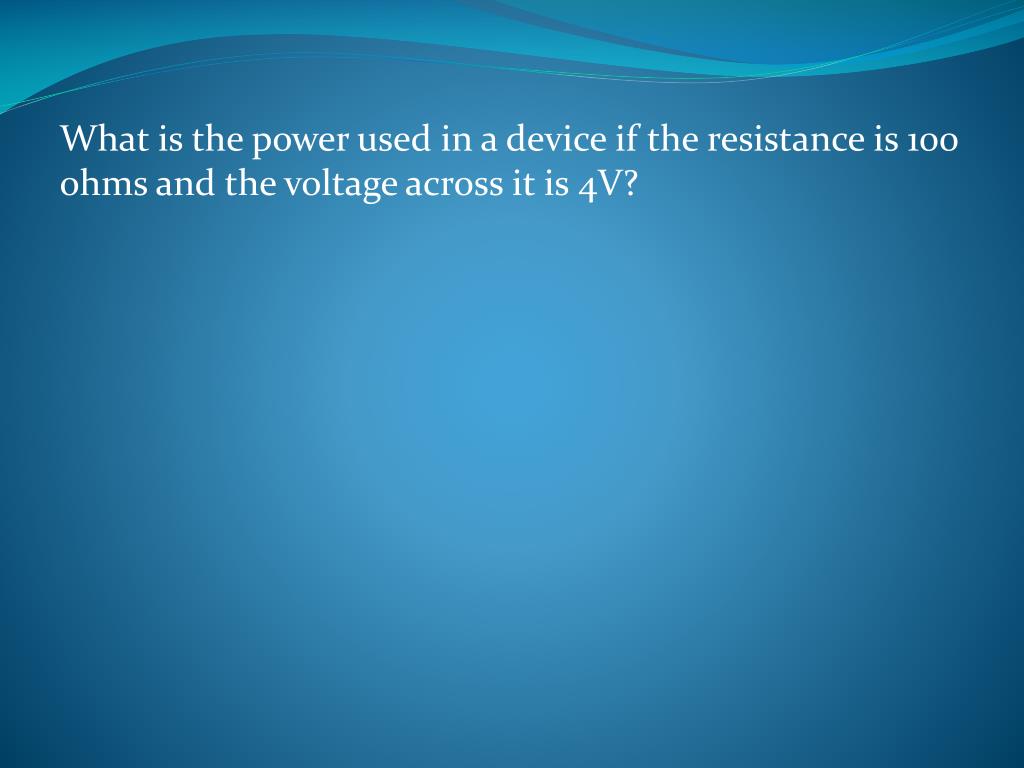

  43. What is the power used in a device if the resistance is 100 ohms and the voltage across it is 4V?

  44. What is the power used in a device if the resistance is 100 ohms and the voltage across it is 4V? Remember, P= IV ; or watts = amperes X volts Here we must first determine the amperes before we can solve for watts. From Ohm’s Law, we know that V= IR ; or volts = amperes X ohms. Rearranging this equation gives: amperes = volts ohms Thus, in this case, amperes = 4 volts = .04 amperes 100 ohms Substituting this value in our power equation above gives: watts = 0.04 amperes X 4 volts = .16 watts

  45. USG Part IV:NeurotransmittersSee also the NOTES documents posted online at our wikispace, the online self-quizzes posted at our wikispace,and all assignments and materials related to neurotransmitters,especially your Neurotransmitters Activity Classwork Poster

  46. The primary neurotransmitter at the neuromuscular junction is ________, an ________ neurotransmitter. Dopamine , excitatory Glutamate, excitatory Acetylcholine, excitatory GABA, inhibitory Serotonin, inhibitory

  47. The primary neurotransmitter at the neuromuscular junction is ________, an ________ neurotransmitter. Dopamine , excitatory Glutamate, excitatory Acetylcholine, excitatory GABA, inhibitory Serotonin, inhibitory

  48. Arrange the following in the proper order in which they occur at the pre-synaptic side of a neuromuscular junction.1. Calcium ions enter the cell via voltage-gated calcium channels2. An action potential arrives at the presynaptic terminal3. Neurotransmitter is releasedA) 1, 2, 3 B) 2, 1, 3 C) 2, 3, 1 D) 3, 2, 1 E) 3, 1, 2

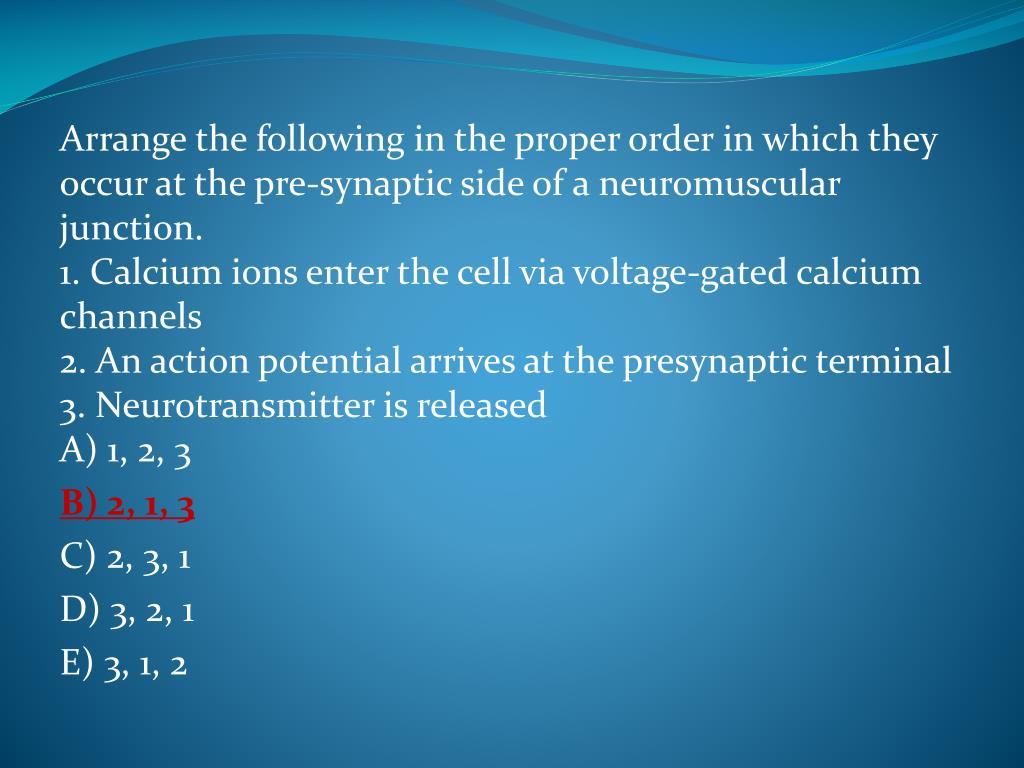

  49. Arrange the following in the proper order in which they occur at the pre-synaptic side of a neuromuscular junction.1. Calcium ions enter the cell via voltage-gated calcium channels 2. An action potential arrives at the presynaptic terminal3. Neurotransmitter is releasedA) 1, 2, 3 B) 2, 1, 3 C) 2, 3, 1 D) 3, 2, 1 E) 3, 1, 2

  50. The process by which neurotransmitter molecules detach from a postsynaptic neuron are reabsorbed by a pre-synaptic neuron so they can be recycled and used again. A. axon terminals B. synaptic transmission C. reuptake D. diffusion
