  1. 4061 Session 17 (3/19)

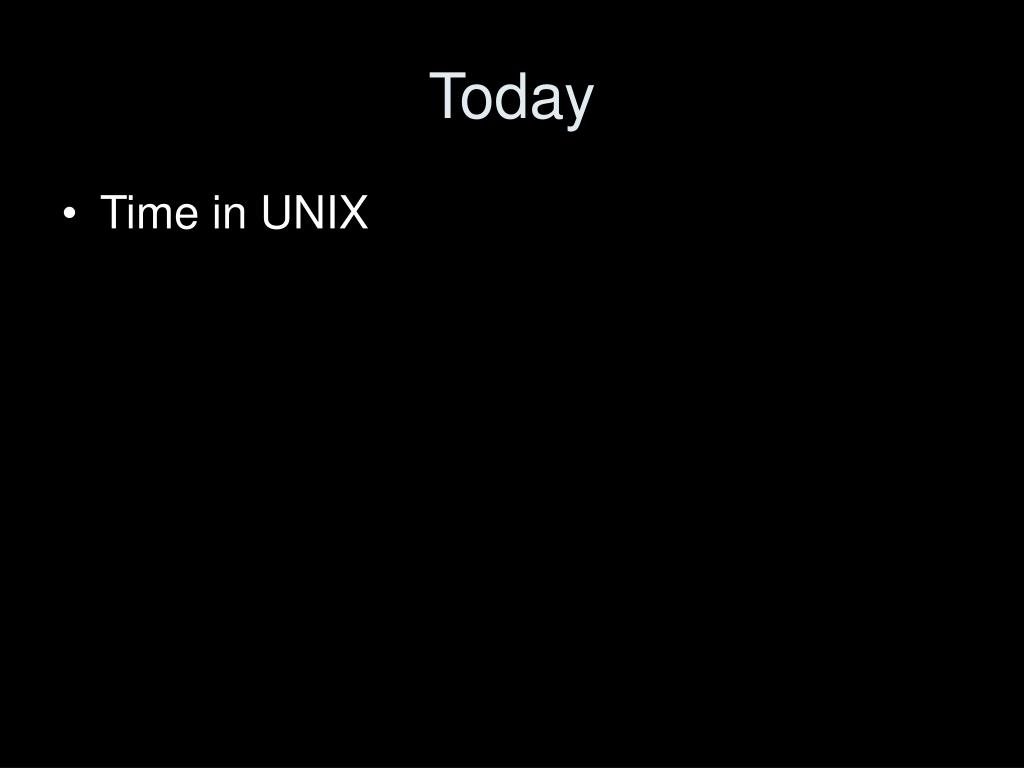

  2. Today • Time in UNIX

  3. Today’s Objectives • Define what is meant when a system is called “interrupt-driven” • Describe some trade-offs in setting the timer interrupt frequency • Write programs that format time values, measure time intervals, and utilize high-precision or interval timers

  4. Admin • Remember - Homework 3 is due a week from Wed. • Quiz 3 Results, overview, questions • Grading questions: Qiang #2/4, Riea #1/3

  5. Time in Perspective • 1 second (s) ==1,000 milliseconds (ms) ==1,000,000 microseconds (μs) • Million Instructions Per Second (MIPS) • A measure of *peak* CPU speed (not comparable across architectures...) • 1992: Intel 486DX (66 MHz) - 54 MIPS • 2006: Intel Core 2 Extreme QX6700 (3.33 GHz) - 57063 MIPS • Thus, 57,063,000,000 instructions per second, or 57,063 instructions per microsecond

  6. Interrupt-Driven • Systems have a “heartbeat” • Every so often, a timer interrupts whatever is happening, and the OS determines what to do next (e.g. scheduling) • The period between beats is known as a “jiffy” • Increment a kernel-internal value (jiffies) every timer interrupt. • The timer interrupt is the default scheduling quantum • All other timers are based on jiffies. • The timer interrupt rate (and jiffy increment rate) is defined by a compile-time constant called HZ

  7. Tuning • Older linux kernels on Intel: 10 ms (1/100 s, 100 Hz) • 10 ms == 10,000 μs • up to 570,630,000 instructions per jiffy on really fast HW • Newer linux kernels on Intel: 4 ms (1/250 s, 250 Hz) • For a few revisions, kernels were set to 1 ms. Deemed too short. Why?

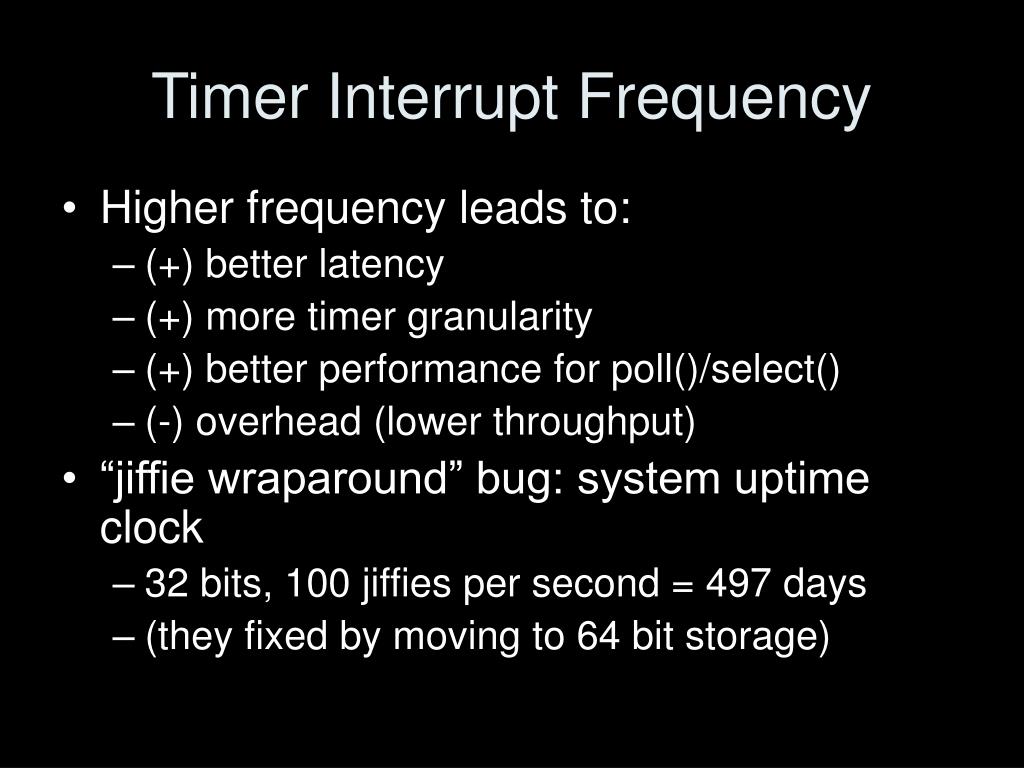

  8. Timer Interrupt Frequency • Higher frequency leads to: • (+) better latency • (+) more timer granularity • (+) better performance for poll()/select() • (-) overhead (lower throughput) • “jiffie wraparound” bug: system uptime clock • 32 bits, 100 jiffies per second = 497 days • (they fixed by moving to 64 bit storage)

  9. Notes • Note: timeslice != jiffy • Scheduling is implemented by checking against the jiffy counter, but the length of a quantum can be longer than one jiffy • vmstat 1: look at interrupts per second • On an idle system, can get a feel for timer Hz • in: interrupts in last second • cs: context switches in last second

  10. Timers and Jiffies • We’re going to be talking about timers today • e.g. How sleep(10) is implemented • Keep in mind that without special kernel modifications timers can be no more accurate than the length of the jiffy • These special kernel modifications are written, and will likely be put in the linux mainline code soon

  11. Time and Timers • An alarm is a signal that is delivered to a process after a time interval. • The resolution of a clock is the minimum interval that can be represented. • The accuracy of a clock is its difference from some generally-accepted standard. • Time interval measurements are available for • wall-clock time, • user-mode runtime, • kernel-mode runtime, and • user-mode and kernel-mode runtime for children

  12. Getting the Time • From the command line with date, in a variety of formats, in any timezone. • time_t time(time_t *tm) • This gives you the "time since epoch" in seconds. • Returns and (optionally) stores result in tm. • Accurate computation of long time intervals is not possible, because Unix time ignores leap seconds.

  13. Y2K, Unix-style • time_t datatype used to store seconds since Jan 1, 1970 • time_t was originally a 32 bit signed long • This number wraps (the highest-order bit is set to 1) during the year 2038, indicating a time *before* 1970 • ...this is only a problem for 32 bit systems (changing these systems to use 64 bit longs is hard) • Will there be any 32 bit systems left in 2038?

  14. From Wikipedia  • Using a (signed) 64-bit value introduces a new wraparound date in about 290 billion years, on Sunday, December 4, 292,277,026,596. • The 128-bit Unix time resets later, on December 31, 17,014,118,346,046,923,173,168,730,371,588,410. • However, these are not widely regarded as pressing issues.

  15. Higher-precision Times int gettimeofday(struct timeval *tv, struct timezone *tz); struct timeval { time_t tv_sec; /* seconds */ suseconds_t tv_usec; /* microseconds */ }; • This gives you the time with microsecond resolution, but not microsecond accuracy. • The tz value is ignored. Just use NULL.

  16. NTP • Many network algorithms require (reasonably) accurate comparison of times across a network. • How do I know that both machines are set correctly? • Network-connected machines can achieve millisecond accuracy with the network time protocol NTP.

  17. Time Formatting • Given a time value, there are two steps to getting a human-readable string representing the time. • Break the time down into parts: seconds, minutes, hours, month, year. See man ctime. • Convert the broken-down time into a string. • Set time zone info in tzname, timezone. • Many of these functions use static data. • If you call ctime() or gmtime() a second time, the results from the first call may be gone. • There are "thread-safe" versions of these, eg. ctime_r() , but they still use static locations for timezone info.

  18. Sleep and Alarm • The alarm(m) call causes SIGALRM to be sent to your process after m seconds. The sleep(m) call uses SIGALRM to pause your process. • A higher-precision way to get your process to pause: • int nanosleep(const struct timespec *req, struct timespec *rem); • req is the desired pause time. • If interrupted, rem is the remaining unused time.

  19. Process Pauses • nanosleep() has different behaviors • Delay <= 2 ms: busy loop (no signals!) • Delay > 2 ms: implemented like sleep() • The BSD version is called usleep(usec) • This is considered obsolete in Linux. • From the standpoint of simplicity, portability, and efficiency, nanosleep() is almost always the best choice.

  20. Interval Timers • Each process has a set of interval timers available. You can set them to send a periodic signal, based on passage of real time, or runtime. • Use getitimer(...) and setitimer(...)

  21. Interval Timers (2) • The three interval timers: • ITIMER_REAL • decrements in real time • delivers SIGALRM • ITIMER_VIRTUAL • decrements only when the process is executing • delivers SIGVTALRM • ITIMER_PROF • decrements both when the process executes and when the system is executing on behalf of the process. • delivers SIGPROF • Each has a current value, and an “interval” • If the interval > 0, then the timer will restart

  22. Measuring Runtime • The system keeps track of time spent in user and kernel, for a process and its children. • clock_t times(struct tms *buffer); • Returns accumulated runtime.
