  1. iColdand RCSElectronic Refrigeration ControlSystems

  2. iCold is the Complete Package

  3. RCS and iCold • Features and Benefits – Both • Integrated digital temperature control • Conventional and advanced defrost routines • True Pressure/Temperature Superheat • Controls all Sporlan valves (Bipolar and Unipolar) • RS-485 communication port • Pluggable connectors for easy wiring • Controllers supplied with SNAP-TRAK for quick installation • Compressor protection algorithms with FloodGuard™ • Onboard user interface with 3 digit alphanumeric display • iCold • Complete package ready to control out of the box • Watertight NEMA 4 enclosure

  4. Set Points & Process Measurements • Control Settings • Target superheat • Min and max valve capacity • Discharge air Cut-in / Cut-out temperatures • MOP • PID • Cycle time • Refrigerant • Defrost schedule / settings • Process Measurements • Suction pressure • Calculated superheat • Valve capacity • Evaporator inlet / outlet temperatures • Fixture temperature • Auxiliary input • Defrost termination temperature

  5. RCS is Menu Driven

  6. Initial Applications Convenience Stores Fast Food Outlets Restaurants Institutional Kitchens Sports Arenas

  7. RCS System Elements • Electronic controller • Electronic expansion valve • Bipolar and Unipolar stepper • Pressure transducer • Temperature sensors • User interface options • On-board display • Remote display/interface ( available 1Q2008) • PC (Windows software) • Modem (optional)

  8. RCS System Hardware Sporlan SEI shown, model ESX, SER or SEH can be used

  9. RCS Schematic This schematic appears inside the iCold enclosure also

  10. RCS Layout Display Pushbuttons Relay connectors Solid state Relay Alarm relay Fan and Defrost Relays Removable Connectors Real Time Clock Programming Header

  11. Relay Module • Snaps off RCS • Remote or as • Service Kit • May also be “Ganged” to allow 3 phase control of Fans and Heaters

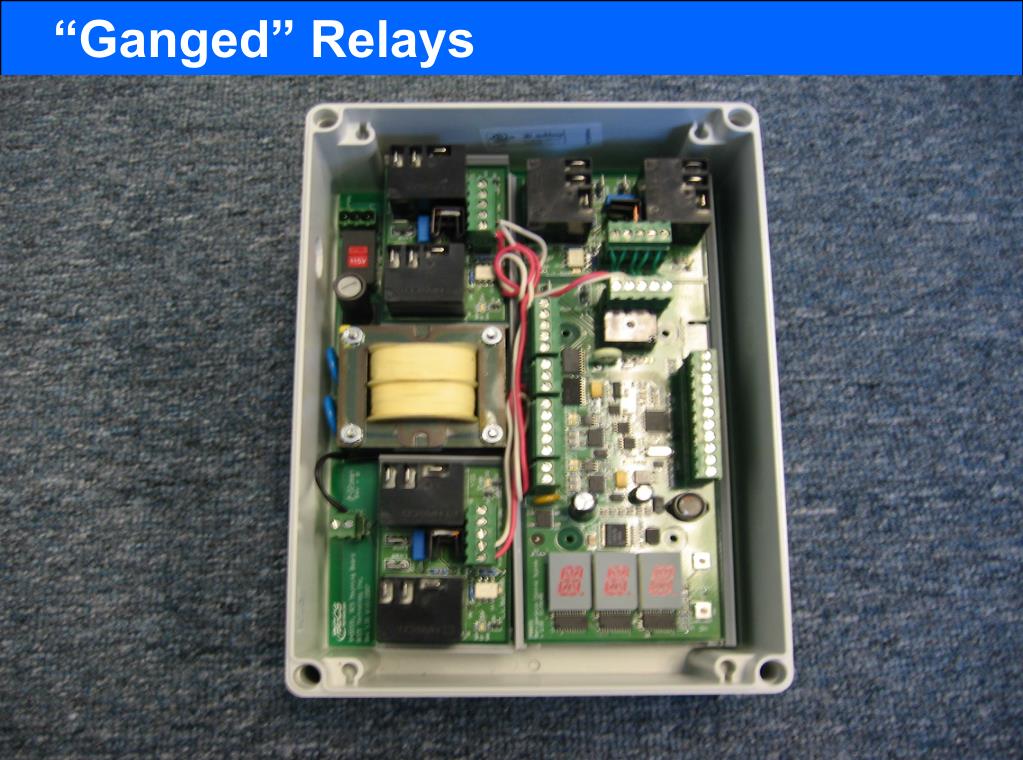

  12. “Ganged” Relays

  13. Conveniently Placed Knockouts (1/2”)

  14. Communication Direct to PC or Modem thru RS485 and … SVD software

  15. Condensing Unit Evap #1 Evap #2 Evap #3 Evap #4 Master URC Controller Controller Controller Controller Universal Display/Interface Future Expansion to Multiple Evaps Xducer L.L. Sol. Four Evaps, Single Condenser

  16. Monitoring Software Display Screen Process Measurements Control Settings

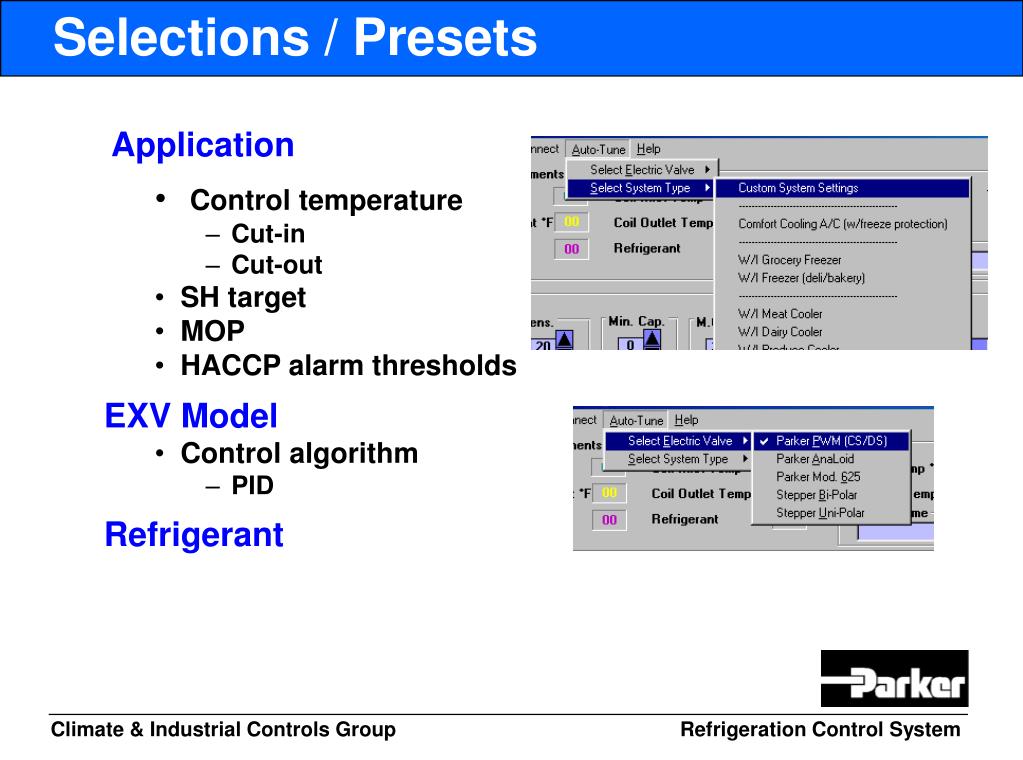

  17. Selections / Presets • Application • Control temperature • Cut-in • Cut-out • SH target • MOP • HACCP alarm thresholds • EXV Model • Control algorithm • PID • Refrigerant

  18. PC Display - Defrost Process Measurements Defrost Settings

  19. PC Display - Real-Time Plots
