Presentation Transcript
slide1

0

Section 4(f)

Section 6(f)

section 4 f process overview
Section 4(f) Process Overview

Project Initiation Package

Field Review

4(f) Property Present

YES

NO

Use

YES

Coordination

NO

NEPA Document

Categorical Exclusion Training Class

federal law

0

Federal Law
  • The Secretary of the Department of Interior shall not approve any project which requires the useof any significant4(f)propertyunless:

(1) There is no feasibleand prudentalternative to the use of such land, and;

(2) Such project includes all possible planning to minimize harm resulting from such use

OR

de minimis impact

  • 23 CFR 774

Categorical Exclusion Training Class

definition
Definition
  • Section 4(f) protects:
  • Publicly-owned Parksand Recreation Areas
  • Publicly-owned Wildlife and Waterfowl Refuges
  • Publicly or Privately-owned Historic Sites

Categorical Exclusion Training Class

4 f determinations
4(f) Determinations
  • No 4(f)
  • No Use
  • Temporary No Use
  • de minimis
  • Programmatic Evaluations
    • Independent Bikeway & Walkway
    • Historic Bridges
    • Historic Sites
    • Parks, Recreation Areas, and Refuges
    • Net Benefit
  • Individual Evaluation

Categorical Exclusion Training Class

coordination

0

Coordination
  • Public Involvement for de minimis
      • Press Release, at a minimum
    • 4(f) determination issued by OES
    • Preliminary discussions between District & OES
    • District submits determination packet to OES
    • Completed prior to approval of CE
    • Included as documentation in project file
  • FHWA issues approvals for:
  • de minimis
  • Net Benefit
  • Individual

Categorical Exclusion Training Class

online ce 4 f 6 f tab

0

Online CE - 4(f)/6(f) Tab
  • Answer all drop-downs appropriately
  • If OWJ concurrence not needed, do not click on #3

Categorical Exclusion Training Class

online ce 4 f 6 f tab1

0

Online CE – 4(f)/6(f) Tab

Categorical Exclusion Training Class

remarks

0

Remarks
  • Discuss:
    • If 4(f) properties are adjacent to the proposed project area, but not impacted, state accordingly
    • Results of consultation with recognized OWJ(s)
    • Impacts to identified 4(f) properties and resulting measures to minimize harm
    • Date of 4(f) determination/approval
      • OES issues No 4(f), No Use and Exceptions
      • FHWA approves de minimis and higher

Categorical Exclusion Training Class

remarks1

0

Remarks
  • For historic sites, only summarize Section 106 coordination for 4(f) effect determinations
    • List sites within proposed project area
    • Discuss impacts to identified sites
    • Include Section 106 effect finding
    • Discuss 4(f) determination/coordination dates
    • Reference maps, photos, & SHPO letter
    • For projects with only a few historic sites and minimal impacts, a short paragraph will be sufficient

Categorical Exclusion Training Class

example

0

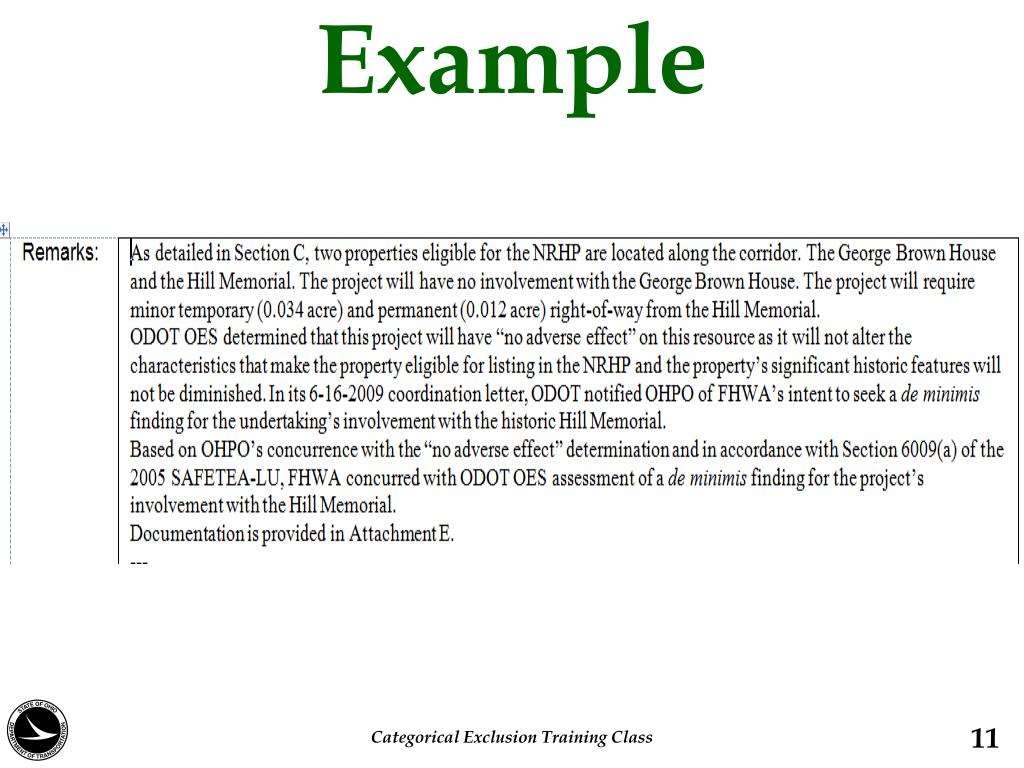

Example

Categorical Exclusion Training Class

online ce project file part of ce

0

Online CE Project File/Part of CE
  • Recreational 4(f)
      • Aerial map depicting 4(f) property and project area
      • Photographs
      • OWJ concurrence
      • Public involvement, if applicable
      • 4(f) determination
      • FHWA approval
    • Section 106 4(f)
      • E-mail
      • ODOT-OES IOC
      • FHWA approval

Categorical Exclusion Training Class

points to remember

0

Points to Remember
  • Section 4(f) applies to all projects receiving USDOT transportation funds
  • Only OES can issue 4(f) determinations
  • Verifies that a property meets 4(f) criteria
  • Ensures consultation with OWJ occurs and that concurrence is received
  • FHWA provides approval for certain levels

Categorical Exclusion Training Class

section 6 f process

0

Section 6(f) Process

Project Initiation Package

Identify 6(f) Property

ODOT

Review

FHWA Review

4(f) with

6(f) Cond. App.

Identify Impacts &

Potential Mitigation

ODNR Review

(Env. & Appraisals)

Approved 4(f)

to ODNR/NPS

6(f)

Conversion Report

NPS Review

Categorical Exclusion Training Class

section 6 f

0

Section 6(f)
  • Recreational land or facility developed with Land and Water Conservation Funds (LWCF)
    • National Park Service (NPS)/ODNR
  • Applies to permanent acquisition (conversion) of land from a recreational facility to a transportation facility
    • Replacement land of equal or greater value
  • Applies to temporary use of land
    • Less than 6 months
  • Applies to any funding type

Categorical Exclusion Training Class

section 6 f1
Section 6(f)
  • Section 4(f)
  • Permanent or temporary right-of-way requires completion of NPS form
    • Use form when Temporary impacts to recreational features
  • Timeframe
    • Submitted to ODNR for 45 day review
    • ODNR sends to NPS for 45 day review

Categorical Exclusion Training Class

section 4 f 6 f

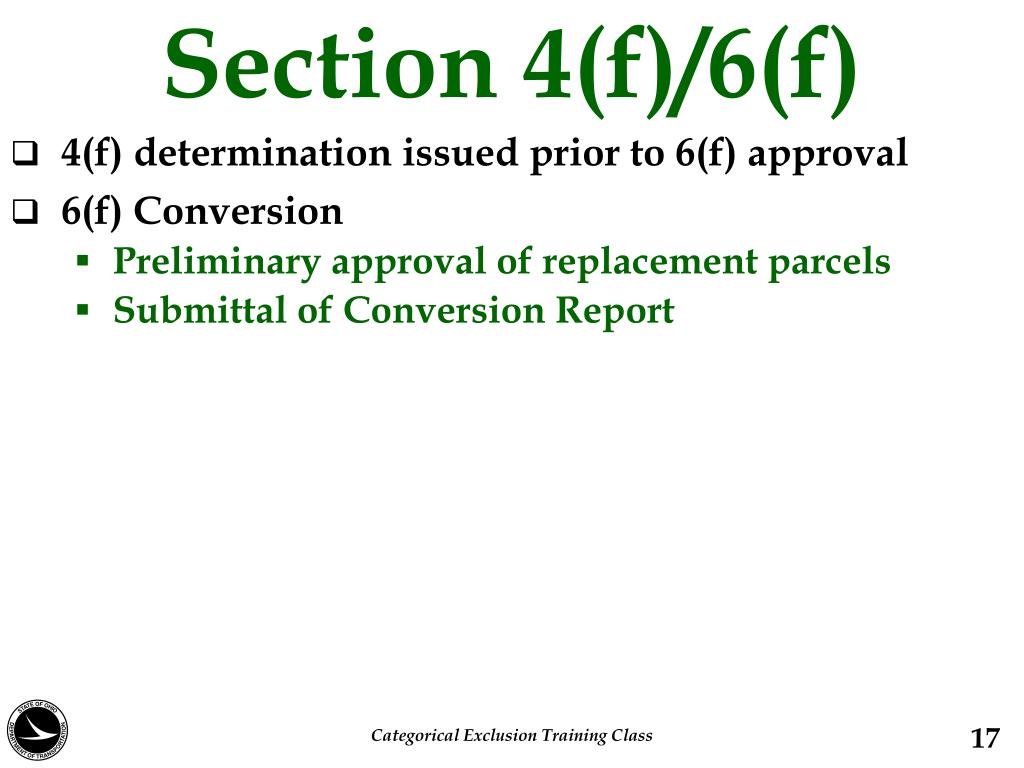

Section 4(f)/6(f)
  • 4(f) determination issued prior to 6(f) approval
  • 6(f) Conversion
    • Preliminary approval of replacement parcels
    • Submittal of Conversion Report

Categorical Exclusion Training Class

online ce 4 f 6 f tab2

0

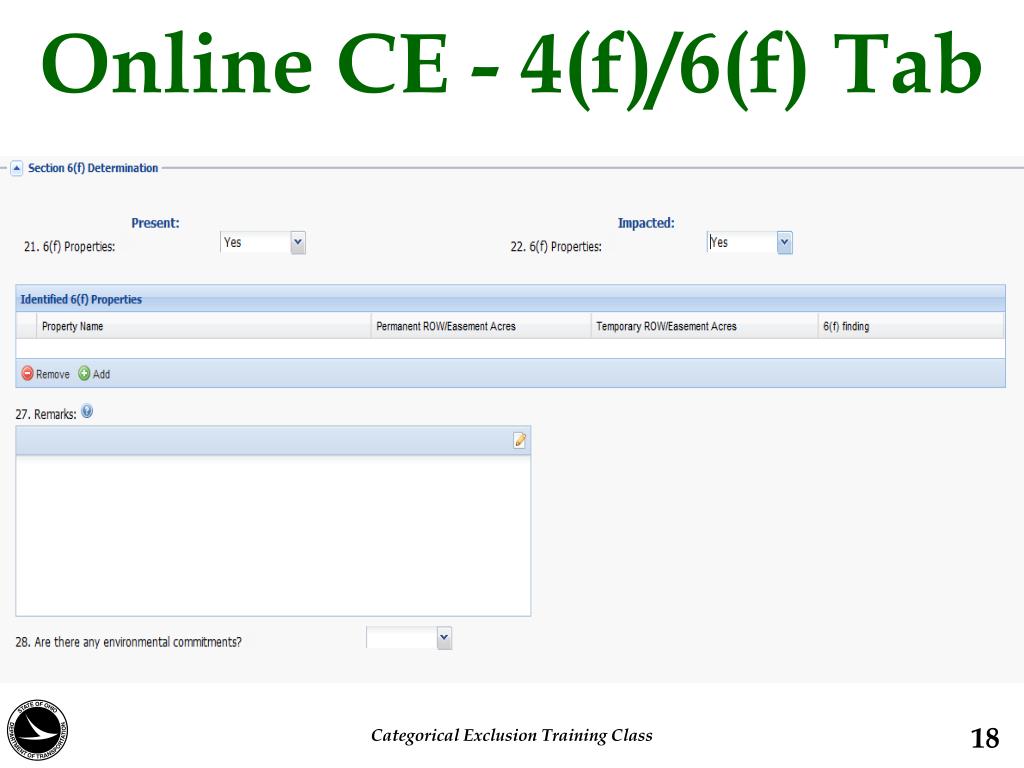

Online CE - 4(f)/6(f) Tab

Categorical Exclusion Training Class
