  1. WHY LITHIUM GOLF CART BATTERIES ARE THE FUTURE EV

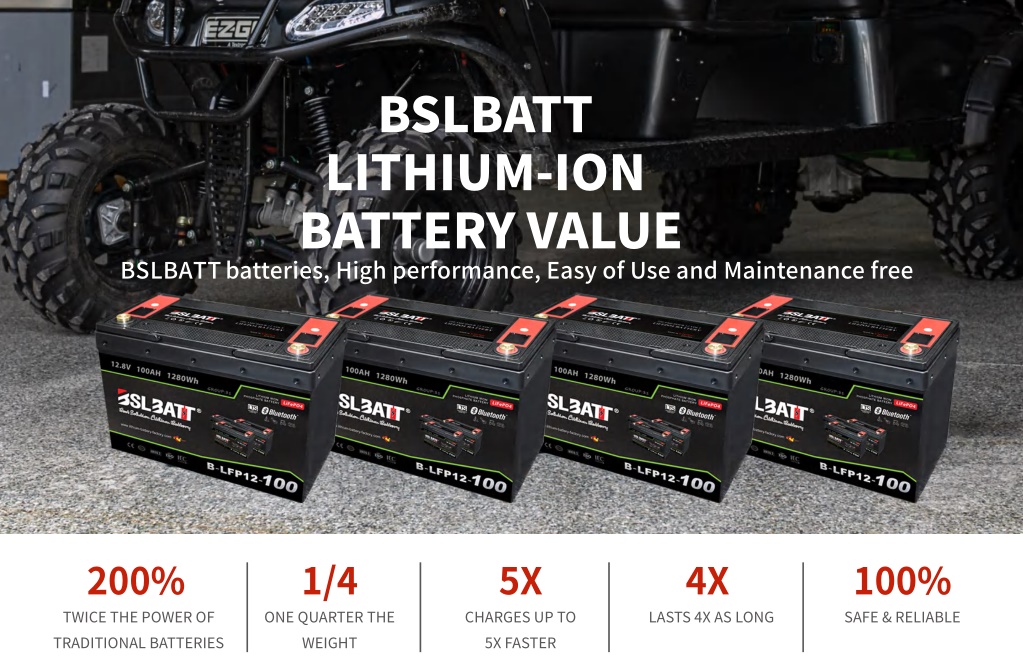

  2. BSLBATT BATTERY VALUE LITHIUM-ION BSLBATT batteries, High performance, Easy of Use and Maintenance free 200% TRADITIONAL BATTERIES 1/4 WEIGHT 5X 5X FASTER 4X 100% TWICE THE POWER OF ONE QUARTER THE CHARGES UP TO LASTS 4X AS LONG SAFE & RELIABLE

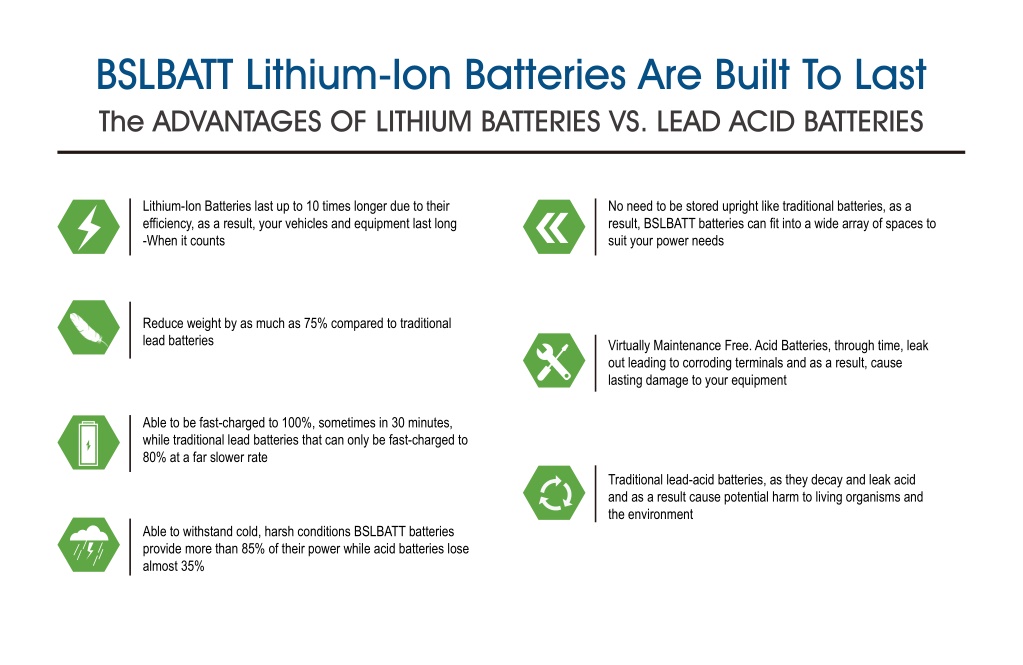

  3. BSLBATT Lithium-Ion Batteries Are Built To Last The ADVANTAGES OF LITHIUM BATTERIES VS. LEAD ACID BATTERIES Lithium-Ion Batteries last up to 10 times longer due to their efficiency, as a result, your vehicles and equipment last long -When it counts No need to be stored upright like traditional batteries, as a result, BSLBATT batteries can fit into a wide array of spaces to suit your power needs Reduce weight by as much as 75% compared to traditional lead batteries Virtually Maintenance Free. Acid Batteries, through time, leak out leading to corroding terminals and as a result, cause lasting damage to your equipment Able to be fast-charged to 100%, sometimes in 30 minutes, while traditional lead batteries that can only be fast-charged to 80% at a far slower rate Traditional lead-acid batteries, as they decay and leak acid and as a result cause potential harm to living organisms and the environment Able to withstand cold, harsh conditions BSLBATT batteries provide more than 85% of their power while acid batteries lose almost 35%

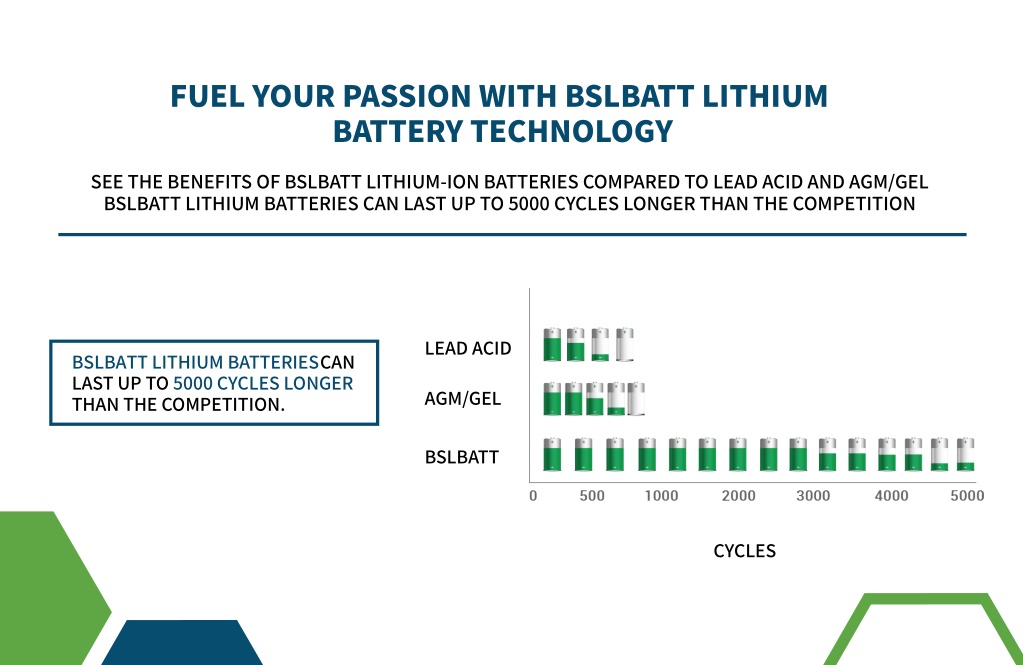

  4. FUEL YOUR PASSION WITH BSLBATT LITHIUM BATTERY TECHNOLOGY SEE THE BENEFITS OF BSLBATT LITHIUM-ION BATTERIES COMPARED TO LEAD ACID AND AGM/GEL BSLBATT LITHIUM BATTERIES CAN LAST UP TO 5000 CYCLES LONGER THAN THE COMPETITION LEAD ACID BSLBATT LITHIUM BATTERIES THAN THE CO CAN LAST UP TO 50 0 0 C Y C L E S LONGER AGM/GEL M P E T I TI O N . BSLBATT CYCLES

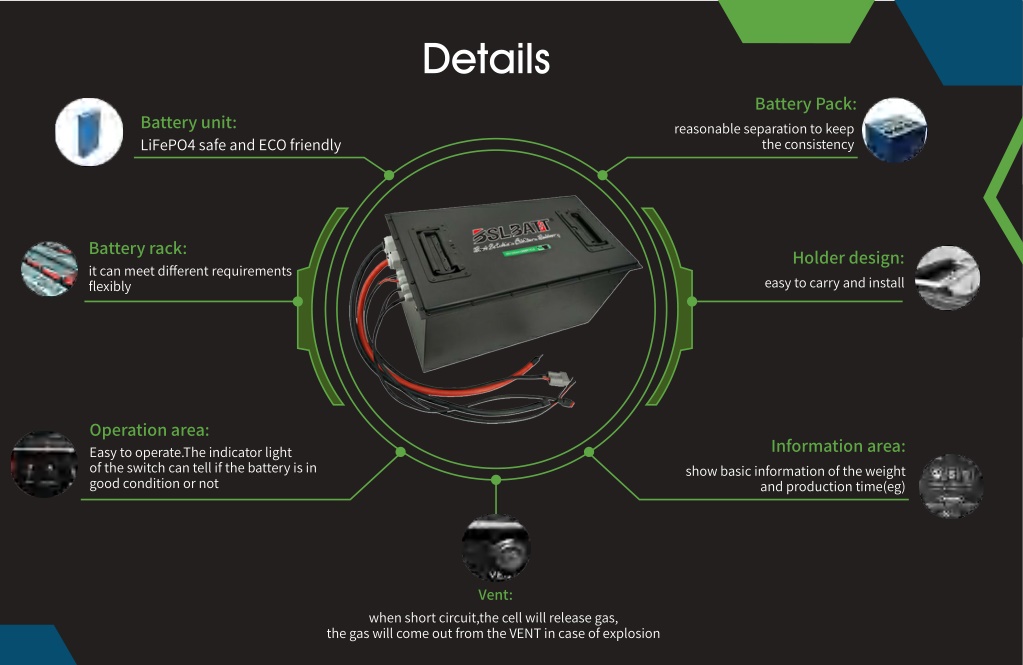

  5. Details Battery Pack: the consistency Battery unit: LiFePO4 safe and ECO friendly reasonable separation to keep Battery rack: it can meet different requirements Holder design: easy to carry and install flexibly Operation area: of the switch can tell if the battery is in Information area: and production time(eg) Easy to operate.The indicator light show basic information of the weight good condition or not Vent: when short circuit,the cell will release gas, the gas will come out from the VENT in case of explosion

  6. while protecting the environment,BSLBATT non-hazardous LiFePO4 batteries are a clean energy storage solution,made of an inherently safe chemistry.

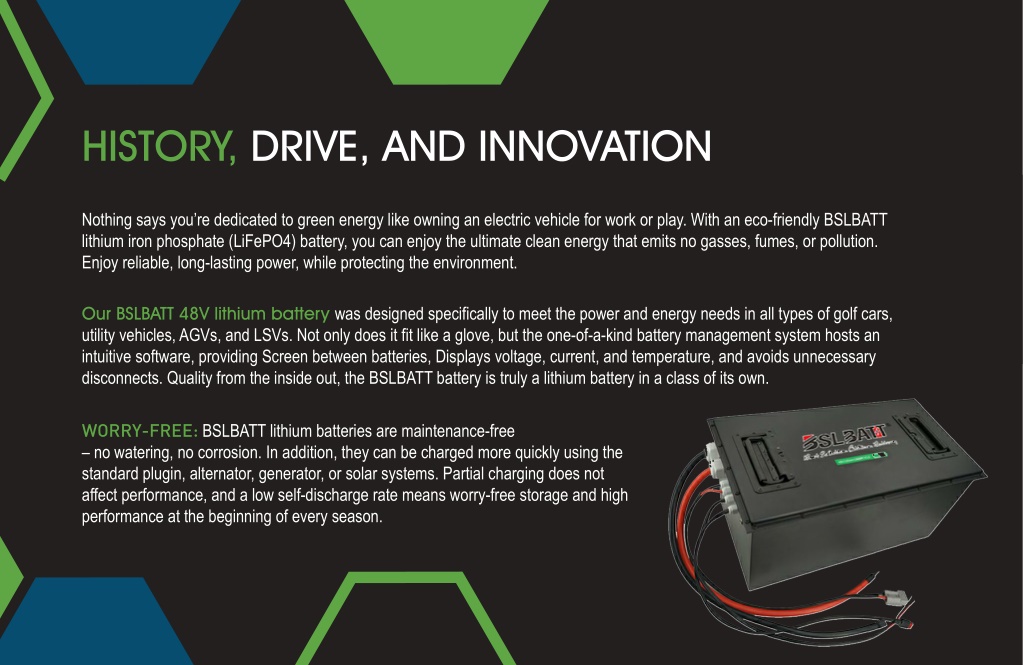

  7. HISTORY, DRIVE, AND INNOVATION Nothing says you’re dedicated to green energy like owning an electric vehicle for work or play. With an eco-friendly BSLBATT lithium iron phosphate (LiFePO4) battery, you can enjoy the ultimate clean energy that emits no gasses, fumes, or pollution. Enjoy reliable, long-lasting power, while protecting the environment. Our BSLBATT 48V lithium battery was designed specifically to meet the power and energy needs in all types of golf cars, utility vehicles, AGVs, and LSVs. Not only does it fit like a glove, but the one-of-a-kind battery management system hosts an intuitive software, providing Screen between batteries, Displays voltage, current, and temperature, and avoids unnecessary disconnects. Quality from the inside out, the BSLBATT battery is truly a lithium battery in a class of its own. WORRY-FREE: BSLBATT lithium batteries are maintenance-free – no watering, no corrosion. In addition, they can be charged more quickly using the standard plugin, alternator, generator, or solar systems. Partial charging does not affect performance, and a low self-discharge rate means worry-free storage and high performance at the beginning of every season.

  8. STAY CHARGED Lithium iron Phosphate Battery POWERFUL AND RELIABLE >5000 CHARGE CYCLES HIGH ENERGY DENSITY BUILT IN SAFETY FEATURES ENVIRONMENTALLY FRIENDLY ALL AEMP. PERFORMANCE DURABLE AND LIGHT LEIGHT

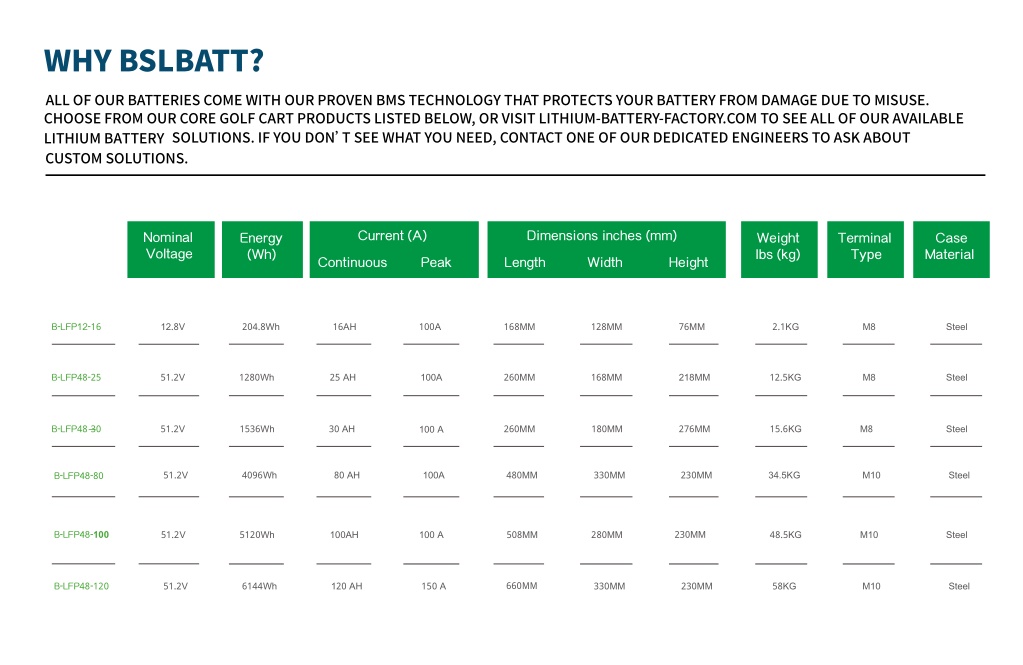

  9. WHY BSLBATT? CHOOSE FROM OUR CORE GOLF CART PRODUCTS LISTED BELOW, OR VISIT LITHIUM-BATTERY-FACTORY.COM TO SEE ALL OF OUR AVAILABLE LITHIUM BATTERY CUSTOM SOLUTIONS. ALL OF OUR BATTERIES COME WITH OUR PROVEN BMS TECHNOLOGY THAT PROTECTS YOUR BATTERY FROM DAMAGE DUE TO MISUSE. SOLUTIONS. IF YOU DON’ T SEE WHAT YOU NEED, CONTACT ONE OF OUR DEDICATED ENGINEERS TO ASK ABOUT Current (A) Dimensions inches (mm) Nominal Voltage Energy (Wh) Weight lbs (kg) Terminal Type Case Material Continuous Peak Length Width Height B-LFP12-16 12.8V 204.8Wh 16AH 100A 168MM 128MM 76MM 2.1KG M8 Steel B-LFP48-25 51.2V 1280Wh 25 AH 100A 260MM 168MM 12.5KG M8 Steel 218MM B-LFP48-30 51.2V 1536Wh 30 AH 260MM 180MM 276MM 15.6KG M8 Steel 100 A 51.2V 4096Wh 80 AH 100A 480MM 330MM 230MM 34.5KG M10 Steel B-LFP48-80 B-LFP48-100 230MM 51.2V 5120Wh 100AH 100 A 508MM 280MM 48.5KG M10 Steel B-LFP48-120 51.2V 6144Wh 120 AH 150 A 330MM 230MM 58KG M10 Steel 660MM

  10. BSLBATT LITHIUM BATTERIES ARE REVOLUTIONIZING THE GOLF CART INDUSTRY! You cam golf for days when you are powered by lithium!

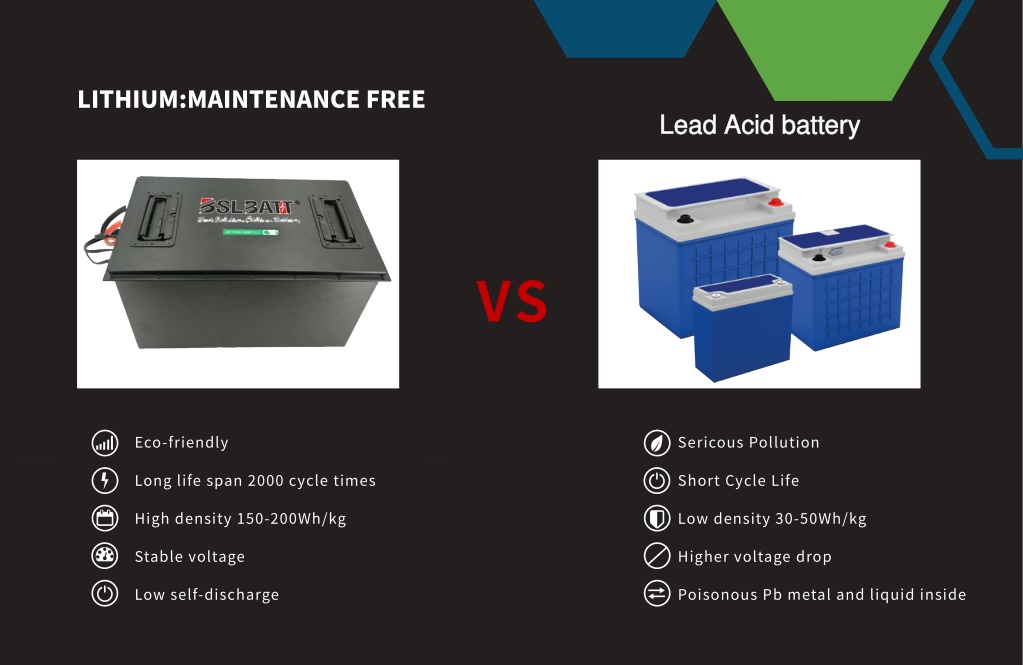

  11. LITHIUM:MAINTENANCE FREE Lead Acid battery Lead Acid battery VS Eco-friendly Long life span 2000 cycle times High density 150-200Wh/kg Stable voltage Low self-discharge Sericous Pollution Short Cycle Life Low density 30-50Wh/kg Higher voltage drop Poisonous Pb metal and liquid inside

  12. LIFE CYCLE Temperature 25℃ 25℃ 25℃ LiFePO4 2500@90% 3500@80% 3 to 6 years Lead-acid @90% @80% 500@75% 1000@55% 6 months to 2 years Maintenance standards) ＞ ＞2500 ＞ ＞3500 3 to 6 years (based on TECHNICAL BSLBATT Lithium CURVE Environment Temperature:25℃ Discharge current:0.5C/1C/3C/5C Lead-Acid Discharge characteristics(@25°C/77°F) Voltage（V） Discharging time（hour） BSLBATT Lithium battery has a longer constant stable curve during discharge

  13. PROVEN FIELD TEST RESULT(EZGO) Proven cost effective solution,requiring only 50% of lead Acid battery capacity Bslbatt Lithium Capa:31.2Ah Model:RXV Weight:2 Person+110kg Lead Acid Capa:96Ah Altiude 38m Used Ah Regen vs Lead acid Goshen Lead Acid Lithium 35 1.7 57% Flat (40~78) 20 5.2 Lead Acid Lithium Lead Acid Lithium 49 0.6 53% Bradshaw 26 6.4 Medium 43m 52 0.5 56% (316~273) 29 4.8 Lead Acid Lithium Lead Acid Lithium 49 2.8 51% Oxmoor Valley 25 11.2 88m Hiily 51 1 51% (316~273) 26 8

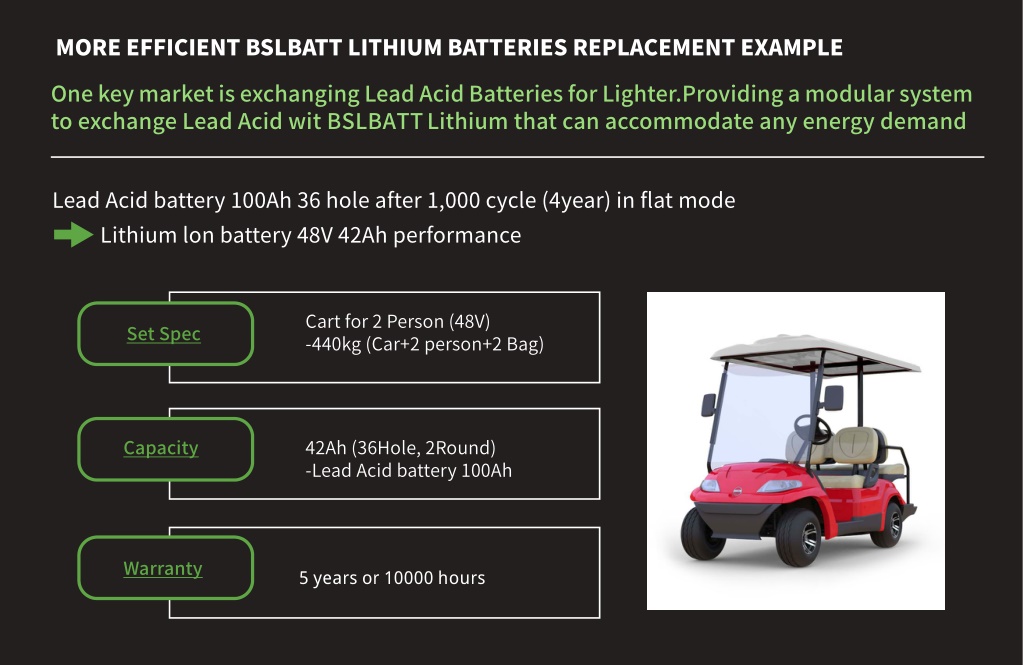

  14. MORE EFFICIENT BSLBATT LITHIUM BATTERIES REPLACEMENT EXAMPLE One key market is exchanging Lead Acid Batteries for Lighter.Providing a modular system to exchange Lead Acid wit BSLBATT Lithium that can accommodate any energy demand Lead Acid battery 100Ah 36 hole after 1,000 cycle (4year) in flat mode Lithium lon battery 48V 42Ah performance Cart for 2 Person (48V) Set Spec -440kg (Car+2 person+2 Bag) 42Ah (36Hole, 2Round) Capacity -Lead Acid battery 100Ah Warranty 5 years or 10000 hours

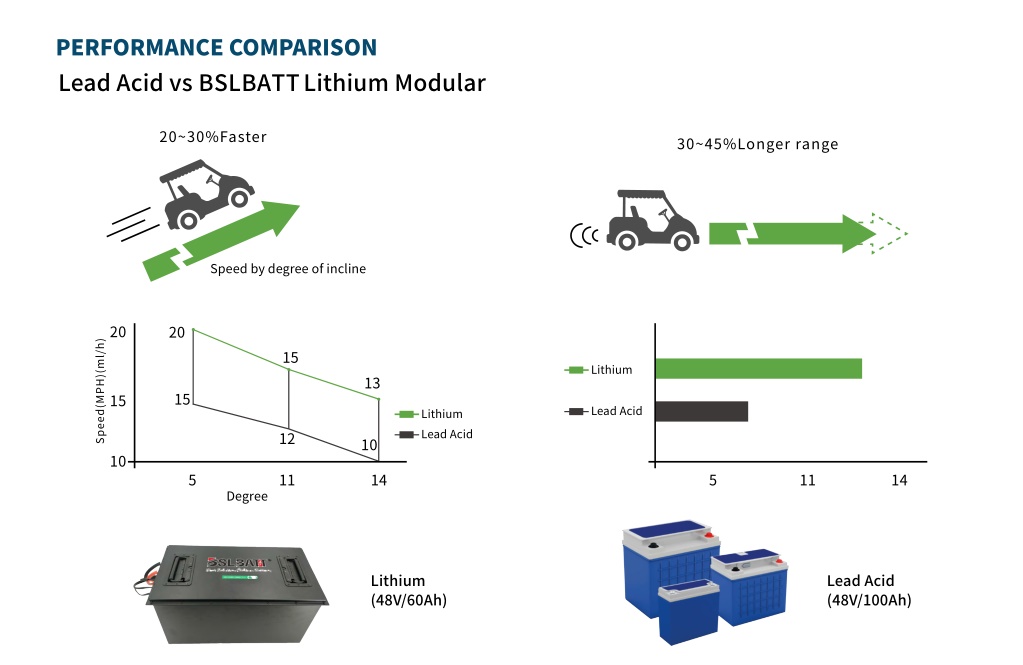

  15. PERFORMANCE COMPARISON Lead Acid vs BSLBATT Lithium Modular 20~30%Faster 30~45%Longer range Speed by degree of incline 20 20 Speed(MPH)(ml/h) 15 Lithium 13 15 15 Lead Acid Lithium Lead Acid 12 11 10 10 5 14 5 11 14 Degree Lithium Lead Acid (48V/60Ah) (48V/100Ah)

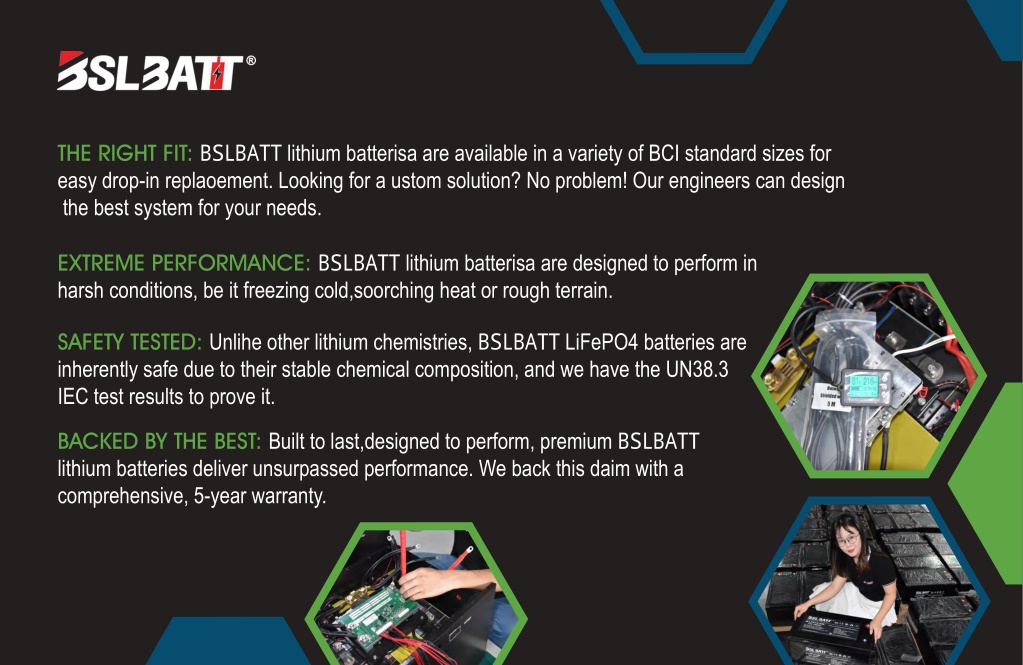

  16. THE RIGHT FIT: BSLBATT lithium batterisa are available in a variety of BCI standard sizes for easy drop-in replaoement. Looking for a ustom solution? No problem!Our engineers can design the best system for your needs. EXTREME PERFORMANCE: BSLBATT lithium batterisa are designed to perform in harsh conditions, be it freezing cold,soorching heat or rough terrain. SAFETY TESTED: Unlihe other lithium chemistries, BSLBATT LiFePO4 batteries are inherently safe due to their stable chemical composition,and we have the UN38.3 IEC test results to prove it. BACKED BY THE BEST: Built to last,designed to perform,premium BSLBATT lithium batteries deliver unsurpassed performance.We back this daim with a comprehensive,5-year warranty.

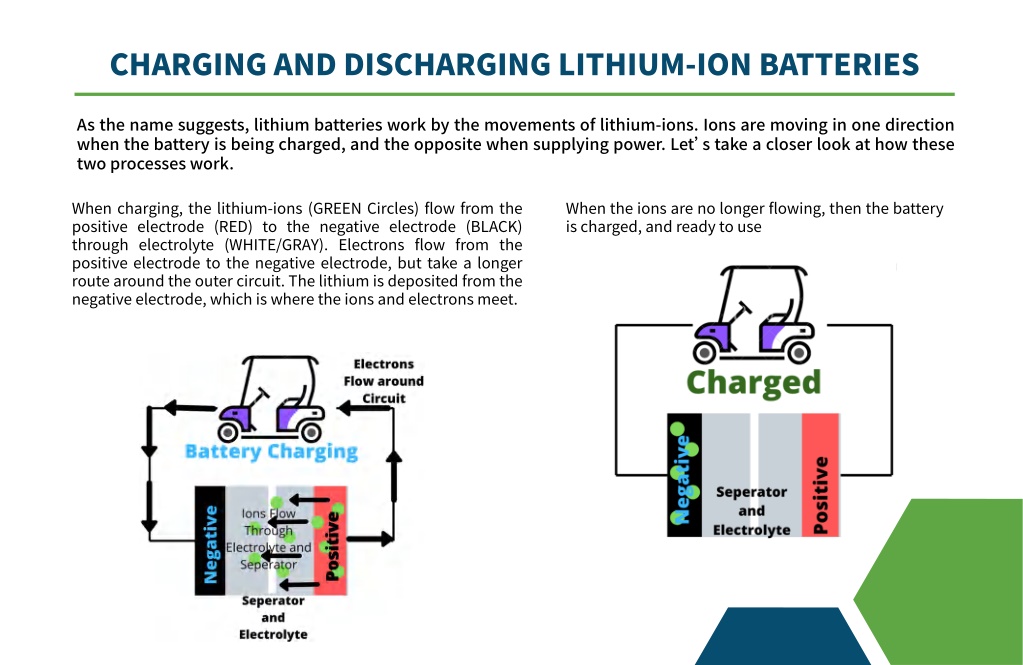

  17. CHARGING AND DISCHARGING LITHIUM-ION BATTERIES As the name suggests, lithium batteries work by the movements of lithium-ions. Ions are moving in one direction two processes work. When charging, the lithium-ions (GREEN Circles) flow from the through electrolyte (WHITE/GRAY). Electrons flow from the route around the outer circuit. The lithium is deposited from the when the battery is being charged, and the opposite when supplying power. Let’ s take a closer look at how these When the ions are no longer flowing, then the battery is charged, and ready to use positive electrode (RED) to the negative electrode (BLACK) positive electrode to the negative electrode, but take a longer negative electrode, which is where the ions and electrons meet.

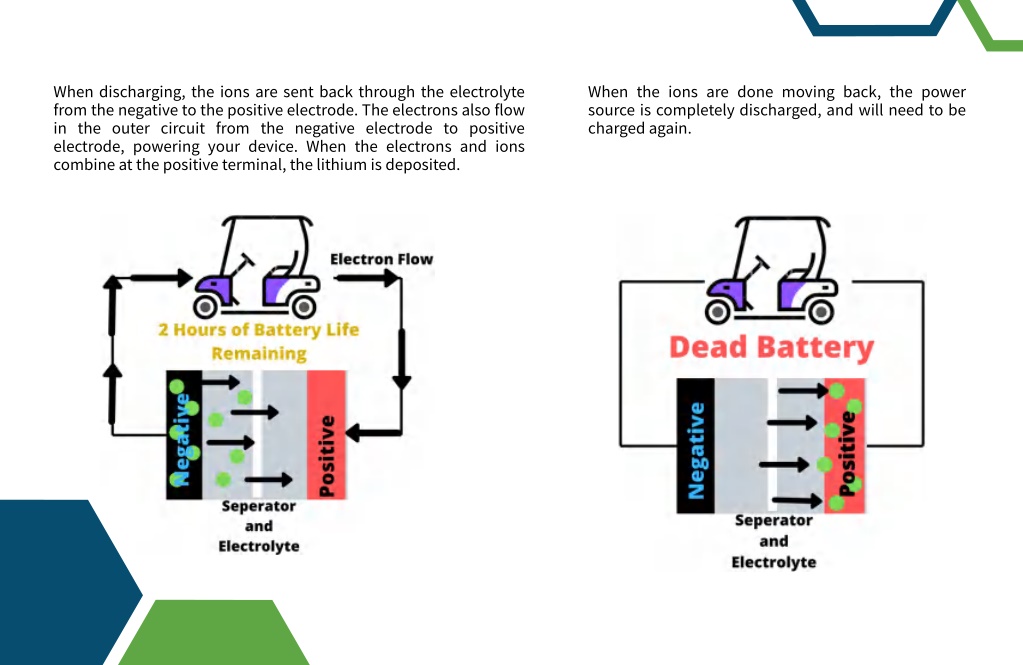

  18. When the ions are done moving back, the power charged again. When discharging, the ions are sent back through the electrolyte in the outer circuit from the negative electrode to positive combine at the positive terminal, the lithium is deposited. source is completely discharged, and will need to be from the negative to the positive electrode. The electrons also flow electrode, powering your device. When the electrons and ions

  19. Since 2003 Since 2003 Ove r 18 years experience in R&Dand manufacturing.

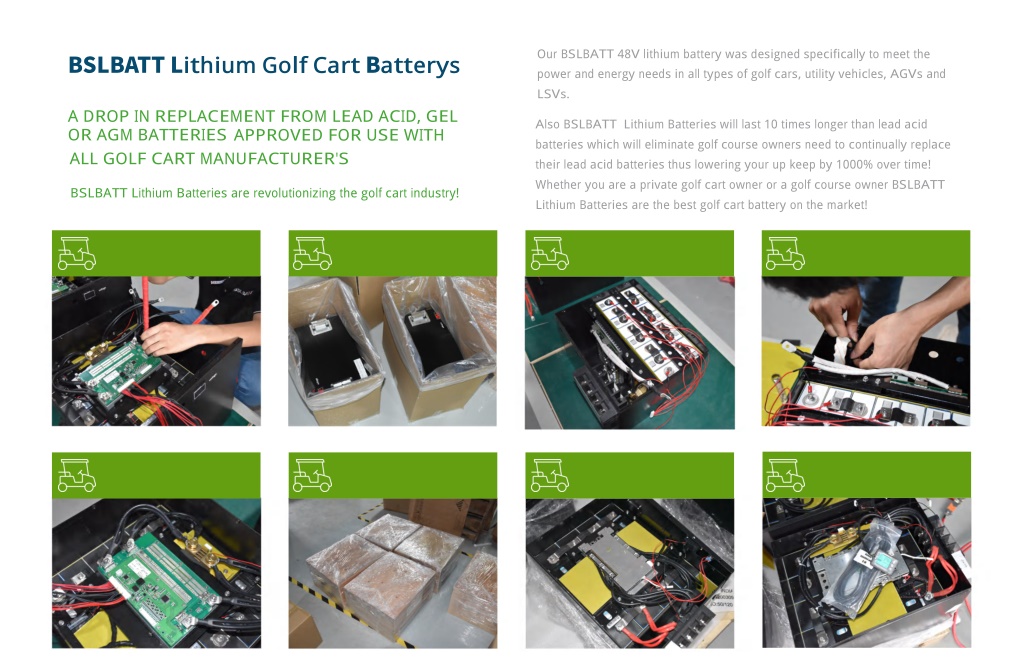

  20. BSLBATT LithiumGolf Cart Batterys Our BSLBATT 48V lithium battery was designed specifically to meet the power and energy needs in all types of golf cars, utility vehicles, AGVs and LSVs. A DROP IN REPLACEMENT FROM LEAD ACID, GEL OR AGM BATTERIES APPROVED FOR USE WITH ALL GOLF CART MANUFACTURER'S Also BSLBATT Lithium Batteries will last 10 times longer than lead acid batteries which will eliminate golf course owners need to continually replace their lead acid batteries thus lowering your up keep by 1000% over time! Whether you are a private golf cart owner or a golf course owner BSLBATT Lithium Batteries are the best golf cart battery on the market! BSLBATT Lithium Batteries are revolutionizing the golf cart industry!
