ASHRAE update Presentation Tom Werkema ASHRAE Vice President February 19, 2014
ASHRAE Update Brought to You by the President Elect Advisory Committee (PEAC)
Renewing ASHRAE’s Strategic Plan • Strategic plan revision • Input sought from all stakeholders • Board-approved plan by mid-2014 • Strong focus on: • Understanding member and industry needs • Serving stakeholders better • Develop Business Plan

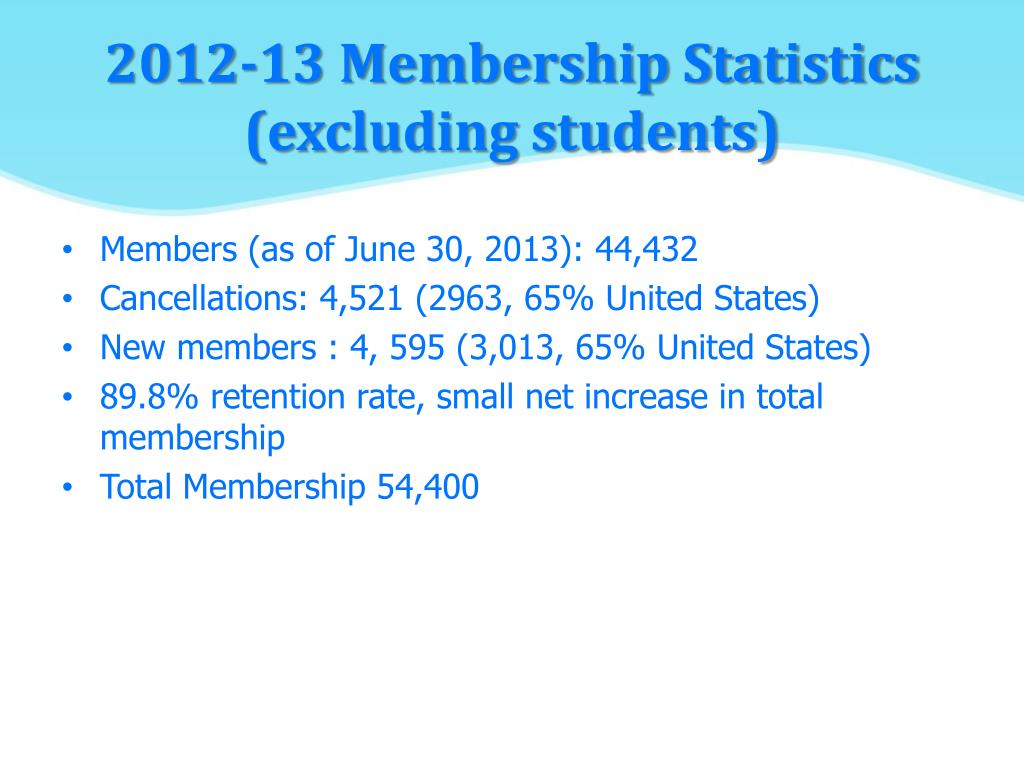

2012-13 Membership Statistics (excluding students) Members (as of June 30, 2013): 44,432 Cancellations: 4,521 (2963, 65% United States) New members : 4, 595 (3,013, 65% United States) 89.8% retention rate, small net increase in total membership Total Membership 54,400
ASHRAE Financials Revenues • Audited revenues average $26 million, including Research • 110 Employees in Atlanta

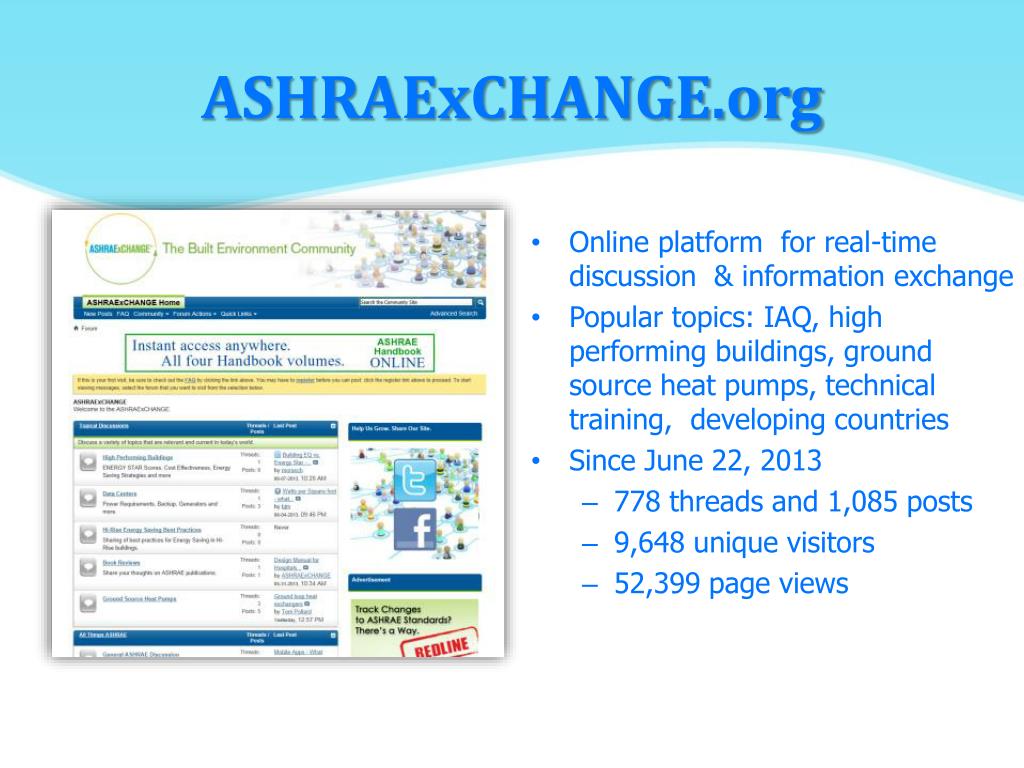

ASHRAExCHANGE.org • Online platform for real-time discussion & information exchange • Popular topics: IAQ, high performing buildings, ground source heat pumps, technical training, developing countries • Since June 22, 2013 • 778 threads and 1,085 posts • 9,648 unique visitors • 52,399 page views
ASHRAE Learning Institute (ALI) HVAC Design Training • Offered more often & in locations outside Atlanta • Attendance • 342-Level I/86-Level II/220- Levels I and II combined = 648 TOTAL • 76% US; 14% Canada; 10% International eLearning • Website extensively redesigned • More intuitive layout • More competitive pricing • New courses • Standard 189.1-2011 • Humidity Control Design: Basic Principles, Loads, and Equipment • Building Information Modeling
ALI: More New Courses Seminars • Commercial Building Energy Audits • Complying with Standard 90.1-2013 • Introduction to Building Enclosure Commissioning • Significant Changes to Standard 90.1-2010 and IECC 2012 (co-sponsored by ICC) Short Courses • Applications of Standard 62.1-2013 • Design of Commercial Ground Source Heat Pumps • Designing High-Performance Healthcare Facilities • Electric Rates, Rules, Regulations • Exceeding Standard 90.1-2013 to Meet LEED Requirements • Fundamentals, Applications of Standard 55 • IAQ Best Practices for Design, Construction, Commissioning
Building Energy Quotient • Expanded to allow PE submissions in addition to ASHRAE-Certified Building Energy Assessment Professional (BEAP) or Building Energy Modeling Professional (BEMP) • Continued monitoring/reference to labeling requirements in state, local legislations for use of bEQ where appropriate. • Currently Florida, Chicago &Washington s • Over 12,000 visits to bEQ website as of Dec. 9 with average of 14 workbooks downloaded per week

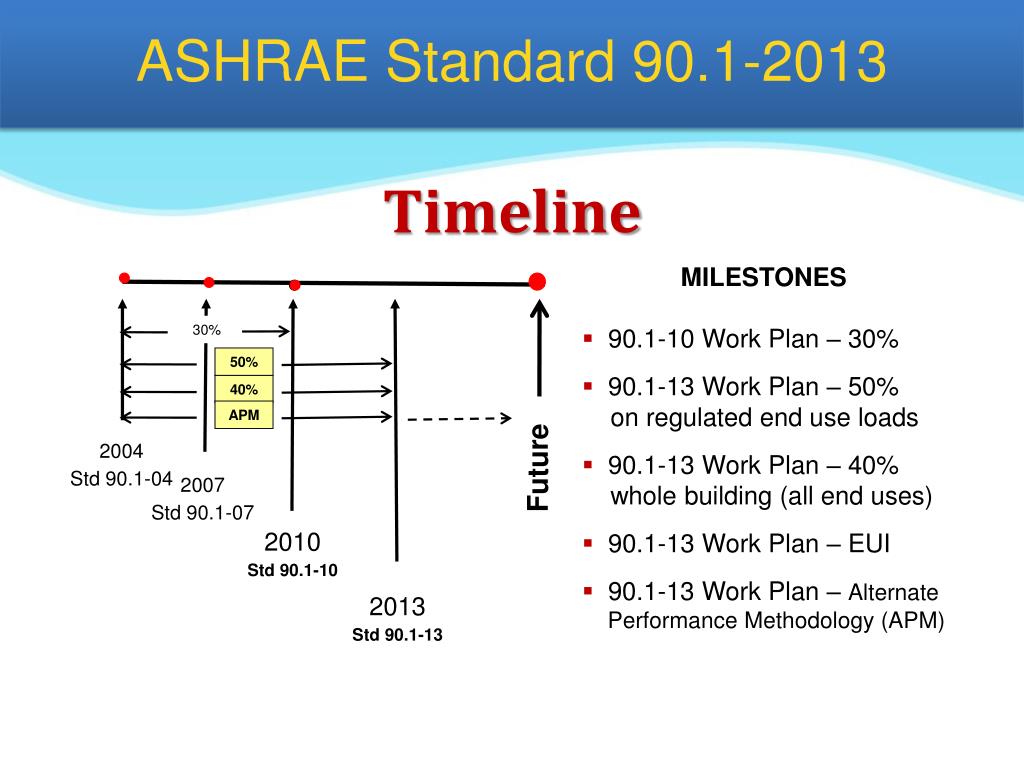

ASHRAE Standard 90.1-2013 Timeline • MILESTONES • 90.1-10 Work Plan – 30% • 90.1-13 Work Plan – 50% • on regulated end use loads • 90.1-13 Work Plan – 40% • whole building (all end uses) • 90.1-13 Work Plan – EUI • 90.1-13 Work Plan – Alternate • Performance Methodology (APM) 30% 50% 40% APM 2004 Std 90.1-04 Future 2007 Std 90.1-07 2010 Std 90.1-10 2013 Std 90.1-13
ASHRAE Standard 90.1 ENVELOPE • Building envelope (Addendum “bb” – 4th PR) • Door leakage • Cool Roof standards • Dynamic glazing & fenestration labeling
ASHRAE Standard 90.1 LIGHTING • Escalator controls • Elevator lighting • LPD revisions • Electric motors • Electrical Metering • Branch circuit controls
ASHRAE Standard 90.1 MECHANICAL • Commercial refrigeration • Heat pump efficiencies • SPVAC & SPVHP efficiencies • Transformer testing • Damper leakage
ASHRAE Standard 90.1 MECHANICAL • Fan efficiencies –Advisory Public Review (APR) • Engaged interested parties • Set min Fan Efficiency Grade (FEG) > 67 • Based on AMCA 205-10 • Covers fan motor ratings > 1/6 hp • Does not cover fan systems • Addendum excludes • Fans with bhp< 5 • Fans covered by 6.4.1.1
90.1-2010 – 2013 & Future • Wholisticsystems designs • Systems Design and subsystems effects
Advanced Energy Design Guides:517,000 in circulation Four 50% AEDGs Under Consideration • 50% • Grocery Stores (1) • Quick Serve Restaurants • Places of Assembly • Net Zero • K-12 Schools (2) • “Net Zero Ready” Guidance www.ashrae.org/freeaedg
Indoor Air Quality Guide • Achieves good IAQ without significantly increasing costs • Available for free at www.ashrae.org/FreeIAQGuidance • Over 13,700 downloads since June 22, 2013 • 1,872 total sales since April 2009
GreenGuide • 4th edition available as epub • IEQ chapter completely revised; content references IAQ Guide • www.ashrae.org/greenguide
Technical Committee s • Task Groups (TGs) – new technical areas • Technical Committees (TCs) – specific field or subject • Technical Resource Group (TRGs) – specific concern • Multidisciplinary Task Groups (MTGs)

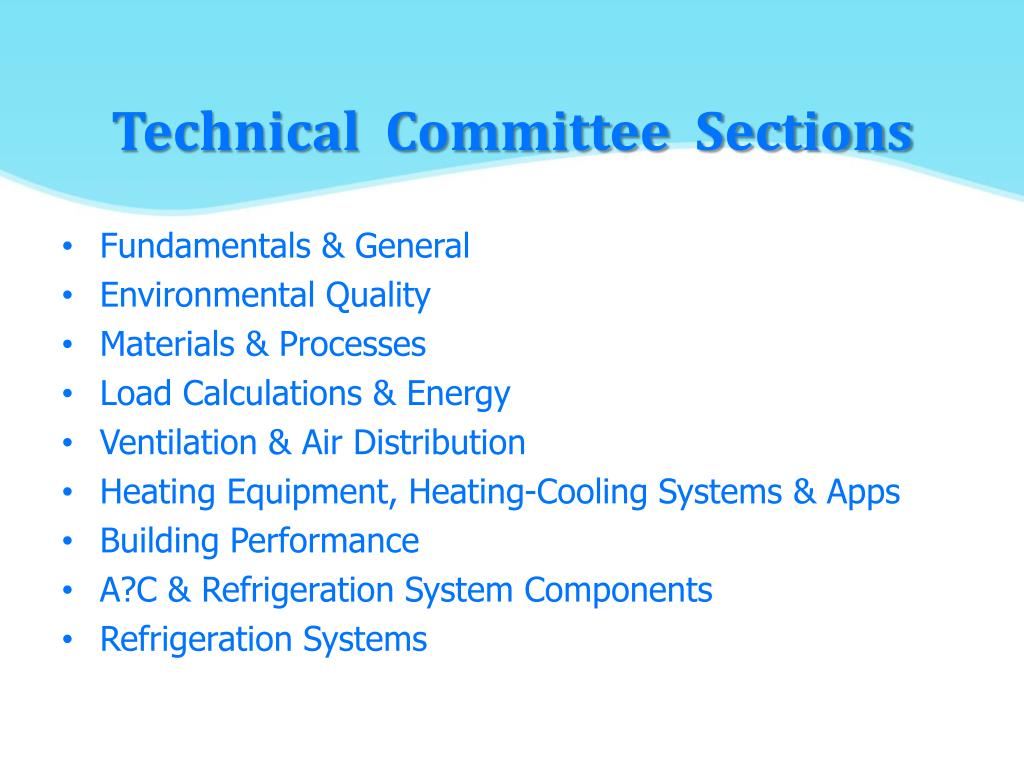

Technical Committee Sections • Fundamentals & General • Environmental Quality • Materials & Processes • Load Calculations & Energy • Ventilation & Air Distribution • Heating Equipment, Heating-Cooling Systems & Apps • Building Performance • A?C & Refrigeration System Components • Refrigeration Systems
Standards Committee s • Standards since 1922 – 100 active today • Code-intended stds are on a 3 year cycle • ASHRAE accredited by Am National Stds Institute • Std 90.1 – Energy Efficient Design of New Bldgs • Std 189.1 – Design of High-Performance Green Bldgs • Std 62.1 – Ventilation & Acceptable IAQ • Std 55 – Thermal Environmental Conditions & Human Occupancy
Quick Facts: Technical Activities Committee • 3,553 volunteers; 11% increase since 2011 • 572 volunteers from outside U.S. and Canada • 314 volunteers are Young Engineers of ASHRAE (YEA) • Sponsored 70% of Technical Program at 2013 Annual Conference • Maintain over 200 Handbook chapters
Quick Facts: Research Administration Committee • 79 TC experts write work statements - research topic requests in Society Year 12-13 • Average project cost &duration: $164k , 20 months: • 330 TC volunteers monitors for 62 active projects • 55% of research projects conducted by universities • 845 projects expending $67.5 M started since 1960

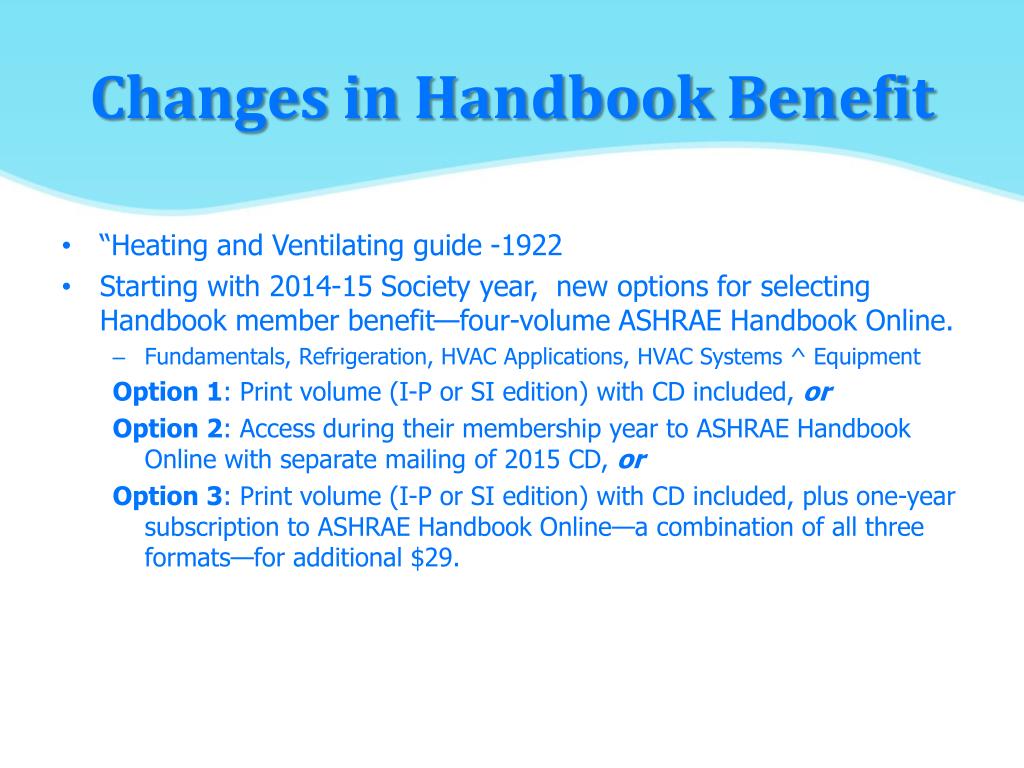

Changes in Handbook Benefit • “Heating and Ventilating guide -1922 • Starting with 2014-15 Society year, new options for selecting Handbook member benefit—four-volume ASHRAE Handbook Online. • Fundamentals, Refrigeration, HVAC Applications, HVAC Systems ^ Equipment Option 1: Print volume (I-P or SI edition) with CD included, or Option 2: Access during their membership year to ASHRAE Handbook Online with separate mailing of 2015 CD, or Option 3: Print volume (I-P or SI edition) with CD included, plus one-year subscription to ASHRAE Handbook Online—a combination of all three formats—for additional $29.
Join Us in 2014www.ashrae.org/conferences Feb. 24-26: International Conference on Energy and Indoor Environment for Hot Climates, Doha, Qatar April 6-8: High Performance Buildings Conference, San Francisco, Calif., April 17: Buildings in Balance: Indoor Environmental Quality and Energy Efficiency Webcast April 24-25: Efficient, High Performance Buildings for Developing Economies Conference, Manila, Philippines June 28-July 2: 2014 ASHRAE Annual Conference, Seattle, Wash. Sept. 23-25, AHR Expo Mexico, Mexico City, Sept. 10-12: ASHRAE/IBPSA-USA Building Simulation Conference, Atlanta, Ga., Oct. 2-3: International Conference on Efficient Building Design – Materials and HVAC Equipment Technologies, Beirut, Lebanon
EU F Gas Regulation
EU F Gas Regulation • Pending Final Vote in March, 2014 • yes/no • no modifications except legal • Cap and Phase Down • Reduce Emissions by 2/3rds by 2030
EU F Gas Regulations – Restrictions/Bans • Domestic Refrigerators & Freezers 1/1/15 if GWP >150 • Commercial R & F banned if GWP > 2500 1/1/20 • GWP > 150 1/1/22 • Stationary Refrigeration equipment 1/1/20 if GWP > 2500 • Centralized Commercial Refrigeration • Capacity > 40 kw • Banned 1/1/22 if GWP > 150
EU F Gas Regulations – Restrictions/Bans (con’t) • Room A/C • < 3kg HFC • Banned 1/1/20 if GWP > 150 • Mini-split a/c • <3 kg HFC • Banned 1/1/25 if GWP >750 • Foams containing HFCs • GWP > 150 • Extruded polystyrene 1/1/20 • Other 1/1/23 • Technical Aerosols • Banned 1/1/18 if GWP > 150
EU F Gas Regulations • Exemptions • Up to 4 years • Where technically feasible alternatives demonstrated unavailable • Of for Safety or other technical reasons • Or where alternatives entail disproportionate cost • Each Producer or Importer Quota • Begins 2015 • Adjusts every 3 years • 89% in the first year • Rest for new importers
EU F Gas Regulations • Import of Products Containing HFCs • Traceability process by 1/1/17 • Annual declaration, audited • Servicing • Refrigeration equipment service prohibited • 1/1/20 • > 40 ton CO2 e • GWP > 2500 • Not apply to recycle, reclaimed until 1/1/30 for existing equipment • Recovered, recycled and reused by same company
EU F Gas Regulations • Review • July 1, 2017 • “Multipack centralized systems” alternatives • Member States cost to implement • International HFC Agreement possibility • Impact of grandfathering • Any proposed changes – eq fees, auctioning • July 1, 2020 • Mini split A/C alternatives • December 31, 2020 • HFC Market availability • December 31, 2022 • Impact of this regulation
Technology Perspectives
Technology Perspective • Air Conditioning – Auto ACs • Standardized on HFC-134a worldwide since 1994 • EU MAC directive – no Refrigerant > 150 GWP new models 1/1/11 • Existing model HFC-134a ban 1/1/17 • HFO 1234yf being promoted with limited commercial supply, but 3 world scale plants announced • Mercedes rejected – “too flammable” • Toyota rejected – “customer concerns” • Returned to HFC-134a • France banned new Mercedes models in July • Working on Transcritical Carbon Dioxide 041703-139
Technology Perspective • Auto Air Conditioning - continued • Counter trend is increasing energy efficiency, fuel cells • Reduced waste energy • HFC-134a inefficient in heat pumps • US EPA granting mileage “credits” for using lower GWP a/c fluids
Technology Perspective • Commercial Air Conditioning • Chillers historically HCFC-123 large proportion in North America • Less in ROW • The rest is HFC-134a • Now some movement toward HFO-1233ze, HFO-1233-zd • Other Commercial - < 50 Tons • US clear direction to R-410A scroll’s • HFC-32 in VFR systems
Technology Perspective • Residential A/C & Heat Pumps • Europe/Japan – slow but gradual acceptance R-410A, moving from R-407C • North America 15-20% R-410A – but growing • Some European/Developing Countries – hydrocarbons in small charge systems • Middle East has major problem – high pressure with R-410A at 55o C ambient • Installed base mostly HCFC-22 • Companies beginning to promote HFO/HFC blends
Technology Perspective • Domestic Refrigeration • Market is fragmenting • Appliance – Europe & International moving to HC’s (37% of Int’l total, 2010) • North America/Japan using HFCs 134a, 245fa, HCs in Mexico and Japan • EPA has approved GE Monogram line with HCs – not being marketed as yet • Developing Countries increasingly moving to HCs 4/11/03-137

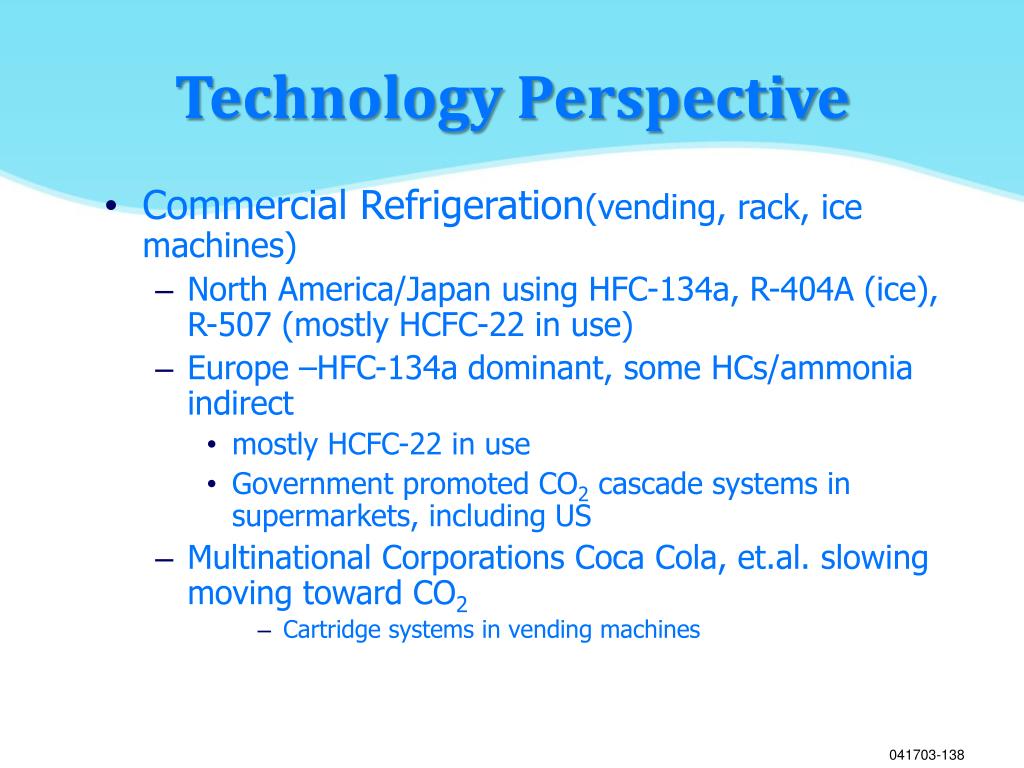

Technology Perspective • Commercial Refrigeration(vending, rack, ice machines) • North America/Japan using HFC-134a, R-404A (ice), R-507 (mostly HCFC-22 in use) • Europe –HFC-134a dominant, some HCs/ammonia indirect • mostly HCFC-22 in use • Government promoted CO2 cascade systems in supermarkets, including US • Multinational Corporations Coca Cola, et.al. slowing moving toward CO2 • Cartridge systems in vending machines 041703-138
