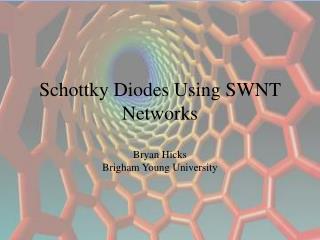

Schottky Diodes Using SWNT Networks Bryan Hicks Brigham Young University PowerPoint Presentation
Download Presentation
Schottky Diodes Using SWNT Networks Bryan Hicks Brigham Young University

Loading in 2 Seconds...

play fullscreen
1 / 10

Schottky Diodes Using SWNT Networks Bryan Hicks Brigham Young University - PowerPoint PPT Presentation


  • 92 Views
  • Uploaded on

Schottky Diodes Using SWNT Networks Bryan Hicks Brigham Young University. Diodes and Transistors. An ever increasing number in an ever decreasing area. Why Carbon Nanotubes ?. Ballistic transport –Low power No chemical passivation necessary allows for a variety of different insulators

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Schottky Diodes Using SWNT Networks Bryan Hicks Brigham Young University' - ronna


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
diodes and transistors
Diodes and Transistors

An ever increasing number in an ever decreasing area

why carbon nanotubes
Why Carbon Nanotubes?
  • Ballistic transport –Low power
  • No chemical passivation necessary allows for a variety of different insulators
  • Current densities of 109 A/cm2 vs. 103 A/cm2 for silicon
  • Large mobilities for high-speed devices
  • Can be semiconducting or metallic
carbon nanotube networks
Carbon Nanotube Networks
  • Random networks of tubes
  • No processing necessary
  • Low resistance at CNT junctions
  • 1/3 metallic, 2/3 semiconducting
  • Have properties of both metals and semiconductors
fabrication process
Fabrication Process
  • Deposit Au and Al electrodes on to a Si02/Si chip with SWNT networks
  • Wire bond the electrodes to a chip carrier
current rectification properties
Current Rectification Properties

Maximum Current Capacities: 8 μA & 22 μA

On/off ratios: 20 & 5

Series Resistances:136 kΩ & 375 kΩ

gate voltage characterization
Gate Voltage Characterization
  • Current decreases as carriers are removed
  • Current increases as carriers are introduced
  • The hysteresis seen is due to carrier trapping seen in other CNT transistors as well
actual devices
Actual Devices
  • We suspect that the electrode spacing plays a critical role in achieving current rectification.
  • No rectification in device on left
  • Varying rectification in the two devices on the right
summary
Summary
  • Carbon Nanotube Networks present an economic way to incorporate CNT properties into macroelectronics
  • Electrode spacing appears to affect mobility and current rectification
sources
Sources
  • C. Lu, L. An, Q. Fu, J. Liua, H. Zhang and J. Murduck. Appl. Phys. Lett. 88, 133501 (2006)
  • P. Avouris, J. Appenzeller, Richard Martel, And S. J. Wind. Proceedings of the IEEE. 91, 11 (2003)

Acknowledgements

  • Rocky Mountain Space Grant Consortium
    • Summer Internship
  • ESMD Faculty/Student mentor program
  • BYU College of Physical and Mathematical Sciences
  • Brigham Young University
    • David Allred, Jon Brame, Johnathan Goodsell
  • Goddard Space Flight Center Code 541
    • Stephanie Getty, Rachel Bis, Dewey Dove
