  1. Core-Plus Mathematics Project Home Math Department Home SAHS Home Circles Vocabulary And Properties

  2. Circle A set of all points in a plane at a given distance from a given point in the plane. .

  3. Radius A segment from a point on the circle to the center of the circle.

  4. Congruent Circles Two circles whose radii have the same measure. R=3 cm R=3 cm

  5. Concentric Circles Two or more circles that share the same center. .

  6. Chord Is a segment whose endpoints lie on the circle. B A D C

  7. Diameter A chord passing through the center of a circle. J I

  8. Secant A line that contains a chord.

  9. Tangent A line in the plane of the circle that intersects the circle in exactly one point.

  10. Semicircle A semicircle is an arc of a circle whose endpoints are the endpoints of the diameter. Is a semicircle

  11. Minor Arc An arc of a circle that is smaller than a semicircle. The minor arc is AP (clockwise) or PD (clockwise). P D A

  12. Major Arc An arc of a circle that is larger than a semicircle. The major arc would be PA (clockwise) or DP (counter clockwise). P A D

  13. Inscribed Angle An angle whose vertex lies on a circle and whose sides contain chords of a circle. A C B D

  14. Central Angle An angle whose vertex is the center of the circle. A B O

  15. Properties of Circles The measure of a central angle is two times the measure of the angle that subtends the same arc.

  16. If the m<C is 55, then the m<O is 110. Both angle C and angle O subtend the same arc, AB. Example B A O C

  17. Property #2 Angles inscribed in the same arc are congruent.

  18. The m<AQB and the m<APB are congruent because they both inscribe arc AB. The m<QAP and m<QBP would be congruent because they inscribe arc QP. Example A B Q P

  19. Property #3 Every angle inscribed in a semicircle is an right angle.

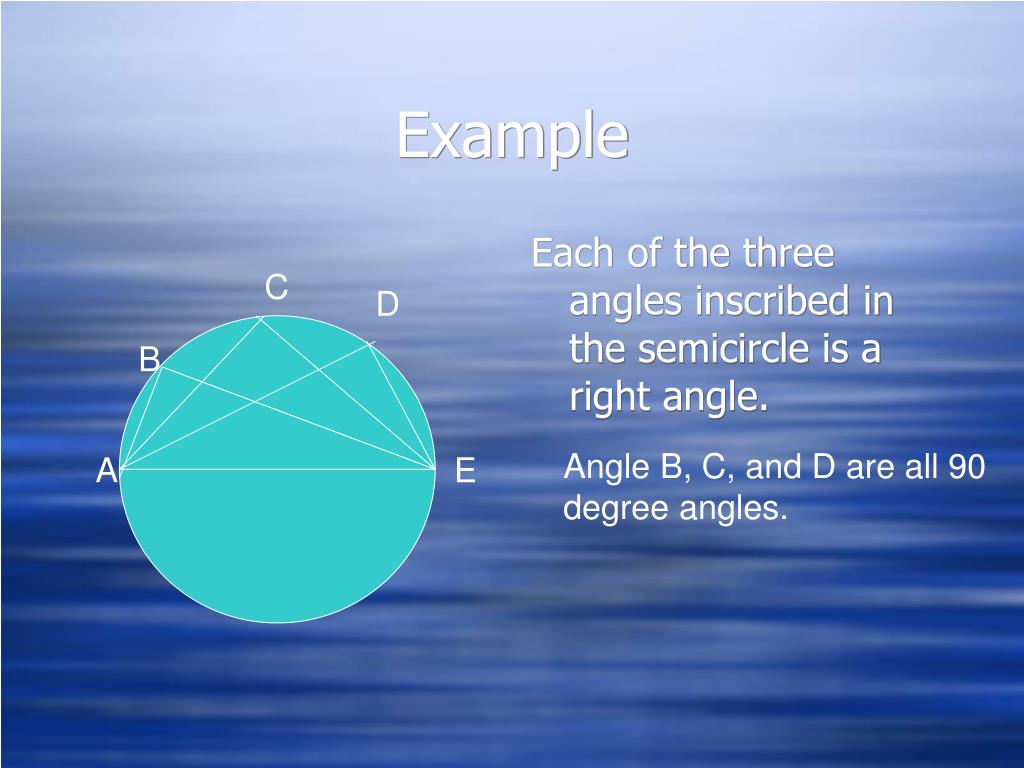

  20. Each of the three angles inscribed in the semicircle is a right angle. Example C D B Angle B, C, and D are all 90 degree angles. A E

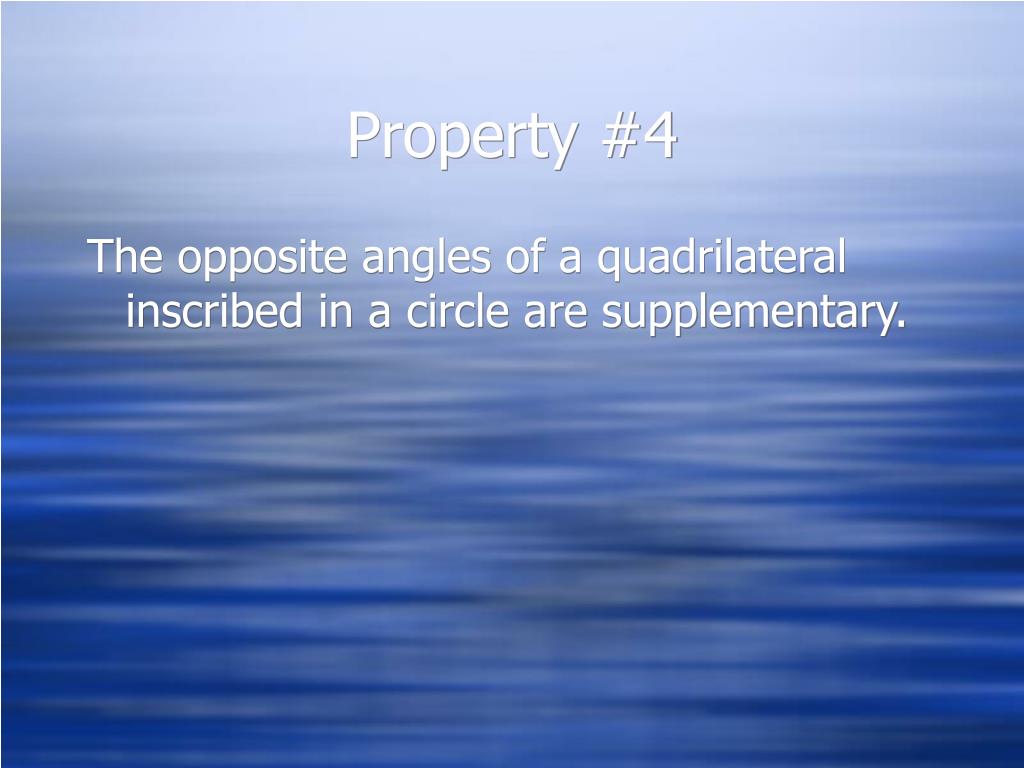

  21. Property #4 The opposite angles of a quadrilateral inscribed in a circle are supplementary.

  22. Example The measure of angle D + angle B=180 The measure of angle C+angle A=180 B 65 A 70 110 C 115 D

  23. Property #5 Parallel lines intercept congruent arcs on a circle.

  24. Example Arc AB is congruent to Arc CD A B D C

  25. Formulas What are the two formulas for finding circumference? C= C=

  26. Answer C=2 pi r C=d pi

  27. Area of a circle A=?

  28. Answer A=radius square times pi

  29. The End Core-Plus Mathematics Project Home Math Department Home SAHS Home
