  1. MICROSCOPES Microscopic Instruments differ in their lenses and the source of their illumination

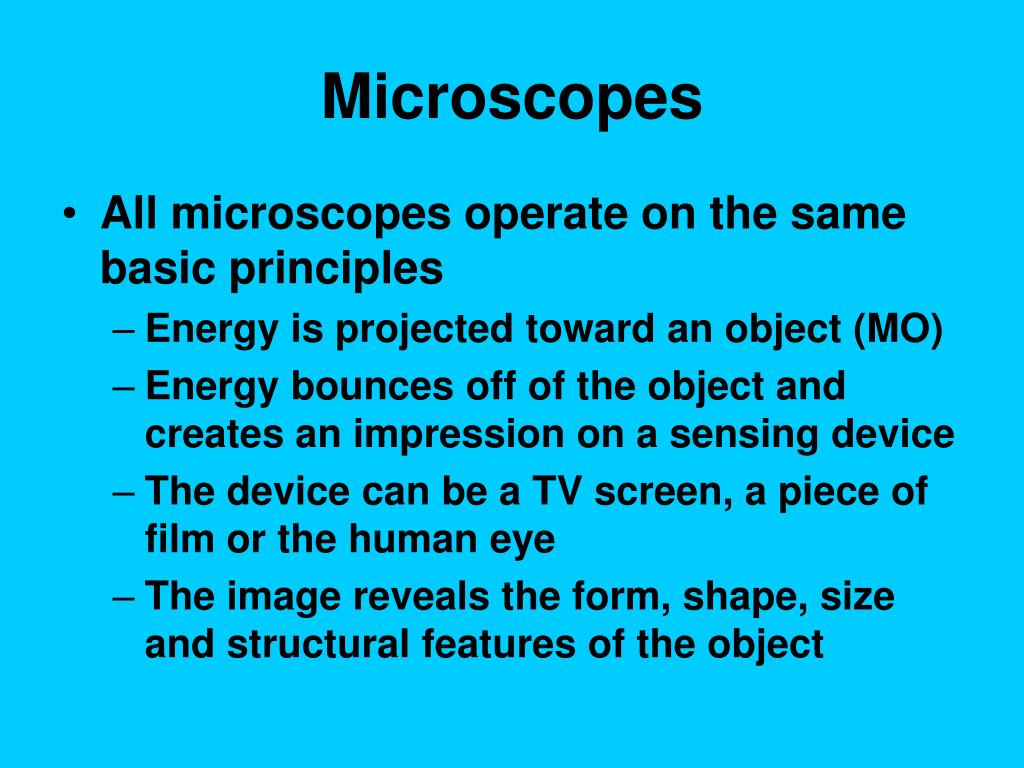

  2. Microscopes • All microscopes operate on the same basic principles • Energy is projected toward an object (MO) • Energy bounces off of the object and creates an impression on a sensing device • The device can be a TV screen, a piece of film or the human eye • The image reveals the form, shape, size and structural features of the object

  3. I. LIGHT MICROSCOPE Visible light illuminates the object

  4. A. STEREO MICROSCOPE (SM) • Light bulb for a light source • Magnification of 35X • Surface picture (3D) Spore under a Stereo Microscope

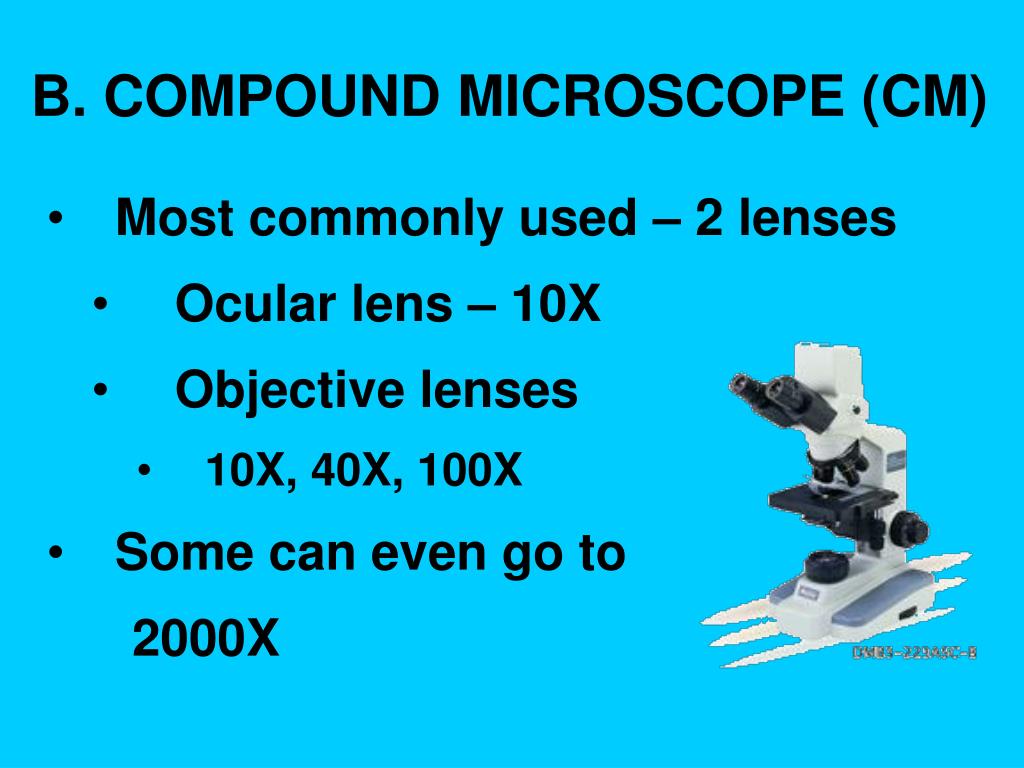

  5. B. COMPOUND MICROSCOPE (CM) • Most commonly used – 2 lenses • Ocular lens – 10X • Objective lenses • 10X, 40X, 100X • Some can even go to 2000X

  6. B. COMPOUND MICROSCOPE (CM) • Light bulb for light source • Light goes through object • Small or thin slice object • Size and shape of bacteria cell can be seen

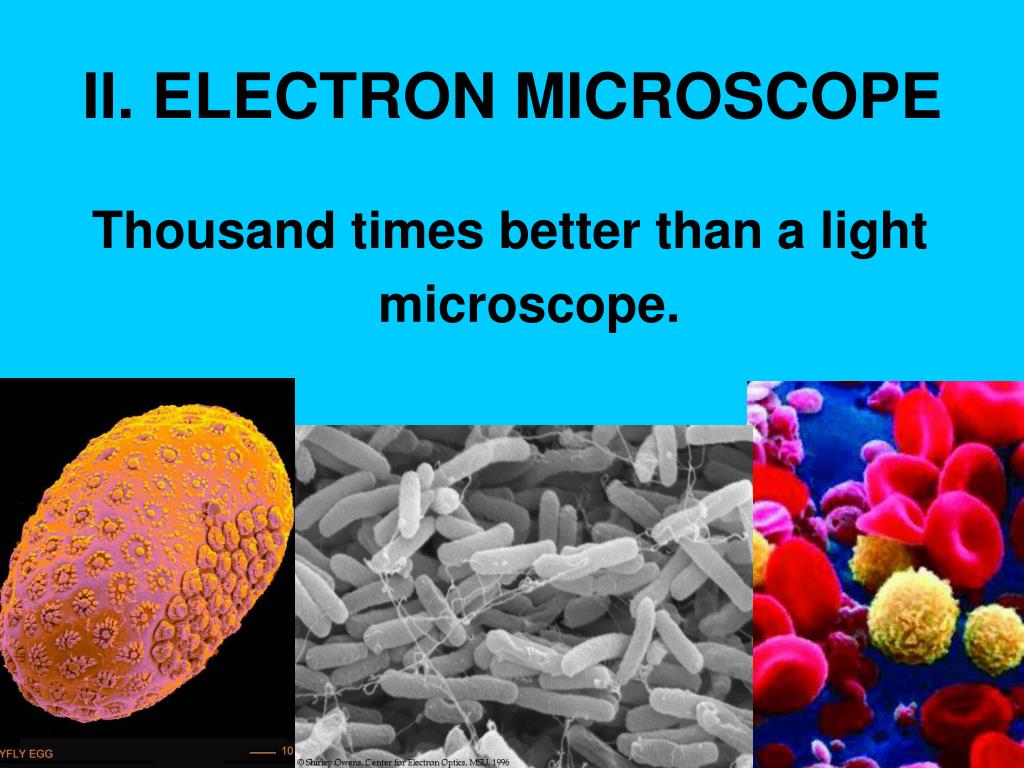

  7. II. ELECTRON MICROSCOPE Thousand times better than a light microscope.

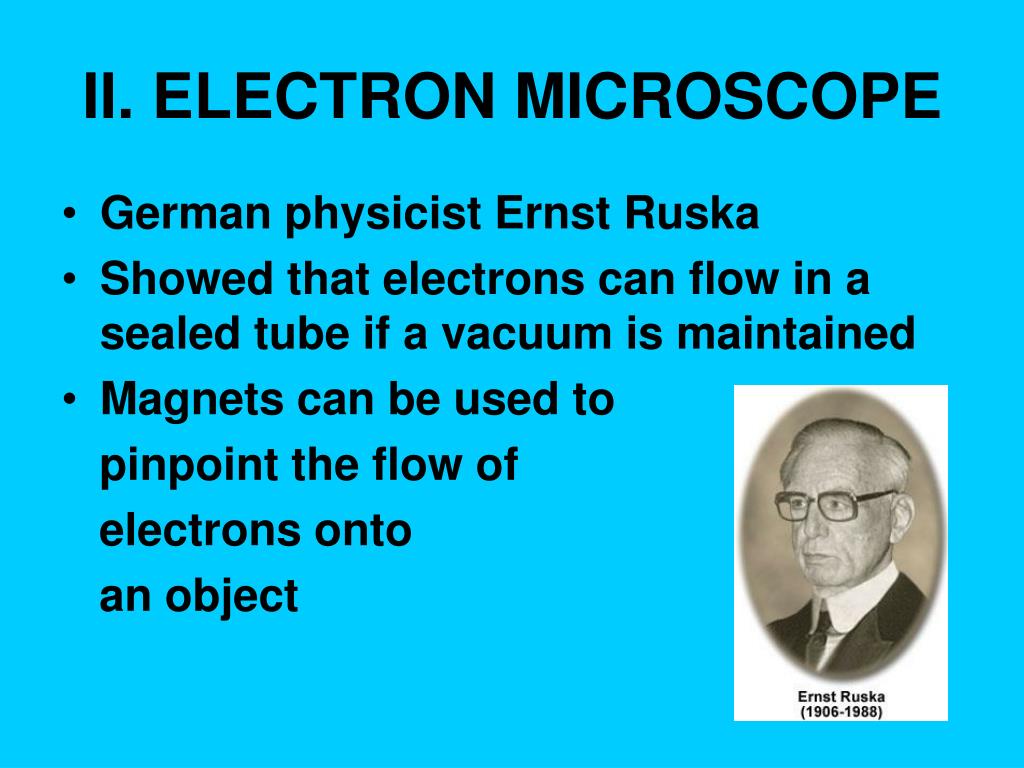

  8. II. ELECTRON MICROSCOPE • German physicist Ernst Ruska • Showed that electrons can flow in a sealed tube if a vacuum is maintained • Magnets can be used to pinpoint the flow of electrons onto an object

  9. II. ELECTRON MICROSCOPE • Depending upon the density of structures in the object, the electrons are either absorbed or deflected • The electrons form an image that can be projected onto a screen and outlines the structures in the object

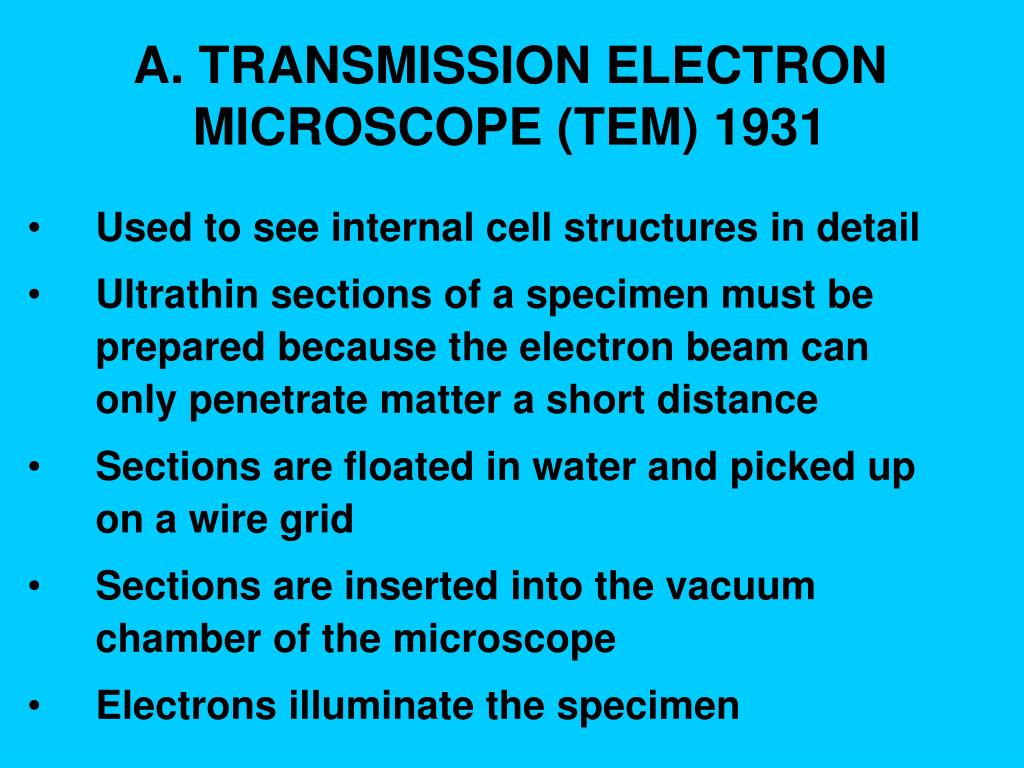

  10. A. TRANSMISSION ELECTRON MICROSCOPE (TEM) 1931 • Used to see internal cell structures in detail • Ultrathin sections of a specimen must be prepared because the electron beam can only penetrate matter a short distance • Sections are floated in water and picked up on a wire grid • Sections are inserted into the vacuum chamber of the microscope • Electrons illuminate the specimen

  11. A. TRANSMISSION ELECTRON MICROSCOPE (TEM) 1931 • Magnetic field focuses the beam of electrons (as condenser lens of light • No ocular lens, electrons hit electron sensitive screen to create image • 200,000X – Strongest Microscope Transmission electron micrograph of E. coli

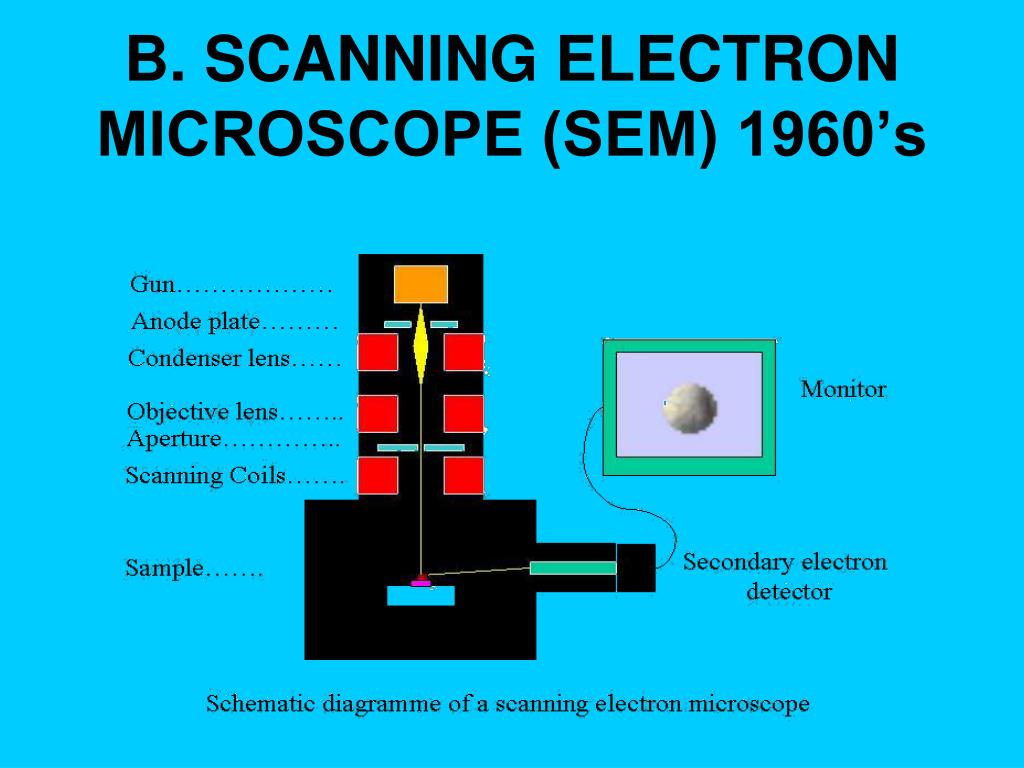

  12. B. SCANNING ELECTRON MICROSCOPE (SEM) 1960’s • Permits the surface of objects to be seen without having to make thin sections • Specimens are placed in the vacuum chamber and coated with a thin layer of gold to increase conductivity • The electron beam sweeps across the object and knocks loose showers of electrons

  13. B. SCANNING ELECTRON MICROSCOPE (SEM) 1960’s • A 3D image builds line by line like a TV receiver – can see surface detail • Can magnify 50X – 100,000X • See image on TV screen SEM 3D Photo of E. Coli

  14. B. SCANNING ELECTRON MICROSCOPE (SEM) 1960’s

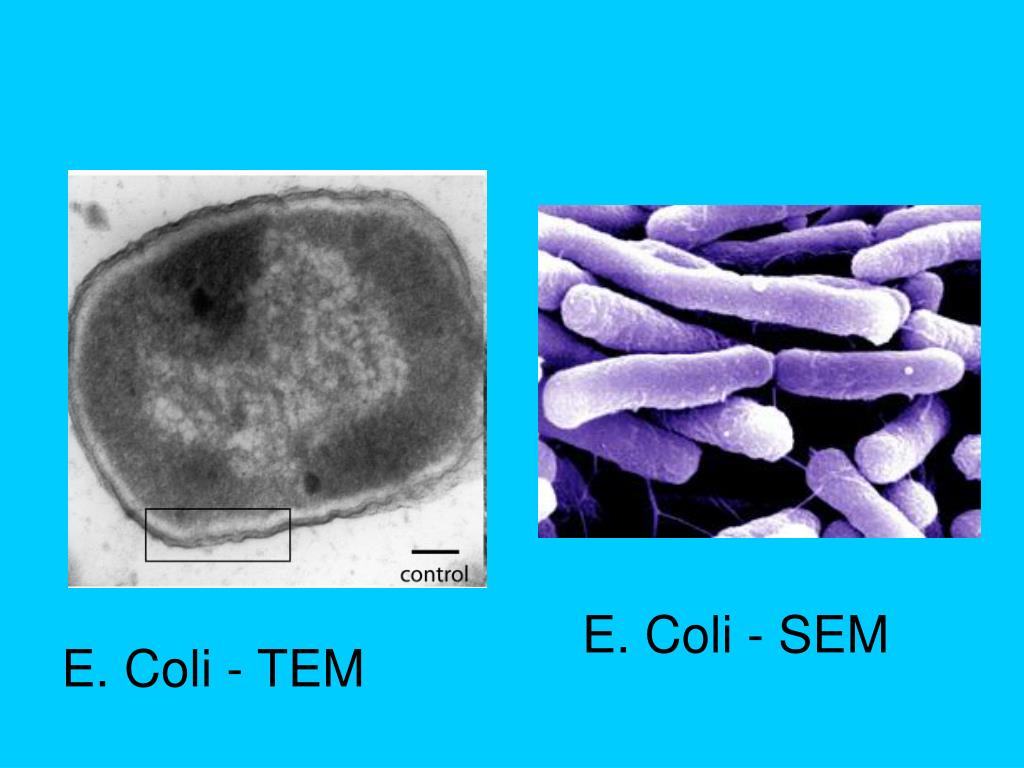

  15. E. Coli - SEM E. Coli - TEM

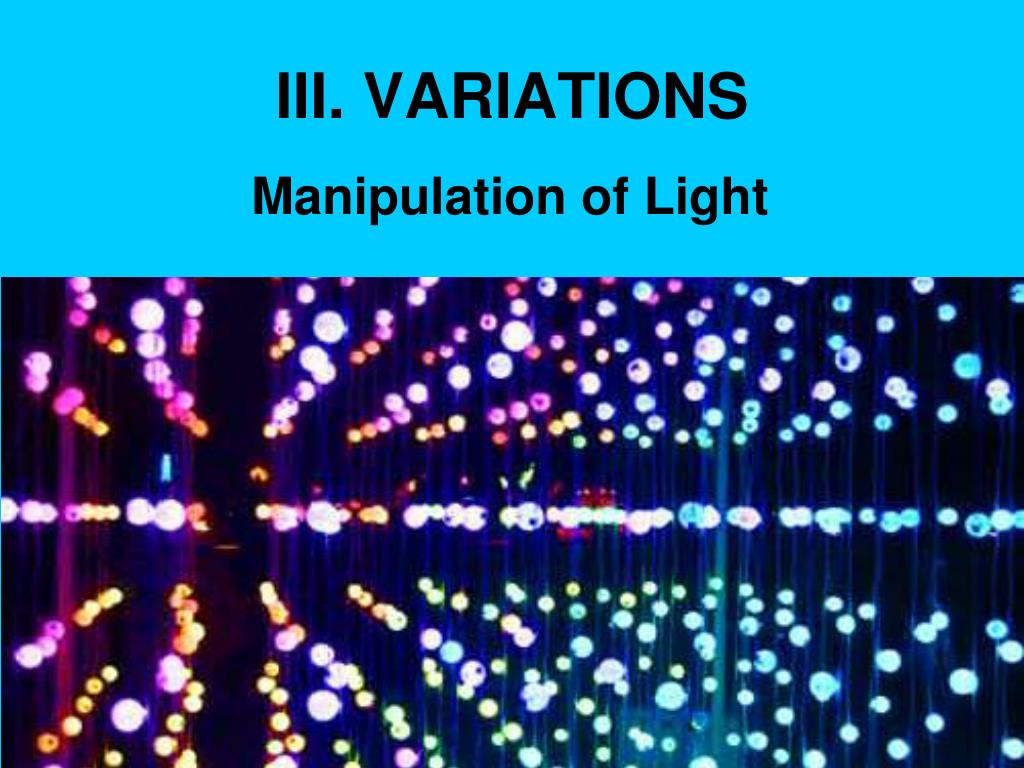

  16. III. VARIATIONS Manipulation of Light

  17. A. DARK-FIELD MICROSCOPE • Highlights specimen against a black background – only object is illuminated • Light scattered and hits object from different angles • Like us seeing the moon at night because sunlight from behind the earth reflects off the moon

  18. A. DARK-FIELD MICROSCOPE • Good for living MOs to see size, shape and motility • Helps in diagnosis of some diseases caused by spiral bacteria because they are so small • Treponemapalladumcauses syhphilis and is identified from scrapings of the infected lesions

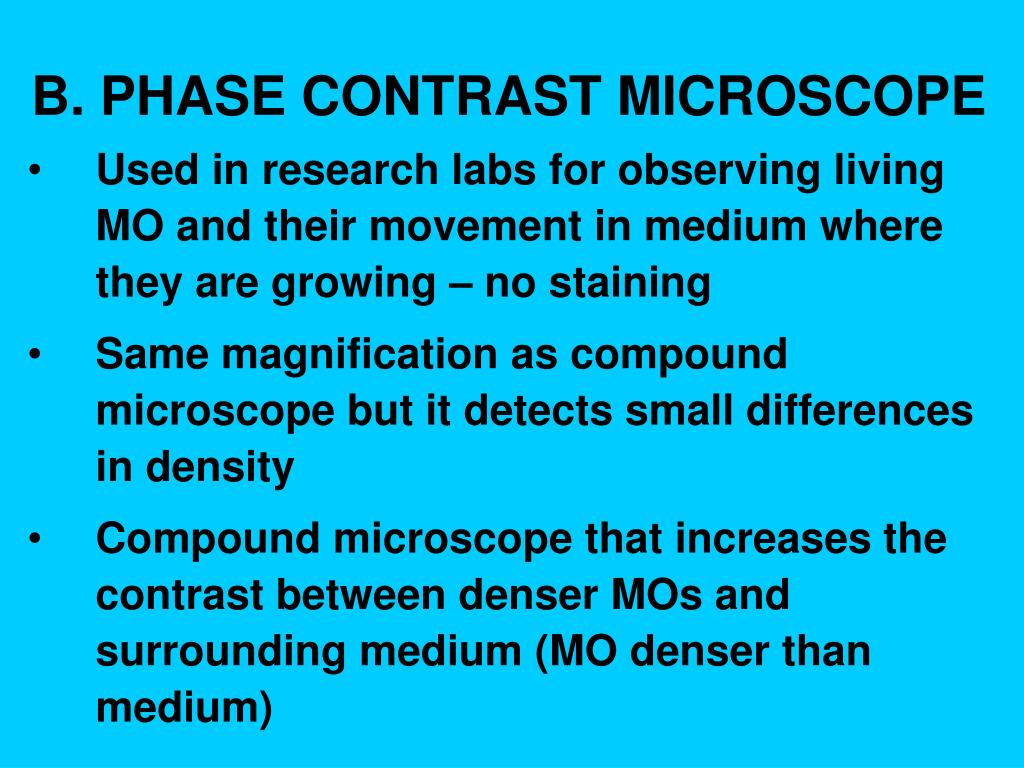

  19. B. PHASE CONTRAST MICROSCOPE • Used in research labs for observing living MO and their movement in medium where they are growing – no staining • Same magnification as compound microscope but it detects small differences in density • Compound microscope that increases the contrast between denser MOs and surrounding medium (MO denser than medium)

  20. B. PHASE CONTRAST MICROSCOPE Epithelial Cells - Phase Contrast Microscope Epithelial Cells - Compound Microscope

  21. C. FLUORESCENCE MICROSCOPE • MO’s are coated with fluorescent dye and illuminated with UV light • Coated MO’s appear to fluoresce • Applications in medical microbiology tagged antibodies

  22. D. SCANNING TUNNELING MICROSCOPE (STM) 1981 • Focus on surface of object, produce a map showing bumps and valleys of atoms • Map surface as blind person with a cane (tap) • No special prep to sample Surface of Blue Nickel Surface of Blue Platinum Surface of Copper
