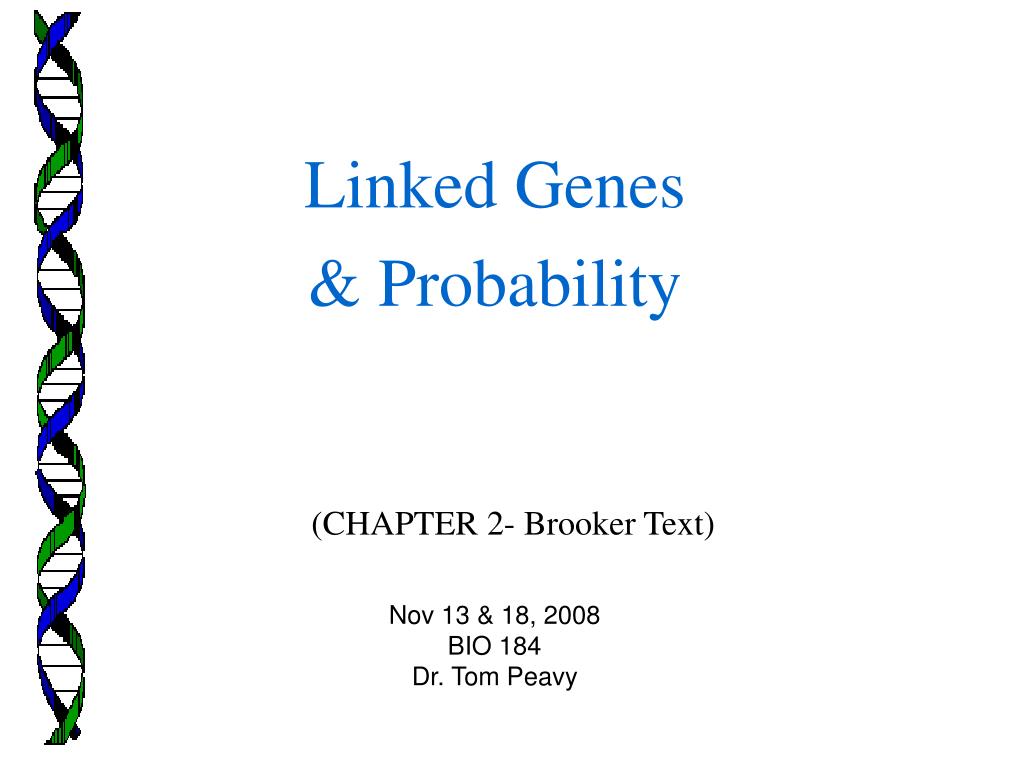

Linked Genes

& Probability

(CHAPTER 2- Brooker Text)

Nov 13 & 18, 2008

BIO 184

Dr. Tom Peavy

Scientific basis for chromosome theory of inheritance
    • 1. Analysis of the transmission of traits from parent to offspring
    • 2. Inquiry into the material basis of heredity
    • 3. Microscopic examination of the processes of mitosis, meiosis and fertilization
Principles ofChromosome Theory of Inheritance
  • 1. Chromosomes contain the genetic material
  • 2. Chromosomes are replicated and passed along from parent to offspring
  • 3. The nuclei of most eukaryotic cells contain chromosomes that are found in homologous pairs
  • 4. During the formation of gametes, different types of (nonhomologous) chromosomes segregate independently
  • 5. Each parent contributes one set of chromosomes to its offspring


  • Probability calculations are used in genetic problems to predict the outcome of crosses
  • To compute probability, we can use three mathematical operations
    • Product rule
    • Sum rule
    • Binomial expansion equation
the chi square test
The Chi Square Test
  • A statistical method used to determine goodness of fit
    • Goodness of fit refers to how close the observed data are to those predicted from a hypothesis
  • Note:
    • The chi square test does not prove that a hypothesis is correct
      • It evaluates whether or not the data and the hypothesis have a good fit
the chi square test1
The Chi Square Test
  • The general formula is

(O – E)2

c2 =S


  • where

O = observed data in each category

E = observed data in each category based on the experimenter’s hypothesis

S = Sum of the calculations for each category


Sex-Linked Transmission

(CHAPTER 3 & 5- Brooker Text)

BIO 184

Dr. Tom Peavy

sex determination
Sex Determination
  • In many animal species, chromosomes play a role in sex determination
  • Homogametic vs Heterogametic
The sex chromosomes are designated Z and W to distinguish them from the X and Y chromosomes of mammals
  • W chromosome determines femaleness
In some insects,
    • Males are XO and females are XX
  • In other insects (fruit fly, for example)
    • Males are XY and females are XX
  • The Y chromosome does not determines maleness
  • Rather, it is the ratio between the X chromosomes and the number of sets of autosomes (X/A)
    • If X/A = 0.5, the fly becomes a male
    • If X/A = 1.0, the fly becomes a female
Males are known as the drones
    • They are haploid
    • Produced from unfertilized eggs
  • Females include the worker bees and queen bees
    • They are diploid
    • Produced from fertilized eggs
transmission of genes located on human sex chromosomes
Transmission of Genes Located on Human Sex Chromosomes
  • Genes that are found on one of the two types of sex chromosomes but not on both are termed sex-linked
    • Indeed, sex-linked and X-linked tend to be used synonymously, but there are Y-linked genes
  • Males have only one copy of the X chromosome
    • They are said to be hemizygous for their X-linked genes
reciprocal crosses
Reciprocal crosses
  • Crosses between different strains in which the sexes are reversed
  • These crosses reveal whether a trait is carried on a sex chromosome or an autosome
    • X-linked traits do not behave identically in reciprocal crosses

In poultry, sex is determined by the ZW rather than the XY system.

A dominant sex-linked gene (B) produces barred feathers, and the

Recessive allele (b), when homozygous produces nonbarred feathers.

Suppose a nonbarred male is crossed with a barred female.

What will be the appearance of the F1 birds?

The X and Y chromosomes also contain short regions of homology at one end
    • These promote the necessary pairing of the two chromosomes in meiosis I of spermatogenesis
  • The few genes found in this homologous region follow a pseudoautosomal pattern of inheritance
    • Their inheritance pattern is the same as that of a gene found on an autosome

Contains many X-linked genes

Involved in antibody production

Y-linked gene

Necessary for proper male development

Follows a pseudoautosomal pattern of inheritance
