On Optimizing Collective Communication

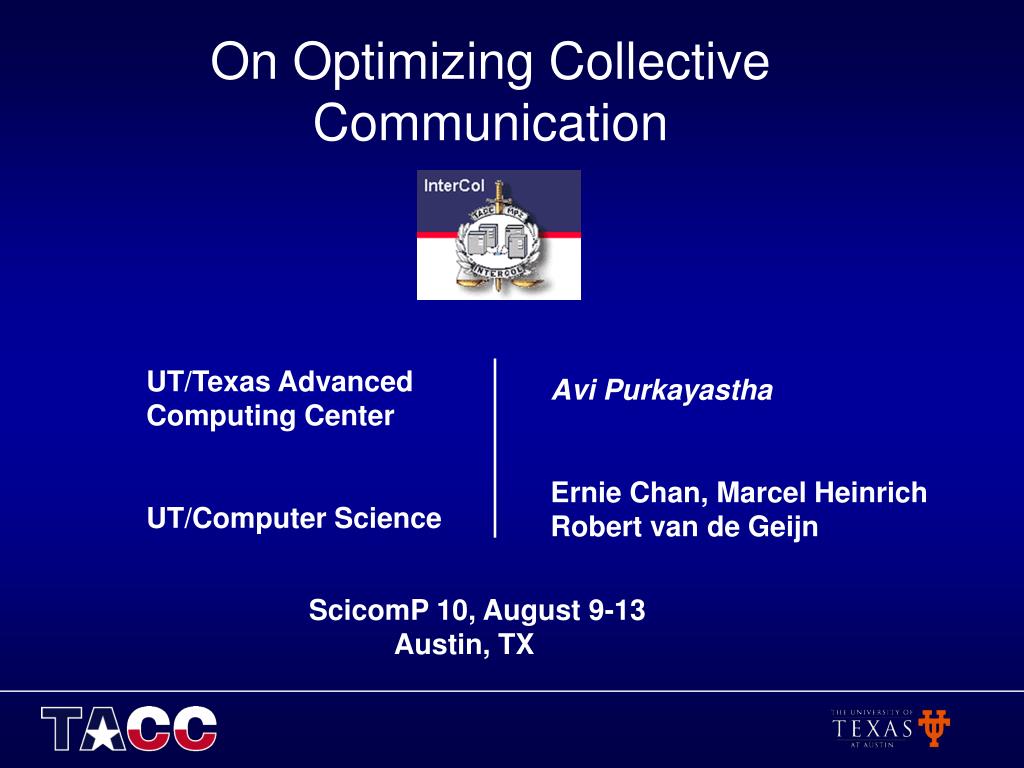

1. On Optimizing Collective Communication UT/Texas Advanced Computing Center UT/Computer Science Avi Purkayastha Ernie Chan, Marcel Heinrich Robert van de Geijn ScicomP 10, August 9-13 Austin, TX

2. Outline • Model of Parallel Computation • Collective Communications • Algorithms • Performance Results • Conclusions and Future work

3. Model of Parallel Computation • Target Architectures • distributed memory parallel architectures • Indexing • p nodes • indexed 0 … p – 1 • each node has one computational processor

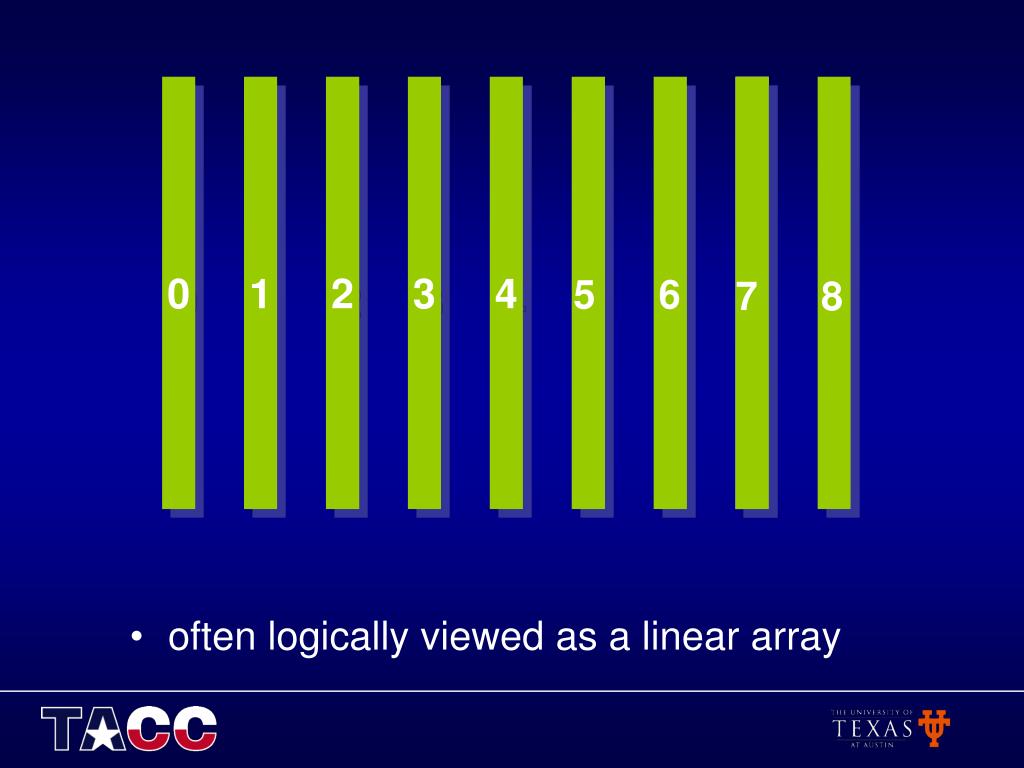

4. 0 1 2 3 4 • often logically viewed as a linear array 5 6 7 8

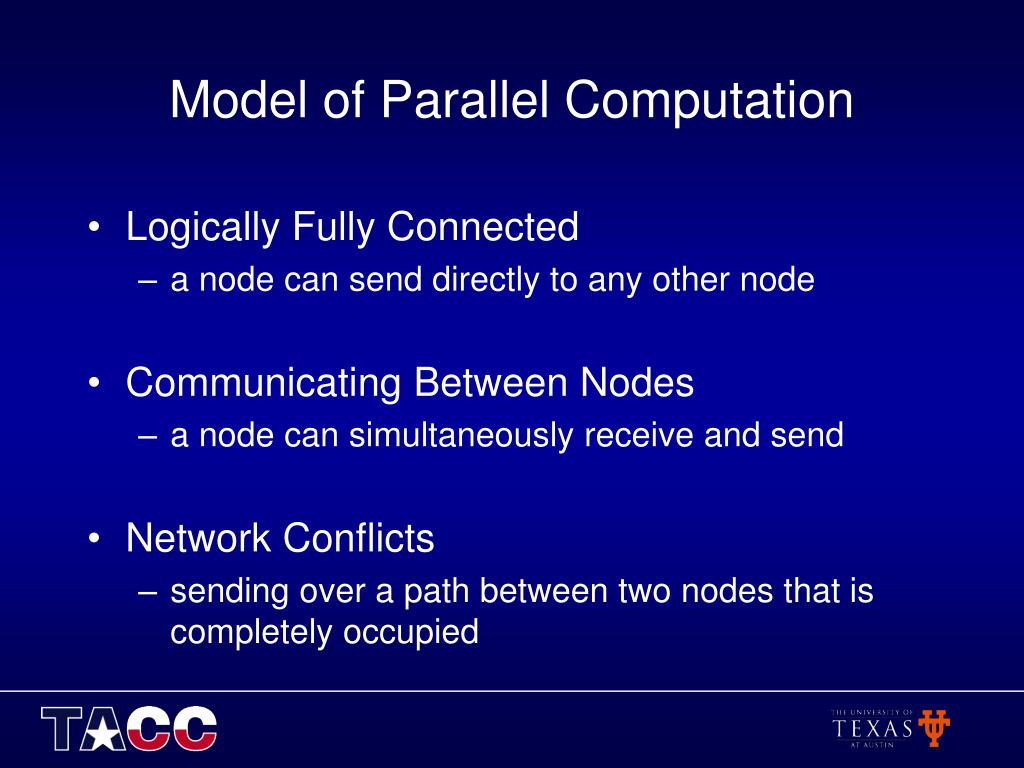

5. Model of Parallel Computation • Logically Fully Connected • a node can send directly to any other node • Communicating Between Nodes • a node can simultaneously receive and send • Network Conflicts • sending over a path between two nodes that is completely occupied

6. Model of Parallel Computation • Cost of Communication • sending a message of length n between any two nodes •  is the startup cost (latency) •  is the transmission cost (bandwidth) • Cost of Computation • cost to perform arithmetic operation is  • reduction operations • sum • prod • min • max  +n

7. Outline • Model of Parallel Computation • Collective Communications • Algorithms • Performance Results • Conclusions and Future work

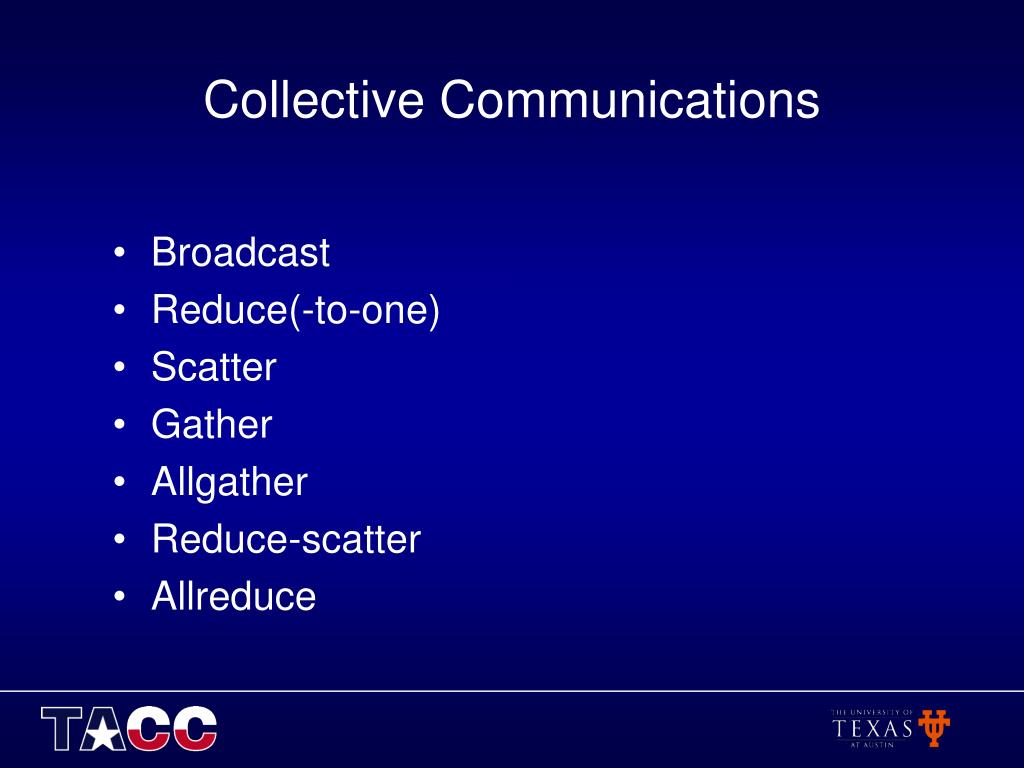

8. Collective Communications • Broadcast • Reduce(-to-one) • Scatter • Gather • Allgather • Reduce-scatter • Allreduce

9. Lower Bounds (Latency) • Broadcast • Reduce(-to-one) • Scatter/Gather • Allgather • Reduce-scatter • Allreduce

10. Lower Bounds (Bandwidth) • Broadcast • Reduce(-to-one) • Scatter/Gather • Allgather • Reduce-scatter • Allreduce

11. Outline • Model of Parallel Computation • Collective Communications • Algorithms • Performance Results • Conclusions and Future work

12. Motivating Example • We will illustrate the different types of algorithms and implementations using the Reduce-scatter operation.

13. A building block approach to library implementation • Short-vector case • Long-vector case • Hybrid algorithms

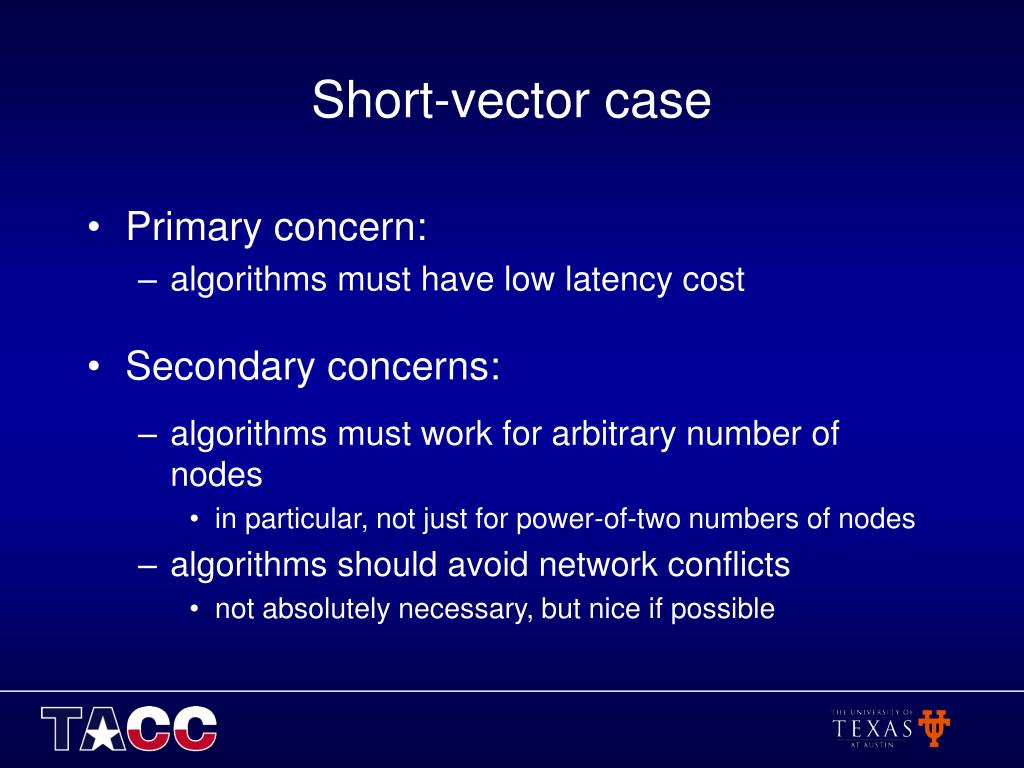

14. Short-vector case • Primary concern: • algorithms must have low latency cost • Secondary concerns: • algorithms must work for arbitrary number of nodes • in particular, not just for power-of-two numbers of nodes • algorithms should avoid network conflicts • not absolutely necessary, but nice if possible

15. Minimum-Spanning Tree based algorithms • We will show how the following building blocks: • broadcast/reduce • scatter/gather • Using minimum spanning trees embedded in the logical linear array while attaining • minimal latency • implementation for arbitrary numbers of nodes • no network conflicts

16. General principles • message starts on one processor

17. General principles • divide logical linear array in half

18. General principles • send message to the half of the network that does not contain the current node (root) that holds the message

19. General principles • send message to the half of the network that does not contain the current node (root) that holds the message

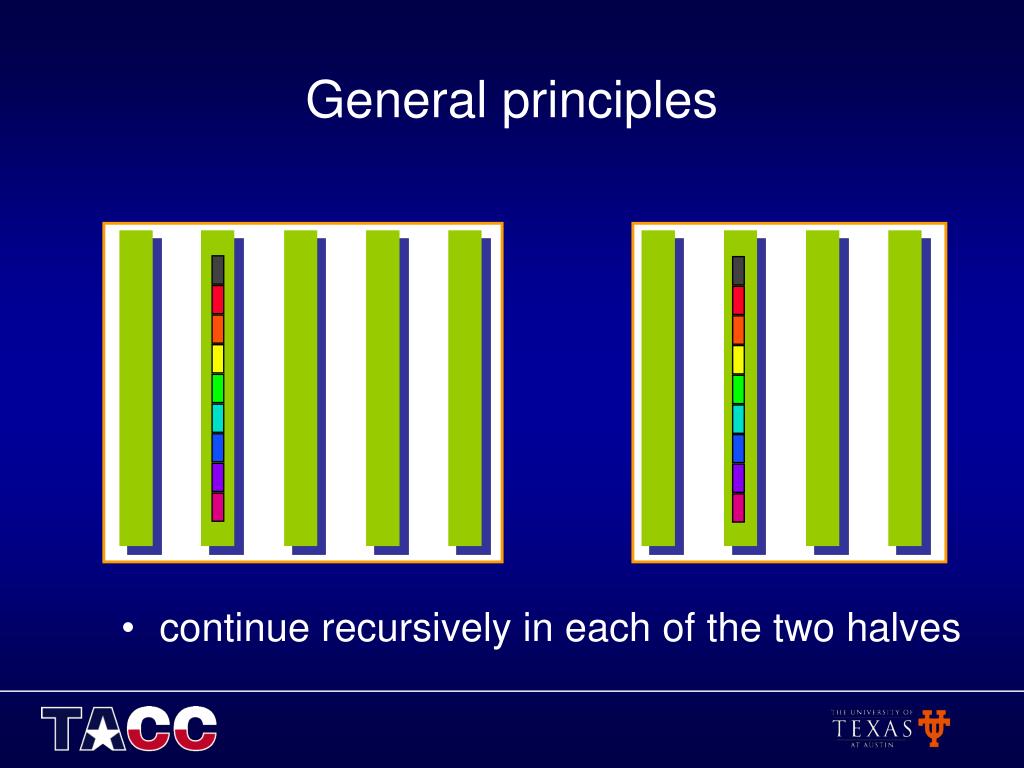

20. General principles • continue recursively in each of the two halves

21. General principles • The demonstrated technique directly applies to • broadcast • scatter • The technique can be applied in reverse to • reduce • gather

22. General principles • This technique can be used to implement the following building blocks: • broadcast/reduce • scatter/gather • Using a minimum spanning tree embedded in the logical linear array while attaining • minimal latency • implementation for arbitrary numbers of nodes • no network conflicts? • Yes, on linear arrays

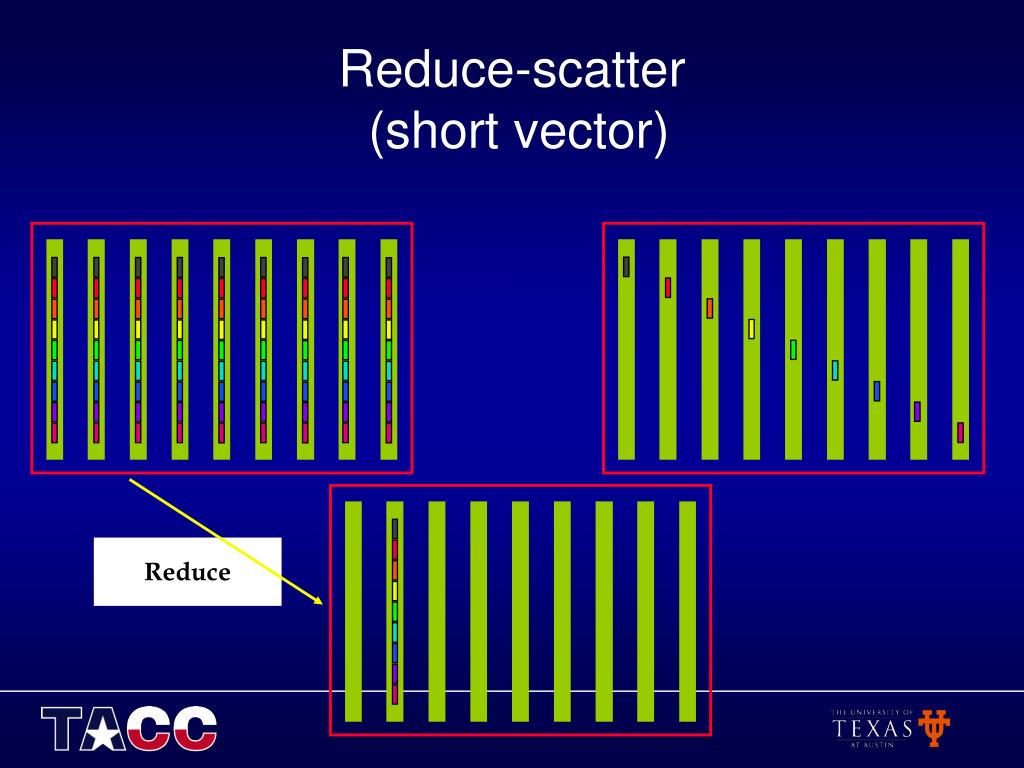

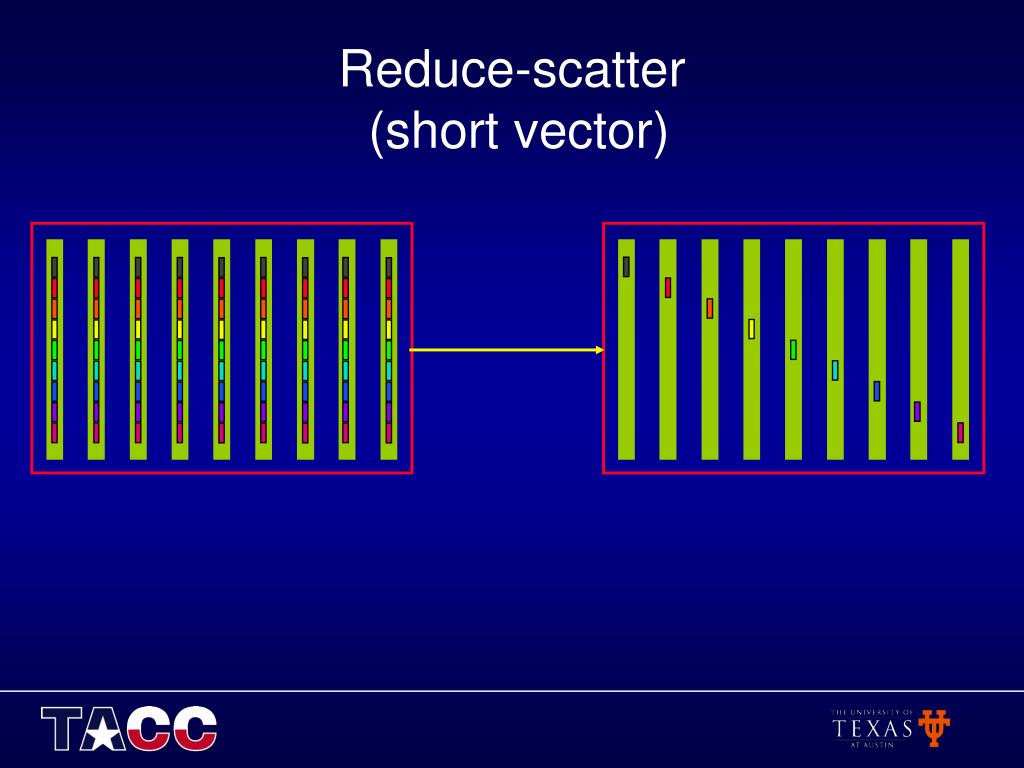

23. Reduce-scatter (short vector)

24. Reduce-scatter (short vector) Reduce

25. Reduce-scatter (short vector) Scatter

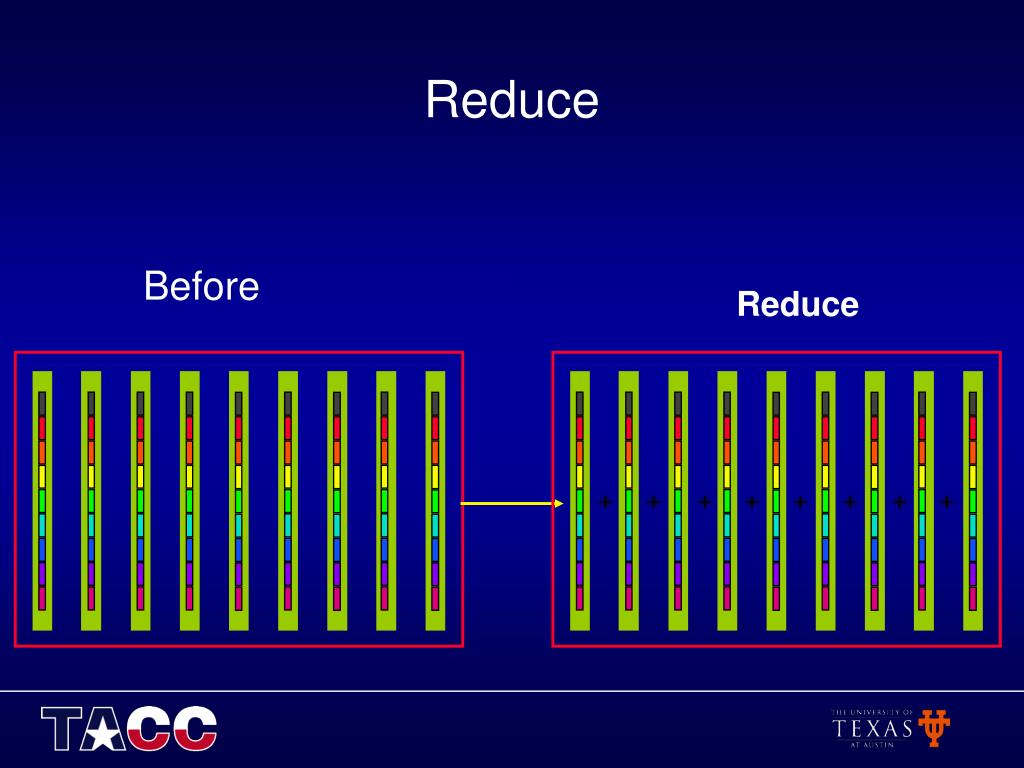

26. Reduce Before Reduce + + + + + + + +

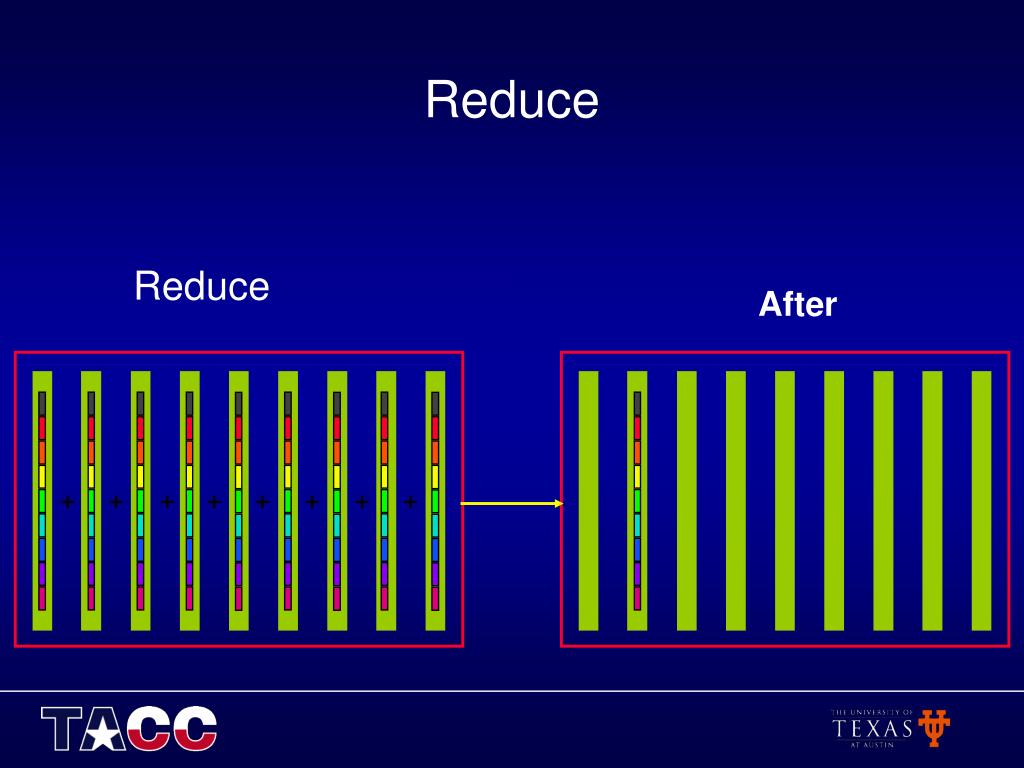

27. Reduce Reduce After + + + + + + + +

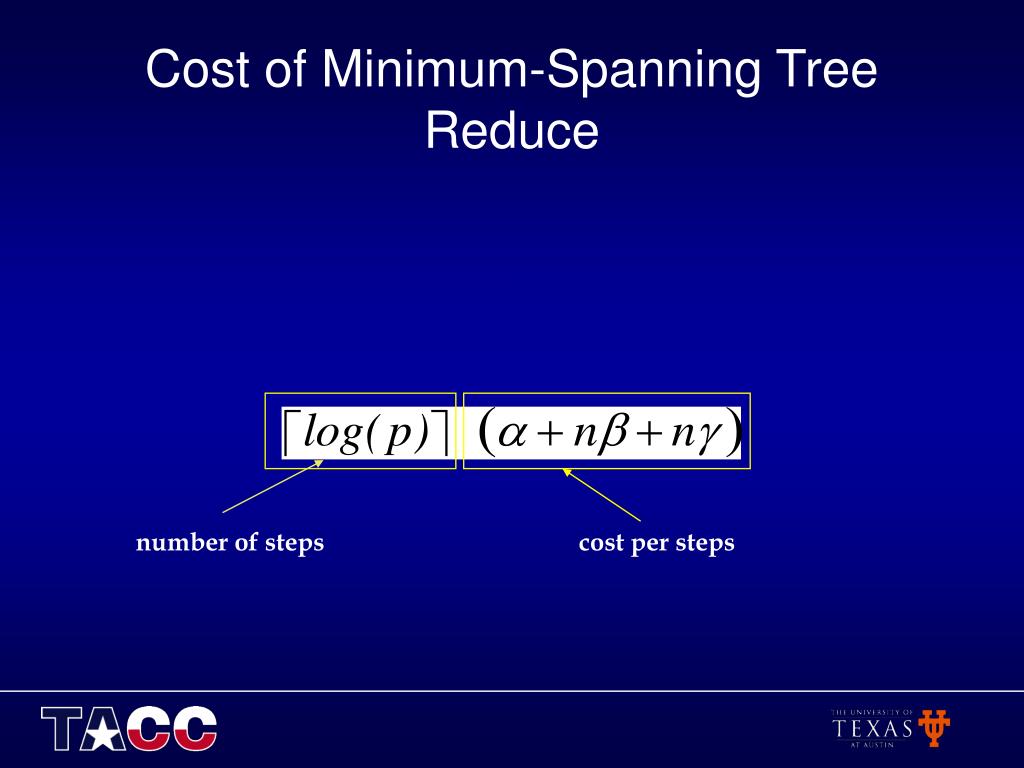

34. Cost of Minimum-Spanning Tree Reduce number of steps cost per steps

35. Cost of Minimum-Spanning Tree Reduce number of steps cost per steps Notice: attains lower bound for latency component

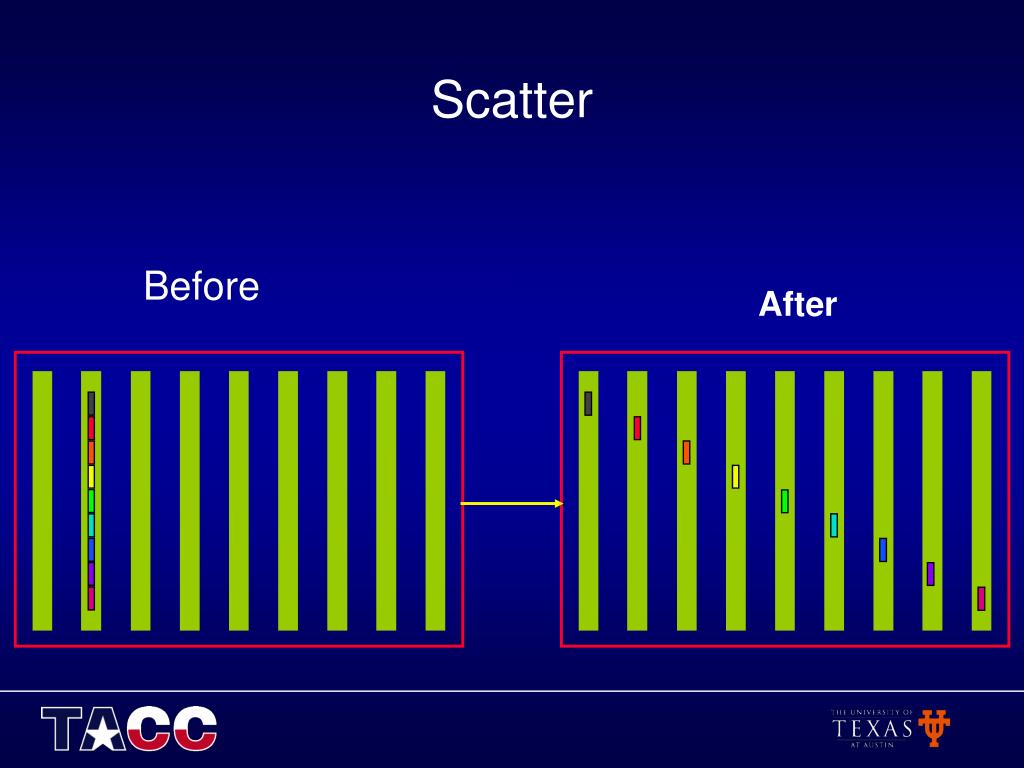

36. Scatter Before After

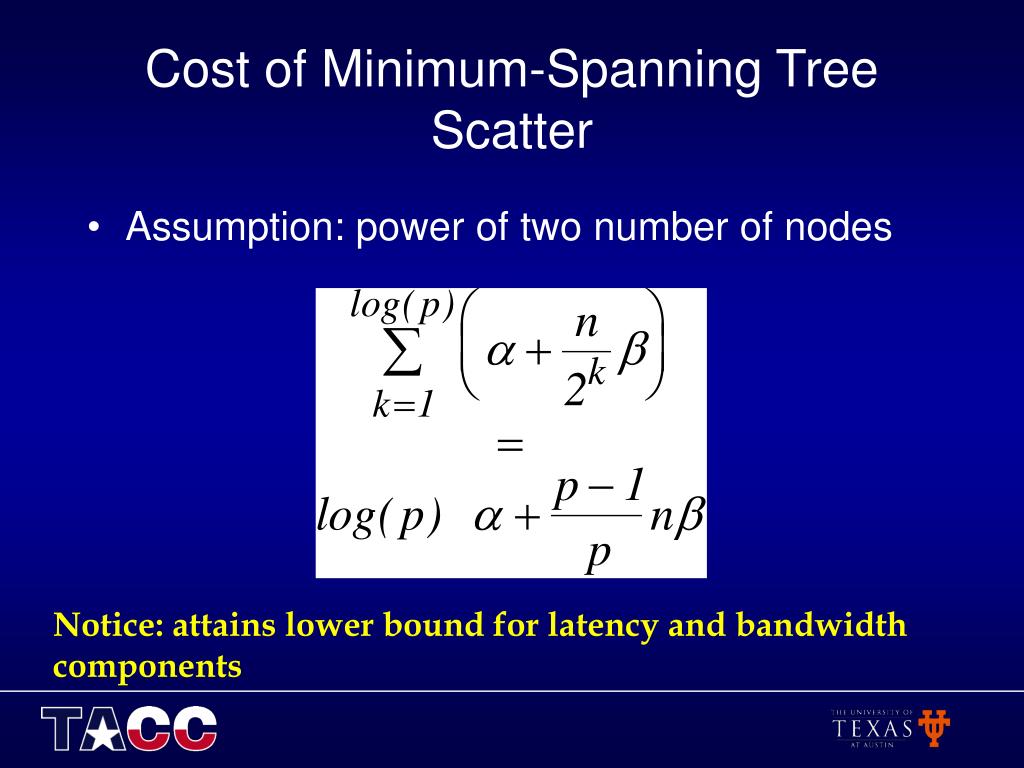

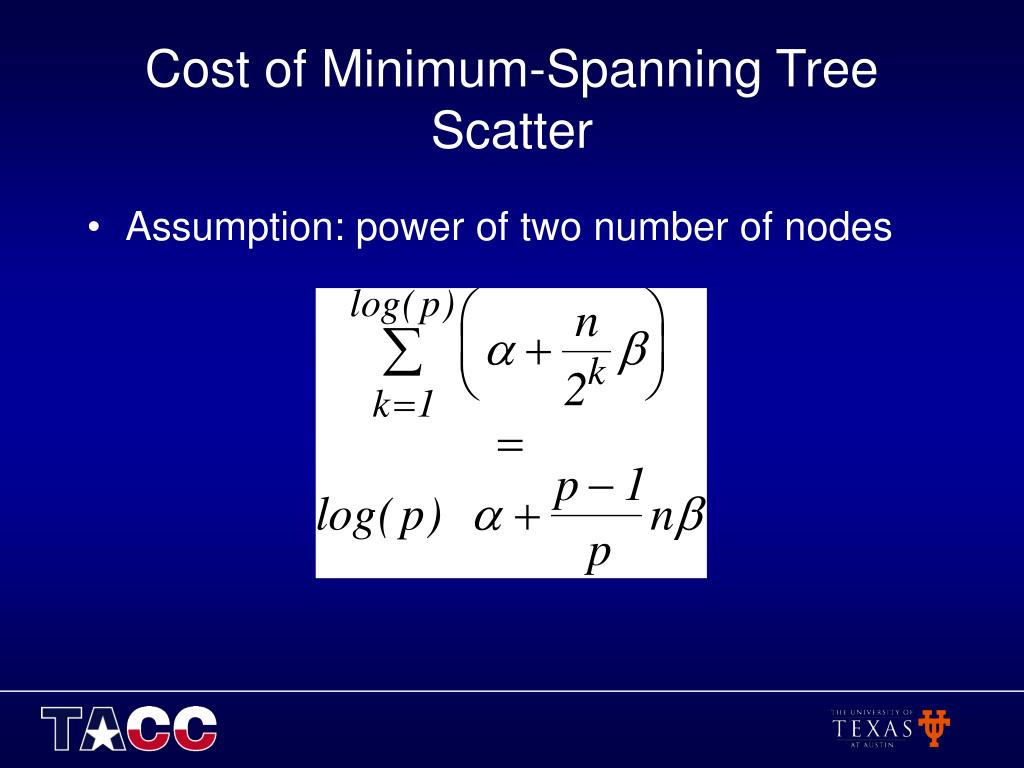

43. Cost of Minimum-Spanning Tree Scatter • Assumption: power of two number of nodes

44. Cost of Minimum-Spanning Tree Scatter • Assumption: power of two number of nodes Notice: attains lower bound for latency and bandwidth components

45. Cost of Reduce/Scatter Reduce-scatter • Assumption: power of two number of nodes reduce scatter

46. Cost of Reduce/Scatter Reduce-scatter • Assumption: power of two number of nodes reduce scatter Notice: does not attain lower bound for latency or bandwidth components

47. Recap Reduce Reduce-scatter Scatter Allreduce Gather Allgather Broadcast

48. A building block approach to library implementation • Short-vector case • Long-vector case • Hybrid algorithms

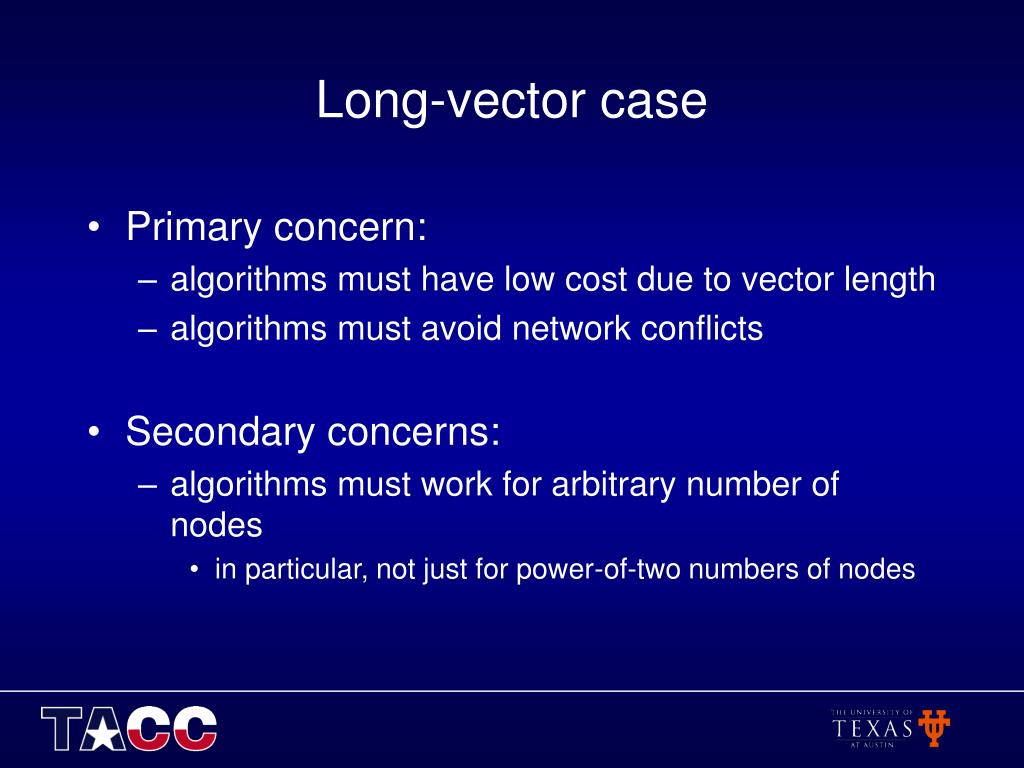

49. Long-vector case • Primary concern: • algorithms must have low cost due to vector length • algorithms must avoid network conflicts • Secondary concerns: • algorithms must work for arbitrary number of nodes • in particular, not just for power-of-two numbers of nodes

50. Long-vector building blocks • We will show how the following building blocks: • allgather/reduce-scatter • Can be implemented using “bucket” algorithms while attaining • minimal cost due to length of vectors • implementation for arbitrary numbers of nodes • no network conflicts
