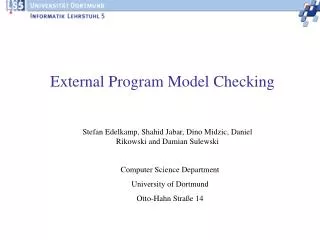

1. External Program Model Checking Stefan Edelkamp, Shahid Jabar, Dino Midzic, Daniel Rikowski and Damian Sulewski Computer Science Department University of Dortmund Otto-Hahn Straße 14

2. Motivation - Overview - Why software model checking - States in our program model checker StEAM - Externalization Algorithm - Experimental results

3. Checking a software implementation rather then a formal specification manual rewriting Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; } Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; } Formal specification of code Model checker

4. Checking a software implementation rather then a formal specification manual rewriting Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; } Formal specification of code Model checker

5. Checking a software implementation rather then a formal specification manual rewriting Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; } Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; } Error trail Model checker

6. Using a virtual machine to explore a model Compiler Model checker Virtual Machine Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; } Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; }

7. Model checker Compiler Model checker Virtual Machine Virtual Machine Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; } Int main(int argc, char ** argv) { int a = 0; int b = 7; int c = b / a; } Using a virtual machine to explore a model + Can detect errors in the implementation + User is not required to be familiar with modeling language - Exceeds the available memory - Slows down the exploration Assumes an error free virtual machine

8. Model checker Virtual Machine Techniques for state space compression - Partial order reduction - Minimal binary state encoding - Abstraction methods - Bit-state hashing - Search heuristics

9. External model checking - Using virtual memory can slow down the performance significantly - General purpose virtual memory scheme is used - External memory algorithms are more informed about the states - Show remarkable performance in the large-scale analysis of games - Introduced in explicit-state model checker SPIN

10. m1 m2 mn Obj. file mem. Image(MI) sn s1 s2 PC FP SP R0 … FP0 PC FP SP R0 … FP0 PC FP SP R0 … FP0 ------------------------ zero ebd<_erno> move (4,%r2),%r3 … … ------------------------ Int a,b,c … ------------------------ Int d=12 Int e=17 Int f=-1 … ------------------------ Code-Section BSS-Section lock-pool li1 BSS-memory li2 Data-Section li3 a=4 b=6 c=12 memory-pool mn1 dyn. alloc.regions mn2 mn3 =physical memory = VM_memory =program memory States in StEAM

11. The externalization algorithm - Relaxed the requirement of a constant main memory - Mini-states - Pointer to a full system state on the secondary memory - Its predecessor information - Constant size in contrast to a full state

12. Mini-states Cache Secondary memory Internal memory The externalization algorithm

13. Internal memory The externalization algorithm Mini-states Cache Secondary memory

14. Internal memory The externalization algorithm Mini-states Cache Secondary memory

15. Internal memory The externalization algorithm Mini-states Cache Secondary memory

16. Internal memory The externalization algorithm Mini-states Cache Secondary memory

17. Full state Caches Files The externalization algorithm - external collapse compression Data - Section BSS - Section Stack Fixed values

18. Experimental results - first running case study: the Dining Philosophers

19. Experimental results – Philosophers using most blocked heuristic Internal memoryin MB Philosophers

20. Experimental results – Philosophers using most blocked heuristic Time in seconds Philosophers

21. Experimental results – Philosophers using most blocked heuristic Time in seconds Philosophers

22. Experimental results - second running case study: the 8-Puzzle 7 6 8 5 3 4 1 2

23. Experimental results – 8-Puzzle using Breath First Search Time in seconds Moves

24. Experimental results – 8-Puzzle using Breath First Search Internal memory in MB Moves

25. - Further information on http://bugfinder.sourceforge.net Conclusion and future work - StEAM is the first external program model checker - Largest exploration in program model checking - Software still experimental - Can be used for non-deterministic programs
