1. What can you do with a Grid Certificate? Andrew McNab High Energy Physics University of Manchester Grid Certs, Manchester HEP, 8 Nov 2002

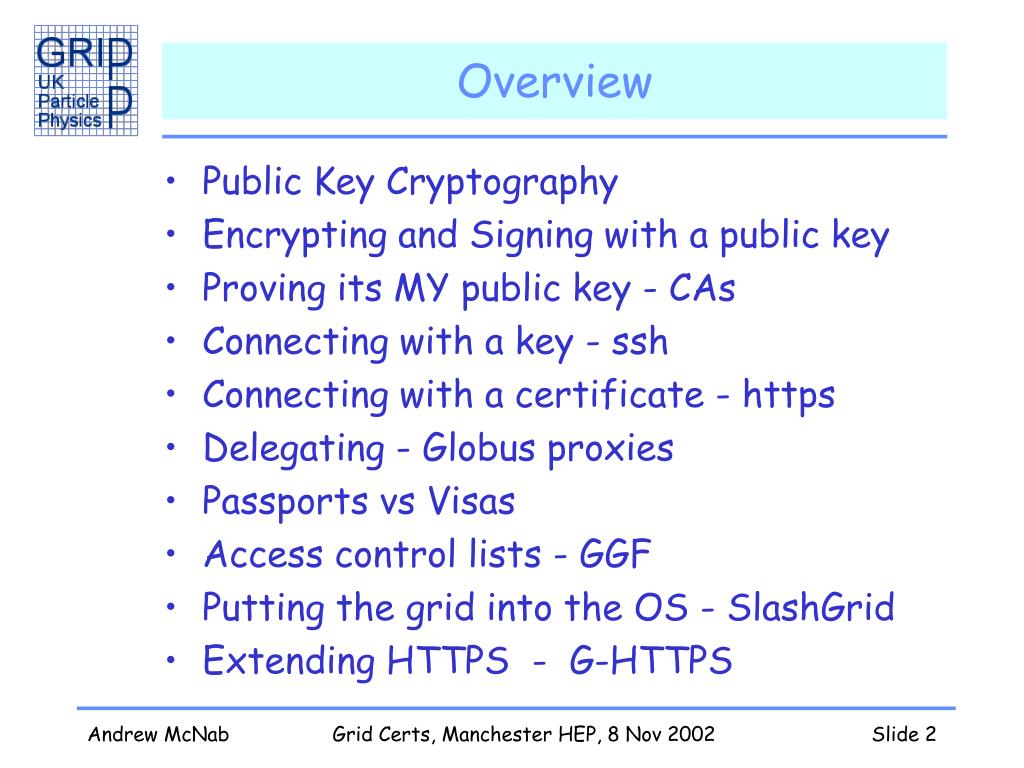

2. Overview • Public Key Cryptography • Encrypting and Signing with a public key • Proving its MY public key - CAs • Connecting with a key - ssh • Connecting with a certificate - https • Delegating - Globus proxies • Passports vs Visas • Access control lists - GGF • Putting the grid into the OS - SlashGrid • Extending HTTPS - G-HTTPS Grid Certs, Manchester HEP, 8 Nov 2002

3. Public Key Cryptography • This is one of the most interesting and downright useful areas of applied maths • Invented twice thanks to Official Secrets Act • by people at GCHQ 1970-4 (published 1998) • again by Diffie and Hellman at Stanford, 1976 • Various algorithms exist • Most common is RSA, invented by Rivest, Shamir and Adelman in 1977 • Initially patented (expired in 2000) • Also subject to US export legislation, despite being simple enough to put on a T-Shirt! Grid Certs, Manchester HEP, 8 Nov 2002

4. RSA algorithm (simplified a bit) • Say have public key n = pq, p and q are prime. • Private key d, 3d = 1 (mod [[p-1][q-1]]) • Encrypt message M (< n) as C = (M^3) mod n • Decrypt message M = (C^d) mod n • For example, n = 5 x 3 = 15, M=12 • d = 3 • C = 12^3 mod 15 = 3 • M’ = 3^3 mod 15 = 12 !! • However, if I don’t know p and q, I can’t get d. • If n=pq is very big, I can’t easily find prime numbers such that p q = n Grid Certs, Manchester HEP, 8 Nov 2002

5. Encrypting with public key • I can generate public and private keys • I publish my public key • You can turn a message into a number and encrypt it • Only I, who also know the private key, can decrypt it • This solves one of the ancient problems of cryptography, going back to Greeks etc • how to first get the encryption “secret” from the recipient to the sender in a secure way Grid Certs, Manchester HEP, 8 Nov 2002

6. Simple application: secret emails • Internet email is pretty insecure • Anyone who can listen on the network can see what’s in the emails as they go past • But using public and private keys, people can encrypt a message and include it in an email • Keys and messages are base64-encoded blobs of text like this: -----BEGIN RSA PRIVATE KEY----- MIIBPAIBAAJBAOd5Zstqe+PGkfg4T8e3tDAr3ykv79ErTvERwFlO64/6IA5KkpMK FizFR3hZmnC8lrS+5DItxdGkUo7y03mMMUsCAwEAAQJBAKQv0qA62cHJGcTtfHl3 bpI0rEg0vnCpvYb1RnCSsDggo4Banb7/ak2a/QrvfWoyt4Y60PE/6ypGvgiy6eqM d+ECIQD8+88SCzXjDoNHxfjceTdeS2ZcA2xHdoL9179guWUM0wIhAOo78FEVh45/ DagJRqXWNo81Sp1fk5LaIkmVXx2akh6pAiEAj2PCeH22K14cdt/1MDHceivOdrTR +Kdpk6tno9ExP1UCIQChLwHeKjyP+CpDma596/y7a2afCOgaQ/UYQaukSXuHkQIg ZQFJimvH4ZZjErleQ+KsmyI2NuTk2/EDQxbnpyN35+g= -----END RSA PRIVATE KEY----- Grid Certs, Manchester HEP, 8 Nov 2002

7. Signing emails • This technology doesn’t only allow us to encrypt messages • I can use my private key to generate a digital “signature” • Using my public key, you can verify that only I could have generated it • This gives both simple signing (you can verify the source) and non-repudiation (you can prove the same key signed a group of messages and I can’t deny it) • Signature is another block of text at the end of the original message in plaintext Grid Certs, Manchester HEP, 8 Nov 2002

8. Proving it’s MY public key • However, other people still have to verify it really is MY public key they are using • What if I can’t physically give you the key? • Certificate Authorities (CAs) / Trusted 3rd Parties resolve this • They sign other people’s public keys, along with a unique name -> “a certificate” • You still have to get the CA public key somehow • So: I can get my public key signed, put it on my webpage and you can verify it’s really mine • it’s hasn’t been replaced by a hacker, say Grid Certs, Manchester HEP, 8 Nov 2002

9. Certificate Authority namespaces • CA needs to have some unique naming for individuals • Could use Name + Postal Address, or Email Address. • In practice, use an X500 hierarchy: • /C=UK/O=eScience/OU=Manchester/L=HEP/CN=Andrew McNab • We use the UK HEP CA and now also the general e-Science CA at RAL • We are now directly responsible for names under /C=UK/O=eScience/OU=Manchester/L=HEP/… • New CA requires us to check some photo ID Grid Certs, Manchester HEP, 8 Nov 2002

10. Connecting with a key • ssh uses RSA and similar algorithms • Server generates a key pair to identify itself • Users can generate key pairs to use instead of passwords • At CERN, SLAC etc, put your public key in ~/.ssh/authorized_keys • When you connect, ssh checks if server key pair is the same as last time • but, the first time, it has to take it on trust • would be better to use a signed certificate, rather than just a public key Grid Certs, Manchester HEP, 8 Nov 2002

11. Connecting with a certificate • You’re probably familiar with https websites • eg for credit card orders from Easyjet • These use RSA etc to secure the connection • Hosts have certificates rather than just public keys • in cert name have …/CN=www.easyjet.com • So web browser can verify you’re really giving your credit card number to Easyjet • Also, if you put a user certificate into the browser, webserver can verify who you are Grid Certs, Manchester HEP, 8 Nov 2002

12. GridSite • GridSite system has user authentification • Written here and used for www.gridpp.ac.uk • Maintains lists of users in different groups • Each directory has a list of groups who can modify its webpages • Tools on website allow you to upload files, edit pages • Group admins can modify the membership of their group too • Devolves the work of maintaining the site down to each subgroup Grid Certs, Manchester HEP, 8 Nov 2002

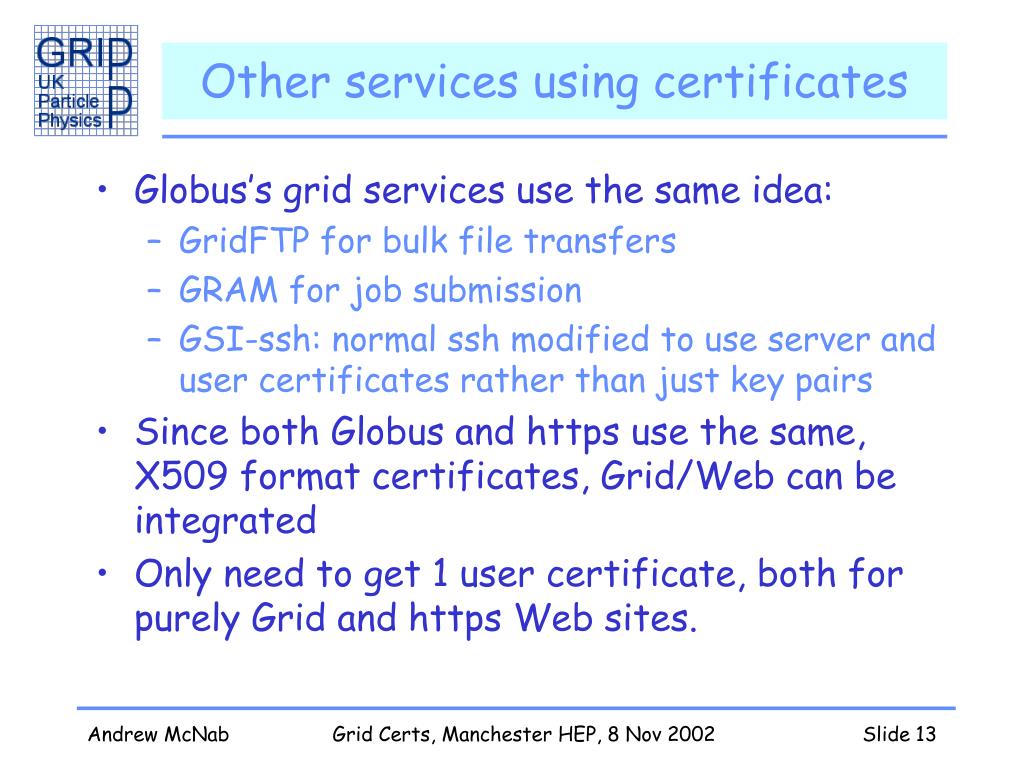

13. Other services using certificates • Globus’s grid services use the same idea: • GridFTP for bulk file transfers • GRAM for job submission • GSI-ssh: normal ssh modified to use server and user certificates rather than just key pairs • Since both Globus and https use the same, X509 format certificates, Grid/Web can be integrated • Only need to get 1 user certificate, both for purely Grid and https Web sites. Grid Certs, Manchester HEP, 8 Nov 2002

14. Globus Delegation • In normal https, I can prove who I am to the website, but that’s it • Globus extended this idea with delegation • When I contact a remote host, it also makes a new, temporary key pair with my name • I agree to sign the public key, like a CA does • My programs on the host can then contact other hosts with the “proxy” = chain of certs • A 2nd remote host can check I authorised all this, by checking the chain of certs one by one • no need to take 1st host’s word for it! Grid Certs, Manchester HEP, 8 Nov 2002

15. “Single sign-on” • Delegation allows you to just sign on once • Do grid-proxy-init command once each day • locally delegates proxy as /tmp/x509up_uXX • Each Globus program looks for this when connecting: • globus-job-run for job submission • globus-url-copy for file copying • gsi-ssh for getting a remote command line • EU DataGrid programs built with this do too: • dg-job-submit • dg-job-get-output Grid Certs, Manchester HEP, 8 Nov 2002

16. Delegation in jobs • As the Grid becomes more complex, delegation becomes vital • User at Site A submits a job • Job goes to Resource Broker at Site B • RB sends job to Site C which has spare CPUs • Job running at C reads data catalog at Site D • Job at C reads closest data replica from Site E • Job finishes hours later and sends output to file server back at Site A • Delegation means not having to take other sites’ “word for it” - which wouldn’t scale up Grid Certs, Manchester HEP, 8 Nov 2002

17. Passports vs Visas • Globus uses grid-mapfile - lists mapping of certificate name to local unix user ID • if you’re “on the list” then you are in • This is equivalent to a Passport + a Ban / Invitation List • New systems being built with a Visa model • when I make my initial proxy, I also include a signed statement from my organisation • this “attribute cert” proves my membership • since I can’t forge the Atlas signature, each site doesn’t need the list of “all Atlas Users” Grid Certs, Manchester HEP, 8 Nov 2002

18. Grid Access Control Lists • Our GACL format provides a way of writing ACLs using Grid credentials • user certificate names, group certificates etc • GridSite uses this format already • Other projects (eg EDG Storage Element) taking it up • Now part of the authorisation work in Global Grid Forum (GGF) • GGF: world wide standards body for Grids • I co-chair the Authorisation Working Group Grid Certs, Manchester HEP, 8 Nov 2002

19. SlashGrid: Grid filesystems • Almost all EDG sites use Manchester’s pool accounts system • get a temporary Unix UID when you run a job • SlashGrid adds to this by controlling disk access and file ownership • use GACL access control lists to say who owns each directory • enforced at kernel level so all programs see it • Unix ID doesn’t matter: Grid ID does • Also provides a remote filesystem using https • Like AFS, but Grid credentials and web servers Grid Certs, Manchester HEP, 8 Nov 2002

20. Extending HTTPS - G-HTTPS • Normal HTTPS is already very Grid-like • Work now underway to add more Grid features • need to avoid breaking existing HTTPS • our G-HTTPS proposal designed to do this • Delegation from client to server • so get all the benefits discussed already • Servers can return the ACL along with the file • so if I cache a copy locally, I know who I can share the copy with • Relevant EDG groups involved; taking it to GGF Grid Certs, Manchester HEP, 8 Nov 2002

21. fileGridSite • fileGridSite is a cut down version of GridSite • just does plain text/binary files • group/webpage management features removed • A testbed for new HTTPS extensions • Made possible by Mike Jones’ mod_ssl-GSI • this makes web servers understand Globus delegated proxies • G-HTTPS lets the server get a delegated proxy itself • fileGridSite aims to offer the same functions as a GridFTP server, but with HTTP/HTTPS Grid Certs, Manchester HEP, 8 Nov 2002

22. Summary • Public key cryptography provides privacy and authentification • Certificate Authority infrastructure makes it scalable • Lots of Web and now Grid tools have been built to use it • Delegation makes Grids practical • New tools for group membership, and disk/web access control being developed • much of it here at Manchester • All this feeding into new Grid-wide standards Grid Certs, Manchester HEP, 8 Nov 2002
