the adaptive agent model

The Adaptive Agent Model

Liang Xiao and Des Greer

School of Computer Science,

Queen's University Belfast,

Northern Ireland, UK

Software Adaptivity through Dynamic Agents and XML-based Business Rules

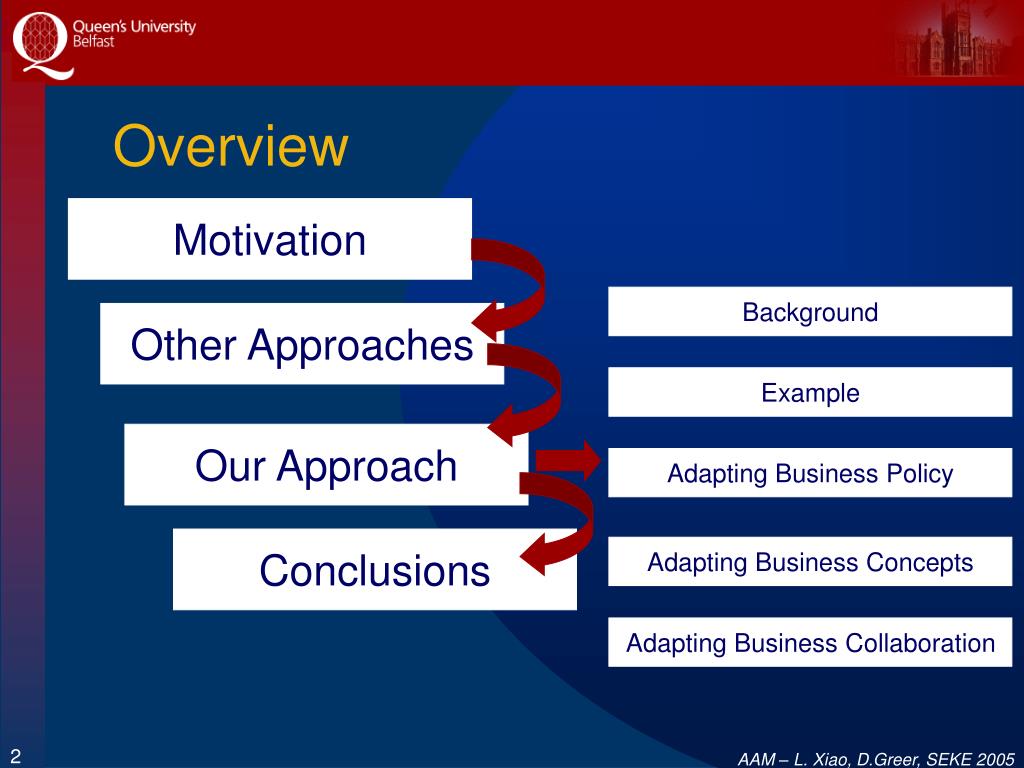

overview

Background

Example

Adapting Business Policy

Adapting Business Concepts

Adapting Business Collaboration

Overview

Motivation

Other Approaches

Our Approach

Conclusions

motivation
Motivation
  • Software maintenance is very expensive
  • Much of Software Engineering research into making systems easily and economically adaptable
  • Need to make change easier and cheaper!
  • Better still is adaptive
    • Systems change their behaviour according to their context
  • Combining OO with Agent approach may provide a route to adaptivity
selected approaches to adaptivity i
Use of design pattern e.g. Strategy

Predict future behaviour and write code for it

Later select new behaviour

Relies on being able to predict behaviour

Co-ordination Contract – externalise coordination as contracts

Evolve by adding/changing contracts

Components still have to be recoded if functionality cannot be achieved via contracts

Selected approaches to Adaptivity (i)
selected approaches to adaptivity ii

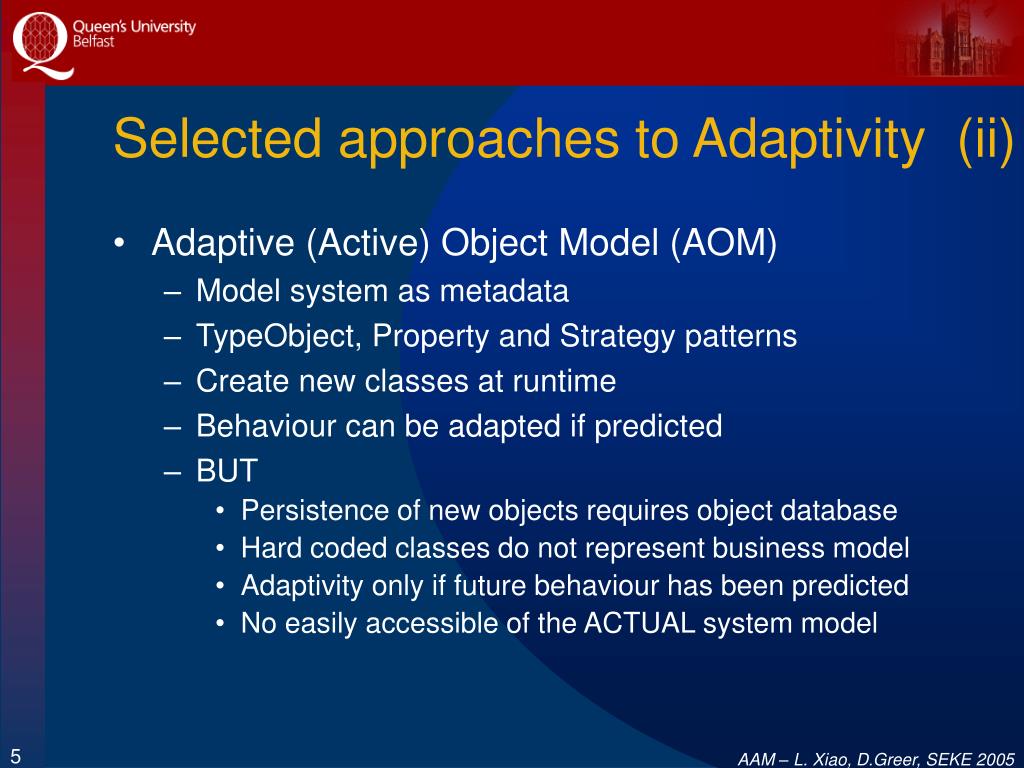

Selected approaches to Adaptivity (ii)
  • Adaptive (Active) Object Model (AOM)
    • Model system as metadata
    • TypeObject, Property and Strategy patterns
    • Create new classes at runtime
    • Behaviour can be adapted if predicted
    • BUT
      • Persistence of new objects requires object database
      • Hard coded classes do not represent business model
      • Adaptivity only if future behaviour has been predicted
      • No easily accessible of the ACTUAL system model
selected approaches to adaptivity iii
Selected approaches to Adaptivity (iii)
  • Main concerns are cost and time for maintenance
  • Cheapest (ideal) solution is self-adaptivity
  • Objects are passive
  • Need new approach to move responsibility for change towards the user
what s important
What’s important?
  • Important in OO: modularity, information hiding …
  • These refer to easy redesign NOT adaptation during operation
  • Much attention on intelligent/autonomous agents for adaptivity
    • Agents capable of flexible, autonomous action to meet their own objectives
why agents and business rules
Why Agents and Business Rules?
  • Our Hypotheses:
    • system consisting of agents, where the behaviour can be configured dynamically as policies or rules will provide better adaptivity
    • Agents are active , unlike objects
      • Objects have static methods, agents have flexibility
    • Requirements embedded in code are not easily adapted
    • Rules can be externalised (as XML) and used by agents
      • Externalisation means ease of change
illustrative example
Illustrative Example
  • Retailer serves students/staff
  • Policies include certain discounts
    • e.g. individual students/groups/departments
    • Customers can become ‘premium’
    • Goods ordered have different suppliers and discount may depend on that too
    • Policies added/amended constantly
    • Suppose a new attribute ‘credit’ is added later and new policies arise based on the value of that
simple example change issues
Simple example – change issues
  • 3 categories of change
    • New business policy e.g. new discount for a certain group
    • New business concepts e.g ‘credit’
    • New business architecture/ collaboratione.g. change to new supplier
  • How can we allow these to be changed?
adapting business policy
Adapting Business Policy
  • Business policies represented as rules
  • Business rules traditionally often embedded in code / logic
  • 2 categories
    • Global = apply to whole business domain. These refer to business policy
    • ( Local = apply to individual agents and refer to how they collaborate)
adapting business policy ii
Adapting business policy (ii)
  • We use a simple template for global rules

IF objectName1.attribute1 op1 value1THEN objectName2.attribute2 op2 value 2Priority value3

-<rule>

<id> ruleId </id>

<condition>

objectName1.attributeName1 op1 value1

</condition>

<action>

objectName2.attributeName2 op2 value2

</action>

<priority> value3</priority>

</rule>

adapting business policy iii
Adapting business policy (iii)

IF customer.type == premium

THEN customer.discount := 5%

Priority 5

adapting business policy iii14

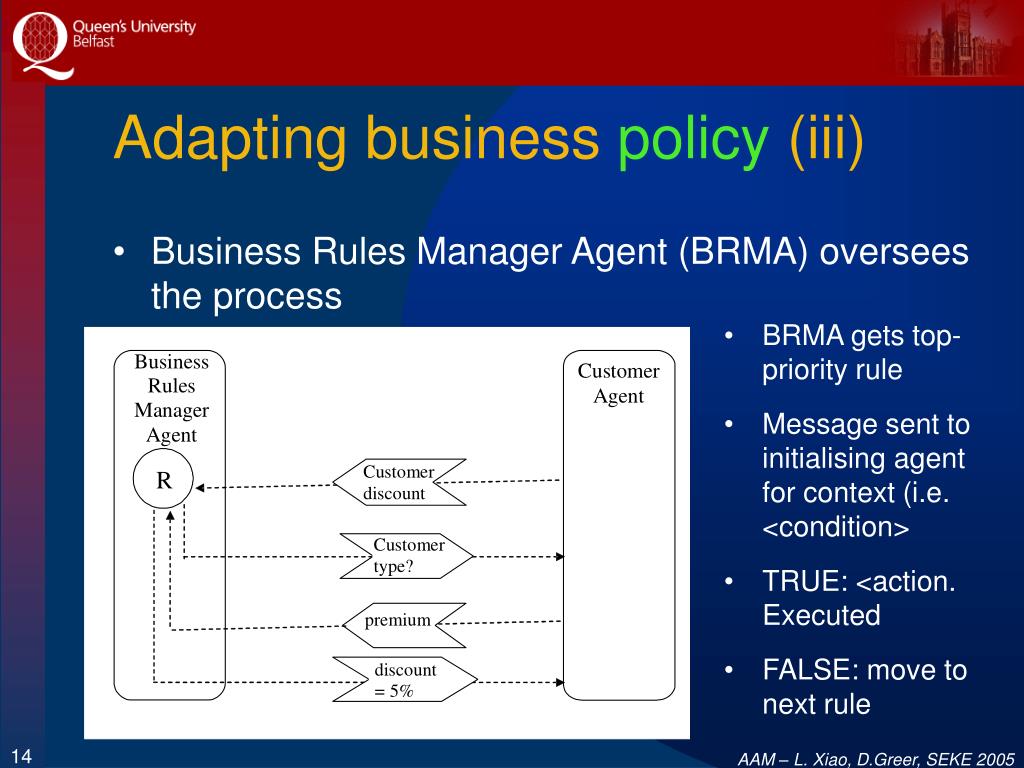

Adapting business policy (iii)
  • Business Rules Manager Agent (BRMA) oversees the process
  • BRMA gets top-priority rule
  • Message sent to initialising agent for context (i.e. <condition>
  • TRUE: <action. Executed
  • FALSE: move to next rule
adapting business concepts

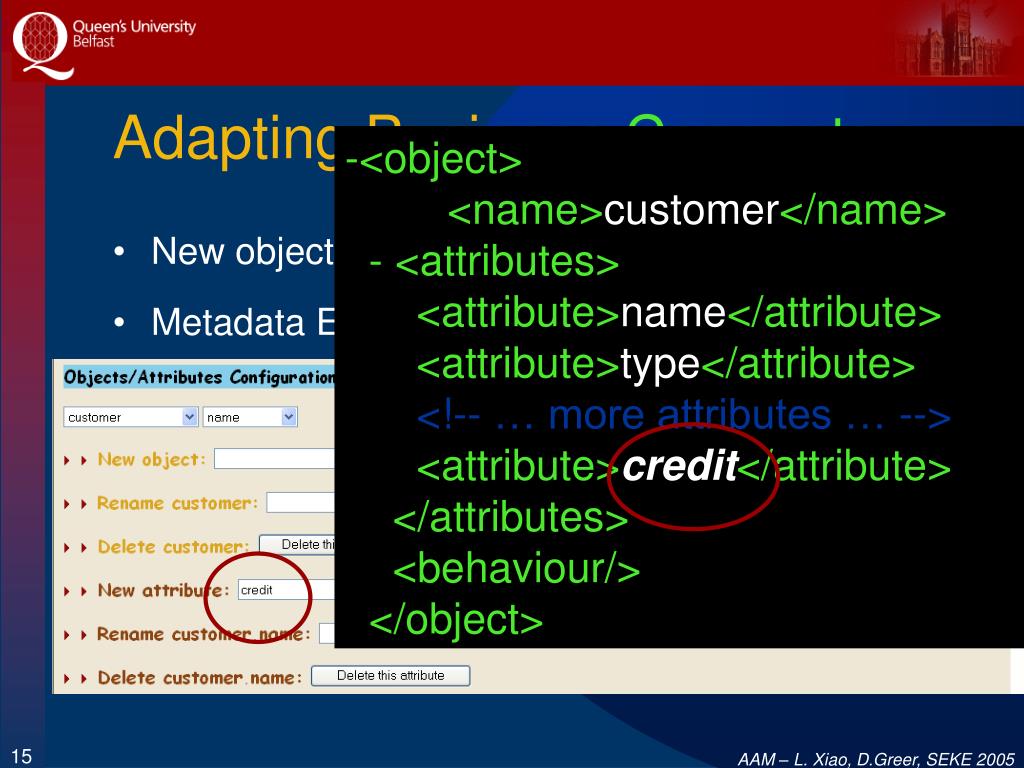

Adapting Business Concepts
  • <object>

<name>customer</name>

- <attributes>

<attribute>name</attribute>

<attribute>type</attribute>

<!-- … more attributes … -->

<attribute>credit</attribute>

</attributes>

<behaviour/>

</object>

  • New objects, new attributes may arise
  • Metadata Editor allows these to be added
adapting business concepts ii

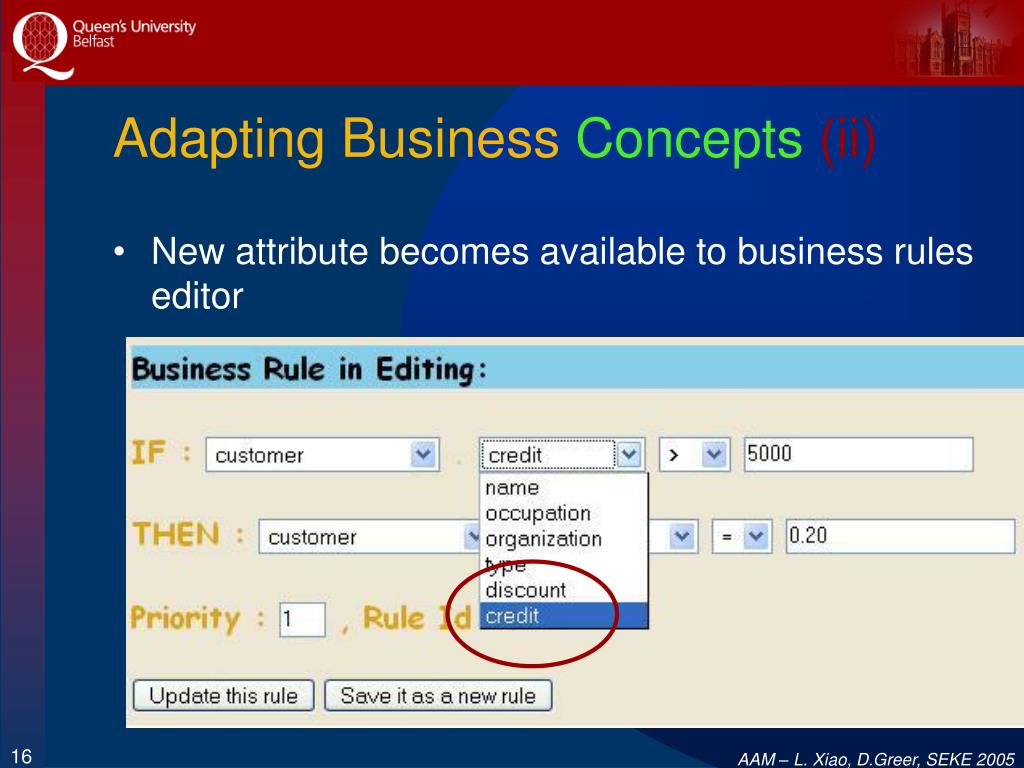

Adapting Business Concepts (ii)
  • New attribute becomes available to business rules editor
adapting collaboration

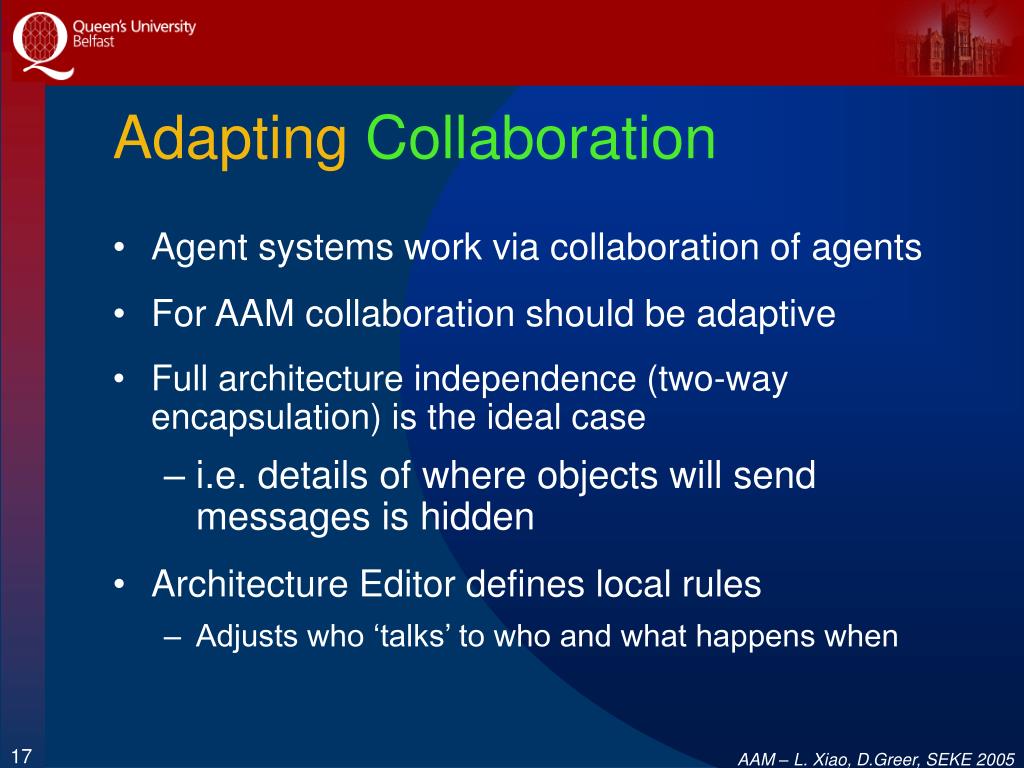

Adapting Collaboration
  • Agent systems work via collaboration of agents
  • For AAM collaboration should be adaptive
  • Full architecture independence (two-way encapsulation) is the ideal case
    • i.e. details of where objects will send messages is hidden
  • Architecture Editor defines local rules
    • Adjusts who ‘talks’ to who and what happens when
adapting collaboration ii

- <event>

<type>receipt of message</type>

- <message>

<from>Retailer.orderProcessing</from>

<to>Company.saleProcessing</to>

<title>Call for proposal</title>- <content> … </content>

</message>

</event>

<condition>

order.isOrderAttractive() = true

</condition>

Adapting Collaboration (ii)

- <local-rule>

<name>saleProcessing</name>

<business-process>retailer business</business-process>

<owner-agent>Company</owner-agent>

- <action>

<type>send a message</type>

- <message>

<from>Company.saleProcessing</from>

<to>Retailer.proposalProcessing</to>

<title>Propose</title>

- <content> …</content>

</message>

</action>

<priority>5</priority>

adapting collaboration iii
Adapting Collaboration(iii)
  • Rule definitions contain
    • Causing trigger event
    • The data content of the message being received
    • A series of (condition, action, priority) triplets
  • When an event occurs (usually receipt of a message)
    • The agent looks at its local rule set and chooses which action to take
  • Collaboration is dynamic
    • Via the Architecture editor rules are changed and saved as XML and used immediately
rule specification
Rule Specification

Event:

incoming request message

M

essage

Processing:

process the incoming message

Action:

i

f

one of

the

e

Belief:

a

rule condition

s

is

the agent that

2

satisfied, then perform

executes the rule

Rule

a

corre

sponding

action

updates its belief

with

with an outgoing

the information

message

received in the

c

incoming

message

1

a

Check Rule Condition

1

(business company

interest, customer

(c

, c

, … , c

)

c

1

2

n

2

shopping habits, etc.)

c

n

a

2

Outgoing m

essage

a

n

conclusion
Conclusion
  • Agents retrieve knowledge from business rules
    • New business concepts (Metadata editor)
    • Change of business policy (Business Rules Editor)
    • Change of business architectures (Architecture editor)
  • Adaptivity achieved since the editors define the environment and the system reacts
future vision
Future vision
  • Some Possibilities
    • Priorities of rules are learned
    • Alternative paths are taken as required
