pika warp customization

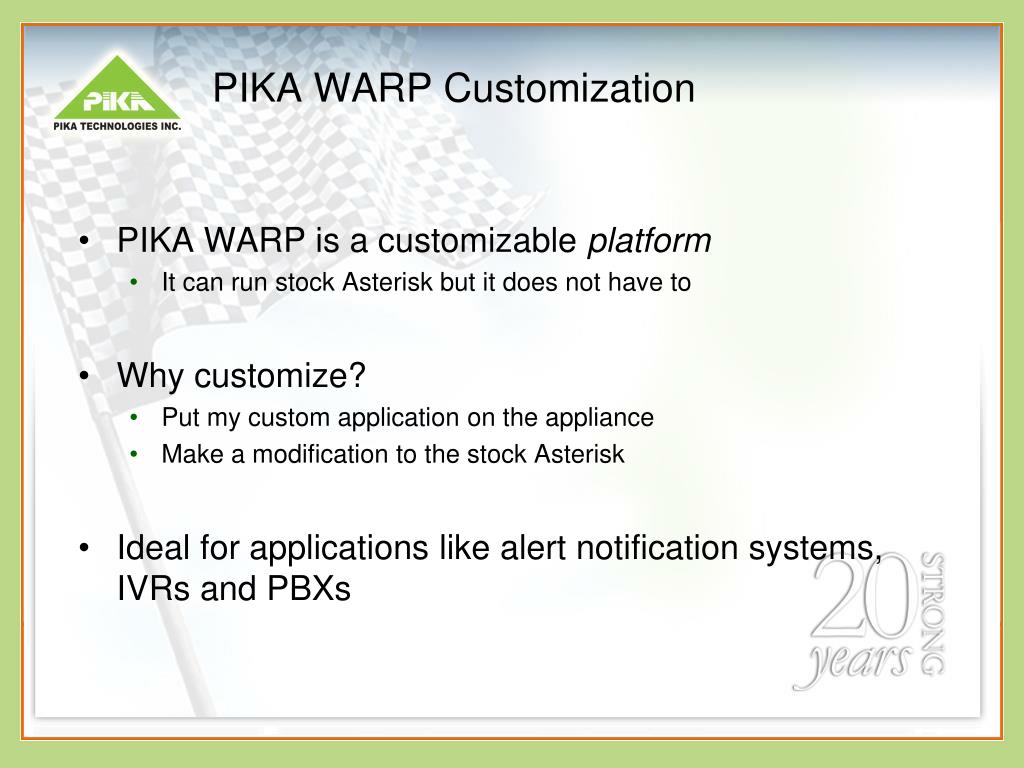

PIKA WARP Customization
  • PIKA WARP is a customizable platform
    • It can run stock Asterisk but it does not have to
  • Why customize?
    • Put my custom application on the appliance
    • Make a modification to the stock Asterisk
  • Ideal for applications like alert notification systems, IVRs and PBXs
what does the appliance offer to developers

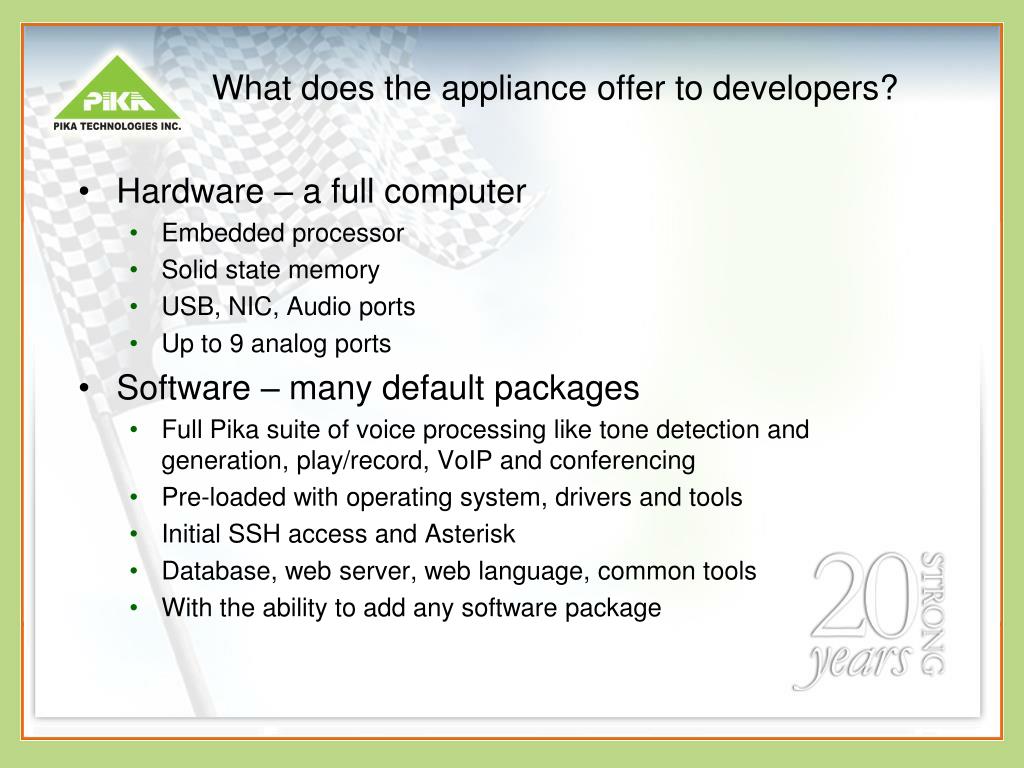

What does the appliance offer to developers?
  • Hardware – a full computer
    • Embedded processor
    • Solid state memory
    • USB, NIC, Audio ports
    • Up to 9 analog ports
  • Software – many default packages
    • Full Pika suite of voice processing like tone detection and generation, play/record, VoIP and conferencing
    • Pre-loaded with operating system, drivers and tools
    • Initial SSH access and Asterisk
    • Database, web server, web language, common tools
    • With the ability to add any software package
pre loaded software

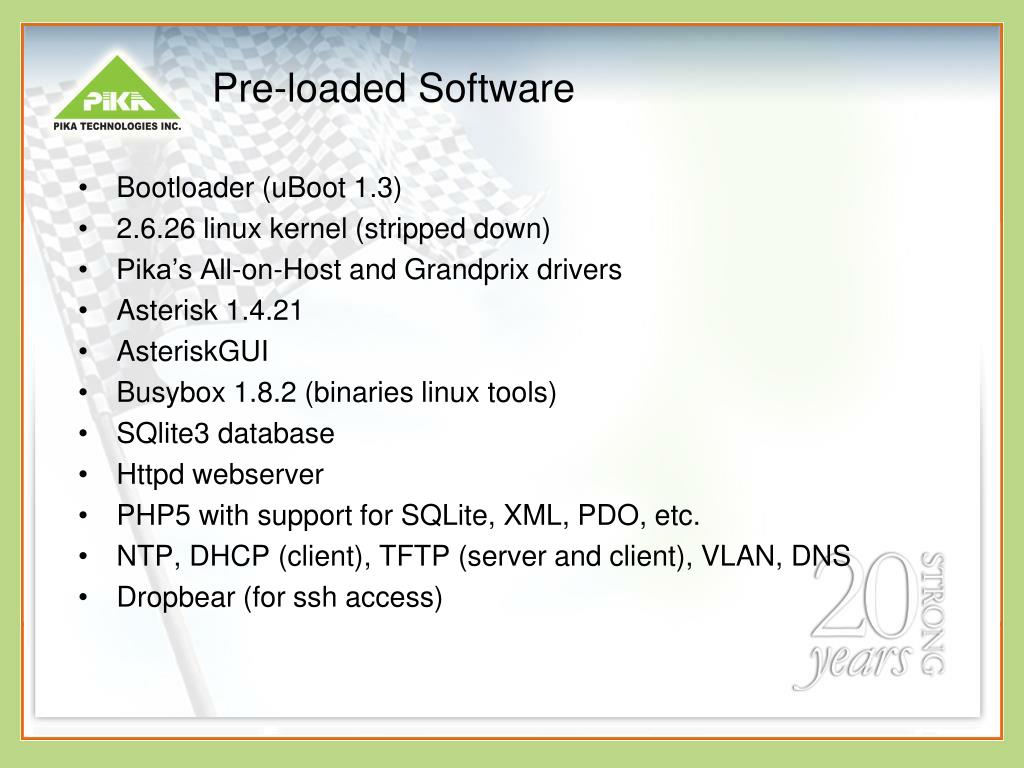

Pre-loaded Software
  • Bootloader (uBoot 1.3)
  • 2.6.26 linux kernel (stripped down)
  • Pika’s All-on-Host and Grandprix drivers
  • Asterisk 1.4.21
  • AsteriskGUI
  • Busybox 1.8.2 (binaries linux tools)
  • SQlite3 database
  • Httpd webserver
  • PHP5 with support for SQLite, XML, PDO, etc.
  • NTP, DHCP (client), TFTP (server and client), VLAN, DNS
  • Dropbear (for ssh access)
what api will be available

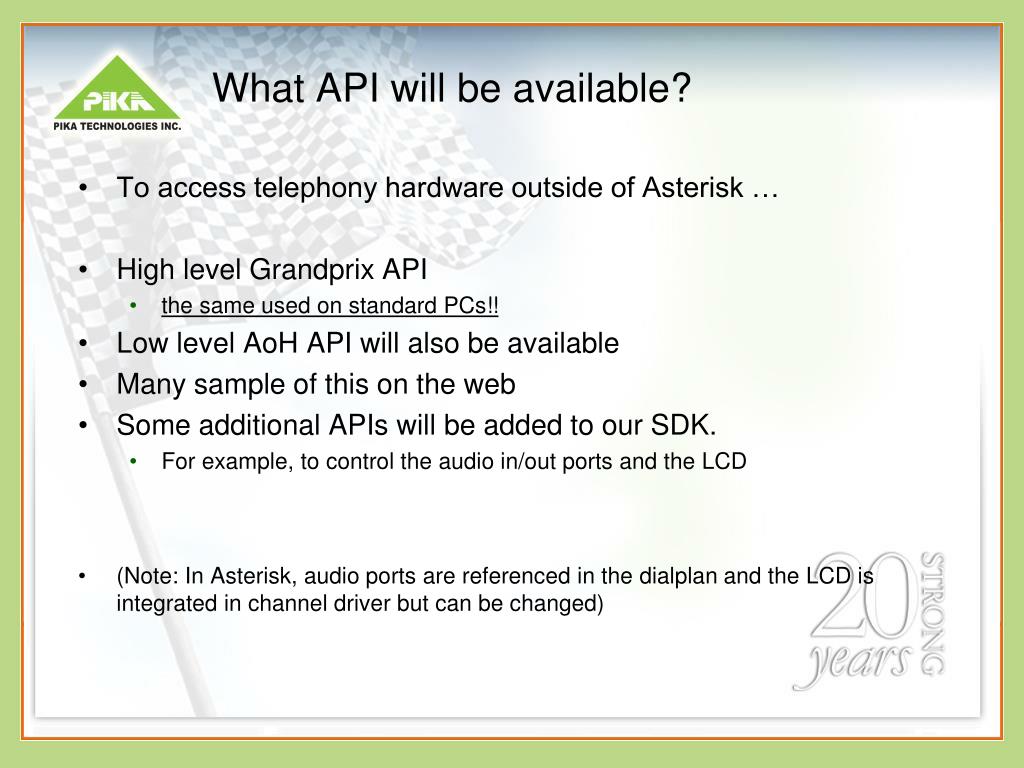

What API will be available?
  • To access telephony hardware outside of Asterisk …
  • High level Grandprix API
    • the same used on standard PCs!!
  • Low level AoH API will also be available
  • Many sample of this on the web
  • Some additional APIs will be added to our SDK.
    • For example, to control the audio in/out ports and the LCD
  • (Note: In Asterisk, audio ports are referenced in the dialplan and the LCD is integrated in channel driver but can be changed)
custom user application
Custom User Application

/persistent

/root

Database

Your Application

Grandprix

LCDlibrary

Database server

/u-boot

/kernel

Configuration files

HMP

PIKA Kernel Modules

Linux Kernel

/persistent1

Warploader

Logs

Busybox

NTP

/persistent2

Dropbear

Skeleton

asterisk application
Asterisk Application

/persistent

/root

Configuration files

AsteriskApplication

Channel PIKA (glue)

/u-boot

/kernel

Grandprix

LCDlibrary

HMP

Linux Kernel

/persistent1

PIKA Kernel Modules

Logs

Warploader

Busybox

NTP

/persistent2

Dropbear

Skeleton

pika s development kit

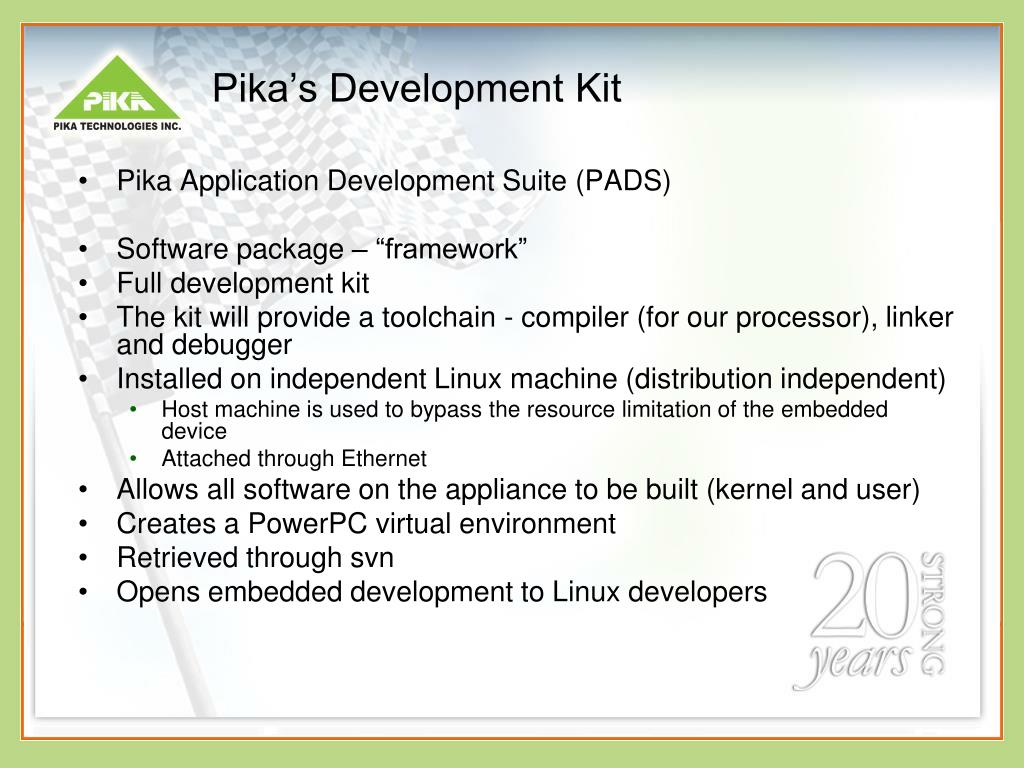

Pika’s Development Kit
  • Pika Application Development Suite (PADS)
  • Software package – “framework”
  • Full development kit
  • The kit will provide a toolchain - compiler (for our processor), linker and debugger
  • Installed on independent Linux machine (distribution independent)
    • Host machine is used to bypass the resource limitation of the embedded device
    • Attached through Ethernet
  • Allows all software on the appliance to be built (kernel and user)
  • Creates a PowerPC virtual environment
  • Retrieved through svn
  • Opens embedded development to Linux developers
slide9

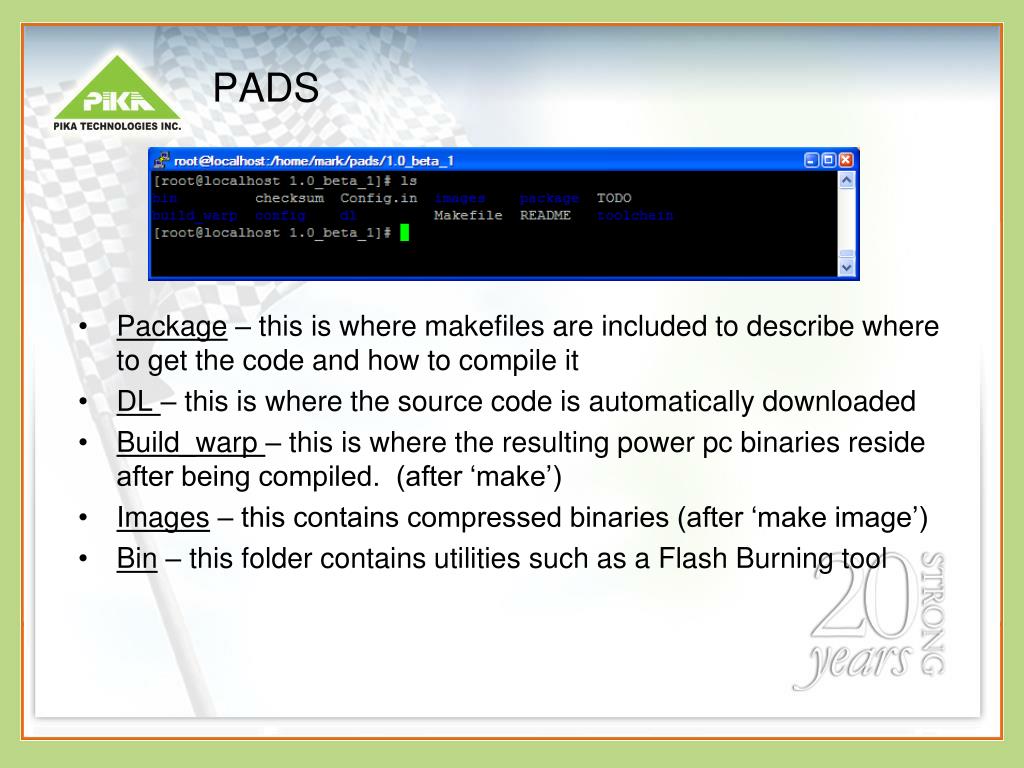

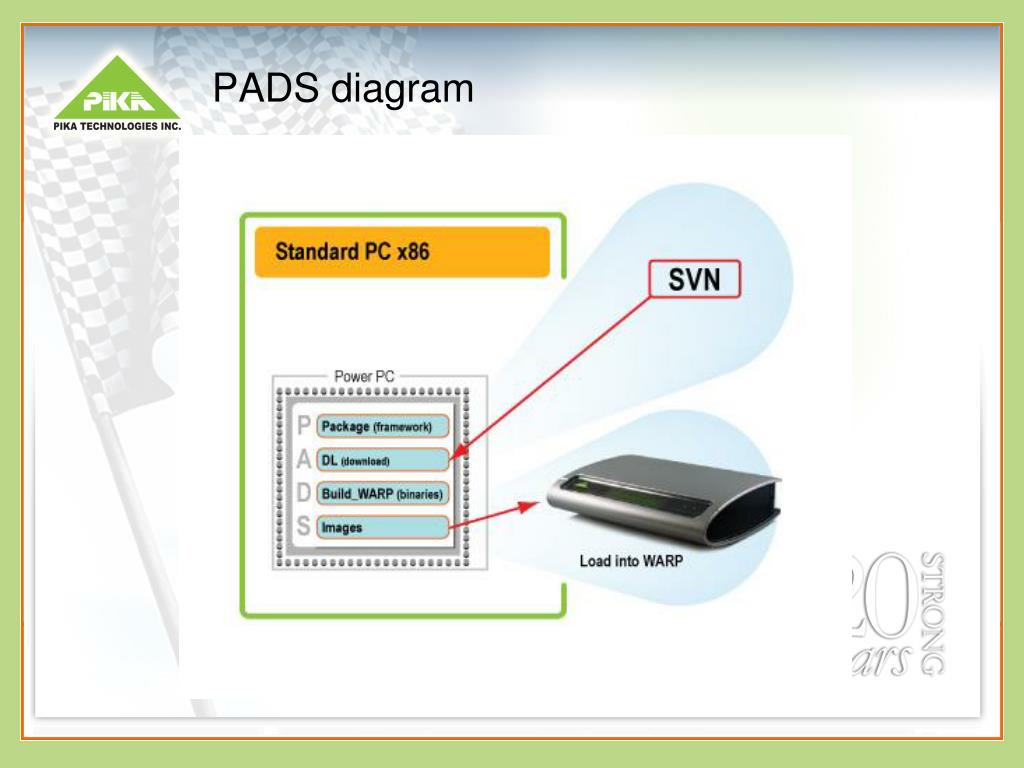

PADS
  • Package – this is where makefiles are included to describe where to get the code and how to compile it
  • DL – this is where the source code is automatically downloaded
  • Build_warp – this is where the resulting power pc binaries reside after being compiled. (after ‘make’)
  • Images – this contains compressed binaries (after ‘make image’)
  • Bin – this folder contains utilities such as a Flash Burning tool
steps to building the 3 makes

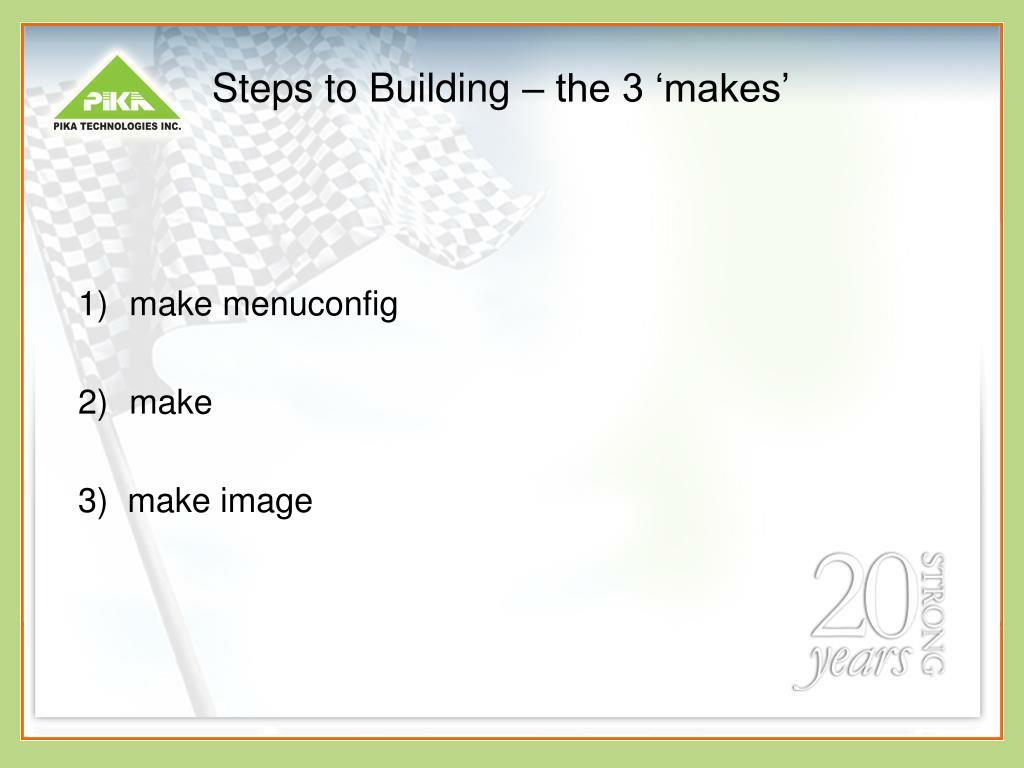

Steps to Building – the 3 ‘makes’
  • make menuconfig
  • make

3) make image

step 1 select packages
Step #1 – select packages
  • ‘make menuconfig’ allows you to select packages, tools and programs to include on the appliance through a package menu
  • Examples include Asterisk, webserver, etc.
step 2 compiling

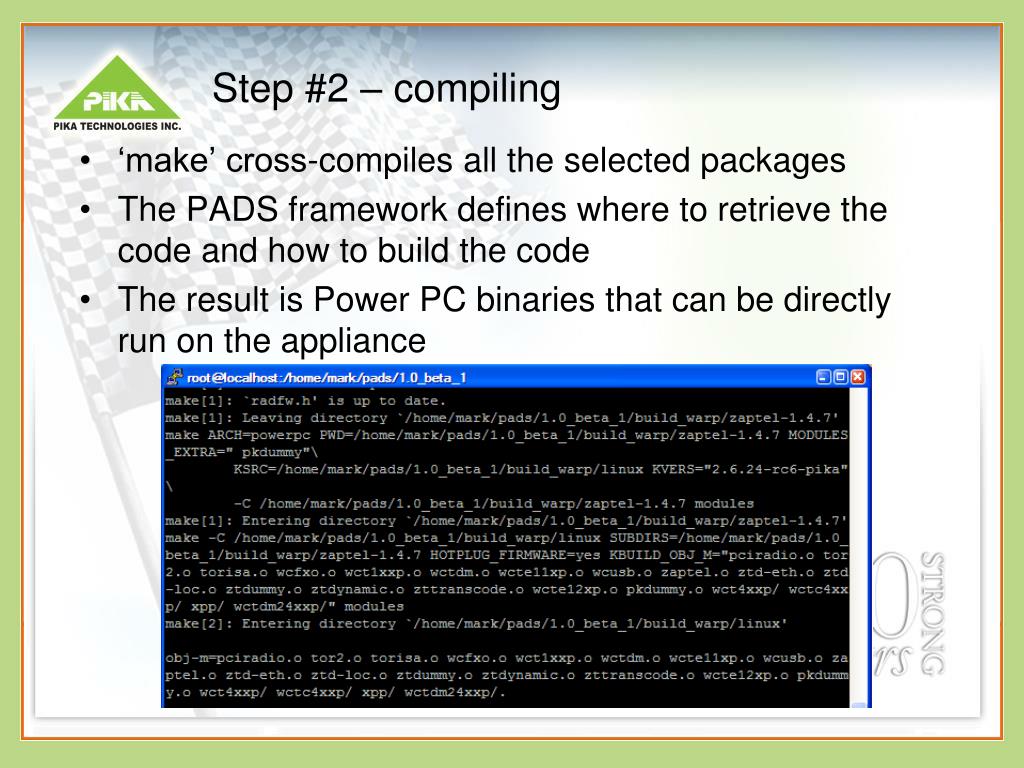

Step #2 – compiling
  • ‘make’ cross-compiles all the selected packages
  • The PADS framework defines where to retrieve the code and how to build the code
  • The result is Power PC binaries that can be directly run on the appliance
background memory

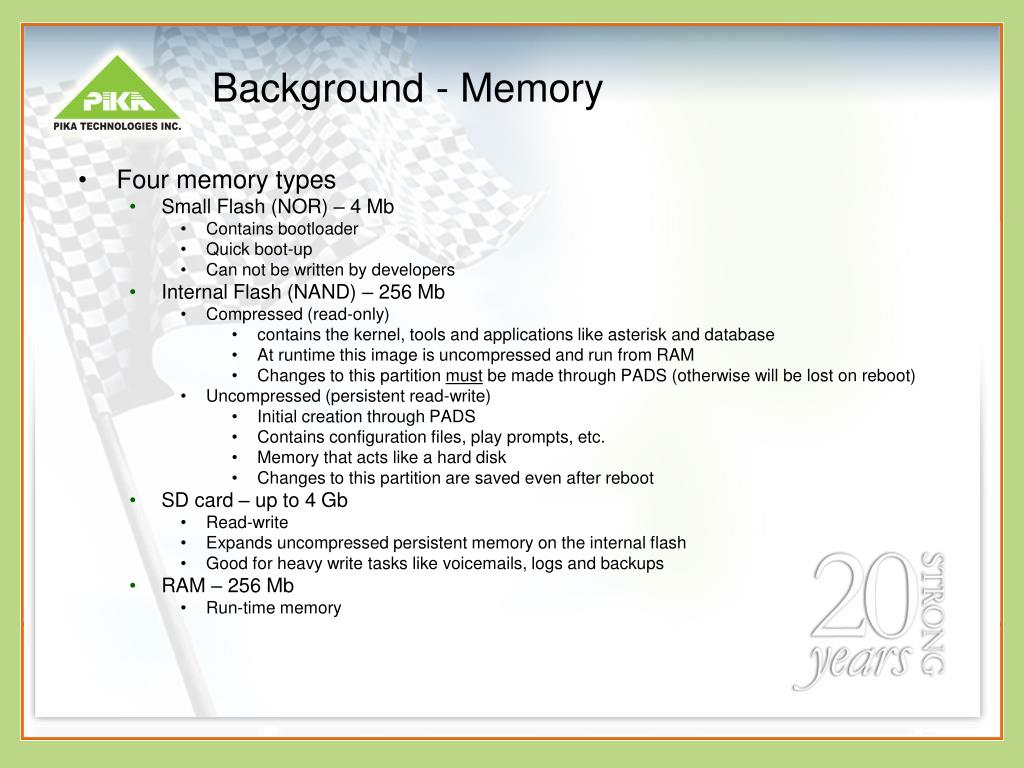

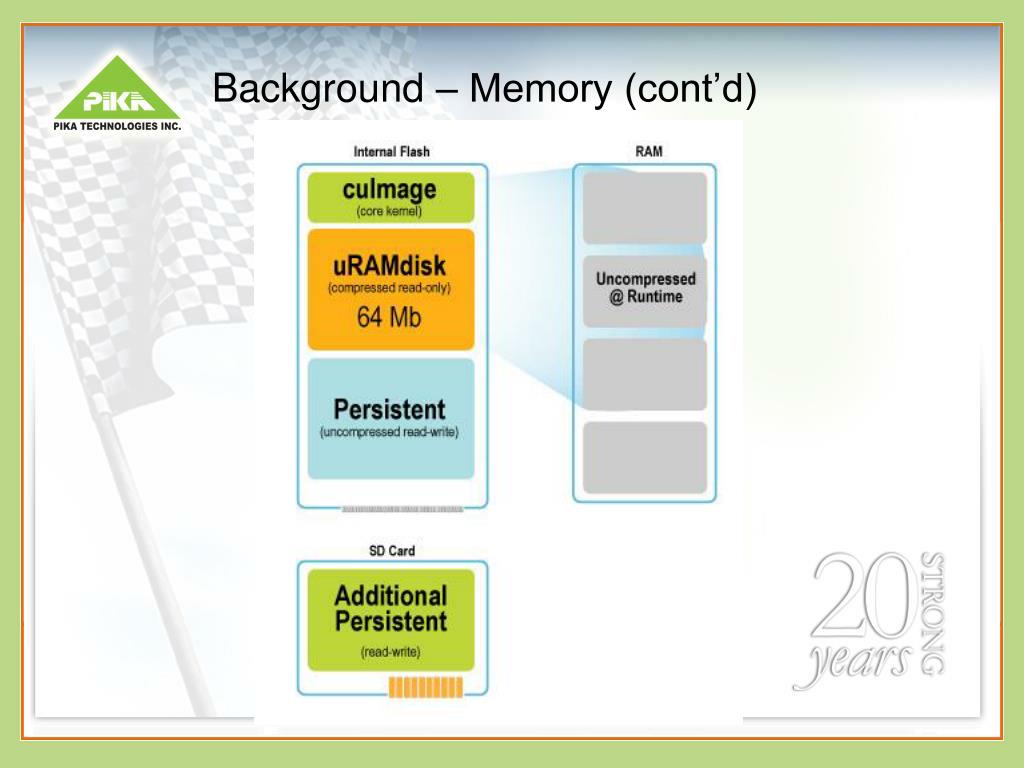

Background - Memory
  • Four memory types
    • Small Flash (NOR) – 4 Mb
      • Contains bootloader
      • Quick boot-up
      • Can not be written by developers
    • Internal Flash (NAND) – 256 Mb
      • Compressed (read-only)
        • contains the kernel, tools and applications like asterisk and database
        • At runtime this image is uncompressed and run from RAM
        • Changes to this partition must be made through PADS (otherwise will be lost on reboot)
      • Uncompressed (persistent read-write)
        • Initial creation through PADS
        • Contains configuration files, play prompts, etc.
        • Memory that acts like a hard disk
        • Changes to this partition are saved even after reboot
    • SD card – up to 4 Gb
      • Read-write
      • Expands uncompressed persistent memory on the internal flash
      • Good for heavy write tasks like voicemails, logs and backups
    • RAM – 256 Mb
      • Run-time memory
step 3 creating and burning images

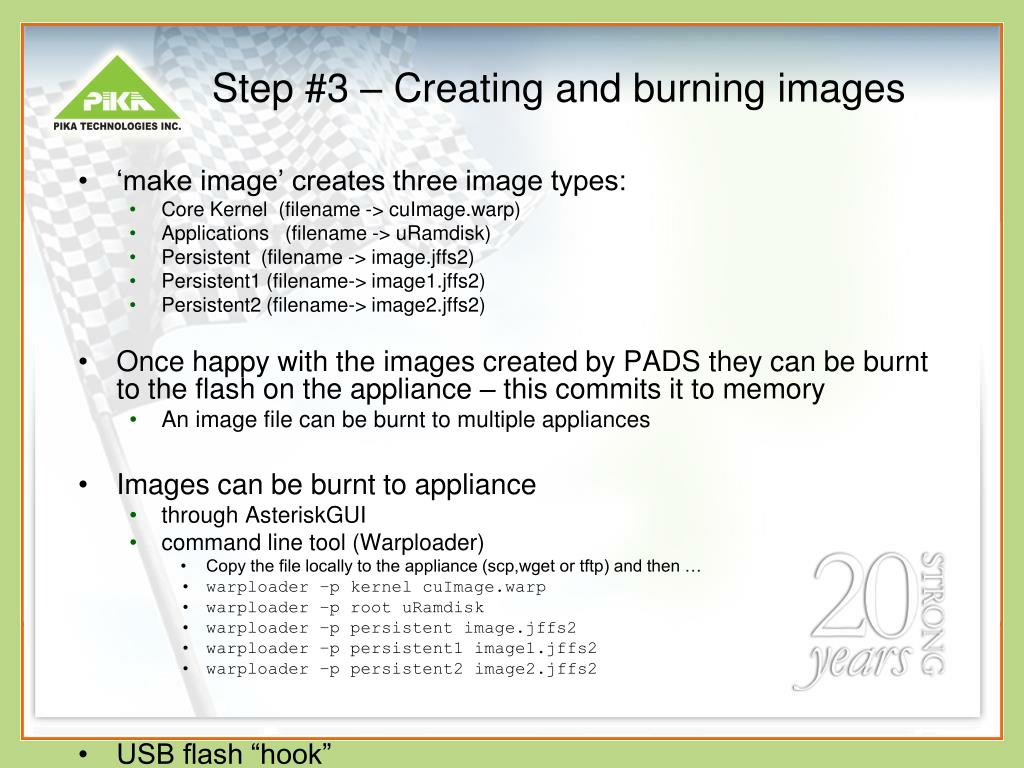

Step #3 – Creating and burning images
  • ‘make image’ creates three image types:
    • Core Kernel (filename -> cuImage.warp)
    • Applications (filename -> uRamdisk)
    • Persistent (filename -> image.jffs2)
    • Persistent1 (filename-> image1.jffs2)
    • Persistent2 (filename-> image2.jffs2)
  • Once happy with the images created by PADS they can be burnt to the flash on the appliance – this commits it to memory
    • An image file can be burnt to multiple appliances
  • Images can be burnt to appliance
    • through AsteriskGUI
    • command line tool (Warploader)
      • Copy the file locally to the appliance (scp,wget or tftp) and then …
      • warploader –p kernel cuImage.warp
      • warploader –p root uRamdisk
      • warploader –p persistent image.jffs2
      • warploader –p persistent1 image1.jffs2
      • warploader –p persistent2 image2.jffs2
  • USB flash “hook”
development approach

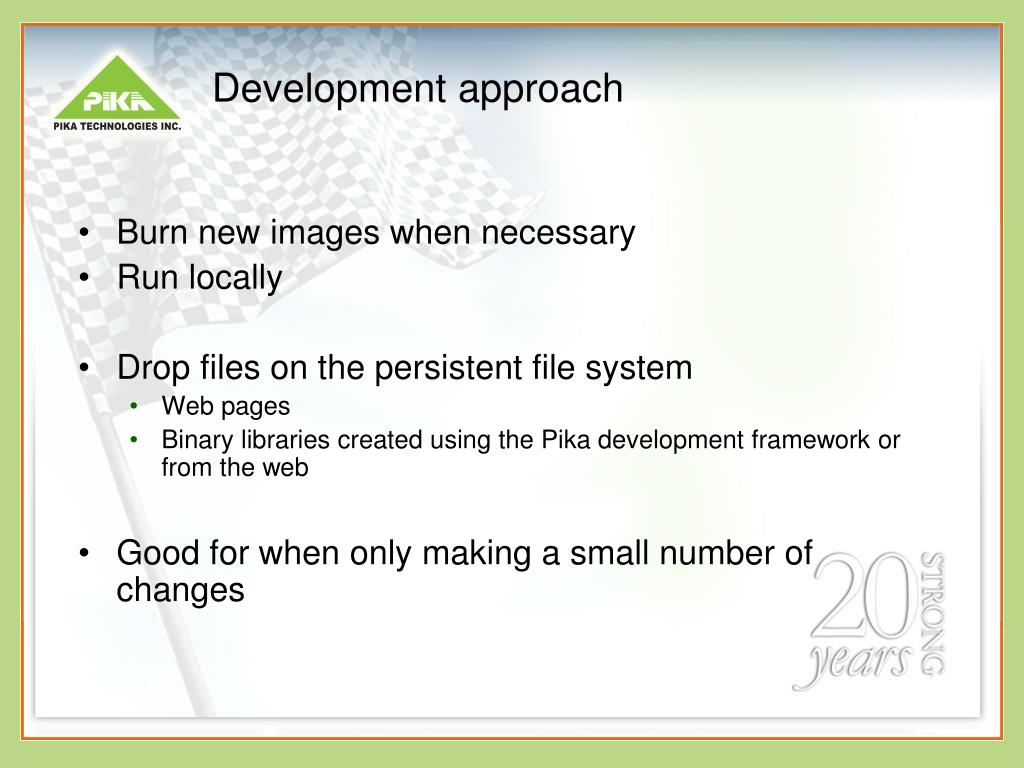

Development approach
  • Burn new images when necessary
  • Run locally
  • Drop files on the persistent file system
    • Web pages
    • Binary libraries created using the Pika development framework or from the web
  • Good for when only making a small number of changes
alternate approach nfs
Alternate approach – NFS
  • Optional –useful for large development projects
  • For development
    • Quick, volatile
    • Remotely mounted file system (in build_warp folder)

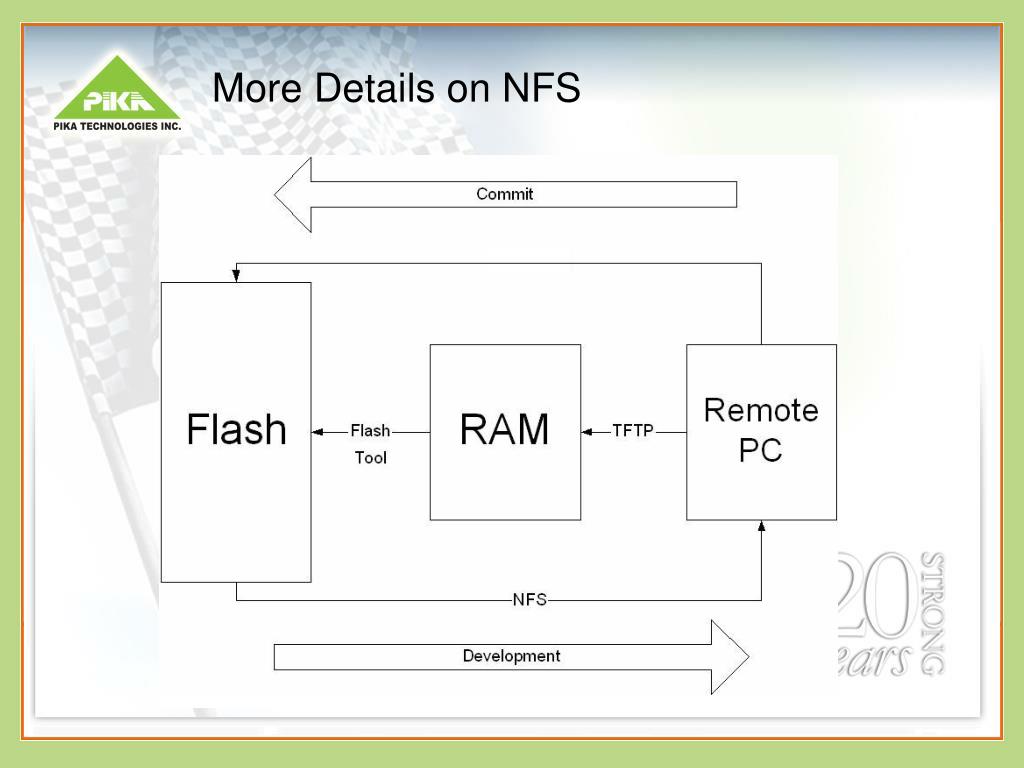

    • Use NFS server to mirror appliance memory on development PC
    • Changes made on remote machine but run by the processor on the appliance
    • Run without flashing to reduce development time
    • No code changes on the appliance
    • Attached through Ethernet (initially setup by serial cable)
adding packages

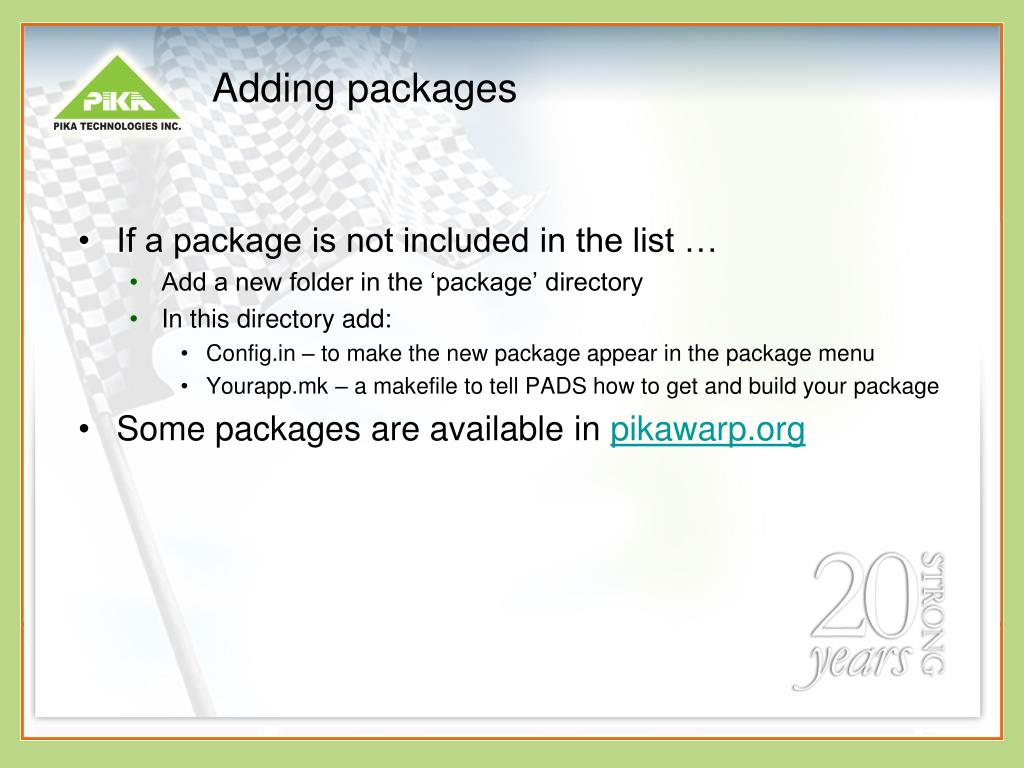

Adding packages
  • If a package is not included in the list …
    • Add a new folder in the ‘package’ directory
    • In this directory add:
      • Config.in – to make the new package appear in the package menu
      • Yourapp.mk – a makefile to tell PADS how to get and build your package
  • Some packages are available in pikawarp.org
programming considerations

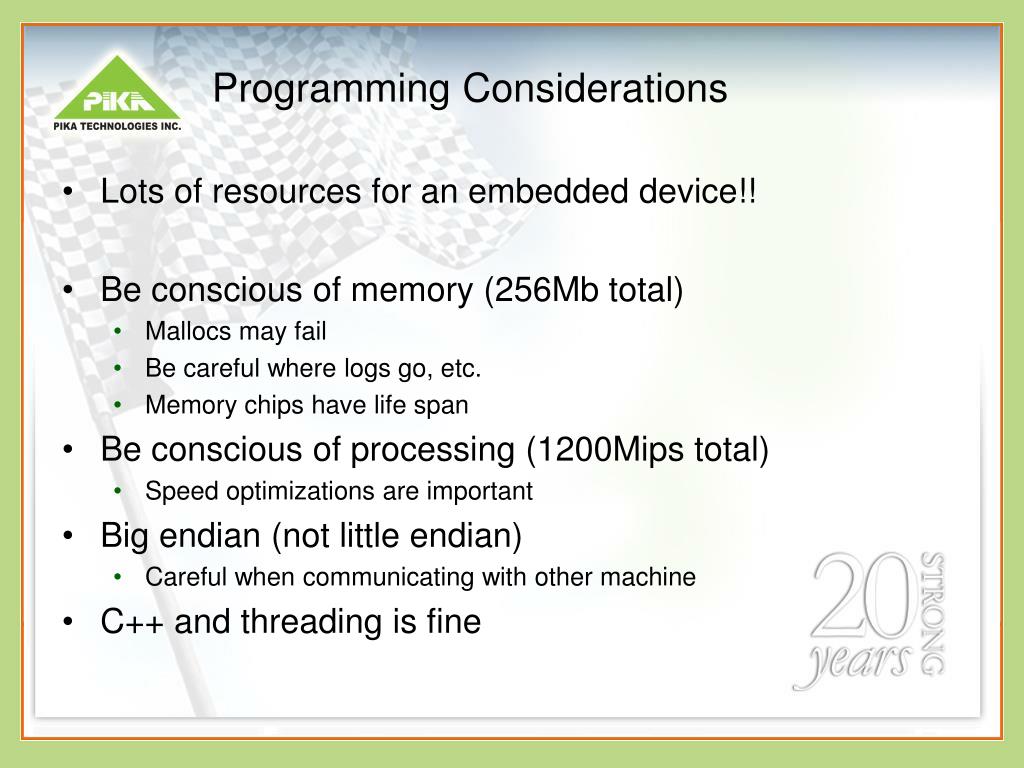

Programming Considerations
  • Lots of resources for an embedded device!!
  • Be conscious of memory (256Mb total)
    • Mallocs may fail
    • Be careful where logs go, etc.
    • Memory chips have life span
  • Be conscious of processing (1200Mips total)
    • Speed optimizations are important
  • Big endian (not little endian)
    • Careful when communicating with other machine
  • C++ and threading is fine
slide22

Thank you

for your time.
