Presentation Transcript
overview of economics
Overview of Economics

1. Microeconomics

  • The behaviour of individuals and firms in market interactions
  • Policy options when markets don’t work

2. Macroeconomics

  • The economy as a whole: GDP, inflation, unemployment and growth.
  • Fiscal and monetary policy
reading
Reading

Lipsey + Chrystal “Economics” Eleventh Edition, Oxford University Press, 2007.

plan of session
Plan of session
  • Key concepts: scarcity and choice
  • Analysis of markets
  • A common approach:
    • consumers maximize utility subject to a budget constraint
    • firms maximize profits subject to cost and demand constraints
slide5
The Market Economy
  • A market economy is self-organising in the sense that when individuals act independently to pursue their own self-interest, responding to prices set on open markets, they produce co-ordinated and relatively efficient economic activity.
slide6
Resources and Scarcity
  • Scarcity is a fundamental problem faced by all economies because not enough resources (land, labour, capital, and entrepreneurship) are available to produce all the goods and services that people would like to consume.
  • Scarcity makes it necessary to choose among alternative possibilities: what products will be produced and in what quantities.
  • Microeconomics analyses the allocation of scarce resources.
how we work in economics

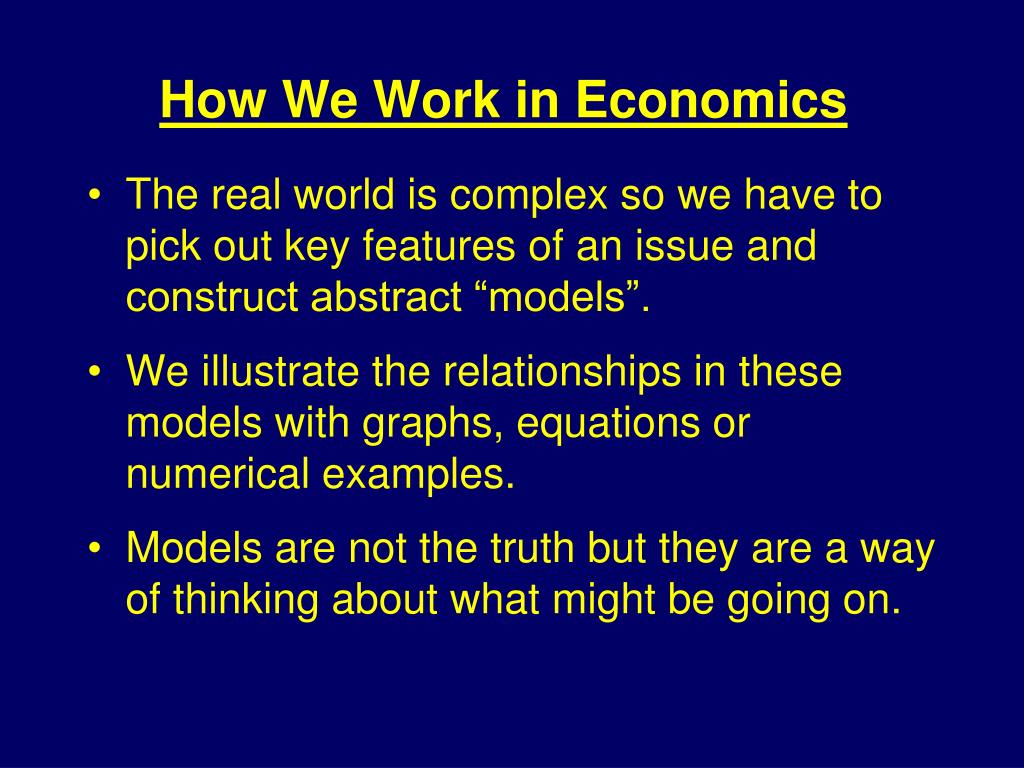

How We Work in Economics
  • The real world is complex so we have to pick out key features of an issue and construct abstract “models”.
  • We illustrate the relationships in these models with graphs, equations or numerical examples.
  • Models are not the truth but they are a way of thinking about what might be going on.
making economic choices
Making Economic Choices
  • Opportunity cost:the cost of obtaining a unit of one product in terms of the number of units of other products that could have been obtained instead. This emphasises scarcity and choice.
  • A production-possibility boundary shows all of the combinations of goods that can be produced by an economy whose resources are fully employed. Movement from one point to another on the boundary shows a shift in the amounts of goods being produced, which requires a reallocation of resources.
slide9

A Production-Possibility Boundary

Unattainable combinations

Production possibility

boundary

Attainable

combinations

Quantity of private sector goods

0

Quantity of public sector goods

slide10

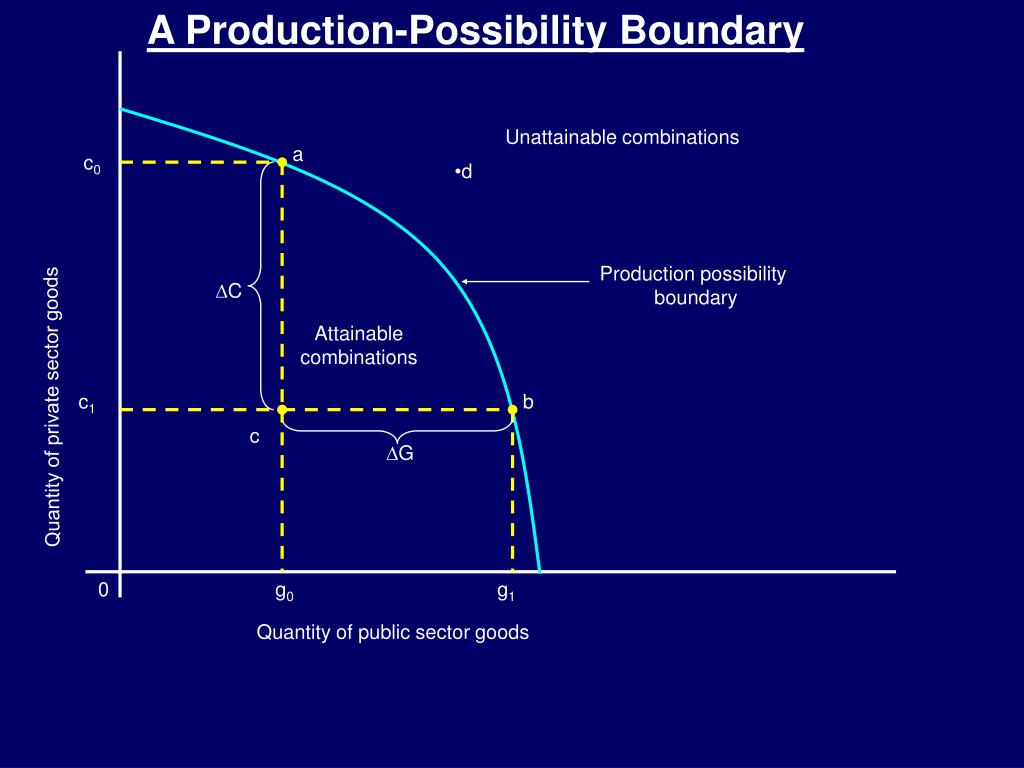

A Production-Possibility Boundary

Unattainable combinations

a

c0

  • d

Production possibility

boundary

C

Attainable

combinations

c1

b

Quantity of private sector goods

c

G

0

g0

g1

Quantity of public sector goods

slide11

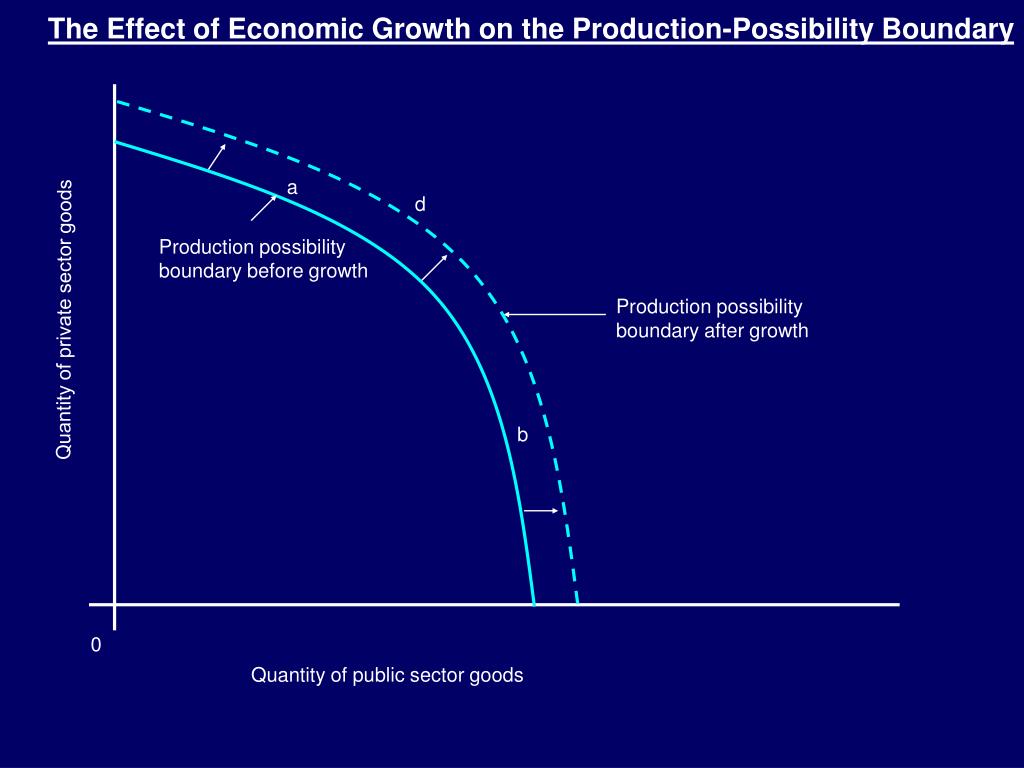

The Effect of Economic Growth on the Production-Possibility Boundary

a

d

Production possibility

boundary before growth

Production possibility

boundary after growth

Quantity of private sector goods

b

0

Quantity of public sector goods

analysis of markets

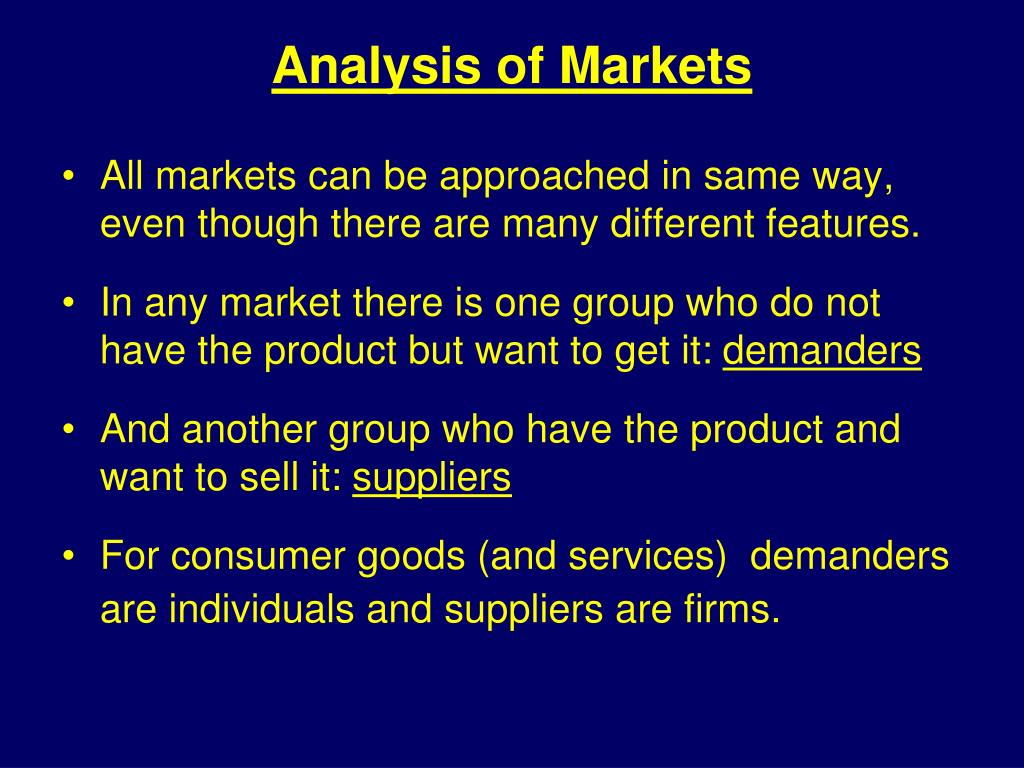

Analysis of Markets
  • All markets can be approached in same way, even though there are many different features.
  • In any market there is one group who do not have the product but want to get it: demanders
  • And another group who have the product and want to sell it: suppliers
  • For consumer goods (and services) demanders are individuals and suppliers are firms.
main factors that affect an individual s demand for a specific product
Main Factors That Affect an Individual's Demand for a Specific Product
  • Price of the product
  • Price of other products: substitutes or complements
  • Income and wealth
  • Personal characteristics: age, religion, dependants etc
  • Tastes
  • External factors: weather, festivals, special events.
  • Economic analysis focuses on prices and incomes BUT other things do matter in real markets.
price elasticity and income elasticity
Price Elasticity and Income Elasticity
  • Quantity demanded is (generally) negatively related to the price of the product itself. [price elasticity]
  • Demand increases with rise in price of a substitute and fall in price of a complement (and vice versa). [cross elasticity]
  • Demand increases with income for a normal good and falls when income increases for an inferior good. [income elasticity]
price elasticity low high
Price ElasticityLow High

Income ElasticityHigh Low

slide16
Necessities have low income elasticity. Luxuries have higher income elasticity.
  • Price elasticity partly depends on how tightly we define each market:
    • Broadly-defined goods (eg. food) have few substitutes, and so have low price elasticity (inelastic demand)
    • Specific items such as a particular brand of baked beans have many substitutes, and so a high price elasticity (elastic demand)
    • But if advertisements succeed in convincing consumers that a particular brand is not like others, then this price elasticity may be reduced.
slide17

Alice’s Demand Schedule

Quantity demanded

[dozen per month]

Reference Letter

Price [£ per dozen]

0.50

7.0

a

b

c

d

e

f

1.00

5.0

1.50

3.5

2.00

2.5

2.50

1.5

3.00

1.0

Alice’s Demand Curve

f

3.00

e

2.50

d

Price of eggs [£ per dozen]

2.00

c

1.50

b

1.00

a

0.50

1

2

3

4

5

6

7

Quantity of Eggs [dozen per month]

slide18

The Relation Between Individual and Market Demand Curves

3.00

2.00

Price of eggs [£ per dozen]

1.00

3.00

2

4

6

8

Quantity of Eggs

[dozen per month]

2.00

[i]. William

1.00

Price of eggs [£ per dozen]

3.00

2

4

6

8

10

12

14

2.00

Quantity of Eggs

[dozen per month]

Price of eggs [£ per dozen]

1.00

[iii]. Total Demand William & Sarah

2

4

6

8

[ii]. Sarah

Quantity of Eggs

[dozen per month]

slide19

A Market Demand Schedule for Eggs

Quantity demanded

[000 dozen per month]

Reference Letter

Price [£ per dozen]

u

v

w

x

y

z

0.50

110.0

1.00

90.0

1.50

77.5

2.00

67.5

2.50

62.5

3.00

60.0

slide20

A Market Demand Curve for Eggs

3.50

D

Z

3.00

Y

2.50

X

2.00

Price of eggs [£ per dozen]

W

1.50

V

1.00

U

0.50

20

40

60

80

100

120

140

Quantity of Eggs

[thousand dozen per month]

slide21

Shifts in the Demand Curve

D1

D0

Price

0

Quantity

slide22

Shifts in the Demand Curve

D0

D2

Price

0

Quantity

determinants of supply
Determinants of Supply
  • The price of the product itself
  • The prices of inputs (factors of production)
  • The production technology
influences on supply
Influences on supply
  • Quantity supplied is positively related to the price of the product itself
  • Supply increases (shifts right) as input prices fall and vice versa
  • Supply shifts with changes in technology. Improvements in technology increase supply (shift right)
slide25

A Market Supply Schedule for for Eggs

Quantity supplied

[000 dozen per month]

Reference Letter

Price [£ per dozen]

5.0

0.50

u

46.0

1.00

v

77.5

1.50

w

100.0

x

2.00

115.0

y

2.50

122.5

z

3.00

slide26

A Supply Curve For Eggs

3.50

S

Z

3.00

Y

2.50

X

2.00

Price of eggs [£ per dozen]

W

1.50

V

1.00

U

0.50

20

40

60

80

100

120

140

Quantity of Eggs[thousand dozen per month]

slide27

Shifts in the Supply Curve

S0

S1

Price

Quantity

slide28

Shifts in the Supply Curve

S2

S0

Price

Quantity

slide29

Demand and Supply Schedules for Eggs and Equilibrium Price

Price

[£ per dozen]

Quantity

demanded

[‘000 dozen

per month]

Quantity supplied

[‘000 dozen

per month]

Excess Demand [quantity

demanded minus

quantity supplied]

[‘000 dozen per month]

0.50

110.0

5.0

105.0

1.00

90.0

46.0

44.0

1.50

77.5

77.5

0.0

2.00

67.5

100.0

-32.5

2.50

62.5

115.0

-52.5

3.00

60.0

122.5

-62.5

slide30

Determination of the Equilibrium Price of Eggs

3.50

S

D

Z

Z

3.00

Y

Y

2.50

X

X

2.00

Price of eggs [£ per dozen]

1.50

W

W

V

V

1.00

U

U

0.50

20

100

120

140

40

60

80

Quantity of Eggs [thousand dozen per month]

museum charges
Museum Charges
  • In November 2001 the UK Government abolished admission charges on many museums.
  • The Victoria and Albert Museum (V&A) experienced the biggest increase, with visitor numbers rising from 42,600 in December 2000 to 174,000 in December 2001, an increase of 309%.
  • Similarly, though not so dramatically, the Museum of London had an 88% increase, the Natural History Museum had an 82% increase and the Museums of Science and Industry in Manchester had a 75% increase.
slide32

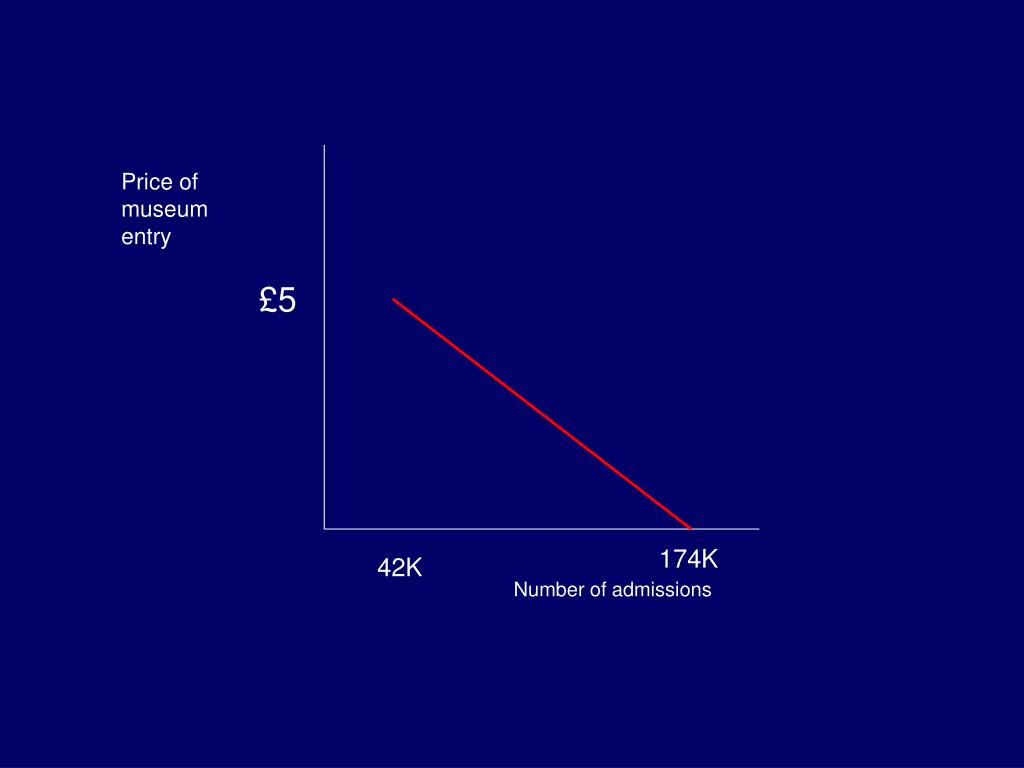

Price of museum entry

£5

174K

42K

Number of admissions

slide34

Coffee market

Price of coffee

demand

P1

supply

P2

Q1

Q2

Quantity of coffee

newspaper market
Newspaper Market
  • In September 1993 the Times lowered its price from 45p to 30p while the Independent stayed at 50p.
  • Average daily sales of the Times went from 370K to 450K.
  • Average daily sales of the Independent went from 362K to 311K.
  • Independent and Times were substitutes.
slide37

Demand for The Times

price

45p

30p

370K

450K

slide38

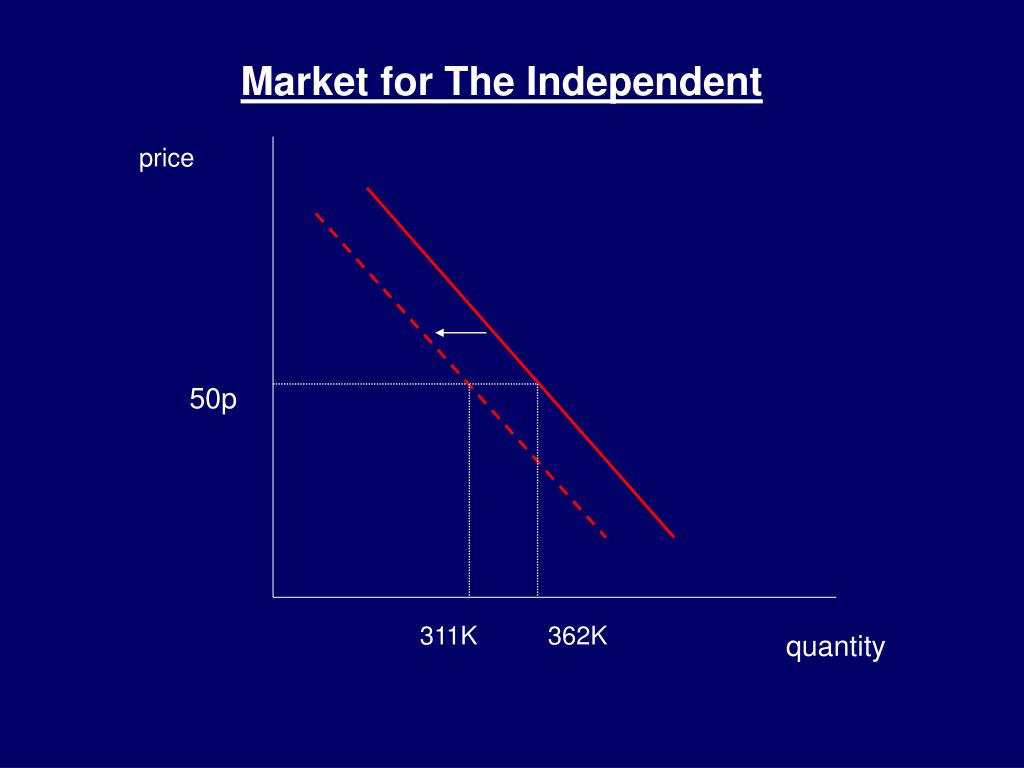

Market for The Independent

price

50p

311K

362K

quantity

channel tunnel
Channel Tunnel

What happened when the opening of the tunnel introduced massive new supply of cross-channel travel?

  • Increase in supply leads to fall in price.
  • Demand for substitutes falls: ships, planes, hovercraft.
  • Competition between suppliers leads to price cutting and special deals
  • Total quantity of travel rises
slide40
“Drought report sends wheat prices surging” (FT 6/6/2007)
  • “Commodities prices slumped on Friday following sharp falls in global equity markets amid mounting fears that the global economy was heading into recession” (FT 10/8/2008)
  • “Members of the OPEC oil cartel are considering an emergency meeting in Vienna next month as oil prices dropped to their lowest level in nearly a year.” (FT 10/8/2008)
different features of markets
Different Features of Markets
  • Coffee and wool prices in wholesale markets change day by day to equate demand and supply.
  • Many prices, especially retail prices are set by the seller and only changed periodically: quantity then adjusts. These are administered prices (eg. newspaper prices and museum entry charges).
  • But, as we have seen, supply and demand analysis is relevant for both types.
consumer choice
Consumer Choice
  • Consumers maximize utility subject to a budget constraint. Value to consumers (and therefore price) depends on marginal and not total utility.
  • Similarly, firms maximize profit subject to a cost and demand constraint.
utility is the personal satisfaction derived from consuming a product or service
UTILITY is the personal satisfaction derived from consuming a product or service
  • Total utility = utility a consumer gets from total consumption of all units of a particular product.
  • Marginal utility = the addition to total utility derived from consuming one more unit of the product.

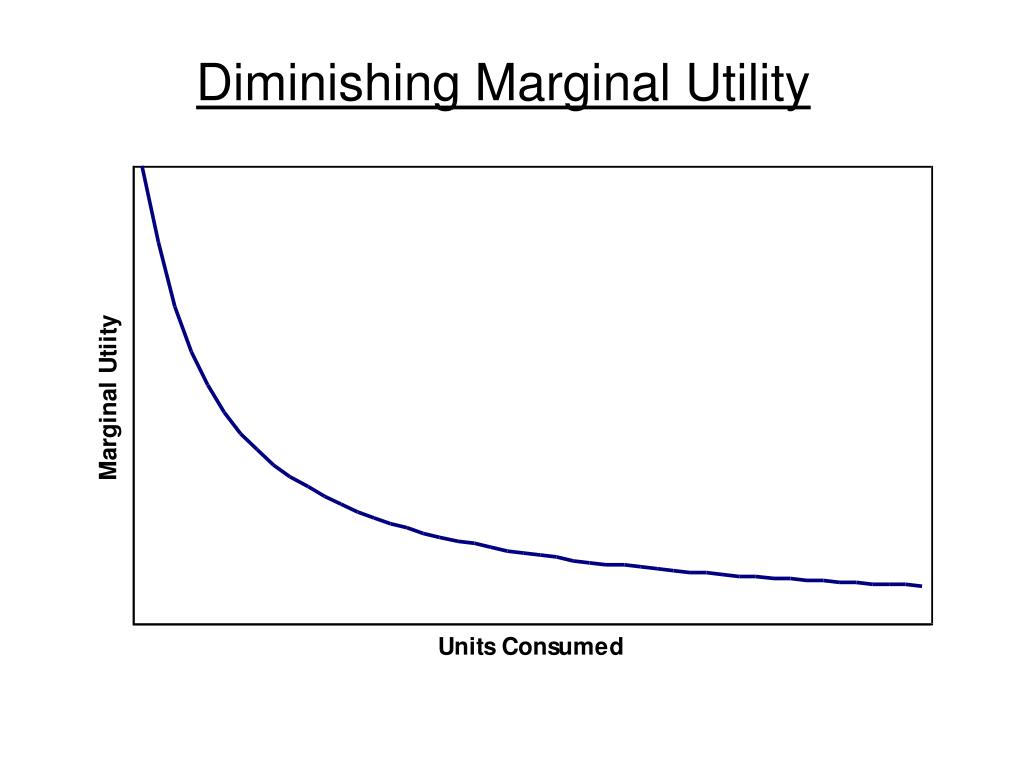

  • The marginal utility usually declines as the consumer consumes more of the product (Diminishing Marginal Utility).
  • We assume each consumer maximises his/her own utility. Each consumer reaches a utility-maximising equilibrium when the utility he or she derives from the last £1 spent on each product is equal.
why are diamonds more expensive than water
Why are diamonds more expensive than water?
  • Water is vital – without it we will die.
  • Diamonds are a luxury.
  • So why is water cheap, whilst diamonds are expensive?
the paradox of value

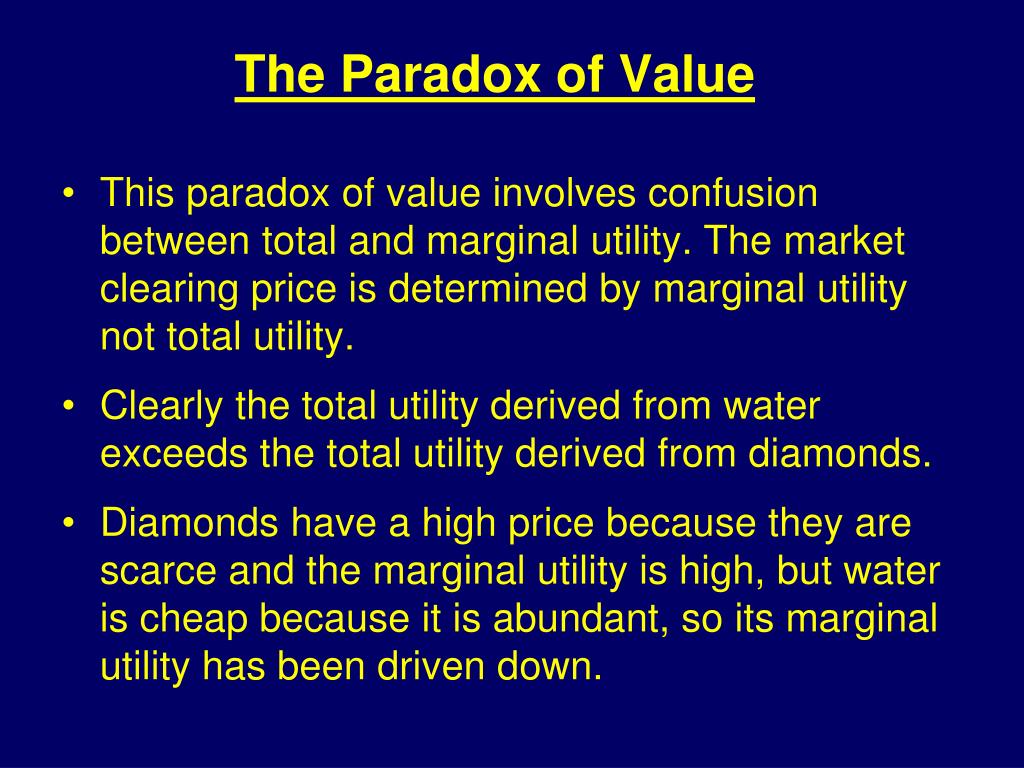

The Paradox of Value
  • This paradox of value involves confusion between total and marginal utility. The market clearing price is determined by marginal utility not total utility.
  • Clearly the total utility derived from water exceeds the total utility derived from diamonds.
  • Diamonds have a high price because they are scarce and the marginal utility is high, but water is cheap because it is abundant, so its marginal utility has been driven down.
slide47

Total and Marginal Utility Schedules

Number of films

attended per month

Total utility

Marginal utility

0

0.00

1

15.00

15.00

2

25.00

10.00

3

31.00

6.00

4

35.00

4.00

5

37.50

2.50

6

39.00

1.5

7

40.25

1.25

8

41.30

1.05

9

42.20

0.90

10

43.00

0.80

slide48

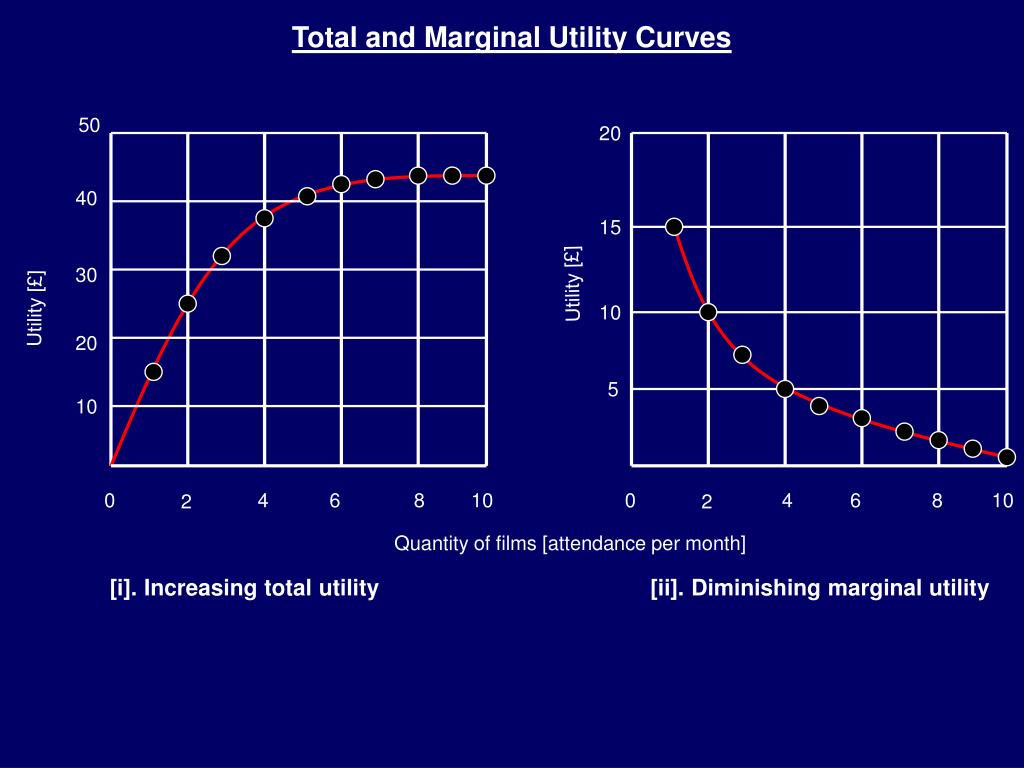

Total and Marginal Utility Curves

50

20

40

15

30

Utility [£]

Utility [£]

10

20

5

10

0

4

6

8

10

0

4

6

8

10

2

2

Quantity of films [attendance per month]

[i]. Increasing total utility

[ii]. Diminishing marginal utility

a consumer s equilibrium
A Consumer’s Equilibrium
  • To maximize utility, each consumer should adjust spending so that marginal utility per pound is the same for each good consumed (MUx/Px = MUy/Py).
  • If this were not true, could increase total utility by shifting towards consuming good with higher utility at the margin.
  • So a scarce good has a high price and a high marginal utility…but this says nothing about total utility.
diminishing marginal utility and demand
Diminishing Marginal Utility and Demand
  • Demand curves have negative slopes because when the price of a product falls, the marginal utility per pound spent on this produce increases. The consumer responds by purchasing more of this good, thus reducing the marginal utility.
  • The consumer will keep increasing consumption of this good until the marginal utility per pound falls to the level which could be achieved on other goods.
  • A good which has steeply falling marginal utility will have relatively low price elasticity (a large shift in price will be required to cause a significant increase in consumption).
consumer surplus
Consumer Surplus

Consumer surplus is the difference between:

  • The value consumers place on their total consumption of some product (the maximum they would pay for the amount consumed rather than go without it completely).
  • The actual amount paid for it.
slide52

Consumer Surplus for an Individual

3.00

2.00

Price of milk [£ per glass]

Market price

1.00

0.30

1

2

3

4

5

6

7

8

9

10

Glasses of milk consumed per week

slide53

Consumer Surplus for the Market

Price

Market price

p0

D

0

Quantity

q0

competition vs monopoly
Competition vs. Monopoly
  • A competitive industry has many producers. Each must sell at the existing market price (if they offer their product at a higher price no-one will buy it). They are price takers.
  • A monopolist has no competitors, and can choose to raise prices if this would increase profits. Monopolists are price makers.
  • An intermediate case: oligopoly, where a few producers each have substantial market share. They may be able to increase prices above the competitive level (especially if they agree not to undercut each other).
slide55

Consumer surplus under monopoly

Price

Consumer surplus

p1

Price

Deadweight loss

p0

D

q1

Quantity

q0

0

implications of monopoly power
Implications of Monopoly Power
  • Reduced output
  • Increased prices
  • Substantial loss of consumer surplus
  • A monopolist may also tend to be less dynamic, leading to slower growth and less innovation

For these reasons governments try to prevent companies from forming monopolies (and forbid collusion in oligopolies).

Where this is not possible (for “natural monopolies” such as utilities) regulation is imposed to try to replicate the effect of competition.

slide57

Price Discrimination

Price

Consumer surplus (1)

p1

Price (1)

Consumer surplus (2)

Price (2)

p0

D

q1

Quantity

q0

0

examples of price discrimination
Examples of Price Discrimination
  • Haggling
  • Discount vouchers and early-booking discounts
  • First class facilities (arguably)
  • “Three-for-two” deals
recap consumer demand
Recap: Consumer Demand
  • We have modelled how consumer demand varies as a function of:
    • Prices
    • Incomes (budget constraint)
    • Preferences (“taste”)....etc.
  • Specifically, we found it useful to analyse demand on the assumption that consumers aim to maximise their own total utility.
firm behaviour can be modelled using a similar approach
Firm behaviour can be modelled using a similar approach
  • Firms seek to maximize profits
  • They are constrained by the production technology and by the market demand.
  • They have (at a point in time) a given capital stock and face market prices of inputs.
  • They maximize profit where marginal cost equals marginal revenue.
  • See: Lipsey and Chrystal, Chapter 6-9.
slide61

A Production-Possibility Boundary

Quantity of good A

Relative price line

0

Quantity of good B

slide62

An Ideal Market Equilibrium

Indifference curve

Quantity of good A

Relative price line

0

Quantity of good B

an ideal market equilibrium
An Ideal Market Equilibrium
  • Firms shift their production to a point on the production possibility boundary where the degree to which the they could produce slightly more of one good and less of the other (the opportunity cost) reflects market prices.
  • Consumers adjust their consumption so that their indifference curve also reflects market prices.
  • This allows consumers to reach the highest level of utility (highest indifference curve) that is compatible with the Production Possibility Boundary.
  • This is a slightly idealised result (market imperfections may prevent it from happening), but it is a very powerful illustration of the ‘invisible hand’ at work!
market failures
Market Failures

We can identify some situations in which the market will not work well, suggesting that society is likely to be better off if the government intervenes:

  • Monopoly power
  • Information failures
  • Externalities
  • Public goods
monopoly
Monopoly
  • Governments generally aim to prevent firms from exploiting monopoly power.
  • In the UK proposed mergers between firms may be referred to the Monopolies and Mergers Commission (MMC). This body then decides whether the merger would give the resulting firm an unacceptably high market share. If so, the MMC will forbid the merger.
natural monopolies
Natural Monopolies
  • However, for some industries there may be massive economies of scale. As a result it only makes sense for there to be only one provider.
  • For example it would be prohibitively expensive to have two competing companies running water and sewage pipes to each house.
  • Such industries are natural monopolies. They are typically utility networks such as gas, electricity and water supplies.
regulating natural monopolies
Regulating Natural Monopolies
  • Natural monopolies must be prevented from exploiting their monopoly power. They were often nationalised. But this left them with little incentive to be efficient.
  • In the 1980s the UK government privatised many of these companies. Other countries followed suit. These private monopolies are tightly regulated to try to get them to behave as if they had competitors.
  • The UK has regulatory bodies which set price caps for these firms:
      • OFWAT (water companies)
      • OFGEN (electricity generation)
      • OFGAS (gas supply)
information failures
Information Failures
  • The proper functioning of a market requires consumers to be able to judge the quality of the goods and services which they purchase.
  • Where this is not possible, the government may step in to regulate quality. For example:
      • Food hygiene in restaurants
      • Safety standards (eg. in cars)
  • Otherwise low quality products would tend to force more expensive higher quality products out of the market, and quality would collapse to a minimum.
externalities
Externalities
  • Markets only work properly where individuals’ welfare is affected only by the goods and services they consume. But there may be externalities.
  • For example firms may cause pollution which affects everyone’s welfare. But as long as the goods they produce sell well, these firms have no incentive to stop!
  • The existence of externalities could justify the government banning certain polluting processes, or setting minimum standards.
slide70
A more creative solution is to make firms pay for the damage they create (the “polluter pays” principle). For example:
    • Charging firms for their carbon emissions allows them to keep polluting, but only if the benefits outweigh the costs to everyone else of the pollution involved.
    • Similarly, every extra driver on the roads increases congestion for other drivers. Congestion charging should mean that people only drive if the benefits to them exceed the adverse effects on others.
slide71
More generally, where there is a common resource which nobody owns, a free market will tend to lead to it being over-exploited.
  • For example, fish stocks are a common resource. But individuals maximise profits by catching as many fish as possible. Attempts to prevent this by establishing quotas etc. have not yet been very successful.
public goods
Public Goods
  • Some goods and services tend to benefit everyone (eg. the provision of defence, law and order).
  • Individuals have no incentive to contribute to the costs of these services. As everyone benefits, each individual has an incentive to “free ride”, and hope that someone else pays!
  • Hence these goods tend to be provided by the government (out of general taxation) or by compulsory subscriptions (eg. the UK TV licensing fee).
market failure vs government failure
Market Failure vs. Government Failure
  • We have identified several market failures:
      • Monopoly power
      • Information failures
      • Externalities
      • Public goods
  • These could justify government intervention. But such intervention is likely to be imperfect: it may be costly, or further distort incentives, or lead to political interference.
  • The costs of market failure must be weighed up against the possible costs of “government failure” in attempts to correct it.
microeconomic theory 1
Microeconomic Theory (1)
  • “Self-organising” market economies have tended to outperform centrally-planned economies.
  • Scarcity and opportunity cost
  • Demand:
      • Price elasticity
      • Income elasticity
      • Cross elasticity
  • Supply: price/input costs/technology
  • Supply and demand curves
      • Prices shift so that supply=demand
      • The invisible hand
microeconomic theory 2
Microeconomic Theory (2)
  • Diminishing marginal utility
      • Underpins consumer demand curves
      • The paradox of value
  • Consumer surplus
      • Monopoly pricing
      • Price discrimination
  • Market failure
      • Natural monopoly
      • Information failures
      • Externalities
      • Public goods
summary microeconomics
Summary: Microeconomics
  • Analysis of supply and demand is key to understanding movements in market prices.
  • The price mechanism can achieve some very desirable results.
  • But the price mechanism isn’t necessarily perfect, and we have seen how microeconomic analysis can inform some key policy issues
slide78

Indifference Curve Analysis

  • The use of indifference curves allows the analysis of demand without having to assume that utility is measurable.
  • It allows us to distinguish between (a) income and (b) substitution effects.
how the consumer reaches equilibrium
How the Consumer Reaches Equilibrium
  • Indifference theory assumes only that individuals can order alternative consumption bundles, saying which bundles are preferred to which but not by how much.
  • A single indifference curve shows combinations of products that give the consumer equal satisfaction, and among which he or she is therefore indifferent. An indifference map is a set of indifference curves.
  • The basic assumption about tastes in indifference curve theory is that of a diminishing marginal rate of substitution: the less of one good and the more of another good the consumer has, the less willing he or she will be to give up some of the first good to get more of the second. This implies that indifference curves are negatively sloped and convex to the origin.
indifference theory
Indifference Theory
  • While indifference curves describe the consumer’s tastes and, therefore, refer to what he or she would like to purchase, the budget line describes what the consumer can purchase.
  • Each consumer achieves an equilibrium that maximises his or her satisfaction at the point at which an indifference curve is tangent to the budget line.
slide81

Bundles Conferring Equal Satisfaction

Clothing

Food

Bundle

a

30

5

b

18

10

c

13

15

d

10

20

e

25

8

f

7

30

An Indifference Curve

35

a

30

25

g

Quantity of clothing per week

20

b

15

c

d

10

e

f

h

T

5

I

5

10

15

20

25

30

35

Quantity of food

slide82

An Indifference Map

Quantity of clothing per week

I5

I4

I3

I2

I1

0

Quantity of food per week

slide83

Shapes of Indifference Curves

Perfect Substitutes

Perfect Complements

A good that gives zero

utility

Vegetables

Left hand gloves

Packs of red pins

I1

I1

I1

0

0

0

[iii]. Meat

[i]. Packs of green pins

[ii]. Right hand gloves

A good that confers a negative utility after some level of consumption

I1

All other

goods

f0

slide84

The Equilibrium of a Consumer

35

30

25

Quantity of clothing per week

20

15

10

5

5

10

15

20

25

30

35

Quantity of food per week

slide85

The Equilibrium of a Consumer

35

30

a

25

Quantity of clothing per week

20

15

10

5

f

I1

5

10

15

20

25

30

35

Quantity of food per week

slide86

The Equilibrium of a Consumer

35

30

a

b

25

c

Quantity of clothing per week

20

E

15

10

d

I4

5

e

I3

I2

f

I1

5

10

15

20

25

30

35

Quantity of food per week

slide87
Consumers maximise their utility by adjusting their consumption to the point on the budget line which gets them to the highest possible indifference curve.
  • At this point the indifference curve will be at a tangent to the budget line.
