chromium

Chromium

Mike Houston, Stanford University

and

The Chromium Community

how chromium works
How Chromium works
  • Replaces system’s OpenGL driver
    • Industry standard API
    • Support existing unmodified applications
  • Manipulates streams of API commands
    • Alter/inject/discard commands and parameters
    • Route commands over a network
    • Render commands using graphics hardware
    • State tracking
  • Allows parallel applications to issue OpenGL
    • Constrain ordering between multiple streams
graphics stream processing

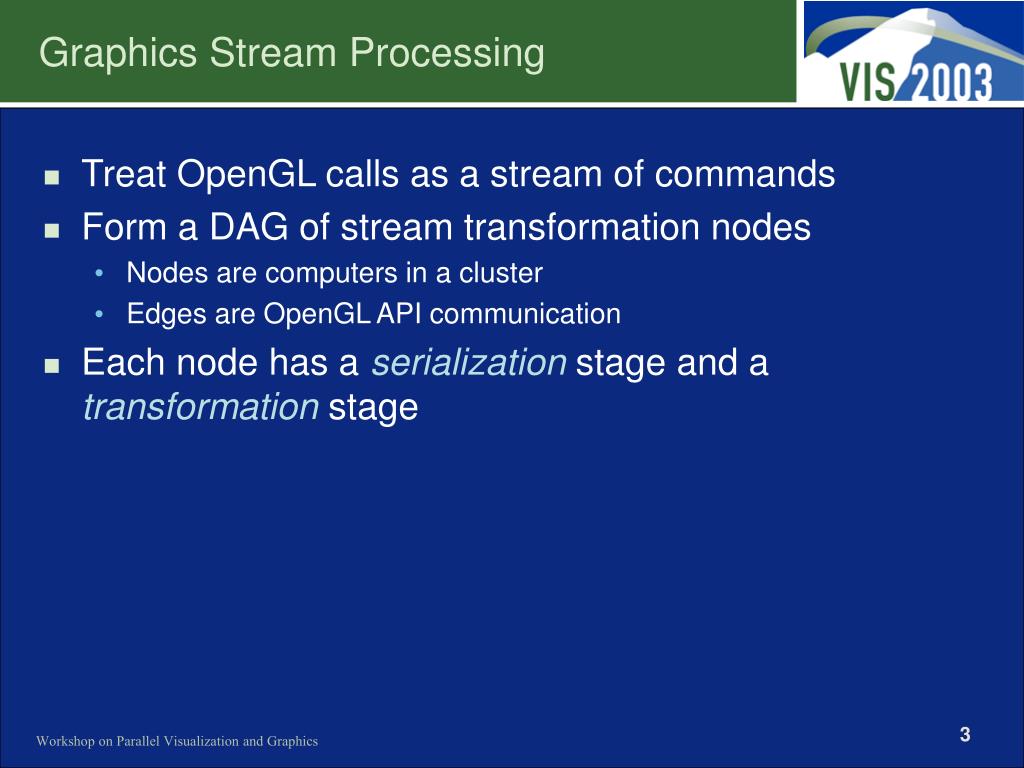

Graphics Stream Processing
  • Treat OpenGL calls as a stream of commands
  • Form a DAG of stream transformation nodes
    • Nodes are computers in a cluster
    • Edges are OpenGL API communication
  • Each node has a serialization stage and a transformationstage
stream serialization
Stream Serialization

S

A

OpenGL

  • Convert multiple streams into a single stream
  • Efficiently context-switch between streams
  • Constrain ordering using Parallel OpenGL extensions [Igehy98]
  • Two kinds of serializers:
    • Network server:
    • Application:
      • Unmodified serial application
      • Custom parallel application
stream transformation
Stream Transformation
  • Serialized stream is dispatched to “Stream Processing Units” (SPUs)
  • Each SPU is a shared library
    • Exports a (partial) OpenGL interface
  • Each node loads a chain of SPUs at run time
  • SPUs are generic and interchangeable
spu chains
SPU Chains
  • SPUs are loaded as parts of linear chains
  • Common usage: intercept a few OpenGL calls, pass all others to downstream SPU
  • Useful for simple state changes, such as “wireframe” drawing
output scalability sort first
Output Scalability (Sort-First)

Server

Display

Server

Display

.

.

.

.

.

.

Server

Display

  • Larger displays with unmodifiedapplications
  • Other possibilities: broadcast, ring network

App

example sort first
Example: Sort-First

Server

Render

Server

Render

.

.

.

Server

Render

App

Tilesort

input scalability sort last
Input Scalability (Sort-Last)

App

App

Display

.

.

.

App

  • Parallel geometry extraction
  • Parallel data submission

Server

example sort last
Example: Sort-Last

Application

Readback

Send

Application

Readback

Send

.

.

.

Application

Readback

Send

  • Application runs directly on graphics hardware
  • Same application can use sort-last or sort-first

Server

Render

spu inheritance
SPU Inheritance
  • The Readback and Render SPUs are related
    • Readback renders everything except SwapBuffers
  • Readback inheritsfrom the Render SPU
    • Override parent’s implementation of SwapBuffers
    • All OpenGL calls considered “virtual”
readback s swapbuffers
Readback’s SwapBuffers

void RB_SwapBuffers(void)

{

self.ReadPixels( 0, 0, w, h, ... );

child.Clear( GL_COLOR_BUFFER_BIT );

child.SemaphorePCR( READBACK_SEMAPHORE );

child.RasterPos2i( tileX, tileY );

child.DrawPixels( w, h, ... );

child.SemaphoreVCR( READBACK_SEMAPHORE );

child.SwapBuffers( );

}

  • Easily extended to include depth composite
  • All other functions inherited from Render SPU
more complicated example hybrid
More Complicated Example: Hybrid

App

Server

Tilesort

Readback

Send

App

Server

Tilesort

Readback

Send

.

.

.

.

.

.

App

Server

Tilesort

Readback

Send

Server

Render

networks supported
Networks Supported
  • TCP/UDP
  • Myrinet
  • Quadrics
  • Infiniband (coming soon)
new things to chromium
New Things to Chromium

Dale’s talk

  • Extensions
  • DMX Support
  • Display list management (DLM)
  • VNC Support
  • CRUT
extensions
Extensions
  • GL_ARB_fragment_program
  • GL_ARB_vertex_program
  • GL_NV_fragment_program
  • GL_NV_vertex_program
  • GL_NV_texture_rectangle
  • GL_EXT_shadow_funcs
  • GL_EXT_texture_rectangle
  • GL_IBM_raster_pos_clip
dmx support
DMX Support
  • DMX
    • Distributed Multi-headed X
    • Single X session across multiple-displays
  • OpenGL through Chromium
    • Chromium “DMX aware”
    • Moving/resizing = retiling
    • M to N rendering
display list management
Display List Management
  • Display List Manager (DLM)
    • State tracking is really tricky
      • Replay state calls on client
      • Call list on servers
    • Bounding Box tracking of display list
  • Future optimizations
    • Avoid broadcasting data in display list
    • Send calls once per server as needed
slide20
VNC
  • X forwarding
    • Forwards GLX calls to client
  • DRI bypasses X
    • Can’t get pixel data
  • OpenGL apps load Chromium
    • Render on local host
    • Readback pixel data
    • Send to user’s display
quake3 arena
Quake3 Arena

Niederauer, et al.

viewed in a new way
Viewed in a new way

Niederauer, et al.

architectural analysis
Architectural Analysis
  • Intercept geometry
  • Determine floor positions
  • Change to orthographic view
  • Insert clip planes at the ceilings
  • Split floors apart
  • Multi-pass rendering

“Non-Invasive Interactive Visualization of Dynamic Architectural Environments”

Christopher Niederauer, Mike Houston, Maneesh Agrawala, Greg HumphreysACM SIGGRAPH 2003 Symposium on Interactive 3D Graphics

batch scheduler integration
Batch Scheduler Integration
  • Offline rendering to a webpage
  • Use massive compute resources
  • Rendering with Vis cluster
  • Integrate support with RMS

Pittsburg Supercomputer Center

terascale computing system
Terascale Computing System

Compute Nodes

Control

File Servers

/home

Interactive

Quadrics

Switched

ethernet

Mass Store

Viz

Archive

buffer

Summary

  • 750 Compute Nodes
  • 3000 EV68 processors
  • 6 Tf (peak, est >4Tf on LSMS)
  • 3. TB memory
  • 27 TB local disk
  • Multi-rail fat-tree network
  • Redundant monitor/ctrl
  • WAN/LAN accessible
  • Parallel visualization
  • File servers: 30TB, ~32 GB/s
  • Mass store, ~1 TB/hr

WAN/LAN

Pittsburg Supercomputer Center

example
Example
  • qsub –l rmsnodes=3:12,other=visnodes=5
  • Job waits until 3 nodes (12 cpus) become available AND 5 vis nodes are available
  • When resources available, job runs
  • Visit vis web page for rendering

Pittsburg Supercomputer Center

general improvements
General Improvements
  • Continue to track OpenGL changes
    • Add extensions
  • Optimizations
    • Display list management
    • Tilesort
  • Software Compositors
pica support
PICA Support
  • Parallel Image Compositing API (PICA)
    • API for hardware and software compositing
    • Will be supported by most hardware compositors
  • Chromium support
    • Hooks almost complete
    • Need software compositors
      • Readback (N to 1)
      • Binary-swap
      • SLIC
    • Need info from hardware folks
vis as a service
“Vis as a service”
  • Better integration with schedulers
    • Reservation systems
    • Compute/Render/Display
  • Distributed event model (CRUT)
  • Compression
    • Geometry data
    • Pixel data
  • Encryption
look at how much was done last year
Look at how much was done last year!
  • 4 releases
  • Constant bug fixes
  • Constant improvements
  • Constant optimizations

Chromium is supported by a large community!

Chromium is used in the real world!

go get it
Go get it!

http://chromium.sourceforge.net

acknowlegements
Acknowlegements
  • The Chromium community
  • Greg Humphreys
  • Brian Paul
  • Joel Welling
  • Alan Hourihane
  • DOE!!!
