Summary of ABS/CBS Test Track Performance

Summary of ABS/CBS Test Track Performance. George Soodoo NHTSA Rulemaking. ABS/CBS Performance Testing. Purpose: To evaluate improvement in stopping distance performance with ABS and CBS technologies compared with conventional brakes Testing conducted DRI in Bakersfield, CA in 2008

rhys
Download Presentation

Summary of ABS/CBS Test Track Performance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

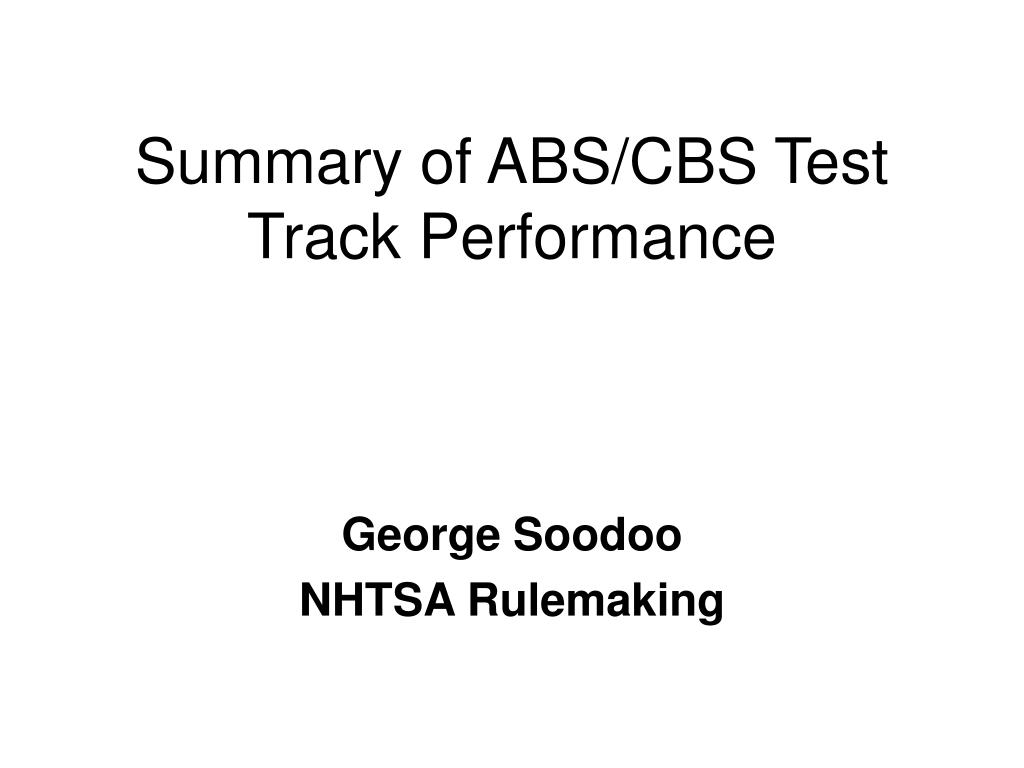

  1. Summary of ABS/CBS Test Track Performance George Soodoo NHTSA Rulemaking

  2. ABS/CBS Performance Testing • Purpose: To evaluate improvement in stopping distance performance with ABS and CBS technologies compared with conventional brakes • Testing conducted • DRI in Bakersfield, CA in 2008 • Tested motorcycles in different configurations: • Conventional • ABS • CBS • ABS/CBS • Test conditions: Dry asphalt, Wet asphalt, Straight line stops, Hand lever only, Foot pedal only, Both controls together, ABS “on” and ABS “off”

  3. Motorcycles Tested • Motorcycles tested • 2007 Yamaha FJR1300 with ABS/CBS • 2005 Yamaha FJR 1300 with ABS • 2006 Honda VFR800 with ABS/CBS • 2006 Honda VFR800 with CBS • Yamaha: 4 configurations tested • Honda: 4 configurations tested • One expert rider and six non-expert riders

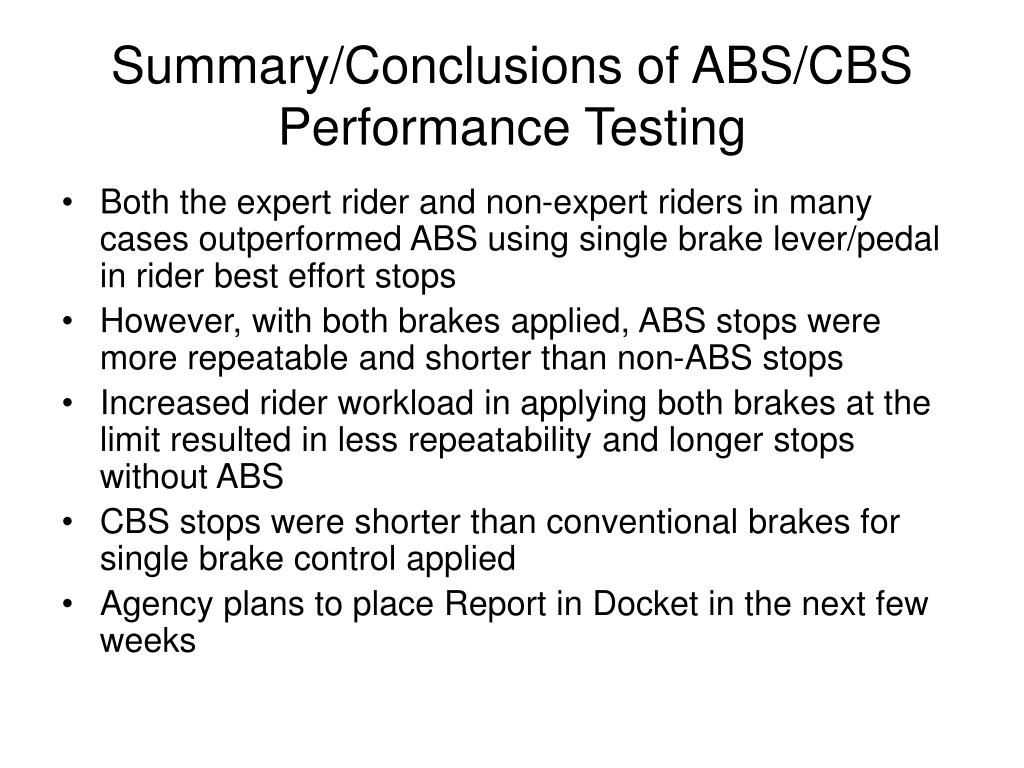

  4. Summary/Conclusions of ABS/CBS Performance Testing • Both the expert rider and non-expert riders in many cases outperformed ABS using single brake lever/pedal in rider best effort stops • However, with both brakes applied, ABS stops were more repeatable and shorter than non-ABS stops • Increased rider workload in applying both brakes at the limit resulted in less repeatability and longer stops without ABS • CBS stops were shorter than conventional brakes for single brake control applied • Agency plans to place Report in Docket in the next few weeks
