Presentation Transcript


  1. An Artificial Gecko Foot Model

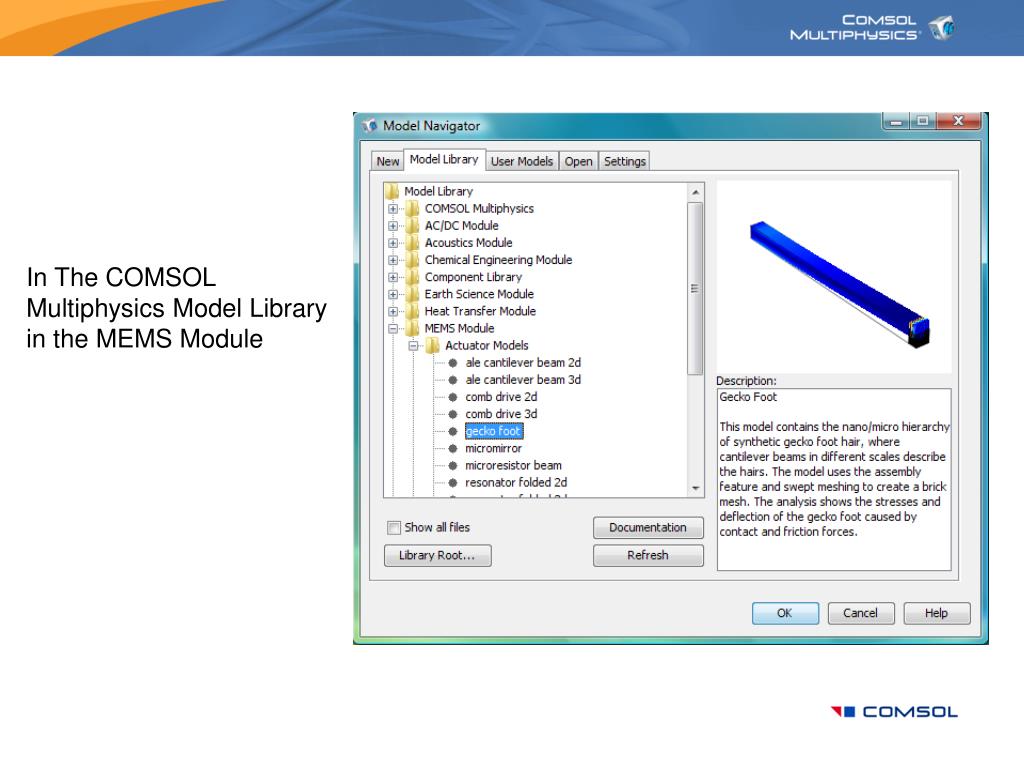

  2. In The COMSOL Multiphysics Model Library in the MEMS Module

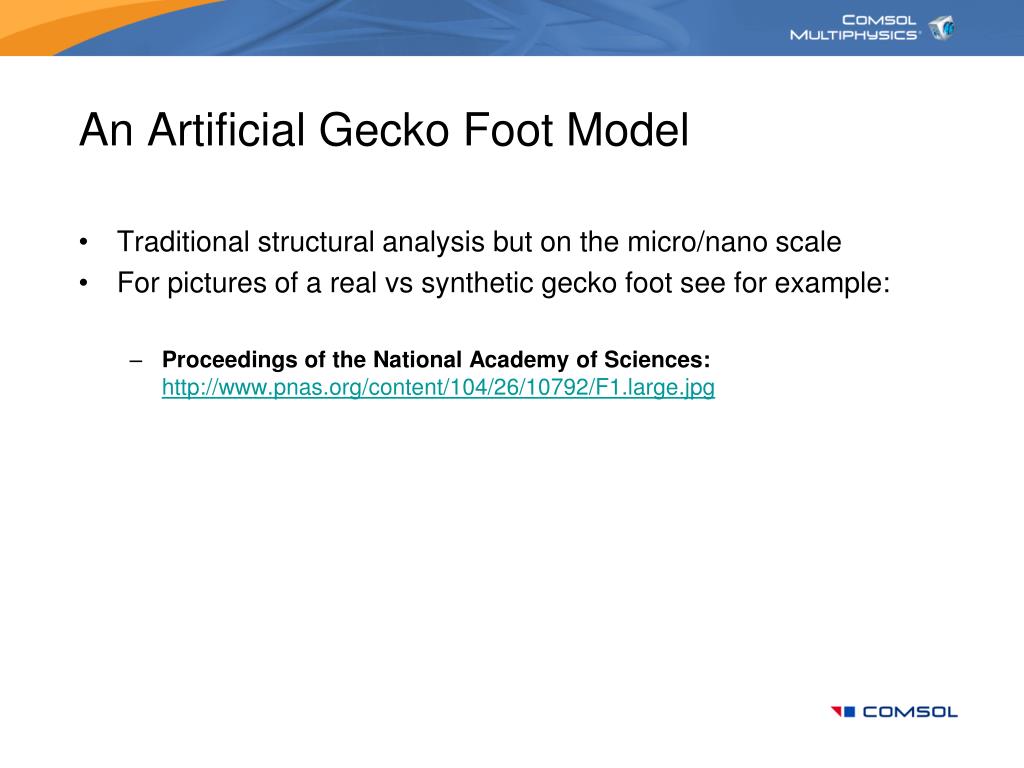

  3. An Artificial Gecko Foot Model • Traditional structural analysis but on the micro/nano scale • For pictures of a real vs synthetic gecko foot see for example: • Proceedings of the National Academy of Sciences: http://www.pnas.org/content/104/26/10792/F1.large.jpg

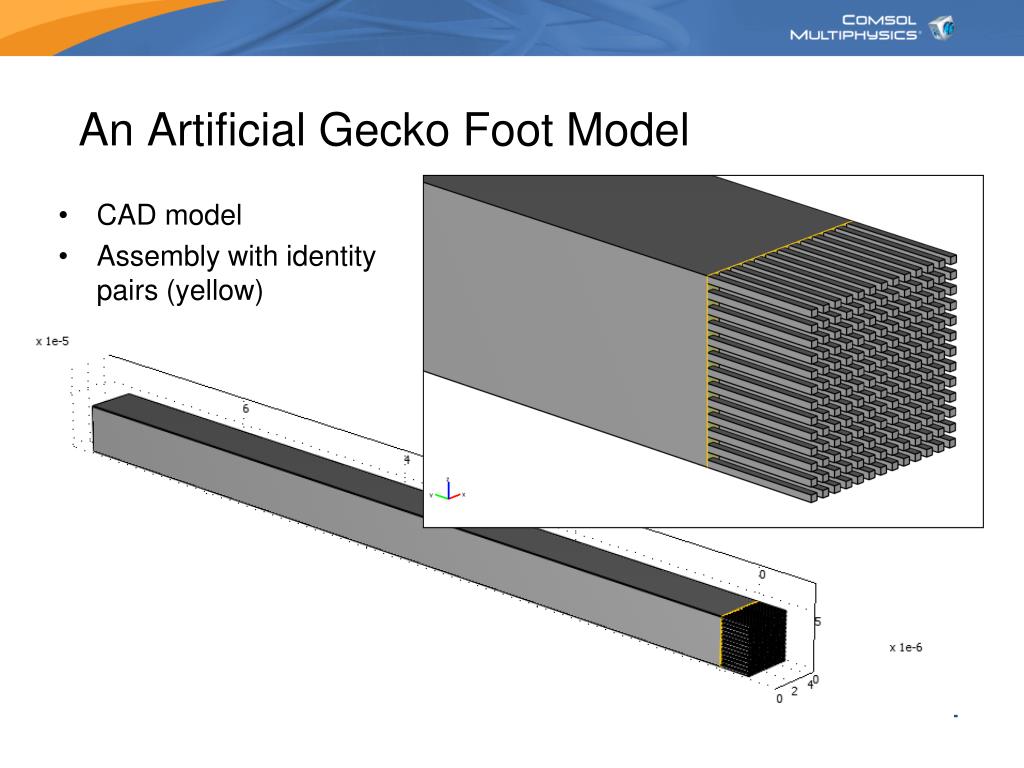

  4. An Artificial Gecko Foot Model • CAD model • Assembly with identity pairs (yellow)

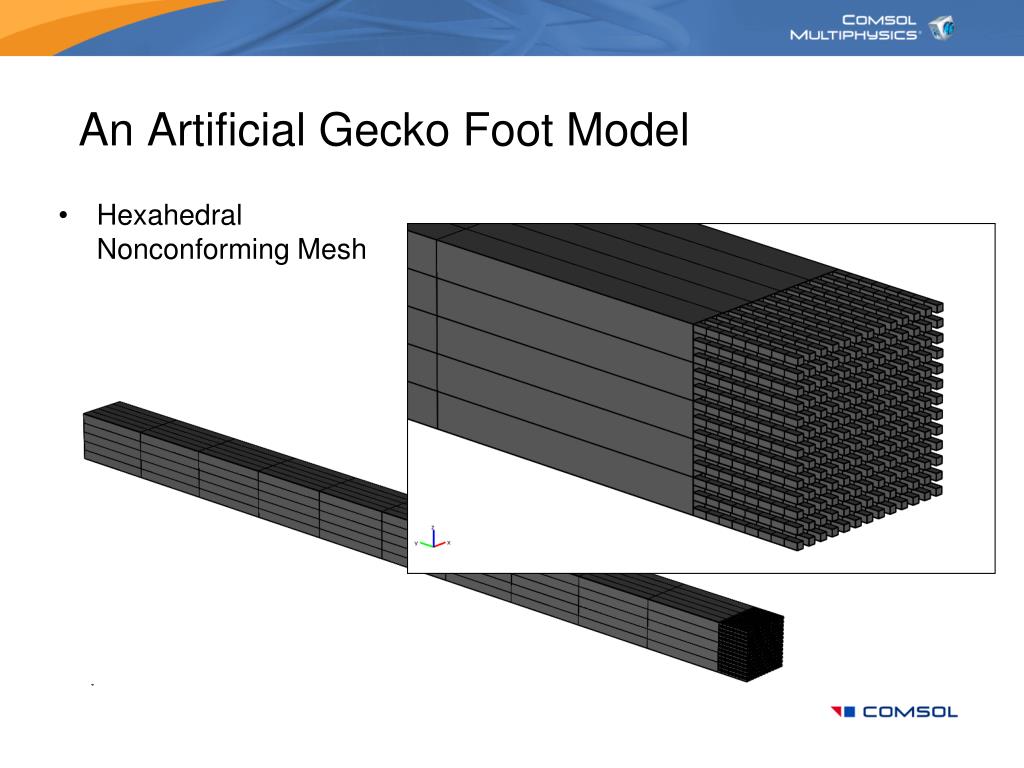

  5. An Artificial Gecko Foot Model • Hexahedral Nonconforming Mesh

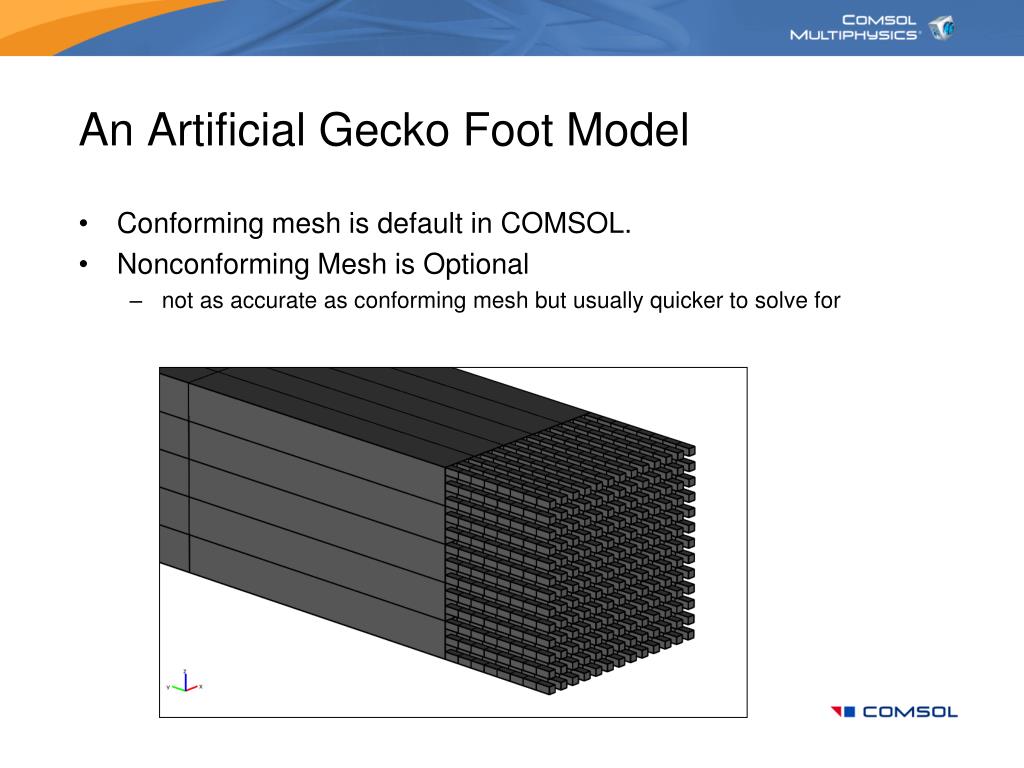

  6. An Artificial Gecko Foot Model • Conforming mesh is default in COMSOL. • Nonconforming Mesh is Optional • not as accurate as conforming mesh but usually quicker to solve for

  7. Basic contact force and friction force Constrained at other end

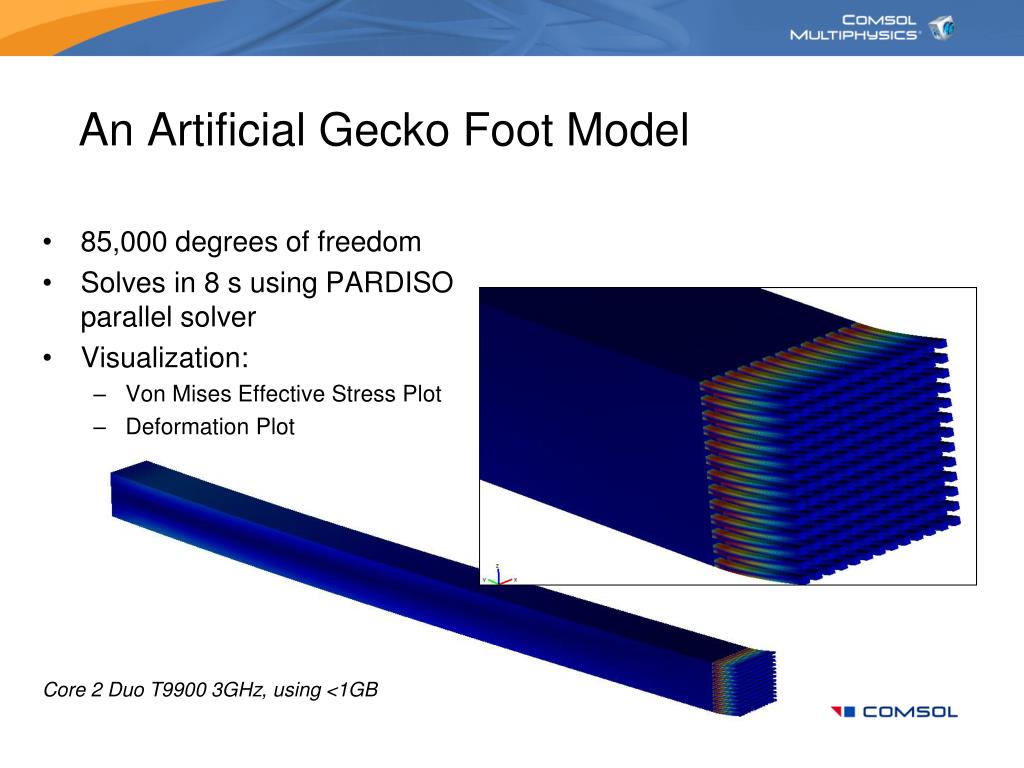

  8. An Artificial Gecko Foot Model • 85,000 degrees of freedom • Solves in 8 s using PARDISO parallel solver • Visualization: • Von Mises Effective Stress Plot • Deformation Plot Core 2 Duo T9900 3GHz, using <1GB

  9. An Artificial Gecko Foot Model • Conforming mesh • 583,000 degrees of freedom • Solves in 101 s using PARDISO parallel solver Core 2 Duo T9900 3GHz, using ~3.5GB
