Barium Sulfate as a Radiocontrast Agent

Barium Sulfate as a Radiocontrast Agent. Curriculum Outcome 4: Know the use of BaCl2 solution to test for sulfates and the use of BaSO4 in medicine. Using correct terms…. Don’t use the term X-ray to describe the picture or the process if you want to appear intelligent.

remedy
Download Presentation

Barium Sulfate as a Radiocontrast Agent

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Barium Sulfate as a Radiocontrast Agent Curriculum Outcome 4: Know the use of BaCl2 solution to test for sulfates and the use of BaSO4 in medicine

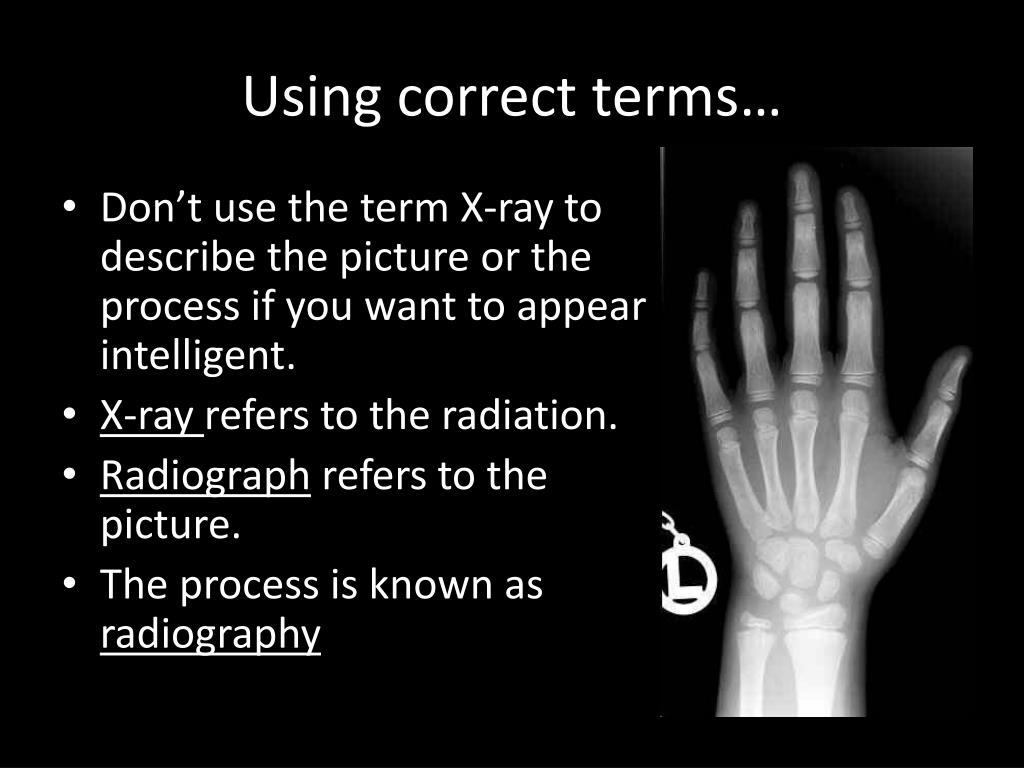

  2. Using correct terms… • Don’t use the term X-ray to describe the picture or the process if you want to appear intelligent. • X-ray refers to the radiation. • Radiograph refers to the picture. • The process is known as radiography

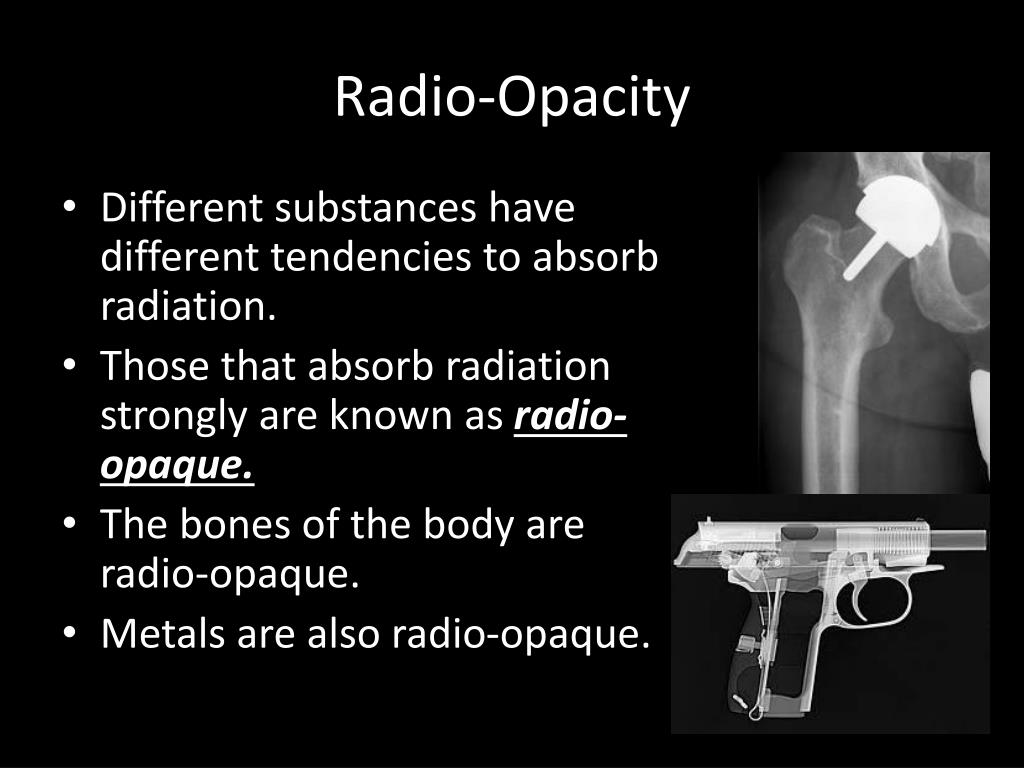

  3. Radio-Opacity • Different substances have different tendencies to absorb radiation. • Those that absorb radiation strongly are known as radio-opaque. • The bones of the body are radio-opaque. • Metals are also radio-opaque.

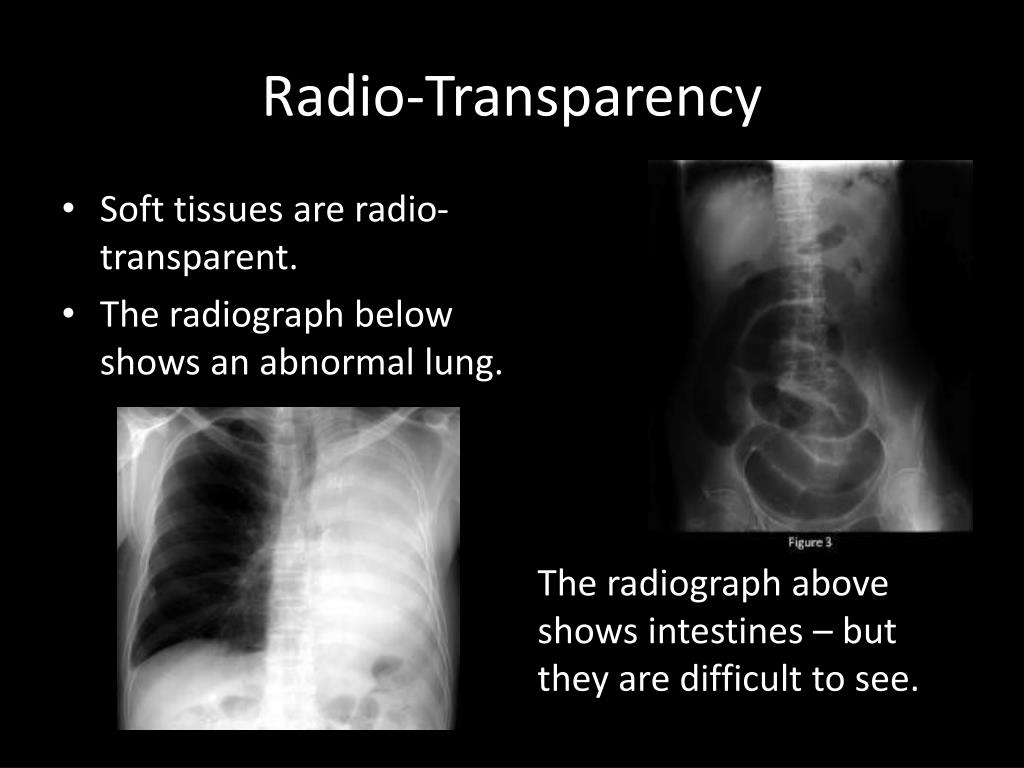

  4. Radio-Transparency • Soft tissues are radio-transparent. • The radiograph below shows an abnormal lung. The radiograph above shows intestines – but they are difficult to see.

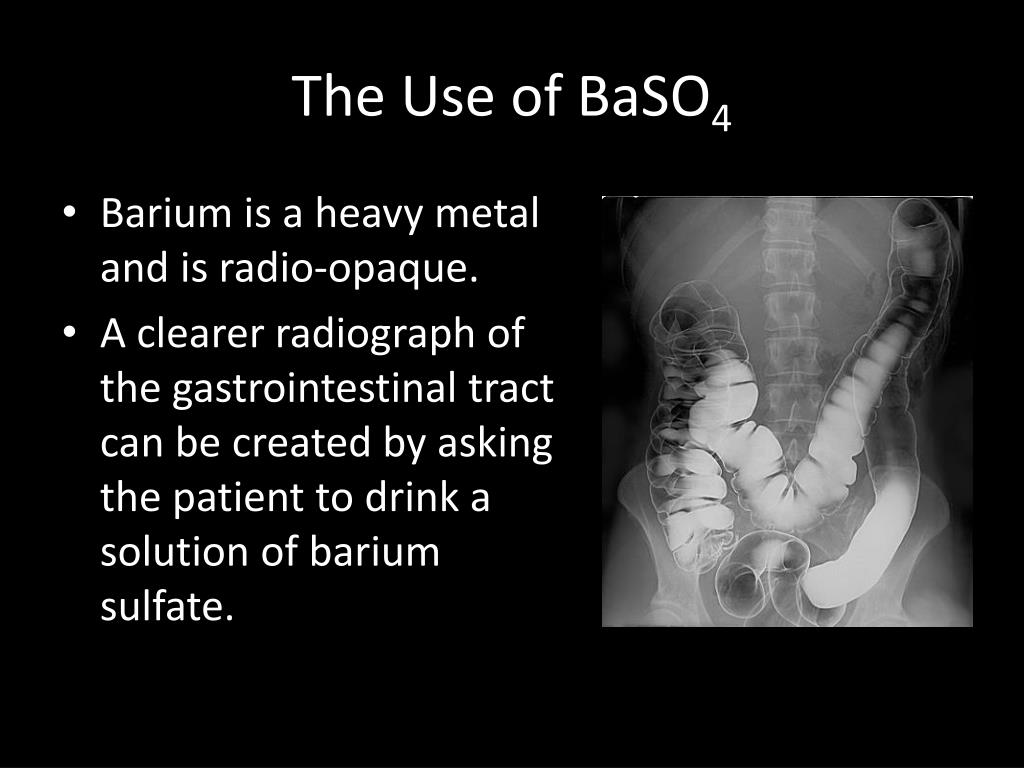

  5. The Use of BaSO4 • Barium is a heavy metal and is radio-opaque. • A clearer radiograph of the gastrointestinal tract can be created by asking the patient to drink a solution of barium sulfate.

  6. Radiocontrast Agents • Radiocontrast agents are used to improve the visibility of radio-translucent body structures in x-ray based imaging. • Barium sulfate is one example of a radiocontrast agent. • Many other substances, even air, can be used.

  7. How do they get the barium in your body? • A patient can drink a barium meal. A chalky drink usually with some flavouring to make it easier to drink. • You might be given a barium enema (YUK!)

  8. But Barium is Poisonous! • Water soluble barium compounds are poisonous. • Poisoning results in problems to the nervous system causing heart arrhythmia, muscle weakness and paralysis. • The good news is that barium sulfate is so insoluble, that it cannot enter the body.
