    1. Performance Analysis of Energy Detector in Relay Based Cognitive Radio Networks Saman Atapattu Chintha Tellambura Hai Jiang

    2. Outline • Introduction • System model • Detection analysis • Upper bound • ROC curves • Conclusions

    3. Heavy Use Heavy Use Less than 6-10% Occupancy Sparse Use Medium Use Radio Spectrum • Primary user / license holder • Occupancy of spectrum (below 1 GHz) is around 6~10%. • Spectrum holes • Spectrum under utilization

    4. Cognitive Radio • “A radio that can change its transmitter parameters based on the environment in which it operates”. • Cognitive radio • Secondary network • Unlicensed users • Spectrum Sensing…?

    5. Spectrum Sensing • PU should not be effected by secondary activities. • Reliability • Decision based on the received signal • Multipath fading & shadowing. • Hidden terminal problem. Ho = Primary user is absent (idle) H0: Y [n] = W [n] H1 = Primary user is in operation (busy) H1: Y [n]= h X [n] + W [n]

    6. Shadowing Shadowed node Cooperative nodes Cooperative Spectrum Sensing (CCS) • Improve reliability and detection capability. • Mitigate multipath fading & shadowing by spatial diversity. • Avoid hidden terminal problem.

    7. Sensing Techniques • Matched filter: SU has a prior knowledge of the PU, coherent detection. • Cyclostationary detection: PU exhibits strong cyclostationary properties. • Covariance detection: the statistical covariance matrices of the signal and noise. • Energy detection: the received signal strength.

    8. Sensing Techniques • Matched filter: SU has a prior knowledge of the PU, coherent detection. • Cyclostationary detection: PU exhibits strong cyclostationary properties. • Covariance detection: the statistical covariance matrices of the signal and noise. • Energy detection: the received signal strength. • Non-coherent • Low complexity

    9. Relay-based CCS • Data fusion AF relaying in cooperative communications • Relay Fixed gain (blind/semi blind) Variable gain • Combining MRC/ SLC • Filtering • Energy detector • Multipath fading Rayleigh/ Nakagami-m • Ri to CC (i=1, …, n) channel Orthogonal (TDMA) • Relay links • Relay links + Direct link System Model

    10. Binary hypothesis Energy Detector • Output is compared to the predefined threshold. • Non-coherent, optimal, low signal processing.

    11. Performance Metrics • Test statistic • False alarm probability: • Detection probability:

    12. Detection Analysis • Detection: • Average detection probability:

    13. Detection Analysis • Detection: • Average detection probability: • Contour integration: Residue theorem Moment generating function (MGF)

    14. MGF • Variable gain • Fixed gain

    15. Upper Bound for Pd • Case 1: Multiple-relay Case 2: Multiple-relay + Direct link • SNR: • MGF: • Upper bound: • Case 1

    16. n = 1 ROC curves for different number of cognitive relays (n)u=2, average SNR = 5 dB and fixed gain C=1.7

    17. n = 1 ROC curves for different number of cognitive relays (n)u=2, average SNR = 5 dB and fixed gain C=1.7

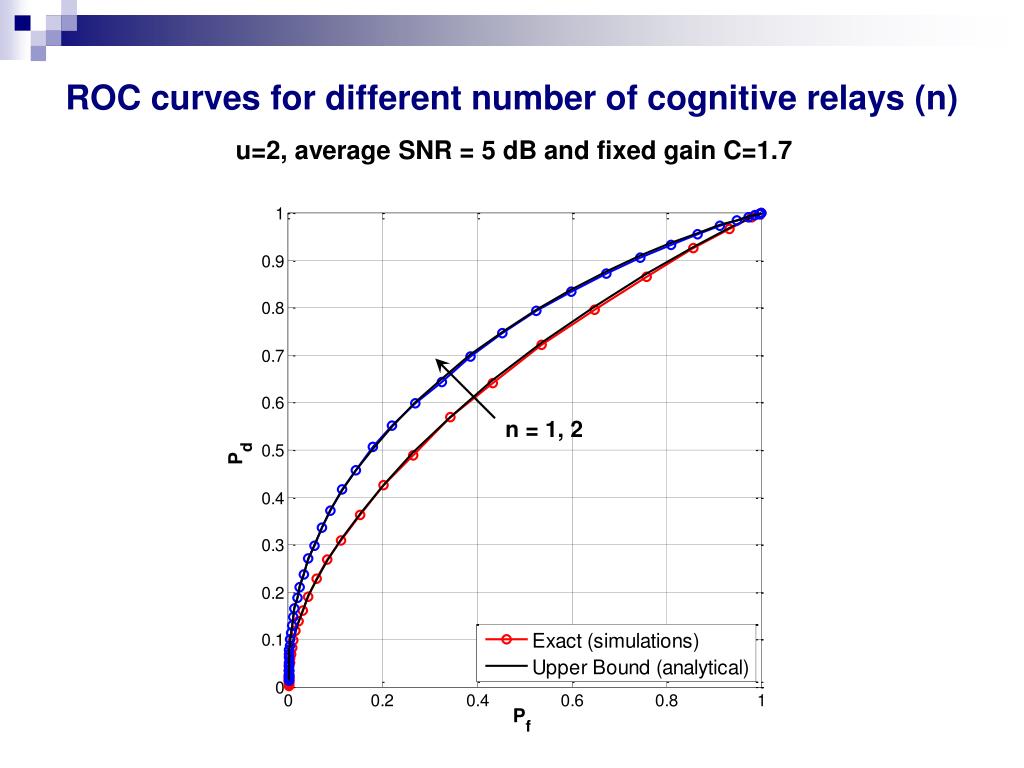

    18. n = 1, 2 ROC curves for different number of cognitive relays (n)u=2, average SNR = 5 dB and fixed gain C=1.7

    19. n = 1, 2 ROC curves for different number of cognitive relays (n)u=2, average SNR = 5 dB and fixed gain C=1.7

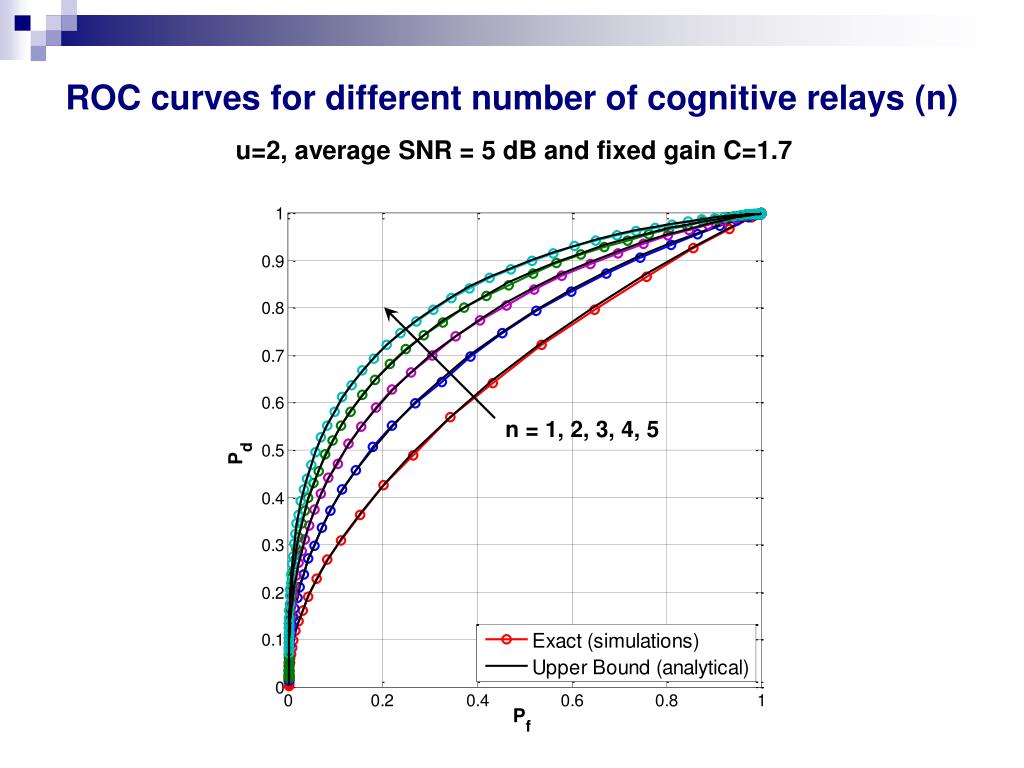

    20. n = 1, 2, 3, 4, 5 ROC curves for different number of cognitive relays (n)u=2, average SNR = 5 dB and fixed gain C=1.7

    21. n = 1, 2, 3, 4, 5 ROC curves for different number of cognitive relays (n)u=2, average SNR = 5 dB and fixed gain C=1.7

    22. ROC curves for relay links + direct linku=2, average SNR = 5 dB and fixed gain C=1.7 Direct link SNR = -5 dB

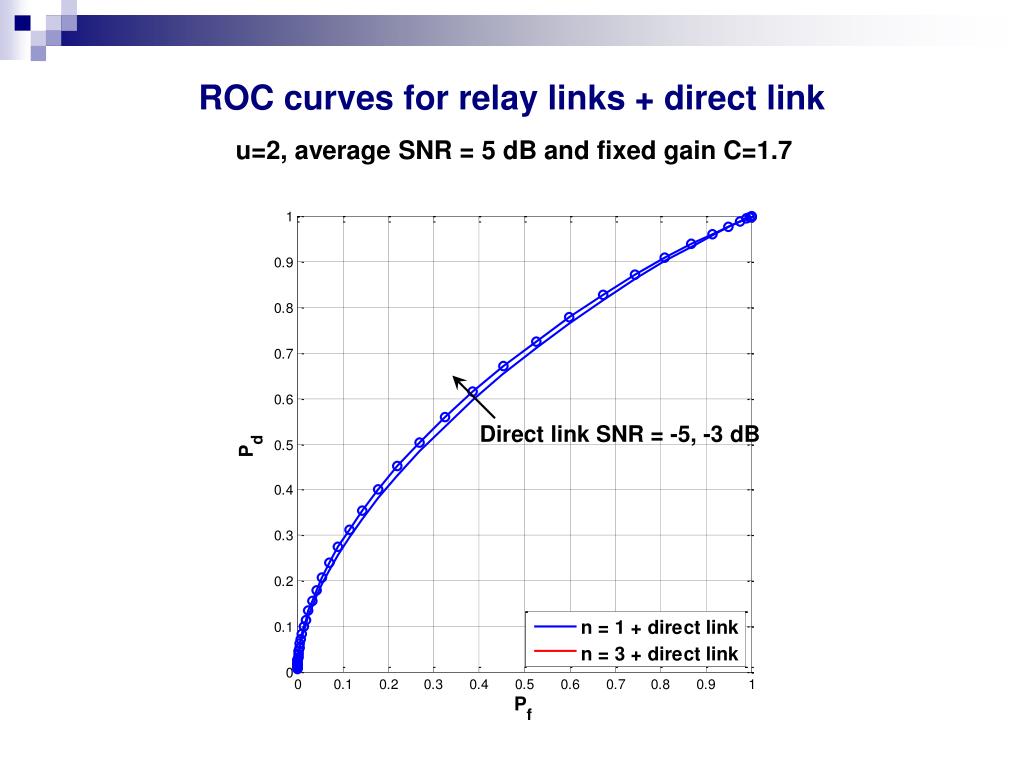

    23. ROC curves for relay links + direct link u=2, average SNR = 5 dB and fixed gain C=1.7 Direct link SNR = -5, -3 dB

    24. ROC curves for relay links + direct linku=2, average SNR = 5 dB and fixed gain C=1.7 Direct link SNR = -5, -3, 0 dB

    25. ROC curves for relay links + direct linku=2, average SNR = 5 dB and fixed gain C=1.7 Direct link SNR = -5, -3, 0, 3 dB

    26. ROC curves for relay links + direct linku=2, average SNR = 5 dB and fixed gain C=1.7 n =3 n =1 Direct link SNR = -5, -3, 0, 3 dB

    27. Conclusions • The MGF of received SNR of the primary user’s signal is utilized to analyze the average detection probability. • Tighter upper bound is derived. • Sensing capability is increased with spatial diversity. • Direct link has major impact of the detection capability. • Analysis can be extended to multihop relaying.

    28. References [1] S. Haykin, “Cognitive radio: Brain-empowered wireless communications,” IEEE J. Select. Areas Commun., vol. 23, no. 2, pp. 201–220, Feb. 2005. [2] H. Jiang, L. Lai, R. Fan, and H. V. Poor, “Optimal selection of channel sensing order in cognitive radio,” IEEE Trans. Wireless Commun., vol. 8, no. 1, pp. 297–307, Jan. 2009. [3] J. N. Laneman, D. N. C. Tse, and G. W. Wornell, “Cooperative diversity in wireless networks: Efficient protocols and outage behavior,” IEEE Trans. Inform. Theory, vol. 50, no. 12, pp. 3062–3080, Dec. 2004. [4] G. Ganesan and Y. Li, “Cooperative spectrum sensing in cognitive radio, part I: Two user networks,” IEEE Trans. Wireless Commun., vol. 6, no. 6, pp. 2204–2213, June 2007. [5] F. F. Digham, M.-S. Alouini, and M. K. Simon, “On the energy detection of unknown signals over fading channels,” IEEE Trans. Commun., vol. 55, no. 1, pp. 21-24, Jan. 2007. [6] C. Tellambura, A. Annamalai, and V. K. Bhargava, “Closed form and infinite series solutions for the MGF of a dual-diversity selection combiner output in bivariate Nakagami fading,” IEEE Trans. Commun., vol. 51, no. 4, pp. 539–542, Apr. 2003.
