1. Register Machines ≤Factor Replacement Systems Chris Ellis Bruce Meeks, Jr.

2. Register Machines • Natural numbers stored in finite set of registers (result in nth register) • Finite length programs of instructions labeled 1 to m • Two types of instructions: • INCr [i] : Increment value of register r by 1, jump to instruction 1 • DECr[p,z] : If register r > 0, decrement by 1 and jump to p, otherwise jump to z

3. Factor Replacement Systems • Single natural number x used for information storage (multiple values encoded as exponents of prime numbers, result stored as exponent of 2) • “Instructions” stored as list of rational numbers a/b • First fraction a/b for which x is divisible by b is multiplied by x, which replaces the value of x by xa/b

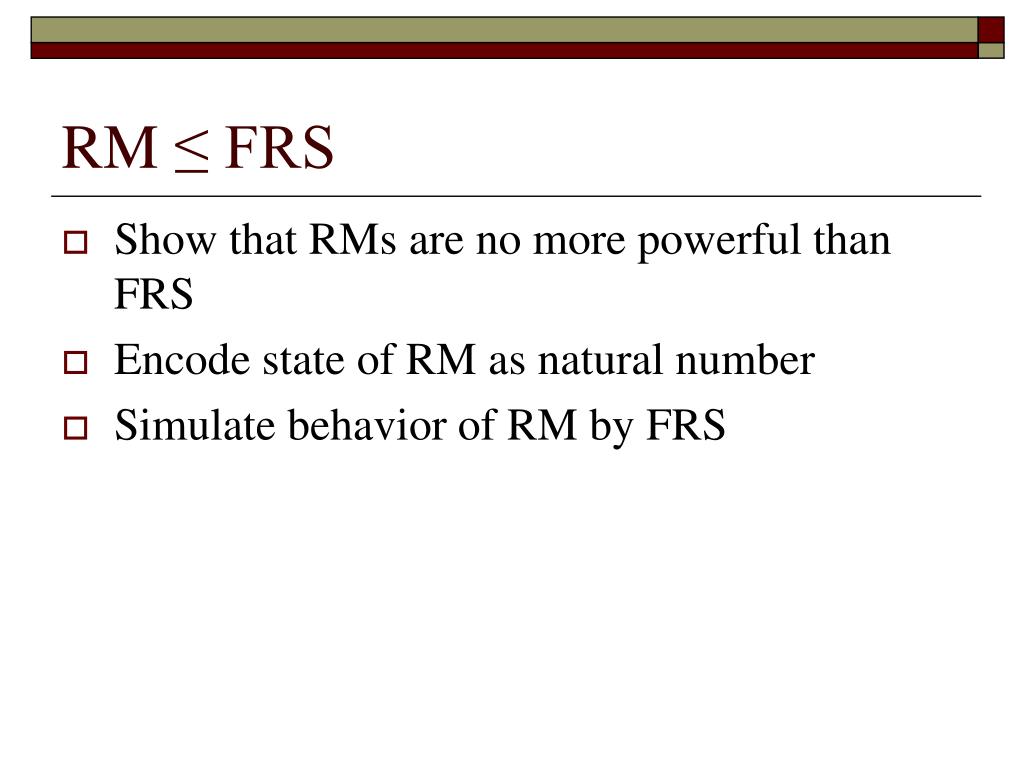

4. RM ≤ FRS • Show that RMs are no more powerful than FRS • Encode state of RM as natural number • Simulate behavior of RM by FRS

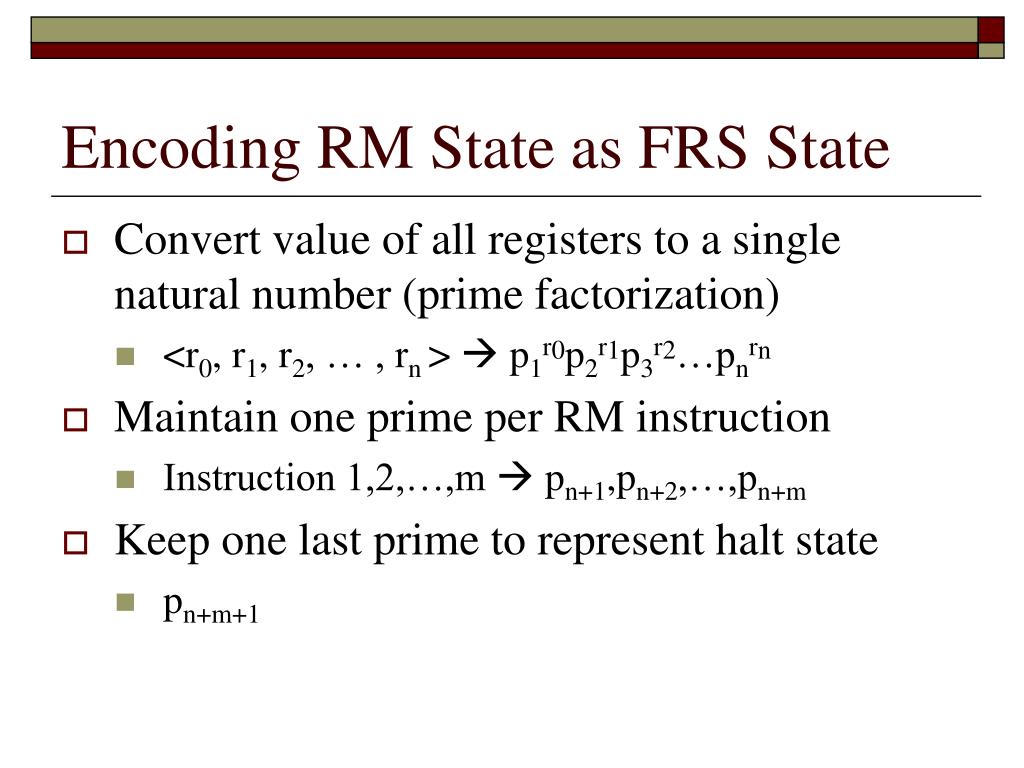

5. Encoding RM State as FRS State • Convert value of all registers to a single natural number (prime factorization) • <r0, r1, r2, … , rn >  p1r0p2r1p3r2…pnrn • Maintain one prime per RM instruction • Instruction 1,2,…,m  pn+1,pn+2,…,pn+m • Keep one last prime to represent halt state • pn+m+1

6. Simulating Behavior of RM • For each instruction 1 ≤ j ≤ m • If j is an INC instruction (j. INCk[l]) • Add FRS rule pn+jx pn+lpkx • If j is a DEC instruction (j. DECk[p,z]) • Add FRS rule pn+jpkx pn+px • Add FRS rule pn+jx  pn+zx • Clean-up rules 0 ≤ i ≤ n-1 • pn+m+1pix pn+m+1x • Finally • pn+m+1x  x

7. Example – Limited Subtraction • Register Machine • r2  r1 – r2, if r1 ≥ r2; 0, otherwise • Factor Replacement System • Input: 3x5y • Output: 2z where z = x – y, if x ≥ y; 0, otherwise

8. Example – Limited Subtraction Associated Primes 7 11 13 17 19 • DEC2[2,3] • INC1 • DEC3[4,5] • DEC1[3,3] 3*7x 11x 7x  13x 11x 2*7x 5*13x 17x 13x  19x 2*17x 13x 17x  13x
