  1. William (Andy) Adamson Olga Kornievskaia Center for Information Technology Integration University of Michigan IETF67, San Diego Low Infrastructure Public Key Based GSS Security Mechanisms

  2. Outline • Problem Statement • Existing Work • Draft- • SPKM3 • LIPKEY • Unsolved issues

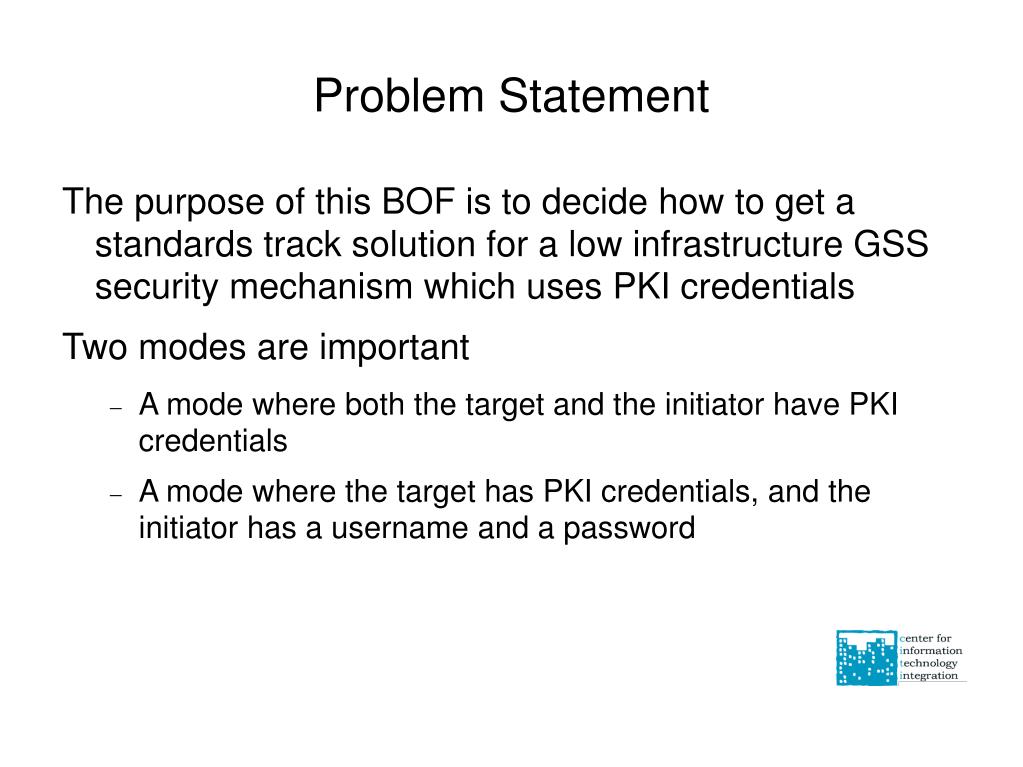

  3. Problem Statement The purpose of this BOF is to decide how to get a standards track solution for a low infrastructure GSS security mechanism which uses PKI credentials Two modes are important • A mode where both the target and the initiator have PKI credentials • A mode where the target has PKI credentials, and the initiator has a username and a password

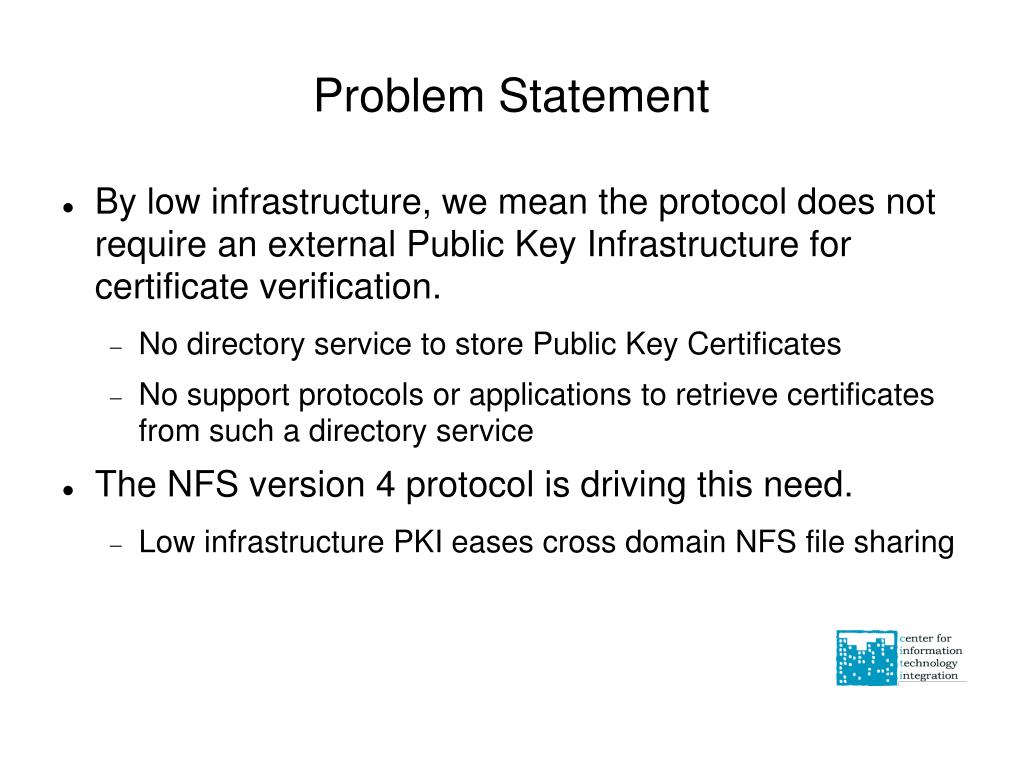

  4. Problem Statement • By low infrastructure, we mean the protocol does not require an external Public Key Infrastructure for certificate verification. • No directory service to store Public Key Certificates • No support protocols or applications to retrieve certificates from such a directory service • The NFS version 4 protocol is driving this need. • Low infrastructure PKI eases cross domain NFS file sharing

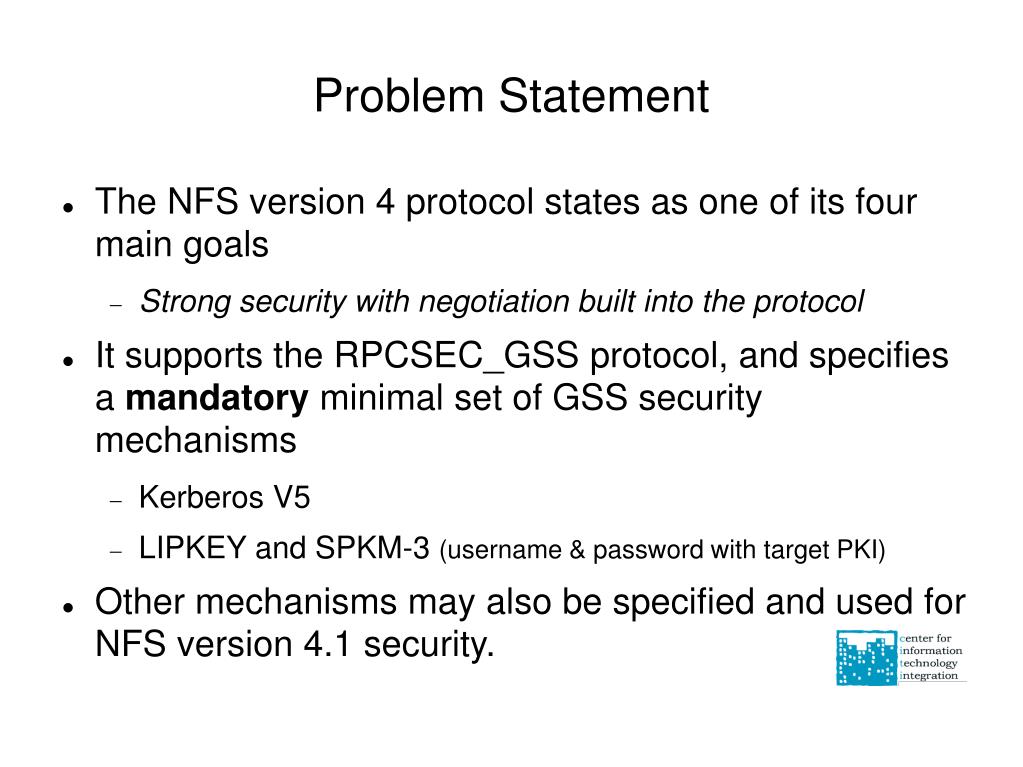

  5. Problem Statement • The NFS version 4 protocol states as one of its four main goals • Strong security with negotiation built into the protocol • It supports the RPCSEC_GSS protocol, and specifies a mandatory minimal set of GSS security mechanisms • Kerberos V5 • LIPKEY and SPKM-3 (username & password with target PKI) • Other mechanisms may also be specified and used for NFS version 4.1 security.

  6. Why NFS version 4 and PKI? • NFS version 4 protocol wants to make use of existing Public Key Infrastructure, and to provide an alternative to Kerberos V5. • I see several markets for NFS version 4 and PKI • Existing username, password systems • Government computing, where PK credentials are mandated • Grid computing

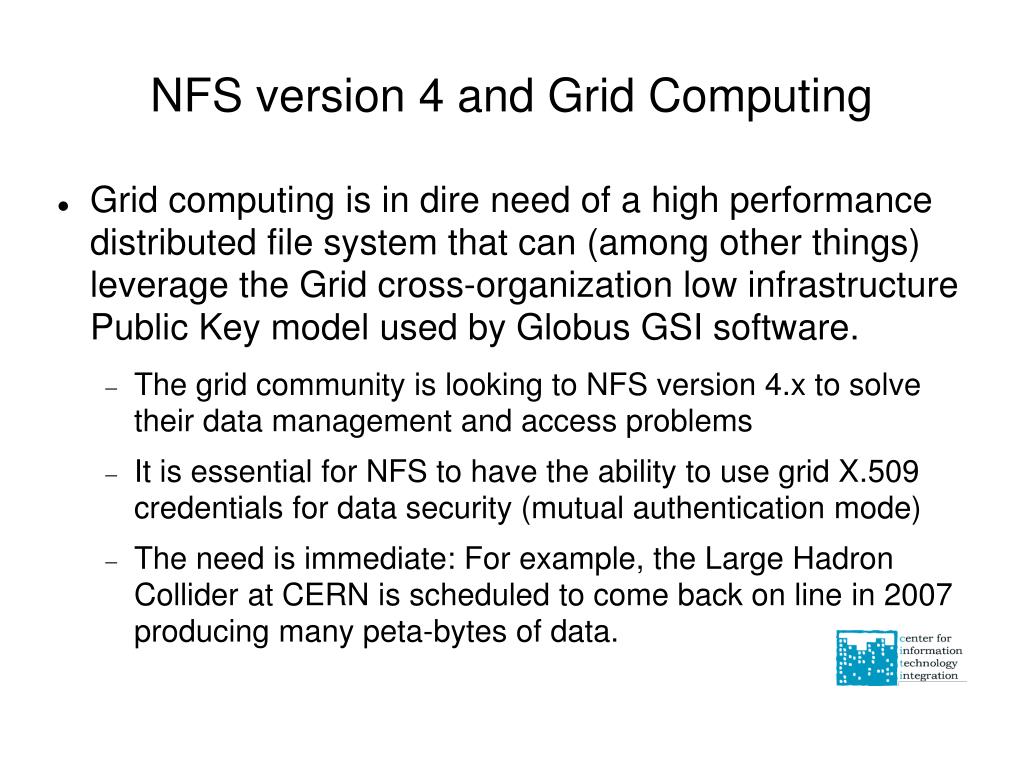

  7. NFS version 4 and Grid Computing • Grid computing is in dire need of a high performance distributed file system that can (among other things) leverage the Grid cross-organization low infrastructure Public Key model used by Globus GSI software. • The grid community is looking to NFS version 4.x to solve their data management and access problems • It is essential for NFS to have the ability to use grid X.509 credentials for data security (mutual authentication mode) • The need is immediate: For example, the Large Hadron Collider at CERN is scheduled to come back on line in 2007 producing many peta-bytes of data.

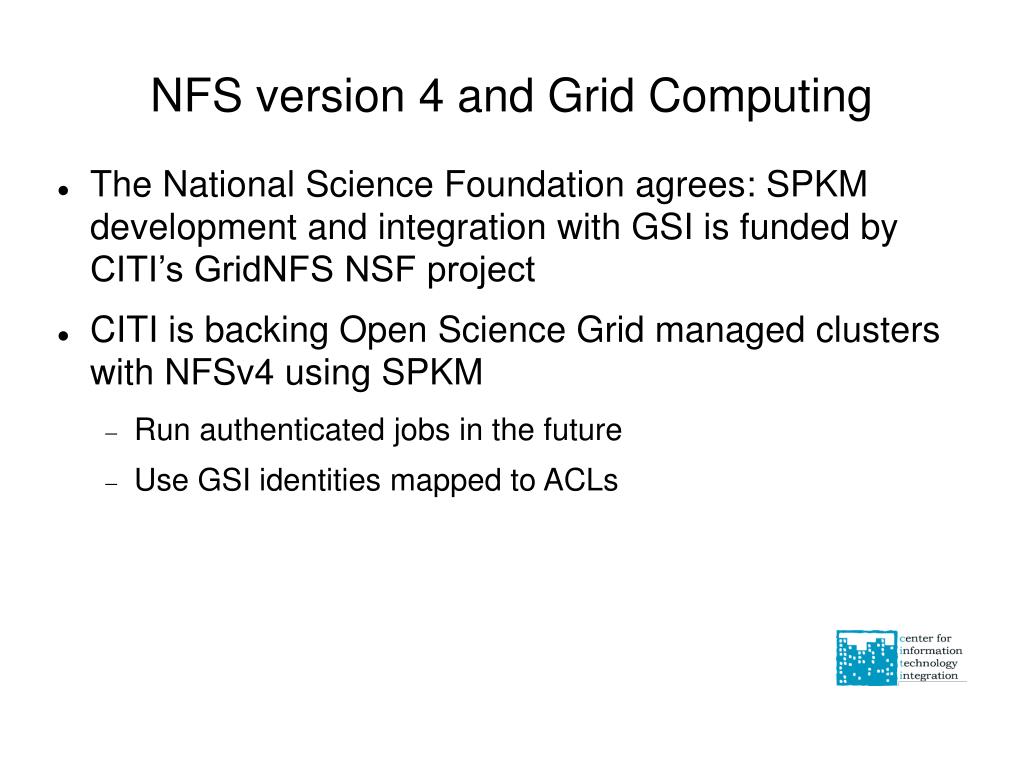

  8. NFS version 4 and Grid Computing • The National Science Foundation agrees: SPKM development and integration with GSI is funded by CITI’s GridNFS NSF project • CITI is backing Open Science Grid managed clusters with NFSv4 using SPKM • Run authenticated jobs in the future • Use GSI identities mapped to ACLs

  9. NFSv4 PKI History • RFC2025 “The Simple Public-Key GSS-API Mechanism (SPKM)” • Standards track, Network Working Group, October 1996 • RFC2847 “A Low Infrastructure Public Key Mechanism Using SPKM” • Standards track, Network Working Group, June 2000 • RFC2847 refers to RFC2025 in describing SPKM-3 • No mention of mutual authentication (initiator credentials) • Anonymous initiator secure channel used by LIPKEY

  10. NFSv4 PKI History • SPKM-3 meeting at the NFSv4 Bakeathon, Austin Texas, October 20 2003 • IBM and CITI talked about RFC2847 interoperability issues • SPKM-3 has been in the Linux kernel since April 2004 • libgssapi_spkm3.so has also been available since 2004 • Hummingbird SPKM-3 and LIPKEY implementation tested at September 2006 NFSv4 Bakeathon • Windows client interoperated with CITI SPKM-3 server

  11. BOF Questions from Sam • What deployed production code is out there that either interoperates with RFC2847 or draft-adamson? • Linux • No deployed Linux SPKM/LIPKEY • Linux SPKM-3 implementation is RFC2847 compliant with mutual authentication added • Hummingbird (Not an official statement, my understanding..) • Hummingbird implementation is very new, and not yet deployed, but is in demand - they released a LIPKEY implementation in June 2006. • RFC2847 compliant • IBM (Not an official statement, my understanding..) • Some RFC2847 SPKM-3 work was done • No mention of SPKM with AIX product

  12. BOF Questions from Sam • Can we meet our security and other requirements without making backward incompatible changes and forcing an OID change? • No. RFC2025 is broken (and therefore so is RFC2847) • Going forward, can we obtain a simpler spec or implementation by making non-backward compatible changes?

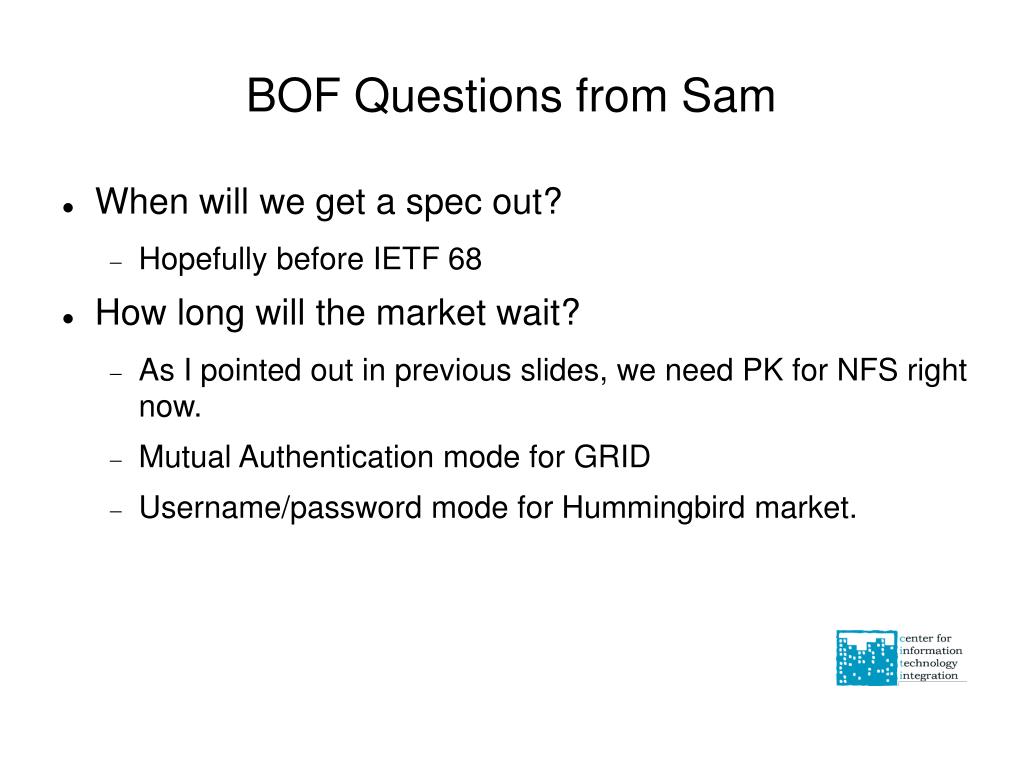

  13. BOF Questions from Sam • When will we get a spec out? • Hopefully before IETF 68 • How long will the market wait? • As I pointed out in previous slides, we need PK for NFS right now. • Mutual Authentication mode for GRID • Username/password mode for Hummingbird market.

  14. BOF Questions from Sam • Which will take longer: fixing this spec (draft-adamson) or starting from scratch • Considering the maturity of the Linux RFC2847 implementation, from the Linux point of view, starting from scratch will take a lot longer

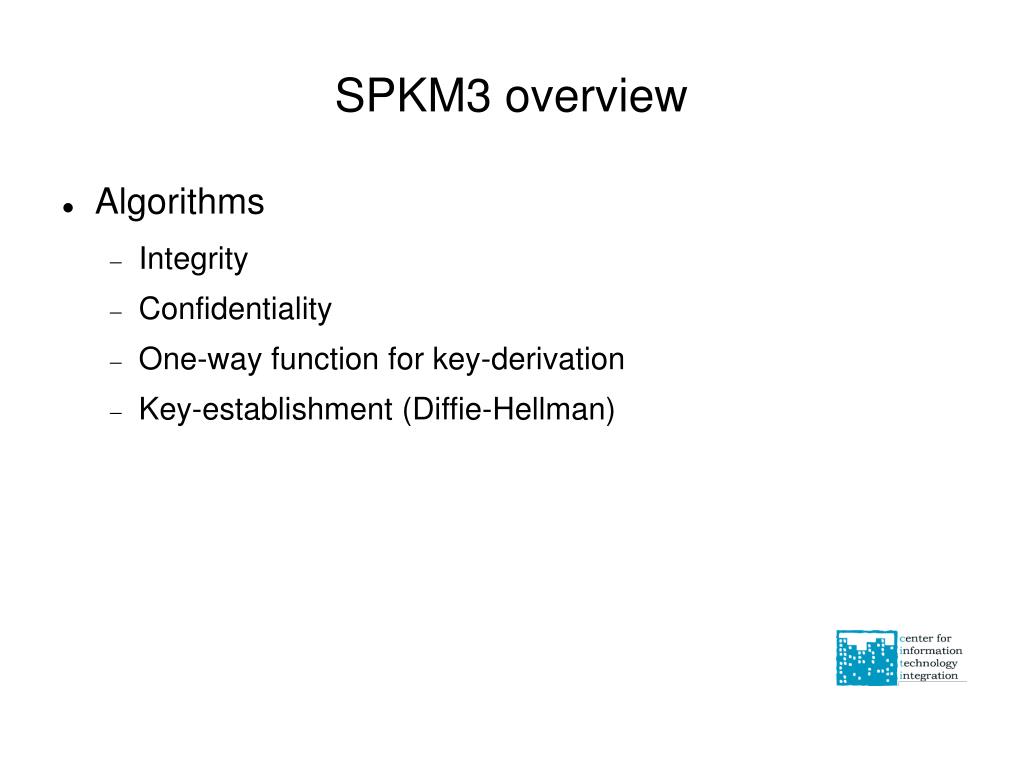

  15. SPKM3 overview • Algorithms • Integrity • Confidentiality • One-way function for key-derivation • Key-establishment (Diffie-Hellman)

  16. Proposed I-AGLs • NULL-MAC • Md5WithRSAEncryption • Sha1WithRSAEncryption • DsaWithSHA1 • DES-MAC • MD5-DES-MAC • SUM64-DES-CBC

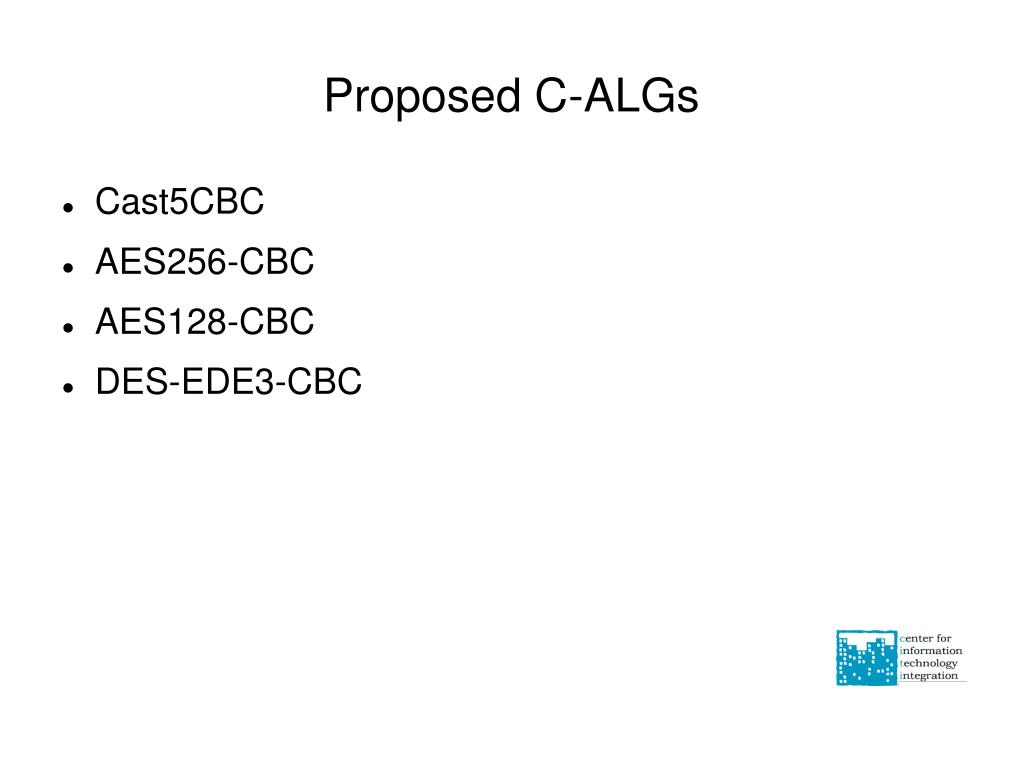

  17. Proposed C-ALGs • Cast5CBC • AES256-CBC • AES128-CBC • DES-EDE3-CBC

  18. Proposed O-ALGs • Use Diffie-Hellman, a non-negotiable key establishment (K-ALG), to establish a context key • Use context key to derive subkeys for the negotiated I-ALG and C-ALG • SHA1

  19. Tokens • Context establishment tokens • SPKM-REQ, SPKM-REP-TI, SPKM-REP-IT • Per message tokens • SPKM-MIC, SPKM-WRAP • Error and delete tokens • SPKM-ERROR, SPKM-DEL, SPKM-GSS-ERROR • All tokens are ASN1 encoded, integrity protected

  20. SPKM-REQ • Initiator creates a request and signs it using one of the digital signature integrity algorithms for mutual SPKM3 and using NULL-MAC for anonymous SPm3 • Mandatory fields in the request are token id, context id, version, nonce, target name, list of i-algs, c-algs, o-algs, DH parameters • In mutual SPKM3, initiator includes its certificate and optionally a CA chain

  21. SPKM-REP-TI • Target verifies the request (signature and certificate verification), retrieves initiator’s DH parameters and public key, calculates the context key, derives the subkeys • Creates the reply and signs it • In anonymous SPKM3, the digest of the signature includes SPKM-REQ • Mandatory field are token id, context id, version, client’s nonce, target name, server’s nonce, i-alg, c-alg, o-alg, DH public key, cert + CA chain

  22. SPKM-REP-IT • Only present for mutual SPKM3 and is needs to prevent replay attacks • Mandatory fields in the token are token id, context id, client’s nonce, server’s nonce, target’s name • Initiator creates the reply and signs it

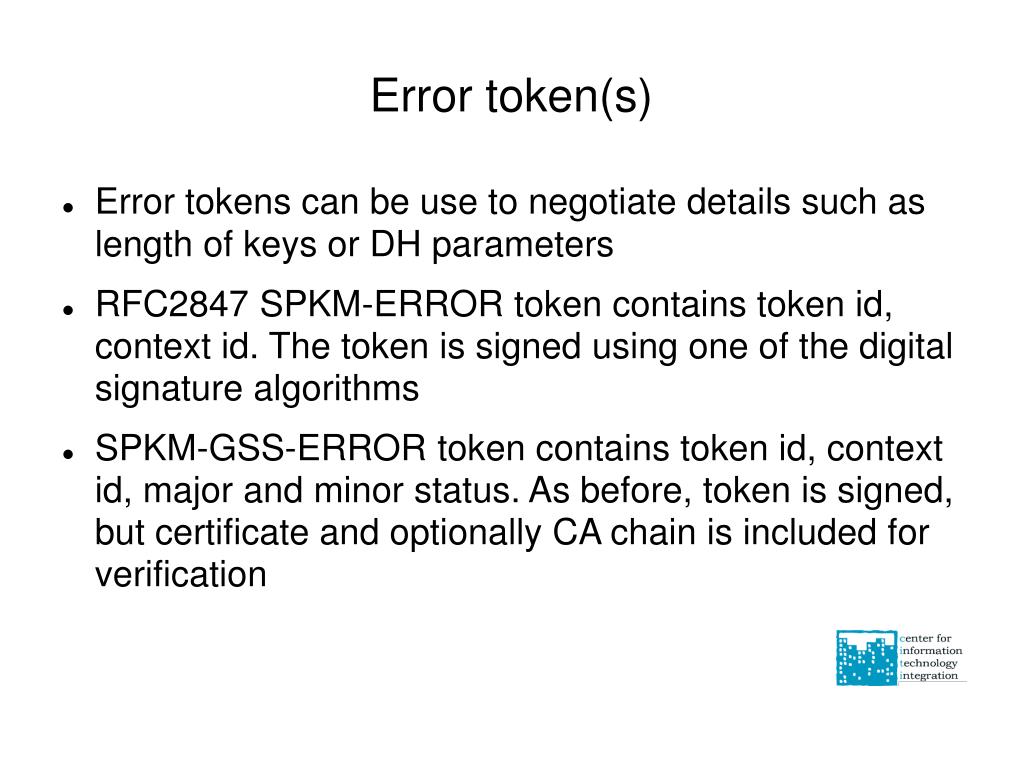

  23. Error token(s) • Error tokens can be use to negotiate details such as length of keys or DH parameters • RFC2847 SPKM-ERROR token contains token id, context id. The token is signed using one of the digital signature algorithms • SPKM-GSS-ERROR token contains token id, context id, major and minor status. As before, token is signed, but certificate and optionally CA chain is included for verification

  24. LIPKEY • Uses anonymous SPKM3 to negotiate secure connection • SPKM-REQ and SPKM-REP-TI tokens are exchanged • Initiator then sends user’s id and password

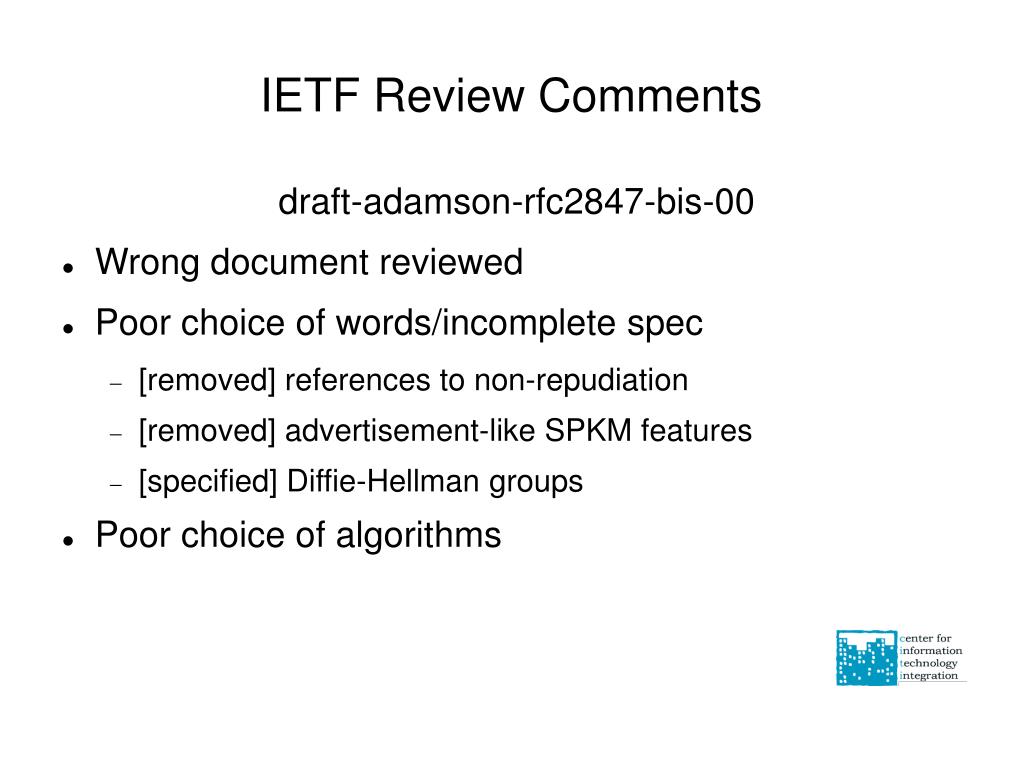

  25. IETF Review Comments draft-adamson-rfc2847-bis-00 • Wrong document reviewed • Poor choice of words/incomplete spec • [removed] references to non-repudiation • [removed] advertisement-like SPKM features • [specified] Diffie-Hellman groups • Poor choice of algorithms

  26. IETF Review Comments draft-adamson-rfc2847-bis-01 • Poor choice of algorithms • Poor choice of words/style • [removed] exportability concerns • MAC and signature algorithms • Explanations of the ANS1 structures • QOP section • Key Derivation Function

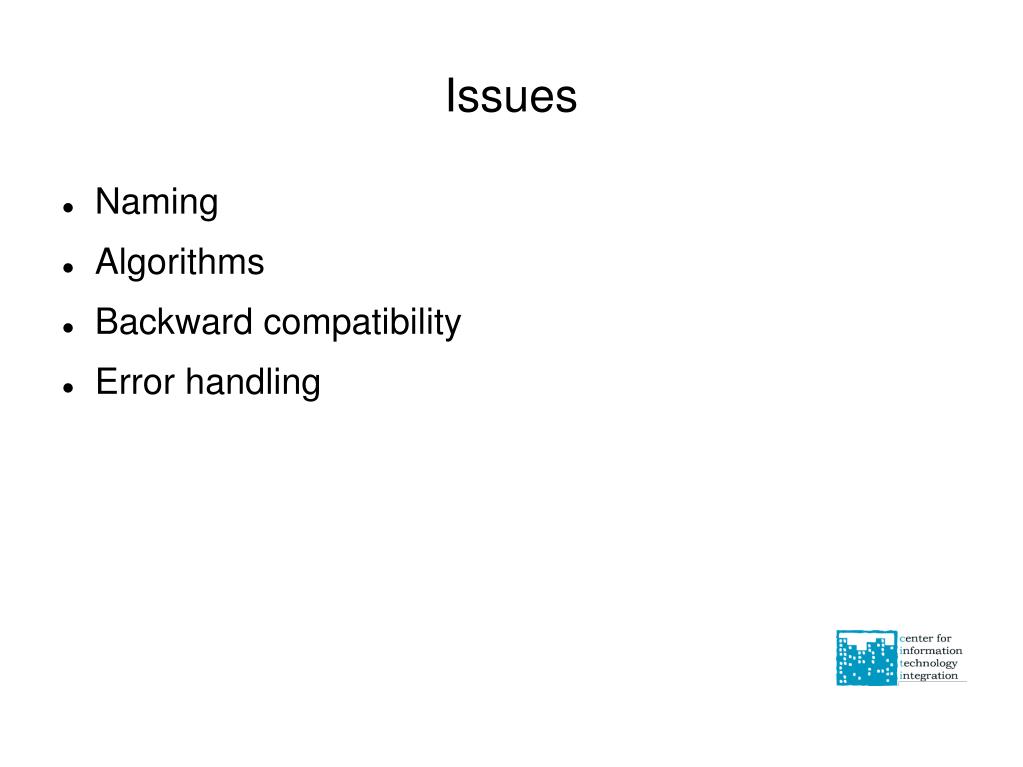

  27. Issues • Naming • Algorithms • Backward compatibility • Error handling

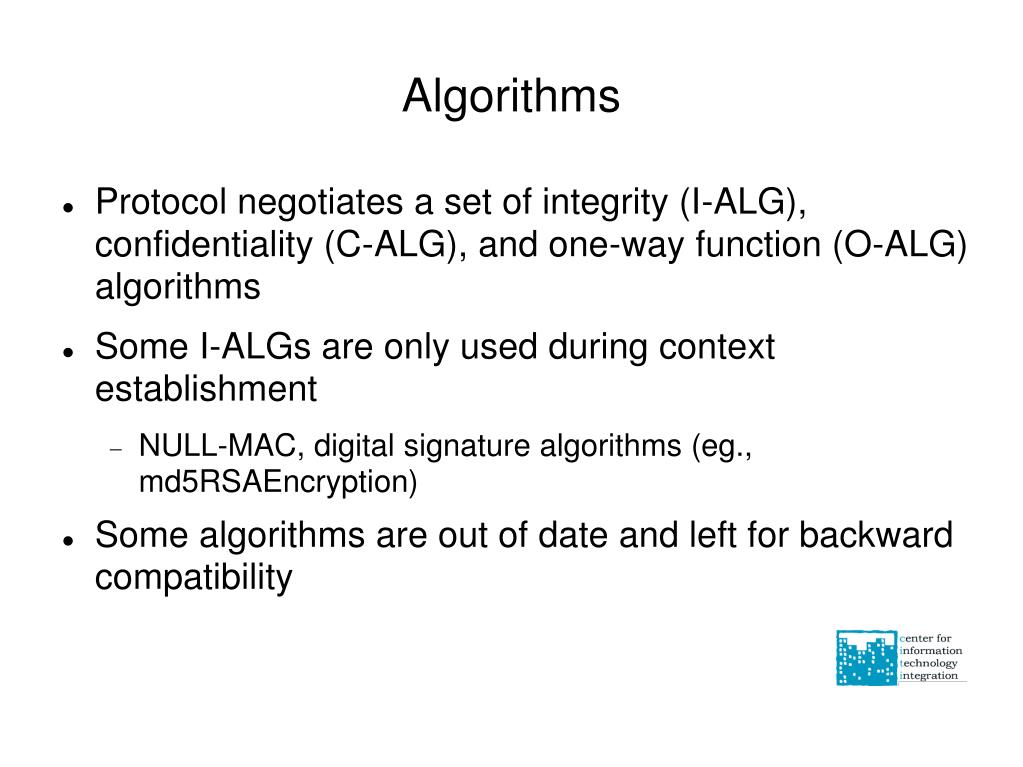

  28. Algorithms • Protocol negotiates a set of integrity (I-ALG), confidentiality (C-ALG), and one-way function (O-ALG) algorithms • Some I-ALGs are only used during context establishment • NULL-MAC, digital signature algorithms (eg., md5RSAEncryption) • Some algorithms are out of date and left for backward compatibility

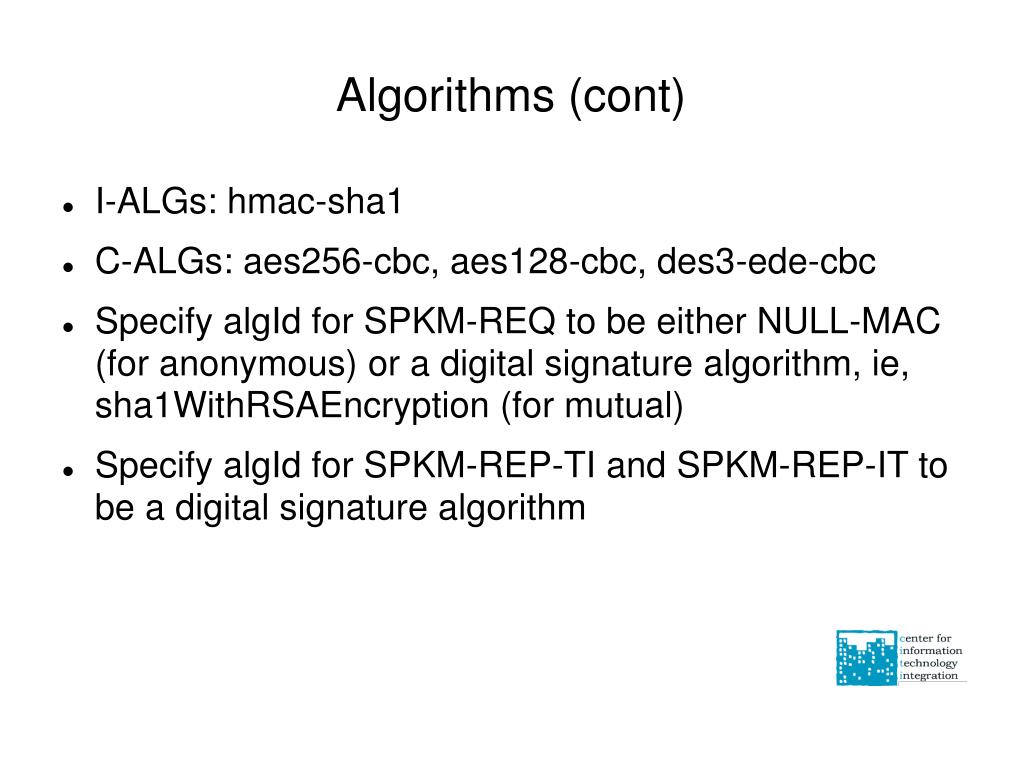

  29. Algorithms (cont) • I-ALGs: hmac-sha1 • C-ALGs: aes256-cbc, aes128-cbc, des3-ede-cbc • Specify algId for SPKM-REQ to be either NULL-MAC (for anonymous) or a digital signature algorithm, ie, sha1WithRSAEncryption (for mutual) • Specify algId for SPKM-REP-TI and SPKM-REP-IT to be a digital signature algorithm

  30. Naming (target) • Client needs to create a target name then match it against server’s X509 certificate • lacks server’s certificate • has information such as server’s location (hostname) and service name • Start with target name: • Type GSS_C_NT_HOSTBASED_SERVICE • Value nfs@citi.umich.edu • Convert to X509 NAME • CN=nfs/citi.umich.edu

  31. Naming: do as PKINIT does • Target acquires certificate with • Extended Key Usage (EKU) X509v3 extension: • per protocol: id-spkm3 • per server: id-spkm3-server • per service: id-spkm3-nfs • Subject Alternative Name (SAN): • dnsName=hostname • otherName: oid=id-spkm3-server, value=UTF8String:service@hostname • Draft-ietf-pkix-srvsan-03 proposal: otherName: oid=id-on-dnsSRV, value=UTF8String: _Service.Name (components of an SRV RR)

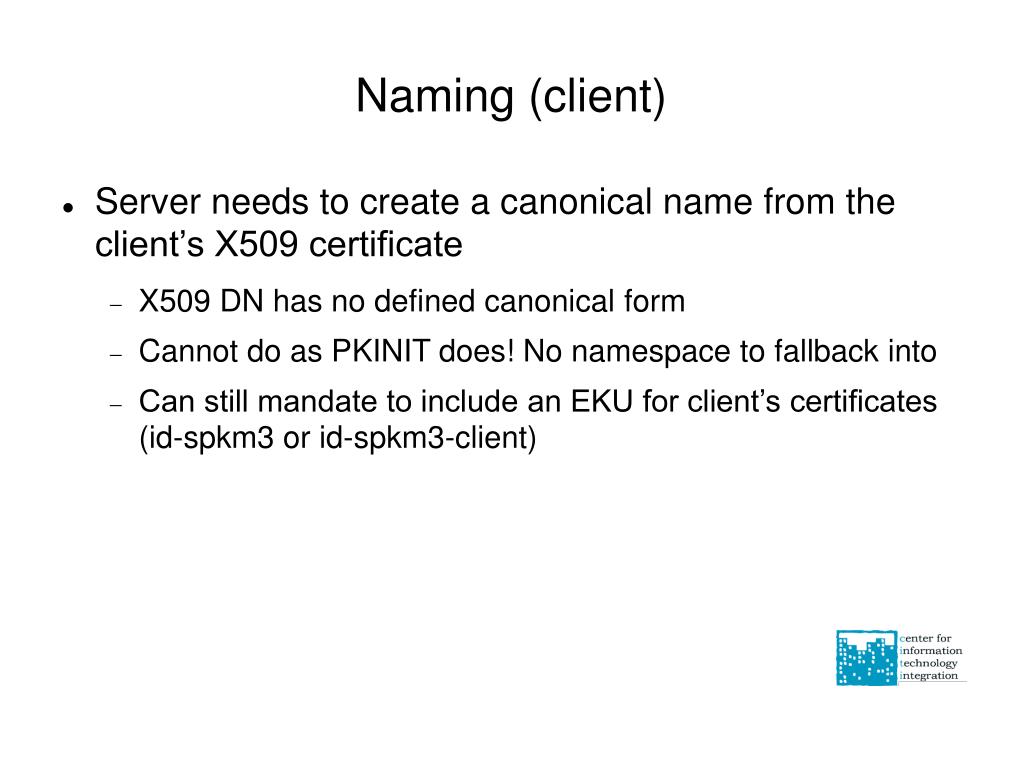

  32. Naming (client) • Server needs to create a canonical name from the client’s X509 certificate • X509 DN has no defined canonical form • Cannot do as PKINIT does! No namespace to fallback into • Can still mandate to include an EKU for client’s certificates (id-spkm3 or id-spkm3-client)

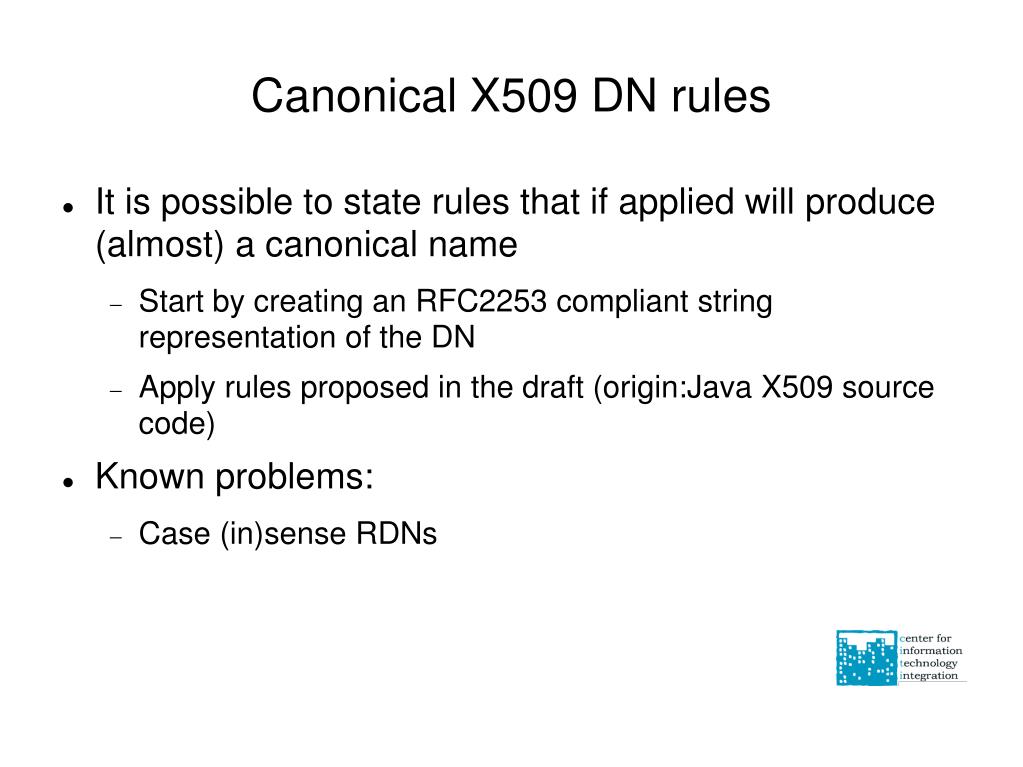

  33. Canonical X509 DN rules • It is possible to state rules that if applied will produce (almost) a canonical name • Start by creating an RFC2253 compliant string representation of the DN • Apply rules proposed in the draft (origin:Java X509 source code) • Known problems: • Case (in)sense RDNs

  34. Canonicalization rules • Leading zeros are removed from attribute types that are encoded as dotted decimal OIDs. • DirectoryString attribute values of type PrintableString and UTF8String are not in hexadecimal format • DirectoryString attribute values of types other than PrintableString and UTF8String are output in hexadecimal format

  35. Canonicalization rules (cont) • Leading and trailing white space characters are removed from non-hexadecimal attribute values (unless the value consists entirely of white space characters) • Internal substrings of one or more white space characters are converted to a single space in non-hexadecimal attribute values

  36. Canonicalization rules (cont) • Relative Distinguished Names containing more than one Attribute Value Assertion (AVA) are output in the following order: an alphabetical ordering of AVAs containing standard keywords, followed by a numeric ordering of AVAs containing OID keywords. • The only characters in attribute values that are escaped are those which section 2.4 of RFC2253 states must be escaped (they are escaped using a preceding backslash character)

  37. Backward compatibility • SPKM-ERROR token should be replaced by SPKM-GSS-ERROR • SPKM-DEL token should be removed because GSS API recommends that it is not used • Moved AuthorizationData field • Added extensibility markers to allow modification to the mechanism • Should we worry about backward compatibility with RFC2847 (RFC2025)?

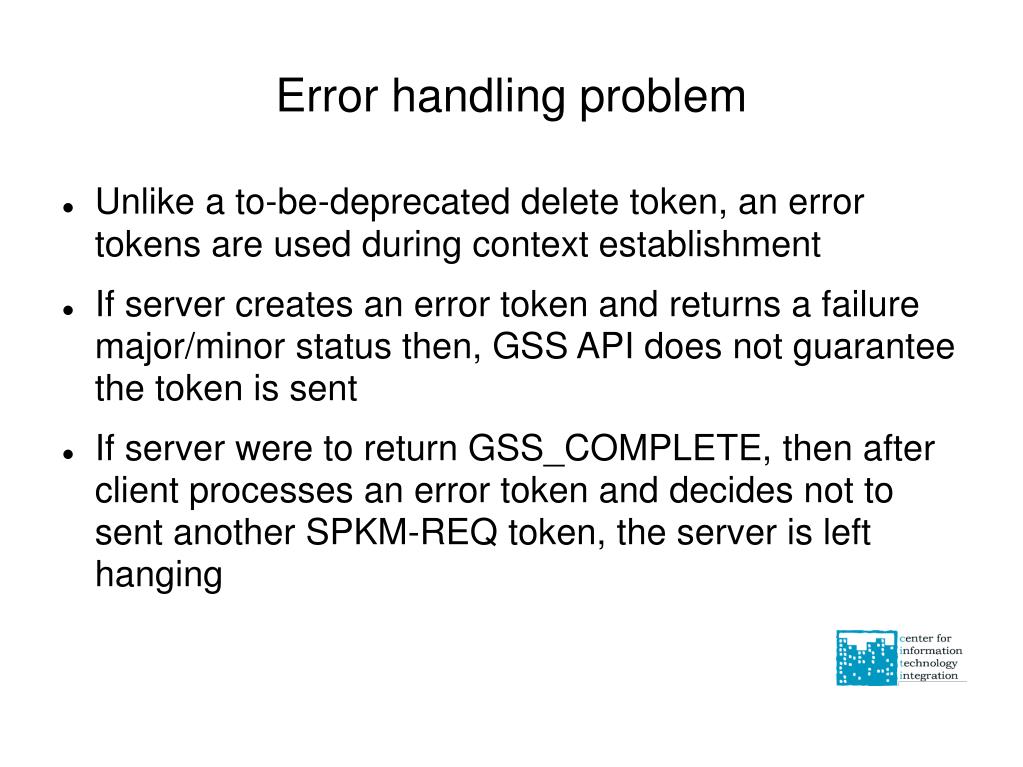

  38. Error handling problem • Unlike a to-be-deprecated delete token, an error tokens are used during context establishment • If server creates an error token and returns a failure major/minor status then, GSS API does not guarantee the token is sent • If server were to return GSS_COMPLETE, then after client processes an error token and decides not to sent another SPKM-REQ token, the server is left hanging

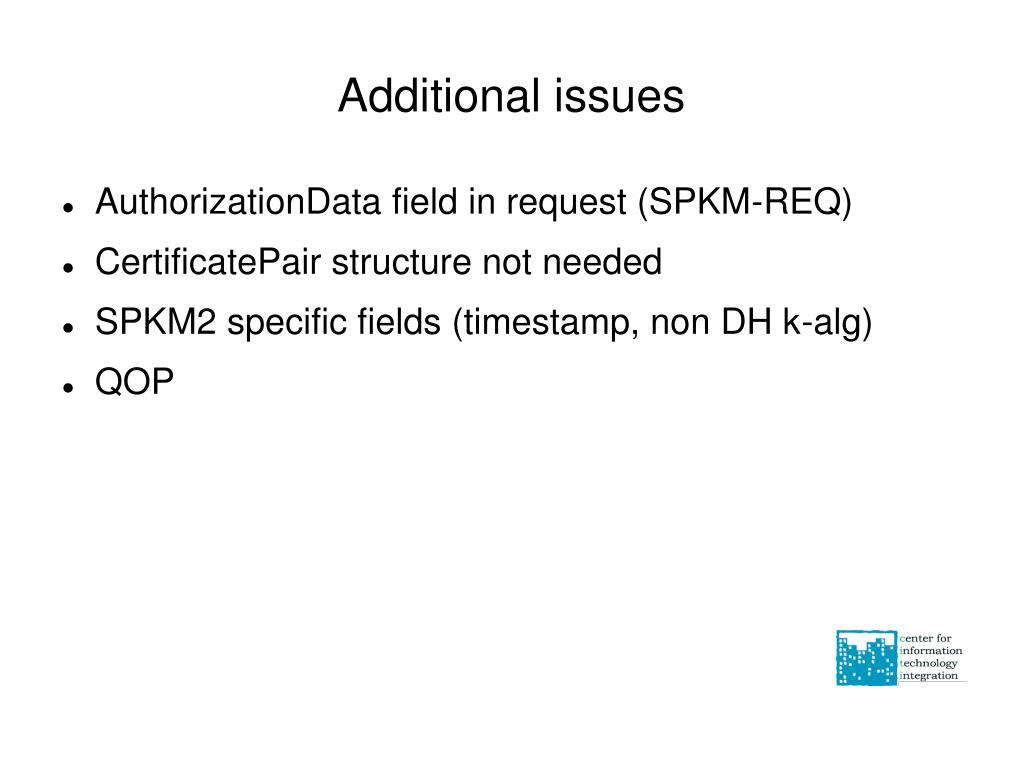

  39. Additional issues • AuthorizationData field in request (SPKM-REQ) • CertificatePair structure not needed • SPKM2 specific fields (timestamp, non DH k-alg) • QOP

  40. Conclusions • If algorithms, writing and naming issues are addressed…
