Presentation Transcript
an overview of head injury management

An Overview of Head Injury Management

Eldad J. Hadar, M.D.

Department of Neurosurgery

checklist
Checklist
  • Definitions
    • Glasgow Coma Scale
    • Intracranial Pressure
  • Mechanisms of brain injury
  • Evaluation of head injury
  • Management of head injury
    • Operative
    • Nonoperative
head injury guidelines
Head Injury Guidelines
  • 1995 – 1st edition
  • 2000 – 2nd edition
  • 2007 – 3rd edition
  • Level I – Accepted principles reflecting high degree of clinical certainty
  • Level II – Strategies reflecting moderate degree of clinical certainty
  • Level III – Degree of clinical certainty not established
checklist1
Checklist

Definitions

    • Glasgow Coma Scale
    • Intracranial Pressure
  • Mechanisms of brain injury
  • Evaluation of head injury
  • Management of head injury
    • Operative
    • Nonoperative
glasgow coma scale gcs
Glasgow Coma Scale (GCS)
  • Introduced by Teasdale and Jennett in 1974
  • Consists of 3 clinical signs that have
    • Prognostic significance
    • Good reproducibility between observers
  • Scale range 3-15
  • GCS < 8 has generally become accepted as representing coma / severe head injury
intracranial pressure icp
Intracranial Pressure (ICP)

CPP = MAP – ICP

  • Normal CPP > 50 mm Hg
  • Autoregulatory mechanisms maintain CBF at CPP’s down to 40 mm Hg
intracranial pressure icp1
Intracranial Pressure (ICP)
  • In head injury, ICP > 20-25 mm Hg may be more detrimental than low CPP (increasing CPP may not afford protection from intracranial hypertension).
  • Aggressive attempts to maintain CPP > 70 should be avoided due to ARDS (Level II)
  • CPP<50 should be avoided (Level III)
checklist2
Checklist
  • Definitions
    • Glasgow Coma Scale
    • Intracranial Pressure
  • Mechanisms of brain injury
  • Evaluation of head injury
  • Management of head injury
    • Operative
    • Nonoperative
mechanisms of traumatic brain injury
Mechanisms of Traumatic Brain Injury
  • Impact injury
      • Cerebral or brainstem contusions
      • Cerebral lacerations
      • Diffuse axonal injury (DAI)
  • Secondary injury
      • Intracranial hematoma
      • Edema
      • Ischemia
checklist3
Checklist
  • Statistics
  • Definitions
    • Glasgow Coma Scale
    • Intracranial Pressure
  • Mechanisms of brain injury
  • Evaluation of head injury
  • Management of head injury
    • Operative
    • Nonoperative
initial assessment
History

LOC +/-

Intoxicants

Seizure

Posttraumatic amnesia

Physical Exam

GCS

Level of consciousness

Cranial nerves

Fundoscopic exam

Motor exam

Initial Assessment

Start with ABC’s

radiographic evaluation
Radiographic Evaluation
  • CT
      • Imaging study of choice for initial work-up
  • MRI
      • More helpful later in hospital course
  • Skull x-rays
  • Arteriography
indications for ct
Indications for CT
  • Presence of any criteria placing patient at moderate or high risk for intracranial injury
  • Assessment prior to general anesthesia for other procedures
checklist4
Checklist
  • Definitions
    • Glasgow Coma Scale
    • Intracranial Pressure
  • Mechanisms of brain injury
  • Evaluation of head injury
  • Management of head injury
    • Operative
    • Nonoperative

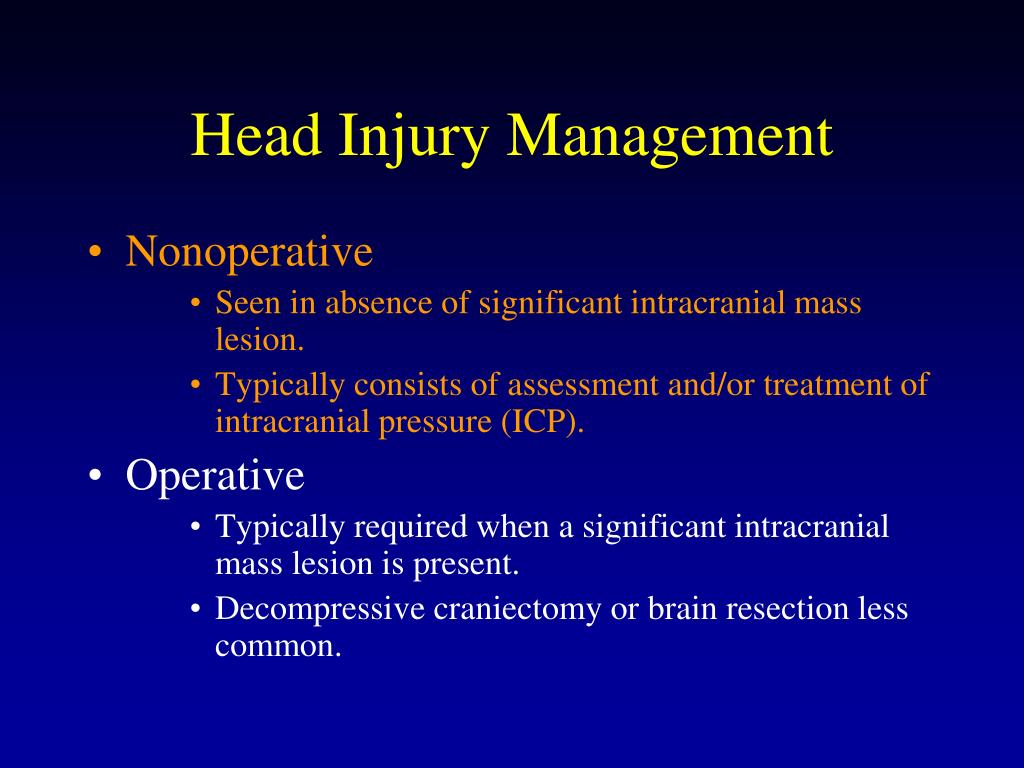

head injury management
Head Injury Management
  • Nonoperative
      • Seen in absence of significant intracranial mass lesion.
      • Typically consists of assessment and/or treatment of intracranial pressure (ICP).
  • Operative
      • Typically required when a significant intracranial mass lesion is present.
      • Decompressive craniectomy or brain resection less common.
head injury management1
Head Injury Management
  • Nonoperative
      • Seen in absence of significant intracranial mass lesion.
      • Typically consists of assessment and/or treatment of intracranial pressure (ICP).
  • Operative
      • Typically required when a significant intracranial mass lesion is present.
      • Decompressive craniectomy or brain resection less common.
nonoperative management
Nonoperative Management
  • Frequent neuro checks
  • Frequent neuro checks
  • Frequent neuro checks
  • ICP monitoring

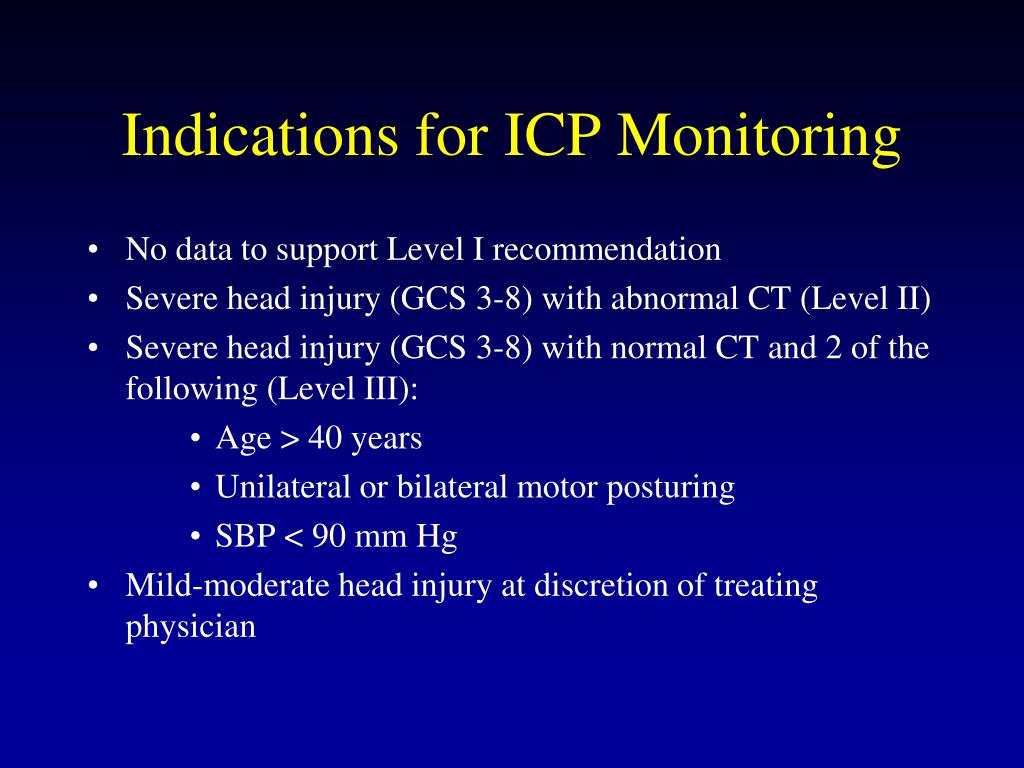

indications for icp monitoring
Indications for ICP Monitoring
  • No data to support Level I recommendation
  • Severe head injury (GCS 3-8) with abnormal CT (Level II)
  • Severe head injury (GCS 3-8) with normal CT and 2 of the following (Level III):
      • Age > 40 years
      • Unilateral or bilateral motor posturing
      • SBP < 90 mm Hg
  • Mild-moderate head injury at discretion of treating physician
indications for icp monitoring1
Indications for ICP Monitoring
  • Loss of neurological examination
      • Sedation
      • General anesthesia
clinical scenario
Clinical Scenario
  • 20 y.o. male in MVA
    • Intubated
      • Score 1T
    • Eyes open to pain
      • Score 2
    • Briskly localizes
      • Score 5
      • Total GCS 8T
therapy for intracranial hypertension
Therapy for Intracranial Hypertension
  • First tier
      • Positioning
      • Ventricular drainage
      • Osmotic diuresis
      • Hyperventilation (Level III – temporizing measure)
  • Second tier
      • Sedation
      • Neuromuscular blockade
      • Hypothermia
      • Barbiturate coma
  • Glucocorticoids not recommended (Level I)
head injury management2
Head Injury Management
  • Nonoperative
      • Seen in absence of significant intracranial mass lesion.
      • Typically consists of assessment and/or treatment of intracranial pressure (ICP).
  • Operative
      • Typically required when a significant intracranial mass lesion is present.
      • Decompressive craniectomy or brain resection less common.
operative management
Operative Management
  • Types of mass lesions
      • Epidural hematoma
      • Subdural hematoma
      • Cerebral contusion
  • Decompressive craniectomy/brain resection
epidural hematoma edh
Epidural Hematoma (EDH)
  • 1% of head trauma admissions
  • Male: Female = 4:1
  • Source of bleeding is arterial in 85% of cases (middle meningeal artery)
  • Mortality ranges from 5-10% with optimal management
  • Neurological injury caused by secondary mechanisms
subdural hematoma sdh
Subdural Hematoma (SDH)
  • About twice as common as EDH
  • Mortality 50-90%
      • Impact injury much higher than with EDH
      • Often associated brain injury
  • Two common sources of bleeding
      • Tearing of bridging veins
      • Cortical laceration
cerebral contusion
Cerebral Contusion
  • Often little mass effect
  • Not often operative
hemicraniectomy
Hemicraniectomy

Pre-op

Post-op

key points
Key Points
  • 2 mechanisms of brain injury
      • Impact injury
      • Secondary injury
  • GCS < 8 has generally become accepted as representing coma / severe head injury
  • CT is generally the imaging study of choice in the acute assessment of head injury
  • Operative and nonoperative strategies are generally aimed at reducing mass effect and, therefore, reducing ICP
  • Nothing beats a neuro exam.
