Presentation Transcript
friction

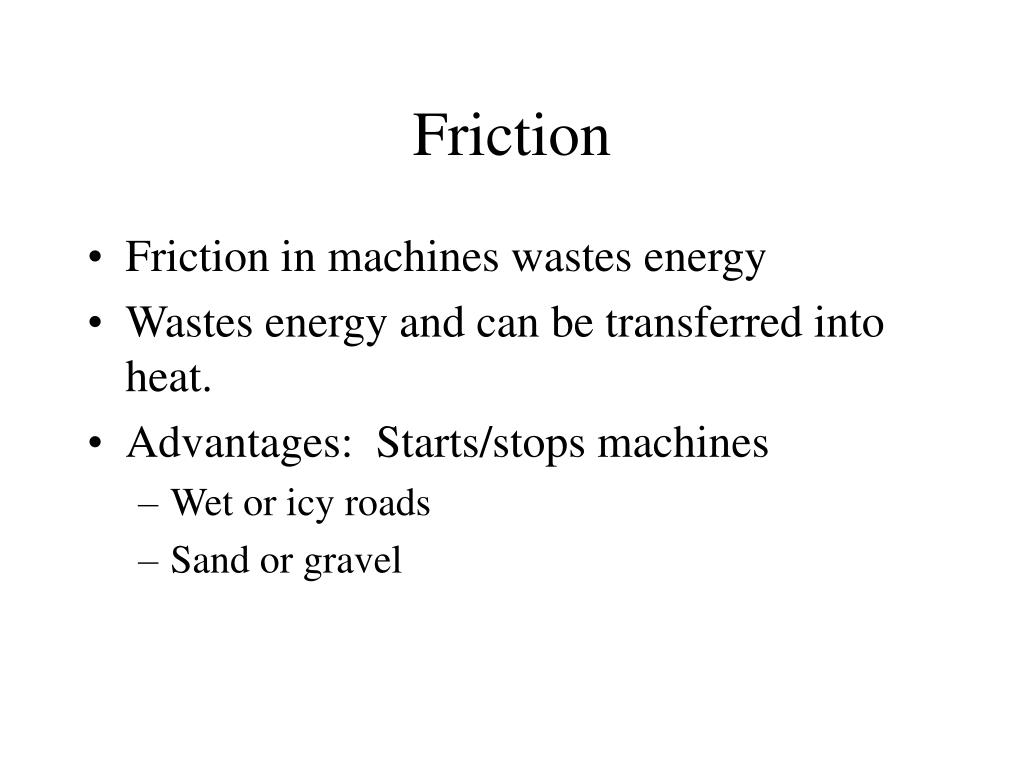

Friction
  • Friction in machines wastes energy
  • Wastes energy and can be transferred into heat.
  • Advantages: Starts/stops machines
    • Wet or icy roads
    • Sand or gravel
three factors determine friction
Three Factors Determine Friction

Primary Cause: minute irregularities in rubbing surfaces

  • Force pressing two surfaces together.
  • Nature of substances in contact with each other- Coefficient of friction
  • Kind of motion involved
static friction
Static Friction
  • Inertia that has to be overcome to start object moving
  • Condition of surface plays big role in how much starting friction is
    • “Coefficient of Friction” has been established for various materials
    • Typically found in table form
static friction4

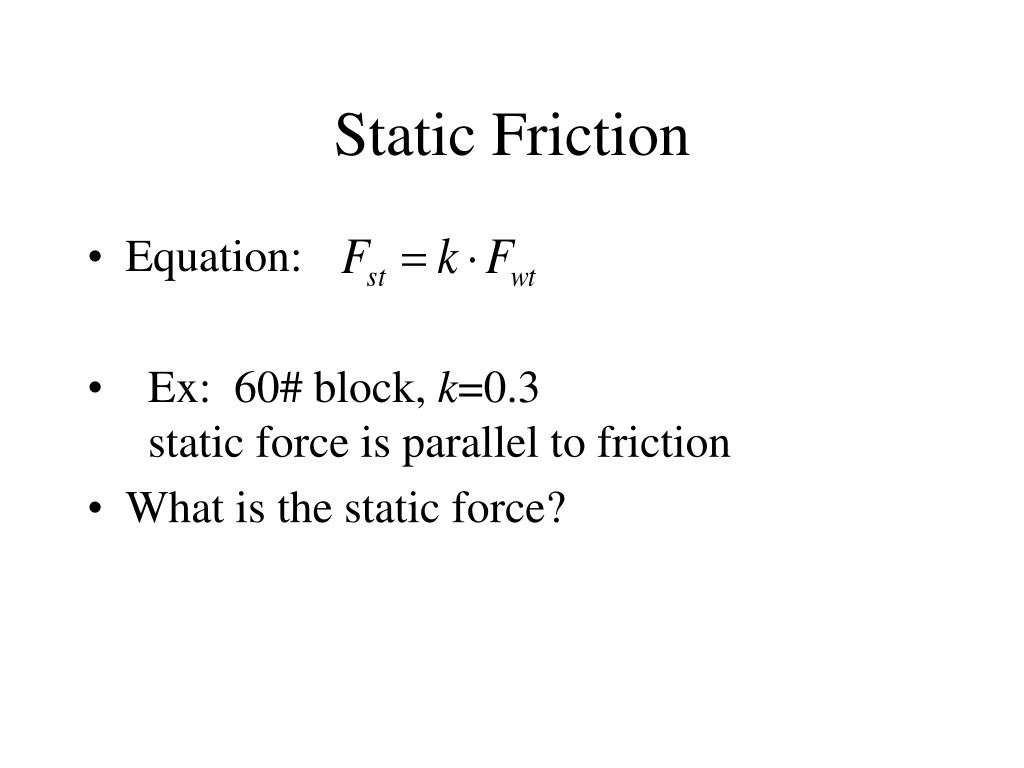

Static Friction
  • Equation:
  • Ex: 60# block, k=0.3 static force is parallel to friction
  • What is the static force?
static force more examples

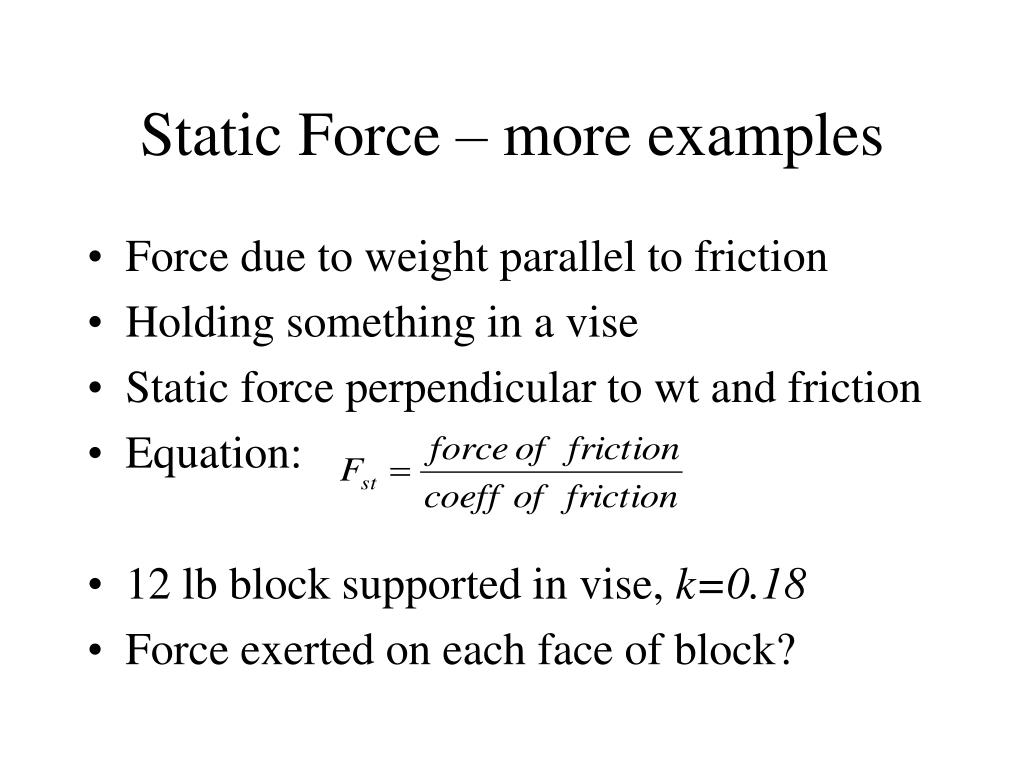

Static Force – more examples
  • Force due to weight parallel to friction
  • Holding something in a vise
  • Static force perpendicular to wt and friction
  • Equation:
  • 12 lb block supported in vise, k=0.18
  • Force exerted on each face of block?
sliding friction
Sliding Friction
  • Force needed to keep an object moving on surface
  • Amount of sliding resistance dependent upon nature of surface and normal force (weight) between the object and surface
  • Equation:
sliding friction7

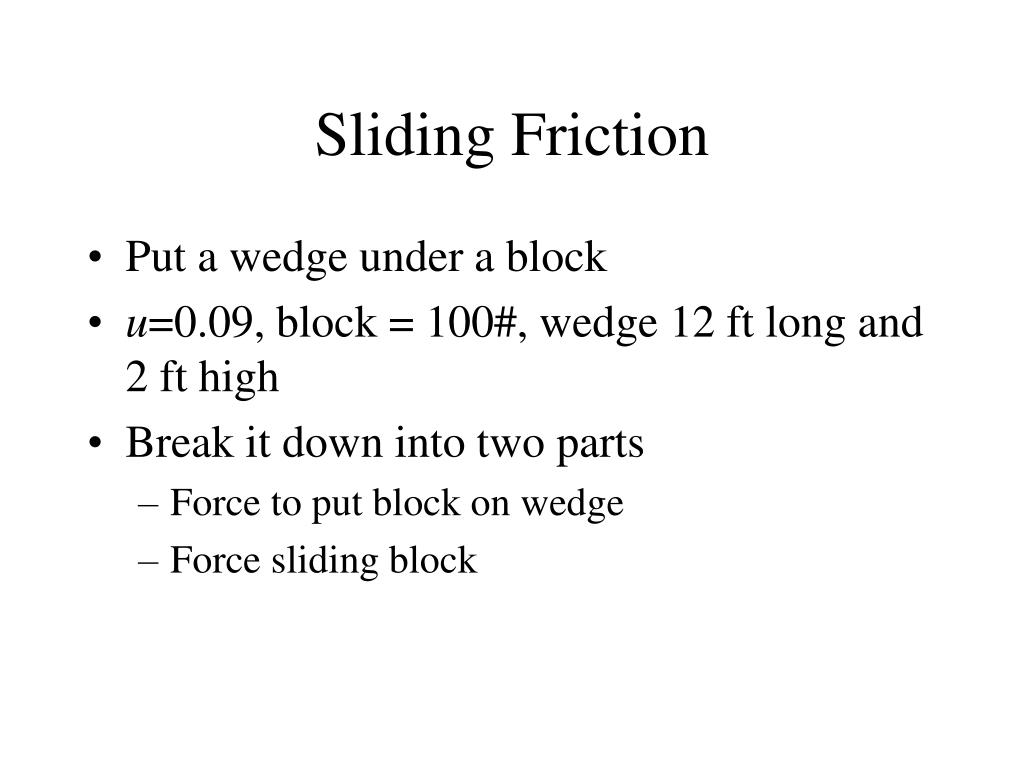

Sliding Friction
  • Put a wedge under a block
  • u=0.09, block = 100#, wedge 12 ft long and 2 ft high
  • Break it down into two parts
    • Force to put block on wedge
    • Force sliding block
rolling friction

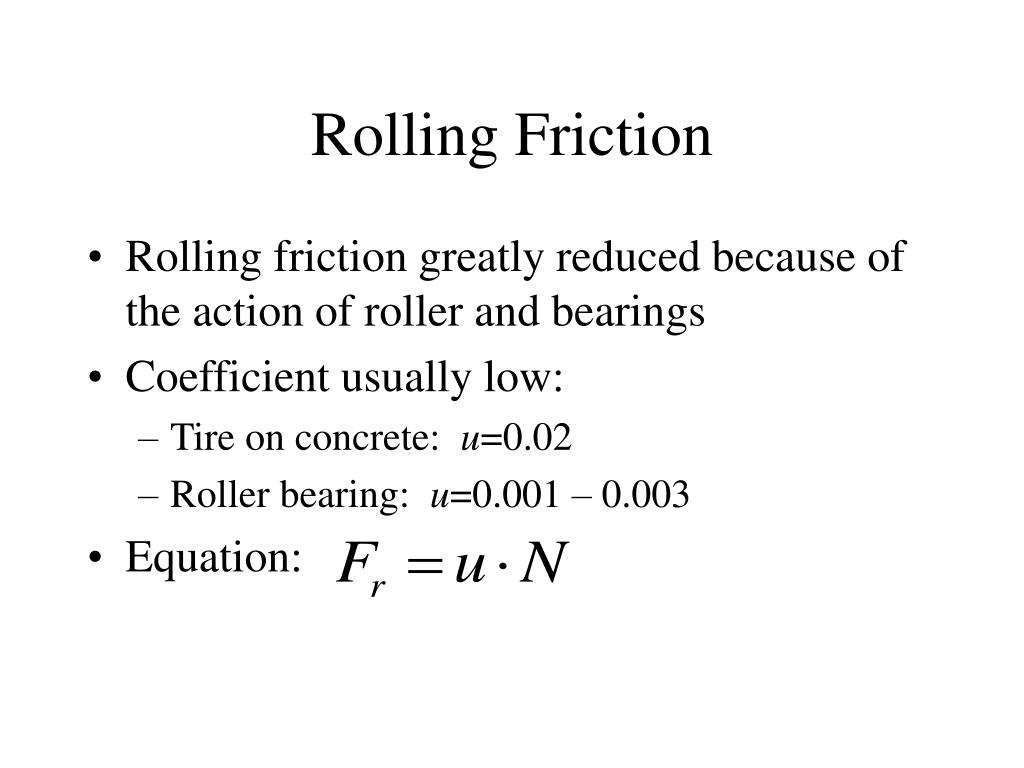

Rolling Friction
  • Rolling friction greatly reduced because of the action of roller and bearings
  • Coefficient usually low:
    • Tire on concrete: u=0.02
    • Roller bearing: u=0.001 – 0.003
  • Equation:
rolling friction example
Rolling Friction Example
  • Wheelbarrow = 500#, tire: u = 0.02

F = 500 x 0.02 = 10#

power
Power
  • NOT ability to move large objects
  • Power is the rate of doing work
  • Digging a trench: 1 man = 60days; 2 men = 30 days, 1 backhoe = 1 day
  • Same work, different power
power example
Power example
  • Engine = 3500# hoisted vertically 7 ft in 3 mins. Calculate the power.
  • What if 1 min?
horsepower
Horsepower
  • Power is often expressed in “horsepower”
  • Equation:
  • Equation:
work equivalents btus

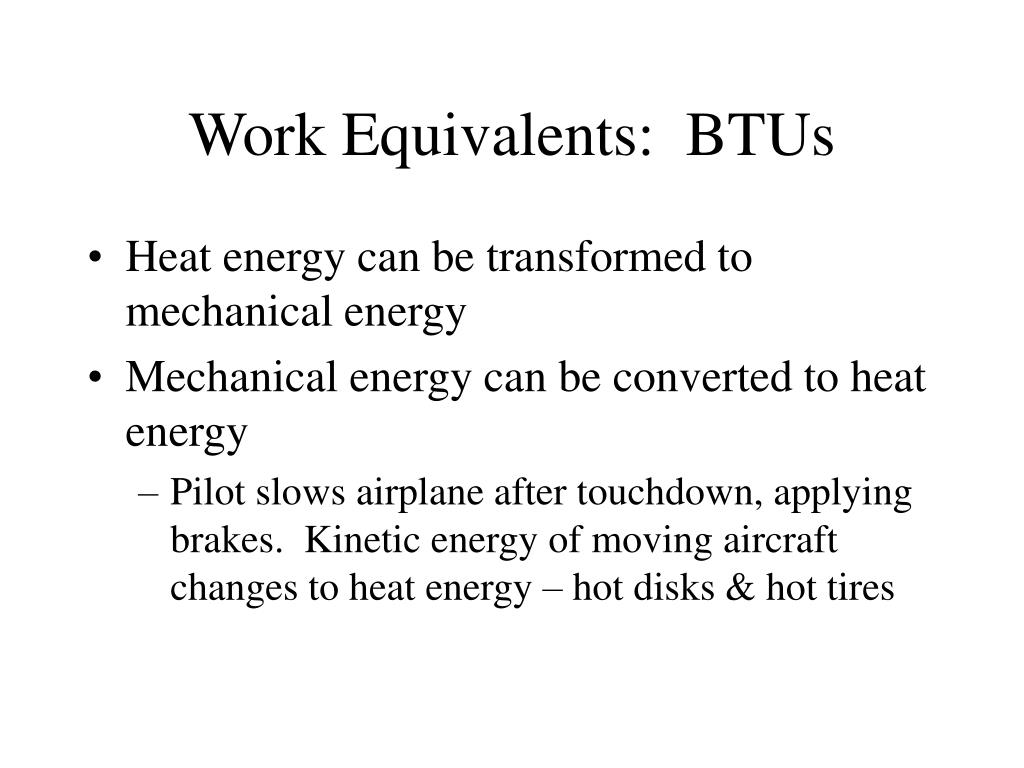

Work Equivalents: BTUs
  • Heat energy can be transformed to mechanical energy
  • Mechanical energy can be converted to heat energy
    • Pilot slows airplane after touchdown, applying brakes. Kinetic energy of moving aircraft changes to heat energy – hot disks & hot tires
work btu conversion

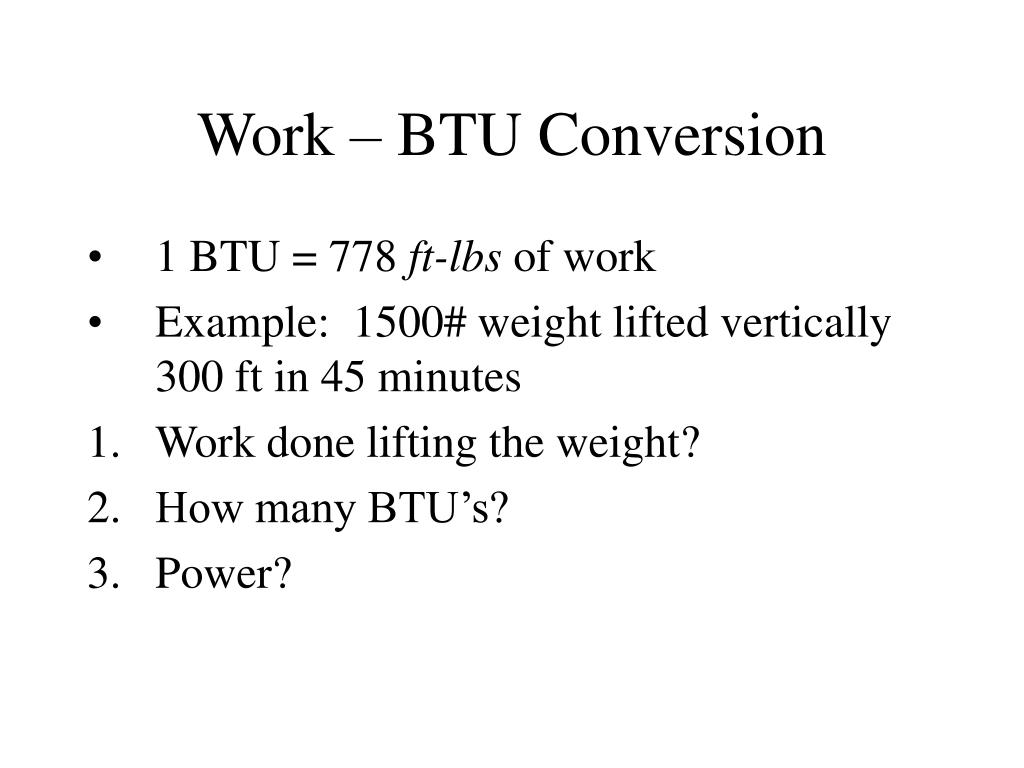

Work – BTU Conversion
  • 1 BTU = 778 ft-lbs of work
  • Example: 1500# weight lifted vertically 300 ft in 45 minutes
  • Work done lifting the weight?
  • How many BTU’s?
  • Power?
same example continued

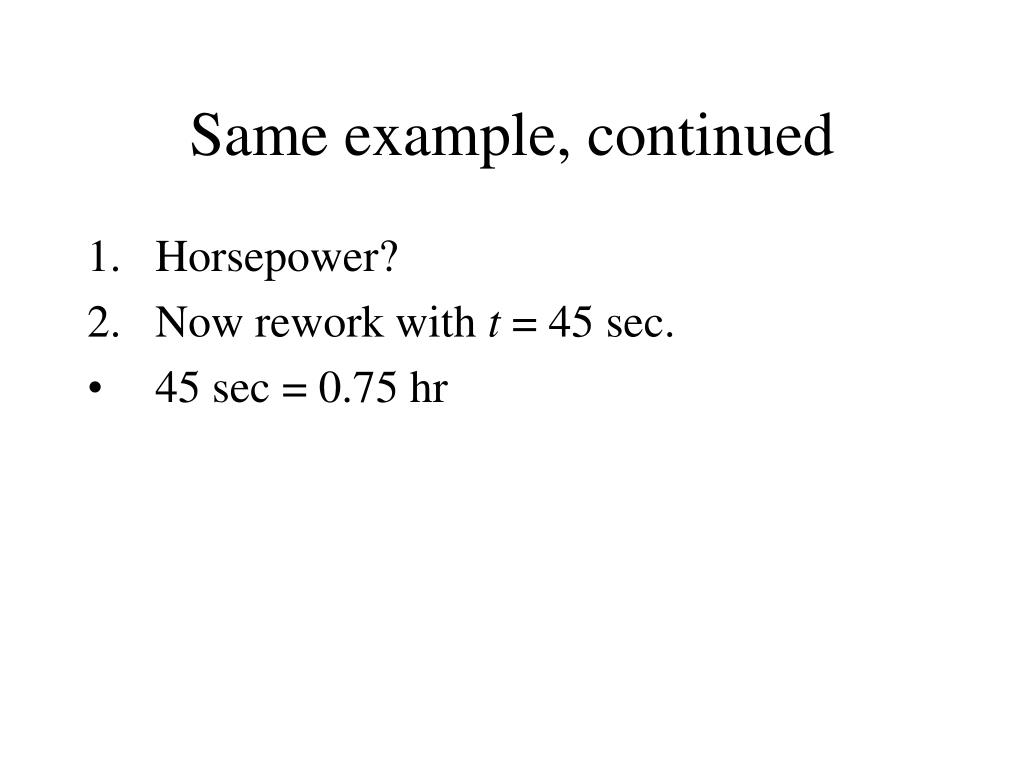

Same example, continued
  • Horsepower?
  • Now rework with t = 45 sec.
  • 45 sec = 0.75 hr
another example
Another Example
  • What if we had a 350# aircraft engine 2.5 ft above the engine mount on a hoist, and we move the hoist horizontally 15 ft in 15 sec.
  • How much work was accomplished?
  • How much Power?
  • How much Horsepower?
  • How many BTU’s?
