team perfect 10

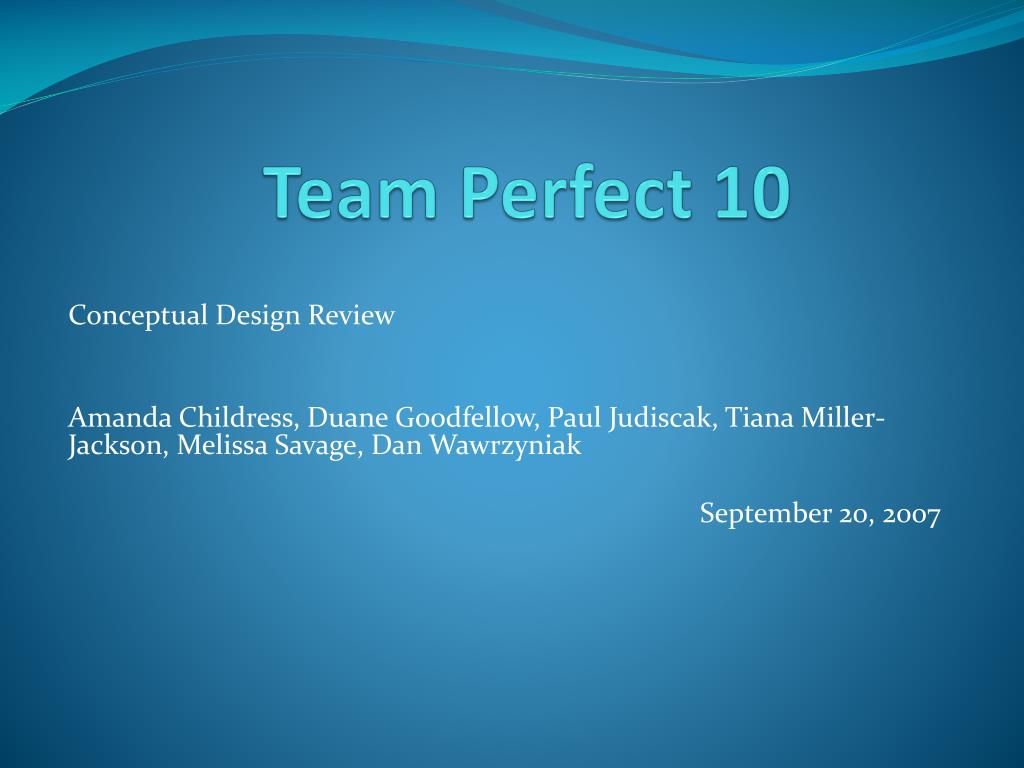

Team Perfect 10

Conceptual Design Review

Amanda Childress, Duane Goodfellow, Paul Judiscak, Tiana Miller-Jackson, Melissa Savage, Dan Wawrzyniak

September 20, 2007

overview
Overview
  • Mission Statement:

To stabilize the satellite from rotating in order to capture clear pictures of stars during daylight, to avoid damage to the satellite during flight and to positively influence further near space exploration.

overview1
Overview

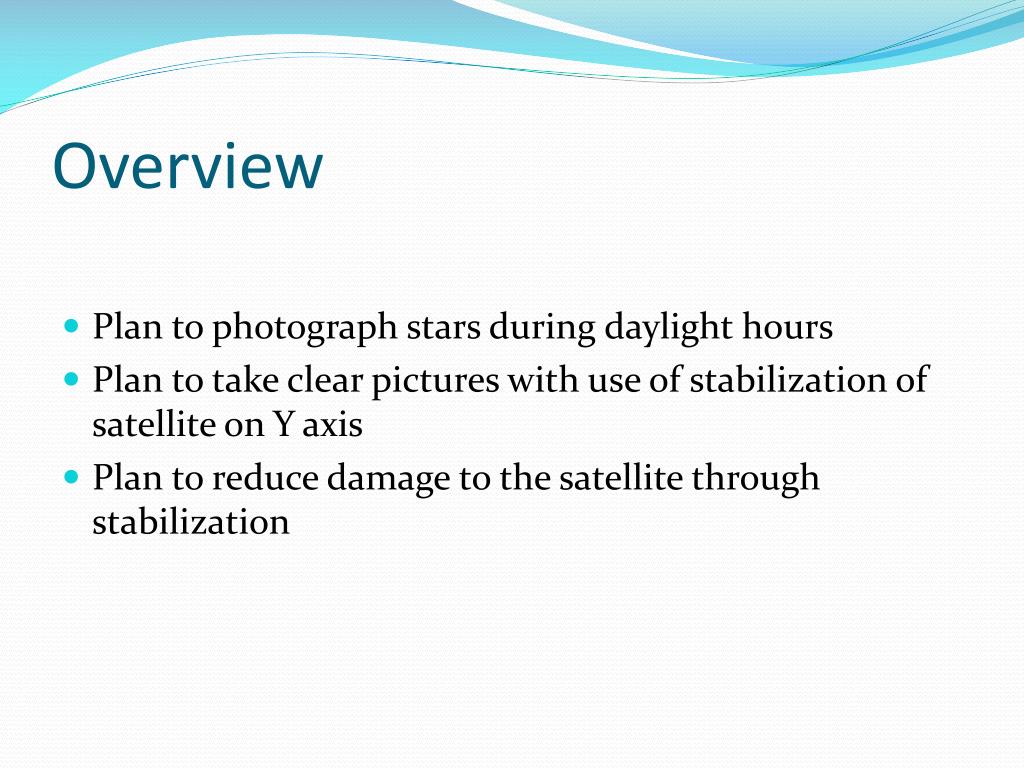

  • Plan to photograph stars during daylight hours
  • Plan to take clear pictures with use of stabilization of satellite on Y axis
  • Plan to reduce damage to the satellite through stabilization
design
Design

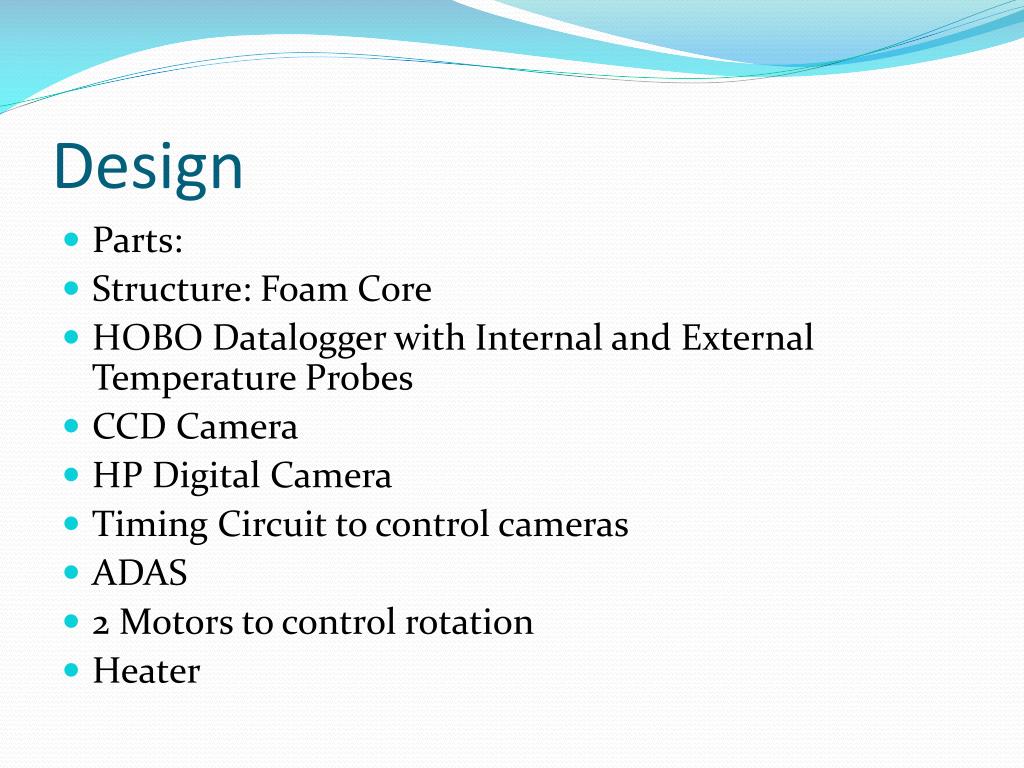

  • Parts:
  • Structure: Foam Core
  • HOBO Datalogger with Internal and External Temperature Probes
  • CCD Camera
  • HP Digital Camera
  • Timing Circuit to control cameras
  • ADAS
  • 2 Motors to control rotation
  • Heater
design2
Design

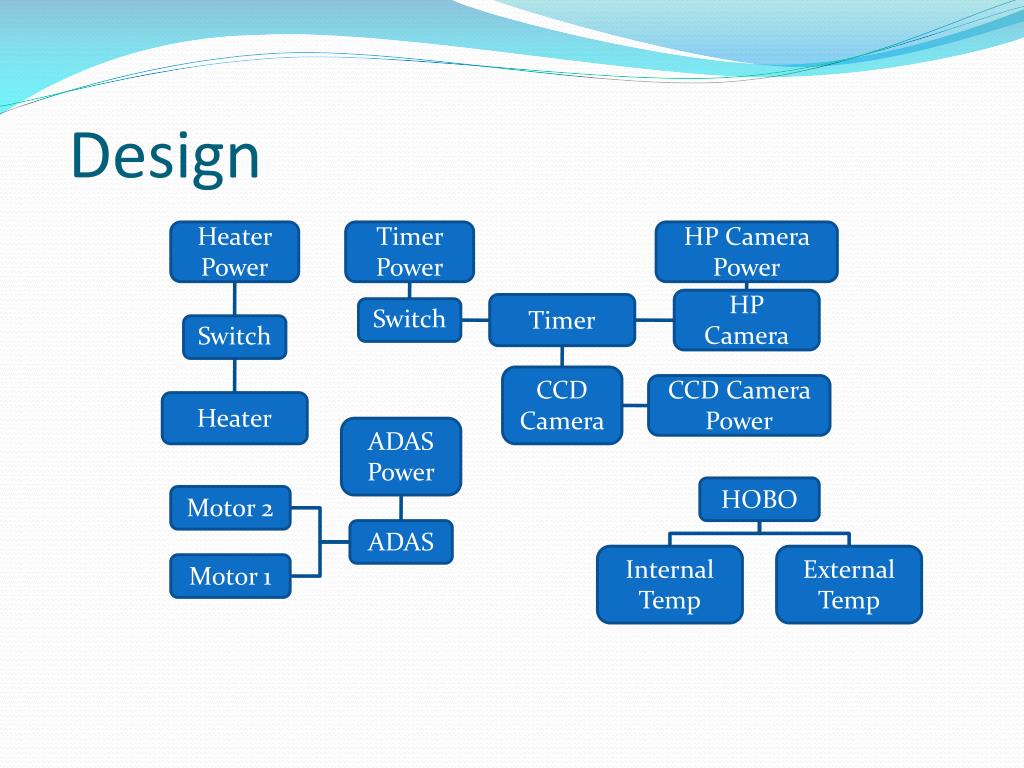

Heater Power

Timer Power

HP Camera Power

HP Camera

Timer

Switch

Switch

CCD Camera

CCD Camera Power

Heater

ADAS Power

HOBO

Motor 2

ADAS

Internal Temp

External Temp

Motor 1
