  1. FUTURE DIRECTIONS ON THE VLBA Craig Walker National Radio Astonomy Observatory IVS General Meeting Ottawa, Feb 2004

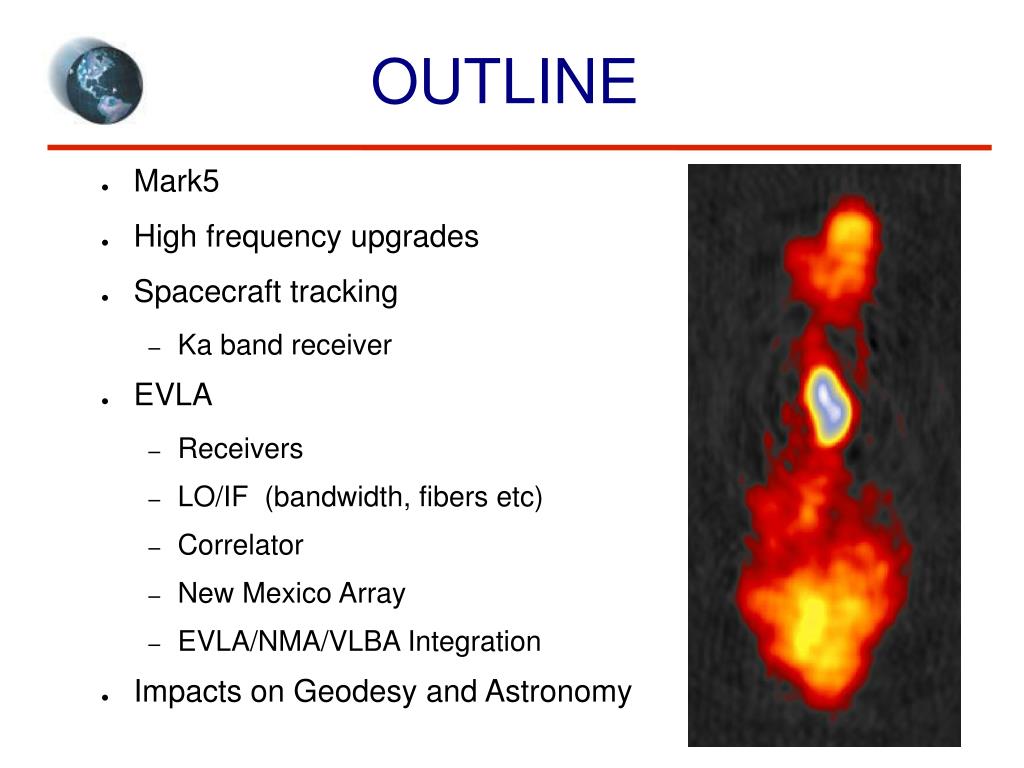

  2. OUTLINE • Mark5 • High frequency upgrades • Spacecraft tracking • Ka band receiver • EVLA • Receivers • LO/IF (bandwidth, fibers etc) • Correlator • New Mexico Array • EVLA/NMA/VLBA Integration • Impacts on Geodesy and Astronomy

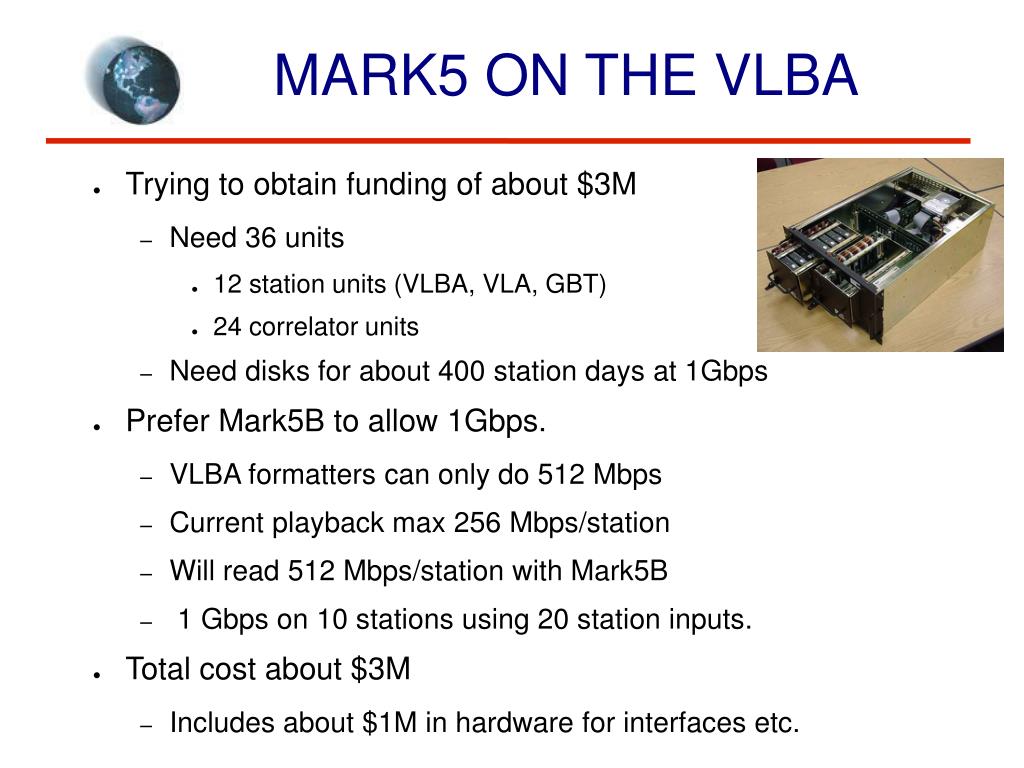

  3. MARK5 ON THE VLBA • Trying to obtain funding of about $3M • Need 36 units • 12 station units (VLBA, VLA, GBT) • 24 correlator units • Need disks for about 400 station days at 1Gbps • Prefer Mark5B to allow 1Gbps. • VLBA formatters can only do 512 Mbps • Current playback max 256 Mbps/station • Will read 512 Mbps/station with Mark5B • 1 Gbps on 10 stations using 20 station inputs. • Total cost about $3M • Includes about $1M in hardware for interfaces etc.

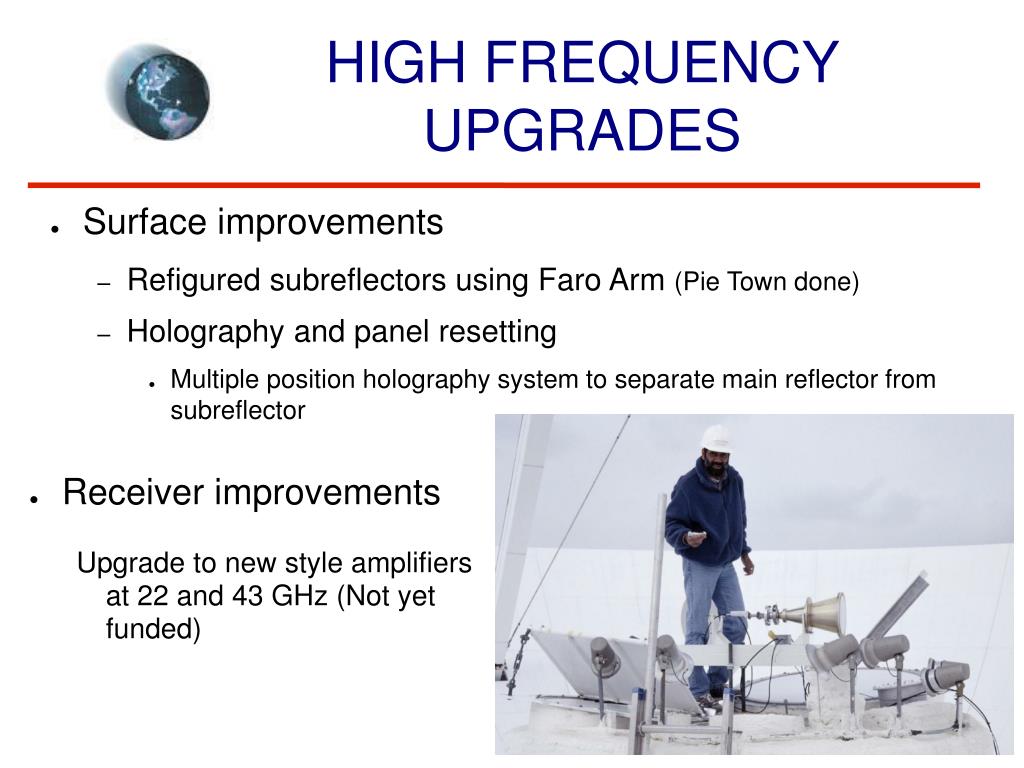

  4. HIGH FREQUENCY UPGRADES • Surface improvements • Refigured subreflectors using Faro Arm (Pie Town done) • Holography and panel resetting • Multiple position holography system to separate main reflector from subreflector • Receiver improvements Upgrade to new style amplifiers at 22 and 43 GHz (Not yet funded)

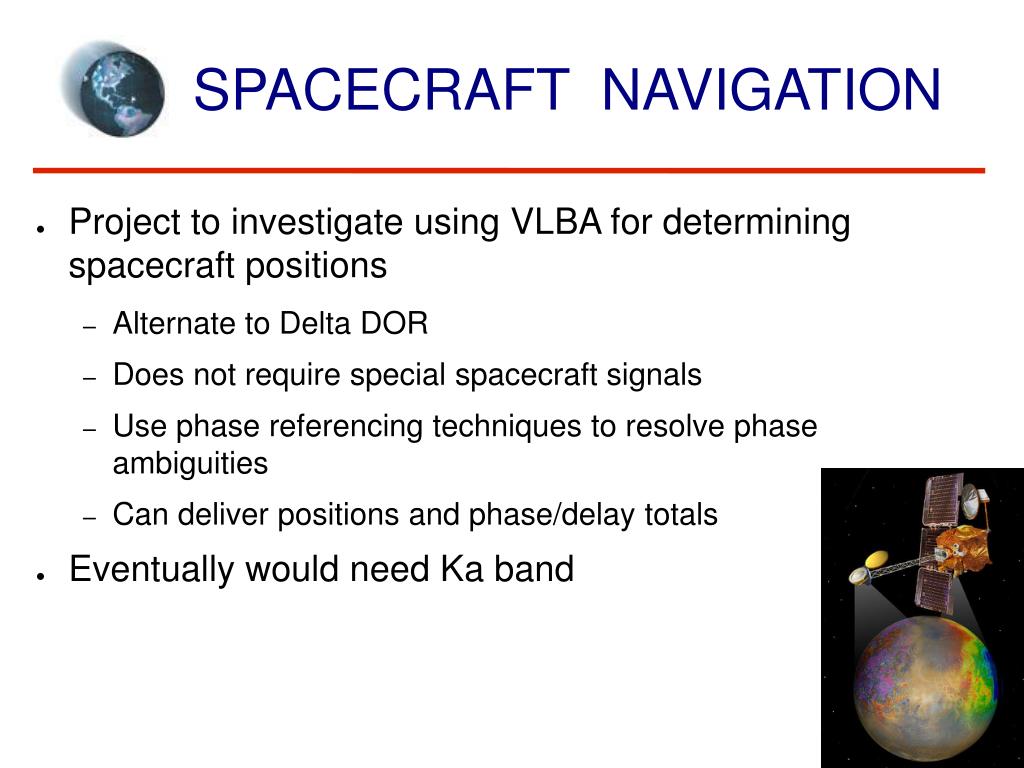

  5. SPACECRAFT NAVIGATION • Project to investigate using VLBA for determining spacecraft positions • Alternate to Delta DOR • Does not require special spacecraft signals • Use phase referencing techniques to resolve phase ambiguities • Can deliver positions and phase/delay totals • Eventually would need Ka band

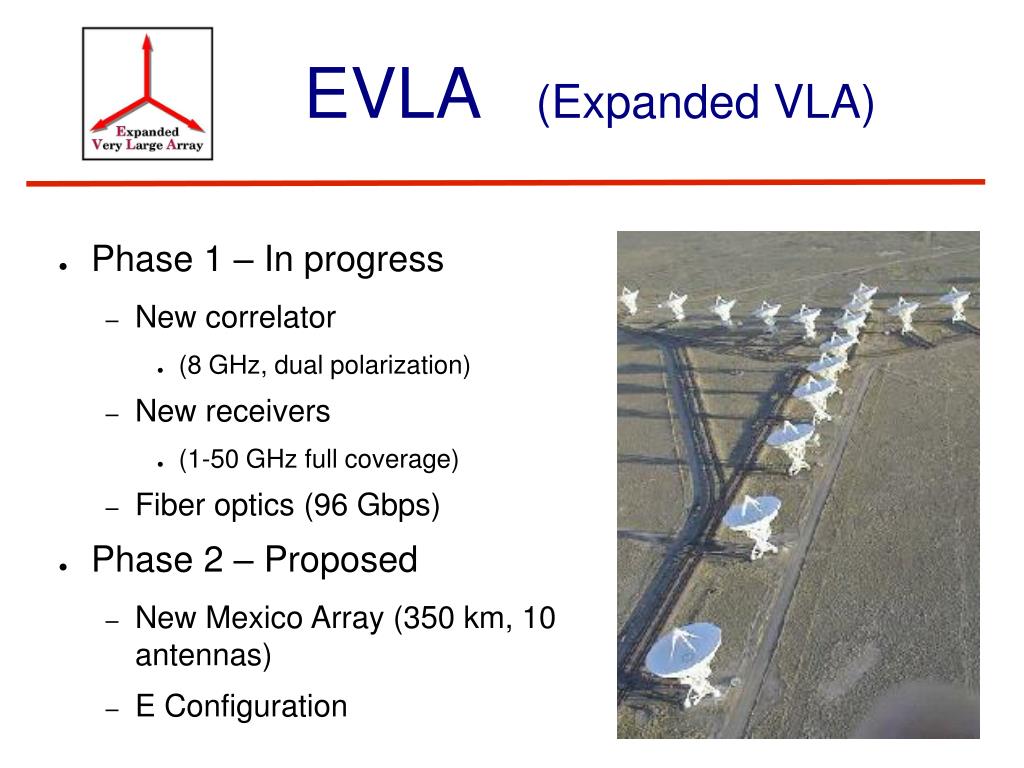

  6. EVLA (Expanded VLA) • Phase 1 – In progress • New correlator • (8 GHz, dual polarization) • New receivers • (1-50 GHz full coverage) • Fiber optics (96 Gbps) • Phase 2 – Proposed • New Mexico Array (350 km, 10 antennas) • E Configuration

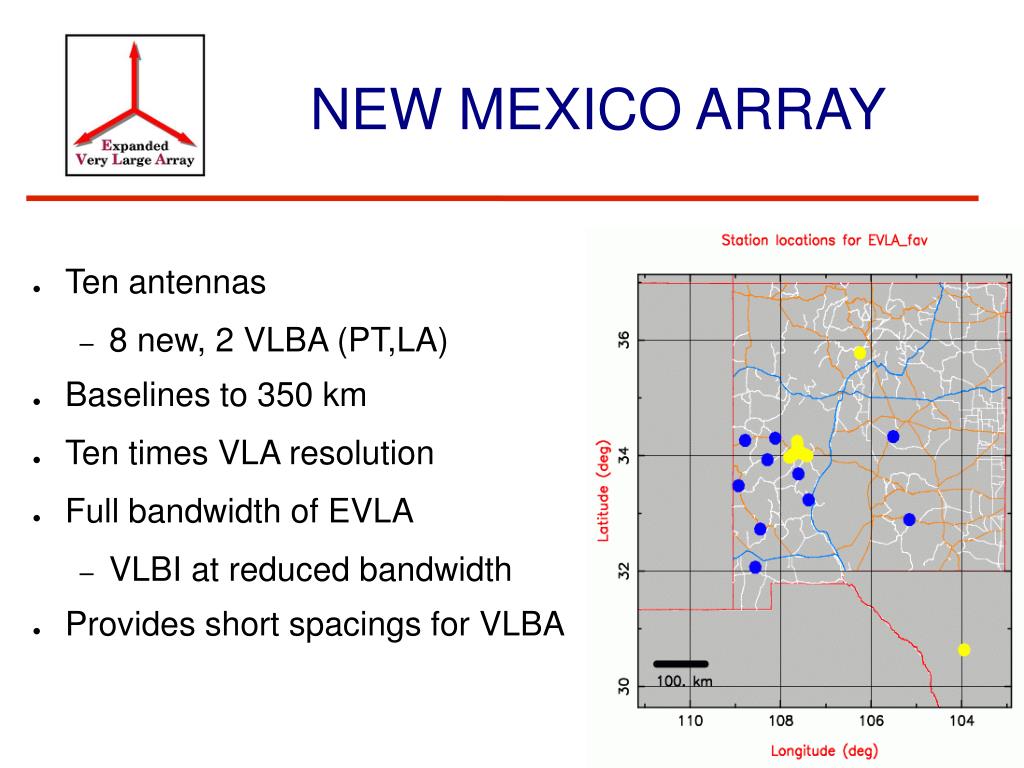

  7. NEW MEXICO ARRAY • Ten antennas • 8 new, 2 VLBA (PT,LA) • Baselines to 350 km • Ten times VLA resolution • Full bandwidth of EVLA • VLBI at reduced bandwidth • Provides short spacings for VLBA

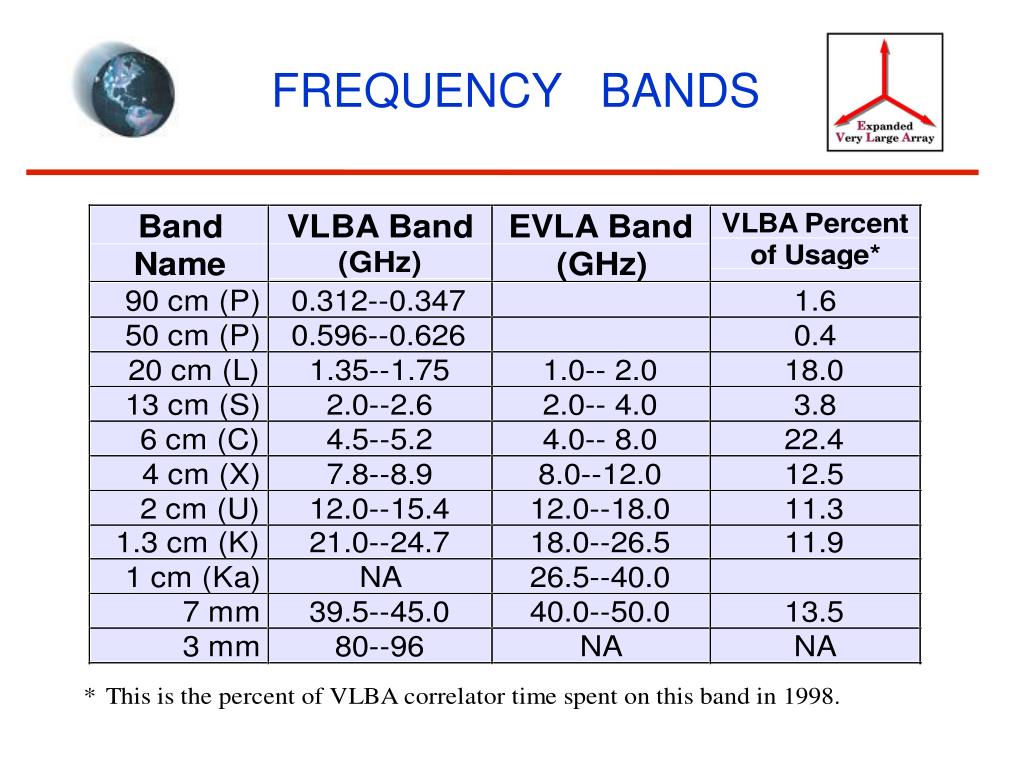

  8. FREQUENCY BANDS

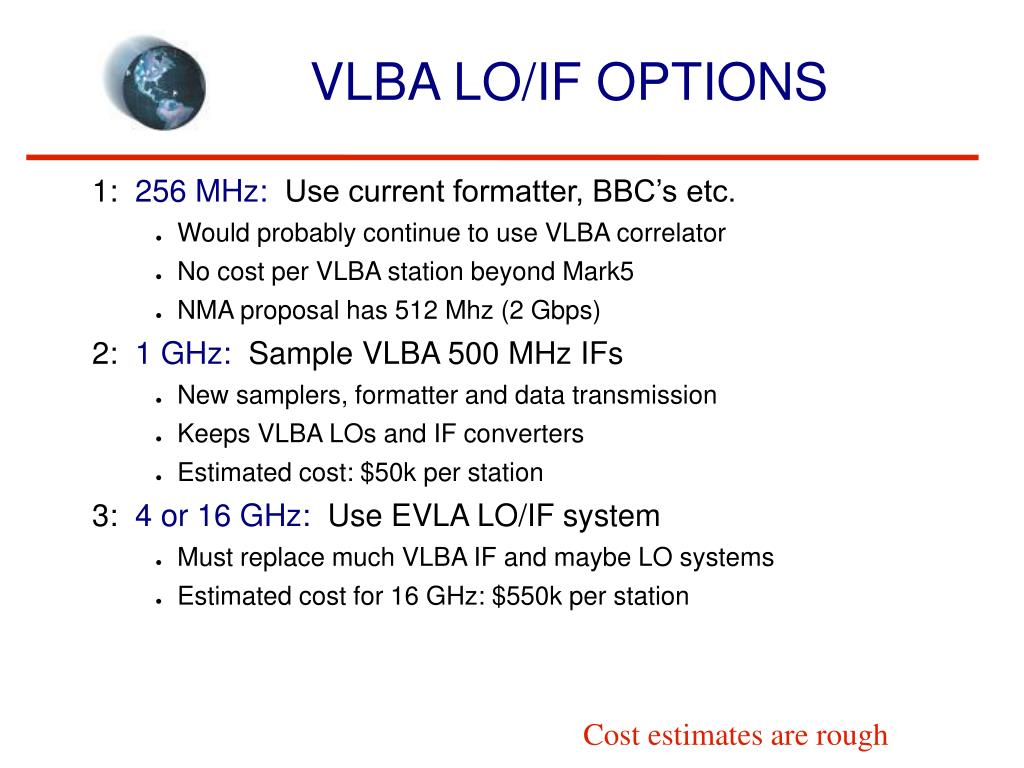

  9. VLBA LO/IF OPTIONS 1: 256 MHz: Use current formatter, BBC’s etc. • Would probably continue to use VLBA correlator • No cost per VLBA station beyond Mark5 • NMA proposal has 512 Mhz (2 Gbps) 2: 1 GHz: Sample VLBA 500 MHz IFs • New samplers, formatter and data transmission • Keeps VLBA LOs and IF converters • Estimated cost: $50k per station 3: 4 or 16 GHz: Use EVLA LO/IF system • Must replace much VLBA IF and maybe LO systems • Estimated cost for 16 GHz: $550k per station Cost estimates are rough

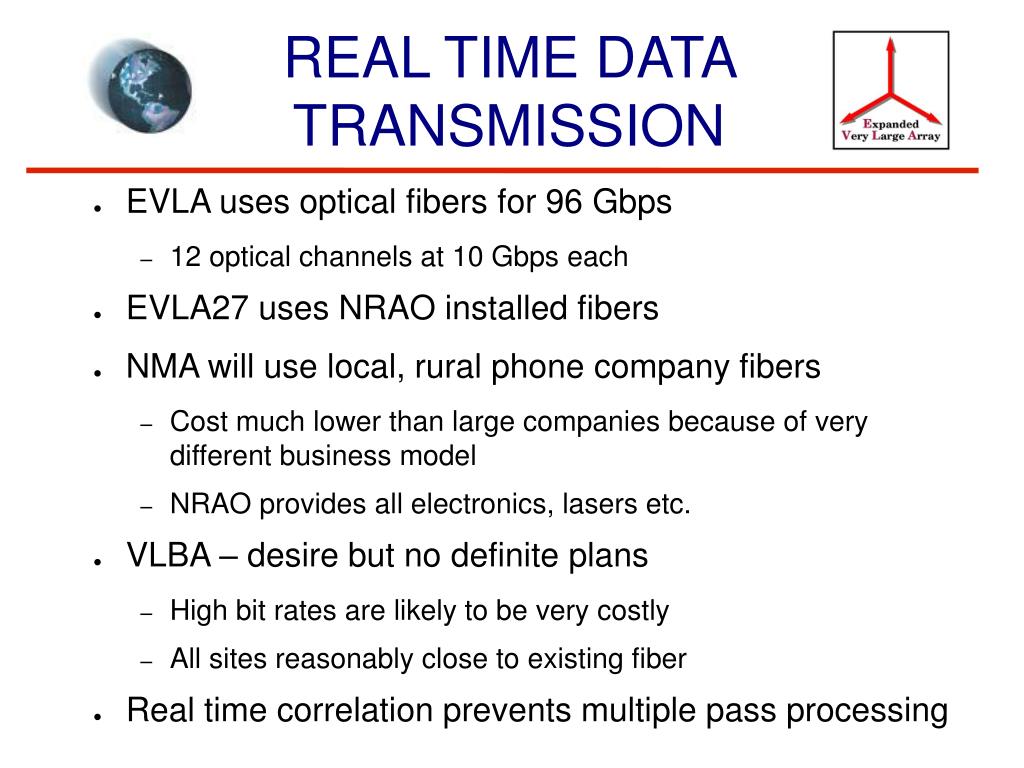

  10. REAL TIME DATA TRANSMISSION • EVLA uses optical fibers for 96 Gbps • 12 optical channels at 10 Gbps each • EVLA27 uses NRAO installed fibers • NMA will use local, rural phone company fibers • Cost much lower than large companies because of very different business model • NRAO provides all electronics, lasers etc. • VLBA – desire but no definite plans • High bit rates are likely to be very costly • All sites reasonably close to existing fiber • Real time correlation prevents multiple pass processing

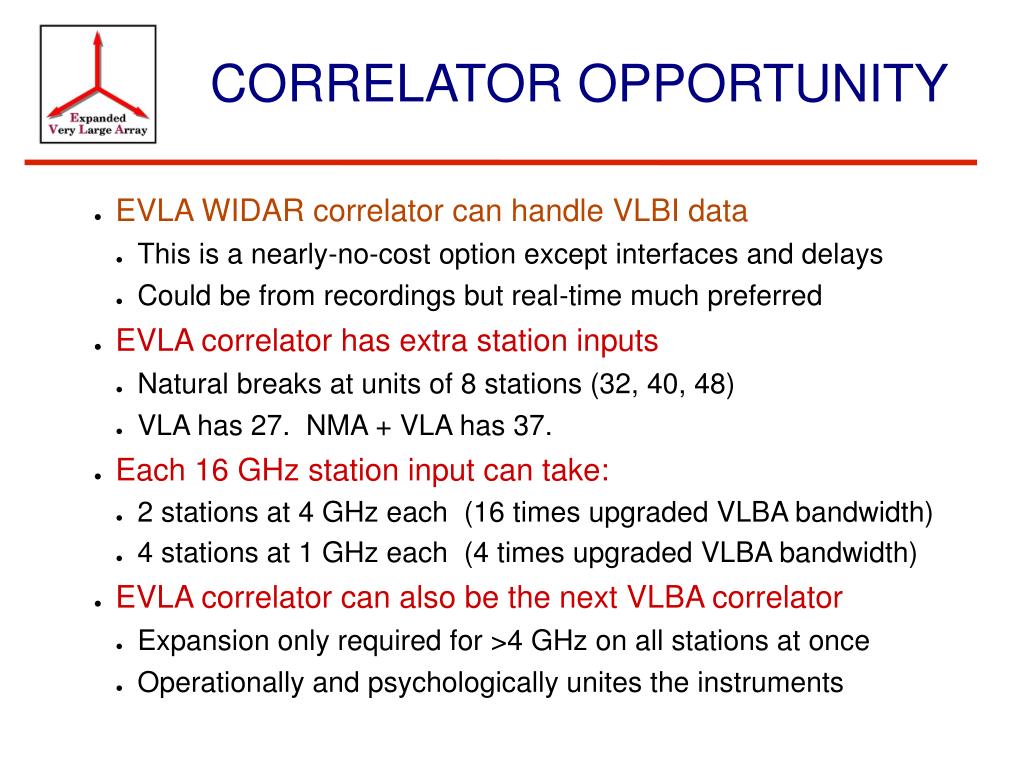

  11. CORRELATOR OPPORTUNITY • EVLA WIDAR correlator can handle VLBI data • This is a nearly-no-cost option except interfaces and delays • Could be from recordings but real-time much preferred • EVLA correlator has extra station inputs • Natural breaks at units of 8 stations (32, 40, 48) • VLA has 27. NMA + VLA has 37. • Each 16 GHz station input can take: • 2 stations at 4 GHz each (16 times upgraded VLBA bandwidth) • 4 stations at 1 GHz each (4 times upgraded VLBA bandwidth) • EVLA correlator can also be the next VLBA correlator • Expansion only required for >4 GHz on all stations at once • Operationally and psychologically unites the instruments

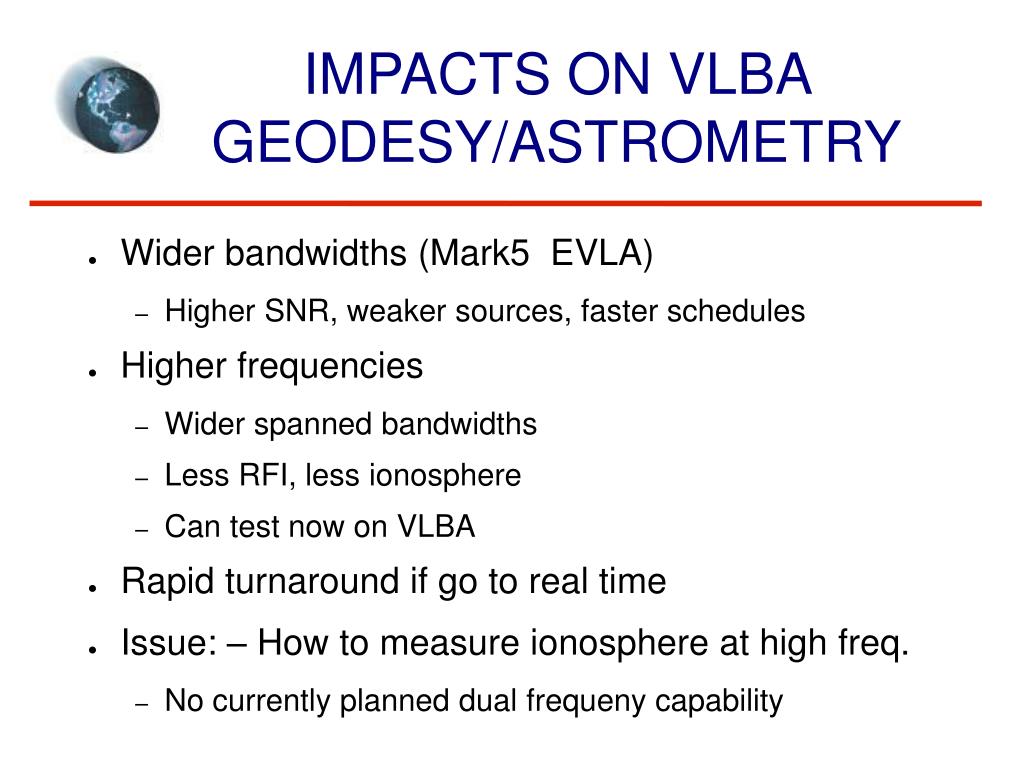

  12. IMPACTS ON VLBA GEODESY/ASTROMETRY • Wider bandwidths (Mark5 EVLA) • Higher SNR, weaker sources, faster schedules • Higher frequencies • Wider spanned bandwidths • Less RFI, less ionosphere • Can test now on VLBA • Rapid turnaround if go to real time • Issue: – How to measure ionosphere at high freq. • No currently planned dual frequeny capability

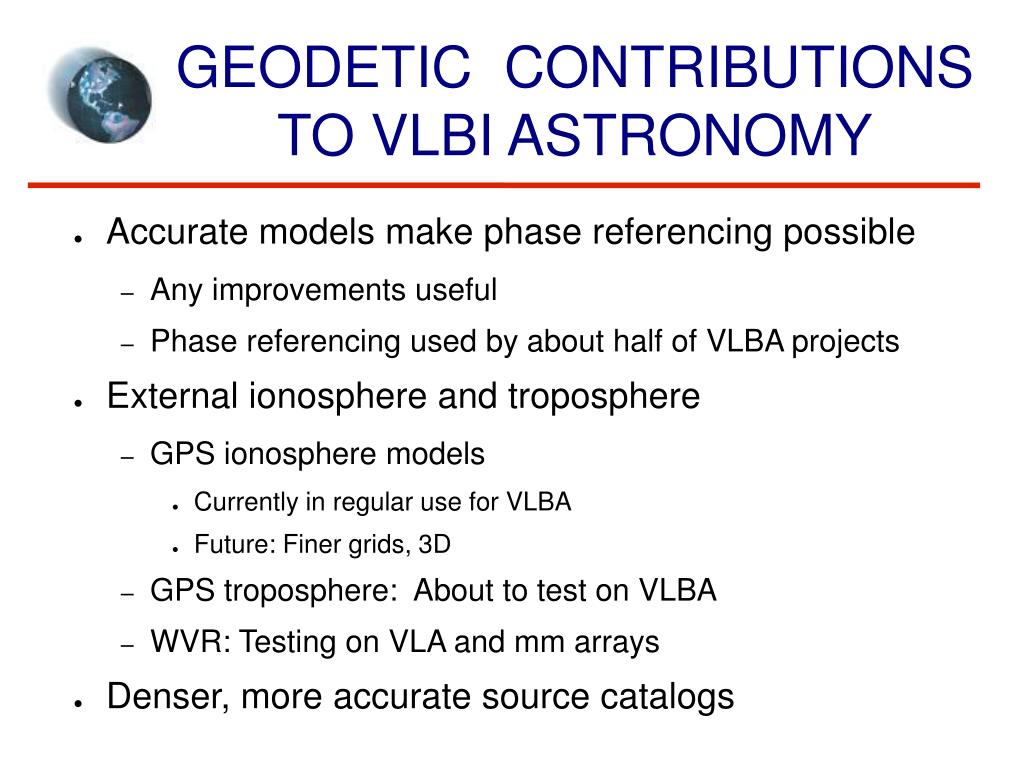

  13. GEODETIC CONTRIBUTIONS TO VLBI ASTRONOMY • Accurate models make phase referencing possible • Any improvements useful • Phase referencing used by about half of VLBA projects • External ionosphere and troposphere • GPS ionosphere models • Currently in regular use for VLBA • Future: Finer grids, 3D • GPS troposphere: About to test on VLBA • WVR: Testing on VLA and mm arrays • Denser, more accurate source catalogs
