Introduction to HVAC Refrigerant Distribution Systems

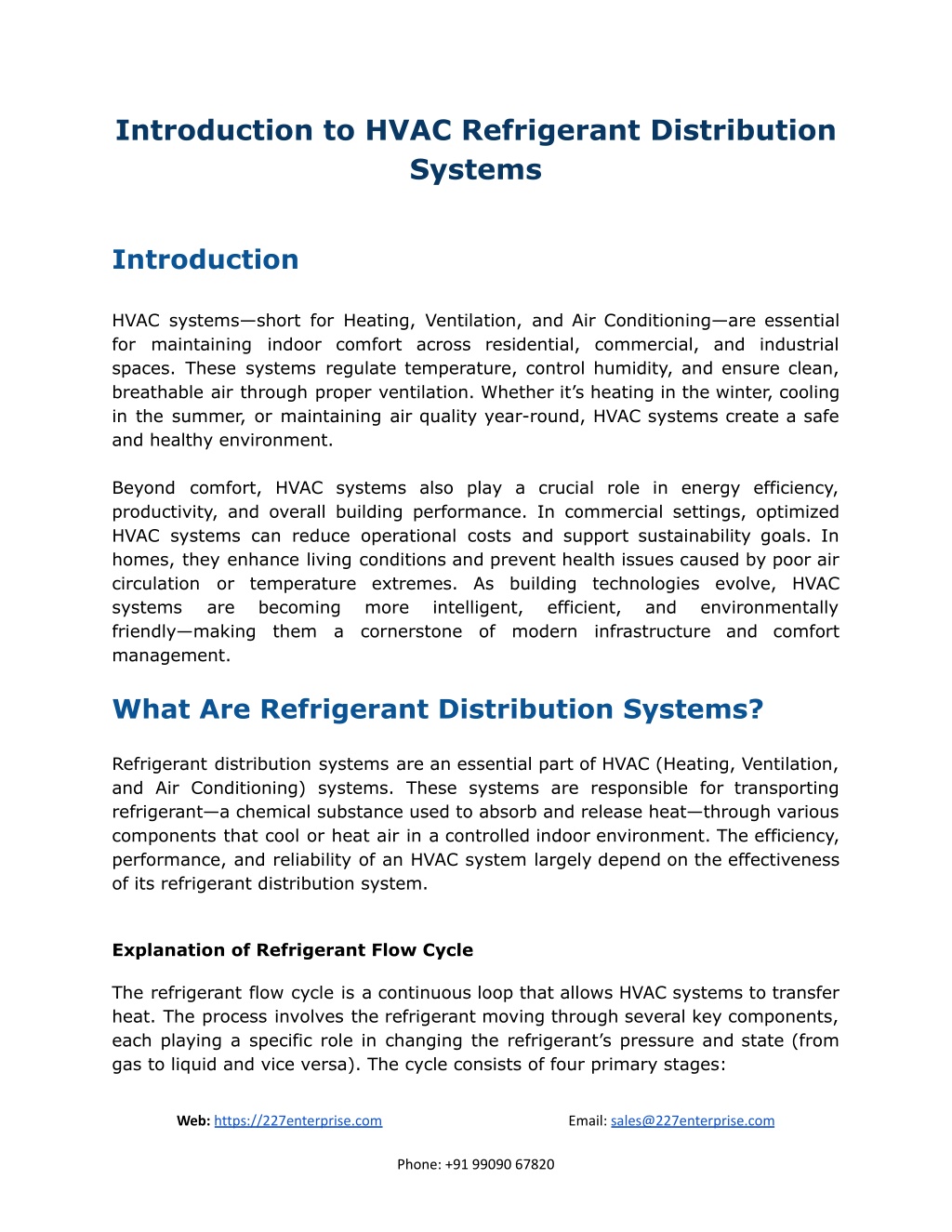

1. Introduction to HVAC Refrigerant Distribution Systems Introduction HVAC systems—short for Heating, Ventilation, and Air Conditioning—are essential for maintaining indoor comfort across residential, commercial, and industrial spaces. These systems regulate temperature, control humidity, and ensure clean, breathable air through proper ventilation. Whether it’s heating in the winter, cooling in the summer, or maintaining air quality year-round, HVAC systems create a safe and healthy environment. Beyond comfort, HVAC systems also play a crucial role in energy efficiency, productivity, and overall building performance. In commercial settings, optimized HVAC systems can reduce operational costs and support sustainability goals. In homes, they enhance living conditions and prevent health issues caused by poor air circulation or temperature extremes. As building technologies evolve, HVAC systems are becoming more intelligent, friendly—making them a cornerstone of modern infrastructure and comfort management. What Are Refrigerant Distribution Systems? Refrigerant distribution systems are an essential part of HVAC (Heating, Ventilation, and Air Conditioning) systems. These systems are responsible for transporting refrigerant—a chemical substance used to absorb and release heat—through various components that cool or heat air in a controlled indoor environment. The efficiency, performance, and reliability of an HVAC system largely depend on the effectiveness of its refrigerant distribution system. efficient, and environmentally Explanation of Refrigerant Flow Cycle The refrigerant flow cycle is a continuous loop that allows HVAC systems to transfer heat. The process involves the refrigerant moving through several key components, each playing a specific role in changing the refrigerant’s pressure and state (from gas to liquid and vice versa). The cycle consists of four primary stages: Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

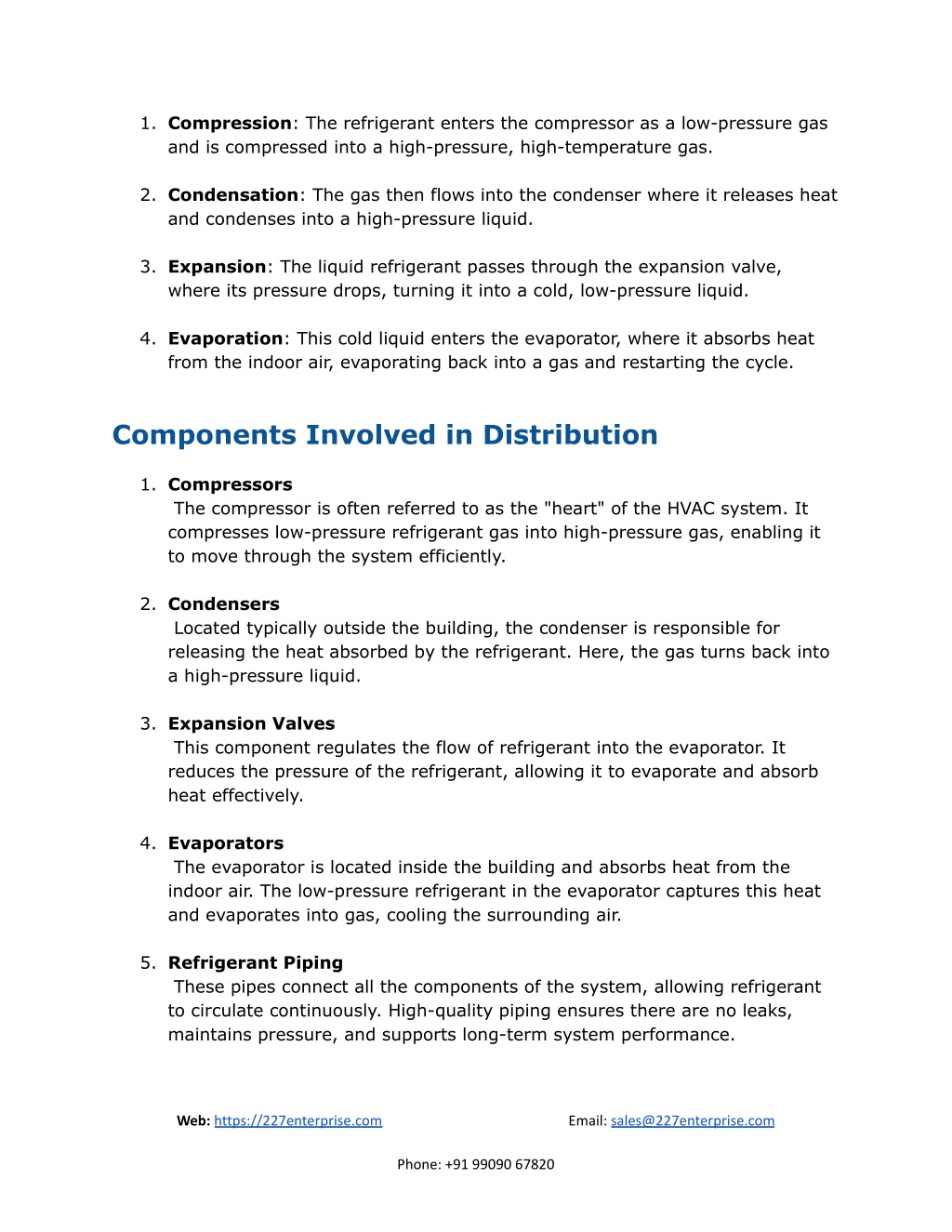

2. 1.Compression: The refrigerant enters the compressor as a low-pressure gas and is compressed into a high-pressure, high-temperature gas. 2.Condensation: The gas then flows into the condenser where it releases heat and condenses into a high-pressure liquid. 3.Expansion: The liquid refrigerant passes through the expansion valve, where its pressure drops, turning it into a cold, low-pressure liquid. 4.Evaporation: This cold liquid enters the evaporator, where it absorbs heat from the indoor air, evaporating back into a gas and restarting the cycle. Components Involved in Distribution 1.Compressors The compressor is often referred to as the "heart" of the HVAC system. It compresses low-pressure refrigerant gas into high-pressure gas, enabling it to move through the system efficiently. 2.Condensers Located typically outside the building, the condenser is responsible for releasing the heat absorbed by the refrigerant. Here, the gas turns back into a high-pressure liquid. 3.Expansion Valves This component regulates the flow of refrigerant into the evaporator. It reduces the pressure of the refrigerant, allowing it to evaporate and absorb heat effectively. 4.Evaporators The evaporator is located inside the building and absorbs heat from the indoor air. The low-pressure refrigerant in the evaporator captures this heat and evaporates into gas, cooling the surrounding air. 5.Refrigerant Piping These pipes connect all the components of the system, allowing refrigerant to circulate continuously. High-quality piping ensures there are no leaks, maintains pressure, and supports long-term system performance. Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

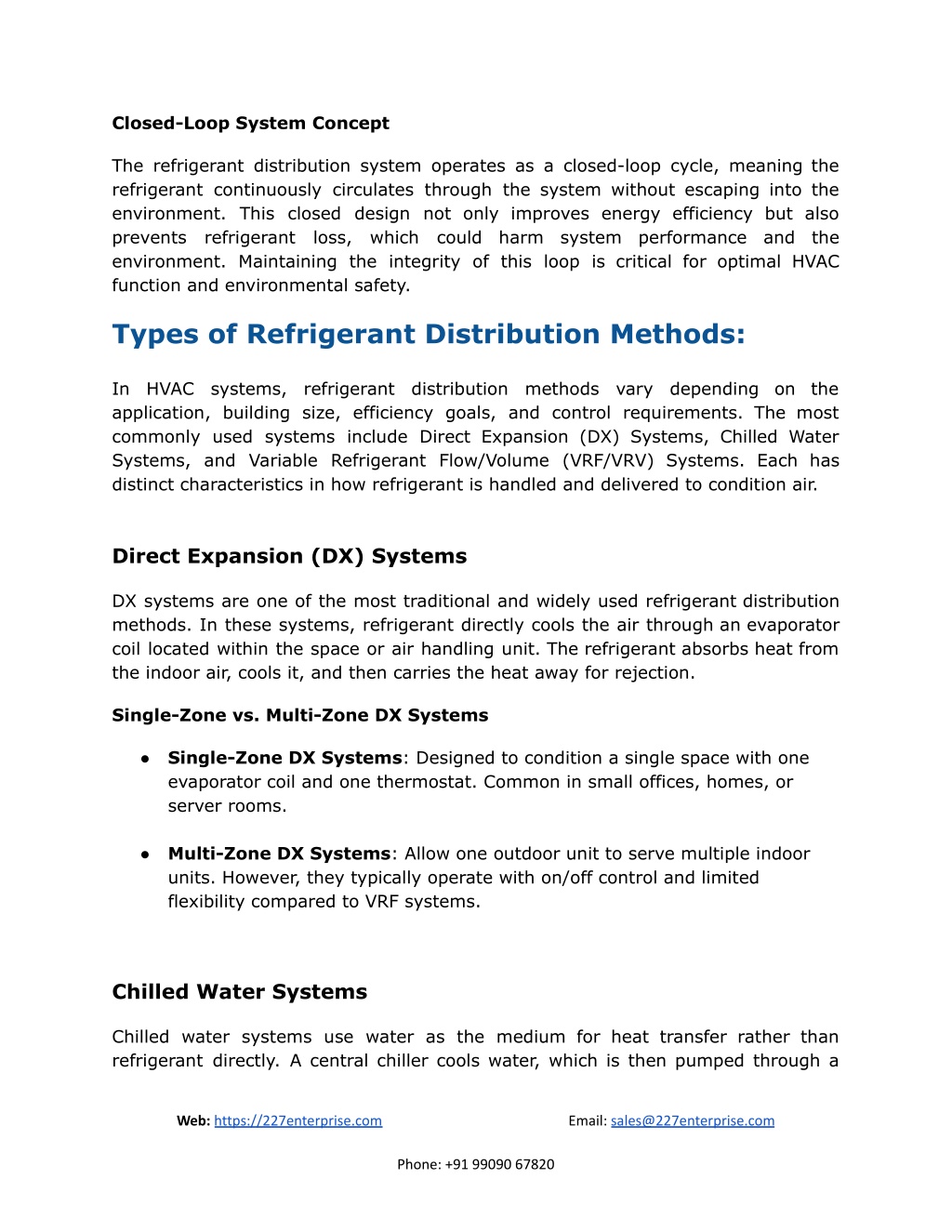

3. Closed-Loop System Concept The refrigerant distribution system operates as a closed-loop cycle, meaning the refrigerant continuously circulates through the system without escaping into the environment. This closed design not only improves energy efficiency but also prevents refrigerant loss, which could harm system performance and the environment. Maintaining the integrity of this loop is critical for optimal HVAC function and environmental safety. Types of Refrigerant Distribution Methods: In HVAC systems, refrigerant distribution methods vary depending on the application, building size, efficiency goals, and control requirements. The most commonly used systems include Direct Expansion (DX) Systems, Chilled Water Systems, and Variable Refrigerant Flow/Volume (VRF/VRV) Systems. Each has distinct characteristics in how refrigerant is handled and delivered to condition air. Direct Expansion (DX) Systems DX systems are one of the most traditional and widely used refrigerant distribution methods. In these systems, refrigerant directly cools the air through an evaporator coil located within the space or air handling unit. The refrigerant absorbs heat from the indoor air, cools it, and then carries the heat away for rejection. Single-Zone vs. Multi-Zone DX Systems ● Single-Zone DX Systems: Designed to condition a single space with one evaporator coil and one thermostat. Common in small offices, homes, or server rooms. ● Multi-Zone DX Systems: Allow one outdoor unit to serve multiple indoor units. However, they typically operate with on/off control and limited flexibility compared to VRF systems. Chilled Water Systems Chilled water systems use water as the medium for heat transfer rather than refrigerant directly. A central chiller cools water, which is then pumped through a Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

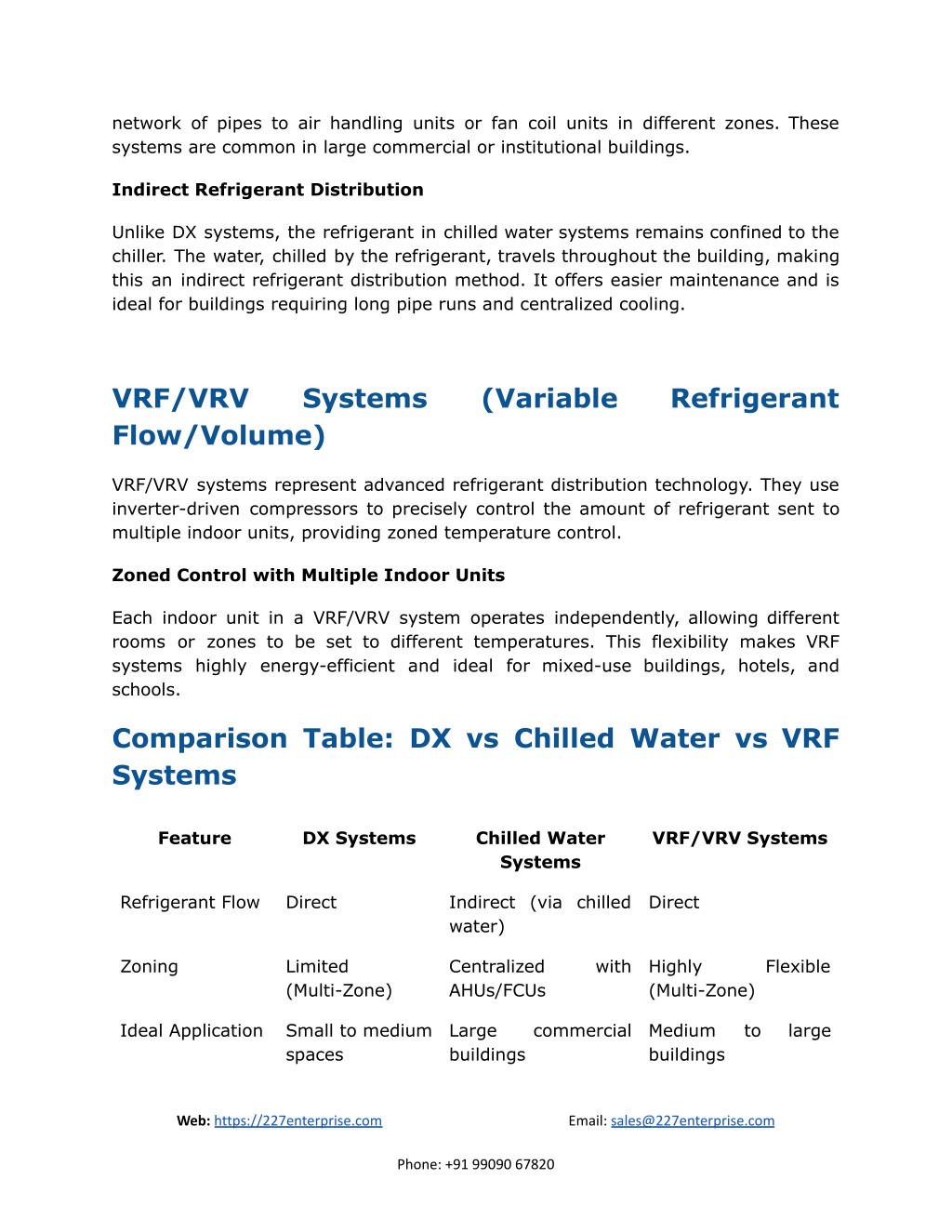

4. network of pipes to air handling units or fan coil units in different zones. These systems are common in large commercial or institutional buildings. Indirect Refrigerant Distribution Unlike DX systems, the refrigerant in chilled water systems remains confined to the chiller. The water, chilled by the refrigerant, travels throughout the building, making this an indirect refrigerant distribution method. It offers easier maintenance and is ideal for buildings requiring long pipe runs and centralized cooling. VRF/VRV Flow/Volume) Systems (Variable Refrigerant VRF/VRV systems represent advanced refrigerant distribution technology. They use inverter-driven compressors to precisely control the amount of refrigerant sent to multiple indoor units, providing zoned temperature control. Zoned Control with Multiple Indoor Units Each indoor unit in a VRF/VRV system operates independently, allowing different rooms or zones to be set to different temperatures. This flexibility makes VRF systems highly energy-efficient and ideal for mixed-use buildings, hotels, and schools. Comparison Table: DX vs Chilled Water vs VRF Systems Feature DX Systems Chilled Water Systems VRF/VRV Systems Refrigerant Flow Direct Indirect (via chilled water) Direct Zoning Limited (Multi-Zone) Centralized AHUs/FCUs with Highly (Multi-Zone) Flexible Ideal Application Small to medium spaces Large buildings commercial Medium buildings to large Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

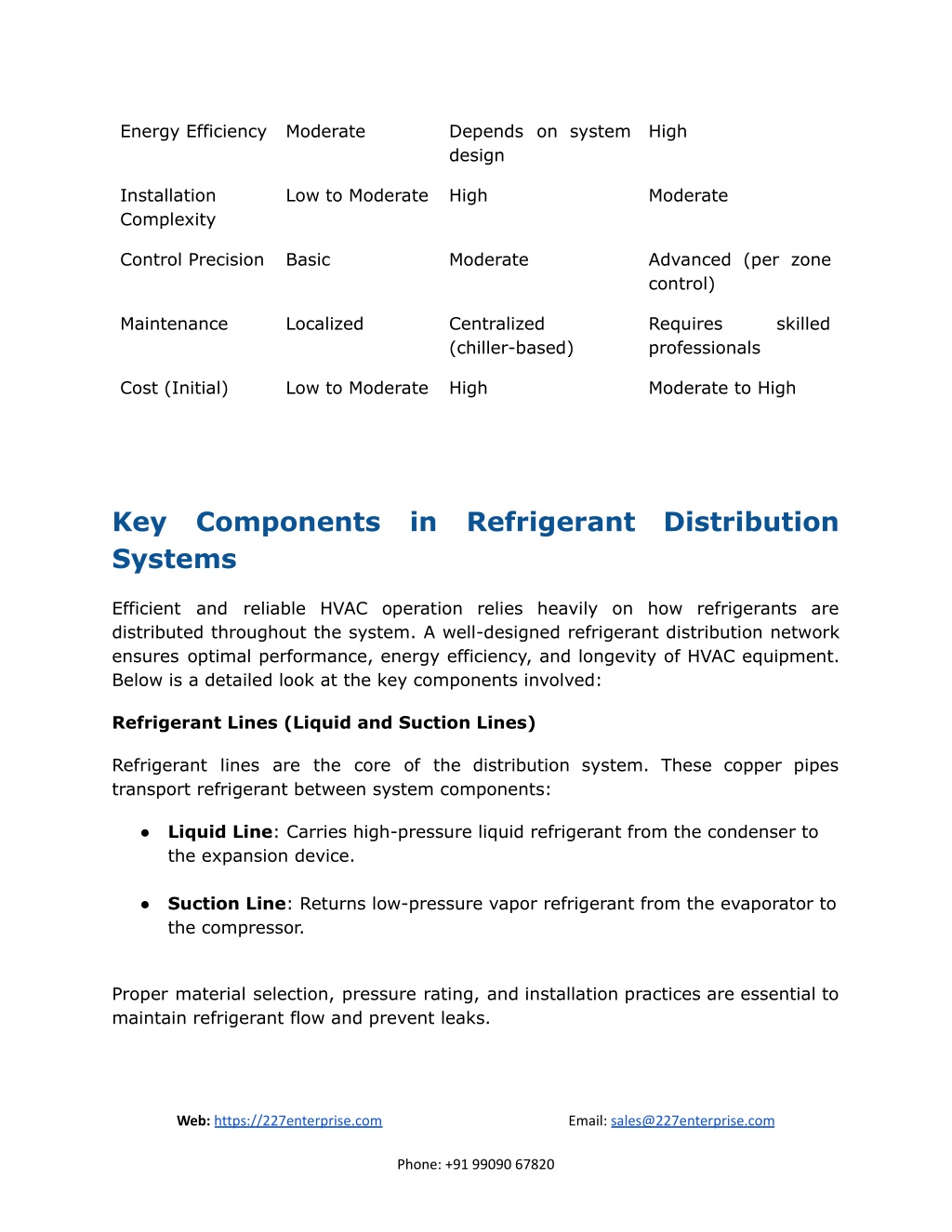

5. Energy Efficiency Moderate Depends on system design High Installation Complexity Low to Moderate High Moderate Control Precision Basic Moderate Advanced (per zone control) Maintenance Localized Centralized (chiller-based) Requires professionals skilled Cost (Initial) Low to Moderate High Moderate to High Key Components in Refrigerant Distribution Systems Efficient and reliable HVAC operation relies heavily on how refrigerants are distributed throughout the system. A well-designed refrigerant distribution network ensures optimal performance, energy efficiency, and longevity of HVAC equipment. Below is a detailed look at the key components involved: Refrigerant Lines (Liquid and Suction Lines) Refrigerant lines are the core of the distribution system. These copper pipes transport refrigerant between system components: ● Liquid Line: Carries high-pressure liquid refrigerant from the condenser to the expansion device. ● Suction Line: Returns low-pressure vapor refrigerant from the evaporator to the compressor. Proper material selection, pressure rating, and installation practices are essential to maintain refrigerant flow and prevent leaks. Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

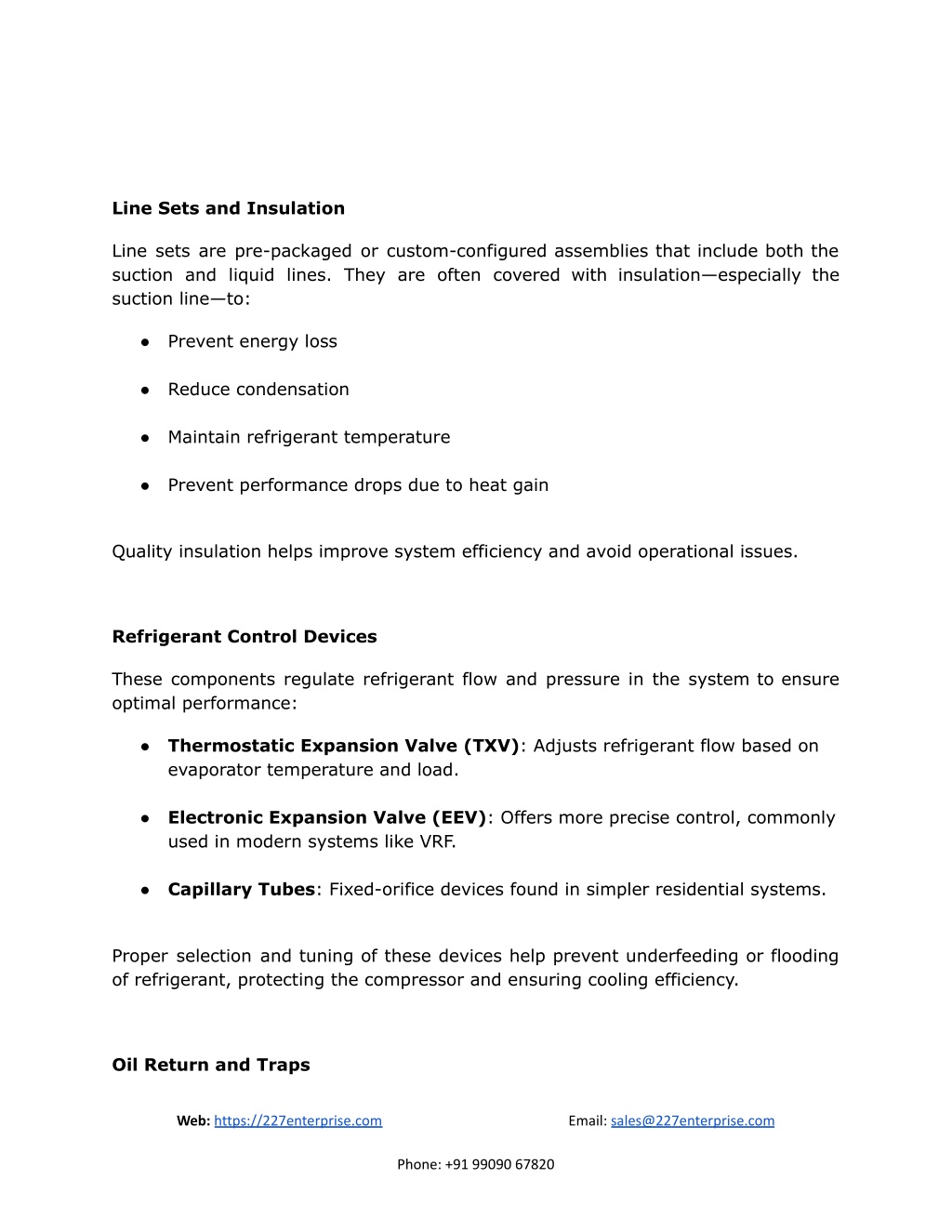

6. Line Sets and Insulation Line sets are pre-packaged or custom-configured assemblies that include both the suction and liquid lines. They are often covered with insulation—especially the suction line—to: ● Prevent energy loss ● Reduce condensation ● Maintain refrigerant temperature ● Prevent performance drops due to heat gain Quality insulation helps improve system efficiency and avoid operational issues. Refrigerant Control Devices These components regulate refrigerant flow and pressure in the system to ensure optimal performance: ● Thermostatic Expansion Valve (TXV): Adjusts refrigerant flow based on evaporator temperature and load. ● Electronic Expansion Valve (EEV): Offers more precise control, commonly used in modern systems like VRF. ● Capillary Tubes: Fixed-orifice devices found in simpler residential systems. Proper selection and tuning of these devices help prevent underfeeding or flooding of refrigerant, protecting the compressor and ensuring cooling efficiency. Oil Return and Traps Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

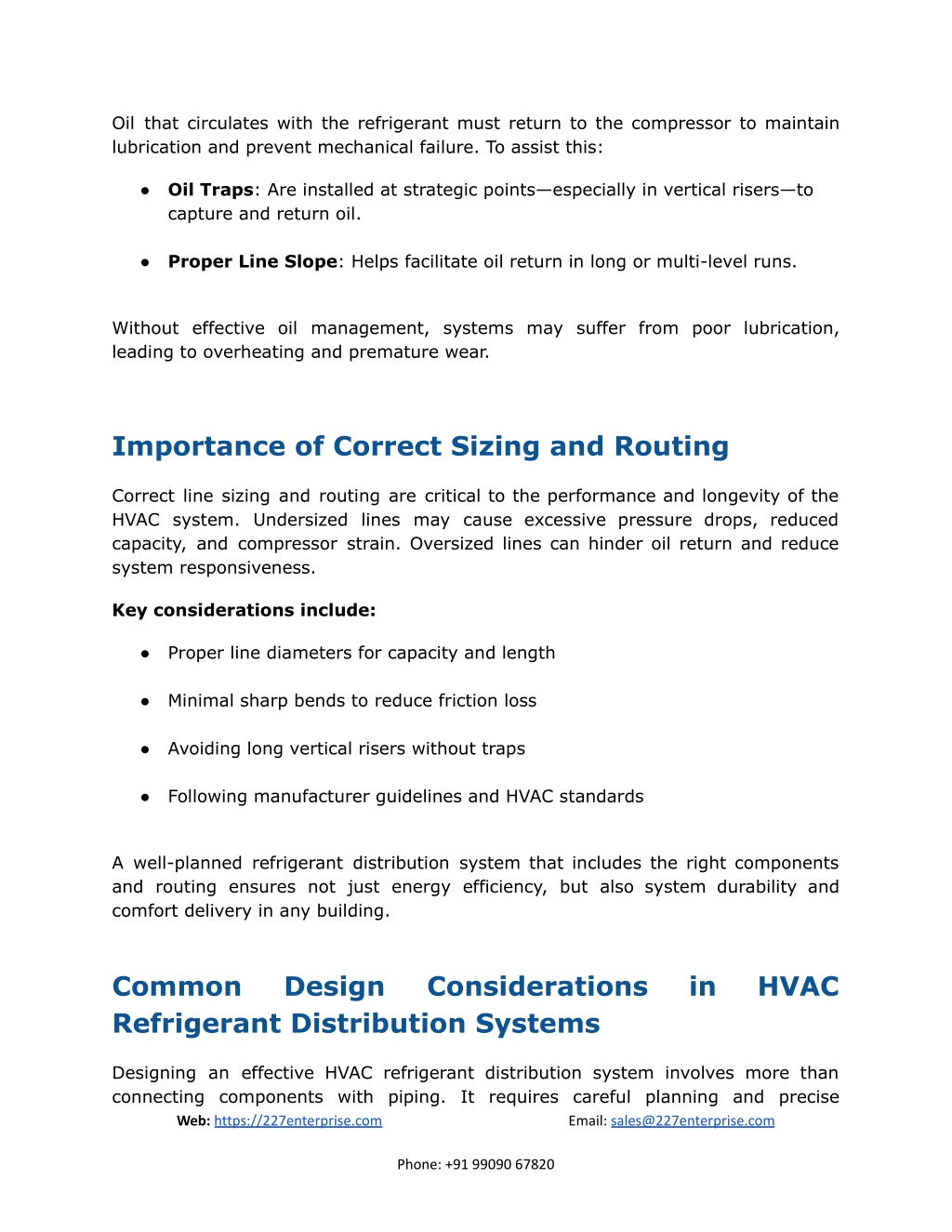

7. Oil that circulates with the refrigerant must return to the compressor to maintain lubrication and prevent mechanical failure. To assist this: ● Oil Traps: Are installed at strategic points—especially in vertical risers—to capture and return oil. ● Proper Line Slope: Helps facilitate oil return in long or multi-level runs. Without effective oil management, systems may suffer from poor lubrication, leading to overheating and premature wear. Importance of Correct Sizing and Routing Correct line sizing and routing are critical to the performance and longevity of the HVAC system. Undersized lines may cause excessive pressure drops, reduced capacity, and compressor strain. Oversized lines can hinder oil return and reduce system responsiveness. Key considerations include: ● Proper line diameters for capacity and length ● Minimal sharp bends to reduce friction loss ● Avoiding long vertical risers without traps ● Following manufacturer guidelines and HVAC standards A well-planned refrigerant distribution system that includes the right components and routing ensures not just energy efficiency, but also system durability and comfort delivery in any building. Common Refrigerant Distribution Systems Design Considerations in HVAC Designing an effective HVAC refrigerant distribution system involves more than connecting components with piping. It requires careful planning and precise Web:https://227enterprise.com Phone: +91 99090 67820 Email: sales@227enterprise.com

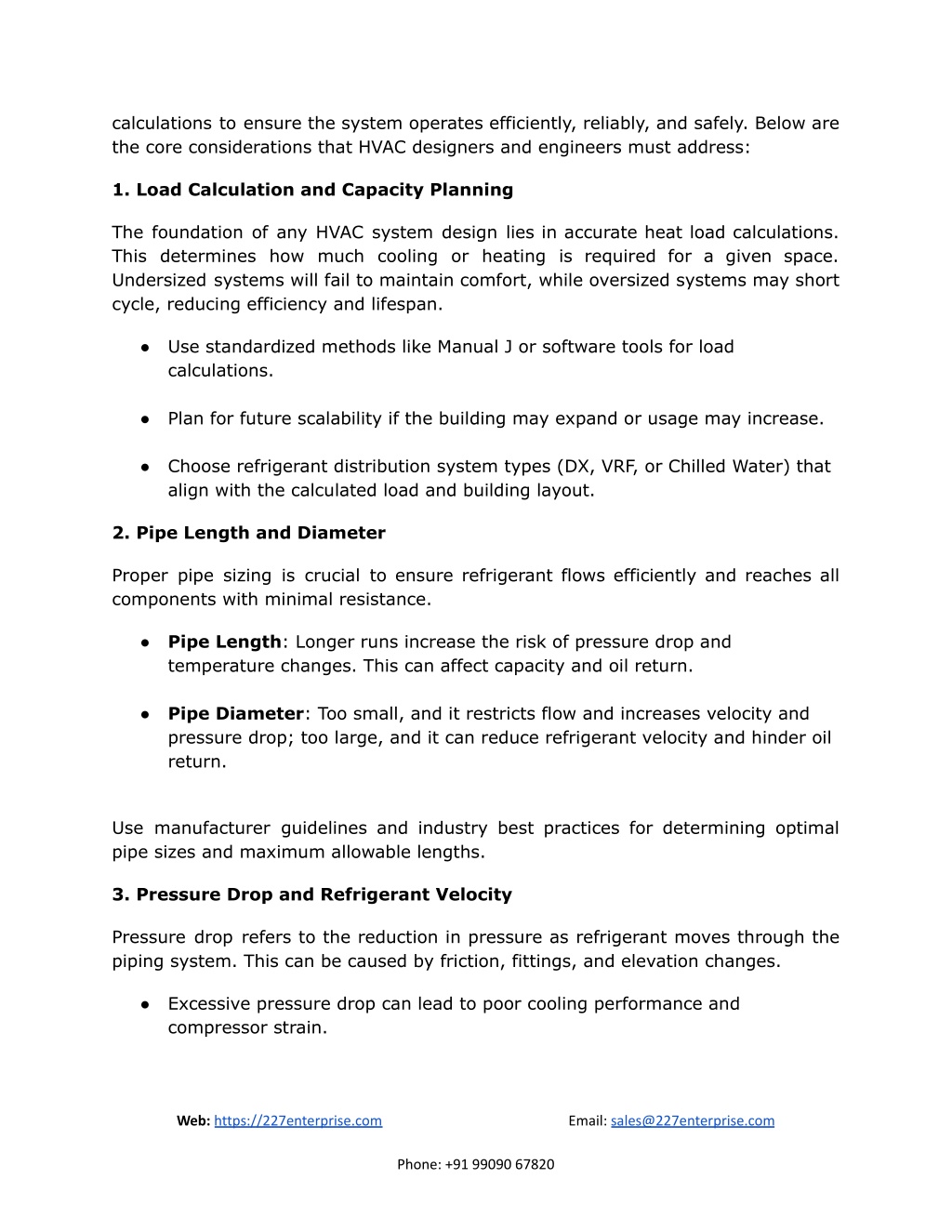

8. calculations to ensure the system operates efficiently, reliably, and safely. Below are the core considerations that HVAC designers and engineers must address: 1. Load Calculation and Capacity Planning The foundation of any HVAC system design lies in accurate heat load calculations. This determines how much cooling or heating is required for a given space. Undersized systems will fail to maintain comfort, while oversized systems may short cycle, reducing efficiency and lifespan. ● Use standardized methods like Manual J or software tools for load calculations. ● Plan for future scalability if the building may expand or usage may increase. ● Choose refrigerant distribution system types (DX, VRF, or Chilled Water) that align with the calculated load and building layout. 2. Pipe Length and Diameter Proper pipe sizing is crucial to ensure refrigerant flows efficiently and reaches all components with minimal resistance. ● Pipe Length: Longer runs increase the risk of pressure drop and temperature changes. This can affect capacity and oil return. ● Pipe Diameter: Too small, and it restricts flow and increases velocity and pressure drop; too large, and it can reduce refrigerant velocity and hinder oil return. Use manufacturer guidelines and industry best practices for determining optimal pipe sizes and maximum allowable lengths. 3. Pressure Drop and Refrigerant Velocity Pressure drop refers to the reduction in pressure as refrigerant moves through the piping system. This can be caused by friction, fittings, and elevation changes. ● Excessive pressure drop can lead to poor cooling performance and compressor strain. Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

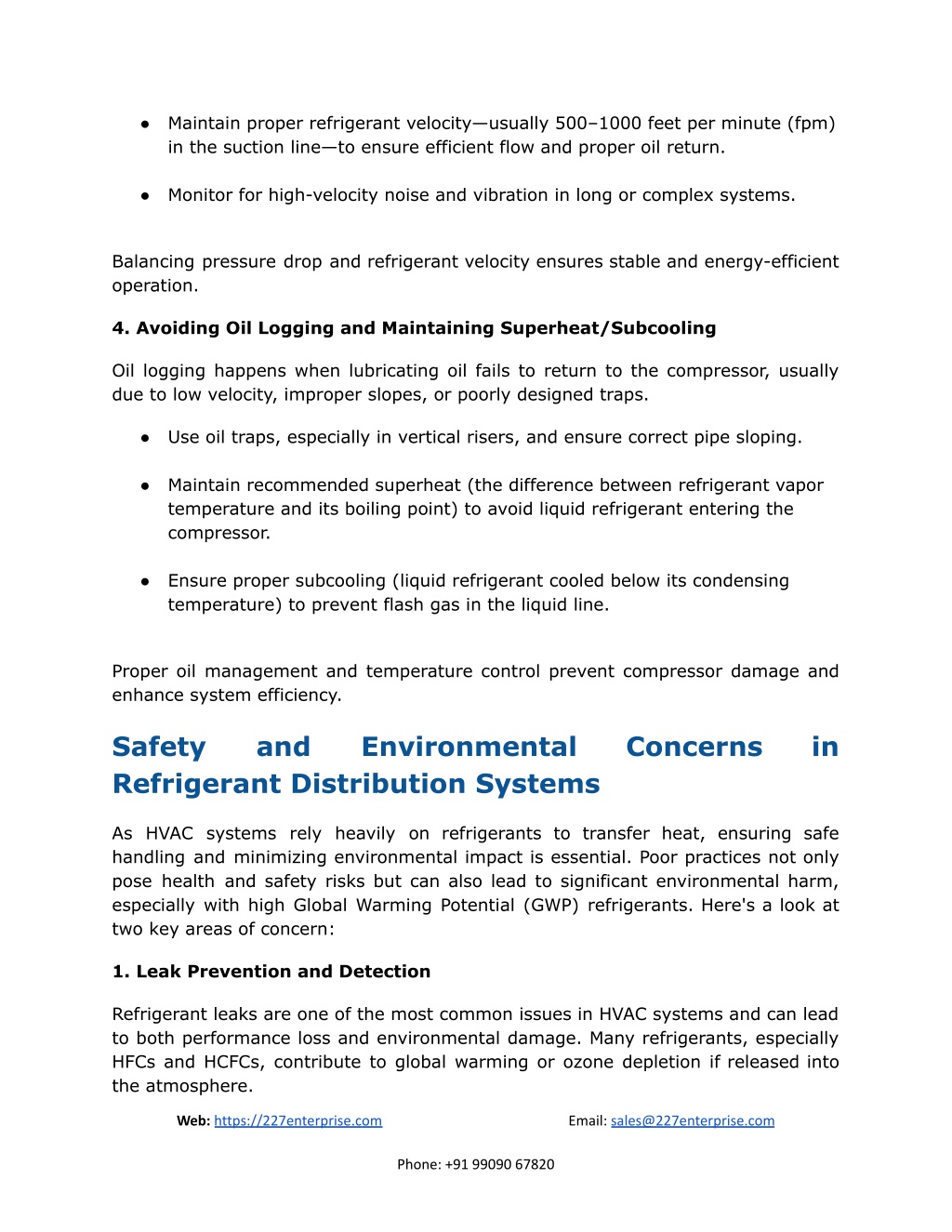

9. ● Maintain proper refrigerant velocity—usually 500–1000 feet per minute (fpm) in the suction line—to ensure efficient flow and proper oil return. ● Monitor for high-velocity noise and vibration in long or complex systems. Balancing pressure drop and refrigerant velocity ensures stable and energy-efficient operation. 4. Avoiding Oil Logging and Maintaining Superheat/Subcooling Oil logging happens when lubricating oil fails to return to the compressor, usually due to low velocity, improper slopes, or poorly designed traps. ● Use oil traps, especially in vertical risers, and ensure correct pipe sloping. ● Maintain recommended superheat (the difference between refrigerant vapor temperature and its boiling point) to avoid liquid refrigerant entering the compressor. ● Ensure proper subcooling (liquid refrigerant cooled below its condensing temperature) to prevent flash gas in the liquid line. Proper oil management and temperature control prevent compressor damage and enhance system efficiency. Safety Refrigerant Distribution Systems and Environmental Concerns in As HVAC systems rely heavily on refrigerants to transfer heat, ensuring safe handling and minimizing environmental impact is essential. Poor practices not only pose health and safety risks but can also lead to significant environmental harm, especially with high Global Warming Potential (GWP) refrigerants. Here's a look at two key areas of concern: 1. Leak Prevention and Detection Refrigerant leaks are one of the most common issues in HVAC systems and can lead to both performance loss and environmental damage. Many refrigerants, especially HFCs and HCFCs, contribute to global warming or ozone depletion if released into the atmosphere. Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

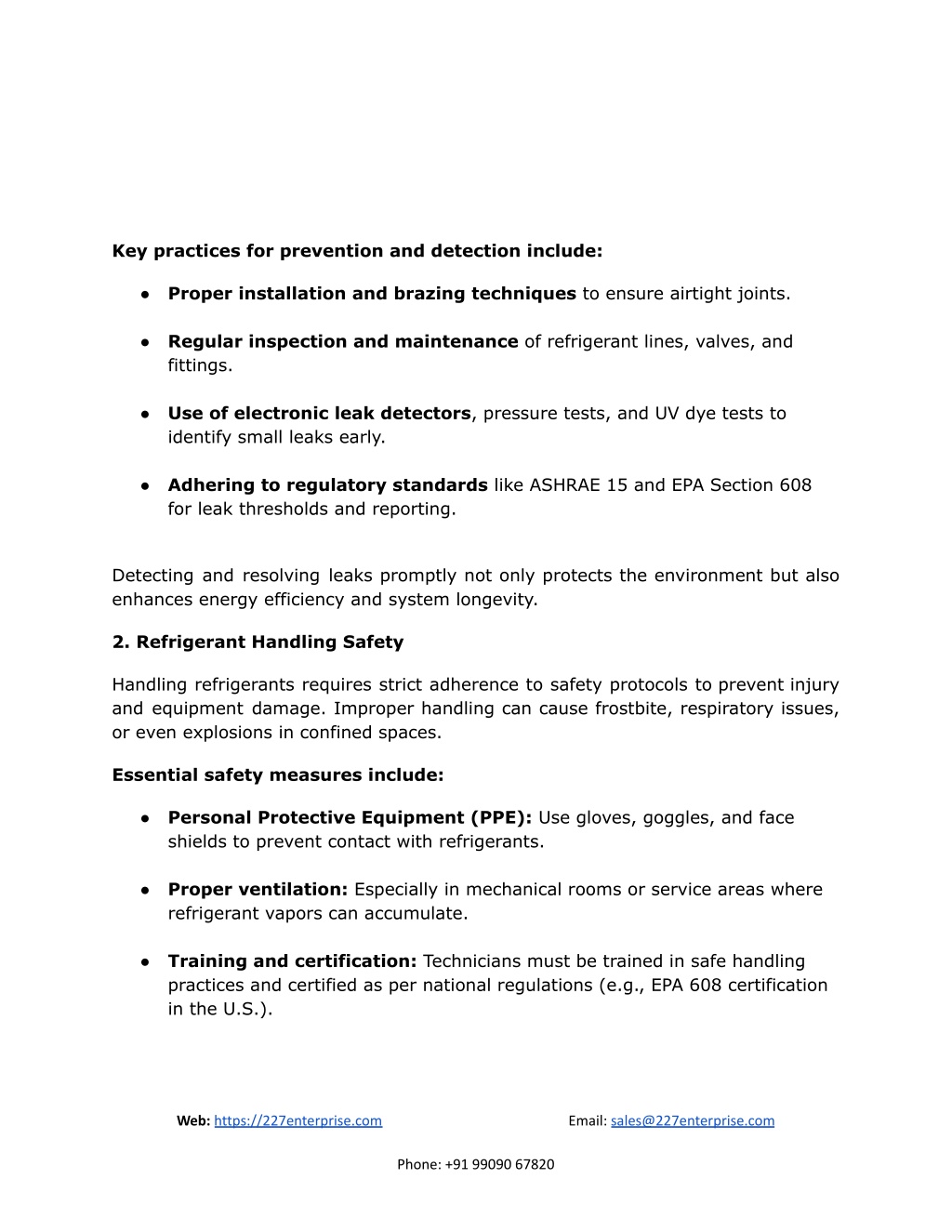

10. Key practices for prevention and detection include: ● Proper installation and brazing techniques to ensure airtight joints. ● Regular inspection and maintenance of refrigerant lines, valves, and fittings. ● Use of electronic leak detectors, pressure tests, and UV dye tests to identify small leaks early. ● Adhering to regulatory standards like ASHRAE 15 and EPA Section 608 for leak thresholds and reporting. Detecting and resolving leaks promptly not only protects the environment but also enhances energy efficiency and system longevity. 2. Refrigerant Handling Safety Handling refrigerants requires strict adherence to safety protocols to prevent injury and equipment damage. Improper handling can cause frostbite, respiratory issues, or even explosions in confined spaces. Essential safety measures include: ● Personal Protective Equipment (PPE): Use gloves, goggles, and face shields to prevent contact with refrigerants. ● Proper ventilation: Especially in mechanical rooms or service areas where refrigerant vapors can accumulate. ● Training and certification: Technicians must be trained in safe handling practices and certified as per national regulations (e.g., EPA 608 certification in the U.S.). Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

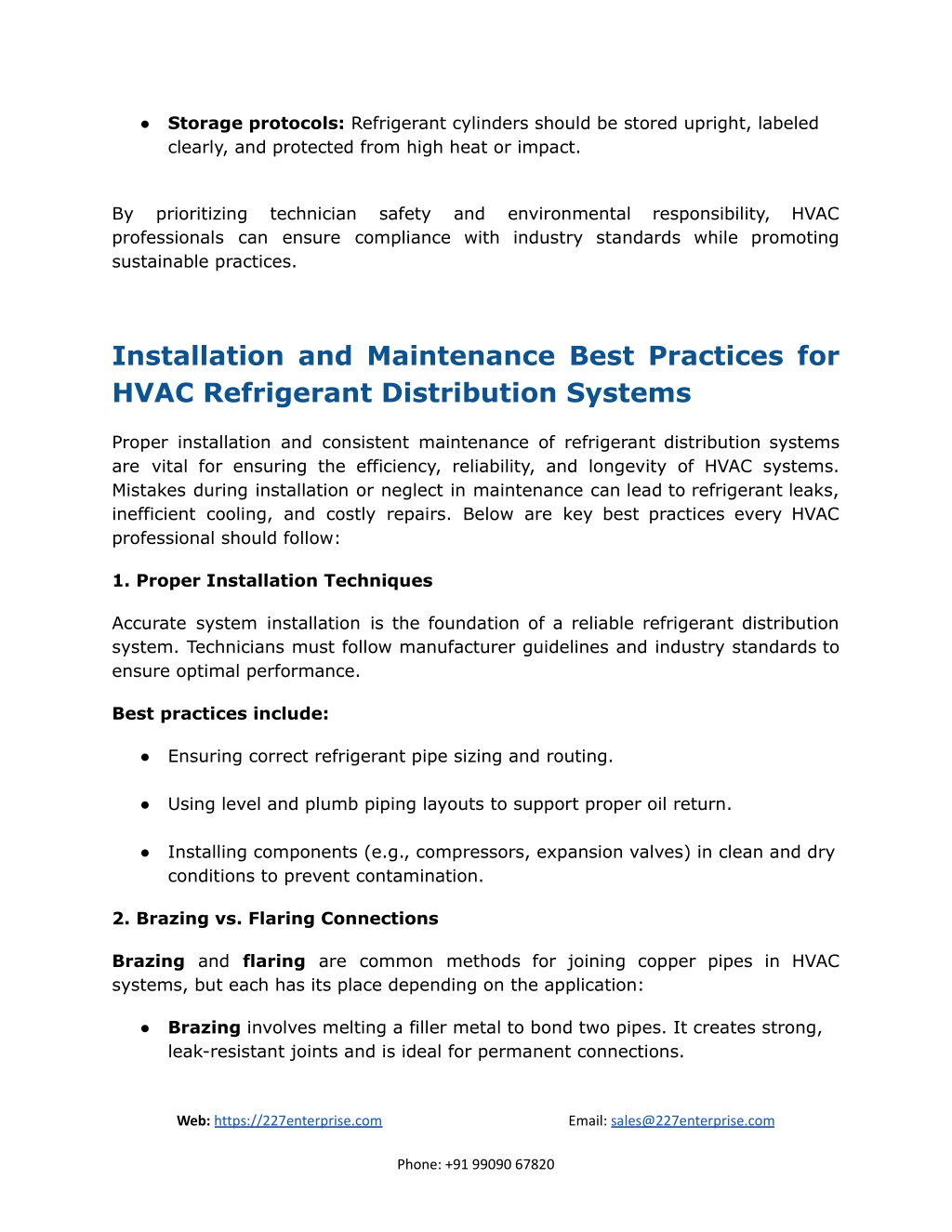

11. ● Storage protocols: Refrigerant cylinders should be stored upright, labeled clearly, and protected from high heat or impact. By professionals can ensure compliance with industry standards while promoting sustainable practices. prioritizing technician safety and environmental responsibility, HVAC Installation and Maintenance Best Practices for HVAC Refrigerant Distribution Systems Proper installation and consistent maintenance of refrigerant distribution systems are vital for ensuring the efficiency, reliability, and longevity of HVAC systems. Mistakes during installation or neglect in maintenance can lead to refrigerant leaks, inefficient cooling, and costly repairs. Below are key best practices every HVAC professional should follow: 1. Proper Installation Techniques Accurate system installation is the foundation of a reliable refrigerant distribution system. Technicians must follow manufacturer guidelines and industry standards to ensure optimal performance. Best practices include: ● Ensuring correct refrigerant pipe sizing and routing. ● Using level and plumb piping layouts to support proper oil return. ● Installing components (e.g., compressors, expansion valves) in clean and dry conditions to prevent contamination. 2. Brazing vs. Flaring Connections Brazing and flaring are common methods for joining copper pipes in HVAC systems, but each has its place depending on the application: ● Brazing involves melting a filler metal to bond two pipes. It creates strong, leak-resistant joints and is ideal for permanent connections. Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

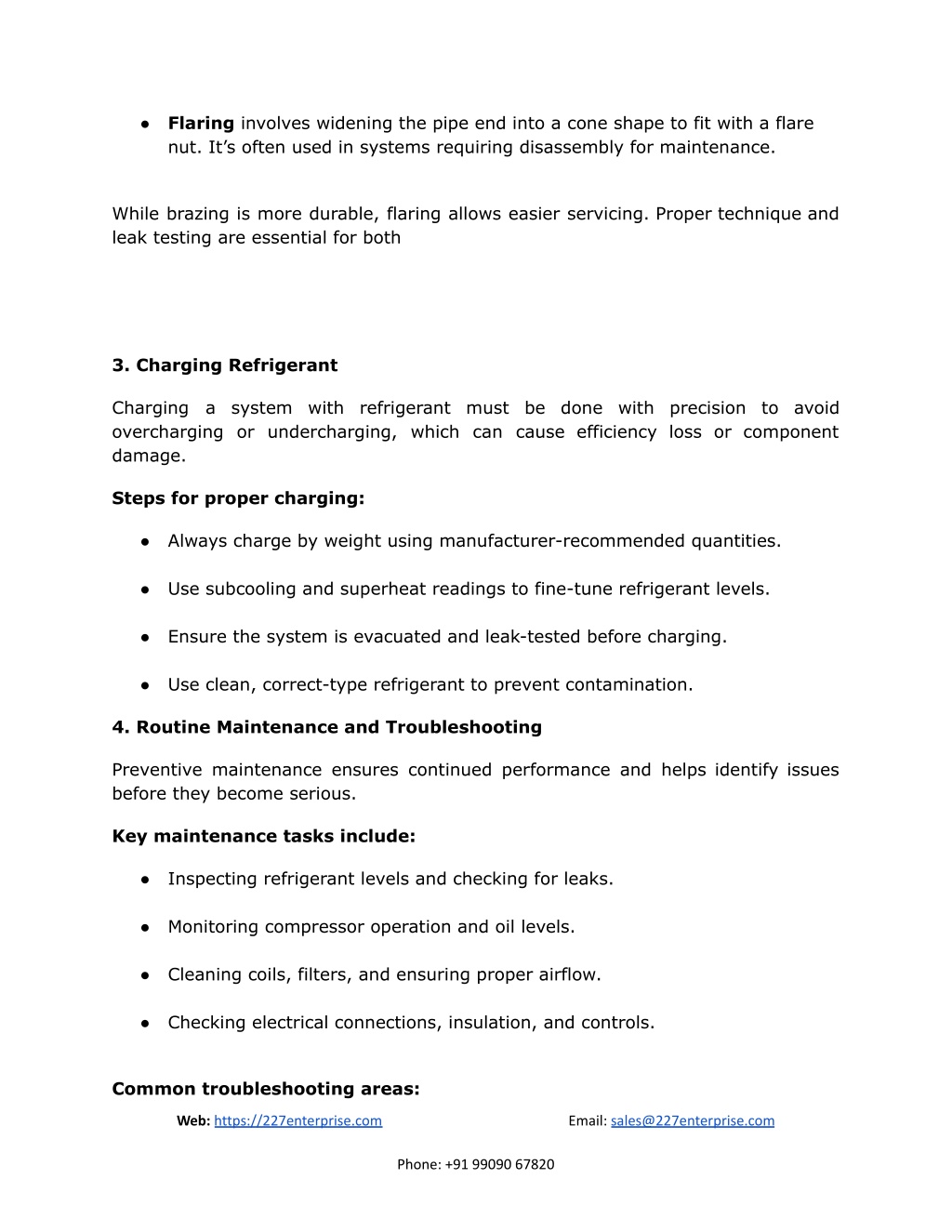

12. ● Flaring involves widening the pipe end into a cone shape to fit with a flare nut. It’s often used in systems requiring disassembly for maintenance. While brazing is more durable, flaring allows easier servicing. Proper technique and leak testing are essential for both 3. Charging Refrigerant Charging a system with refrigerant must be done with precision to avoid overcharging or undercharging, which can cause efficiency loss or component damage. Steps for proper charging: ● Always charge by weight using manufacturer-recommended quantities. ● Use subcooling and superheat readings to fine-tune refrigerant levels. ● Ensure the system is evacuated and leak-tested before charging. ● Use clean, correct-type refrigerant to prevent contamination. 4. Routine Maintenance and Troubleshooting Preventive maintenance ensures continued performance and helps identify issues before they become serious. Key maintenance tasks include: ● Inspecting refrigerant levels and checking for leaks. ● Monitoring compressor operation and oil levels. ● Cleaning coils, filters, and ensuring proper airflow. ● Checking electrical connections, insulation, and controls. Common troubleshooting areas: Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

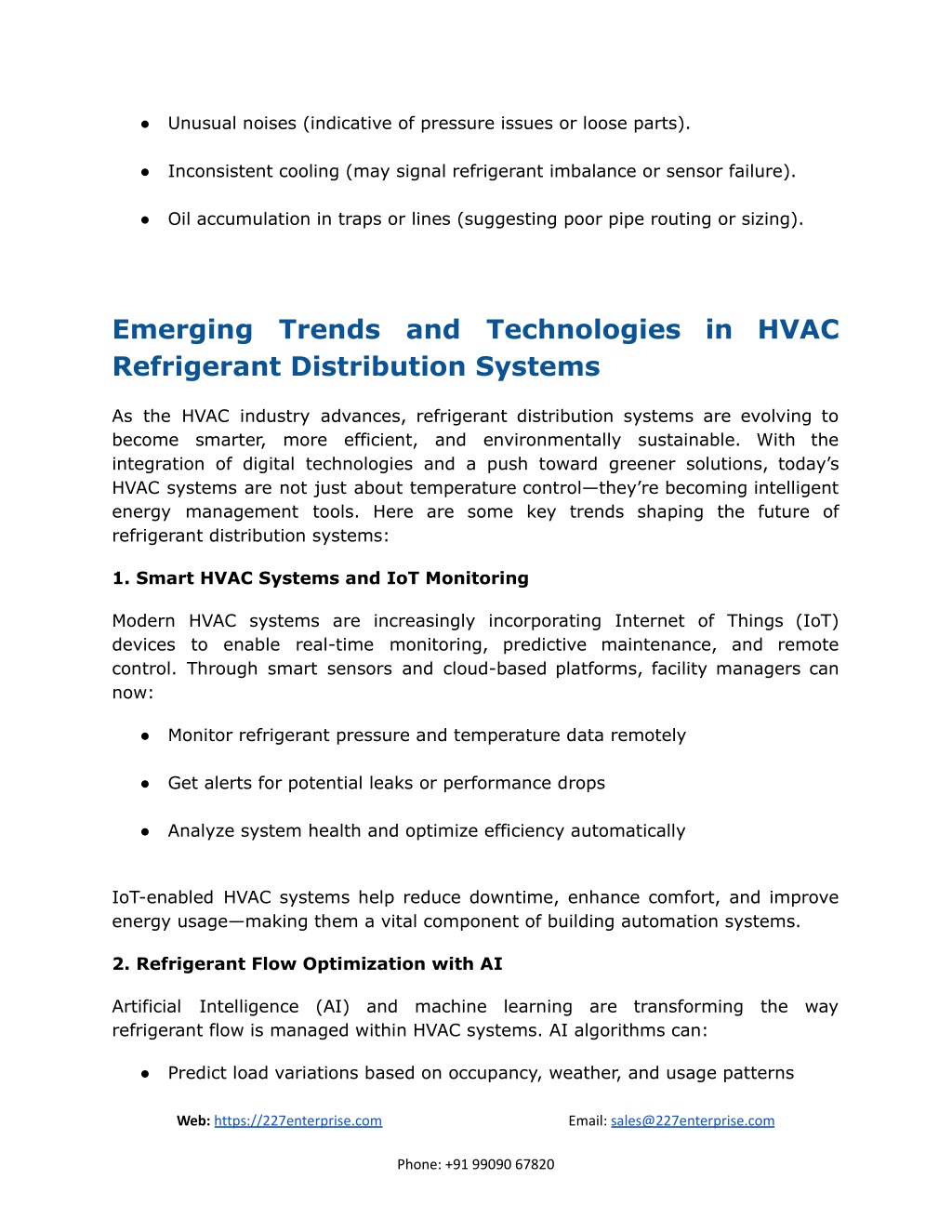

13. ● Unusual noises (indicative of pressure issues or loose parts). ● Inconsistent cooling (may signal refrigerant imbalance or sensor failure). ● Oil accumulation in traps or lines (suggesting poor pipe routing or sizing). Emerging Trends and Technologies in HVAC Refrigerant Distribution Systems As the HVAC industry advances, refrigerant distribution systems are evolving to become smarter, more efficient, and environmentally sustainable. With the integration of digital technologies and a push toward greener solutions, today’s HVAC systems are not just about temperature control—they’re becoming intelligent energy management tools. Here are some key trends shaping the future of refrigerant distribution systems: 1. Smart HVAC Systems and IoT Monitoring Modern HVAC systems are increasingly incorporating Internet of Things (IoT) devices to enable real-time monitoring, predictive maintenance, and remote control. Through smart sensors and cloud-based platforms, facility managers can now: ● Monitor refrigerant pressure and temperature data remotely ● Get alerts for potential leaks or performance drops ● Analyze system health and optimize efficiency automatically IoT-enabled HVAC systems help reduce downtime, enhance comfort, and improve energy usage—making them a vital component of building automation systems. 2. Refrigerant Flow Optimization with AI Artificial Intelligence (AI) and machine learning are transforming the way refrigerant flow is managed within HVAC systems. AI algorithms can: ● Predict load variations based on occupancy, weather, and usage patterns Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

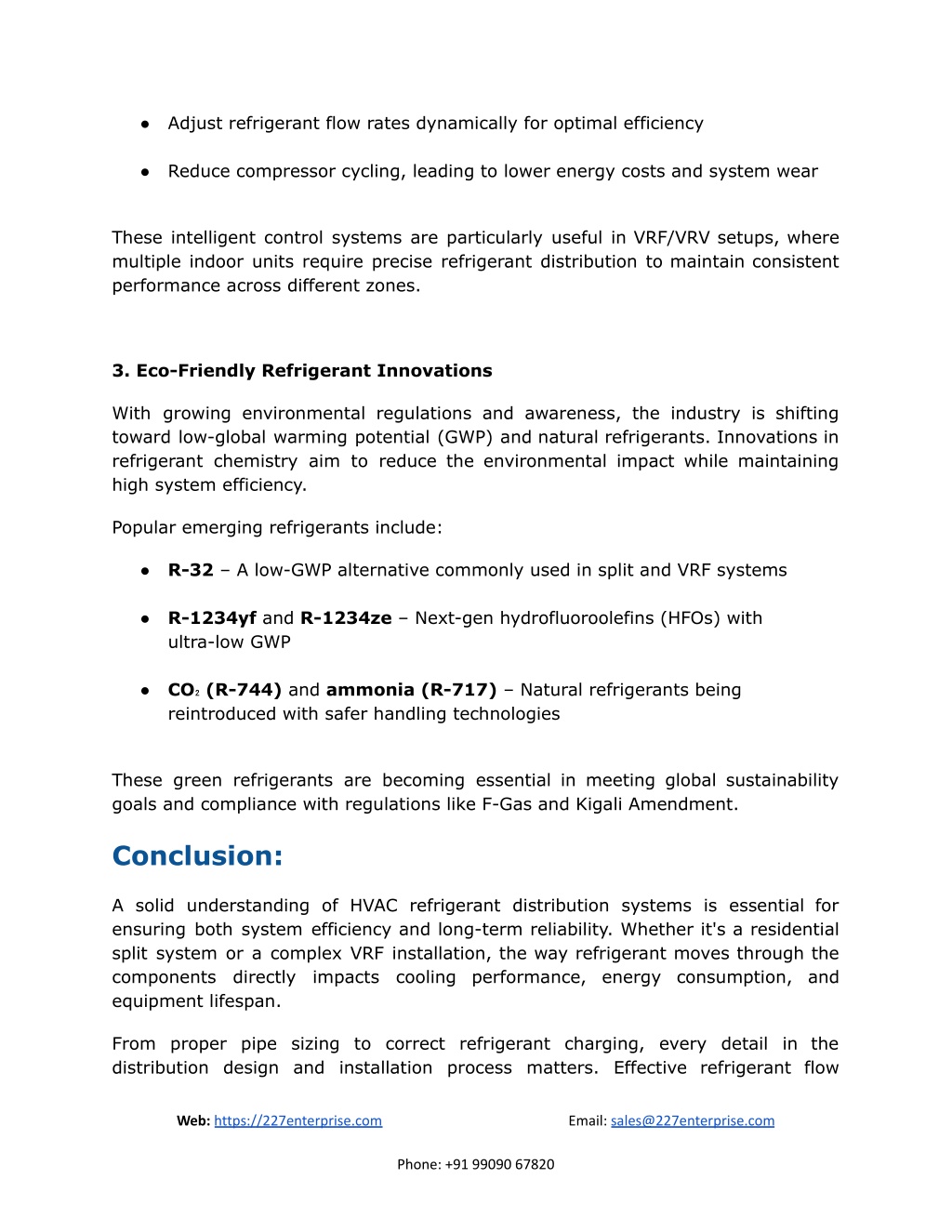

14. ● Adjust refrigerant flow rates dynamically for optimal efficiency ● Reduce compressor cycling, leading to lower energy costs and system wear These intelligent control systems are particularly useful in VRF/VRV setups, where multiple indoor units require precise refrigerant distribution to maintain consistent performance across different zones. 3. Eco-Friendly Refrigerant Innovations With growing environmental regulations and awareness, the industry is shifting toward low-global warming potential (GWP) and natural refrigerants. Innovations in refrigerant chemistry aim to reduce the environmental impact while maintaining high system efficiency. Popular emerging refrigerants include: ● R-32 – A low-GWP alternative commonly used in split and VRF systems ● R-1234yf and R-1234ze – Next-gen hydrofluoroolefins (HFOs) with ultra-low GWP ● CO₂ (R-744) and ammonia (R-717) – Natural refrigerants being reintroduced with safer handling technologies These green refrigerants are becoming essential in meeting global sustainability goals and compliance with regulations like F-Gas and Kigali Amendment. Conclusion: A solid understanding of HVAC refrigerant distribution systems is essential for ensuring both system efficiency and long-term reliability. Whether it's a residential split system or a complex VRF installation, the way refrigerant moves through the components directly impacts cooling performance, energy consumption, and equipment lifespan. From proper pipe sizing to correct refrigerant charging, every detail in the distribution design and installation process matters. Effective refrigerant flow Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

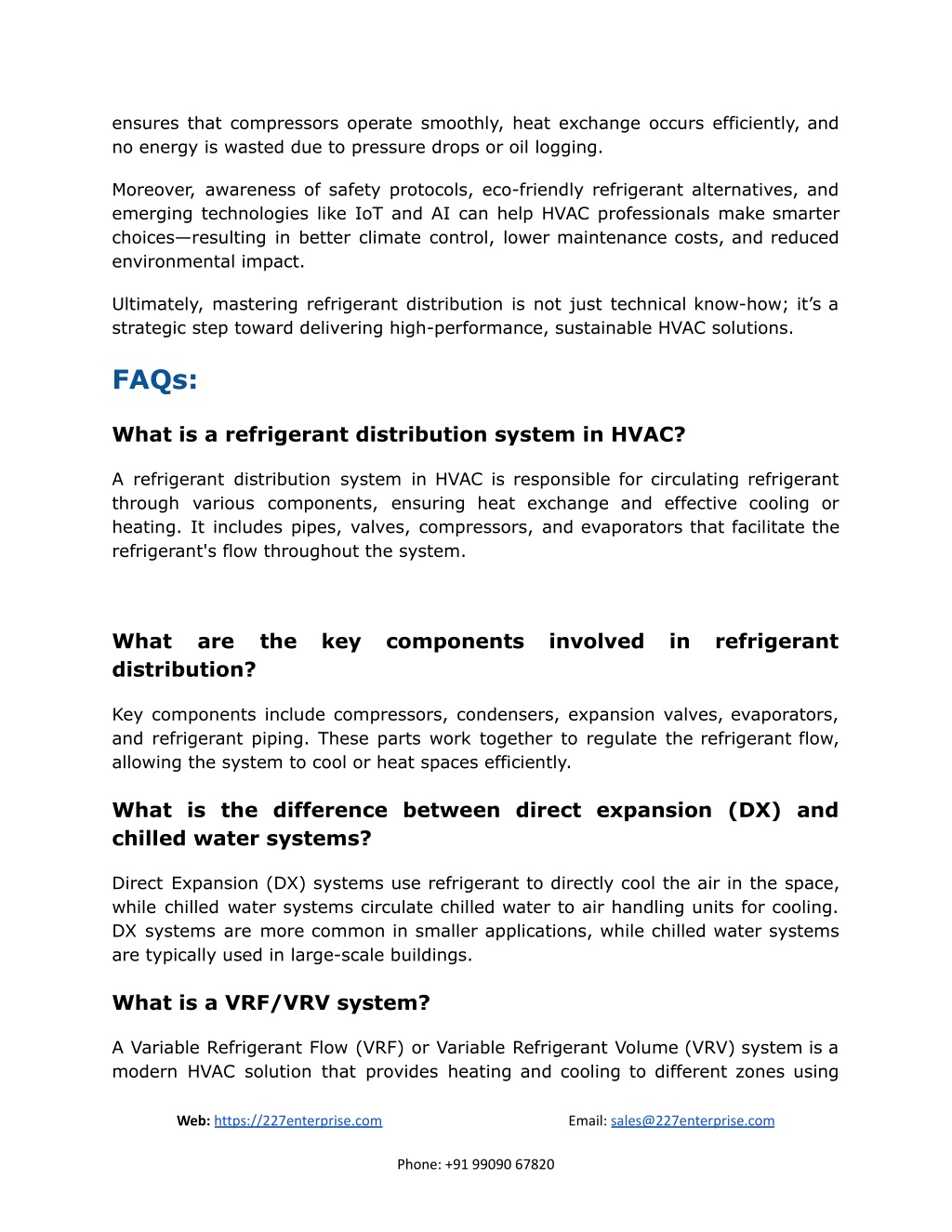

15. ensures that compressors operate smoothly, heat exchange occurs efficiently, and no energy is wasted due to pressure drops or oil logging. Moreover, awareness of safety protocols, eco-friendly refrigerant alternatives, and emerging technologies like IoT and AI can help HVAC professionals make smarter choices—resulting in better climate control, lower maintenance costs, and reduced environmental impact. Ultimately, mastering refrigerant distribution is not just technical know-how; it’s a strategic step toward delivering high-performance, sustainable HVAC solutions. FAQs: What is a refrigerant distribution system in HVAC? A refrigerant distribution system in HVAC is responsible for circulating refrigerant through various components, ensuring heat exchange and effective cooling or heating. It includes pipes, valves, compressors, and evaporators that facilitate the refrigerant's flow throughout the system. What distribution? are the key components involved in refrigerant Key components include compressors, condensers, expansion valves, evaporators, and refrigerant piping. These parts work together to regulate the refrigerant flow, allowing the system to cool or heat spaces efficiently. What is the difference between direct expansion (DX) and chilled water systems? Direct Expansion (DX) systems use refrigerant to directly cool the air in the space, while chilled water systems circulate chilled water to air handling units for cooling. DX systems are more common in smaller applications, while chilled water systems are typically used in large-scale buildings. What is a VRF/VRV system? A Variable Refrigerant Flow (VRF) or Variable Refrigerant Volume (VRV) system is a modern HVAC solution that provides heating and cooling to different zones using Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

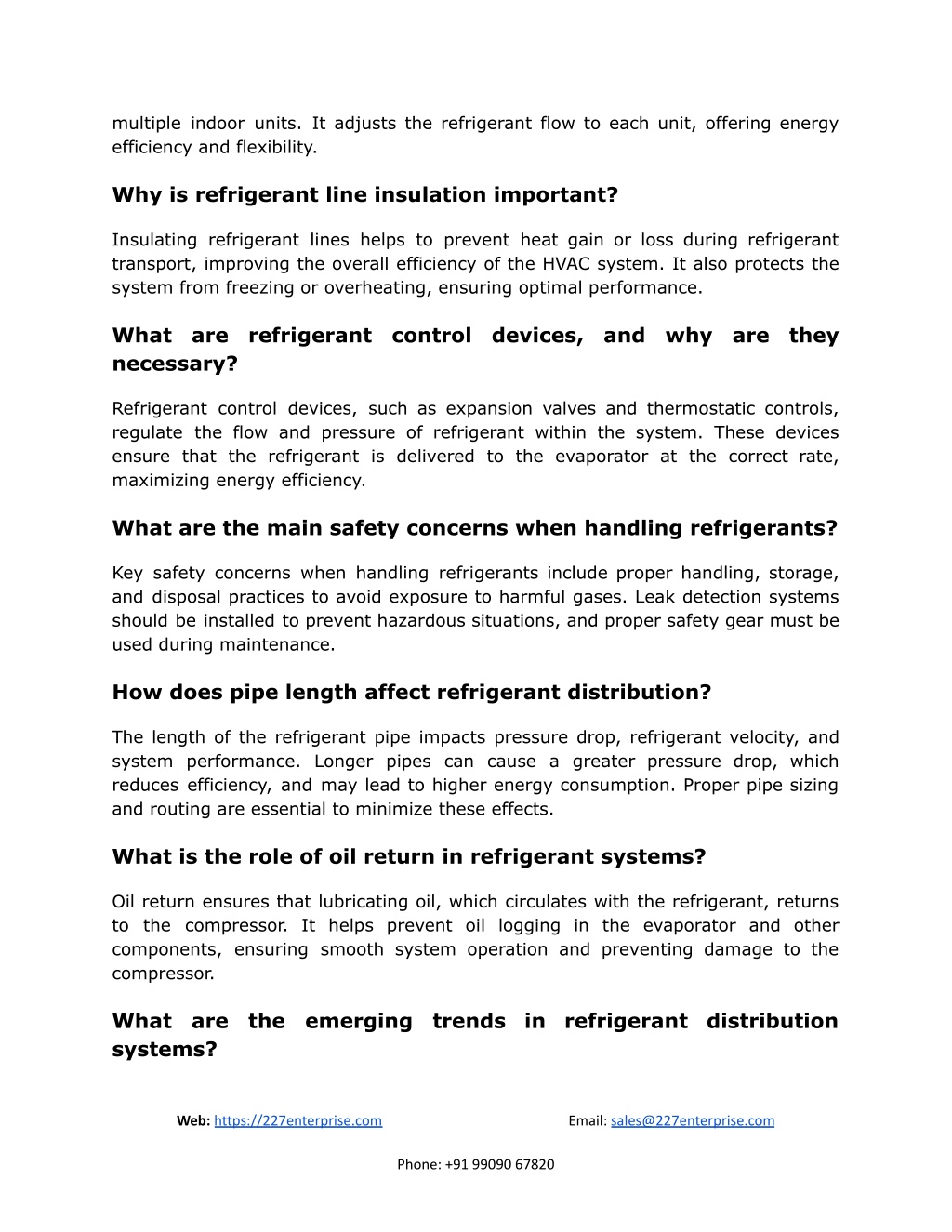

16. multiple indoor units. It adjusts the refrigerant flow to each unit, offering energy efficiency and flexibility. Why is refrigerant line insulation important? Insulating refrigerant lines helps to prevent heat gain or loss during refrigerant transport, improving the overall efficiency of the HVAC system. It also protects the system from freezing or overheating, ensuring optimal performance. What are refrigerant control devices, and why are they necessary? Refrigerant control devices, such as expansion valves and thermostatic controls, regulate the flow and pressure of refrigerant within the system. These devices ensure that the refrigerant is delivered to the evaporator at the correct rate, maximizing energy efficiency. What are the main safety concerns when handling refrigerants? Key safety concerns when handling refrigerants include proper handling, storage, and disposal practices to avoid exposure to harmful gases. Leak detection systems should be installed to prevent hazardous situations, and proper safety gear must be used during maintenance. How does pipe length affect refrigerant distribution? The length of the refrigerant pipe impacts pressure drop, refrigerant velocity, and system performance. Longer pipes can cause a greater pressure drop, which reduces efficiency, and may lead to higher energy consumption. Proper pipe sizing and routing are essential to minimize these effects. What is the role of oil return in refrigerant systems? Oil return ensures that lubricating oil, which circulates with the refrigerant, returns to the compressor. It helps prevent oil logging in the evaporator and other components, ensuring smooth system operation and preventing damage to the compressor. What are the emerging trends in refrigerant distribution systems? Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820

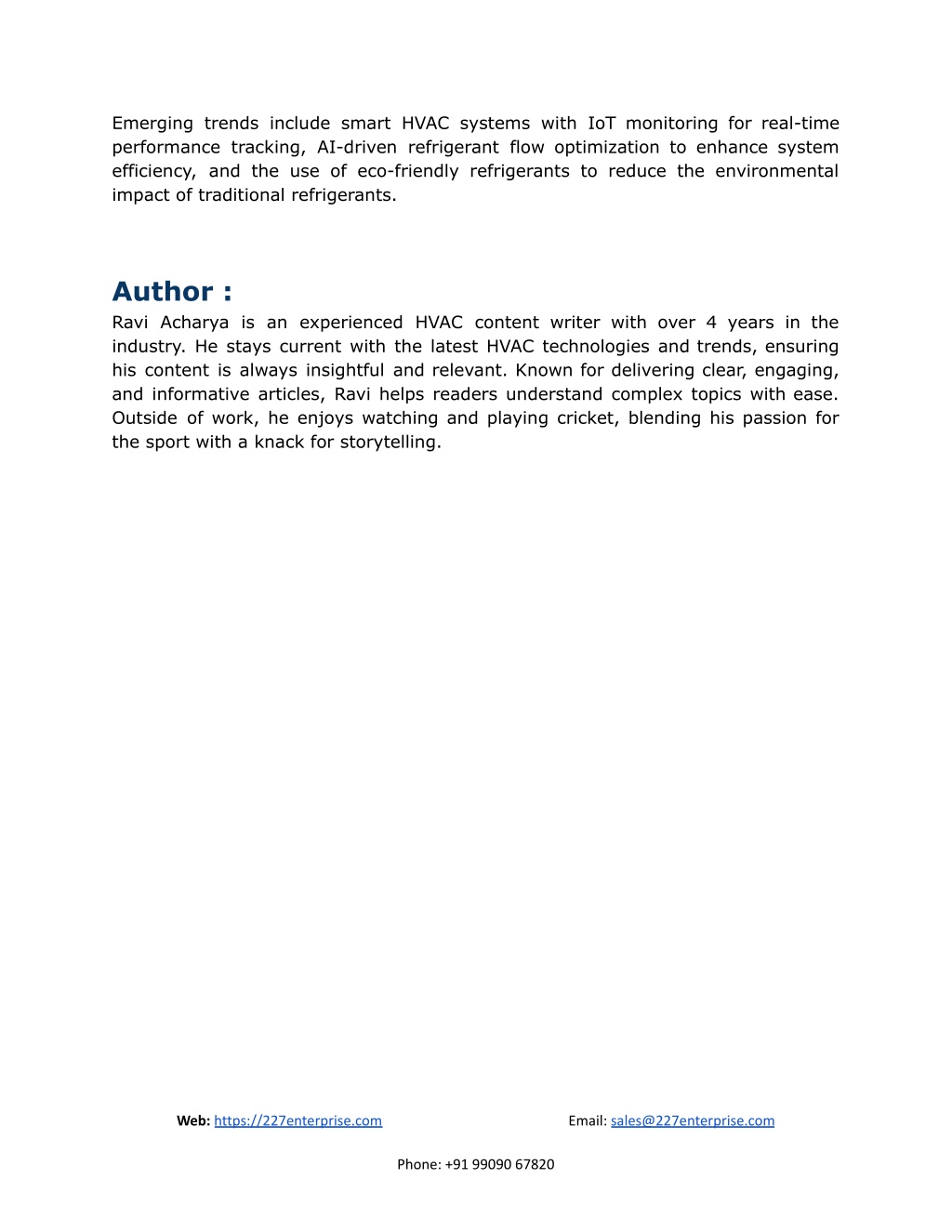

17. Emerging trends include smart HVAC systems with IoT monitoring for real-time performance tracking, AI-driven refrigerant flow optimization to enhance system efficiency, and the use of eco-friendly refrigerants to reduce the environmental impact of traditional refrigerants. Author : Ravi Acharya is an experienced HVAC content writer with over 4 years in the industry. He stays current with the latest HVAC technologies and trends, ensuring his content is always insightful and relevant. Known for delivering clear, engaging, and informative articles, Ravi helps readers understand complex topics with ease. Outside of work, he enjoys watching and playing cricket, blending his passion for the sport with a knack for storytelling. Web:https://227enterprise.com Email: sales@227enterprise.com Phone: +91 99090 67820
