  1. the Operating System (OS)

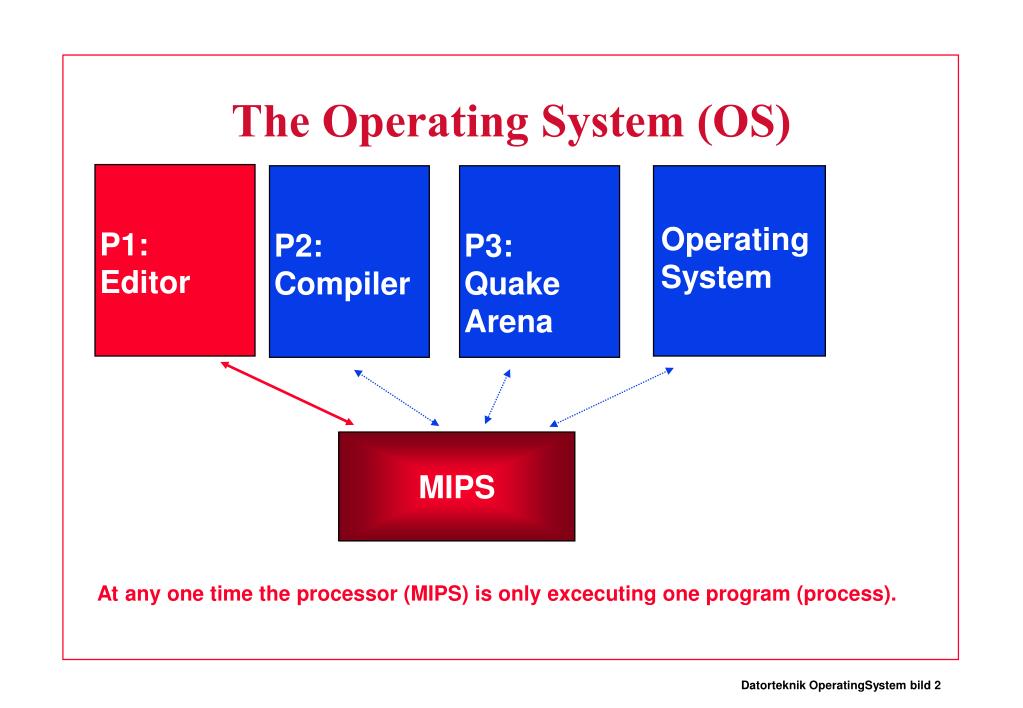

  2. The Operating System (OS) Operating System P1: Editor P2: Compiler P3: Quake Arena MIPS At any one time the processor (MIPS) is only excecuting one program (process).

  3. The Operating System (OS) Operating System P1: Editor P2: Compiler P3: Quake Arena MIPS At any one time the processor (MIPS) is only excecuting one program (process).

  4. The Operating System (OS) Operating System P1: Editor P2: Compiler P3: Quake Arena MIPS At any one time the processor (MIPS) is only excecuting one program (process).

  5. The Operating System (OS) Operating System P1: Editor P2: Compiler P3: Quake Arena MIPS At any one time the processor (MIPS) is only excecuting one program (process).

  6. The Operating System (OS) Operating System P1: Editor P2: Compiler P3: Quake Arena MIPS At any one time the processor (MIPS) is only excecuting one program (process).

  7. Our Assembler .text .data User .kdata .ktext Kernel

  8. The Hardware .text .data User ERROR! OK .kdata .ktext Kernel

  9. How does the User program pass control to the Operating System? • Take control on ERROR • Pass control explicitly

  10. ERROR • Ex, Arithmetical Overflow li $4 0x80000000 neg $4 $4 (sub $4 $0 $4) 0x00000000 - 0x80000000 0x80000000 Sign differs Same Sign ! ERROR

  11. Signed/Unsigned Arithmetics • The only difference is that • Unsigned never causes ERROR • Signed causes ERROR on Overflow etc. Signed ADD SUB ADDI .. Unsigned ADDU SUBU ADDIU ..

  12. Memory Error • Instruction Memory = Bad PC • Data Alignment Error • Access Protected Memory from User mode • Nonexistent Memory • (Page fault Chapter 7)

  13. Do not confuse ! • A Memory that tells the pipeline to Wait • relate to “cache miss” • A Memory Error or Page Fault • relate to “TLB miss”

  14. The Consequence • A Memory that tells the pipeline to Wait • Pipeline Stall • A Memory Error or Page Fault • Exception

  15. Pass Control Explicitly • The User wants some service from the Operating System • File I/O • Graphics • Sound • Allocate Memory • Terminate Program (no HALT instruction in real MIPS) • SYSCALL (causes an exception)

  16. How to choose service: • Is there different SYSCALLs? • NO! Only one, use a register ($a0) to choose • Use other registers ($a1,...) as parameters • Use $v0 for result ori $a1 $r0 ‘A’ ; Char ‘A’ ori $a0 $r0 0x00 ; Write Char syscall ori $a0 $r0 0x01 ; Read Char syscall or $a1 $r0 $v0 ; Move result $v0->$a1 ori $a0 $r0 0x00 ; Echo Char syscall

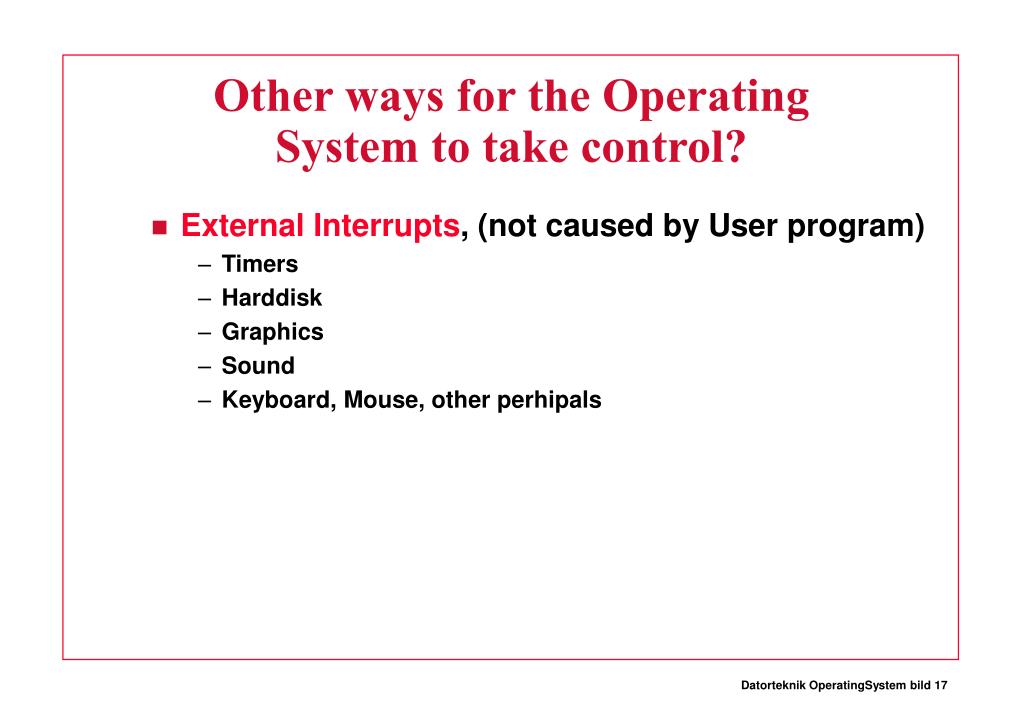

  17. Other ways for the Operating System to take control? • External Interrupts, (not caused by User program) • Timers • Harddisk • Graphics • Sound • Keyboard, Mouse, other perhipals

  18. Coprocessor CP0 • 8 Bad Memory Address • 12 Status Register • 13 Cause Register • 14 Exception Address (EPC)

  19. Status Register CP0 ($12) • “Mode Stack” • External Interrupt enable/disable

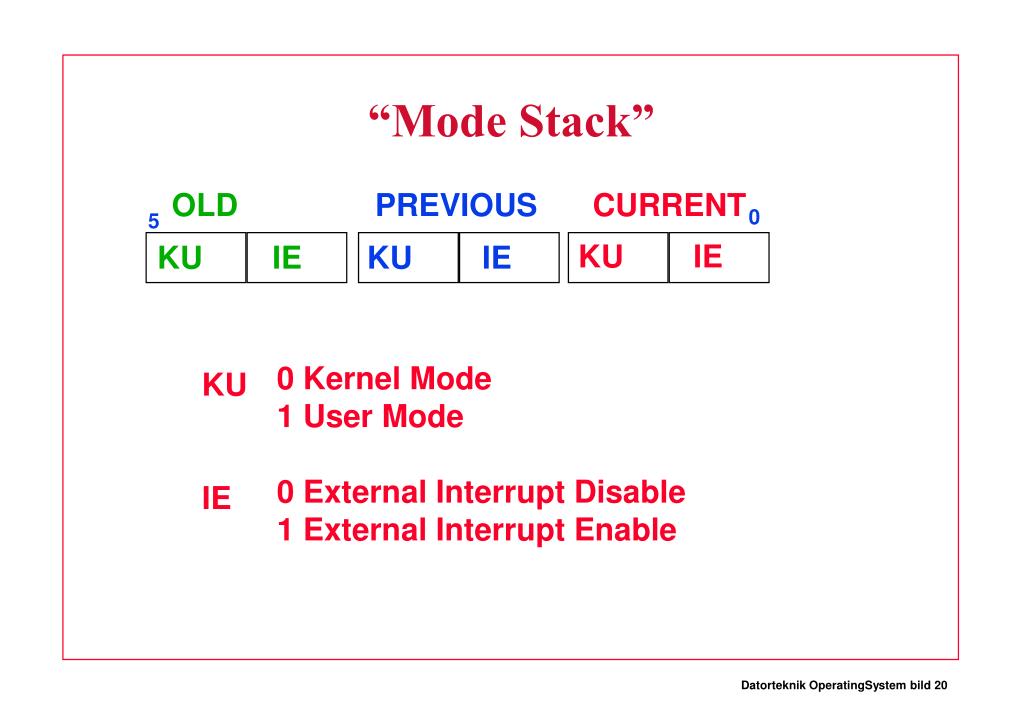

  20. “Mode Stack” OLD PREVIOUS CURRENT 0 5 KU IE KU IE KU IE 0 Kernel Mode 1 User Mode 0 External Interrupt Disable 1 External Interrupt Enable KU IE

  21. Exception / Interrupt Occurs OLD PREVIOUS CURRENT KU IE KU IE KU IE KU IE KU IE 0 0 0 Kernel Mode 1 User Mode 0 External Interrupt Disable 1 External Interrupt Enable KU IE

  22. RFE Instruction (priviliged) OLD PREVIOUS CURRENT KU IE KU IE KU IE ? ? KU IE KU IE We restore the PREVIOUS (KU,IE) into CURRENT

  23. External Interrupts • Bit 0, (Current Interrupt Enable) • All External Interrupts Enable/ Disable • Bit 15..10, (individual interrupt enable) 15 10 0 Current IE INT 5 INT 4 INT 3 INT 2 INT 1 INT 0 ............

  24. Enable External Interrupt 2 • Bit 0 = 1, (External Interrupt Enabled) • Bit 12 = 1, Interrupt 2 Enabled 15 10 0 INT 5 INT 4 INT 3 INT 2 INT 1 INT 0 Current IE = 1 0 0 0 1 0 0 ............

  25. Cause Register (CP0 $13) • Bit 5..2, Exception Cause Code • Bit 15..10, Interrupt Pending • Bit 31, Exception Occur In Branch Slot 31 15 10 5 2 BS INT 5 INT 4 INT 3 INT 2 INT 1 INT 0 Ex 3 Ex 2 Ex 1 Ex 0 .... .... ... Pending Interrupts Exception Cause Code see LSI Logic User’s Manual

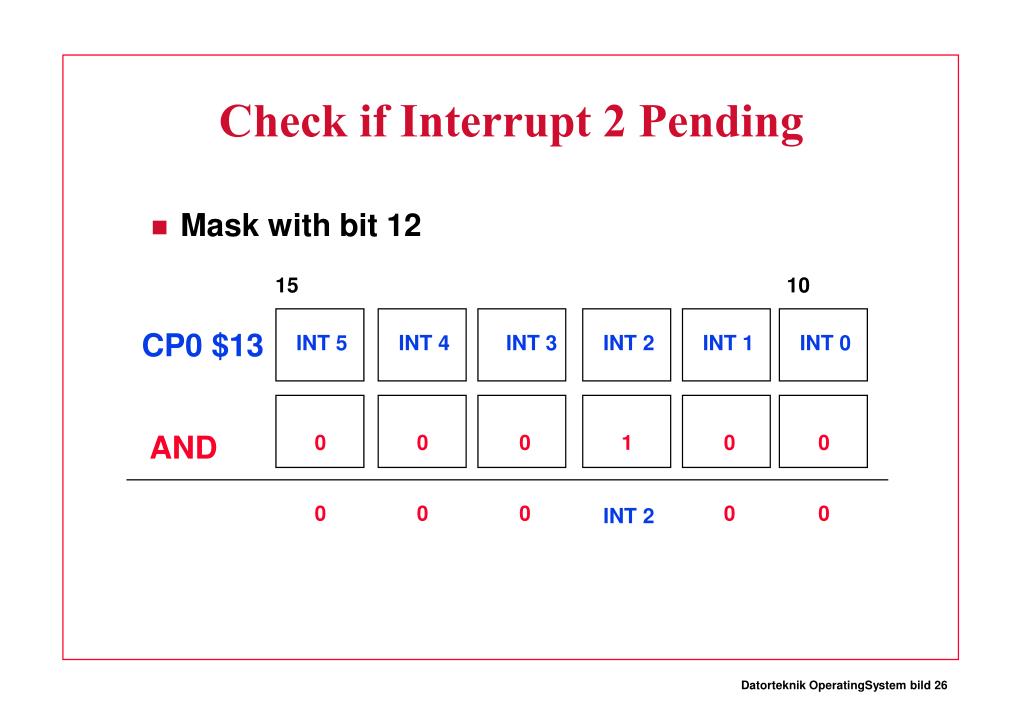

  26. Check if Interrupt 2 Pending • Mask with bit 12 15 10 CP0 $13 INT 5 INT 4 INT 3 INT 2 INT 1 INT 0 AND 0 0 0 1 0 0 0 0 0 0 0 INT 2

  27. Resume User Program CP0 $14 Holds the Exception Address (Addr to instruction in EX stage) mfc0 $k0 $14 ; resume address jr $k0 ; $k0 kernel reg rfe ; “delayed branch”

  28. Shared “Stack” Assume that the User program uses the stack: Can the Kernel use the same stack ($sp)? Yes, but remember never to use memory below $sp, it will be destroyed (overwritten)!! $sp Kernel Data Kernel Data User Data $sp User Data User Data User Data
