  1. DATE:12/6/05 監測格網 水情影像監視系統 簡介及操作說明

  2. 格網技術於環境相關之應用 洪水預報 野外監測 故障回報 災害預測 救援調度 生態研究 農業研究 客制化 應用服務 帳號管理 GIS 群組溝通 影像辨識 P2P Steam 遠距控制 資料保護 Job Submit 協定/流程定訂 Resource Allocation Real-Time Data Sharing Computing Grid Data Grid Sensor Net AccessGRID Grid Middleware/中介軟體 Infrastructure Super computing Storage Center Network Backbone Sensor

  3. 即時資料分享架構 User User User User Bottle Neck Middleware NCHC 512kbps Source Source Source Source

  4. 即時資料分享-(點對點)P2P User User User User User User User User NCHC Middleware Middleware Network Loading Source Source Source Source

  5. (點對點)Peer-to-Peer • 它可以是個軟體程式，同時擁有網路上客 戶端(client)和伺服端(server)的雙重能力

  6. Sensor net的應用 User Clients Data Source

  7. Performance-One connection5.07 fps

  8. Performance3 connections, 1.73fps (without our middleware)

  9. Performance4 connections, 5 fps (with middleware)

  10. 監測資料收集架構 河川局 河川局 河川局 防災中心 目前架構 預報,決策,etc Web service FTP, Web service … 多工 modem,GPRS傳輸 各地水文與氣像監測器

  11. 監測資料收集架構 河川局 河川局 河川局 防災中心 備援機制 預報,決策,etc Web service NCHC 其他 FTP, Web service … 多工 modem,GPRS傳輸 各地水文與氣像監測器

  12. 遠端與自動化控制架構 應用程式/專業知識/資料分析 遠端操控 資料庫 設備維護 Internet Middleware RS232/RS485,MBusTCP Internet 鏡頭 燈光 雨刷 監測器 其他數位設備

  13. GIS 圖層套疊

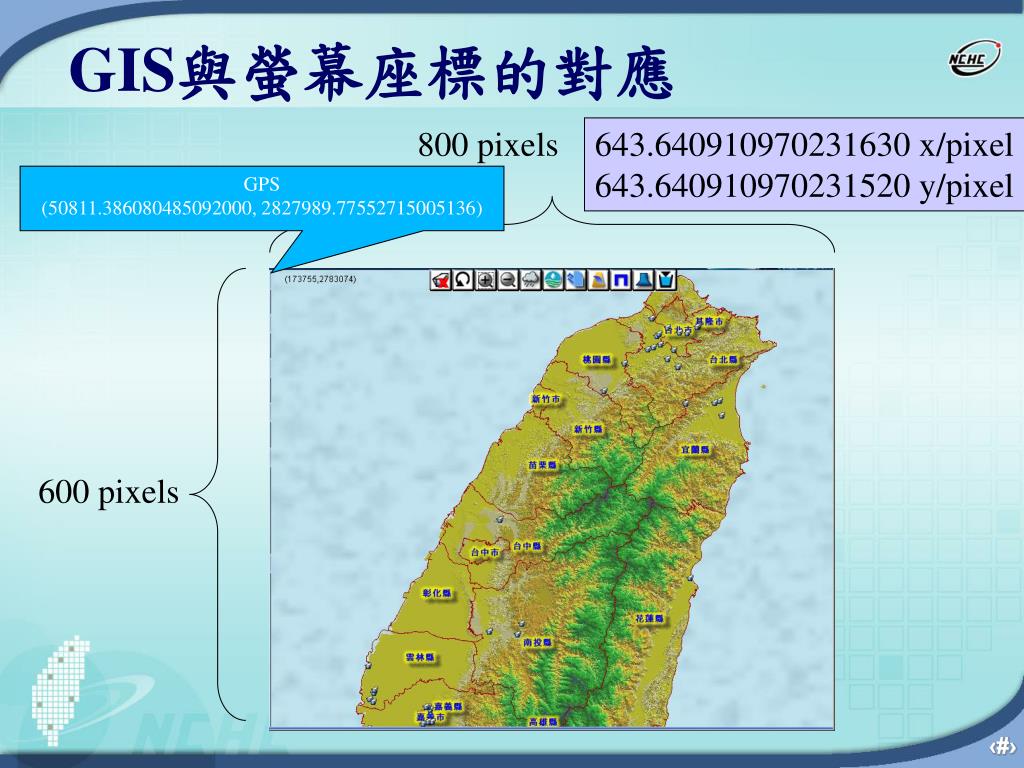

  14. GIS與螢幕座標的對應 800 pixels 643.640910970231630 x/pixel 643.640910970231520 y/pixel GPS (50811.386080485092000, 2827989.77552715005136) 600 pixels

  15. GIS與螢幕座標的對應 643.640910970231630 x/pixel 643.640910970231520 y/pixel 343 pixels 127 pixels 石門水庫 GPS(271788,2746499) 螢幕(343,127)

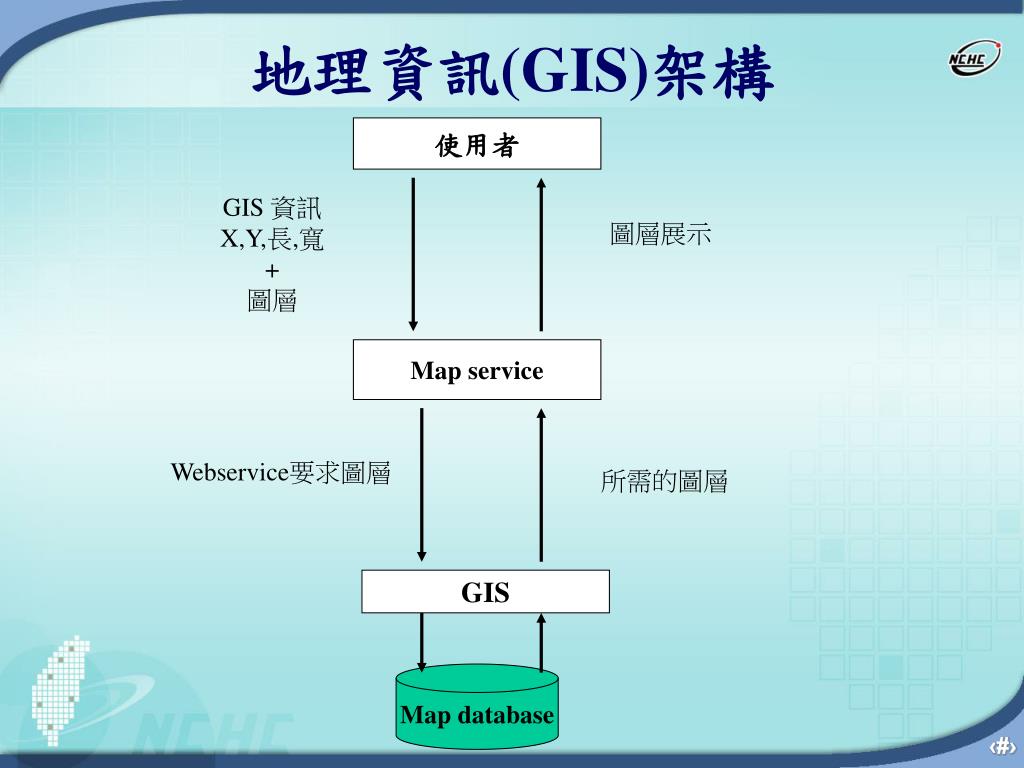

  16. 地理資訊(GIS)架構 使用者 GIS 資訊 X,Y,長,寬 + 圖層 圖層展示 Map service Webservice要求圖層 所需的圖層 GIS Map database

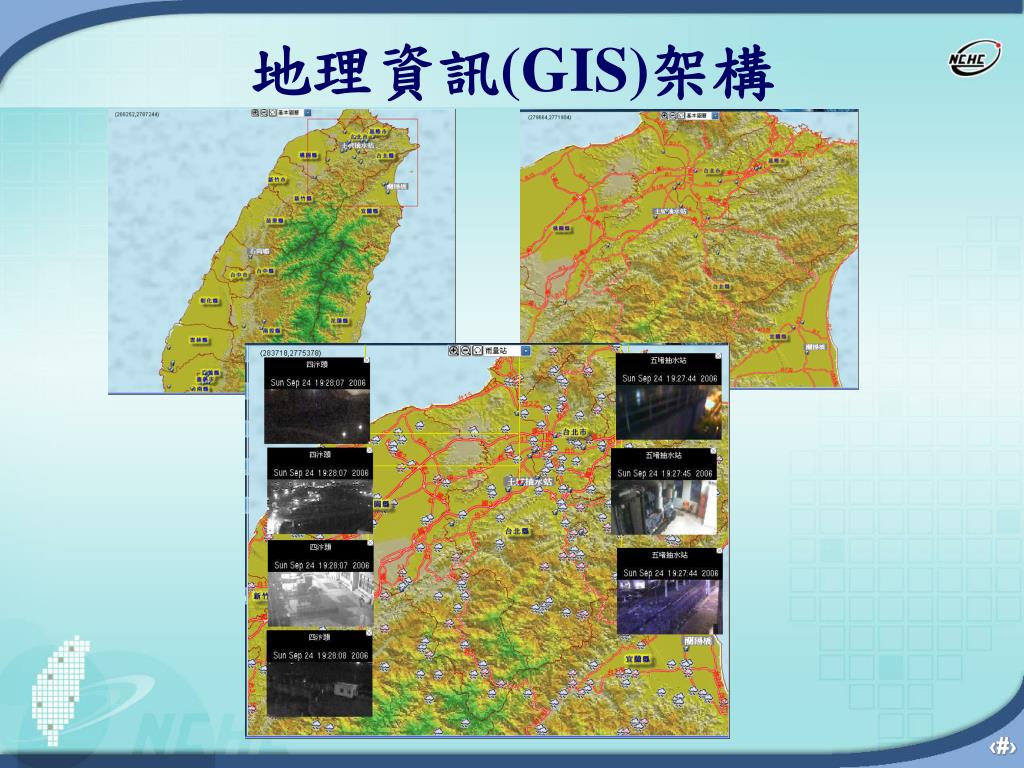

  17. 地理資訊(GIS)架構

  18. 即時水情新增功能demo GIS操作 畫面異常 網路異常

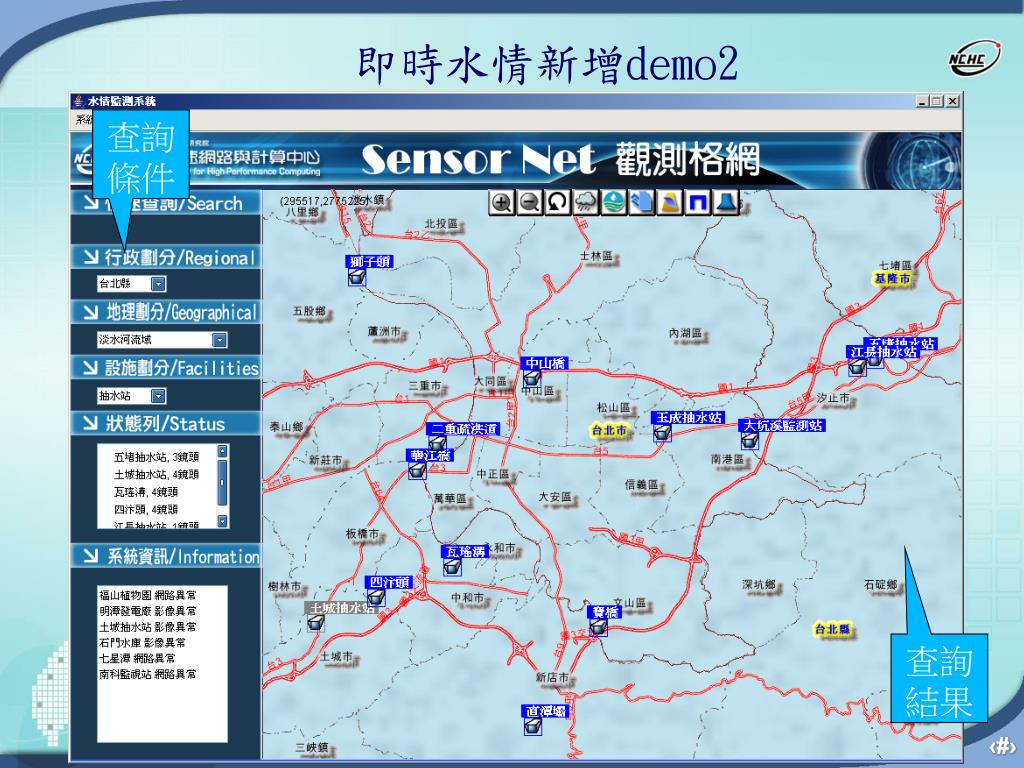

  19. 即時水情新增demo2 查詢條件 查詢結果

  20. 即時水情新增功能demo3

  21. 即時水情新增功能demo4

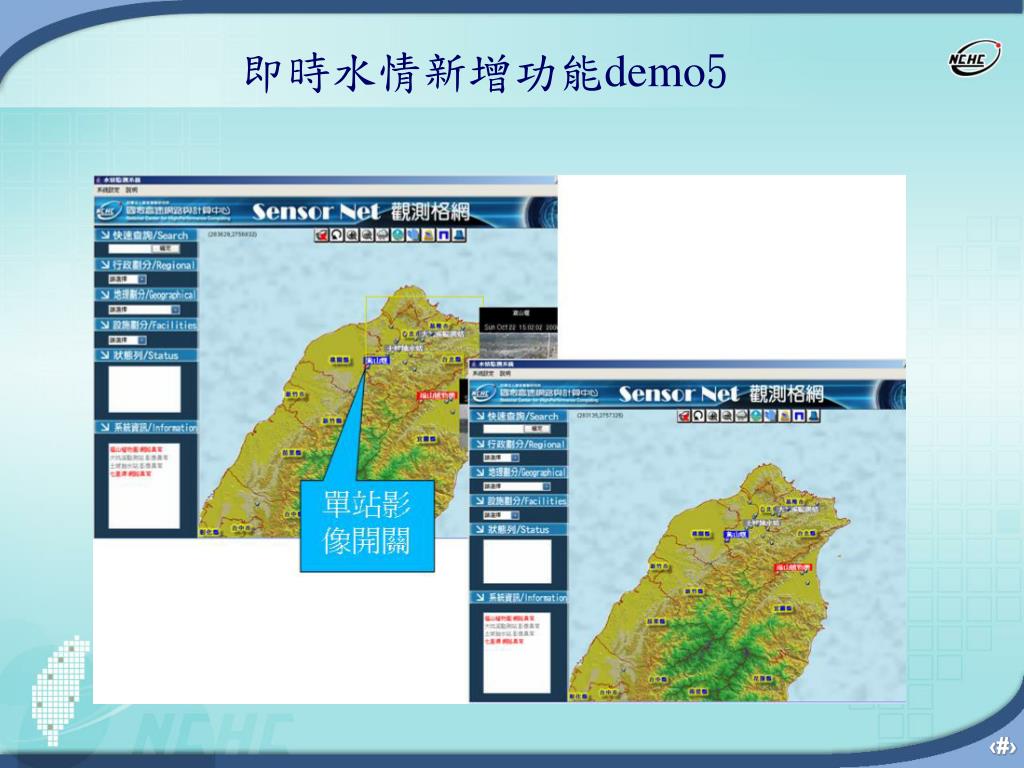

  22. 即時水情新增功能demo5

  23. 即時水情新增功能demo6-多站同時開啟

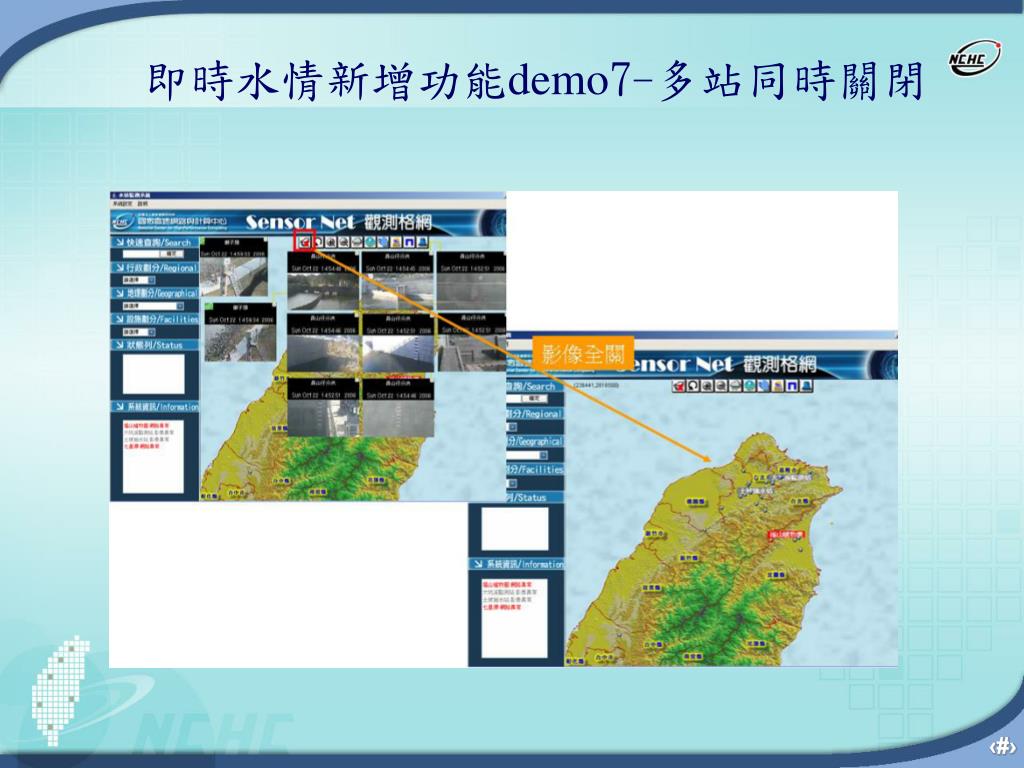

  24. 即時水情新增功能demo7-多站同時關閉

  25. 網路與影像異常之系統偵測畫面

  26. 水位站與水位數值展示

  27. 水位站與水位數值展示
