Pesticides in Danish streams and lakes: Concentrations, loss and ecological effects

Pesticides in Danish streams and lakes: Concentrations, loss and ecological effects. Brian Kronvang, NERI BKR@DMU.DK. Introduction. 2.841.000 kg active ingredients was applied in Danish agriculture during the year 2000

ranger
Download Presentation

Pesticides in Danish streams and lakes: Concentrations, loss and ecological effects

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Pesticides in Danish streams and lakes: Concentrations, loss and ecological effects Brian Kronvang, NERI BKR@DMU.DK

  2. Introduction • 2.841.000 kg active ingredients was applied in Danish agriculture during the year 2000 • Following spraying pesticides can reach surface water due to wind drift, leaching, runoff and bad handling • Our knowledge about the presence of pesticides in surface waters have been very limited

  3. Pesticide pathways to streams

  4. NOVA-2003 • Analysed for 68 pesticides i 5 larger streams and 48 pesticides i 25 small streams in agricultural catchments during 2000 og 2001 • In total measured 43 pesticides and metabolites above the detection limit • Detection limit normally 0.001 ug/l

  5. Pesticide detection frequencies and maximum concentrations measured in streams in the Danish Aquatic Monitoring Programme 2000

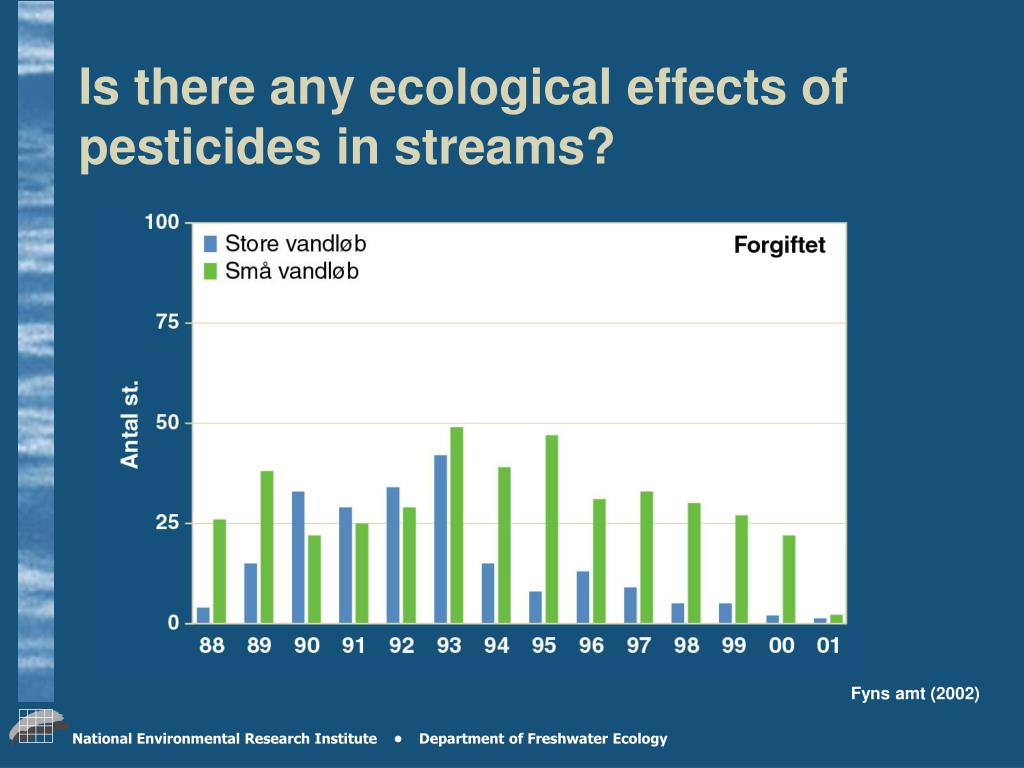

  6. Is there any ecological effects of pesticides in streams? Fyns amt (2002)

  7. Lakes and ponds

  8. NOVA-2003 • Measured for 48 pesticides in 8 lakes in 2001 • In total measured 42 pesticides or metabolites • Maximum concentration was 0,22 µg/l (diuron) • Maximum median concentration was 0,03 µg/l

  9. Maximum concentrations in NOVA streams and lakes

  10. Concentrations of pesticides in 69 lakes and 47 ponds sampled in regional programs

  11. Intensive study in 2 catchments

  12. Study catchments

  13. Lillebæk (culverted sub-catchment) Water 104 Suspended sediment 8 Streambed sediment 6 Lillebæk (entire catchment) Water 96 Suspended sediment 8 Streambed sediment 6 Odderbæk Water 68 Suspended sediment 10 Streambed sediment 6 Number of samples taken in the two catchments during 1999-2001

  14. Pesticides in Stream Water

  15. Pesticides in Suspended Sediment

  16. Applied amount of pesticides in the 3 catchments and the detection frequency and concentration levels in streams

  17. Terbuthylazine in Lillebæk, Funen

  18. Pesticide application, loss and loss ratios18 different pesticides during 2000 ____________________________________________________ Applied Loss Loss ratio (kg a.i.) (gram) (%) ____________________________________________________ Odderbæk 634.32 9.75 0.00154 Lillebæk 119.45 12.51 0.0105 (culverted sub-catchment) Lillebæk 66.29 5.30 0.00800 (Open sub-catchment ____________________________________________________

  19. Transport/applications

  20. Loss

  21. Breakthrough curve for the Herbicide Bentazone

  22. Breakthrough curve for the Insecticide Dimethoate

  23. Possible Ecological Effects

  24. Gammarus survival • Caves installed 10 m upstream, at the tile drain outlet and 10 m downstream • 6 caves each with 10 Gammarus • The experiment prevailed for 8 hours only • Mortality and inactivity

  25. Effects – Drain experiment

  26. Conclusions • Under “normal” conditions the concentration of pesticides are generally low in Danish streams and lakes • During storm events short lived high and ecological critical concentrations can occur • The highest concentrations are detected in small streams and ponds • Effects have been documented on the macroinvertebrate Gammarus pulex during an experiment
